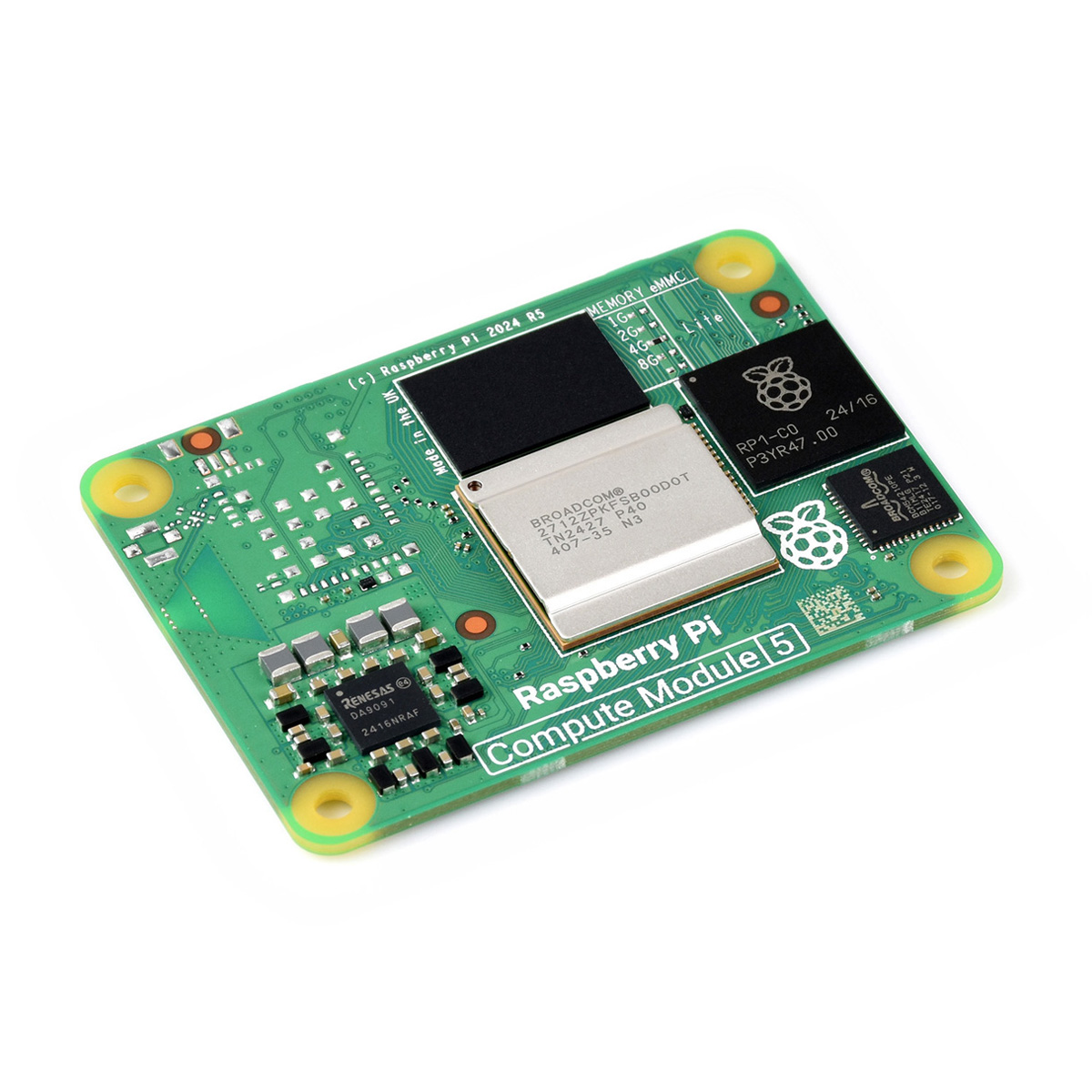

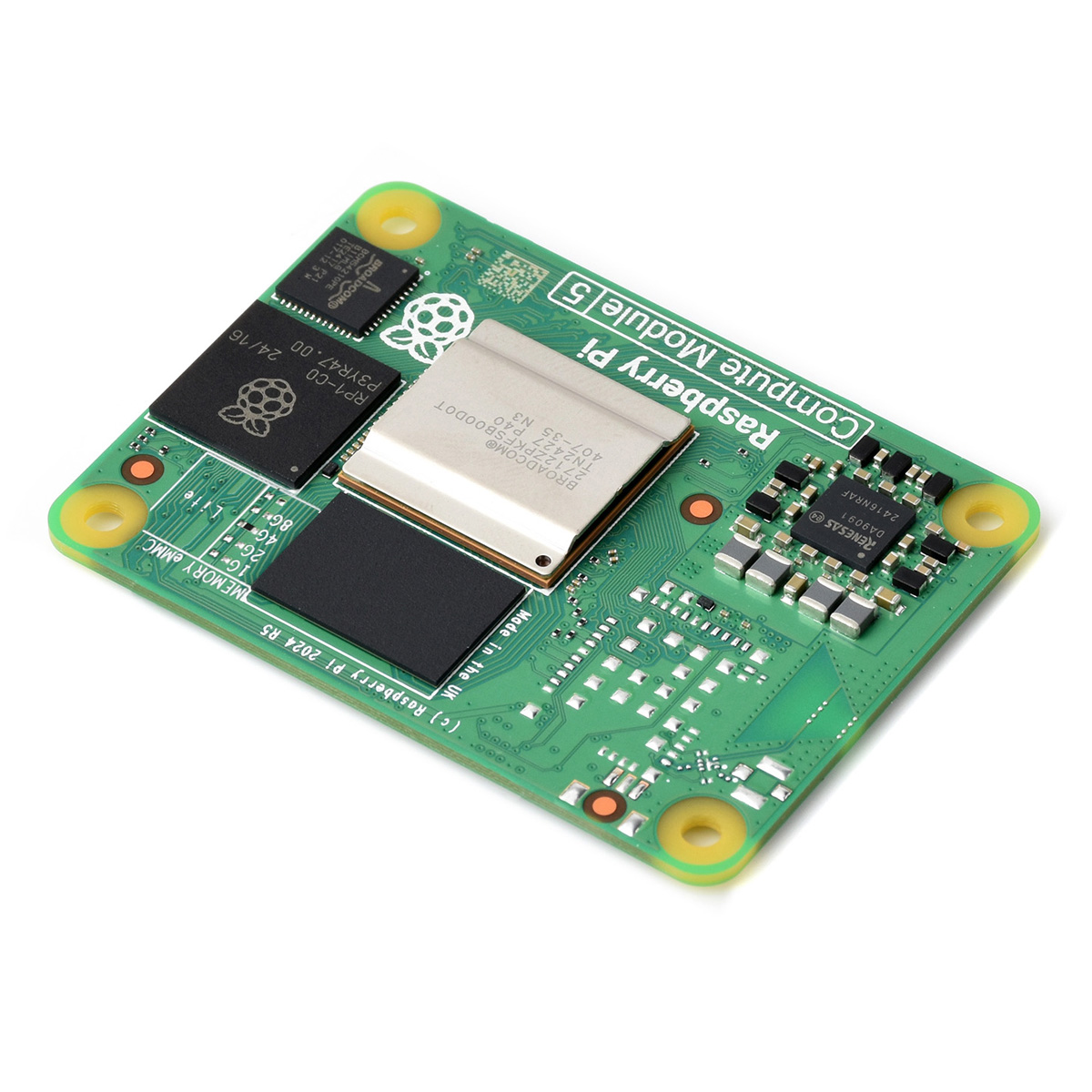

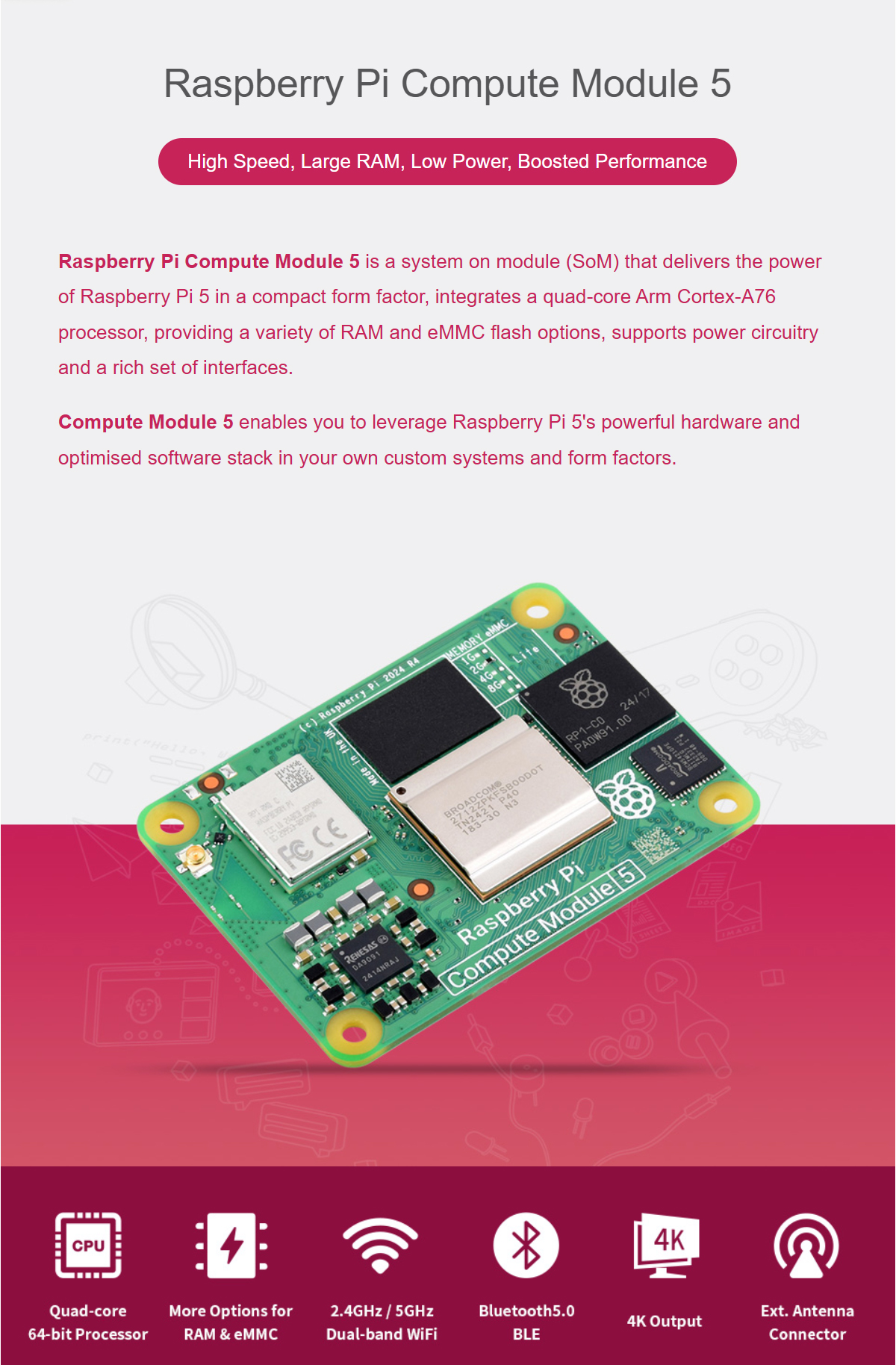

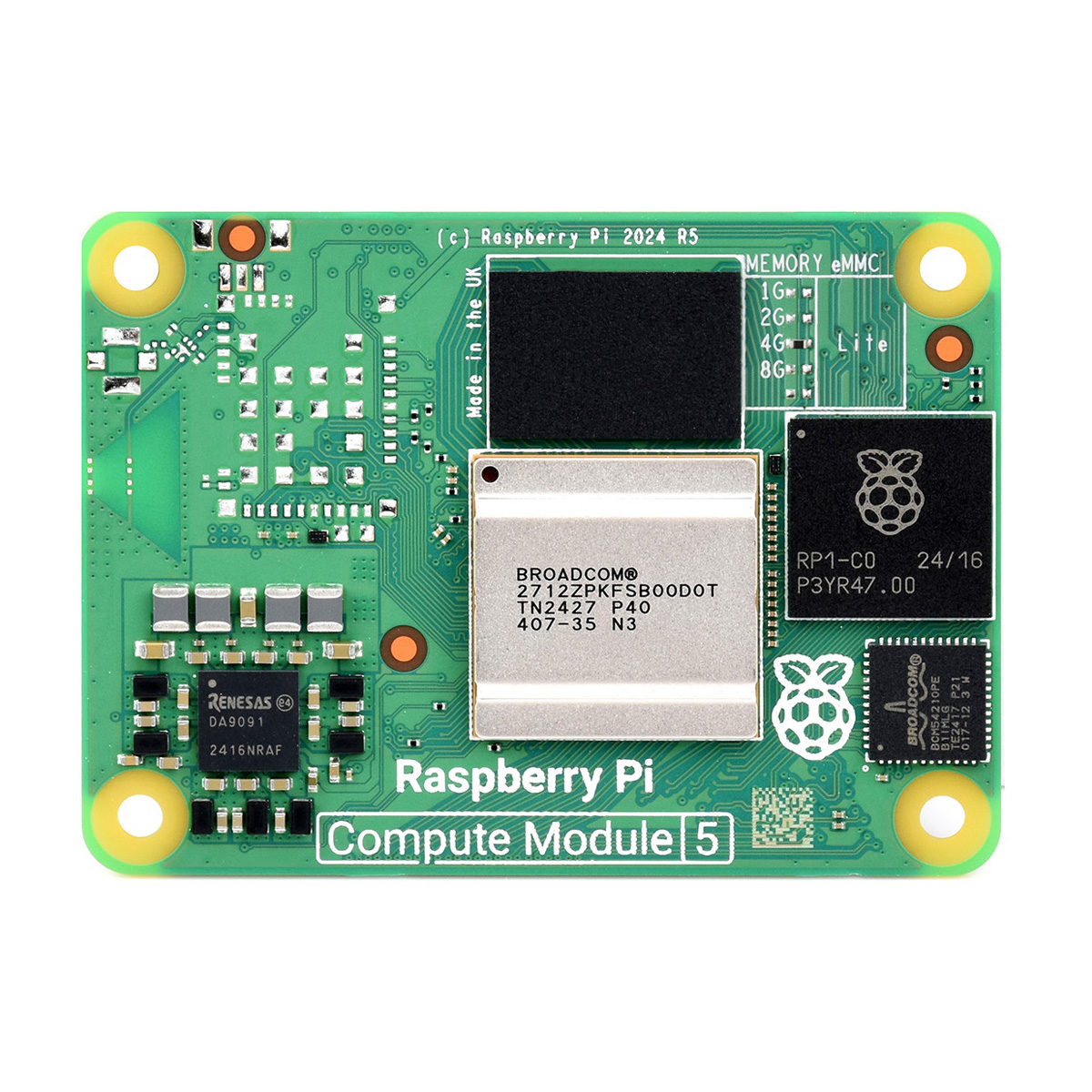

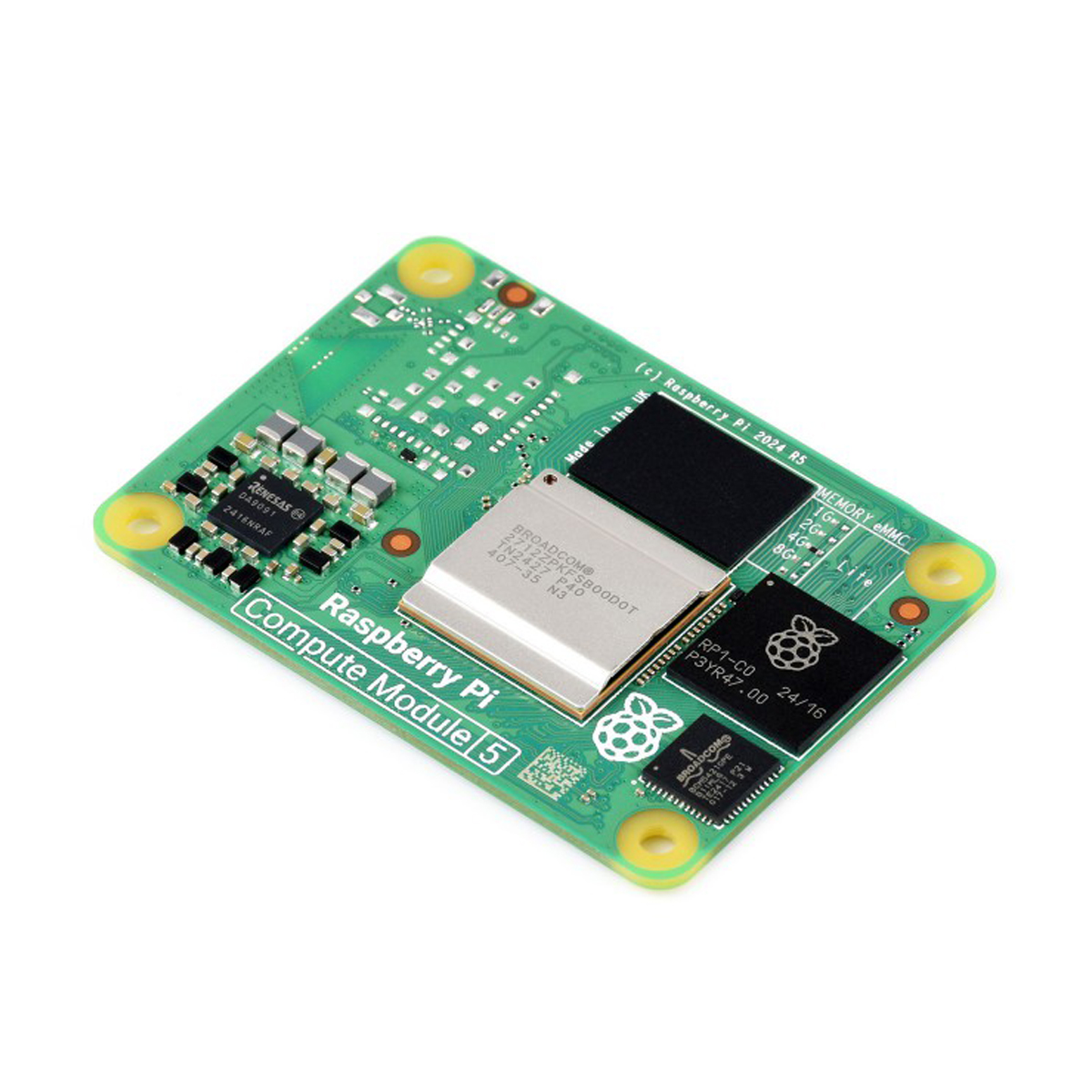

Raspberry Pi Compute Module 5 CM5002000 Quad Core 64-bit Processor 2GB RAM Without Wireless eMMC Flash
Raspberry Pi Compute Module 5 CM5002000 Quad Core 64-bit Processor 2GB RAM Without Wireless eMMC Flash

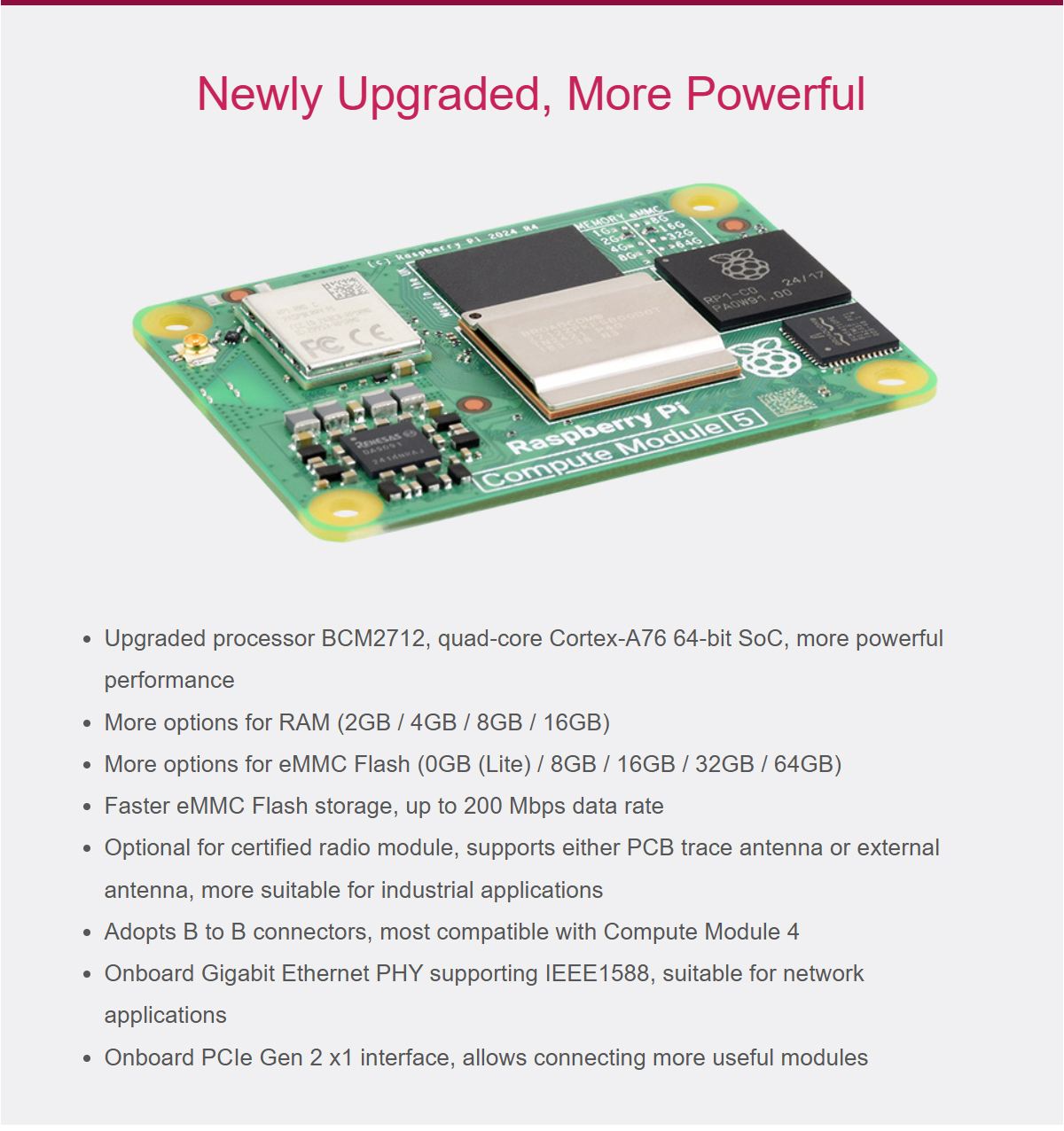

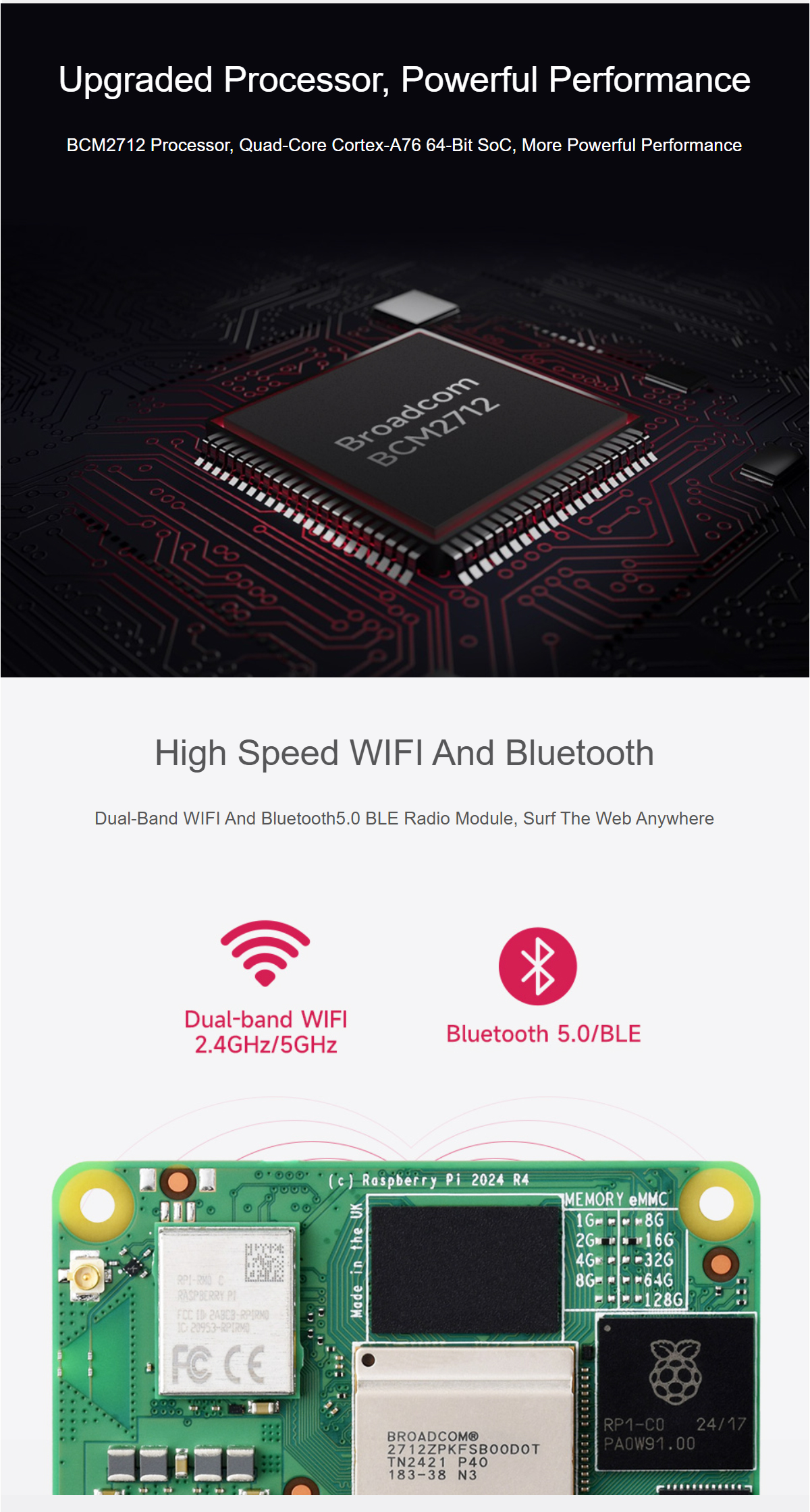

Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
More options for RAM (2GB / 4GB / 8GB / 16GB)
More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
Faster eMMC Flash storage, up to 200 Mbps data rate

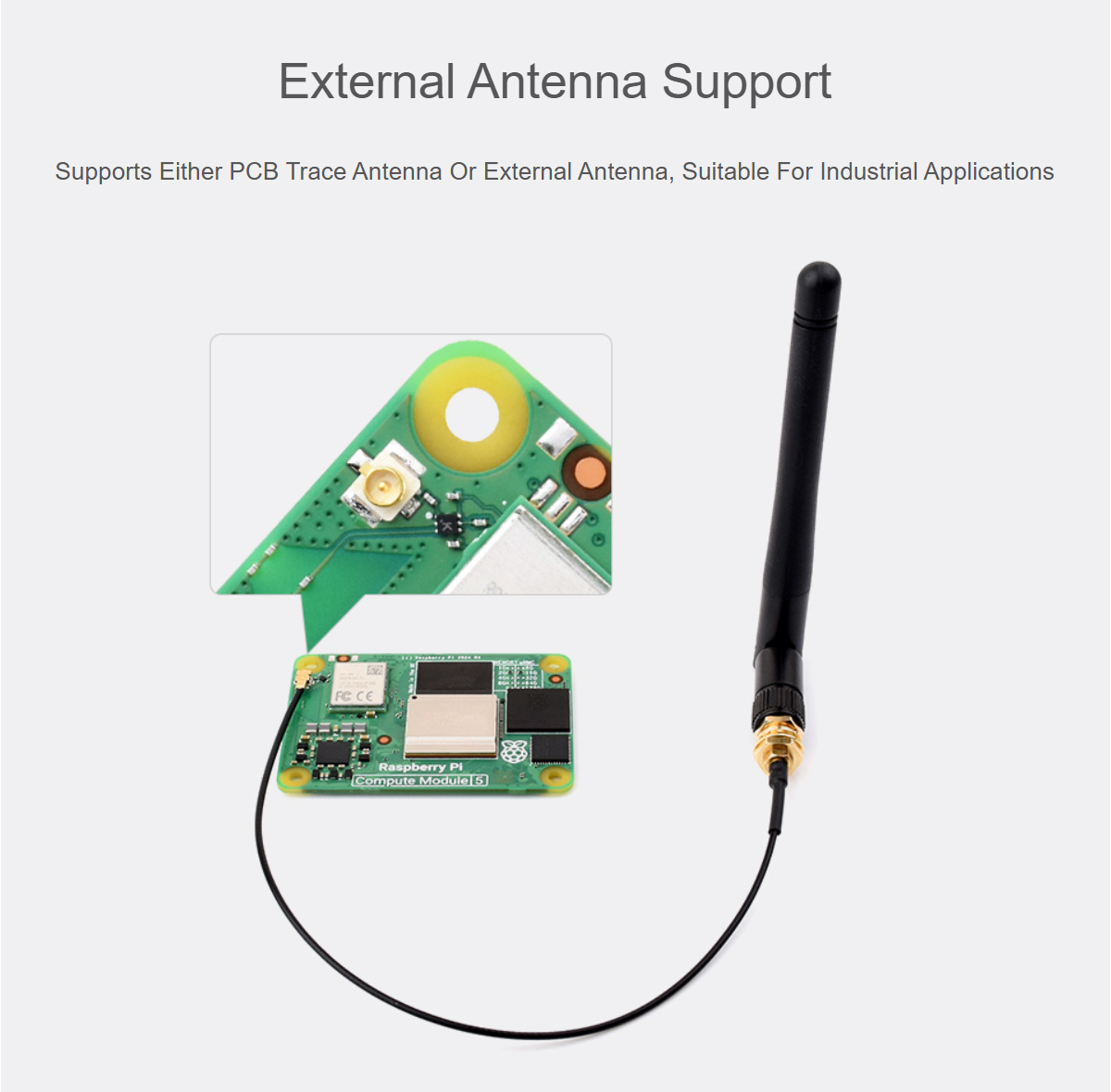

Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications

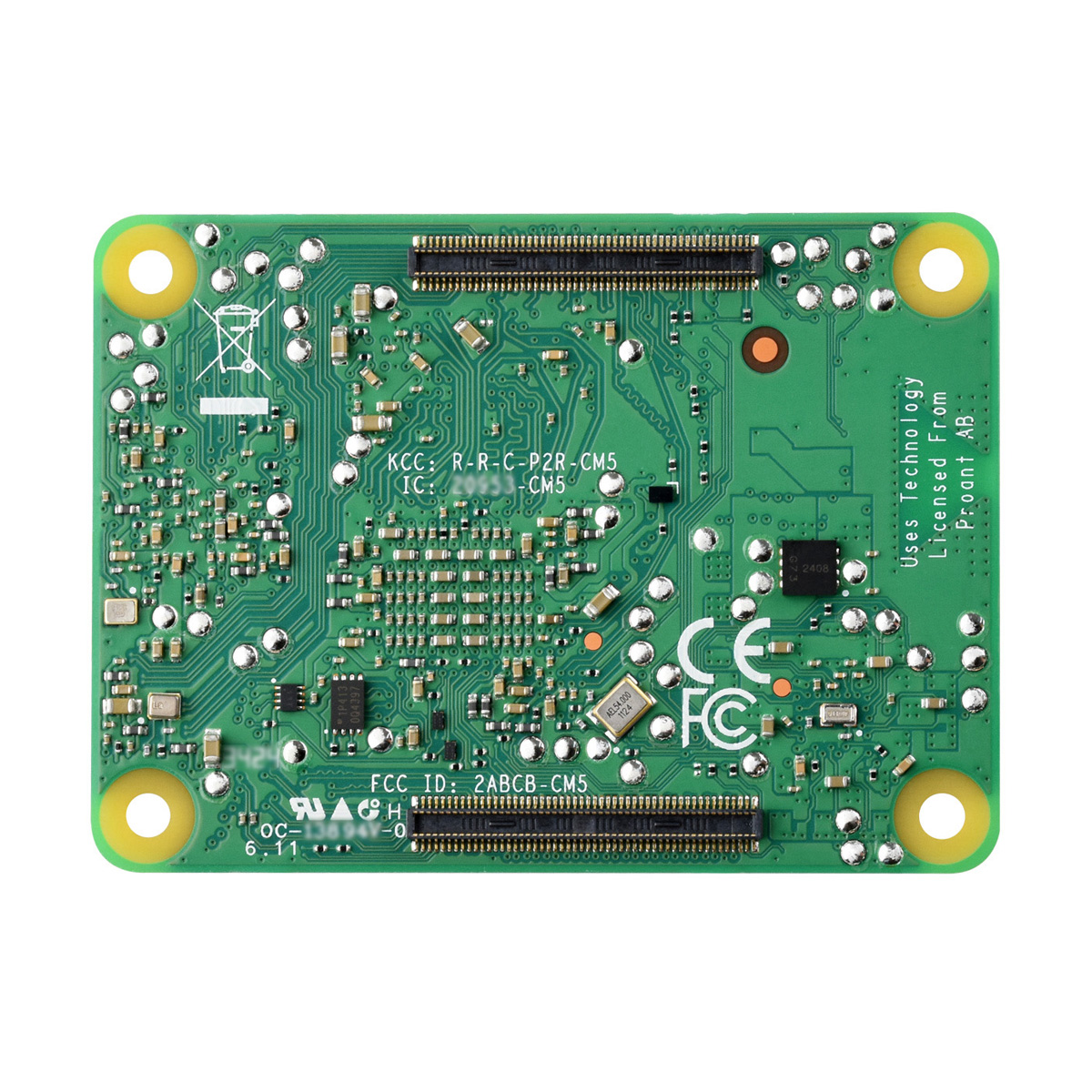

Adopts B to B connectors, most compatible with Compute Module 4
Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules
Model: CM5002000
SKU:31143
Weight: 16g

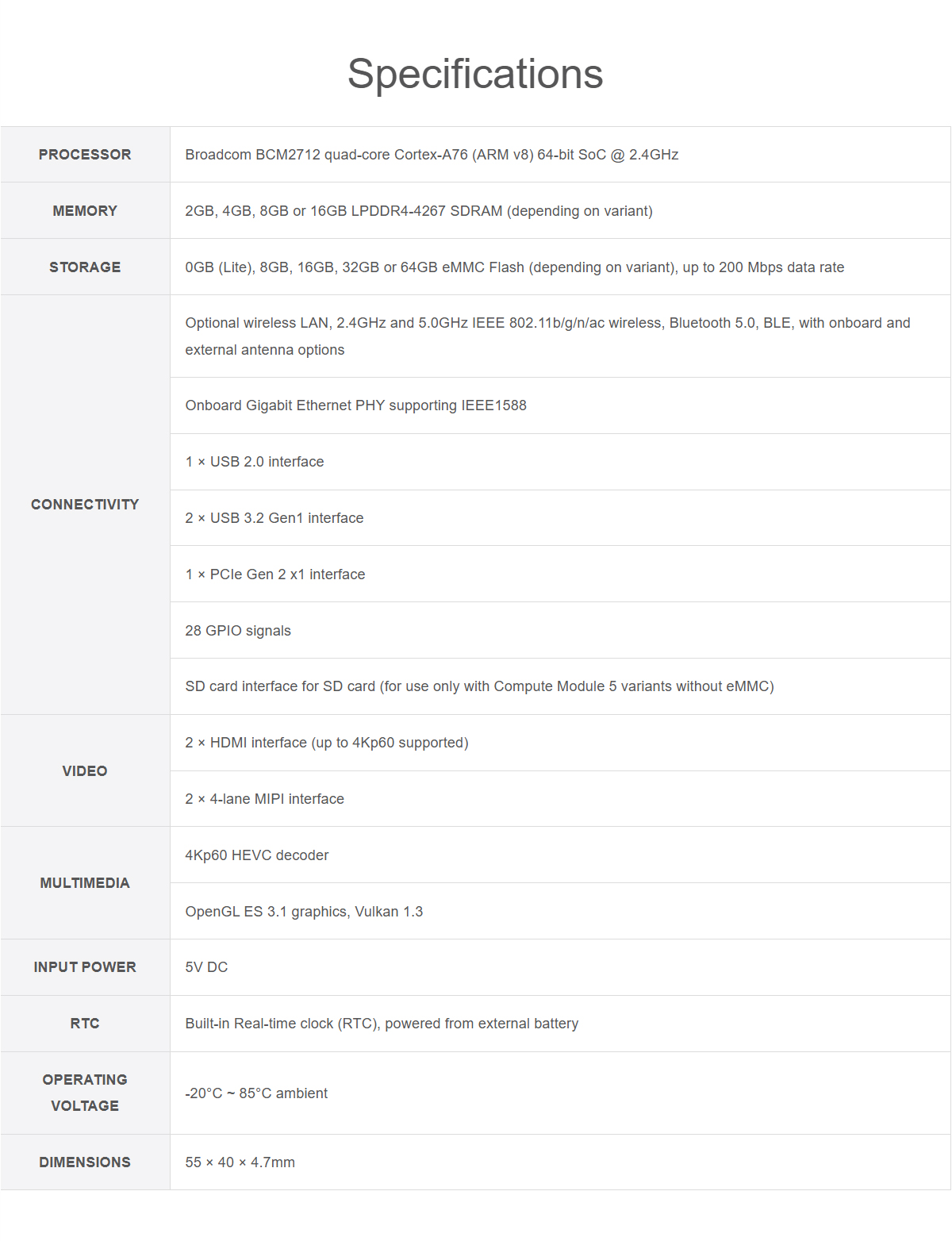

Processor: Broadcom BCM2712 quad-core Cortex-A76 (ARM v8) 64-bit SoC @ 2.4GHz
Memory: 2GB, 4GB, 8GB or 16GB LPDDR4-4267 SDRAM (depending on variant)
Storage: 0GB (Lite), 8GB, 16GB, 32GB or 64GB eMMC Flash (depending on variant), up to 200 Mbps data rate
Connectivity:
Optional Wireless LAN, 2.4GHz And 5.0GHz IEEE 802.11b/g/n/ac Wireless,BLE, With Onboard And External Antenna Options
Onboard Gigabit Ethernet PHY supporting IEEE1588
1 × USB 2.0 interface
2 × USB 3.2 Gen1 interface
1 × PCIe Gen 2 x1 interface
28 GPIO signals
SD card interface for SD card (for use only with Compute Module 5 variants without eMMC)
Video: 2 × HDMI interface (up to 4Kp60 supported);2 × 4-lane MIPI interface
Multimedia: 4Kp60 HEVC decoder;OpenGL ES 3.1 graphics, Vulkan 1.3
Input Power: 5V DC
RTC: Built-in Real-time clock (RTC), powered from external battery
Operating Temperature: -20°C ~ 85°C ambient
Dimensions: 55 × 40 × 4.7mm
Compute Module 5 x1
