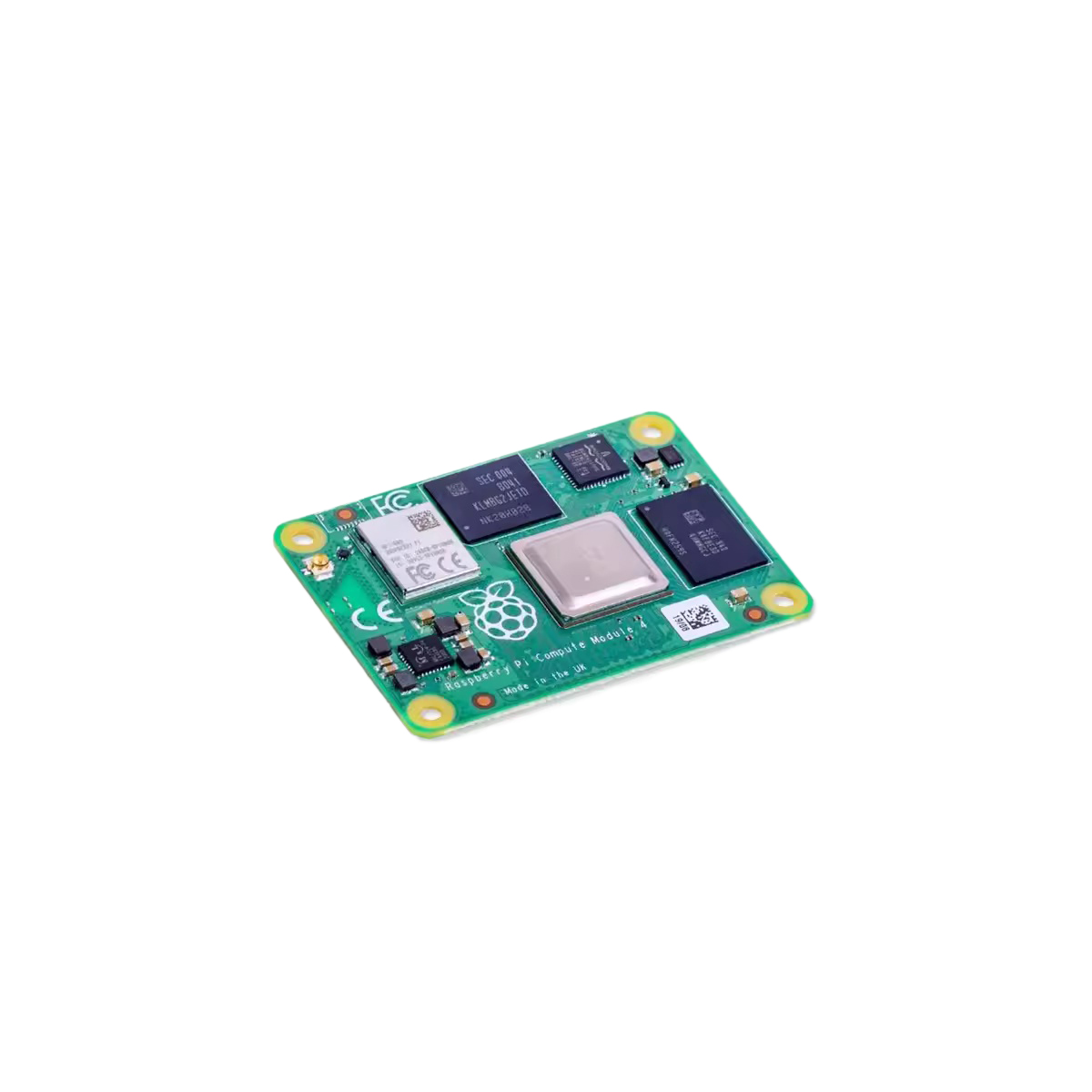

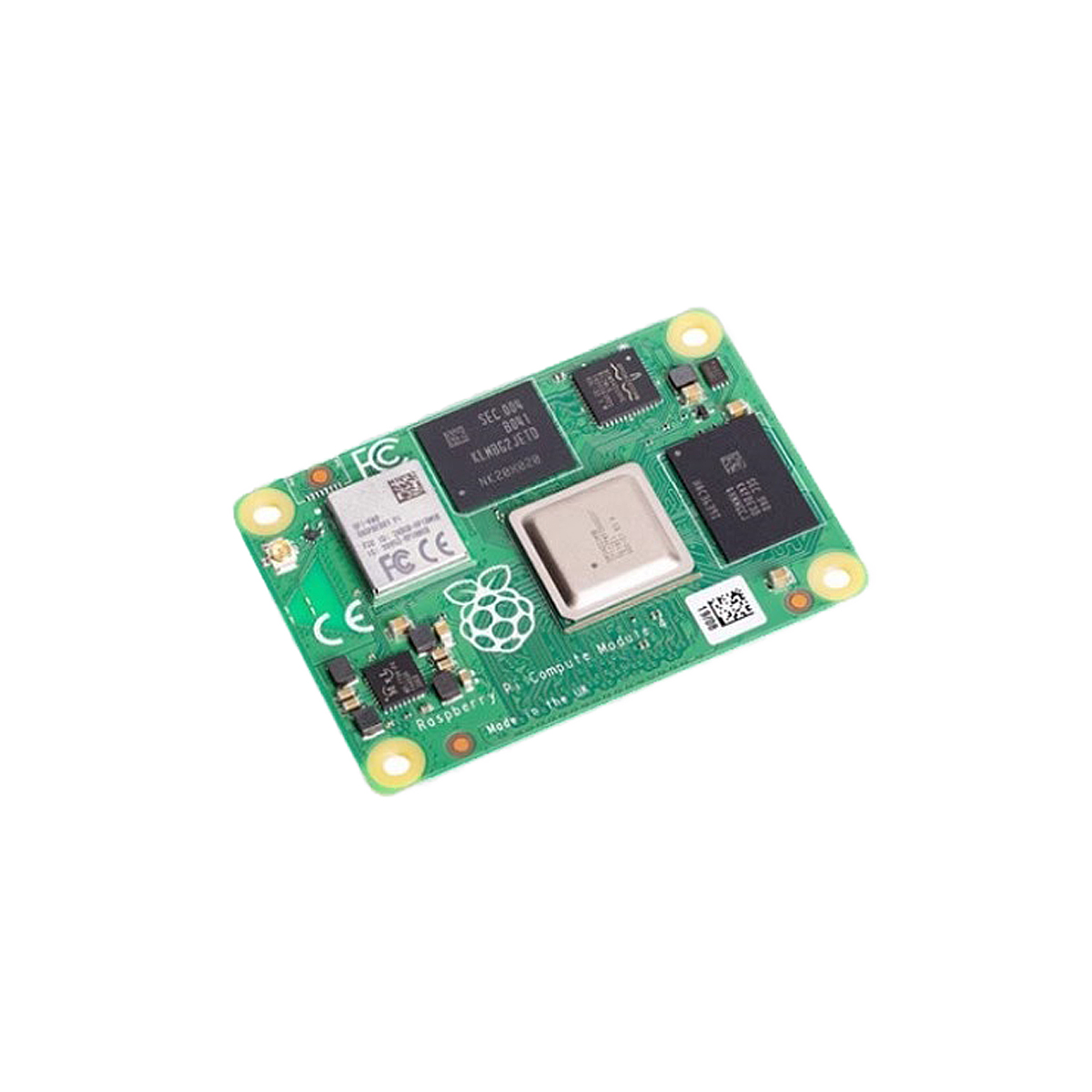

Raspberry Pi Compute Module4 CM4108032 Broadcom BCM2711 8GB RAM 32GB eMMC With Wifi
The CPU is upgraded to BCM2711, a quad-core Cortex A72 64-bit processor, delivering more powerful performance.
Offers more memory options (1GB/2GB/4GB/8GB), suitable for large-scale data compilation.
Features higher-speed eMMC flash memory with a transmission rate of up to 100 MBytes/s, 4 times faster than CM3+.

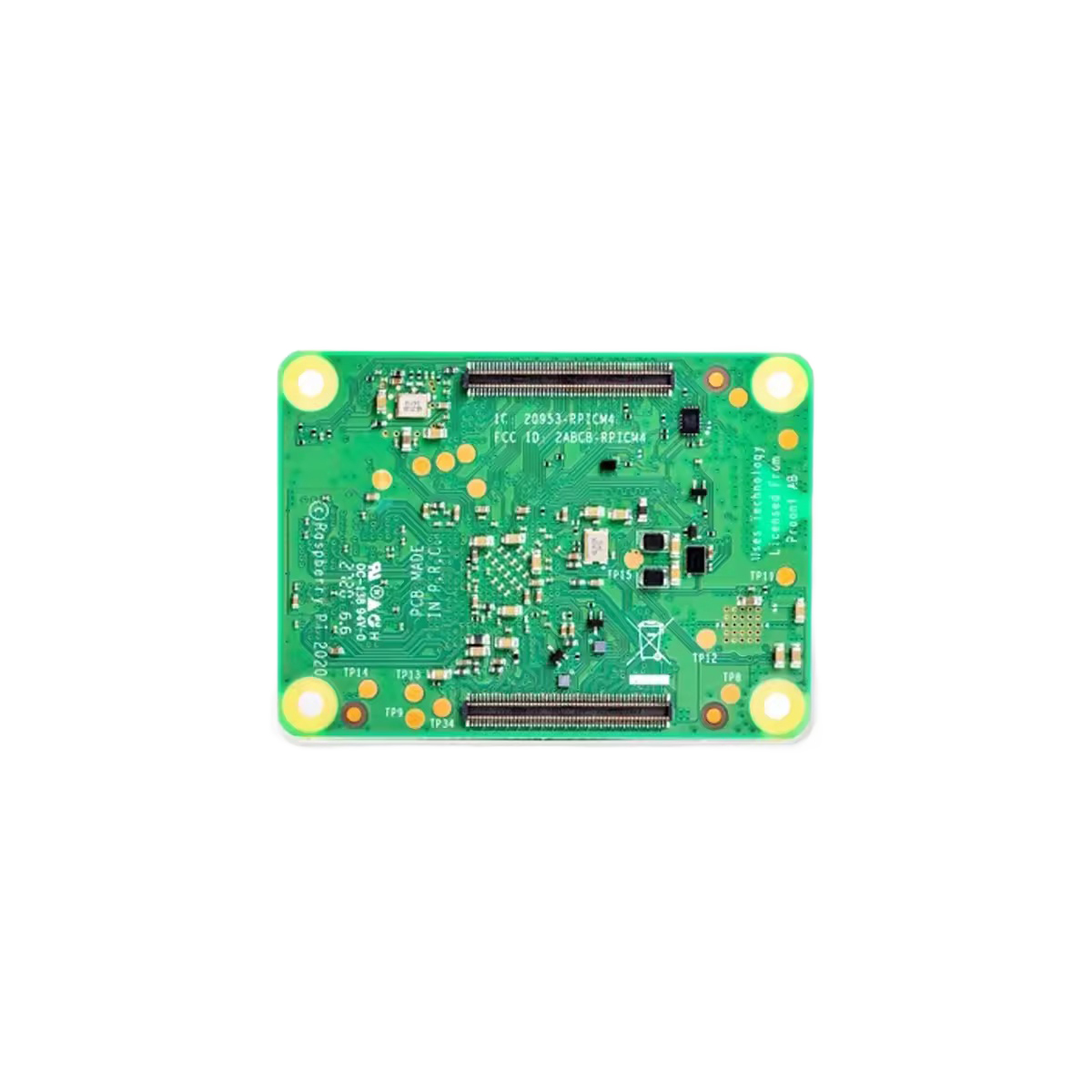

Utilizes a B to B connector design, changing the gold finger design of previous CM series generations, enhancing stability.
Incorporates an on-board Gigabit Ethernet design, supporting IEEE1588, suitable for network application development.
Adds a PCIe interface for expansion, allowing flexible addition of relevant modules.
New dimensions of 55*40*4.7mm, more applicable for compact design.

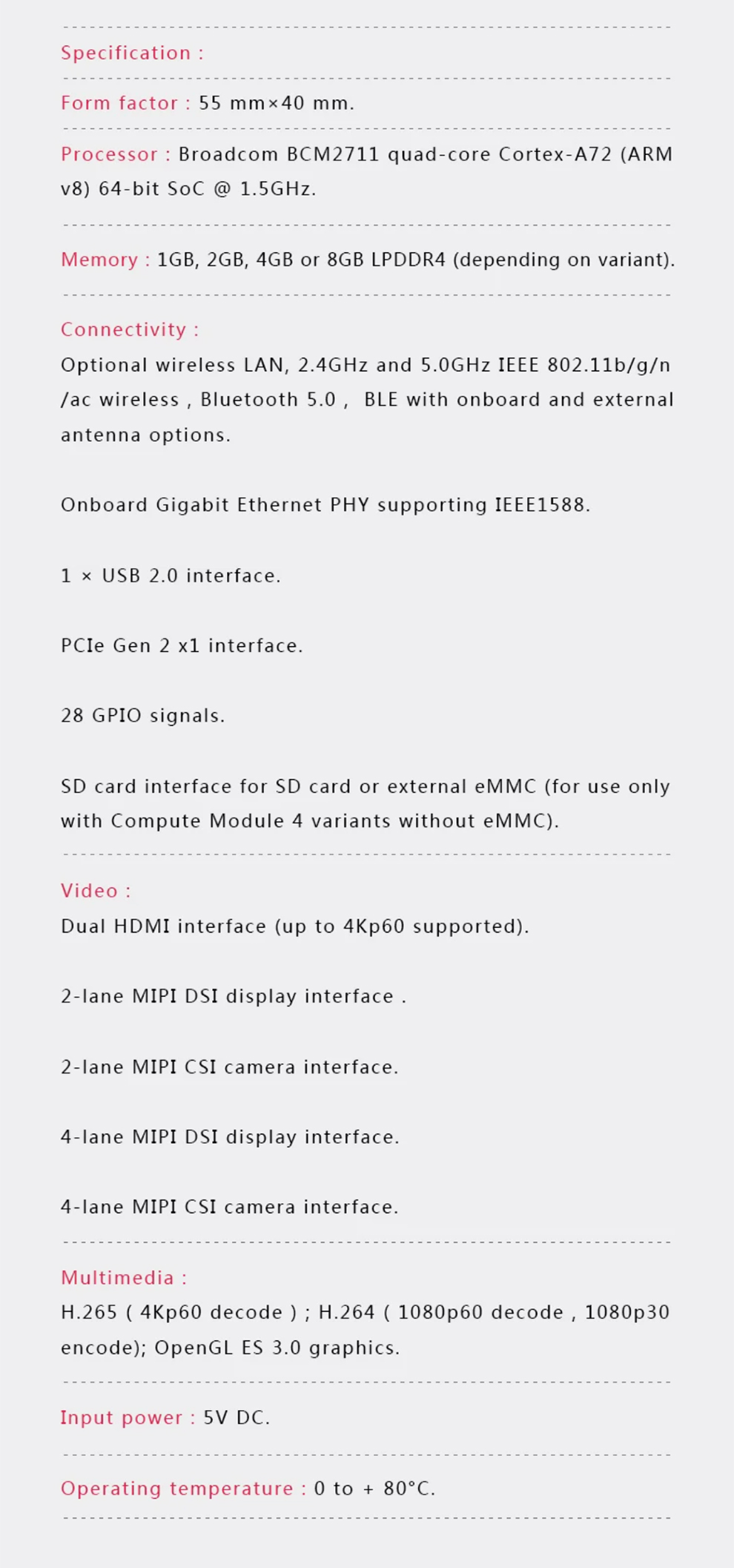

Model：Raspberry Pi Compute Module 4
Processor: Broadcom BCM2711 Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz

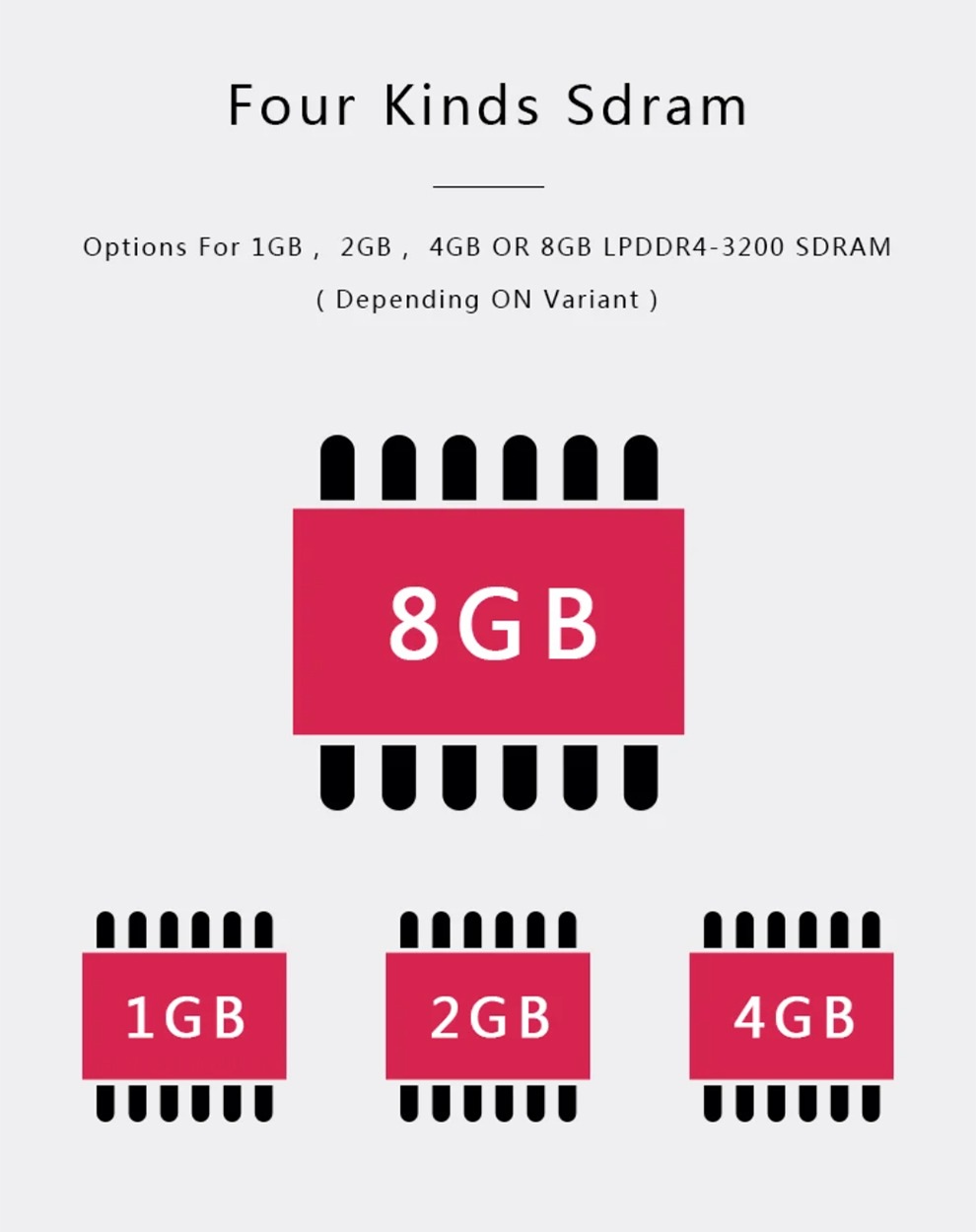

Memory: Optional 1GB, 2GB, 4GB or 8GB LPDDR4 – 3200 SDRAM

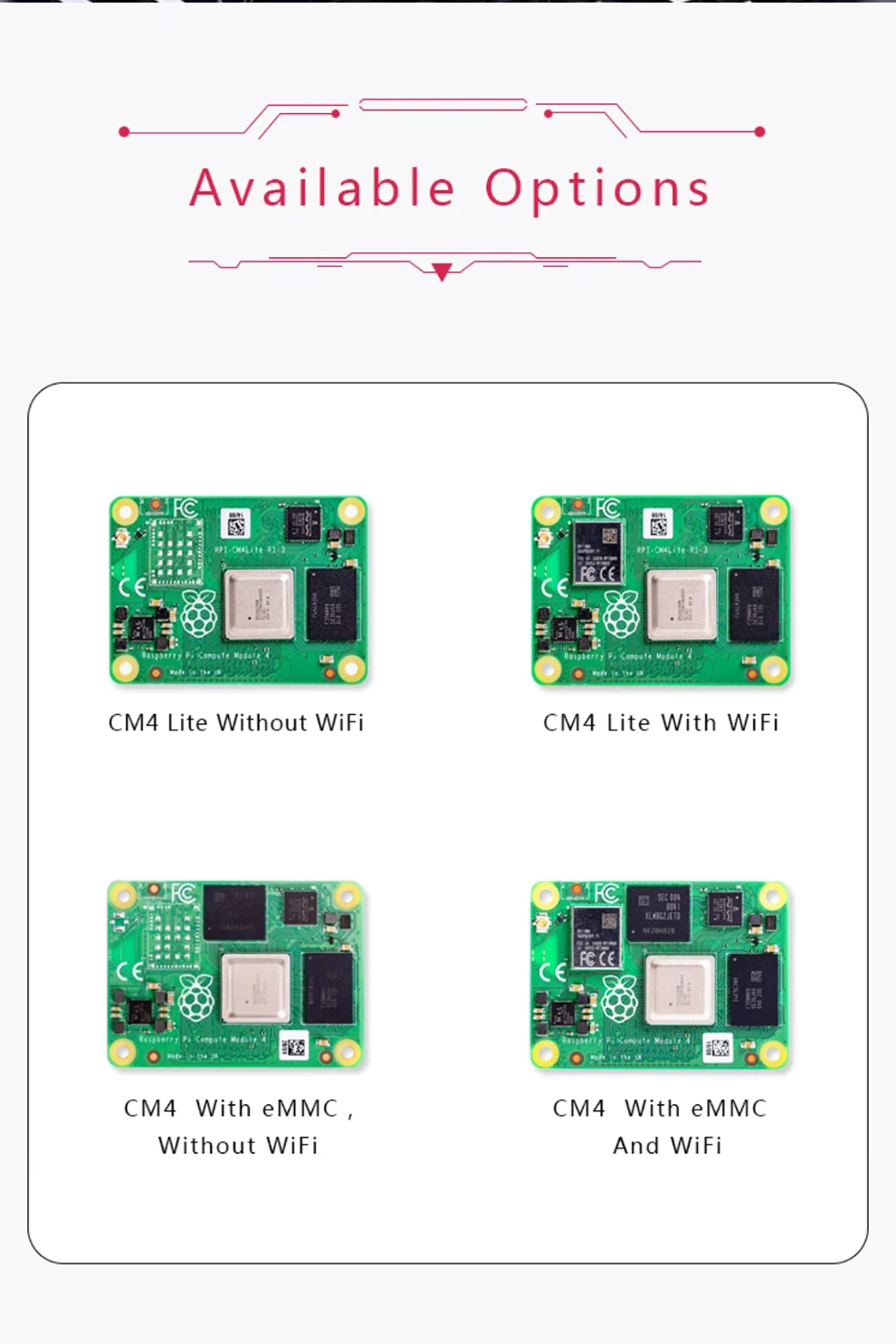

Flash Memory: Optional 0GB (Lite), 8GB, 16GB or 32GB eMMC Flash
Connectivity:

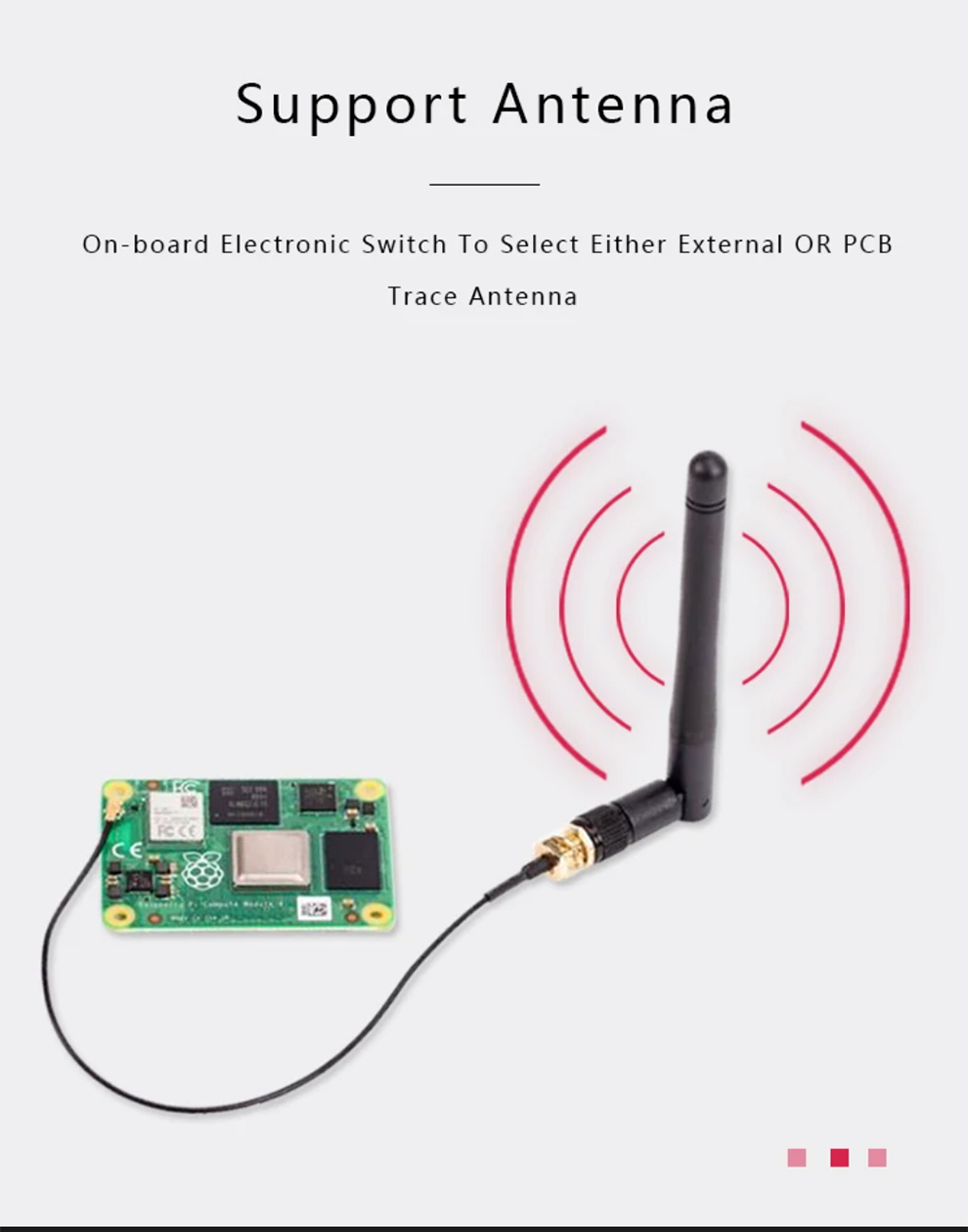

Dual-band (2.4GHz/5.0GHz) IEEE 802.11b/g/n/ac Wireless Wi-Fi, BLE, On-board Antenna or External Antenna Connection
Supports IEEE 1588 Gigabit Ethernet
USB 2.0 Interface×1
PCIe Gen 2×1 Interface
28 GPIO Pins
SD Card Interface (Only for Versions Without eMMC)
Video:
HDMI Interface (Supports 4Kp60)×2
2-lane MIPI DSI Display Interface
2-lane MIPI CSI Camera Interface
4-lane MIPI DSI Display Interface
4-lane MIPI CSI Camera Interface
Multimedia: H.265 (4Kp60 Decoding); H.264 (1080p60 Decoding, 1080p30 Encoding); OpenGL ES 3.0
Operating Voltage: 5V DC
Operating Temperature: – 20°C ~ 85°C Ambient Temperature
Dimensions: 55×40×4.7mm
Compute Module 4 CM4108032 x1
