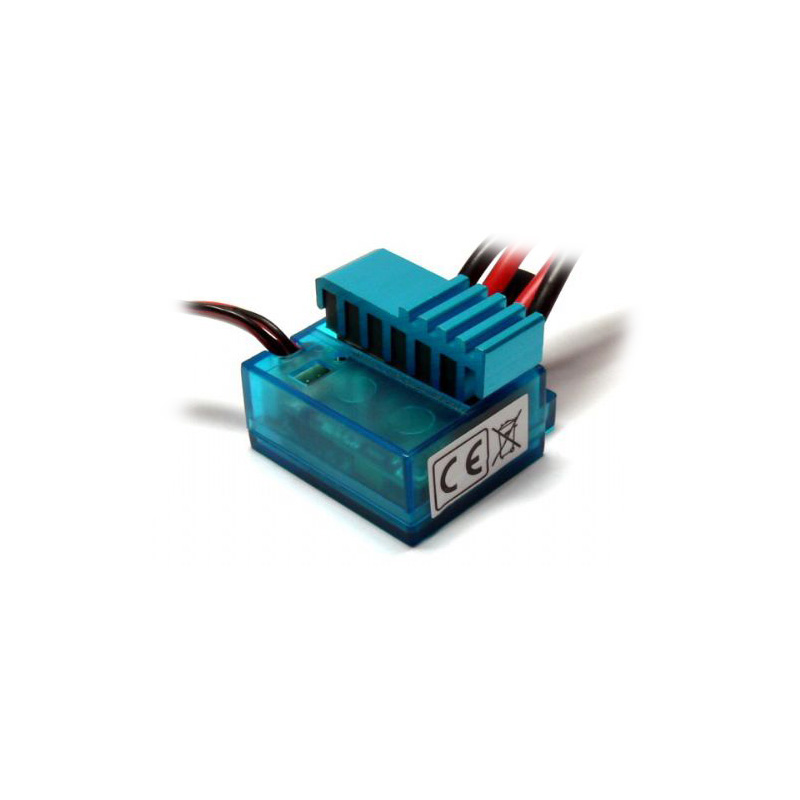

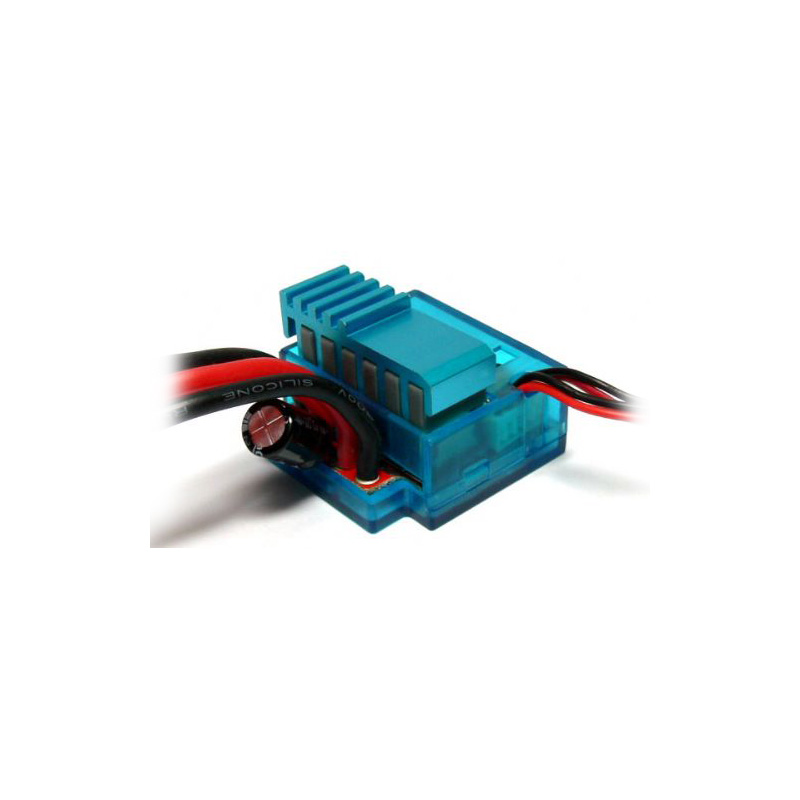

RC Car 300A Motor Speed Controller ESC For Rc Car

SKU ESC-300A Category Tag Brand:

RC Car 300A Motor Speed Controller ESC For Rc Car

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

-The 300A ESC allows remote control of car electric motors from an RC System. When connected with motor, it is capable of supplying up to 300 Amps (forward) or 150Amps (backward) of continuous motor current. Its integrated Battery Eliminator Circuit (BEC) powers the receiver from the motor battery, with automatic cutoff of the motor power to preserve receiver power as the battery becomes depleted. It is small and powerful, which can be used for different type of car.
-Forward, reverse, and brake Function
-Low-Voltage, Cut Electricity Protection Function

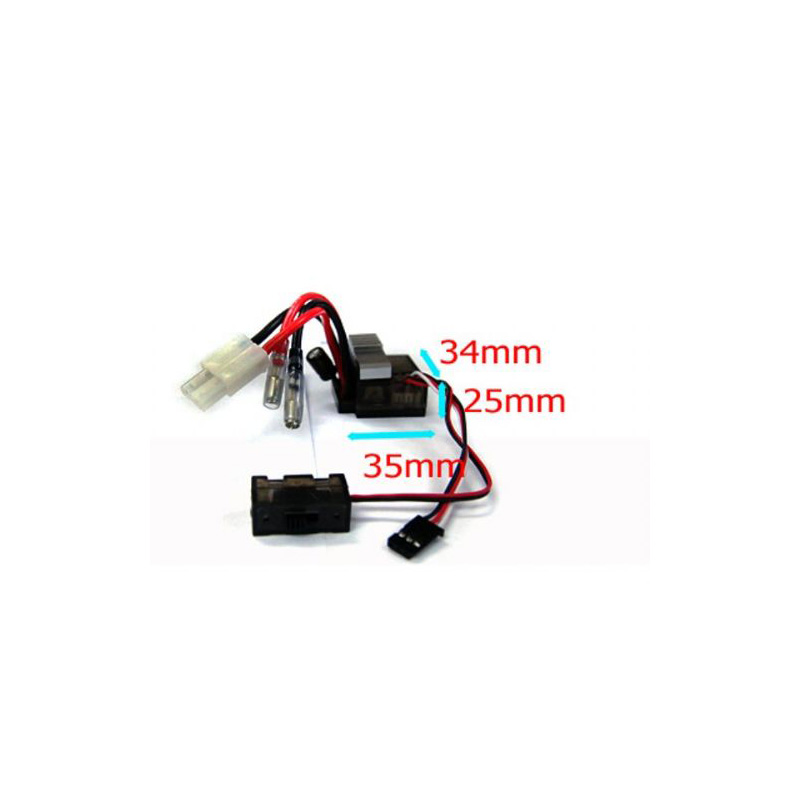

-Dimensions : About 34.1mm x 34.6mm x 24.8mm
-PWM Frequency : 1.5 KHz
-Working Voltage : 7.2 – 8.4V
-BEC Current : 6V/3A
-Internal Resistance : 0.0087m?
-Brust Output Current : 300A (Forward)Z
-150A (Backward)
-Continuous Output Current : 90A (Forward)
-45A (Backward)
-Cable Type : 16 AWG (Battery & Motor)
-Cable Length : 90mm (Battery & Motor)
-110mm (Receiver)
-Input Battery Types : NiCd/ Nimh battery
-Recommend Model Car

-RC Car 300A Motor Speed Controller ESC x 1
-Two colors:Blue and black
