Rocket 3680 880KV 1100KV 1250KV 4 Poles Brushless Sensorless Motor for 800-1000mm RC Boat
4 Pole 12 slot hi-torque motor design
CNC machined 6061 T6 billet aluminum heatsink can
High purity copper windings maximizes efficiency
High RPM ABEC5 oversized bearings
Precision balanced rotor, smoothness for best reliability and maximum RPM
Stator-super thin (0.2mm) laminations
Removable/replaceable rotor
Precision engineered for maximum energy conversion

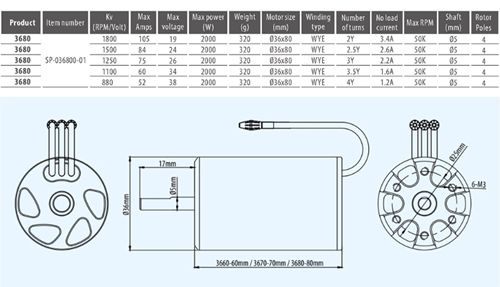

Brand name: Rocket
KV(RPM/Volt): 880KV

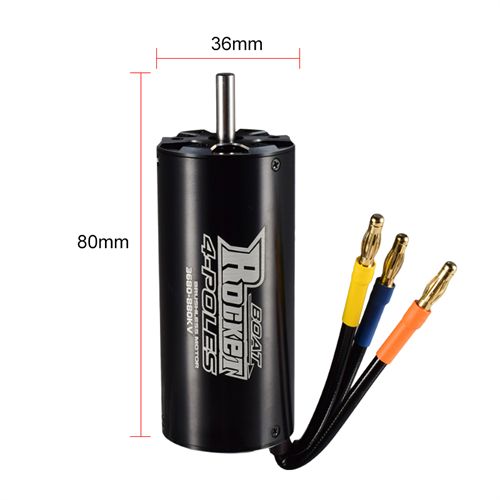

Diameter: 36mm
Length: 80mm

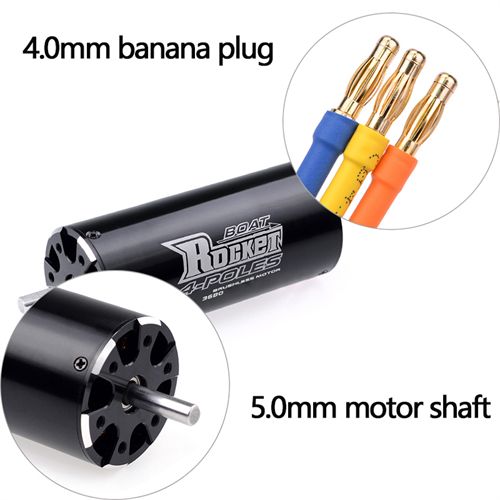

Shaft diameter: 5mm
Connector: 4mm golden banana connector
Max Amps：52
Max voltage：38
Max power(W)：2000
Weight(g)：320
Motor size(mm) ：Φ36×80
Winding type：WYE
Number of turns：4Y
No load current：1.2A
Max RPM：50K
Shaft(mm)：Φ5
Rotor poles：4
Brand name: Rocket
KV(RPM/Volt): 1100KV
Diameter: 36mm
Length: 80mm
Shaft diameter: 5mm
Connector: 4mm golden banana connector
Max Amps：60
Max voltage：34
Max power(W)：2000
Weight(g)：320
Motor size(mm) ：Φ36×80
Winding type：WYE
Number of turns：3.5Y
No load current：1.6A
Max RPM：50K
Shaft(mm)：Φ5
Rotor poles：4
Brand name: Rocket
KV(RPM/Volt): 1250KV
Diameter: 36mm
Length: 80mm
Shaft diameter: 5mm
Connector: 4mm golden banana connector
Max Amps：75
Max voltage：26
Max power(W)：2000
Weight(g)：320
Motor size(mm) ：Φ36×80
Winding type：WYE
Number of turns：3Y
No load current：2.2A
Max RPM：50K
Shaft(mm)：Φ5
Rotor poles：4

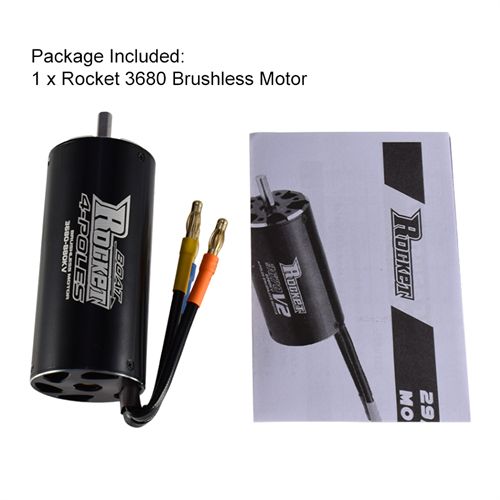

Rocket Brushless Motor x 1
