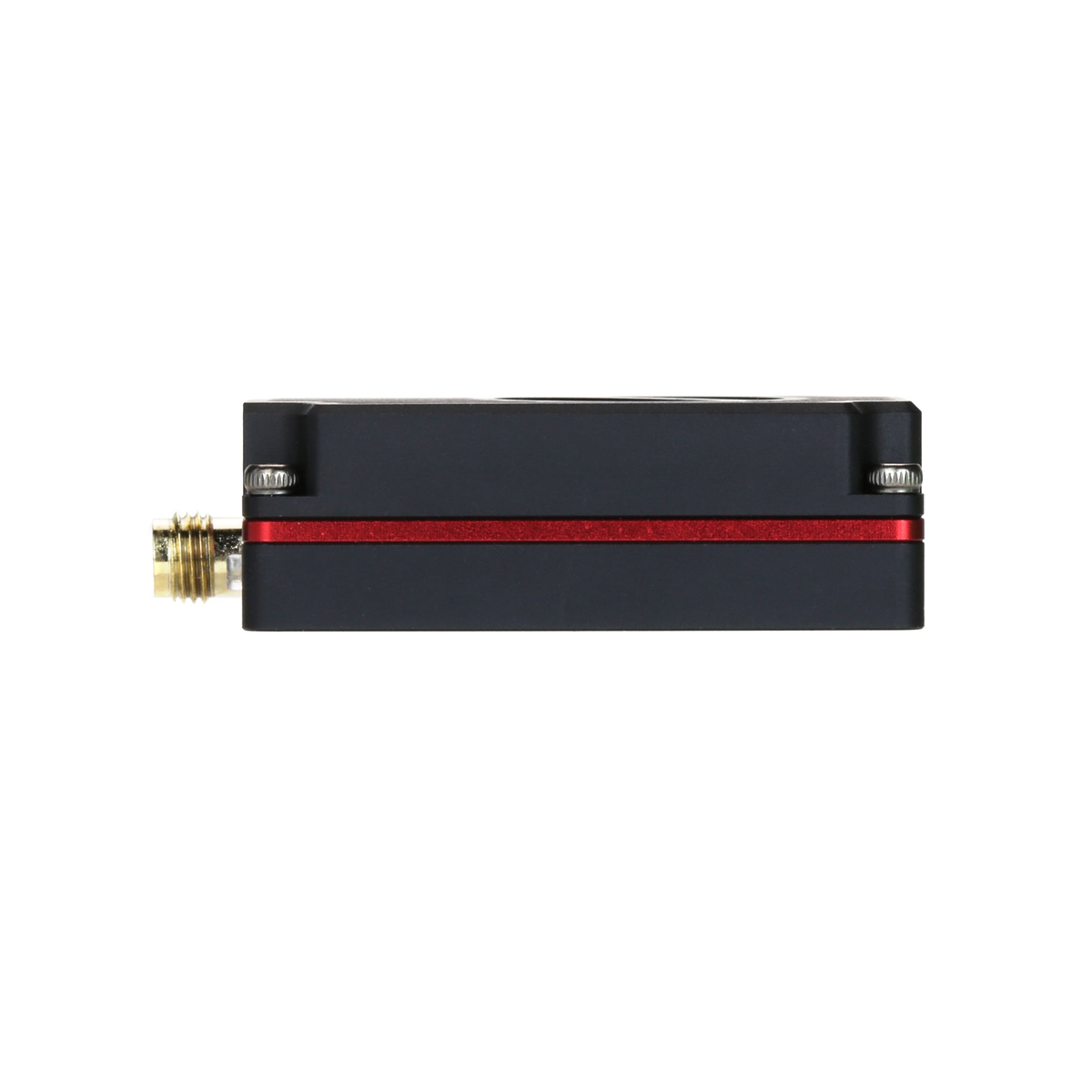

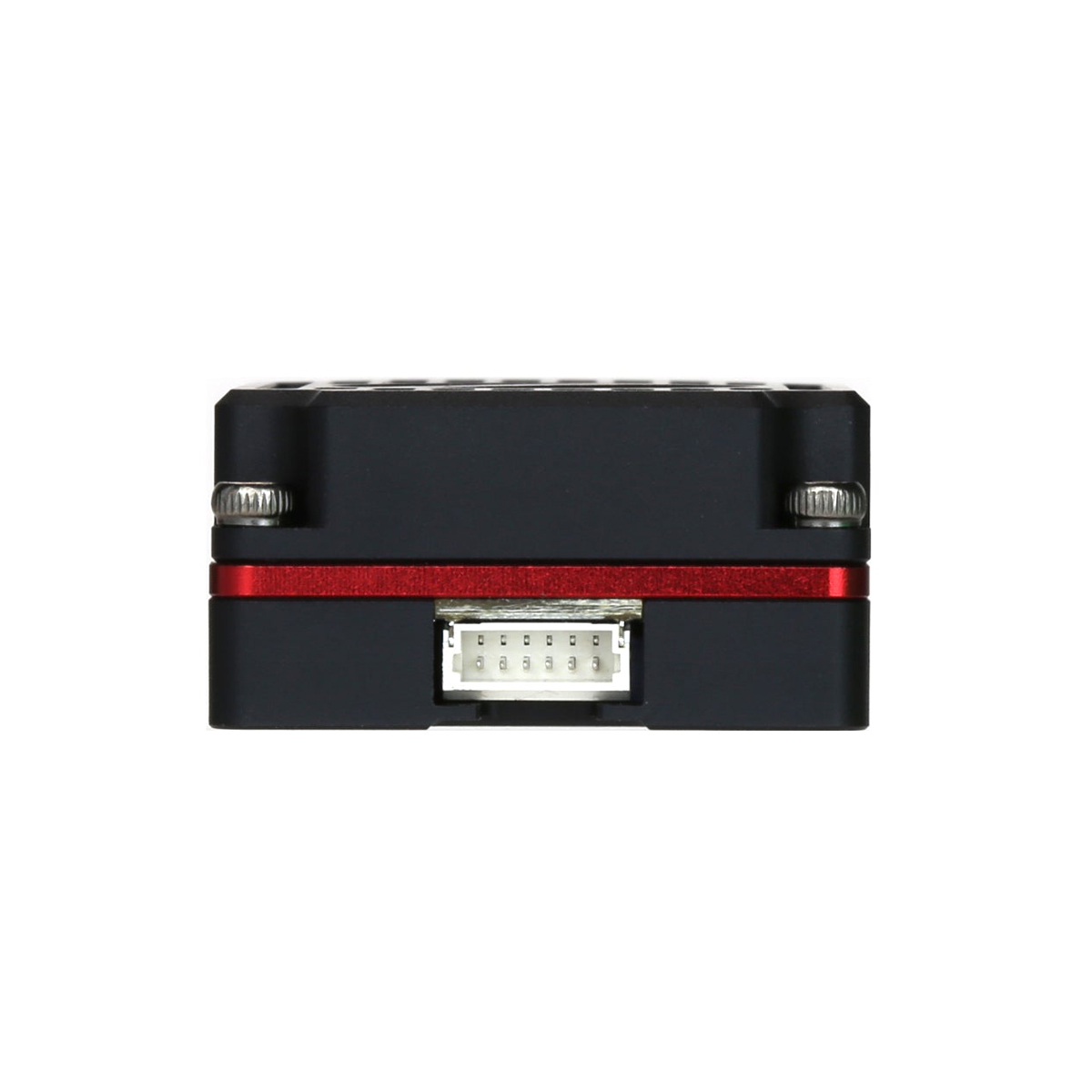

RUSHFPV 1.2G 1.3G 4W V2 VTX Long Range Transmitter Module with SMA Antenna for FPV Drone
Designed for long-range flights, up to 4W transmitting power, and provide multi-level adjustment.
Efficient PA and power calibration to ensure power consistency across all channels.
Customized digital PLL circuit, chip level integration, no frequency drift.
Built-in bandpass filter to reduce harmonic interference to navigation equipment.

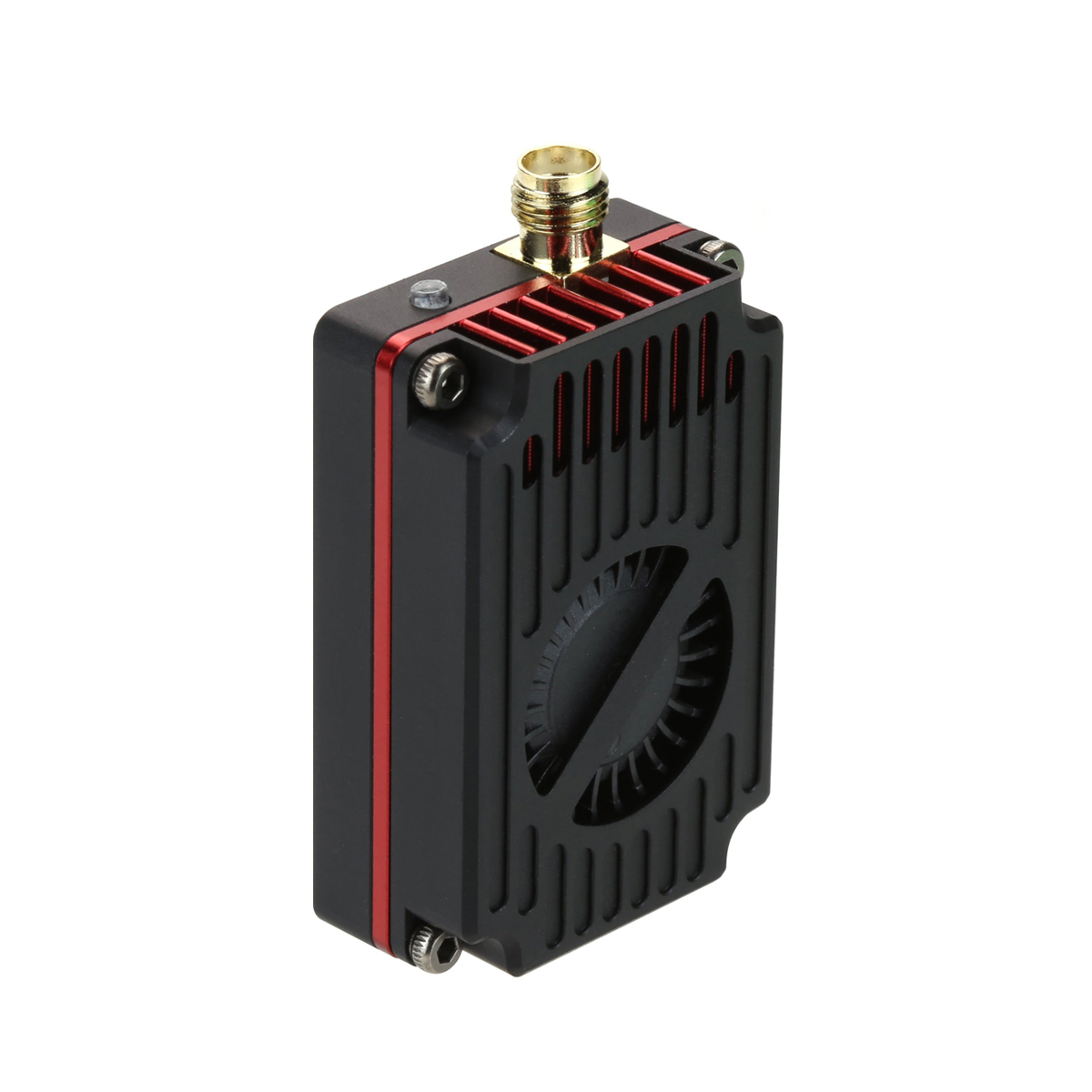

Aluminum alloy three-layer shell structure and large centrifugal fan provide sufficient heat dissipation to ensure stable output of transmitting power.
Model: 1.3GHz 4W Video Transmitter
Frequency Band: 1080-1360MHz
Channel Customer: 16
Modulation Type: FM
Frequency Control: PLL
Frequency Stability: ±100KHz(Typ.)
Power Supply: DC 7-30V
Frequency Precision: ±200KHz(Typ.)
S/N(For±3MHz): >70dBc
Antenna Port: SMA 50 Ohms
Video Input Level: 1V±0.2Vp-p (typ.)
Operating Temperature: -10℃~+70℃
Control Protocol: IRC Tramp

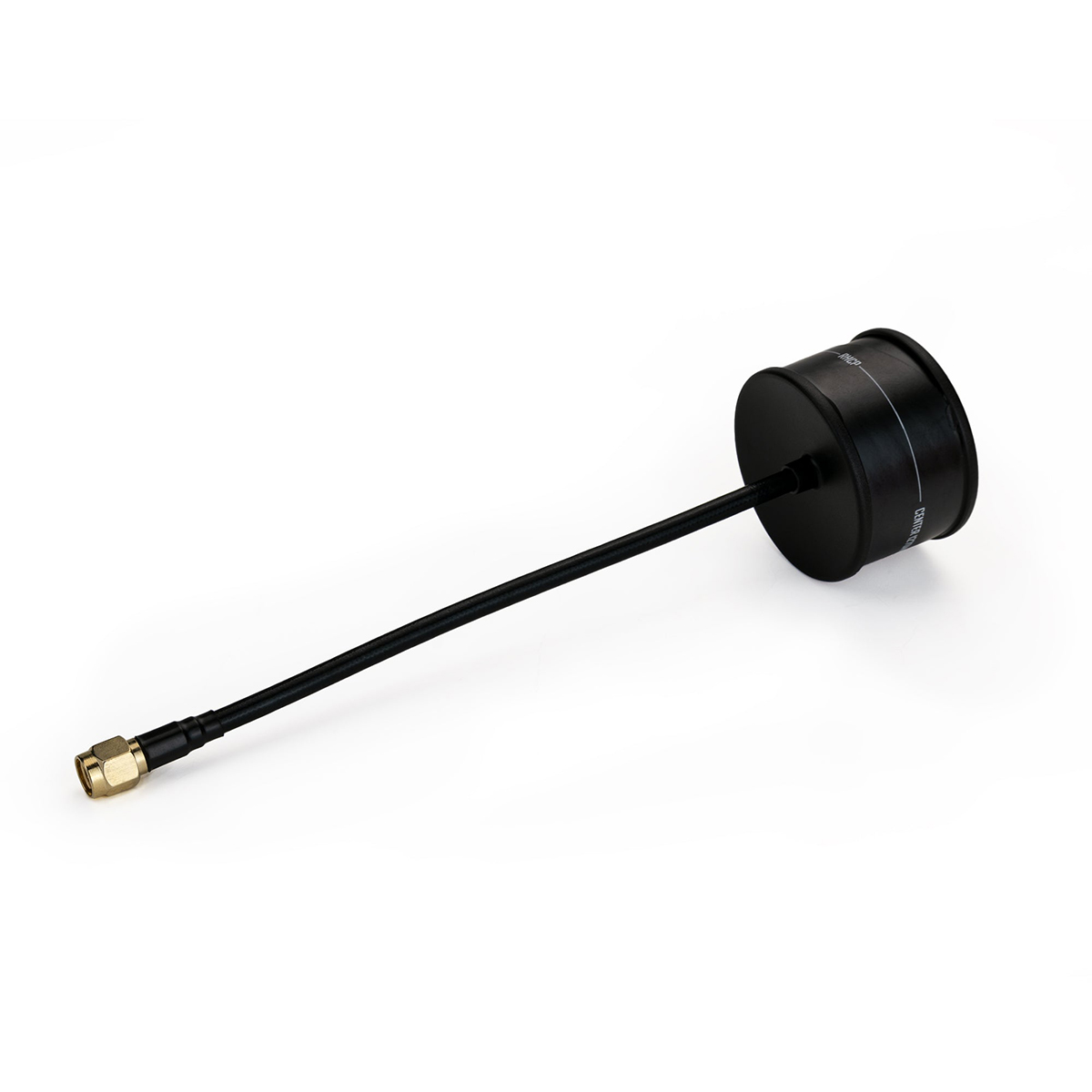

Model: Transmitter Antenna
Polarization: RHCP
Bandwidth: 1200-1300MHz
Radiation Pattern: Omni-directional
Gain: 1.7dBi
V.S.W.R: <1.5
Cable: RG402-SMA
1.3GHz 4W Video Transmitter x1
Transmitter Antenna x1
