RUSHFPV 6.1G-7.2G XSPAN 3W VTX Transmitter Module With Antenna Ultra-Wide Band High Power for FPV Drones
RUSHFPV 6.1G-7.2G XSPAN 3W VTX Transmitter Module With Antenna Ultra-Wide Band High Power for FPV Drones

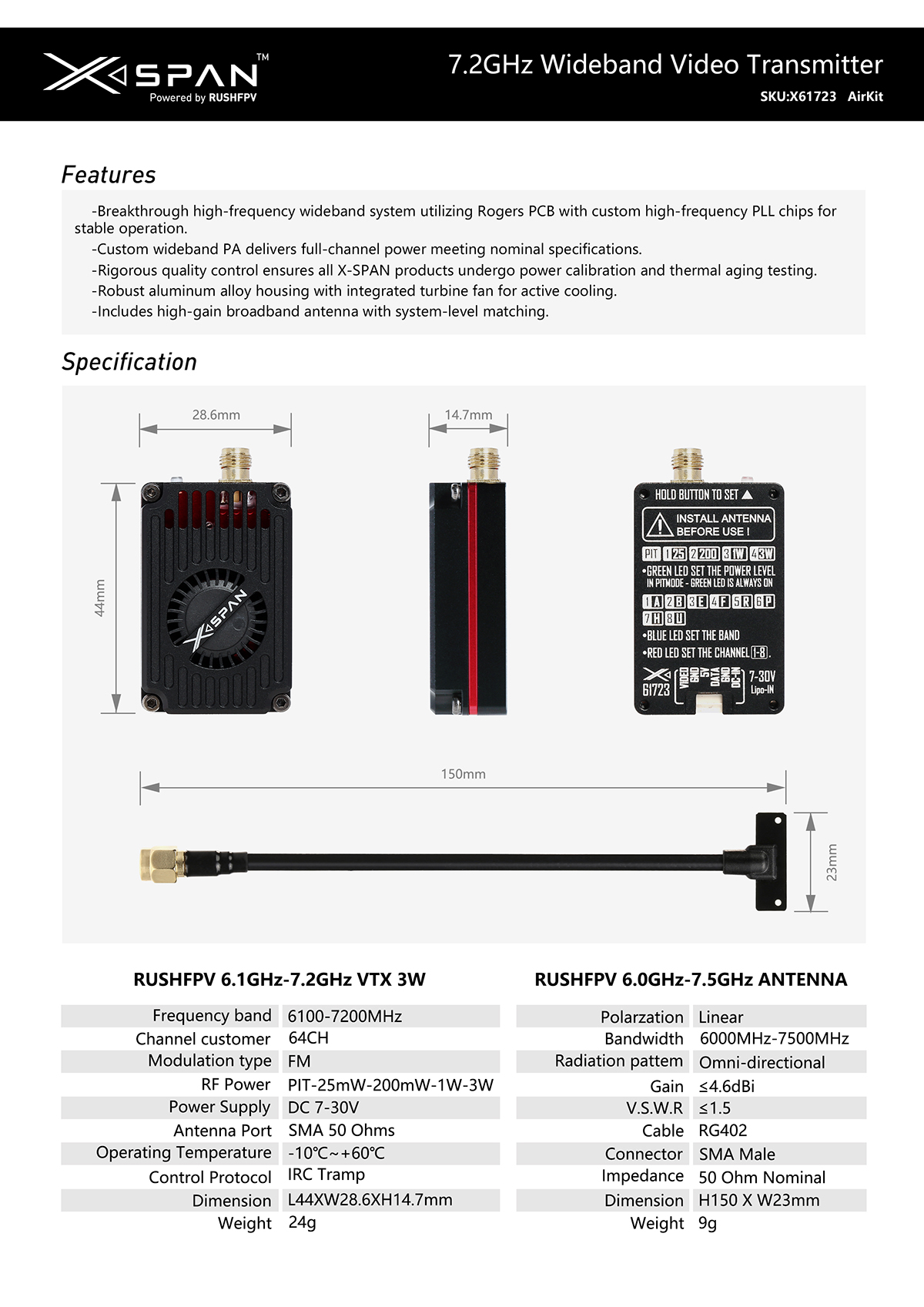

Breakthrough high-frequency wideband system utilizing Rogers PCB with custom high-frequency PLL chips for stable operation.
Custom wideband PA delivers full-channel power meeting nominal specifications.
Rigorous quality control ensures all X-SPAN products undergo power calibration and thermal aging testing.

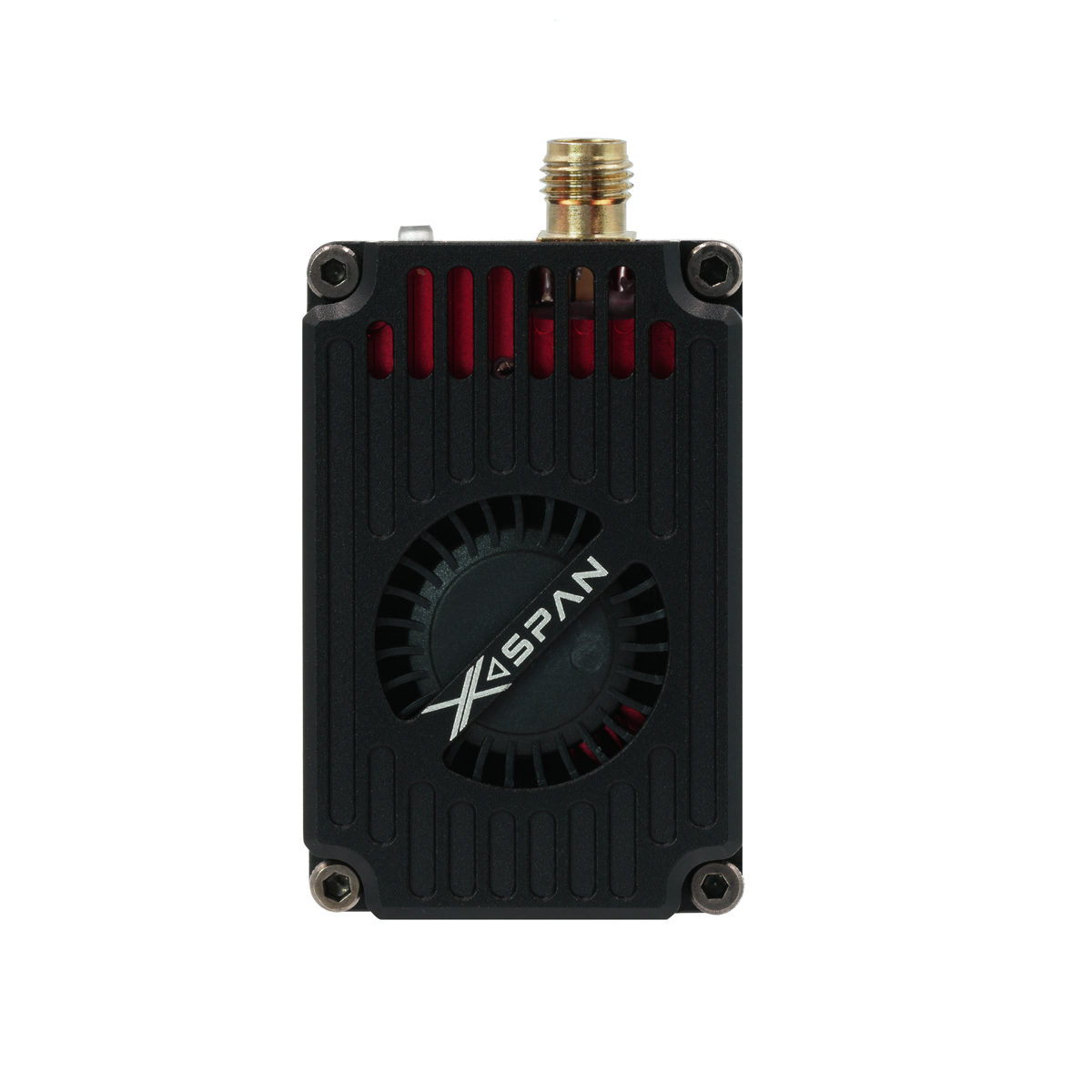

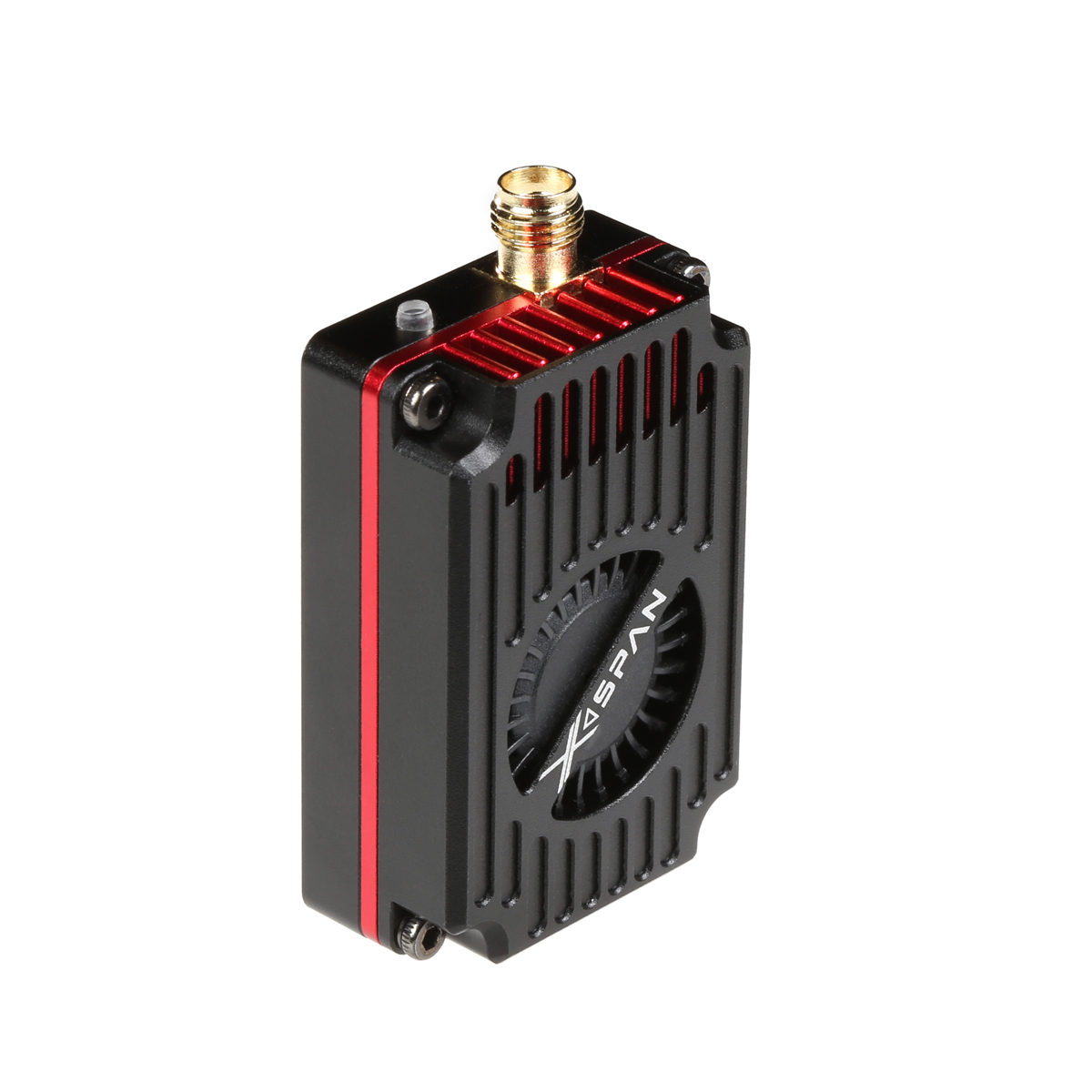

Robust aluminum alloy housing with integrated turbine fan for active cooling.
Includes high-gain broadband antenna with system-level matching.

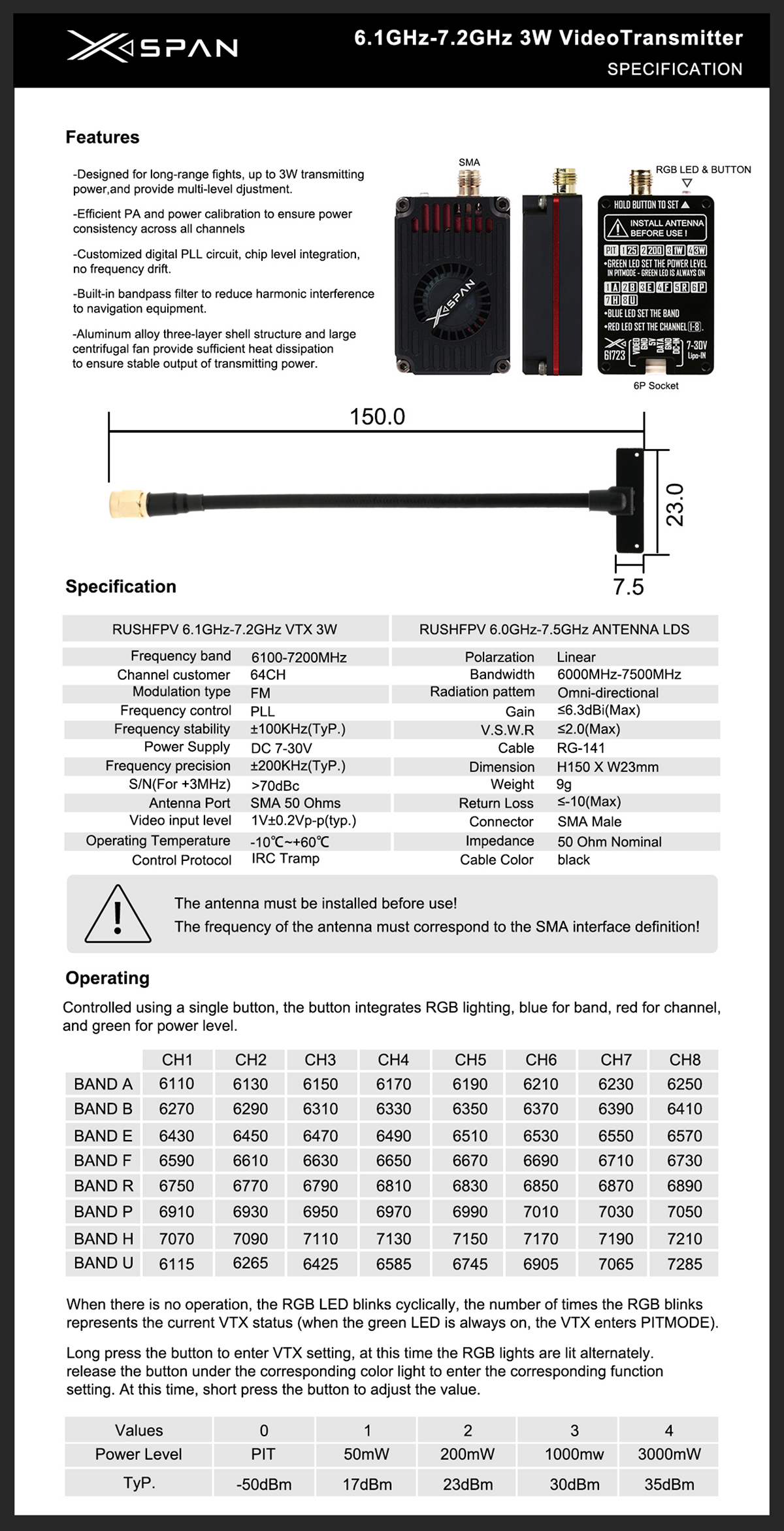

Model: RUSHFPV 6.1GHz-7.2GHz VTX 3W
Frequency Band: 6100-7200MHz
Channel Customer: 64CH
Modulation Type: FM
RF Power: PIT-25mW-200mW-1W-3W
Power Supply: DC 7-30V
Antenna Port: SMA 50 Ohms
Operating Temperature: -10°C~+60°C
Control Protocol: IRC Tramp
Dimension: L44 X W28.6 X H14.7mm
Weight: 24g

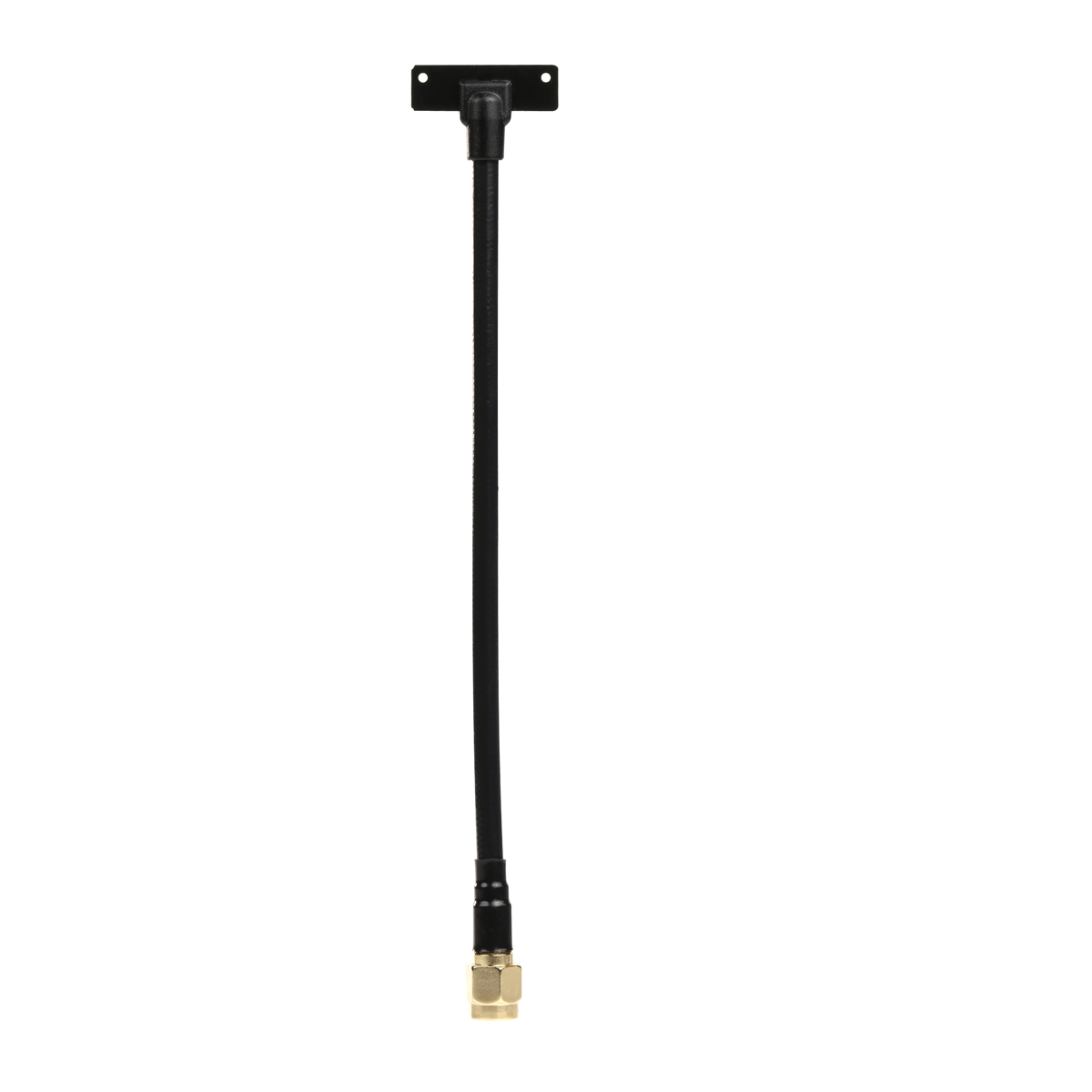

Model: RUSHFPV 6.0GHz-7.5GHz Antenna
Polarzation: Linear
Bandwidth: 6000MHz-7500MHz
Radiation Pattem: Omni-Directional
Gain: ≤4.6dBi
V.S.W.R: ≤1.5
Cable: RG402
Connector: SMA Male
Impedance: 50 Ohm Nominal
Dimension: H150 X W23mm
Weight: 9g

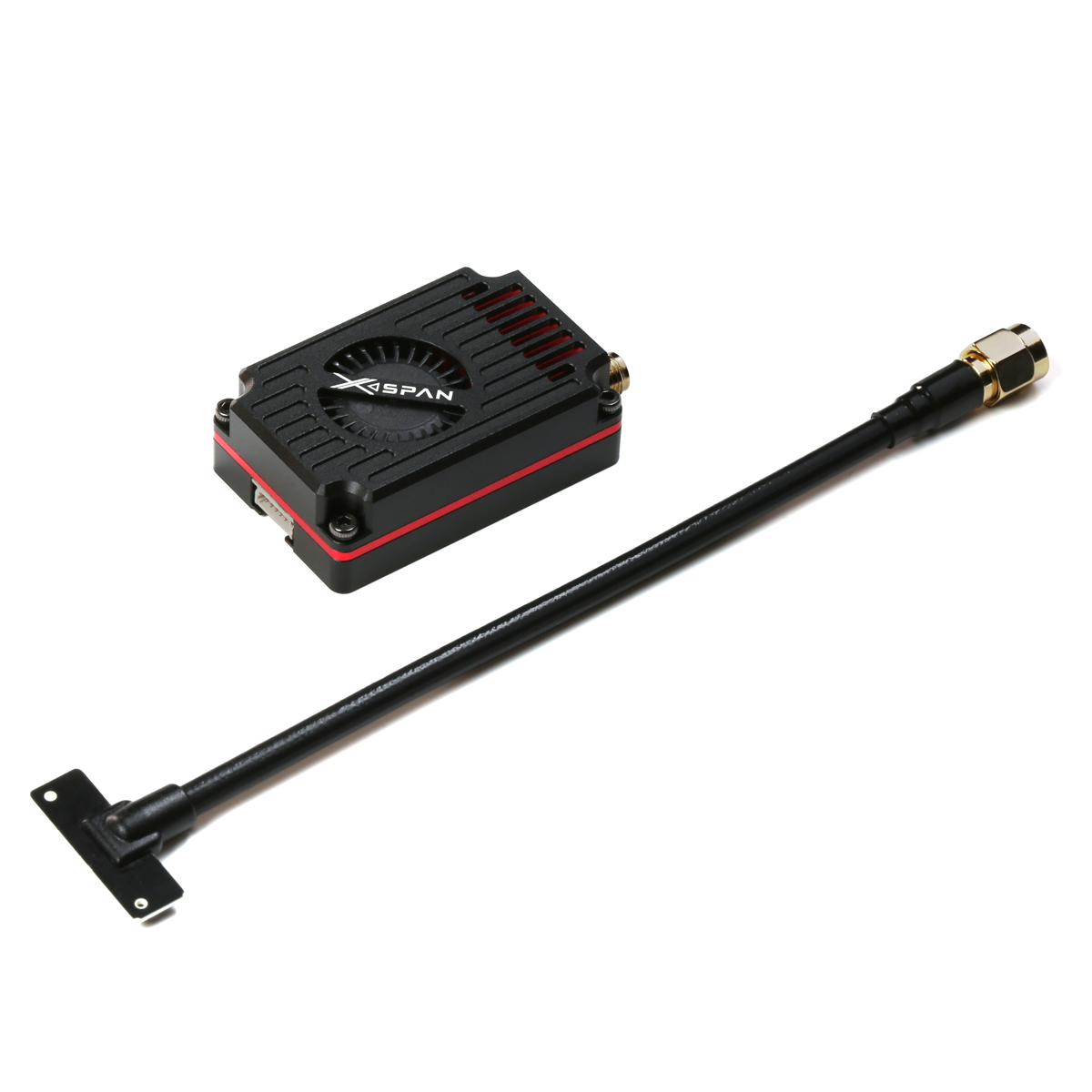

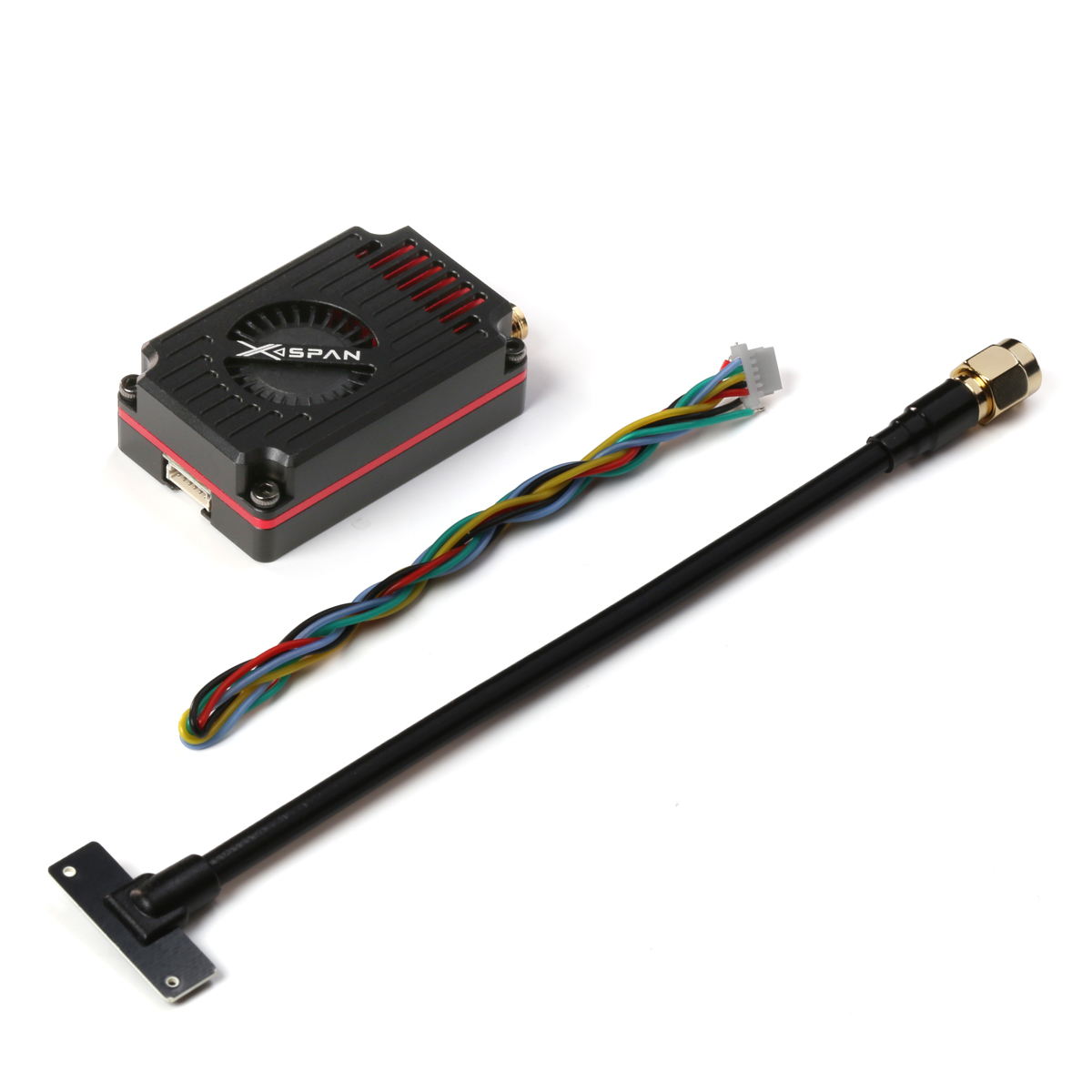

6.1GHz-7.2GHz VTX 3W x1
Antenna x1
