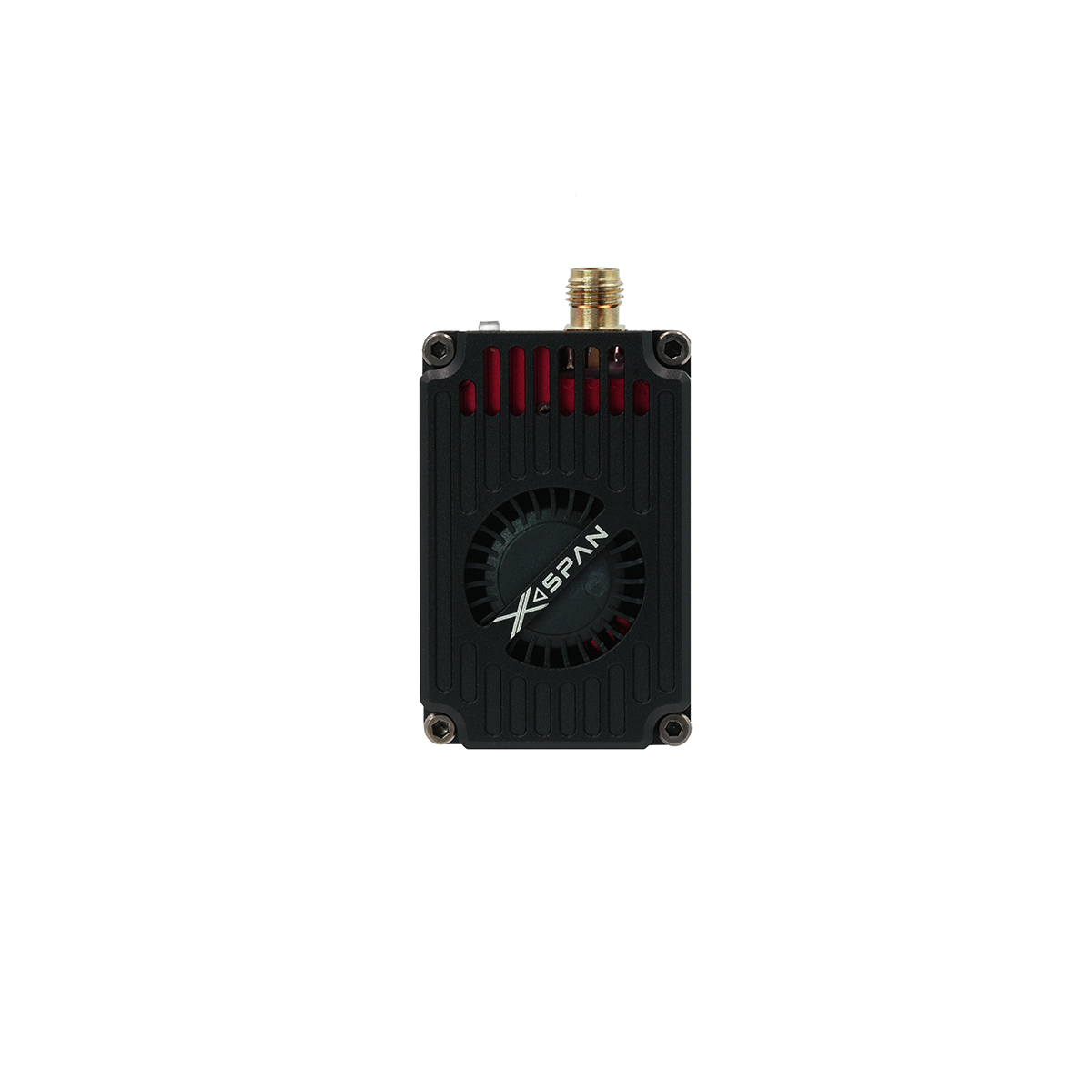

RUSHFPV XSPAN 4.8-6.1G 4W Broadband VTX Transmitter Module for RC Racing Drone Accessories
Designed for long-range flights, up to 4W transmitting power, and provide multi-level adjustment.
Efficient PA and power calibration to ensure power consistency across all channels.
Customized digital PLL circuit, chip level integration, no frequency drift.
Built-in bandpass filter to reduce harmonic interference to navigation equipment.

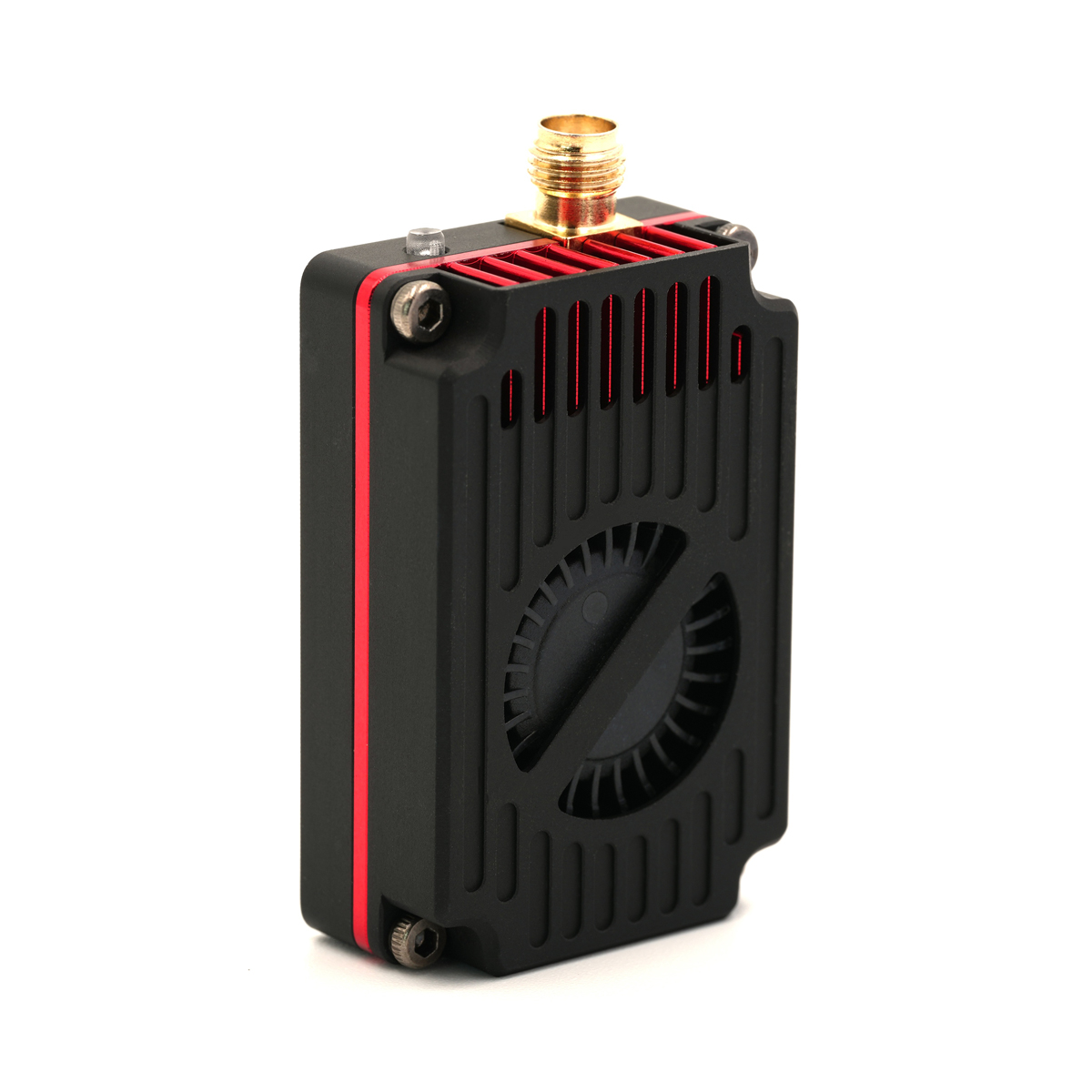

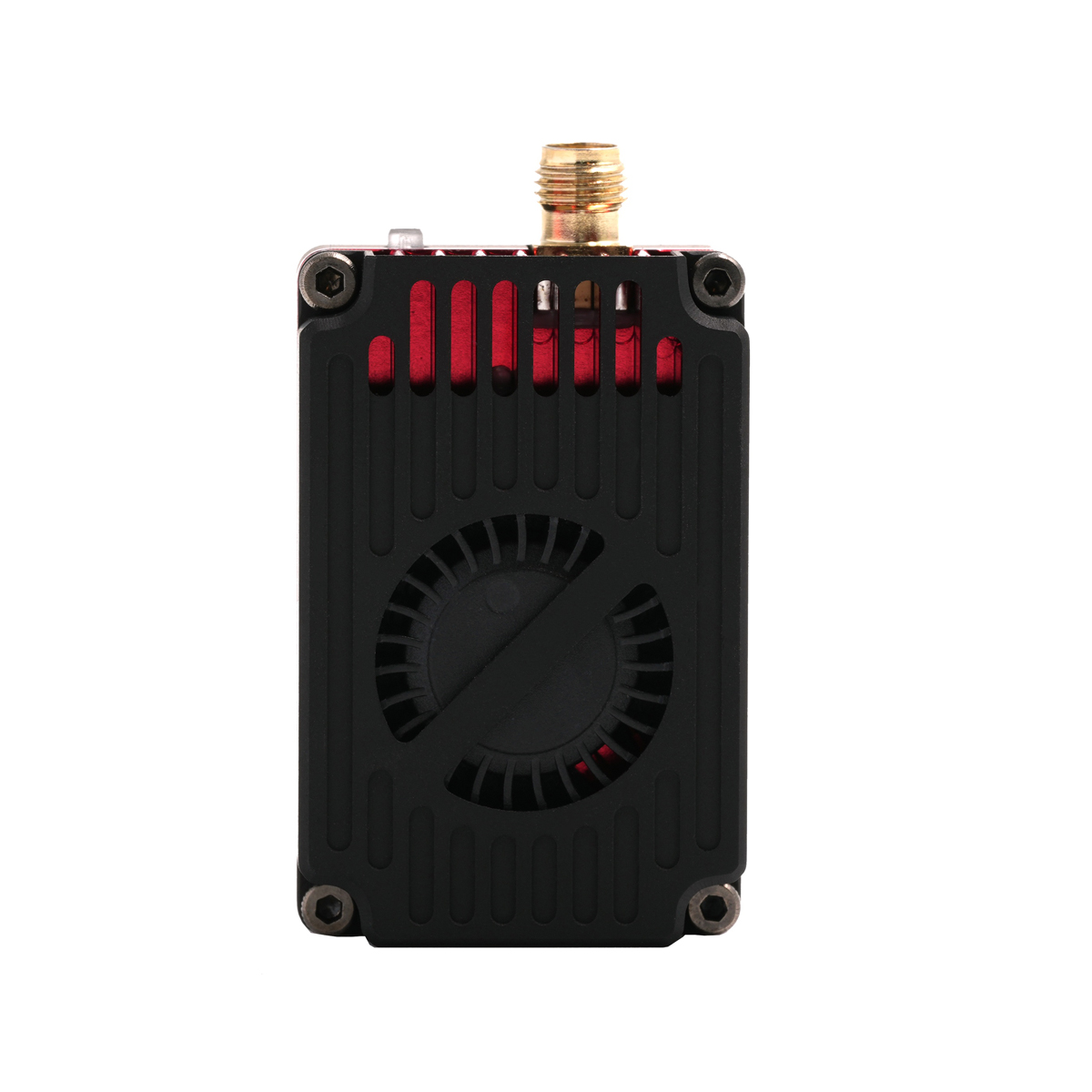

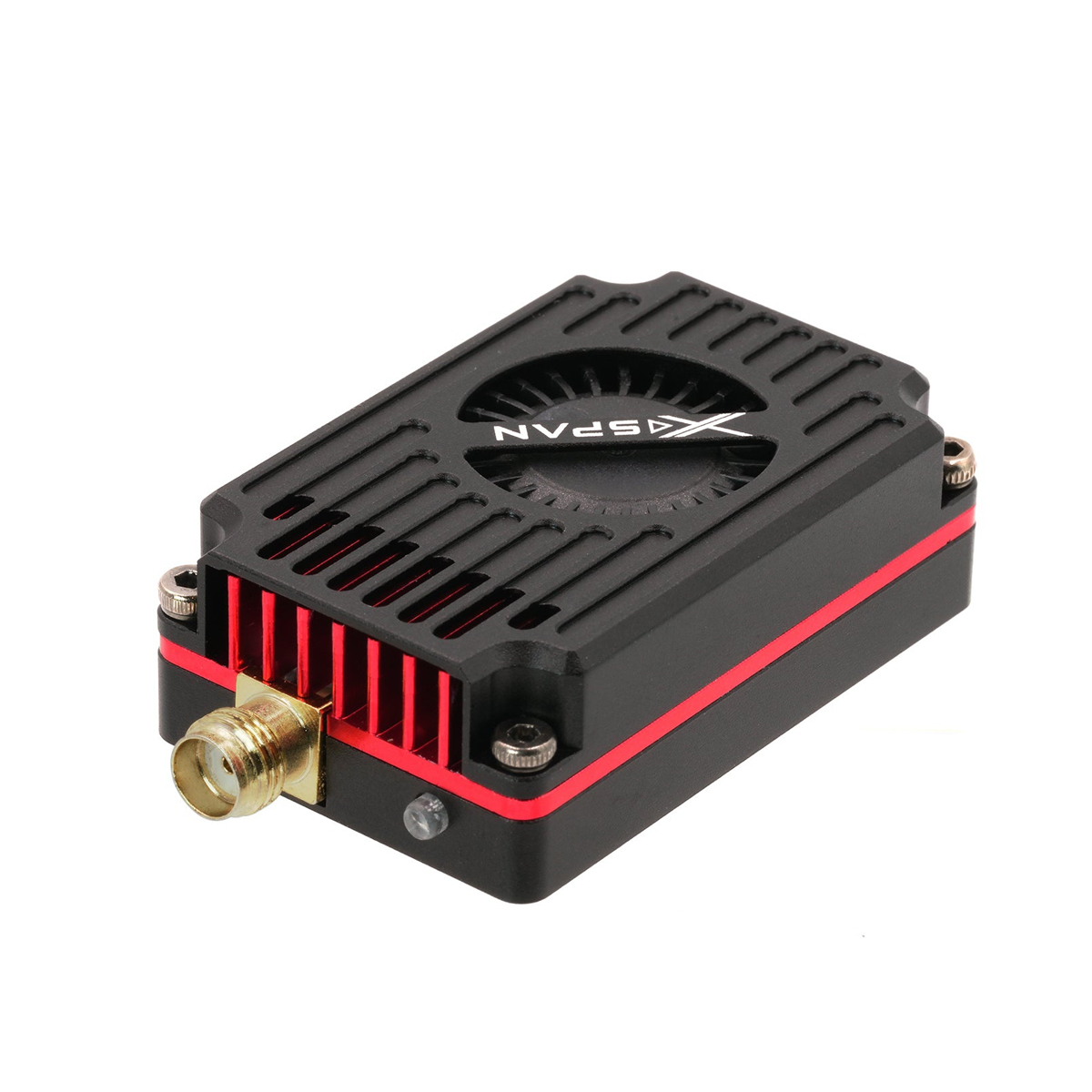

Aluminum alloy three-layer shell structure and large centrifugal fan provide sufficient heat dissipation to ensure stable output of transmitting power.
Model: 4.8GHz-6.1GHz 4W Video Transmitter
Frequency Band: 12
Channel Customer: 96CH
Modulation Type: FM
Frequency Control: PLL
Frequency Stability: ±100KHz(Typ.)
Power Supply: DC 7-30V
Frequency Precision: ±200KHz(Typ.)
S/N(For+3MHz): ＞70dBc
Antenna Port: SMA 50 Ohms
Video Input Level: 1V±0.2Vp-p(typ.)
Operating Temperature: -10℃～+60℃
Control Protocol: IRC Tramp

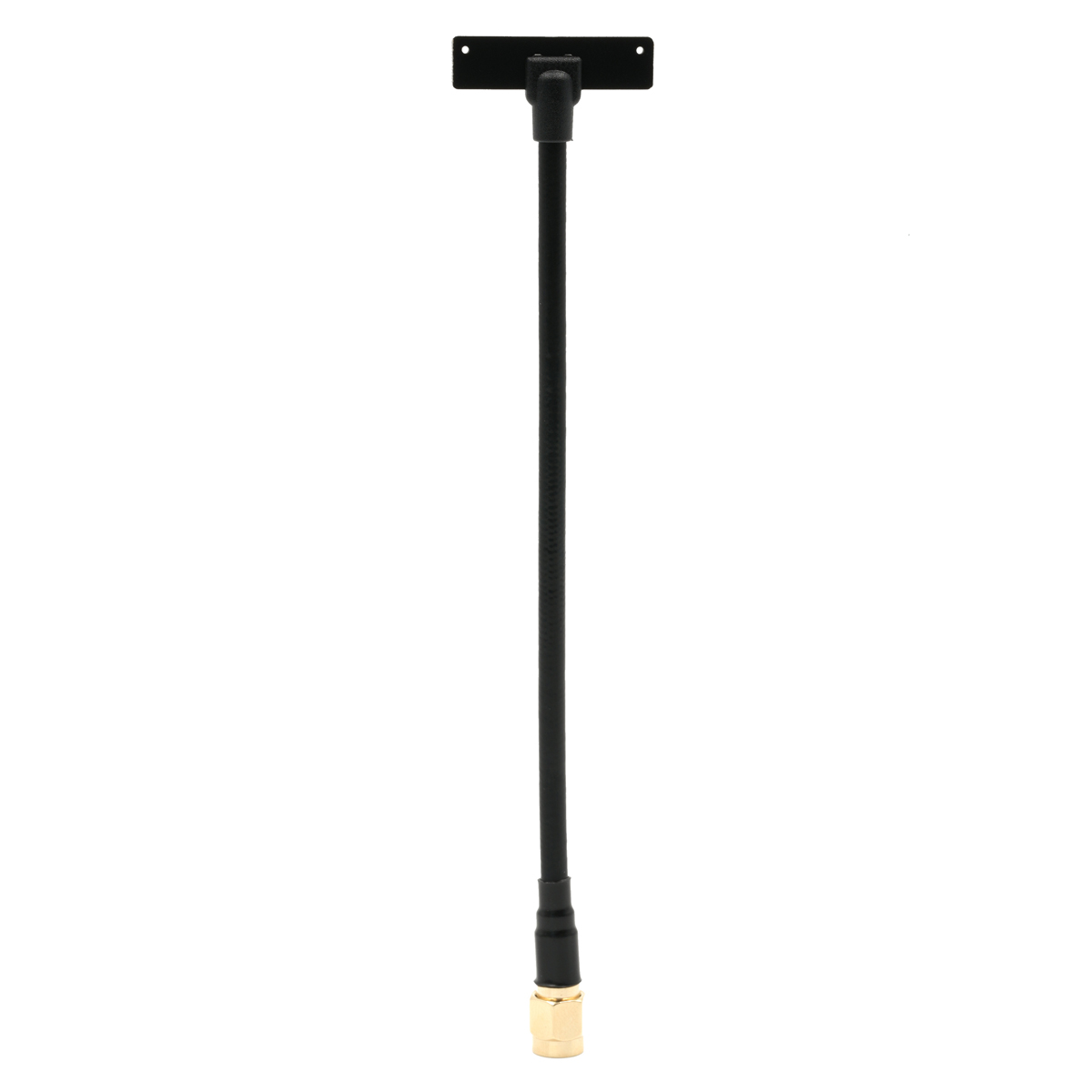

Model: Transmitter Antenna
Polarization: Linear
Bandwidth: 4800MHz-6065MHz
Radiation pattern: Omni-directional
Gain: ≤6.3dBi(Max)
V.S.W.R: ≤2.0(Max)
Cable: RG-141

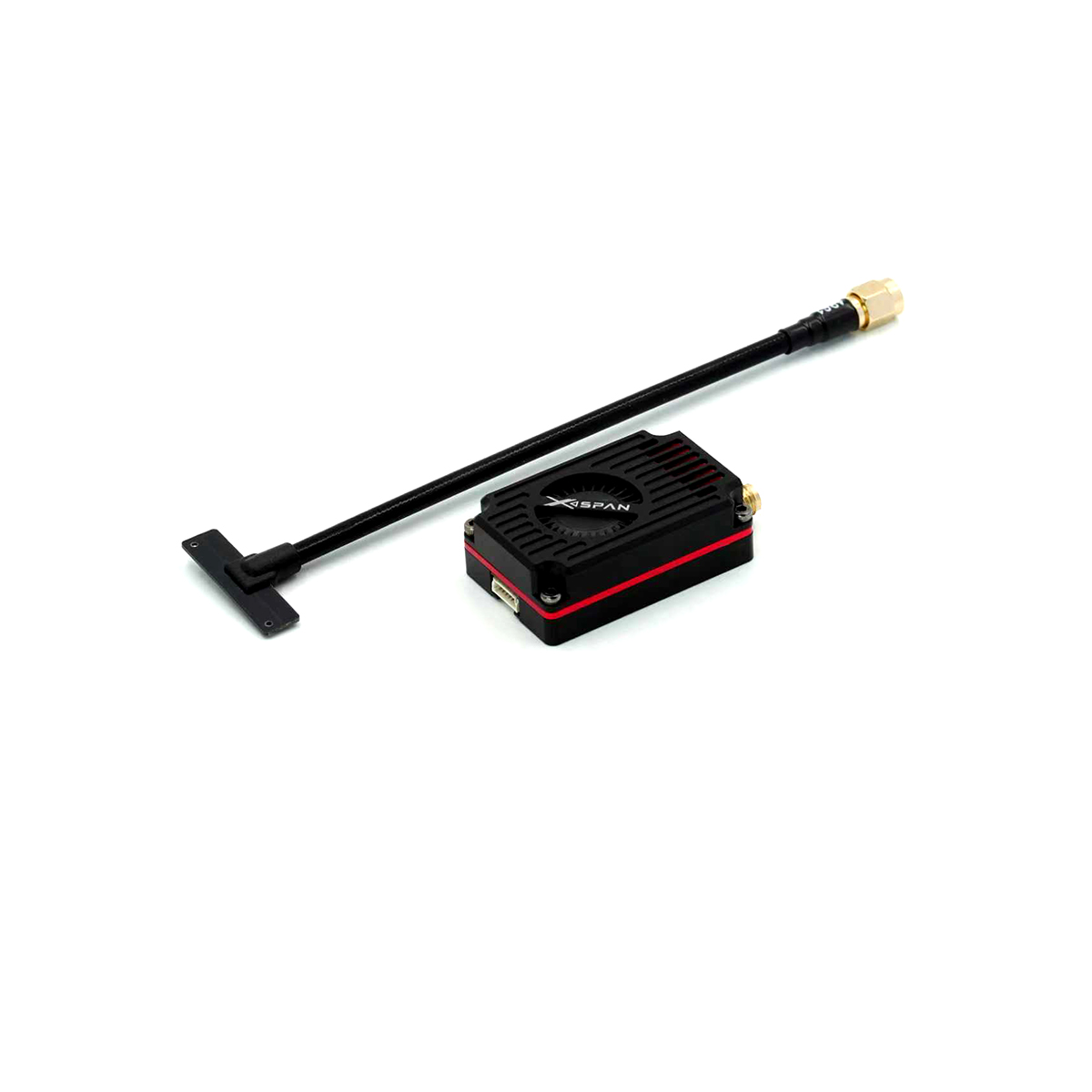

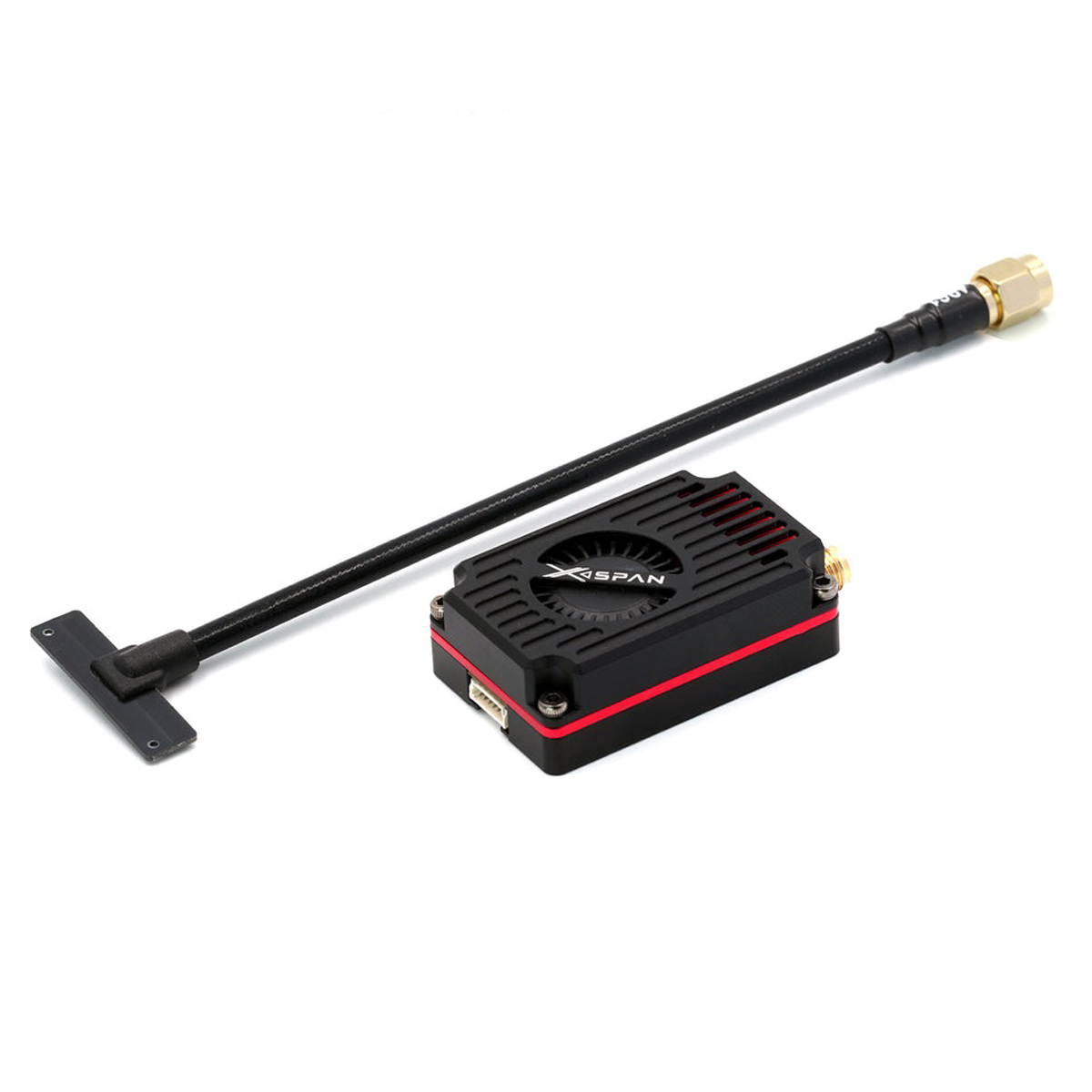

4.8GHz-6.1GHz 4W Video Transmitter x1
Transmitter Antenna x1
