SH72 65W Electric Solder Iron Professional Soldering Station Interface DC5525
Installation:
1. After the package is opened, loosen and remove the fastening nut;
2. Insert the head of soldering tip with conducting ring into the soldering iron seat;
3. Insert and tighten the nut; tighten the soldering tip;
4. Rotate the thermal control turntable and set it to proper temperature (increase the temperature it is rotated clockwise; reduce the temperature it is rotated anticlockwise);
1.5 Power on the well-prepared power adapter (DC12-24V); insert the DC plug to DC seat of the control handle of the soldering iron.
Change Solder Tip:
1. Disconnect SH72 power supply.

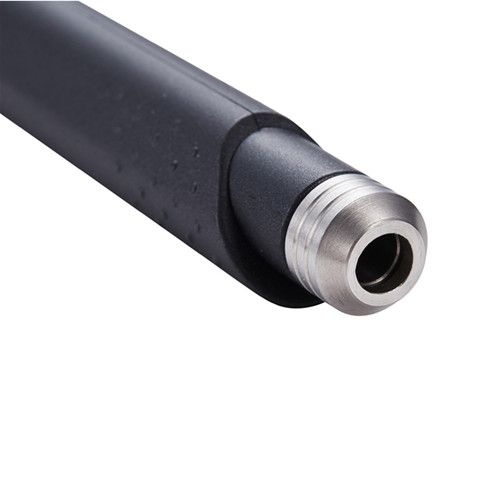

2. Loosen and remove the fitting nut.
3. Pull out the original solder tip and insert another solder tip again.
4. Insert and tighten the fitting nut again.
Power: 65W

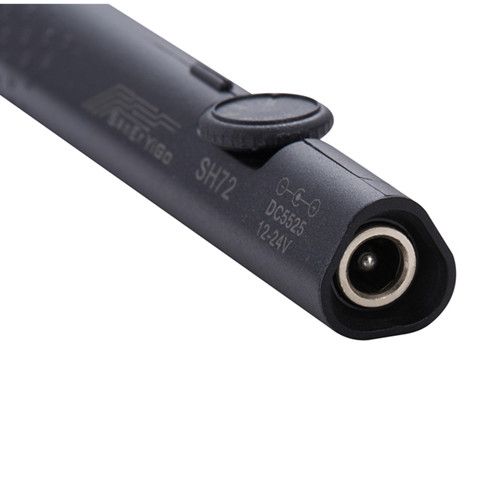

Power interface: 5.5 x 2.5
Working voltage: DC12-24V, (inner positive and outside negative)
Work current: >=1.5A
Temperature range: 220-400℃

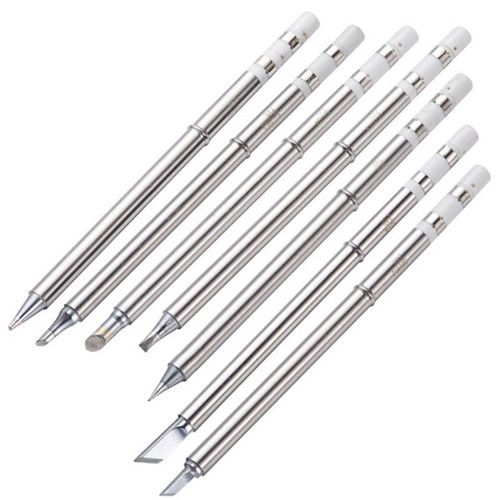

Type: SH-B2/SH-BC2/SH-C4/SH-D24/SH-I/SH-K/SH-Ku
CLICK HERE TO BUY EXTRA TIPS >>>>ID: 1618170<<<< >>>>ID: 1622580(7Pcs/Set)<<<<

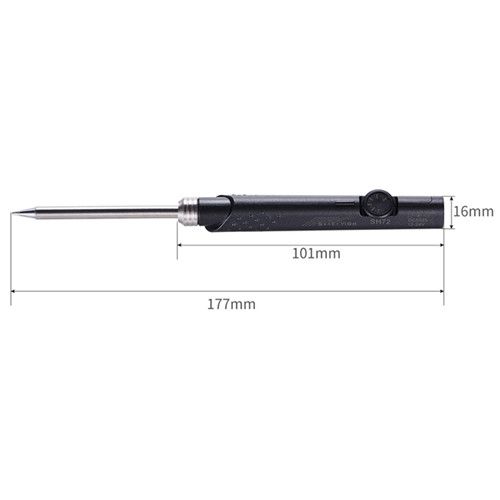

Size of the control handle: 110 x 16 x 15mm
Tip size: 115 x 5.5mm
Weight: 28g
Package size: 165 x 85 x 22mm
Package weight: 60g
Reference Table for Soldering Iron Supply Voltage and Current:
Operation Voltage Electric Current Power
12V >=1.5A 18W
16V >=2A 32W
19V >=2.1A 40W
24V >=2.7A 65W

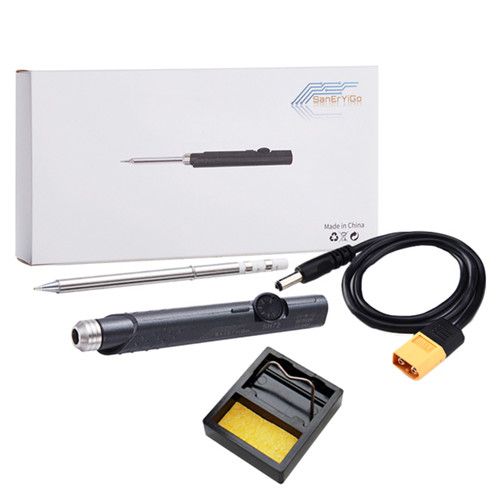

SH72 65W Electric Solder Iron x 1
Solder Iron Tip x 1
DC5525 Cable x 1
Enlish User Manual x 1
