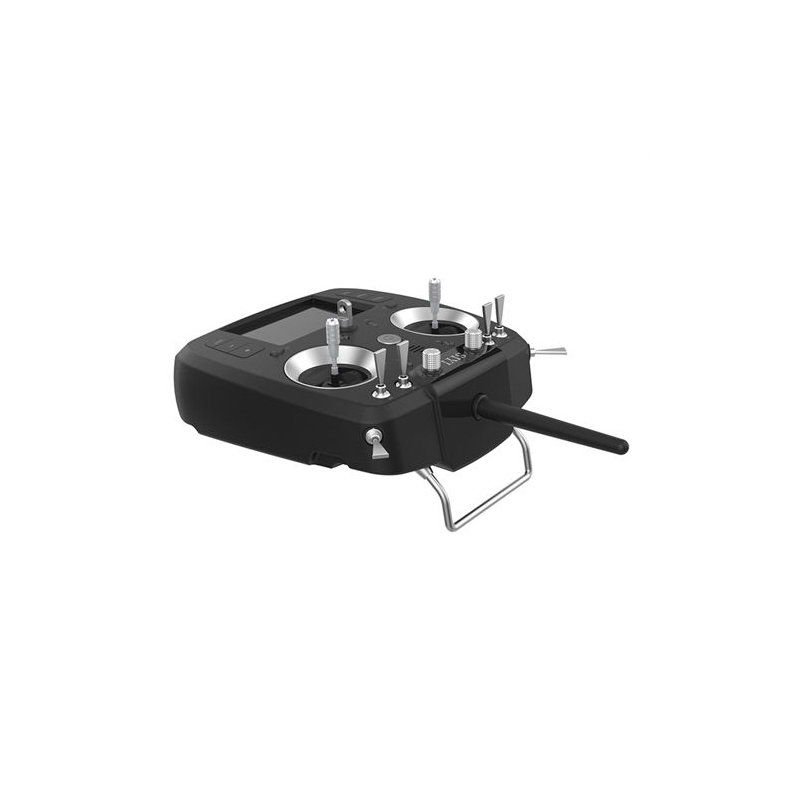

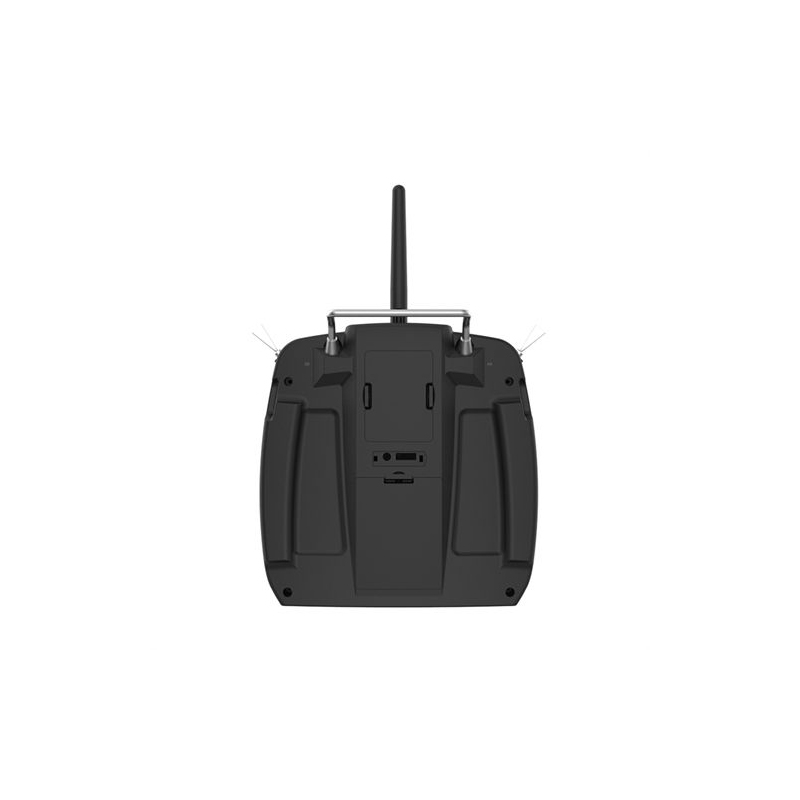

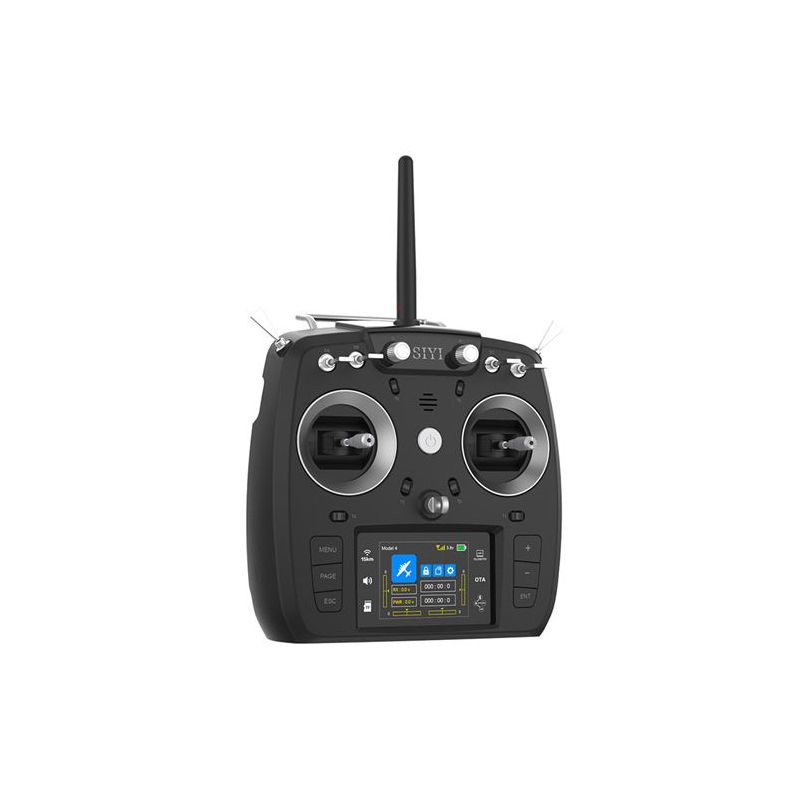

Brand Name: SIYI
Weight: 586g (without battery)
Size: 191*175*64mm
Maximum communication distance (no interference, no obstruction): 15 KM
Operating frequency: 2.400-2.483 GHz
Output: PPM/PWM/SBUS
Number of channels: 12 physical channels, 16 signal channels
Support models: multi-rotor/fixed-wing/glider/helicopter/car/ship
Support battery type: 18650 *2, 2S Lipo battery (Not Include)
Battery compartment size: 60*58*16 MM
Antenna gain: 2dbi
Working current (rated): 210mA

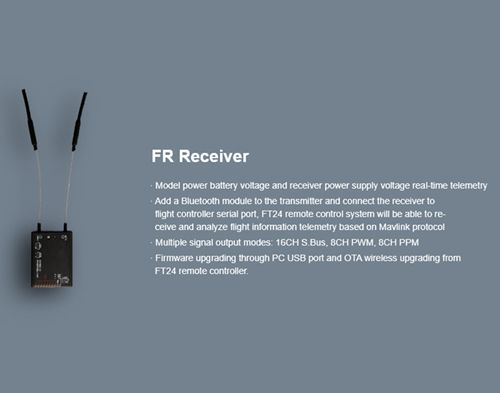

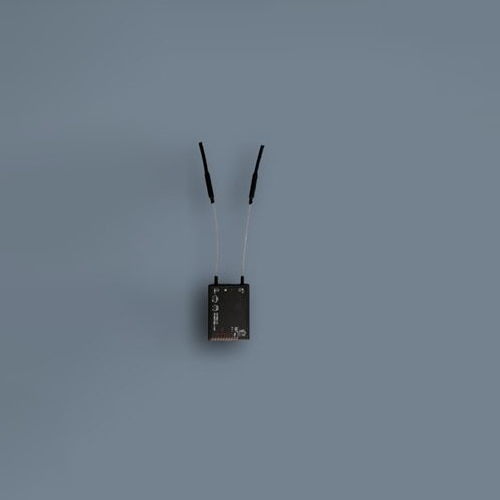

FR Receiver
Signal output: 16-channel S.Bus, 8-channel PPM, 8-channel PWM
Data interface: UART
Size (without antenna): 51.5*38*13mm
Weight (without antenna): 20g
Antenna gain: 2dbi
Operating voltage range: 5V-8.4V
Return voltage range: 0-50V
Working environment temperature: -10℃ to 55℃
