SIYI MK15 Mini HD Handheld Radio System Transmitter 5.5-Inch Monitor 1080p 60fps 180ms FPV 15KM For Plant Protection Drone








SIYI MK15 Mini HD Handheld Radio System Transmitter 5.5-Inch Monitor 1080p 60fps 180ms FPV 15KM For Plant Protection Drone

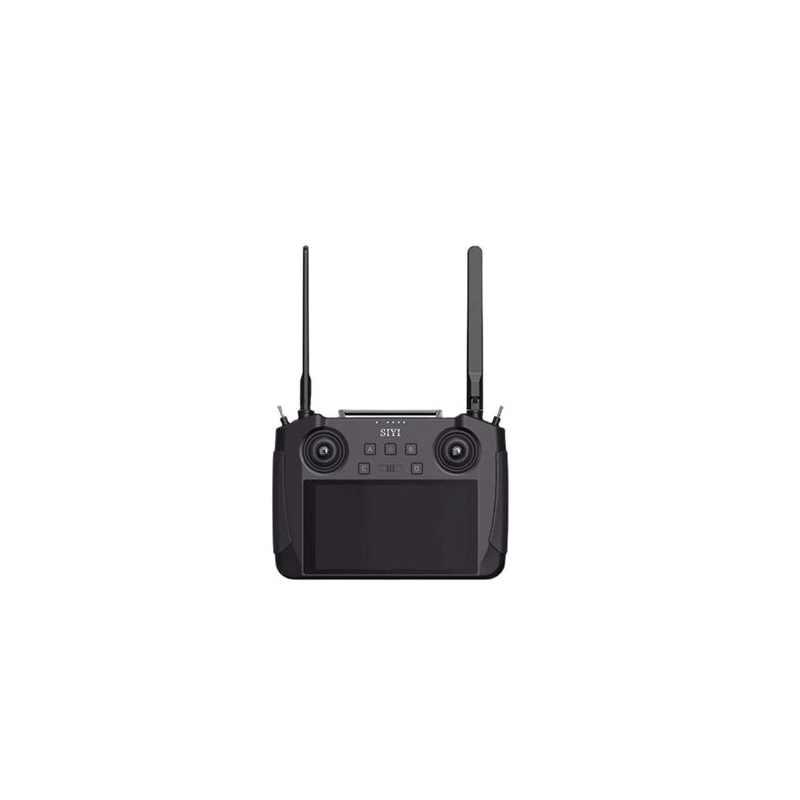

MK15 is a 15-kilometer range Android smart controller with dual 1080p FPV ,based on the full high-definition image transmission technology , which is completely and independently developed by SIYI Technology. The system is deeply optimized and integrated with Qualcomm 8-core CPU platform. MK15’S abundant features and powerful performance make it a commonly applied device of reliable image transmission and solid control on agriculture drones, commercial drones, unmanned vehicles and boats, and robotics.
MK15 transmitter carries Qualcomm Snapdragon 8-core CPU, which can decode 1080p @60fps video stream by hardware in both H.264 and H.265 format. The CPU’S powerful computational performance lowers image transmission and display latency to 180ms. ” Transmitters coming with MK15 enterprise combos are equipped with standard HDMI port for outputting video stream to an external monitor. it also supports 4G network, after secondary development the video stream can be pushed to clooud network.
1000CD / M2 High Brightness 1920 * 1080 High-definition Monitor Screen
Super Long Battery Life, 30W PD Fast Charging
Transmitter (Ground Unit)
Monitor:5.5-inch High Definition and High Brightness LCD Touchscreen
System:Android 9.0,2G RAM, 16G ROM
Dimension(Antenna Folded):189 x 138 x 41 mm
Weight:850g
Battery Capacity & Type:10200 mAh 7.4V 2S Li-on
Fast Charging Protocol
– PD 30W
– Charging: Type-C
– Firmware Upgrade: DATA (4-Pin)

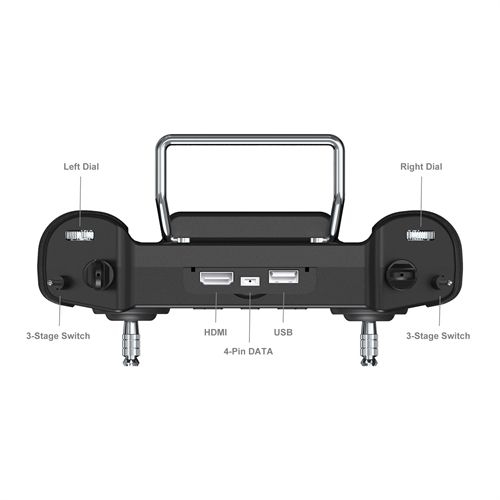

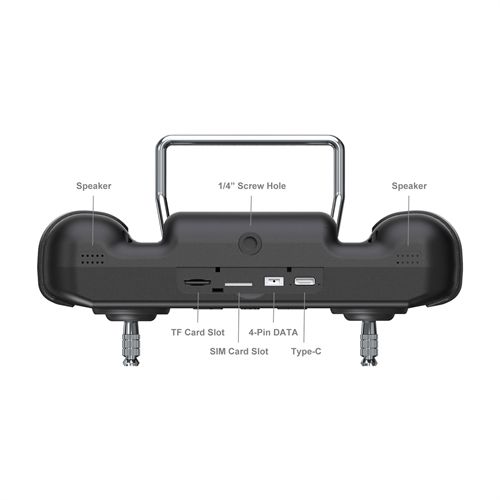

Interface & Ports
– Mobile Network: SIM Card Slot
– External Storage: TF Card Slot
– Tripod Connect: 1/4-inch Screw Hole
– Video Output: Standard HDMI
– External RTK: DATA (4-Pin)
– Data Transfer: USB-A
Waterproof Level:IP53
Working Temperature:-10℃ ~ 55℃
Receiver (Air Unit)
Signal Output:16 channels of SBUS,5 channels of PWM
Interface & Ports
– S.BUS: 3-Pin
– Datalink (to FC): UART 4-Pin
– PWM Channel 1-5: 6-Pin
– Video Input: 8-Pin
– Firmware Upgrade: Type-C
Dimension(Antenna Excluded):70 x 55 x 16 mm
Weight(Antenna Excluded):100g
Antenna Gain :5 dBi
Power Input :25.2 ~ 58.8 V(6S ~ 14S)
Working Temperature:-10℃ ~ 55℃

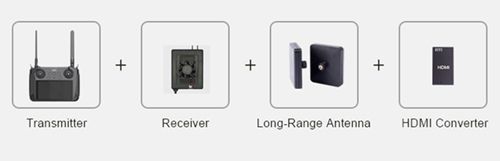

Transmitter x 1
Receiver x 1
Long-range Antenna x 1
HDMI Converter x 1
