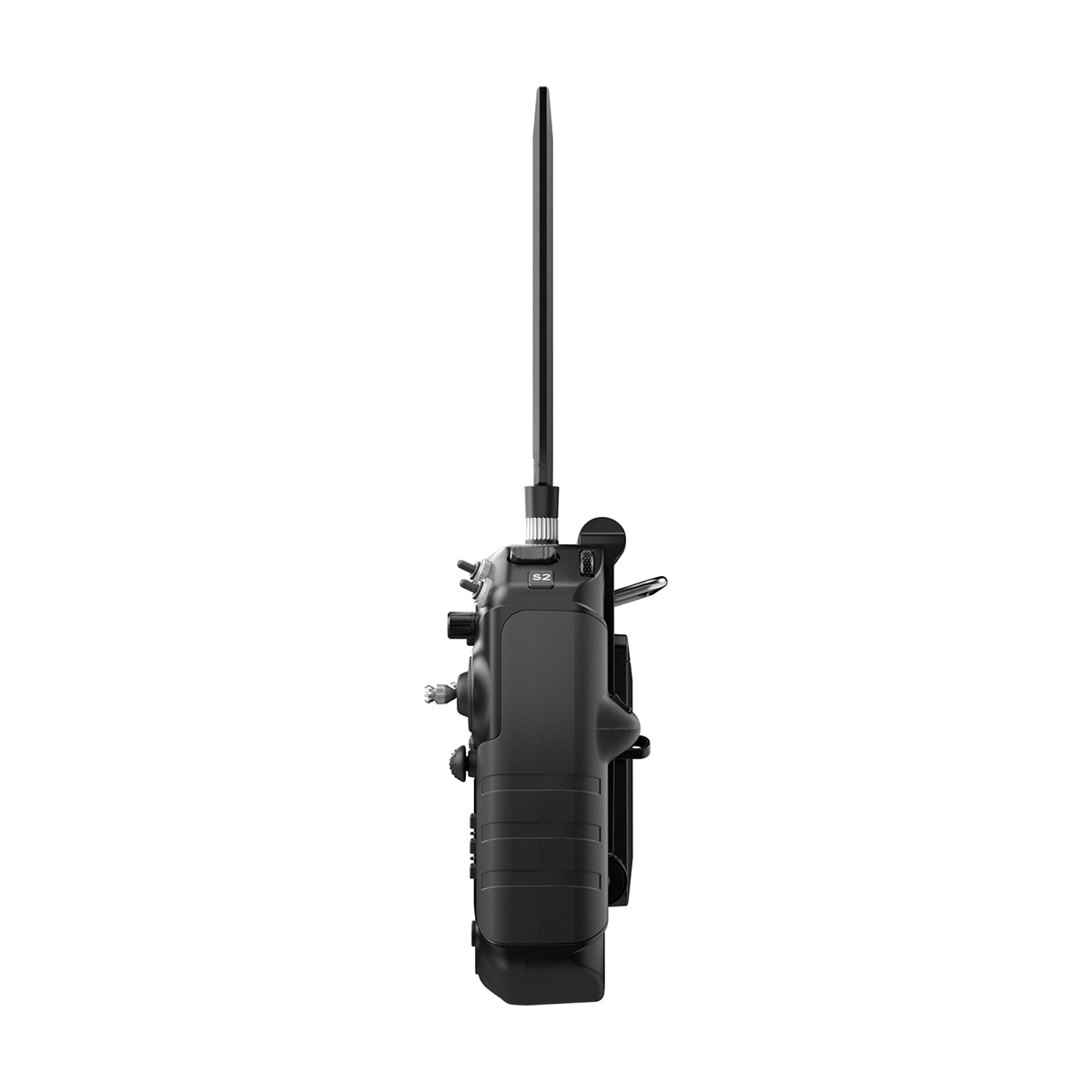

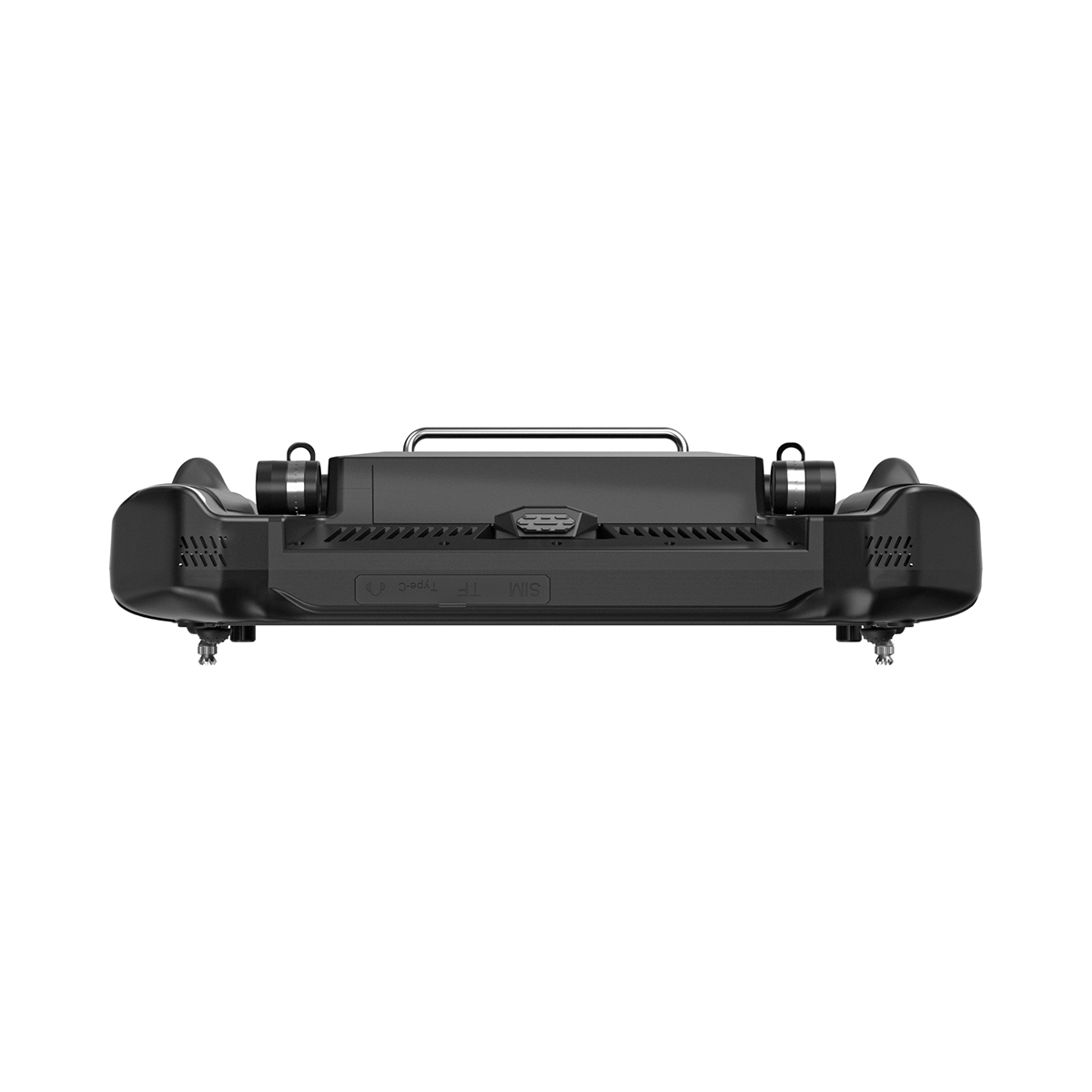

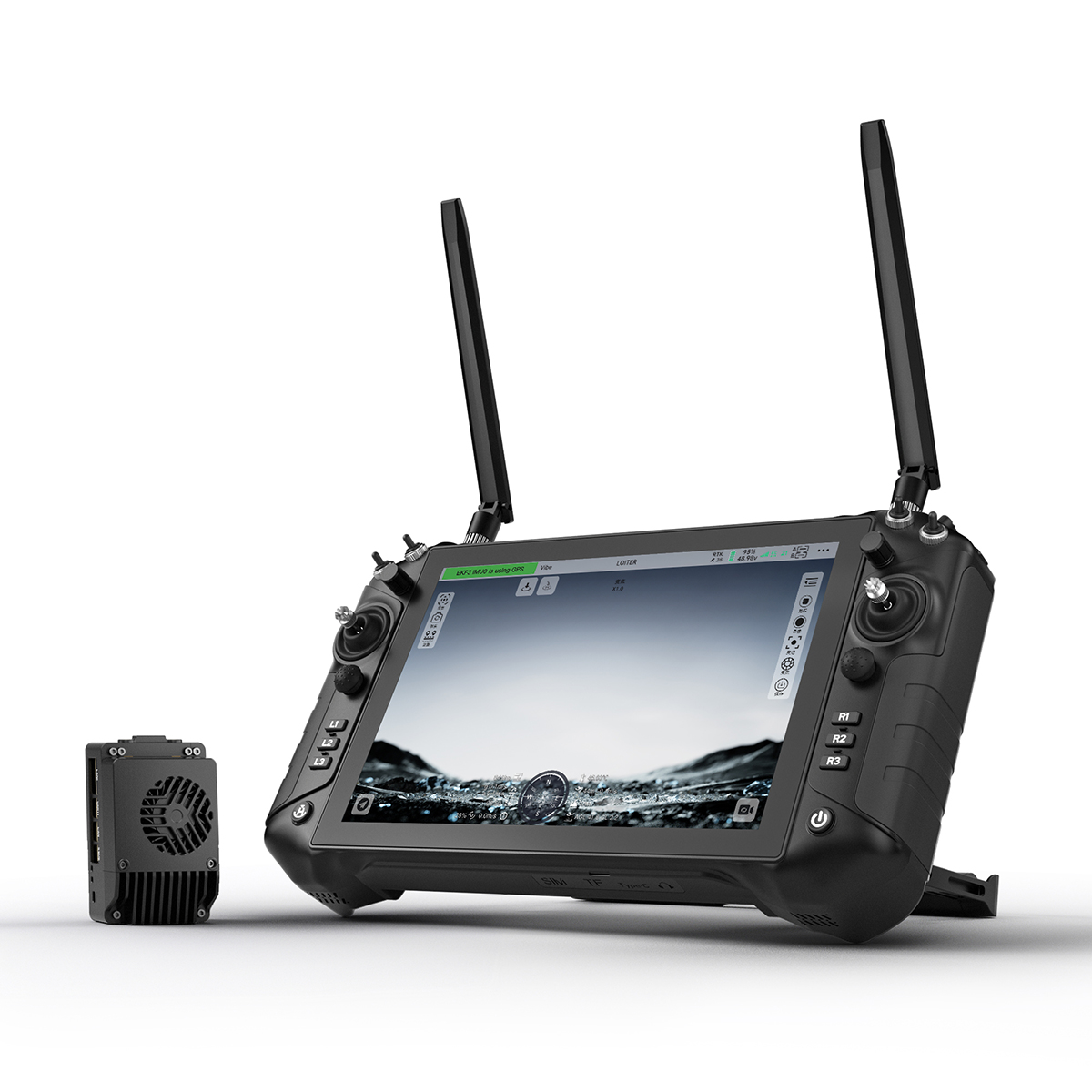

SIYI UniRC 10 Pro Triple-Frequency Professional Ground Station Remote Controller for Professional Drones Intelligent Robots
SIYI UniRC 10 Pro Triple-Frequency Professional Ground Station Remote Controller for Professional Drones Intelligent Robots

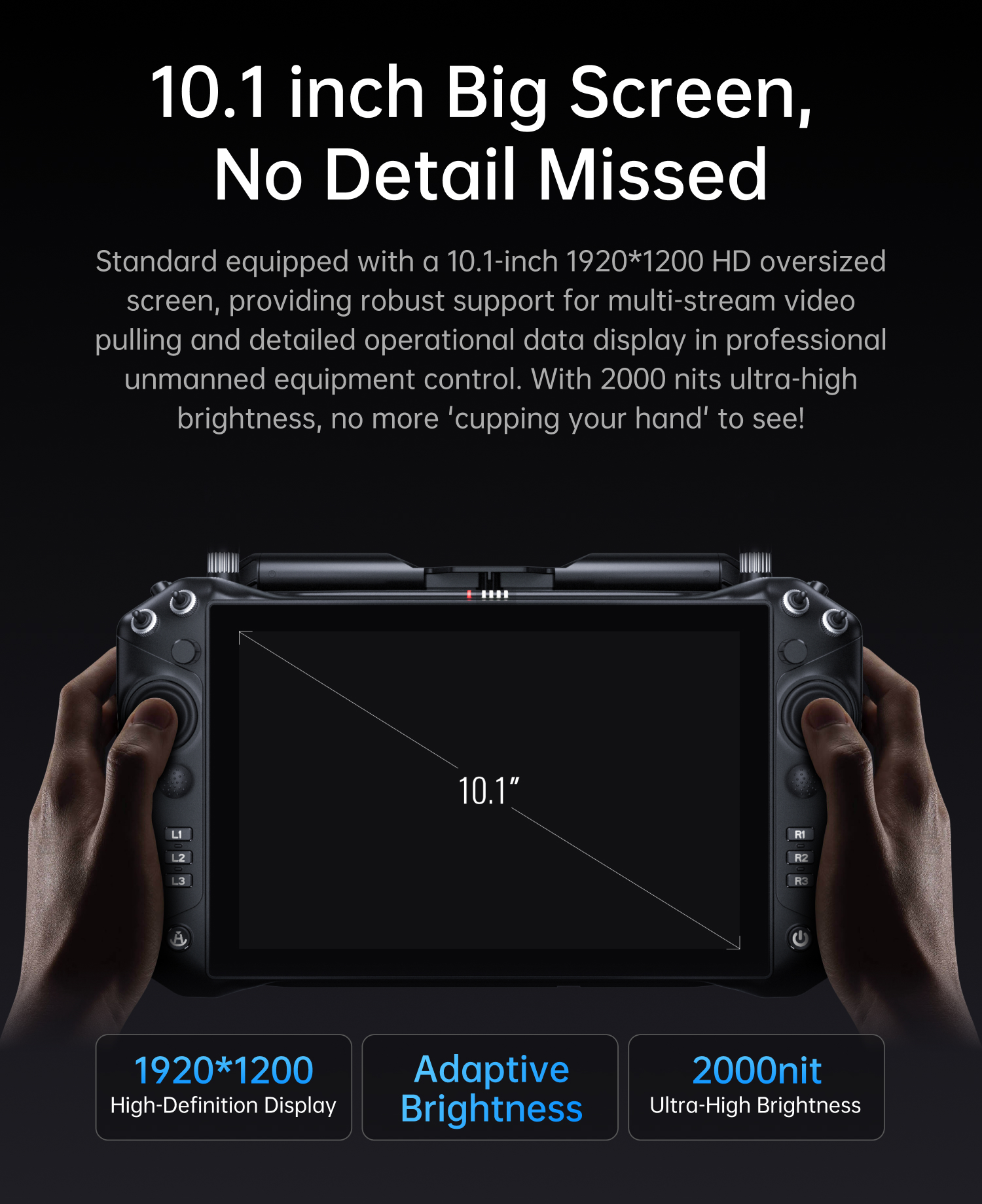

Ultra-Bright Large Screen for Outdoor Visibility：10.1-inch 1920*1200 HD screen with 2000nit brightness, clear details without shading in strong light

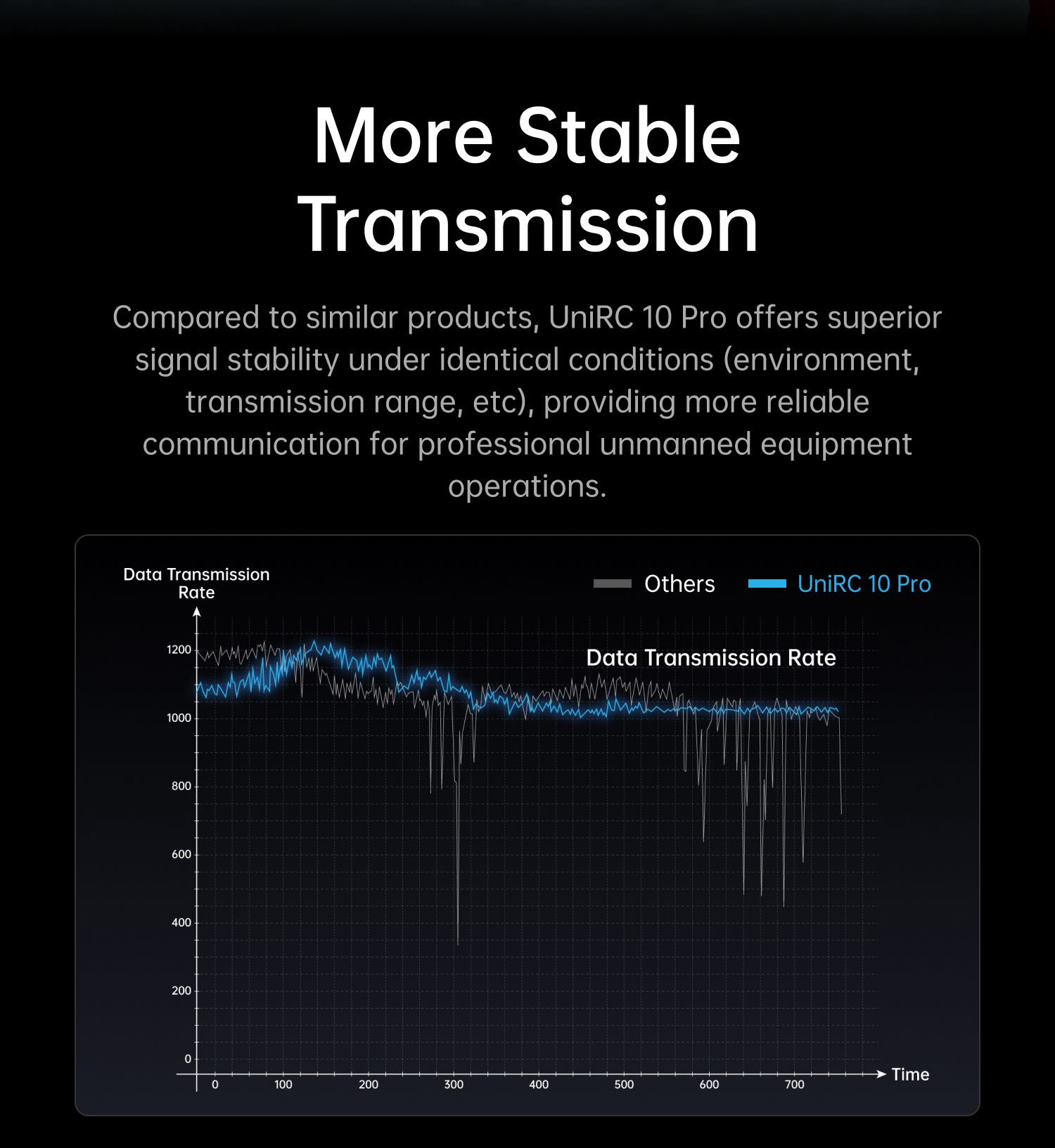

Triple-Frequency Redundancy, Anti-Interference & Stable：Supports flexible triple-band switching + adaptive frequency hopping, no video freezes or signal drops in complex electromagnetic environments
Multi-Channel High-Precision Control：27 customizable physical channels, paired with Hall sensor joysticks + dual mini-sticks, enabling two-handed parallel control of multiple payloads
Hot-Swappable Battery, Non-Stop Operation：Dual-battery design, supports external battery hot-swapping + 65W PD fast charging, no anxiety for long outdoor operations
Industrial-Grade Durability, All-Weather Use：IP54 protection + (-20℃~55℃) wide temperature range, resistant to sand, rain and harsh conditions
Open Ecosystem, Easy Integration：Compatible with SIYI’s full product line and Mavlink-protocol devices, reducing integration costs for equipment manufacturers
Model: UniRC 10 Pro
Transmission:
Altitude (120 m), Few Obstruction & Medium Interference: 20-25 km
Above Sea Flight Altitude (120 m), No Obstruction & Low Interference: 35-45 km
Frequency: 2.4 GHz / 5.8 GHz
*Tips: Operation on other frequency bands requires certification of the full system—including but not limited to drones, UGVs, and USVs—in compliance with local legal and regulatory requirements.
Bandwidth: 10M/20M
Maximum data transfer rate: 65Mbps
*Tips: Measured under conditions of 20MHz bandwidth, with the air unit and remote controller in a near-field, interference-free environment.
Physical Channels: Button *13;3-Position Switch *6;Main Joystick *2;Mini Joystick *2;Dial *2;Knob Switch *2
Operating Temperature:-20~55℃
Storage Temperature:
-30~45℃ (Within one month)
-10~35℃ (Greater than one month and less than three months)
-10~30℃ (Greater than three months and less than one year)

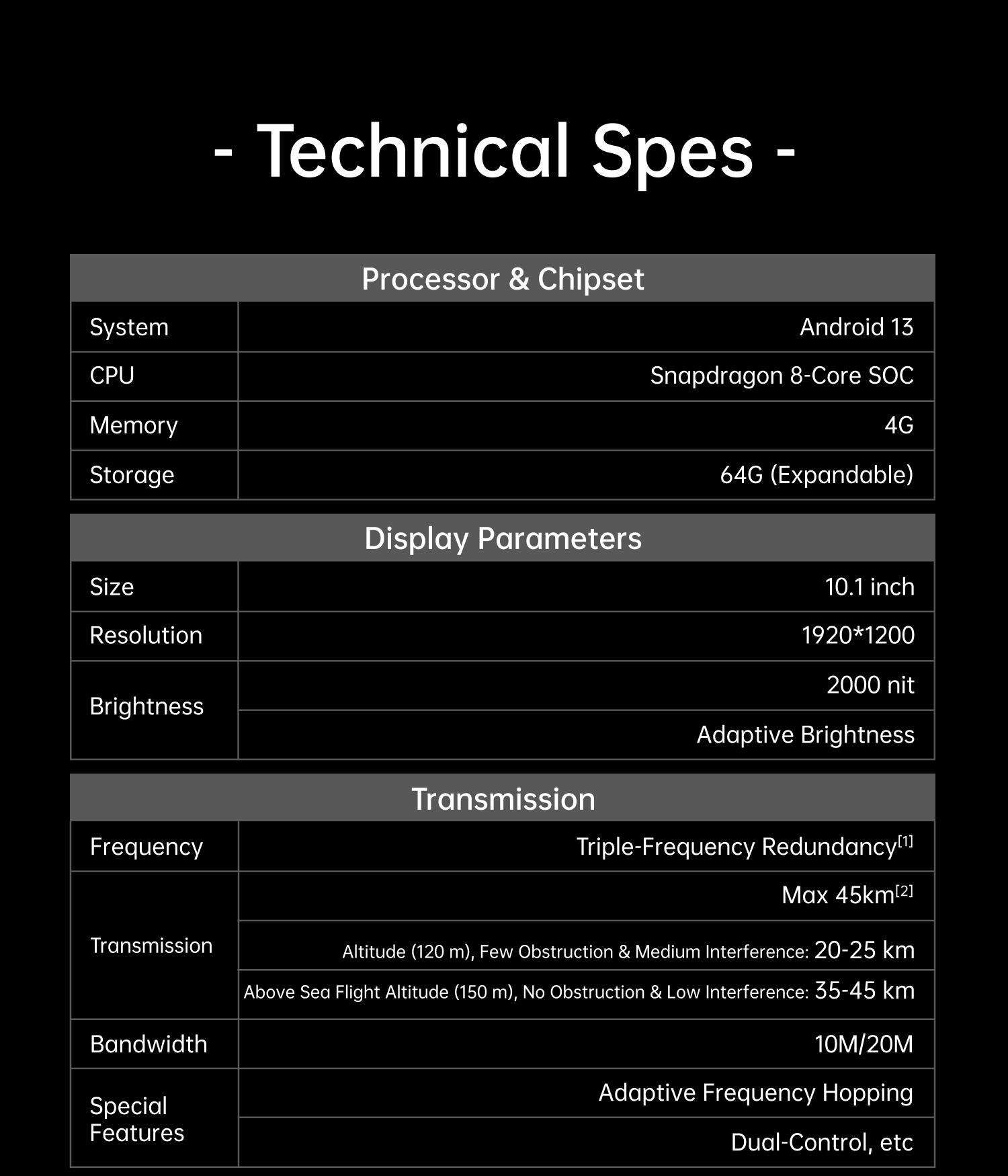

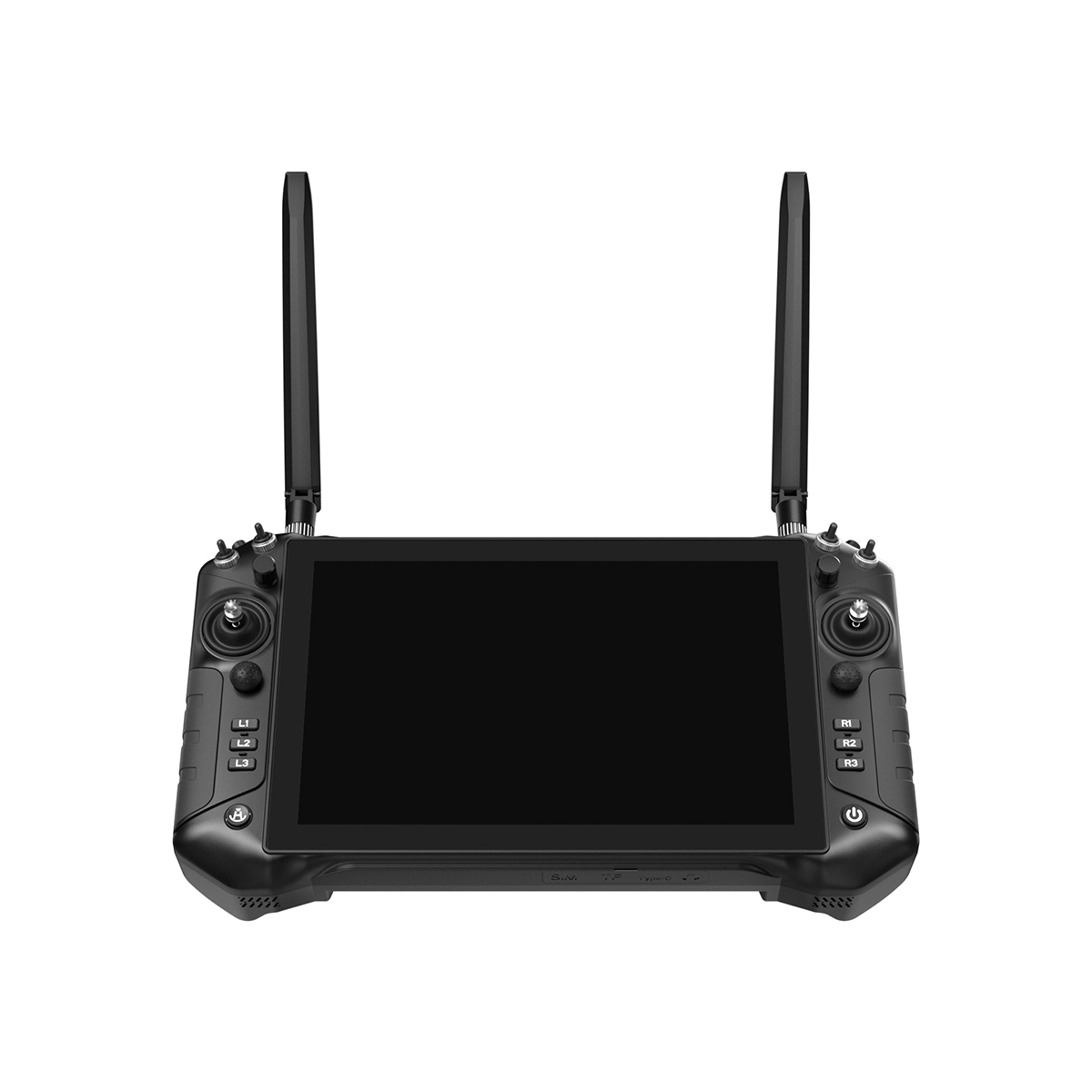

Ground Station – Basic Spes
Monitor Size: 10.1 inch
Resolusion: 1920*1200
Brightness: 2000 nit
Screen Refresh Rate: 60 FPS
Adaptive Brightness: Support

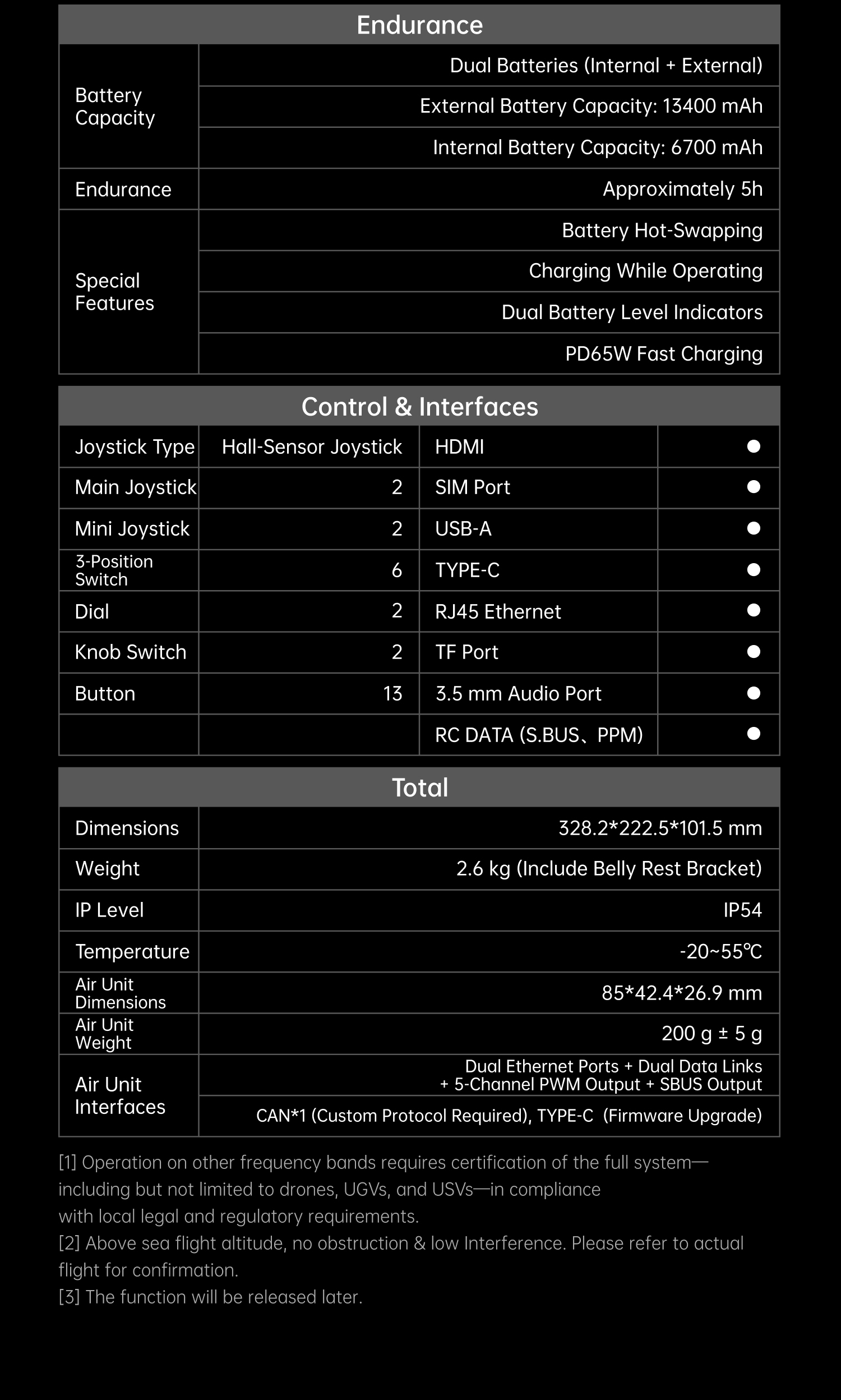

External Battery Capacity: 13400 mAh
Internal Battery Capacity: 6700 mAh
System Power Consumption: 34W
Endurance: Approximately 5h (External + Internal Battery)

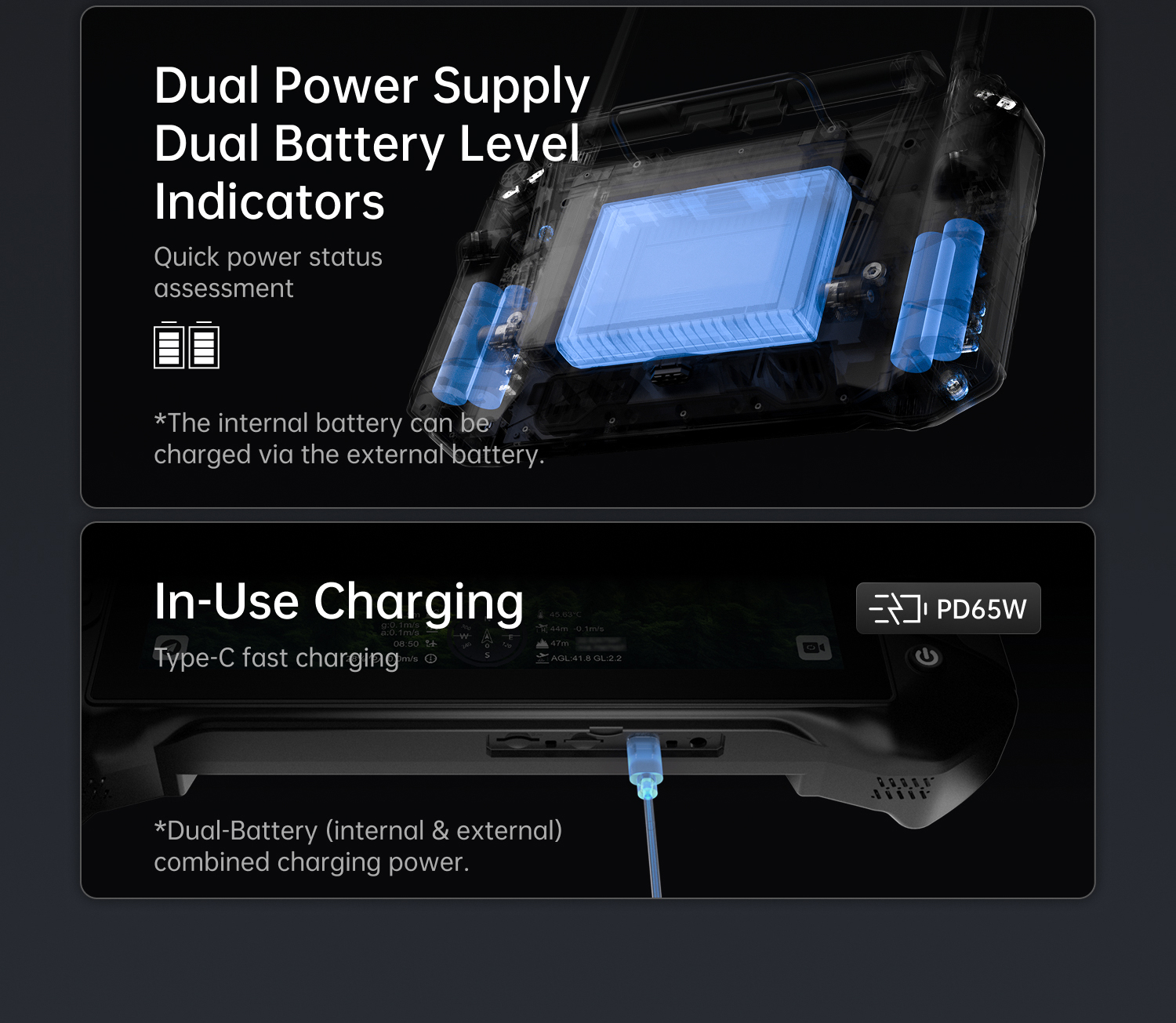

Charging Method:
Standard fast charging, supports up to 65W fast charging
When powered off:With external battery connected: Charging power 65W (internal battery 25W, external battery 40W)
Without external battery connected: Charging power 40W (internal battery 40W)
When powered on: With external battery connected: Charging power 65W (internal battery 40W, external battery 25W)
Without external battery connected: Charging power 40W (internal battery 40W)
Charging Time : Without external battery: 1.5h;With external battery: 4h
System : Android 13
Storage: 4GB + 64GB (Expandable)
GNSS: GPS/GLONASS/BeiDou/Galileo/QZSS
IP Level: IP54
Dimensions: 328.2*222.5*101.5 mm
Weight: 2600g(Include belly rest bracket)

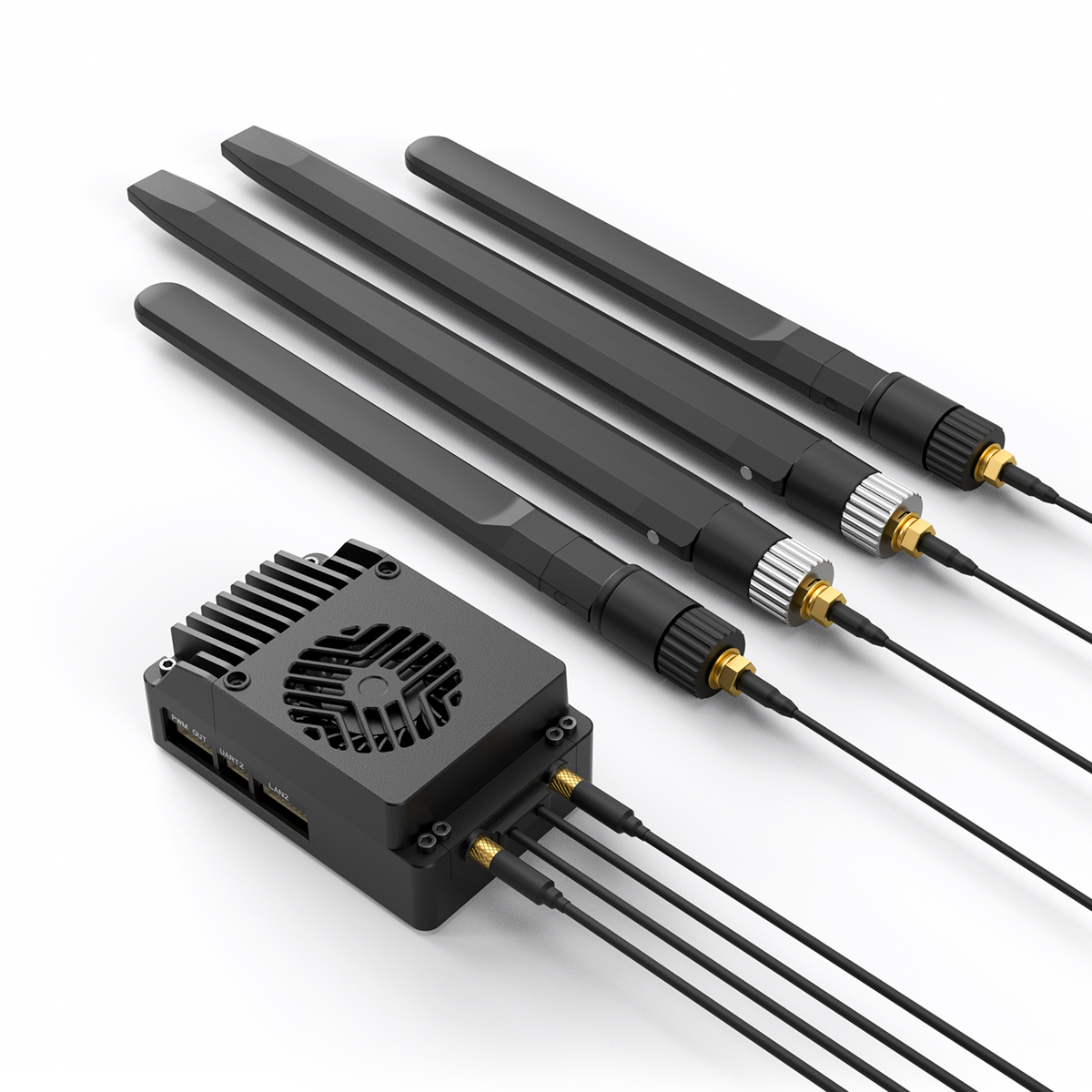

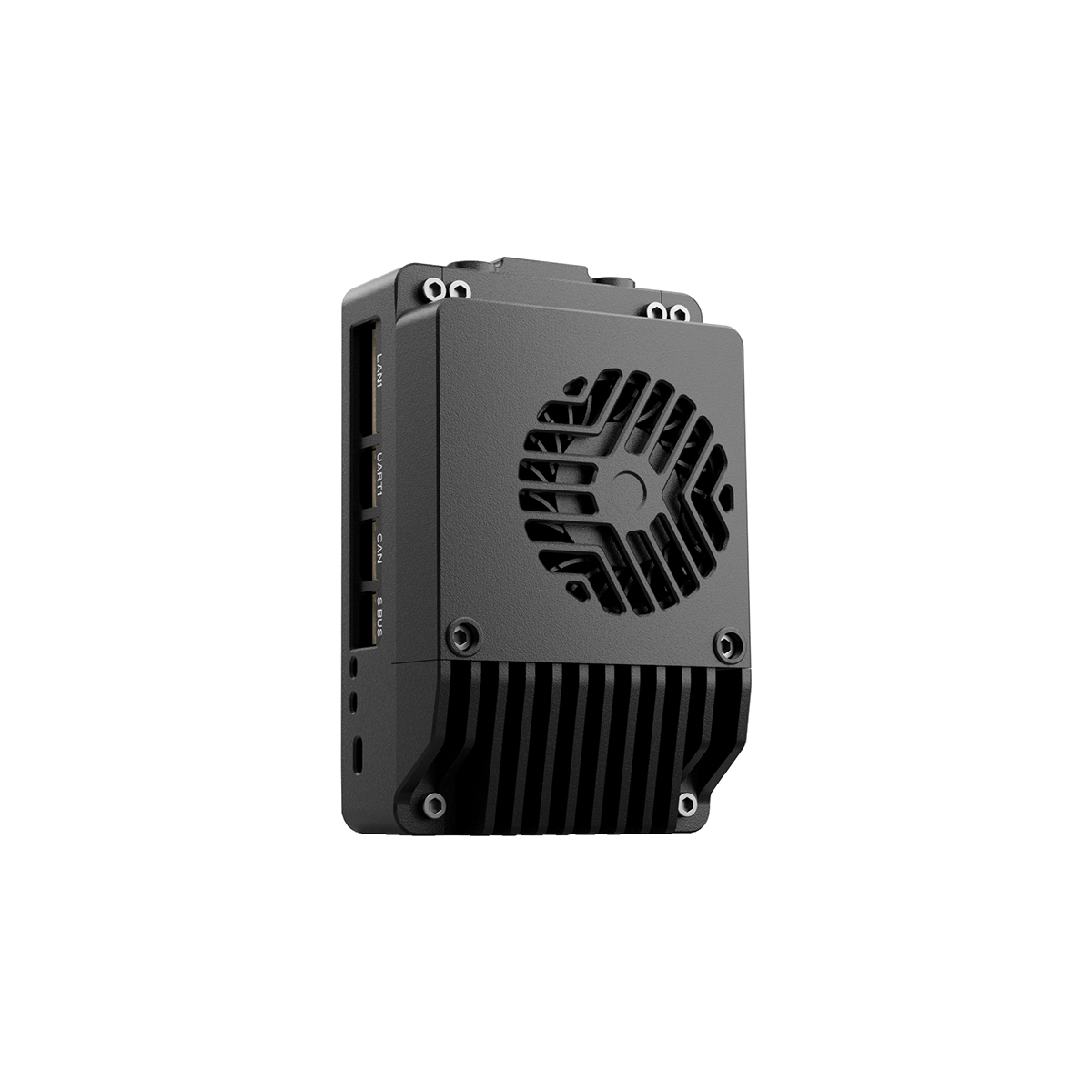

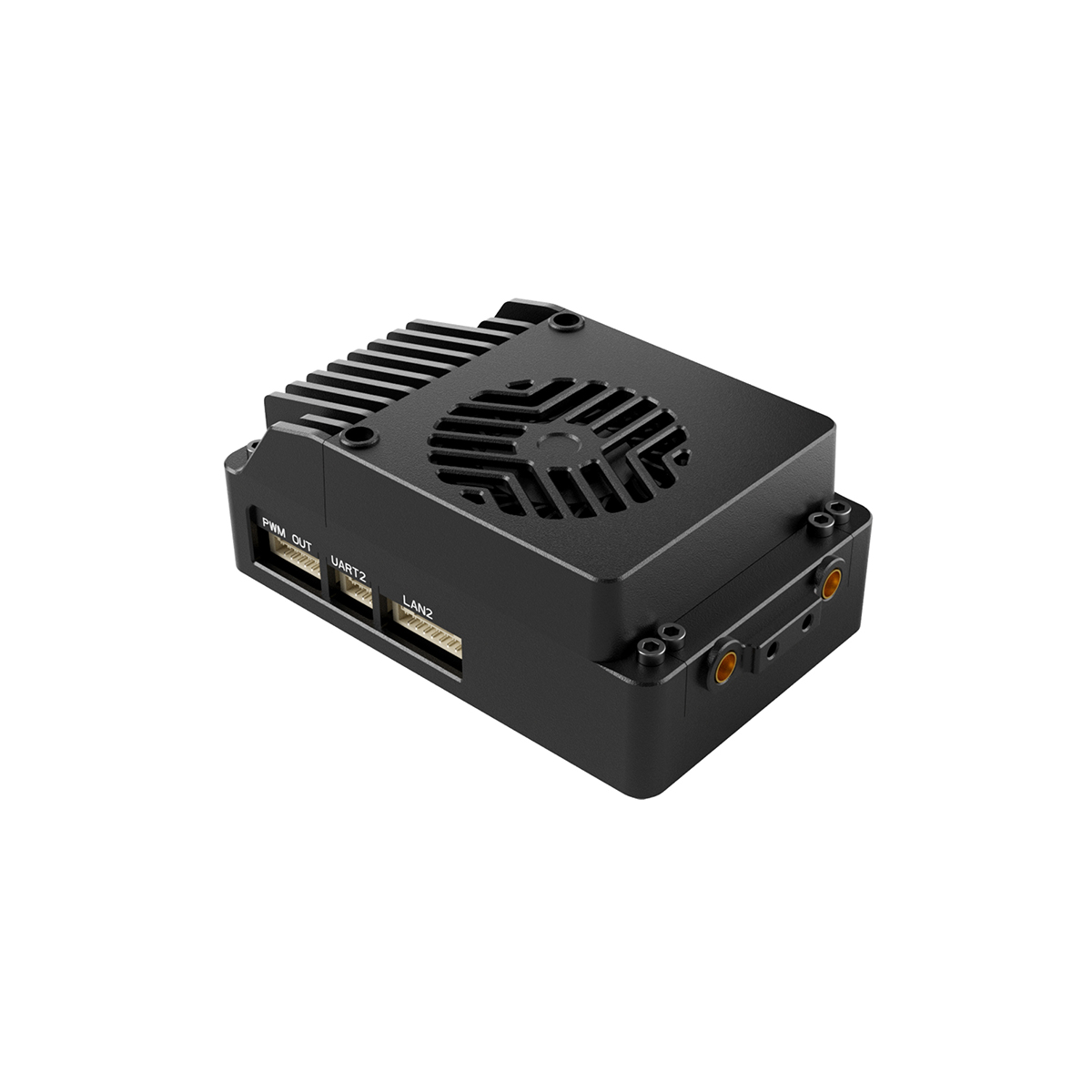

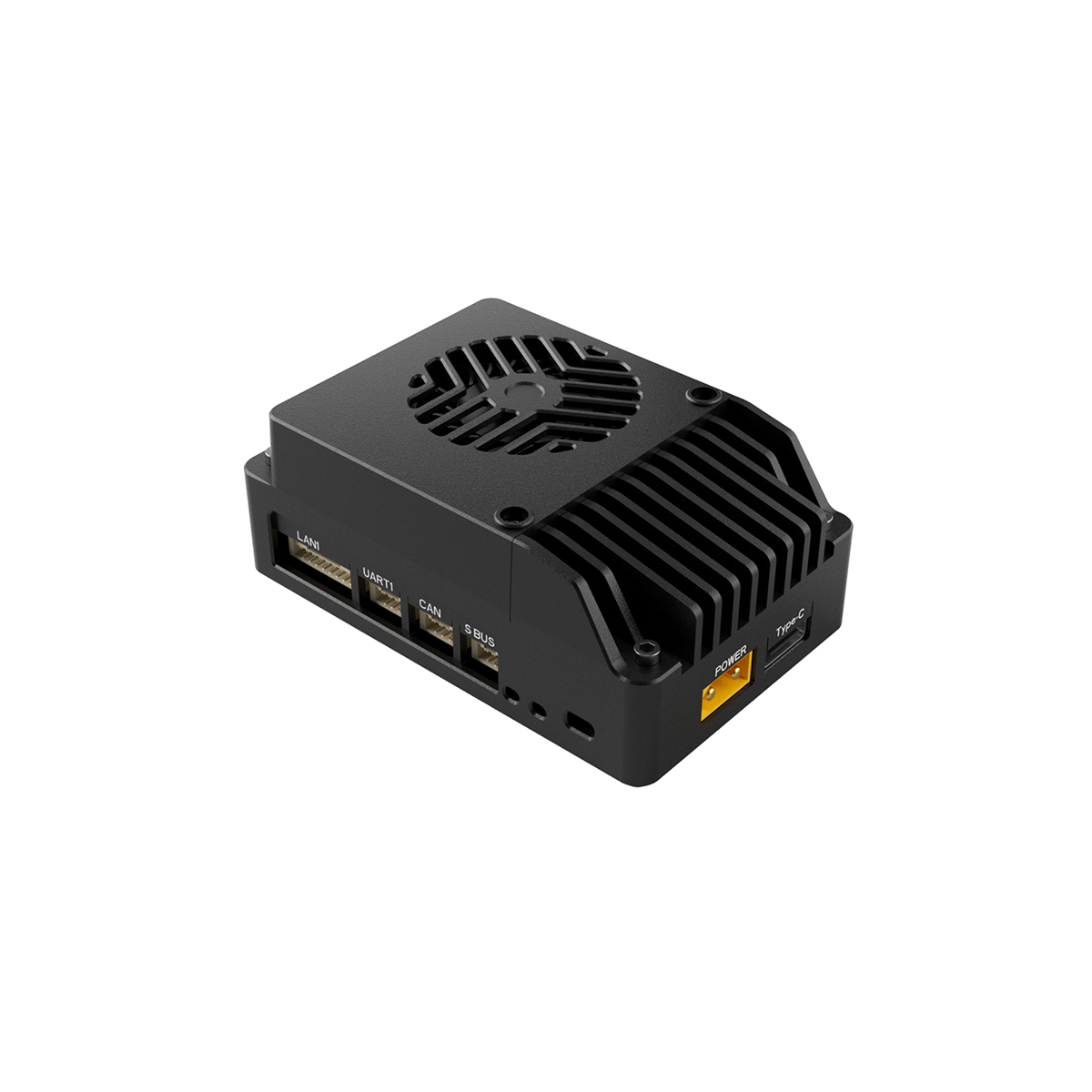

Air Unit
RC Signal Output: 16-channel S.Bus;5-channel PWM

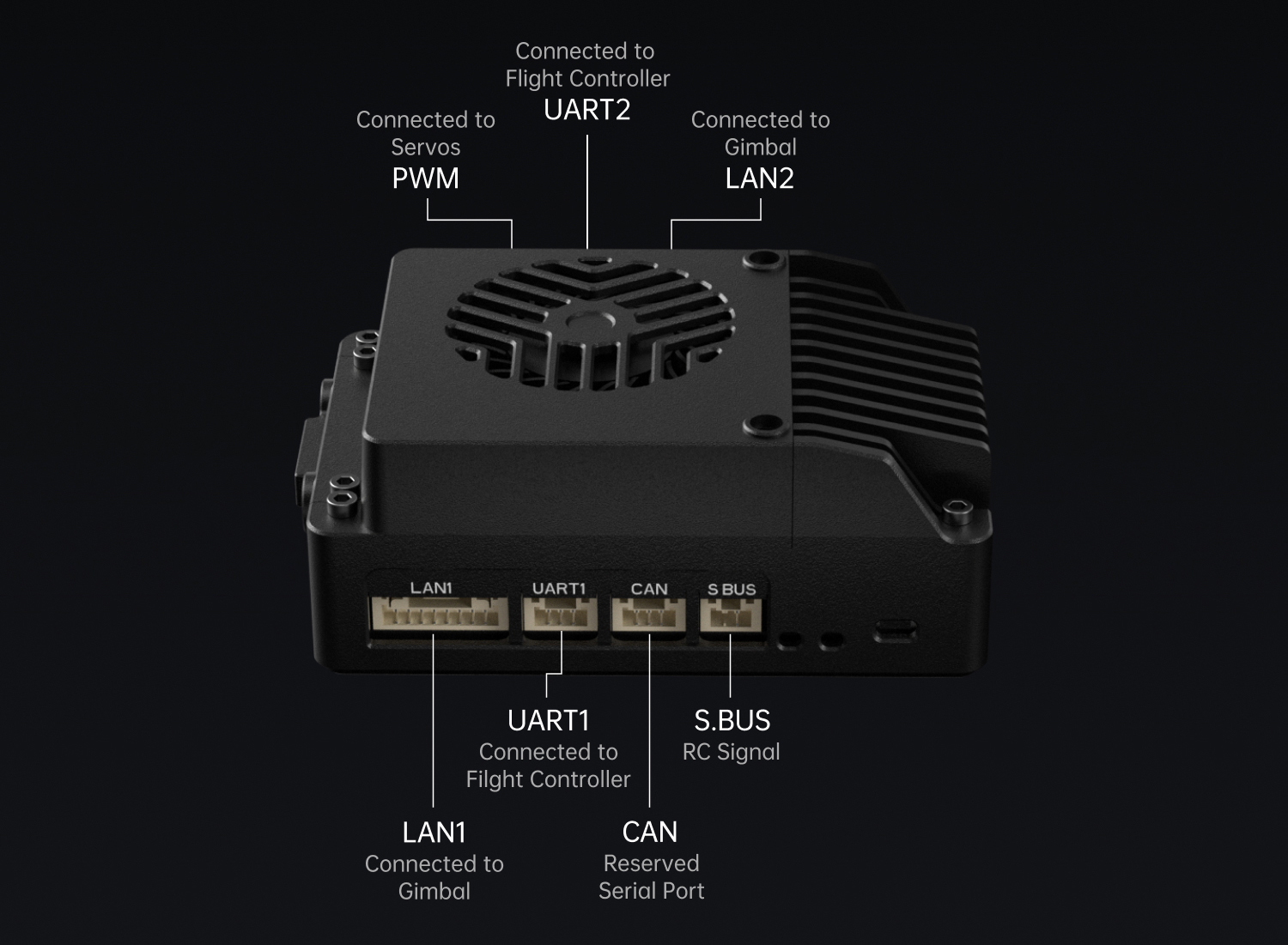

Interfaces:
(GH1.25 6Pin)
Data Link: UART*2 (GH1.25 3Pin)
Video & Data: Ethernet Port*2 (GH1.25 8Pin)
CAN*1 (GH1.25 4Pin)
PWM*1 (GH1.25 6Pin)
Power Input: XT30
Firmware Upgrade: TYPE-C
Antennas: Quick-release antennas (MMCX)*2;Detachable antennas (IPEX)*2
Power Supply: 3S-18S
Dimensions (Without Antennas): 85*42.4*26.9 mm
Weight (Without Antennas): 200g ± 5g
Average Power Consumption: 7W

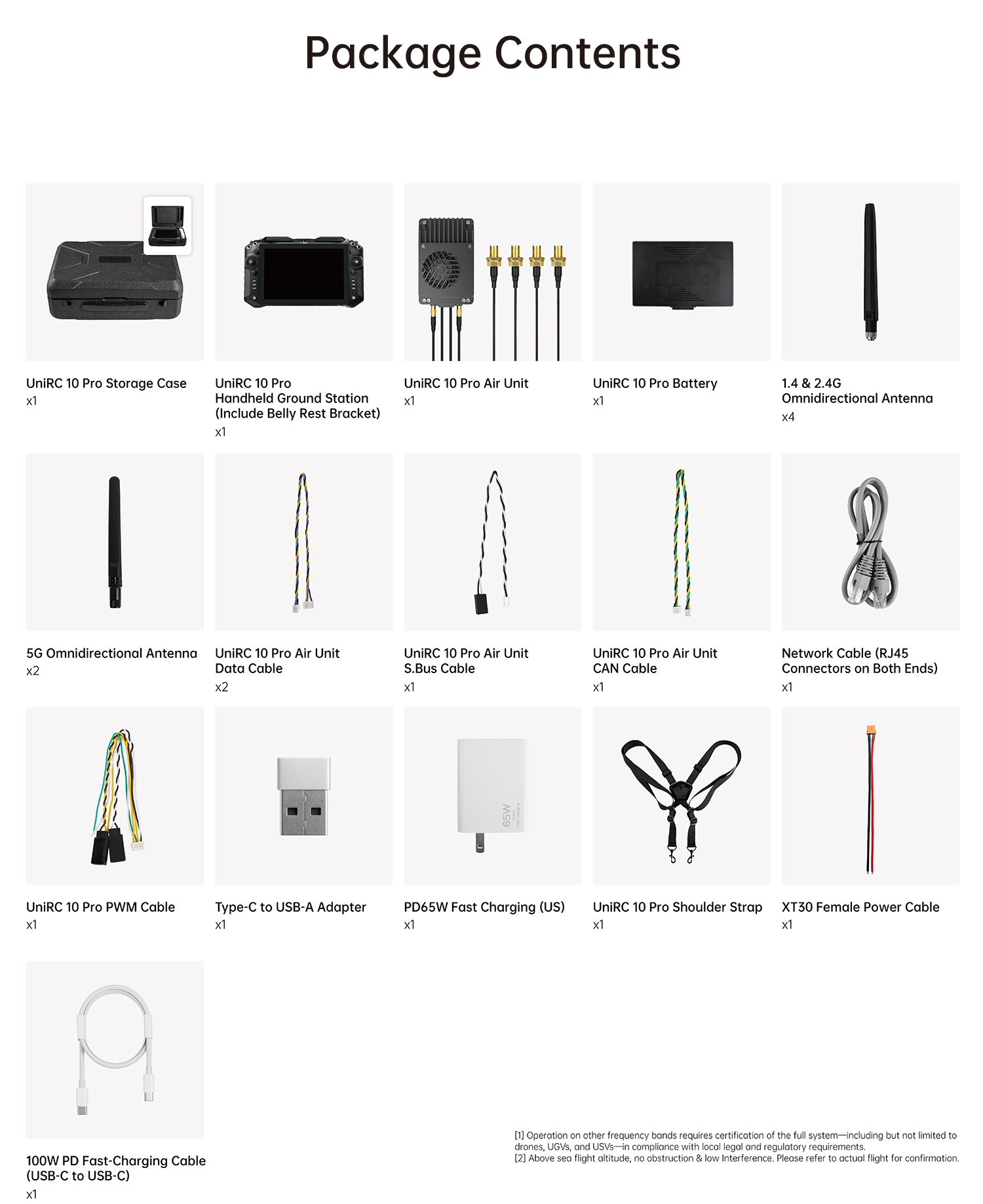

UniRC 10 Pro Storage Case x1
UniRC 10 Pro Handheld Ground Station (Include Belly Rest Bracket) x1
UniRC 10 Pro Air Unit x1
UniRC 10 Pro Battery x1
1.4 & 2.4G Omnidirectional Antenna x4
5G Omnidirectional Antenna x2
UniRC 10 Pro Air Unit Data Cable x2
UniRC 10 Pro Air Unit S.Bus Cable x1
UniRC 10 Pro Air Unit CAN Cable x1
Network Cable (RJ45, Connectors on Both Ends) x1
UniRC 10 Pro PWM Cable x1
Type-C to USB-A Adapter x1
PD65W Fast Charging (US) x1
UniRC 10 Pro Shoulder Strap x1
XT30 Female Power Cable x1
100W PD Fast-Charging Cable (USB-C to USB-C) x1
