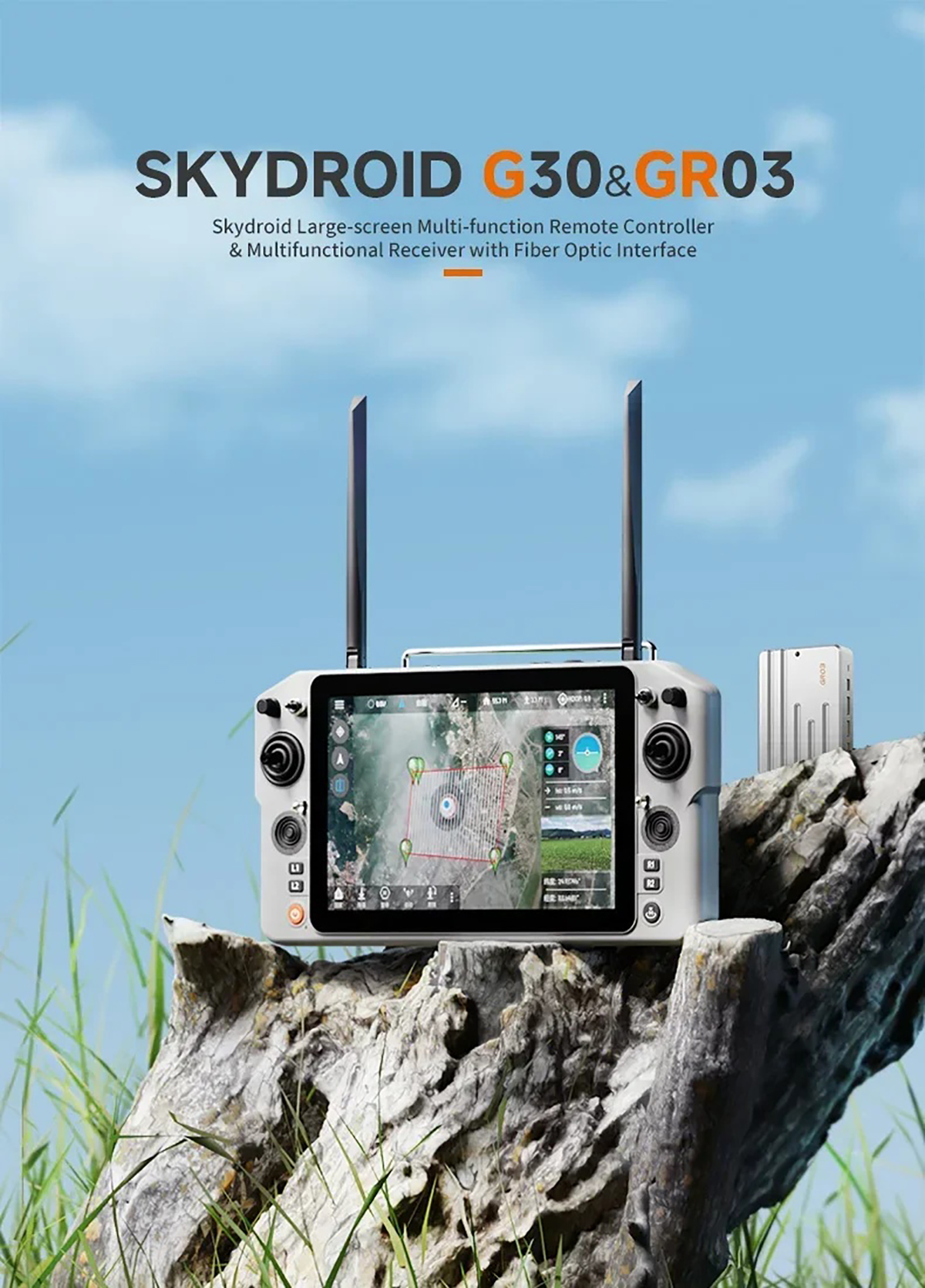

Skydroid G30 Multi-function Remote Controller 2.4G/5.8G Dual-Band HD Screen Long Range Image Transmission

SKU N/A Category Transmitter ＆ Receiver Tag Remote Controller Brand: Skydroid

Skydroid G30 Multi-function Remote Controller 2.4G/5.8G Dual-Band HD Screen Long Range Image Transmission

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Powerful Qualcomm Android Platform: Qualcomm 6nm processor + Android 14, supports hardware decoding of multiple video streams for smooth operation

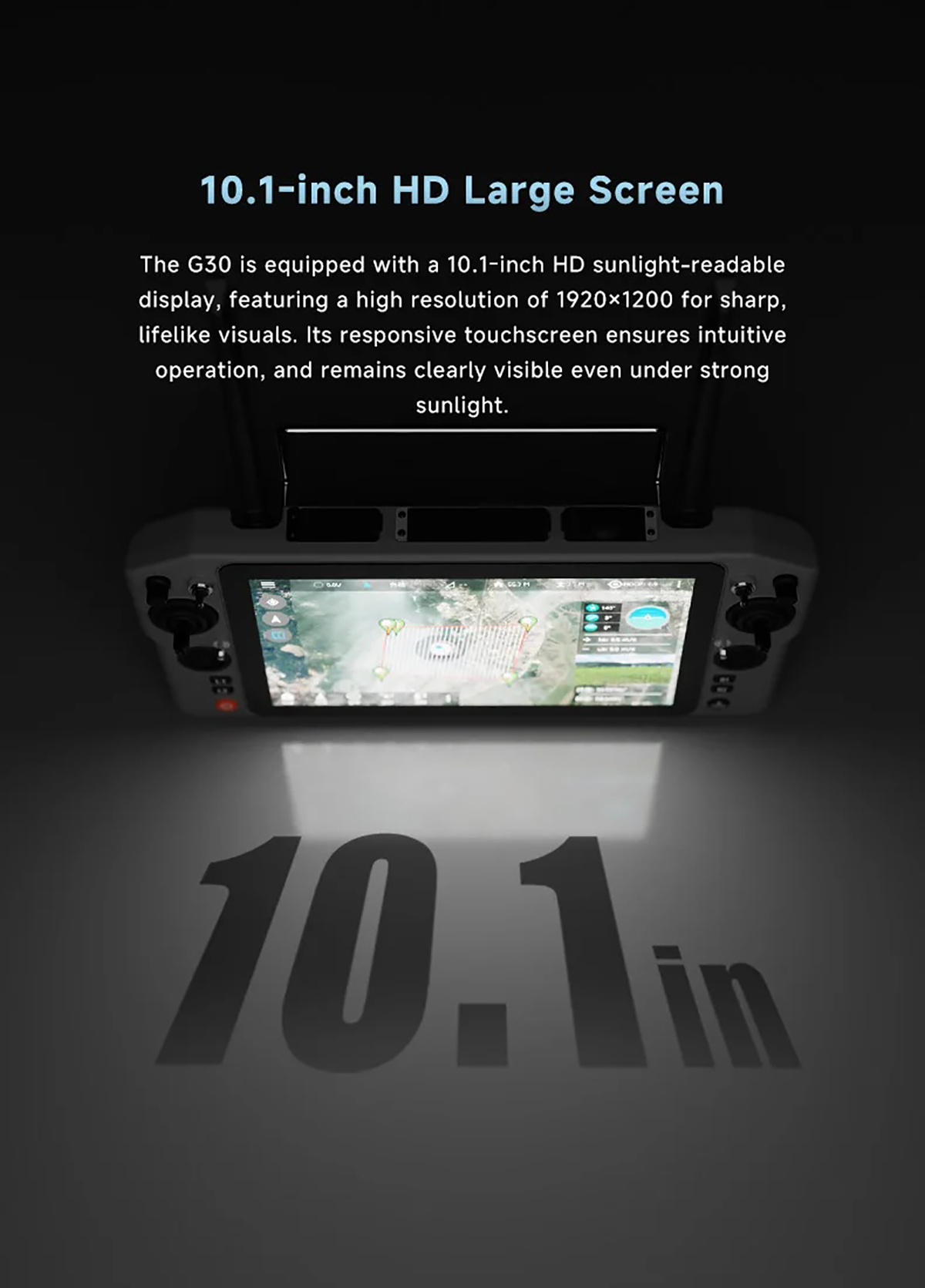

10.1-inch HD Large Screen: 1920×1200 resolution, sunlight-readable under strong light, responsive touch control
30KM Remote Control & Video Transmission: Proprietary data-video-control link, 30KM range for remote control and video transmission
2.4GHz/5.8GHz Dual Bands: Auto-switches between 2.4GHz/5.8GHz bands, stable signal & strong anti-interference

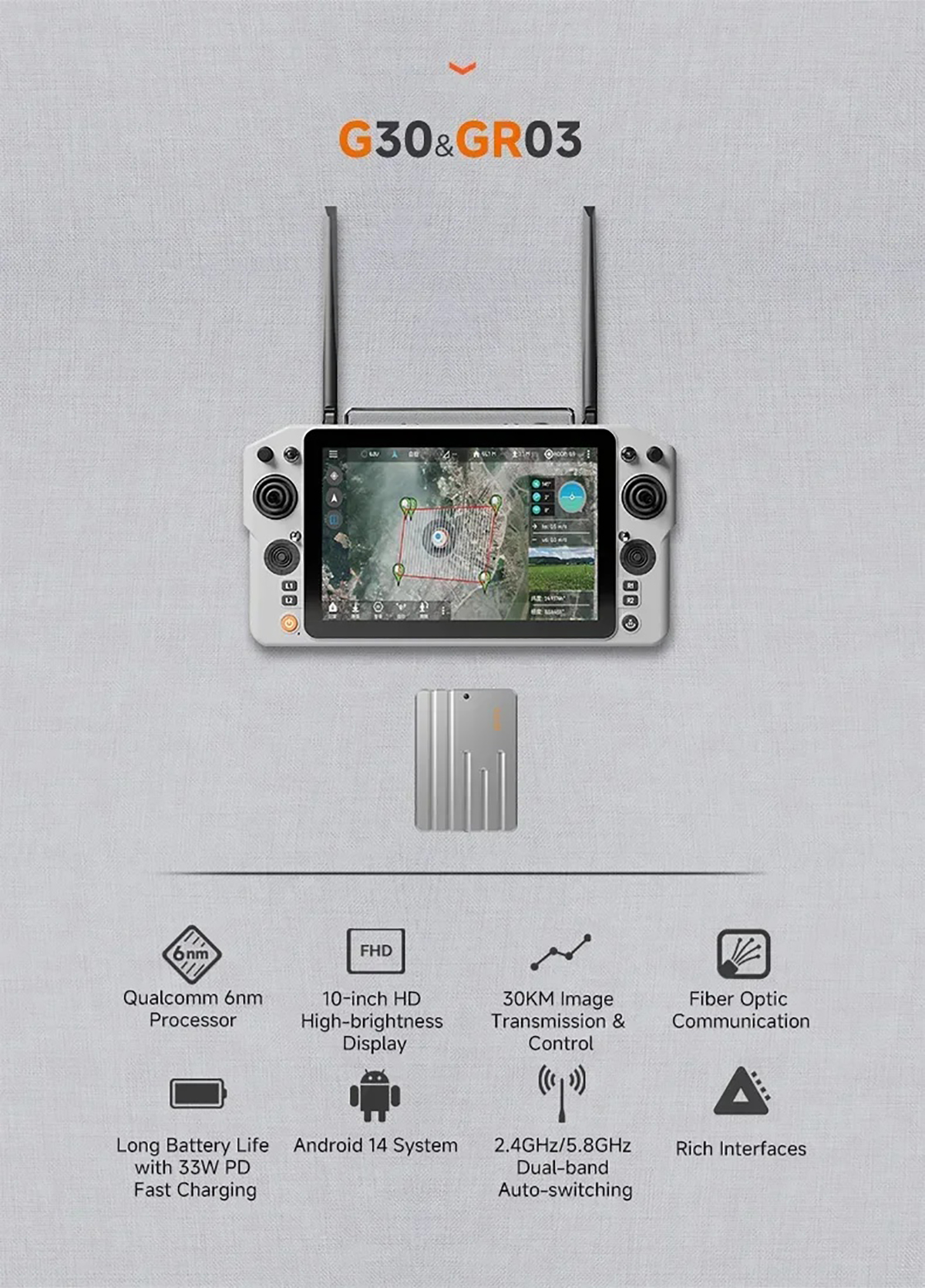

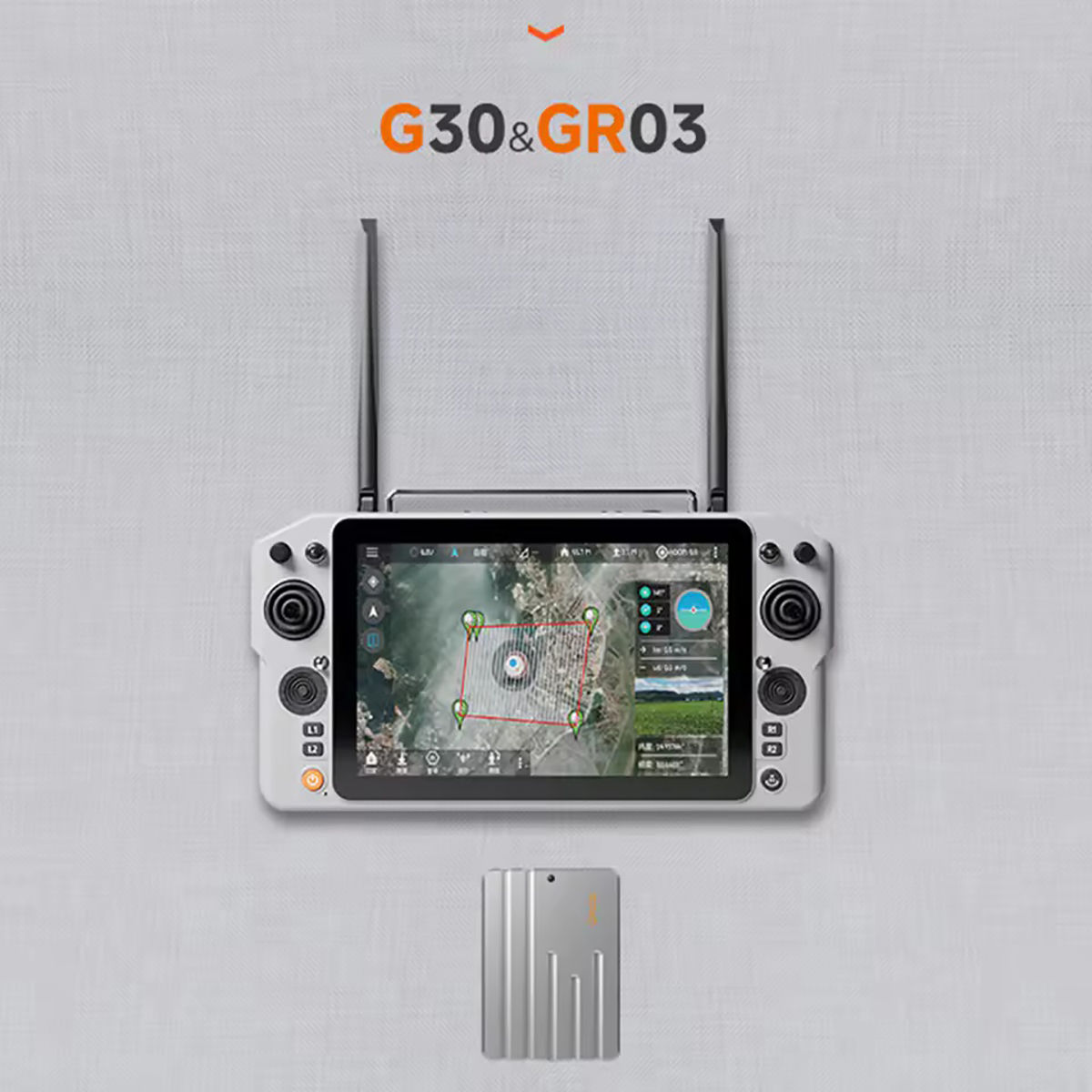

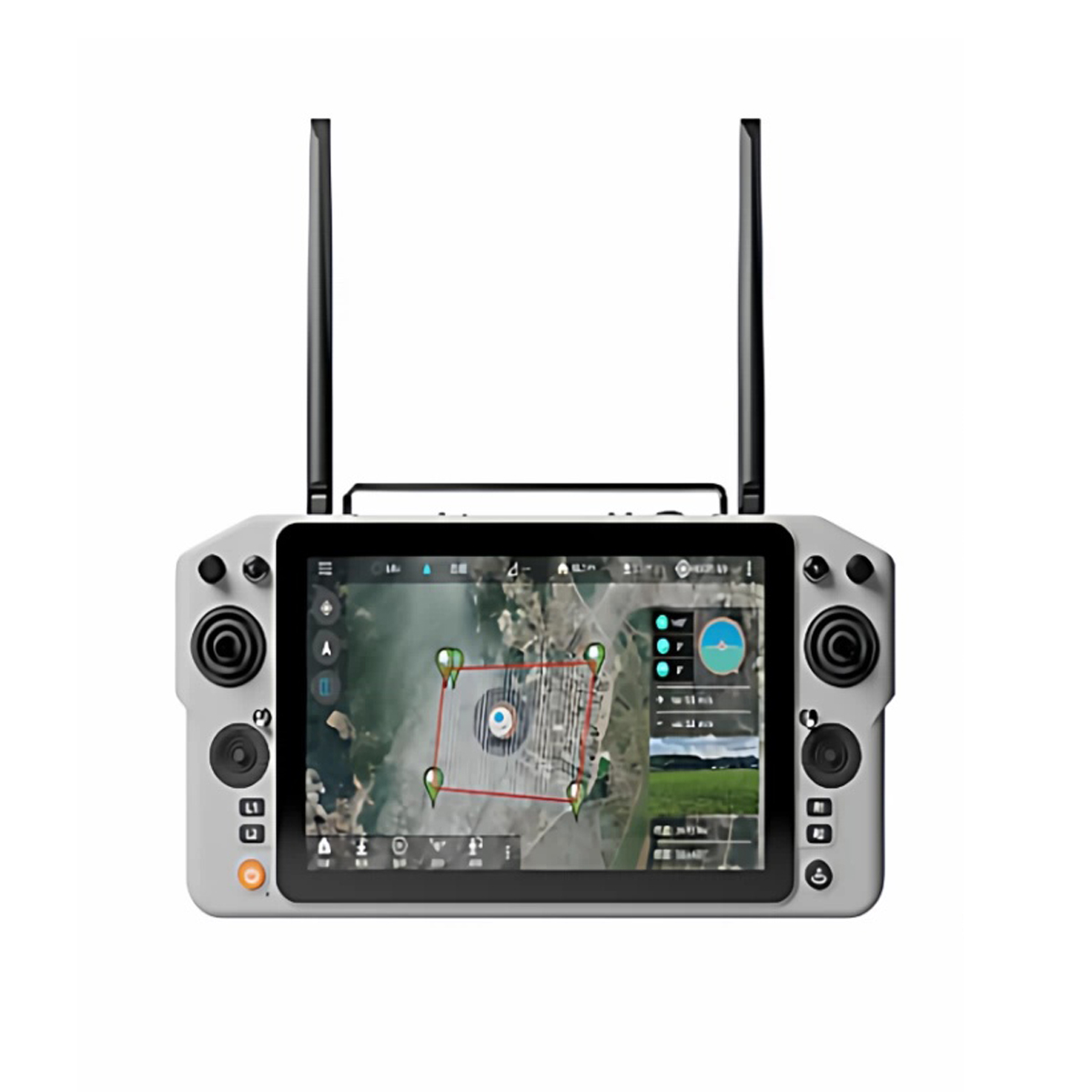

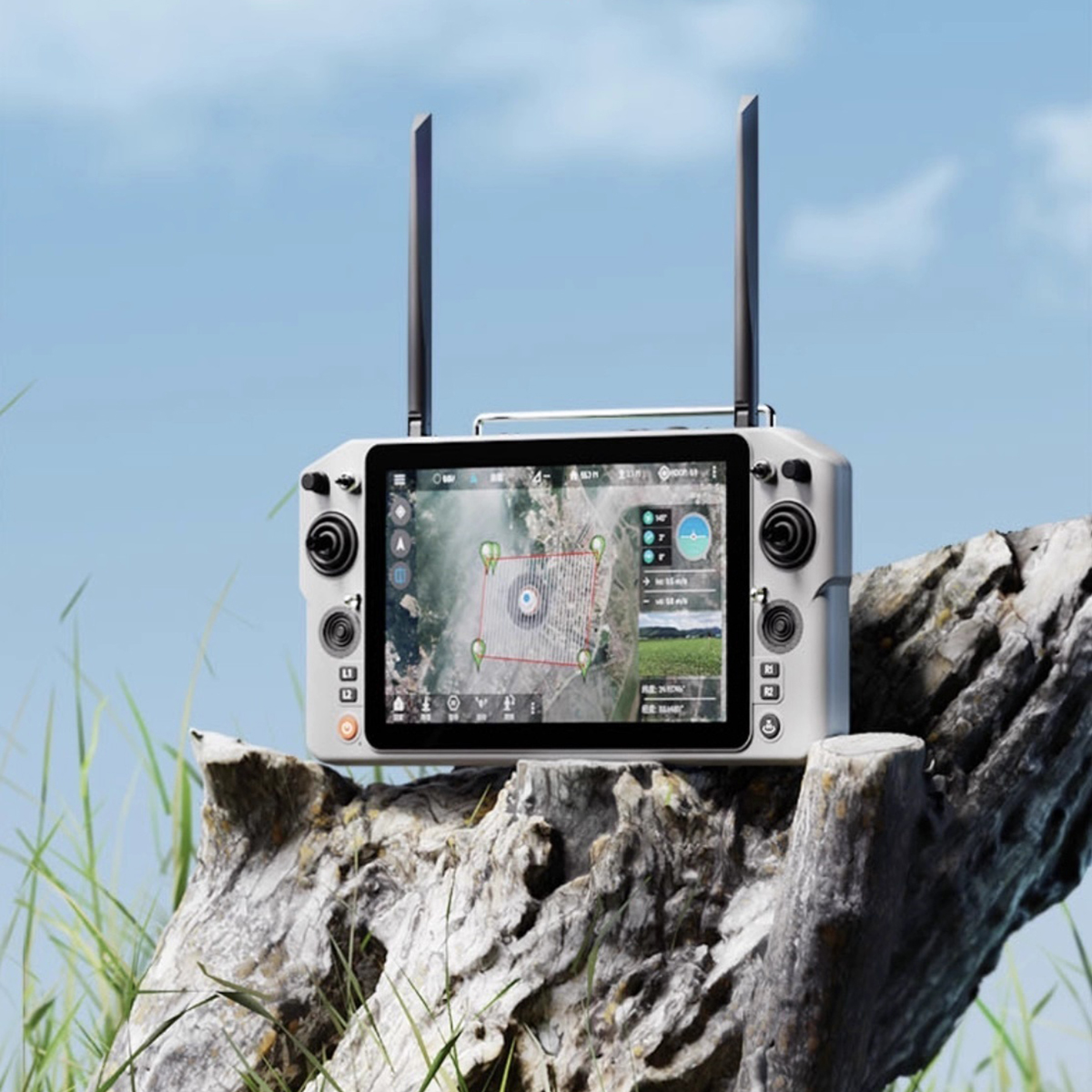

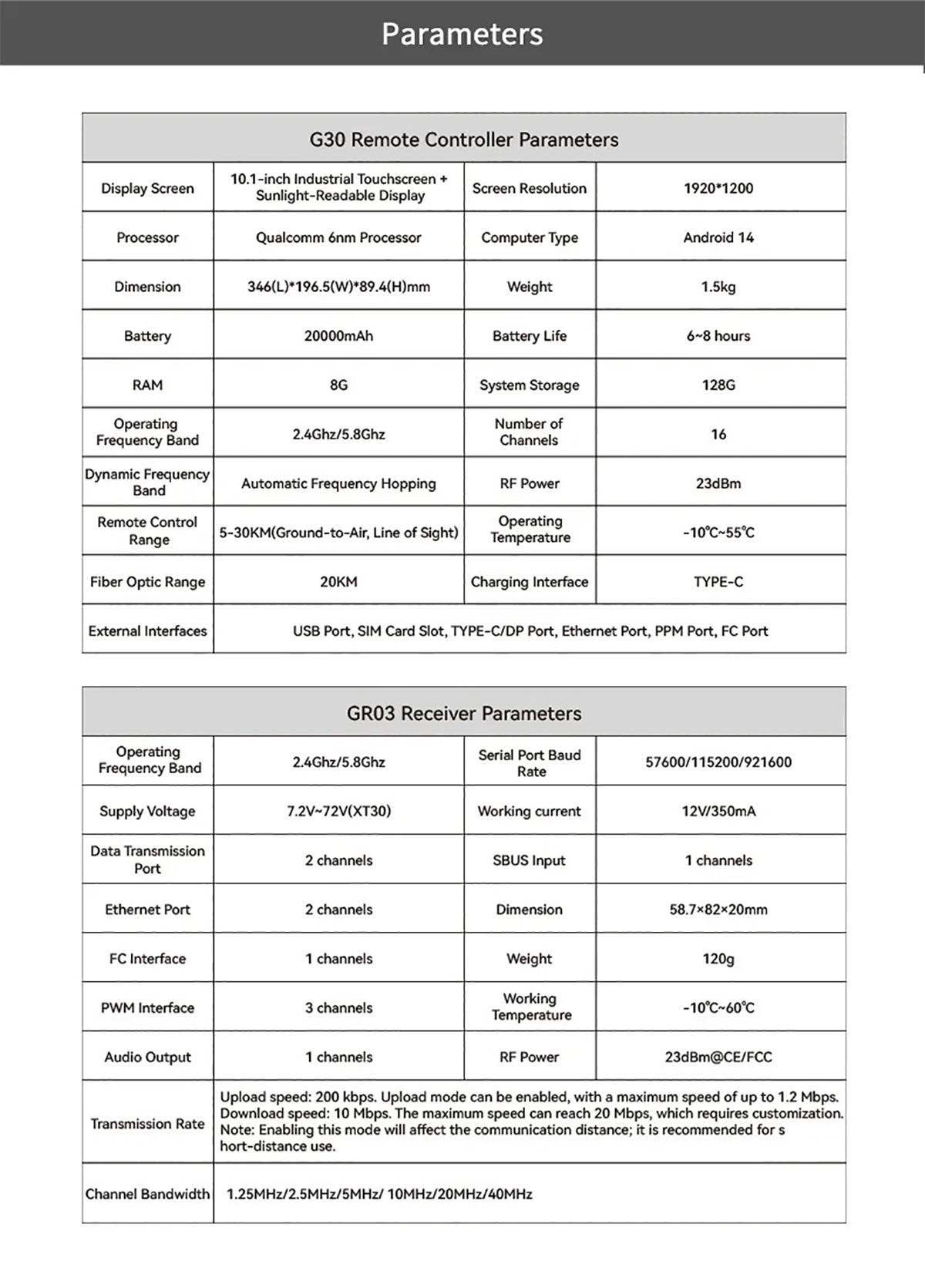

G30 Remote Controller
Display Screen: 10.1-inch industrial Touchscreen + Sunlight-Readable Display
Screen Resolution: 1920*1200
Processor: Qualcomm 6nm Processor
Computer Type: Android 14
Dimension: 346(L)*196.5(W)*89.4(H)mm
Weight: 1.5kg

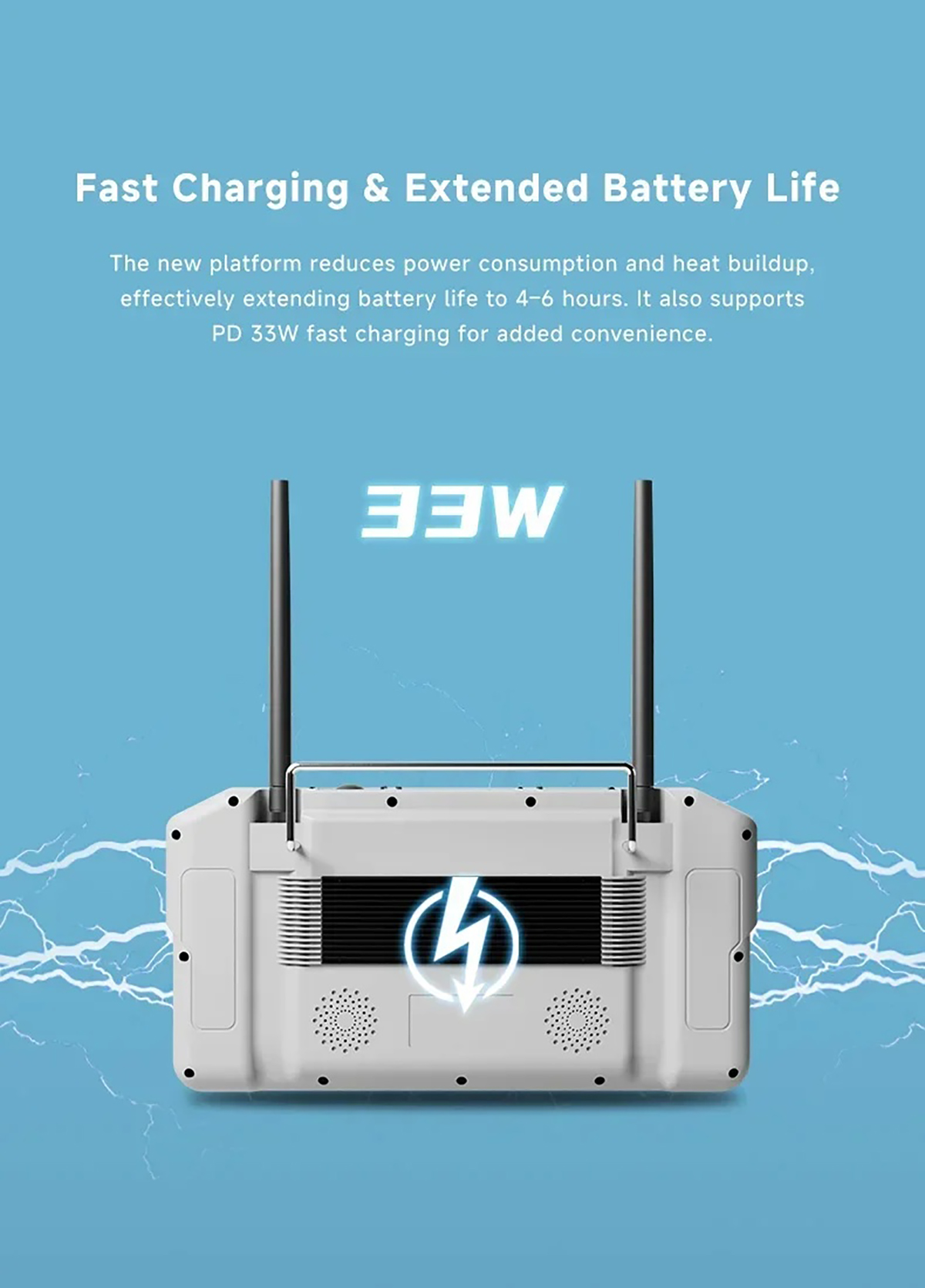

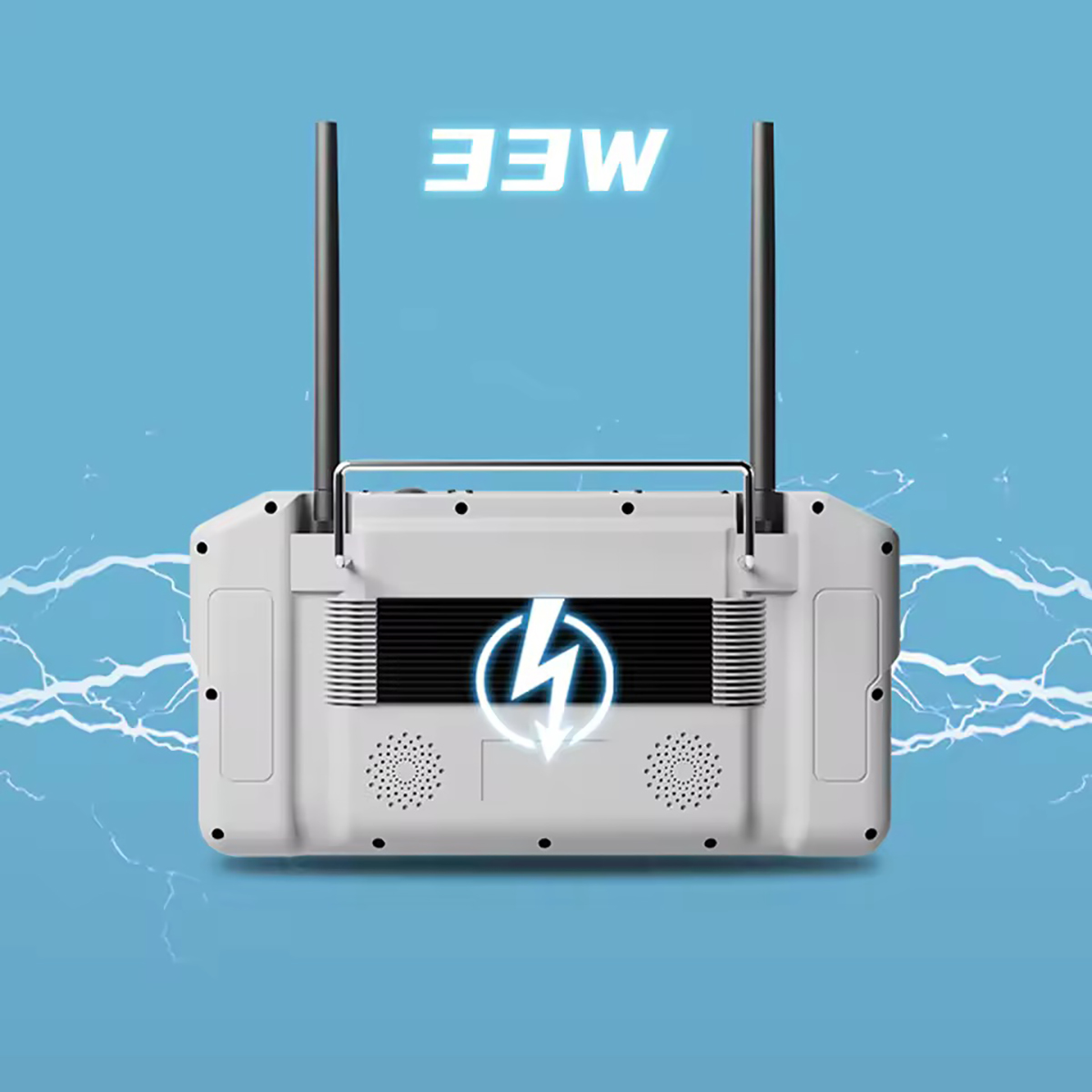

Battery: 20000mAh
Battery Life: 6~8 hours
RAM: 8G
System Storage: 128G
Operating Frequency Band: 2.4Ghz/5.8Ghz
Number of Channels: 16
Dynamic Frequency Band: Automatic Frequency Hopping
RF Power: 23dBm@CE/FCC
Remote Control Range: 5-30KM(Ground-to-Air, Line of Sight)
Operating Temperature: -10℃～55℃

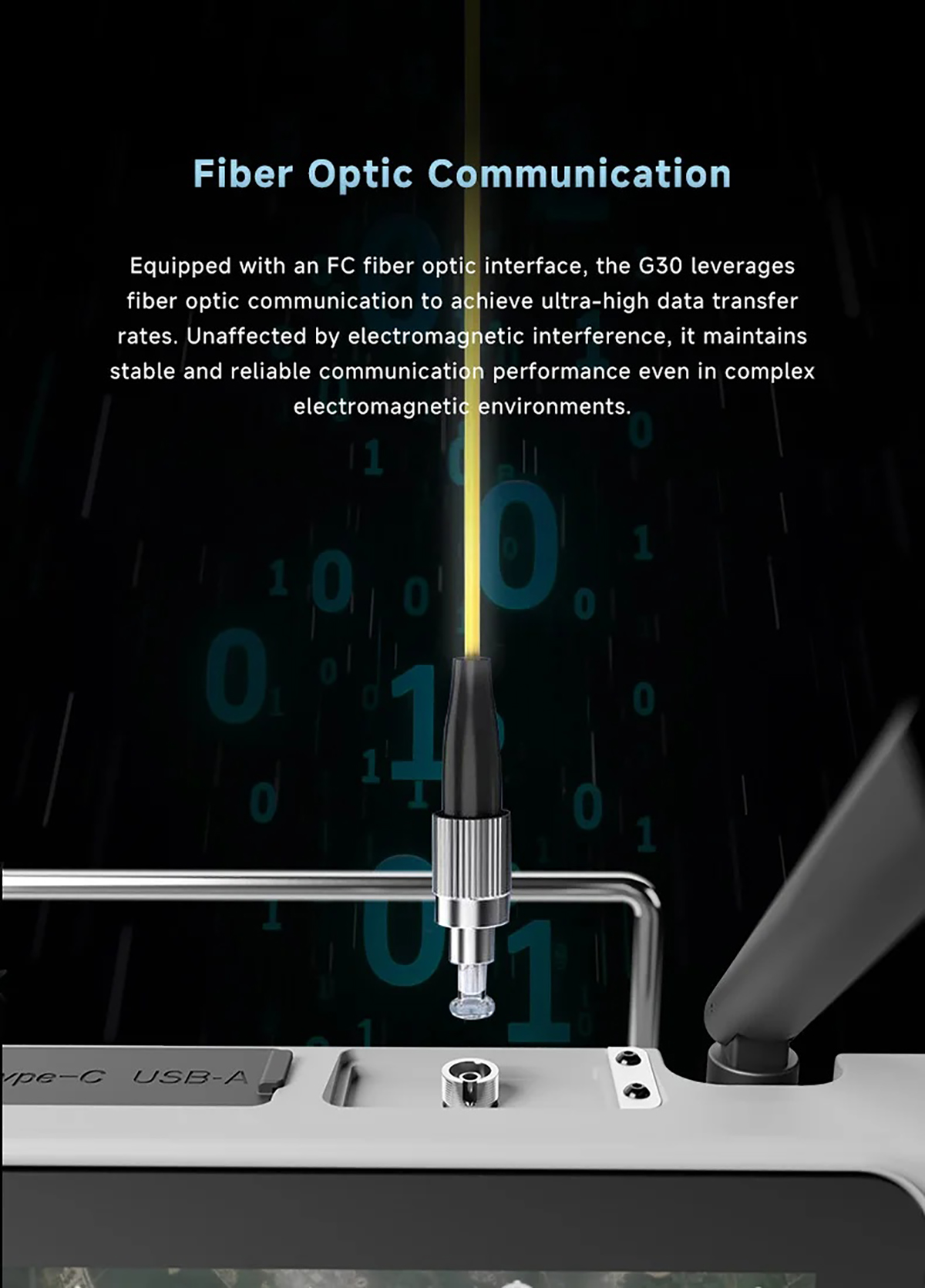

Fiber Optic Range: 20KM
Charging Interface: TYPE-C

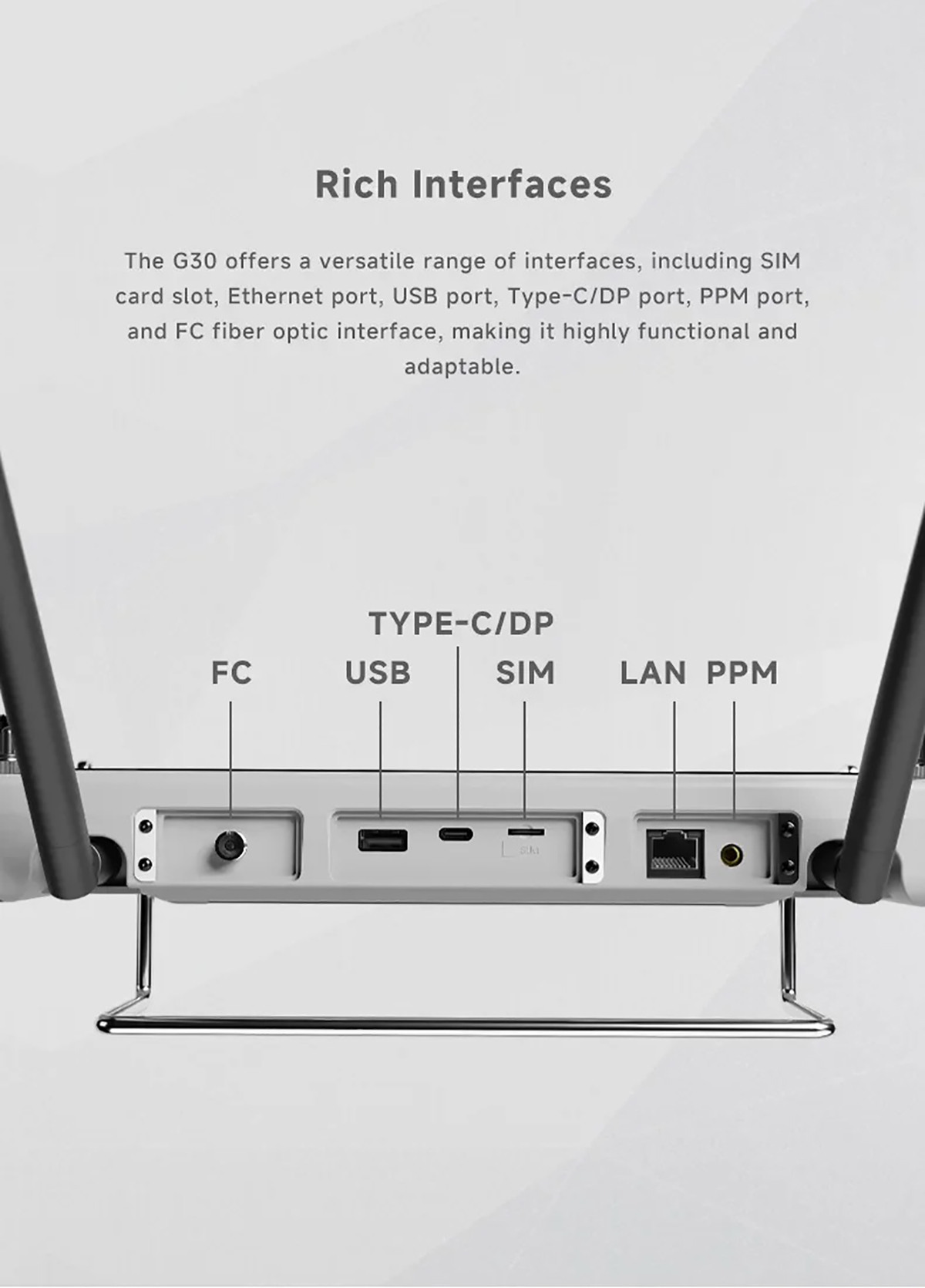

External Interfaces: USB Port, SIM Card Slot, TYPE-C/DP Port, Ethernet Port, PPM Port, FC Port

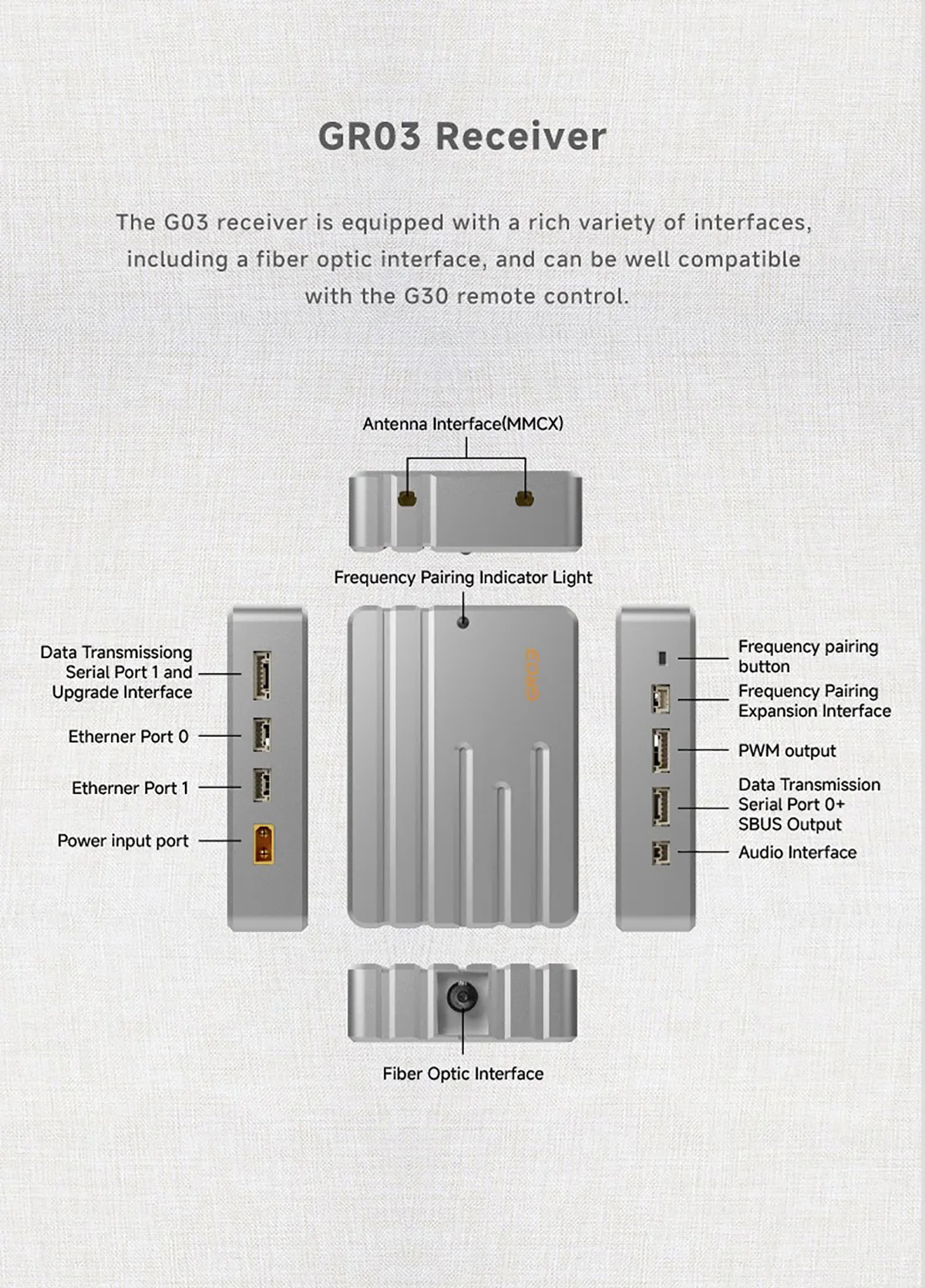

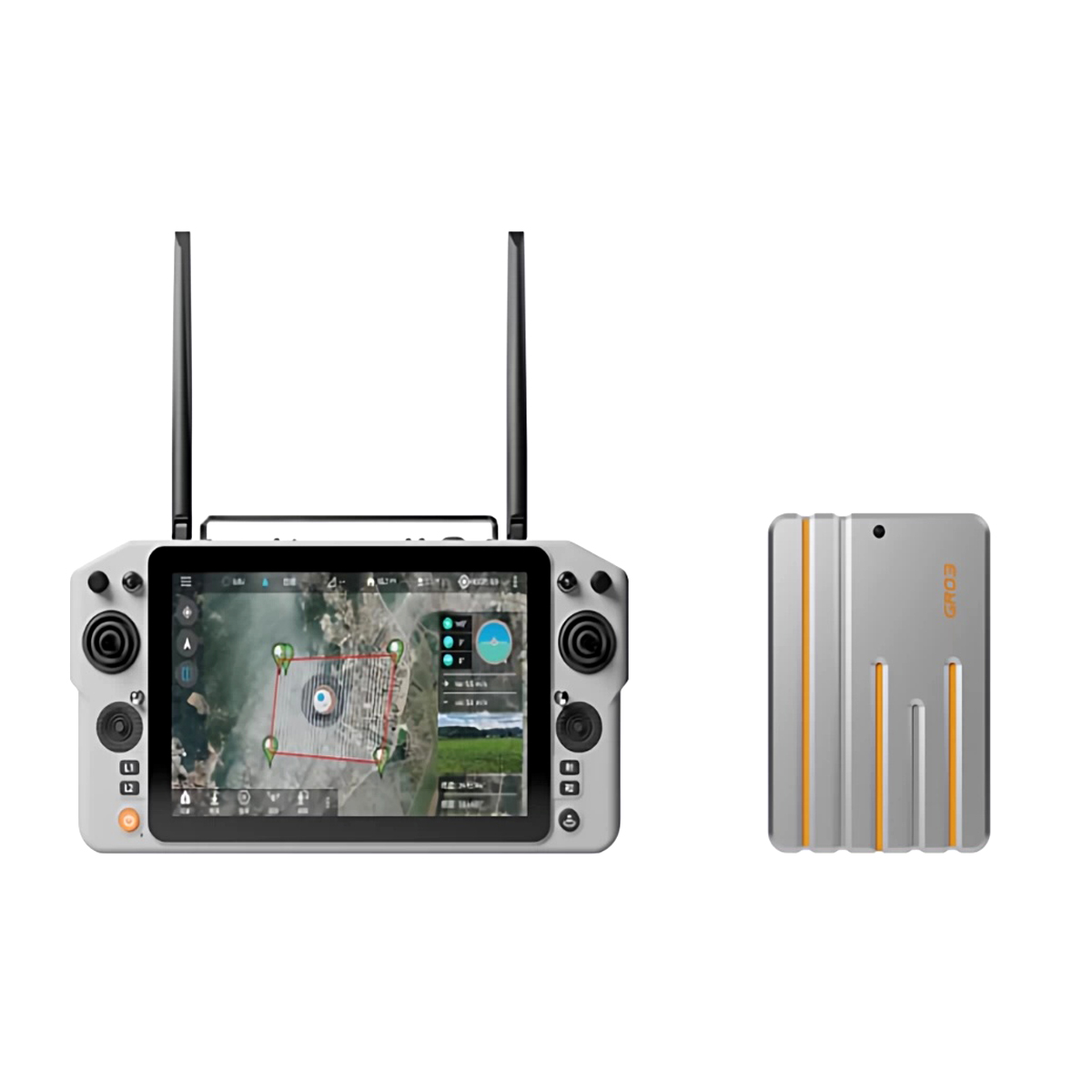

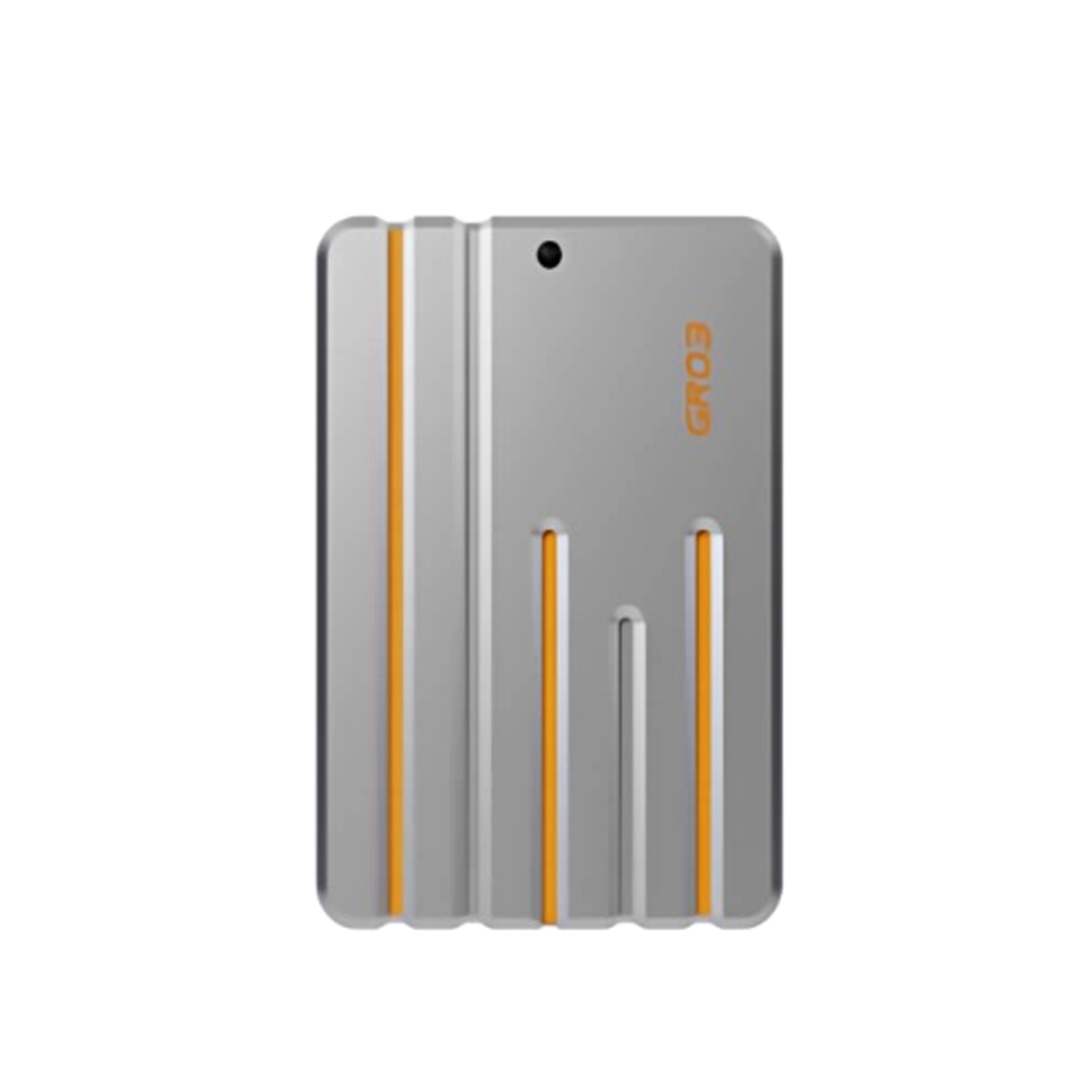

GR03 Receiver
Operating Frequency Band: 2.4Ghz/5.8Ghz
Serial Port Baud Rate: 57600/115200/921600
Supply Voltage: 7.2V~72V(XT30)
Working Current: 12V/350mA
Data Transmission Port: 2 channels
SBUS Input: 1 channel
Ethernet Port: 2 channels
Dimension: 58.7*82*20mm
FC Interface: 1 channel
Weight: 120g
PWM Interface: 3 channels
Working Temperature: -10℃～60℃
Audio Output: 1 channel
RF Power: 23dBm@CE/FCC
Transmission Rate: Upload speed: 200 kbps. Upload mode can be enabled, with a maximum speed of up to 1.2 Mbps; Download speed: 10 Mbps. The maximum speed can reach 20 Mbps, which requires customization. Note: Enabling this mode will affect the communication distance; it is recommended for short-distance use.
Channel Bandwidth: 1.25MHz/2.5MHz/5MHz/10MHz/20MHz/40MHz

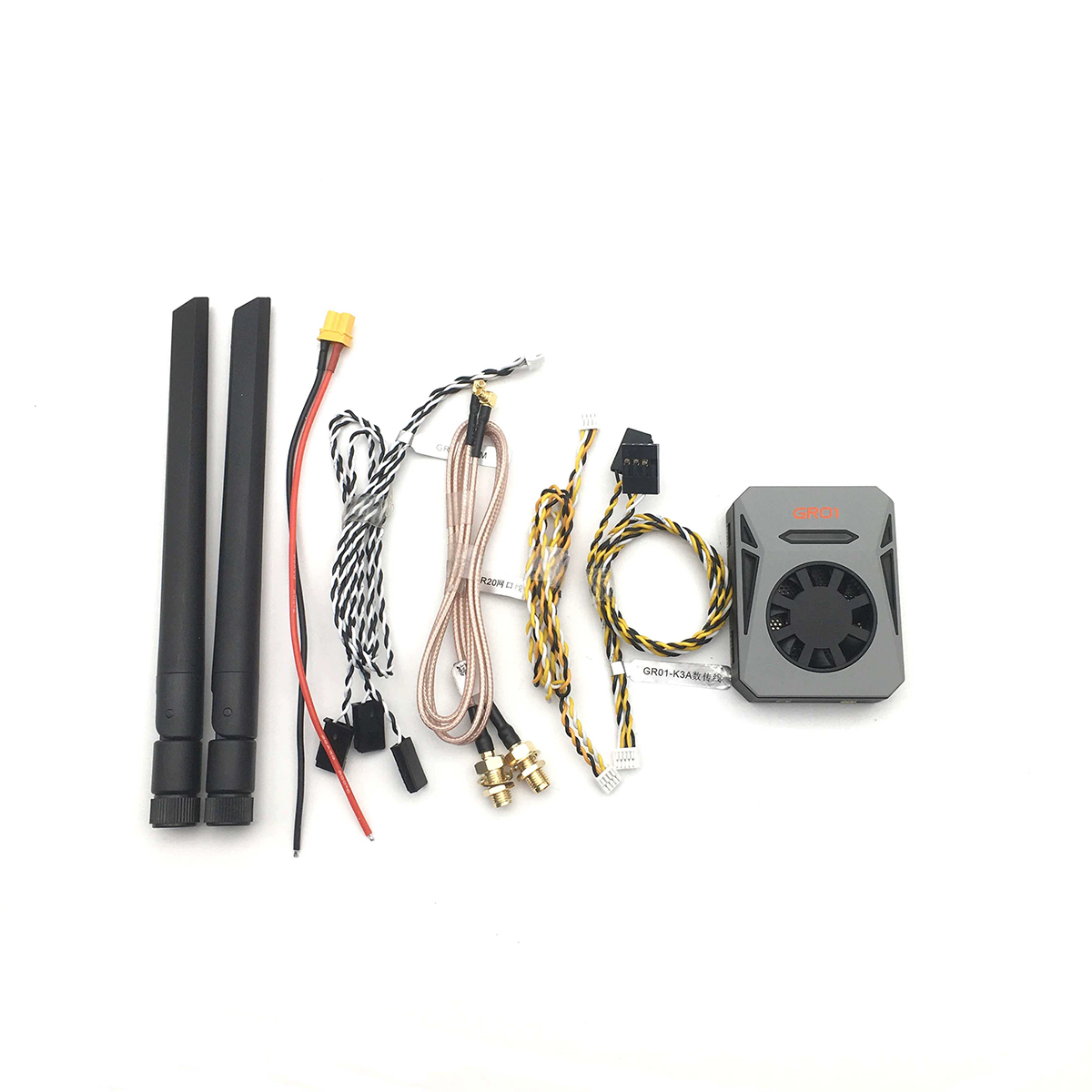

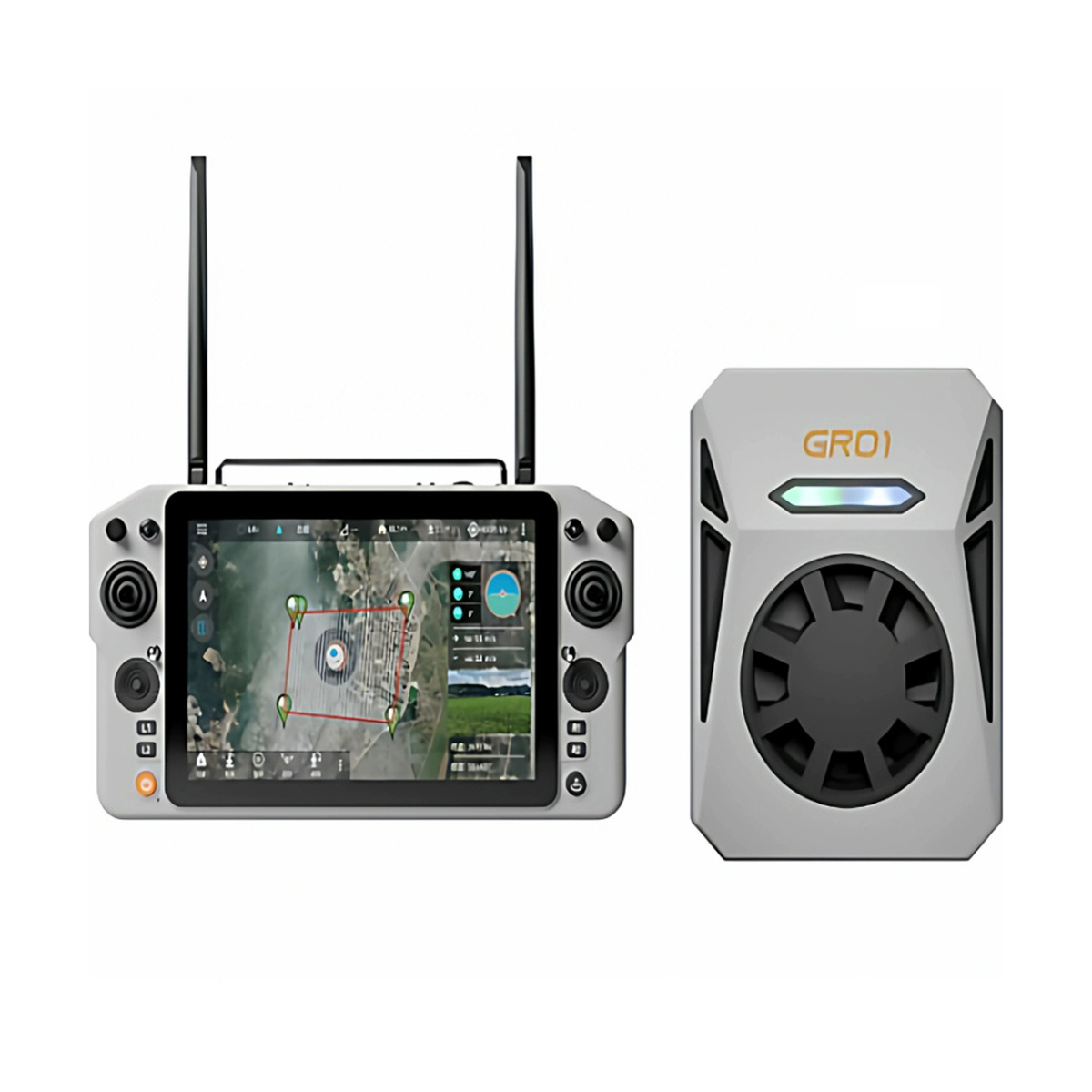

GR01 Receiver
Frequency Band: 2.4G/5.8G
Serial Baud Rate: 57600/115200/921600
Supply Voltage: 7.2-72V(XT30)
Operating Current: 12V/300mA
Data Transmission Port: 1 channel
Empty Port Rate: 200Kbps~160Mbps
Network Port: 1 channel
Dimension: 45.5(L)*60(W)*21.5(H)mm
SBUS Output: 1 channel
Weight: 37g
PWM Interface: 3 channels
Operating Temperature: -10°C~60°C
RF Power: 23dBm@CE/FCC
Channel Bandwidth: 1.25MHz/2.5MHz/5MHz/10MHz/20MHz/40MHz
