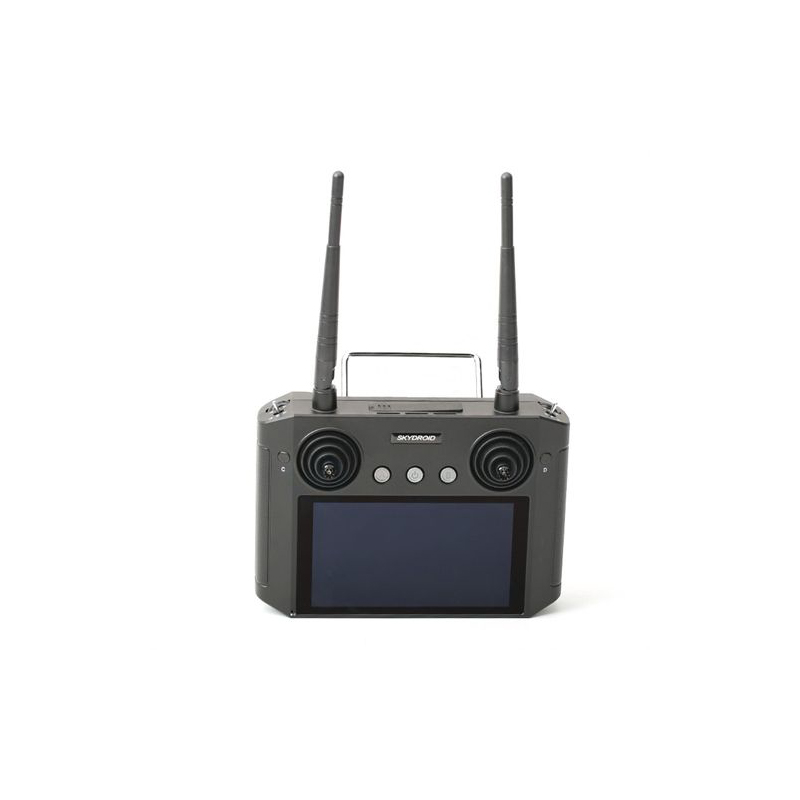

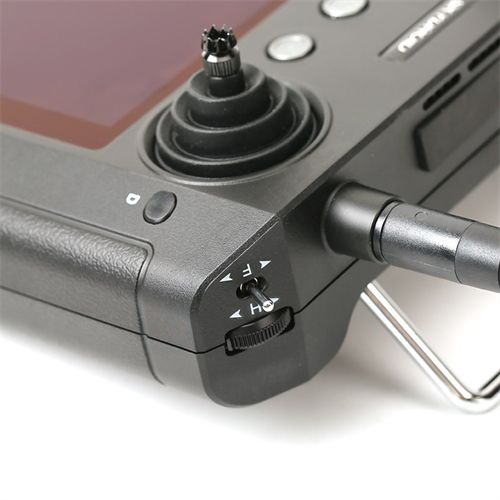

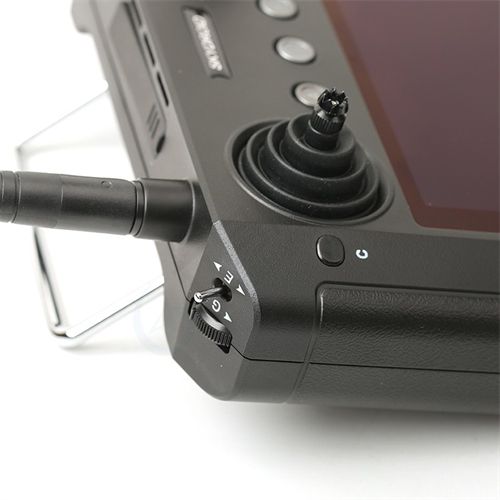

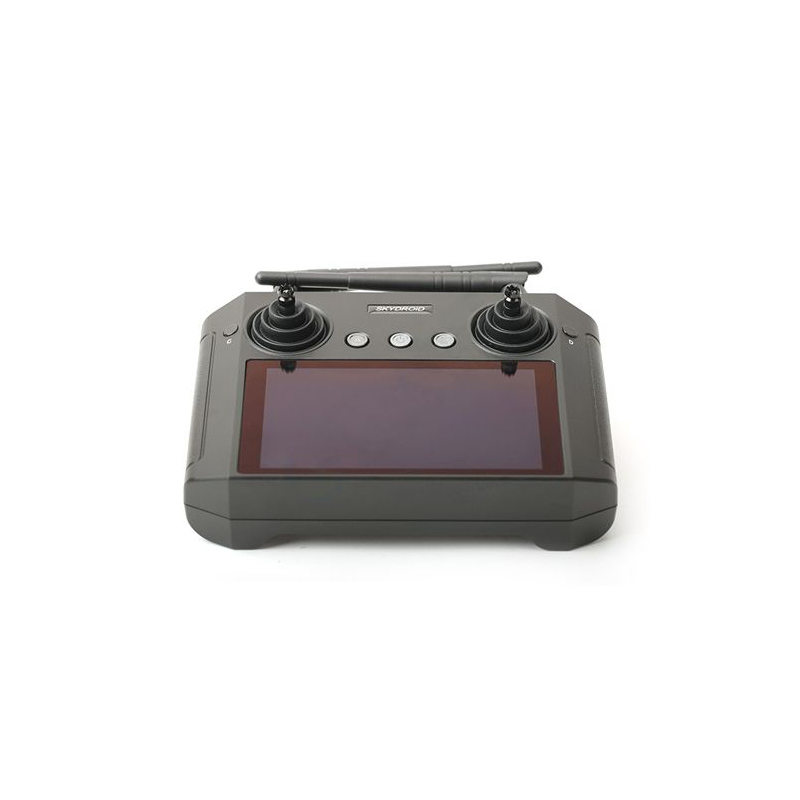

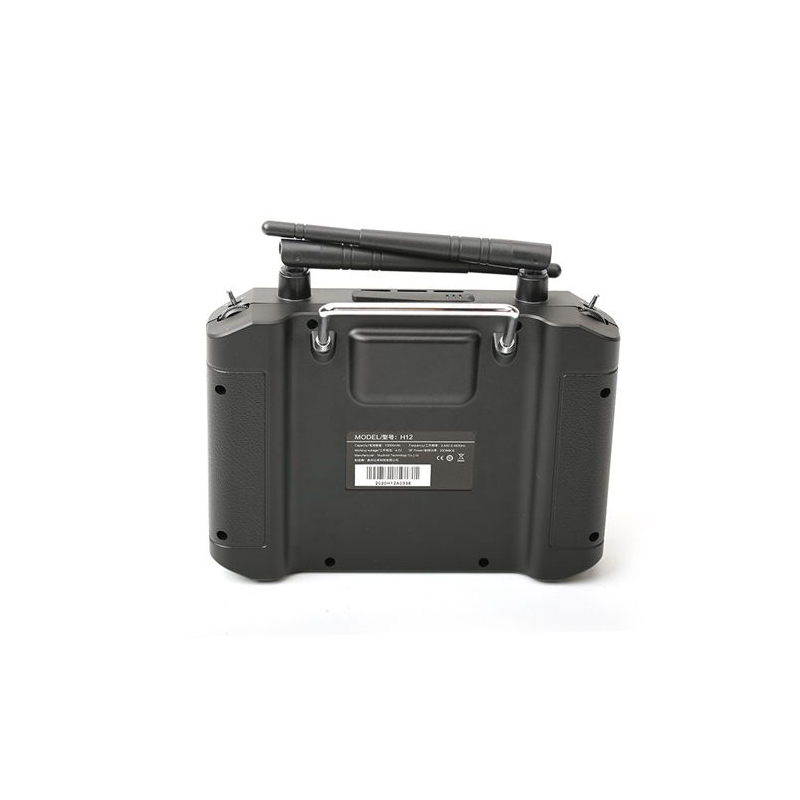

Skydroid H12 12 Channel 2.4GHz 1080P Digital Video Data Transmission Transmitter For Agricultural Spray Drone
















Skydroid H12 12 Channel 2.4GHz 1080P Digital Video Data Transmission Transmitter For Agricultural Spray Drone
The H12 series uses newest Qualcomm processor, equipped with an Android embedded system and advanced SDR technology and super protocol stack.
Make the image clearer, lower the latency, longer distance, stronger anti-infection, whether it is drones, robots, industrial control equipment, etc. can be applied.
Supports SIM, digital camera, serial port, sbus and other richful interfaces.
Agricultural drones, FPV security, fire protection, electricity, surveying and mapping robots, border defense, etc. can all be handy likes on-site experience.
Using waterproof, dust-free and drop-proof materials and structure, ensures not only feels good, but also durable!
Model No: H12
Channels: 12
Working voltage: 4.2V
RF Power: 20DB@CE/23DB@FCC
Frequency: 2.400-2.483GHz
Frequency hopping: Newest FHSS
Update way: APP Update online
Weight: 530g
Size: 190*152*94mm
Battery: 10000mA/H
Endurance: 6-20 Hrs
Charging port: TYPE-C
Applications: Helicopter, fixed wing, multi-rotor, unmanned vehicle, unmanned boat, etc.
Receiver Specification
Model No: R12
Channels: 12
Working Voltage: 4.5-5.5V
Working current: 140MA@5V
Size: 51*41*13
Weight: 14g

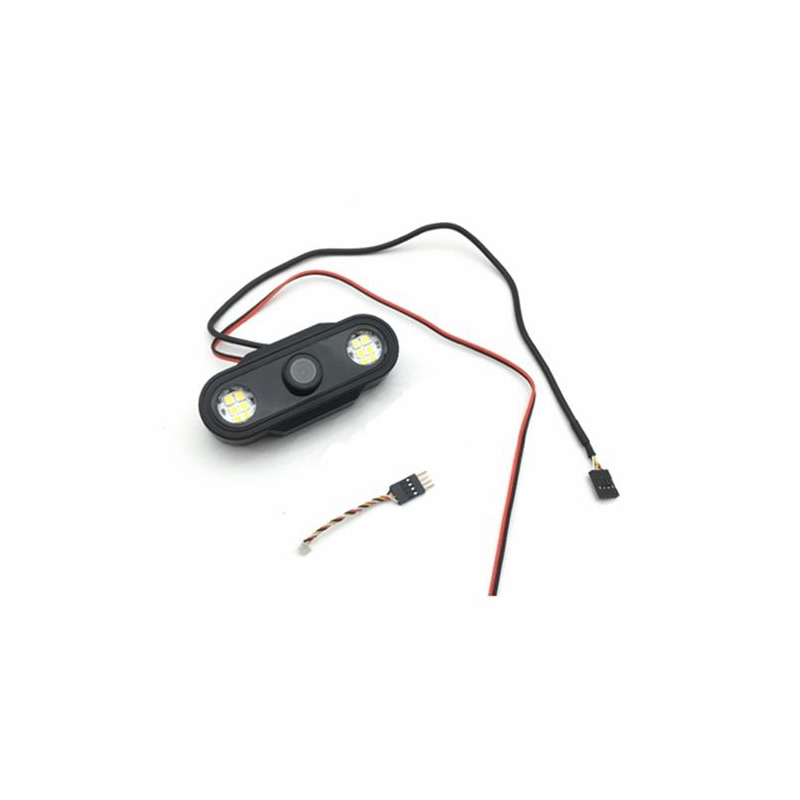

3 in 1 MIPI camera
Working current: 140mA
Working voltage: 12-72V
Resolution: 640 * 360
Size: 102.1 * 42.6 * 36.5m
Weight: 55g
LED lights power: 6W
Camera anale: 120°

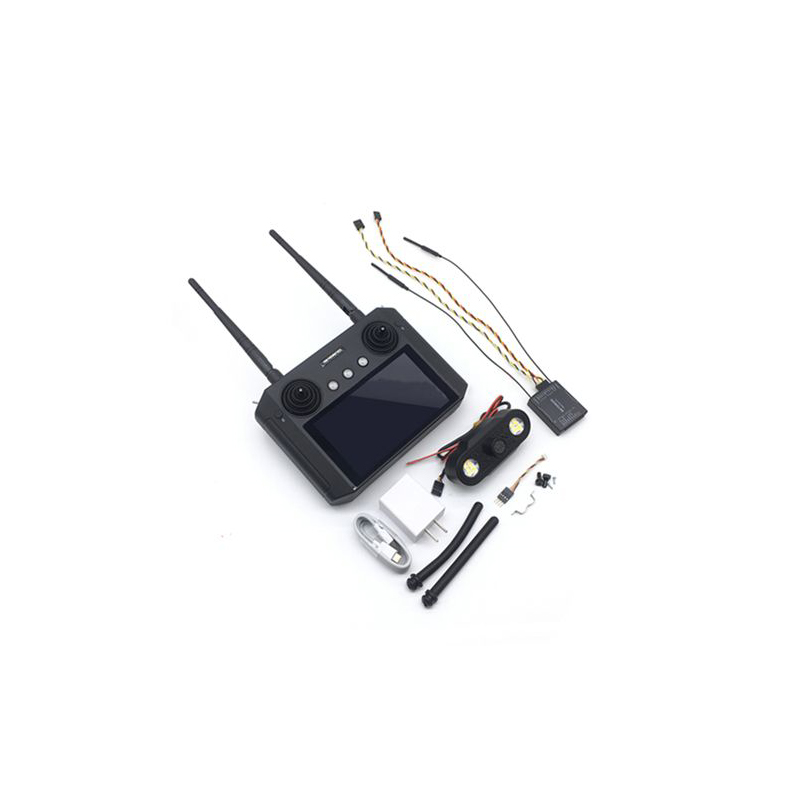

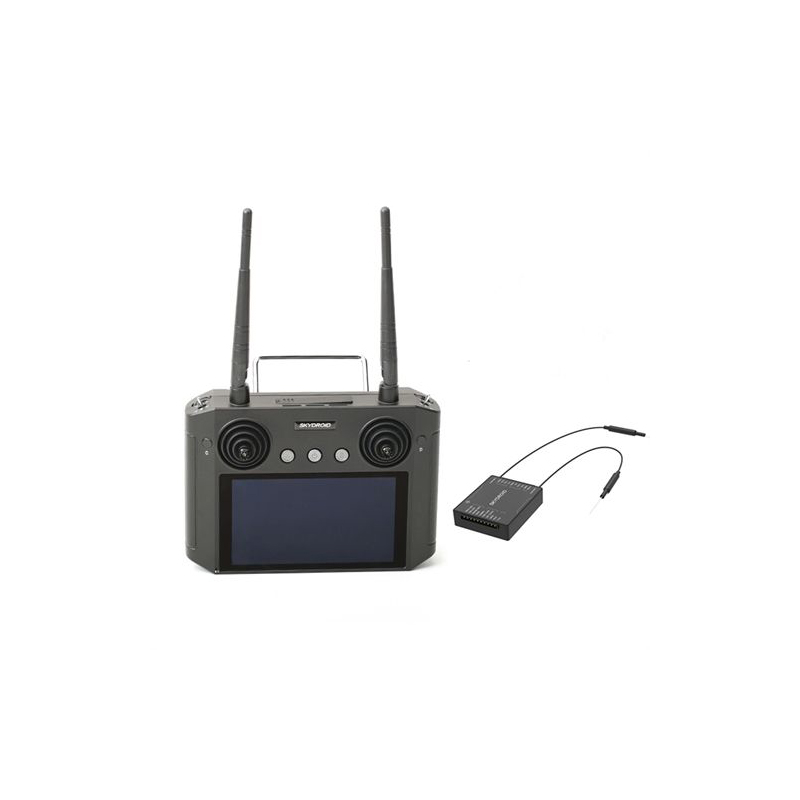

H12 Transmitter x 1
R12 Receiver x 1
3 in 1 MIPI camera x 1
