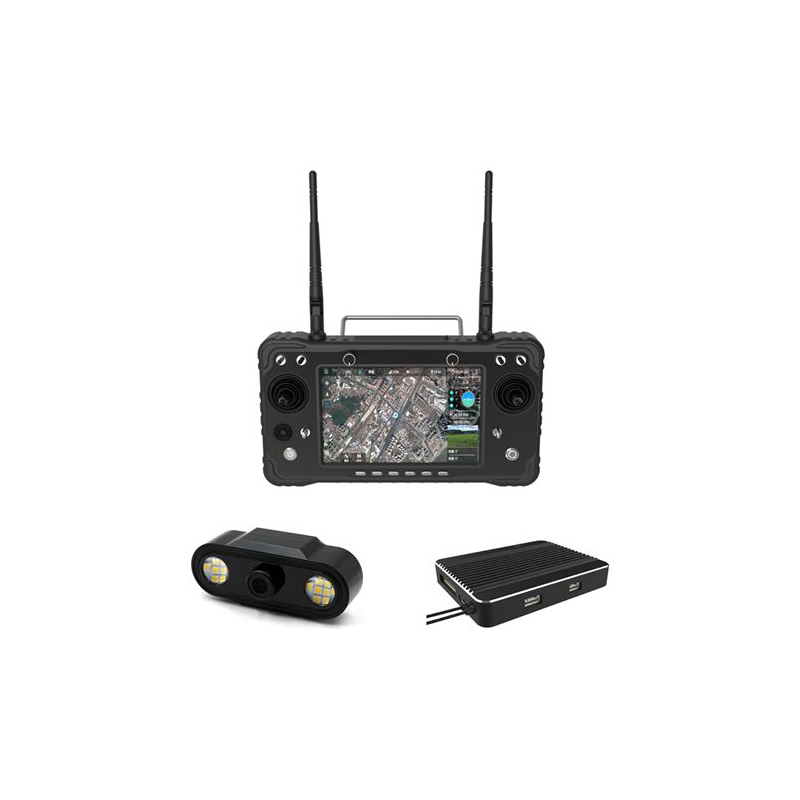

Skydroid H16 Pro 2.4GHz 16CH FHSS 1080P Digital Video Data Transmission Telemetry Transmitter w/ R16 Receiver MIPI Camera

Skydroid H16 Pro 2.4GHz 16CH FHSS 1080P Digital Video Data Transmission Telemetry Transmitter w/ R16 Receiver MIPI Camera

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

Forging surprises , never stops ! The H16 series uses the newest surging processor , equipped with an Android embedded system and advanced SDR technology , also with a super protocol stack to make the image clearer , lower latency , longer distance transmission , and stronger anti-interference . Applied for drones , Robots , industrial controlled equipment , etc .

Supports rich interfaces such as HDMI , R ) 45 . sensor interface,dual serial port passthrough transmission , SBUS , aerial photography , FPV security , fire protection , power , mapping robot , border control etc

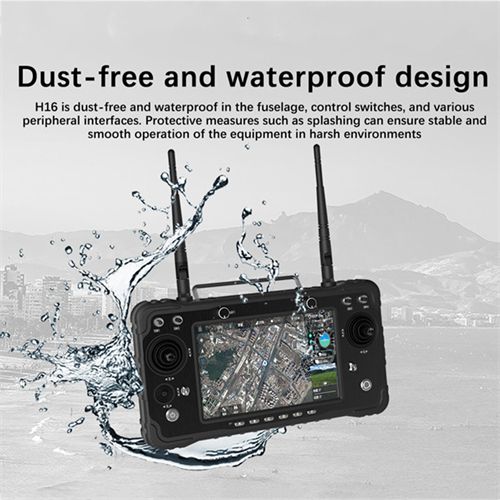

IP67 design , based on waterproof , dust free and drop-resistant materials and structure to ensure its great using feel and durability

Brand Name: Skydroid
Item Name: H16 / H16 Pro Transmitter Set
Number of channels: 16 channels
Frequency: 2.400-2.483GHz
Working voltage: 4.2V
Working Current: 100mA
RF Power: 20DB@CE/23DB@FCC
Modulation: New FHSS
Weight: 1034g
Firmware: APP online
Dimension: 272*183*94mm
Duration: 6-20 hours

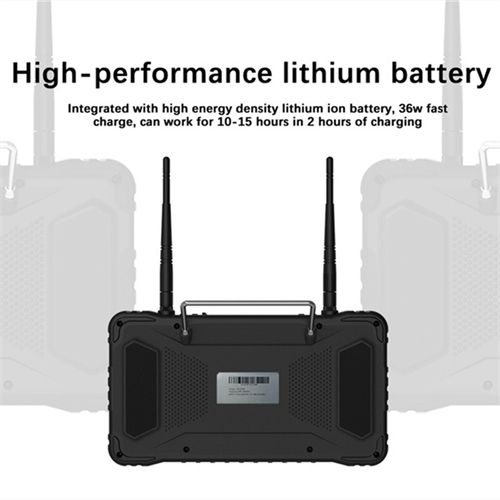

Battery Capacitor: 20000mA
Charge Port: Type-C
Application: Helicopter,Fixed wing,Quadcopter,car boat

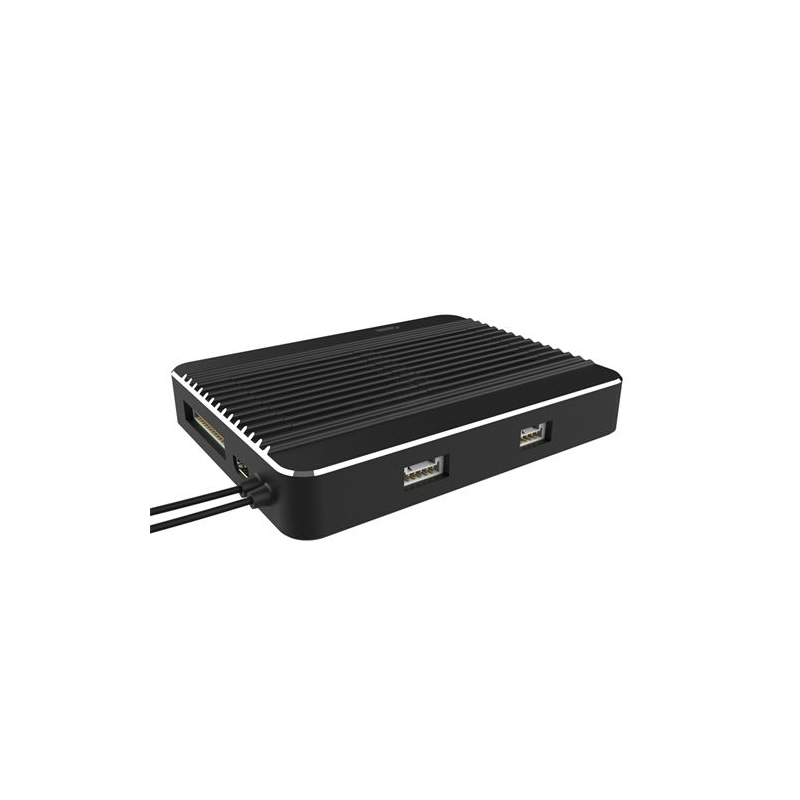

Receiver:R16
Working voltage: 7.2-72V
Number of channels: 16CH
RF Power: 20DB@CE/23DB@FCC
Size: 76*59*11 MM
Weight: 90g

Camera:MIPI
Working voltage: 14-72V
Working Current: 140mA (Open Light)
Working Current: 14mA (Not Open Light)
Size: 102.1*42.6*36.5 MM
Weight: 55g



1 x H16 Pro Transmitter

1 x R16 Receiver

1 x MIPI Camera
