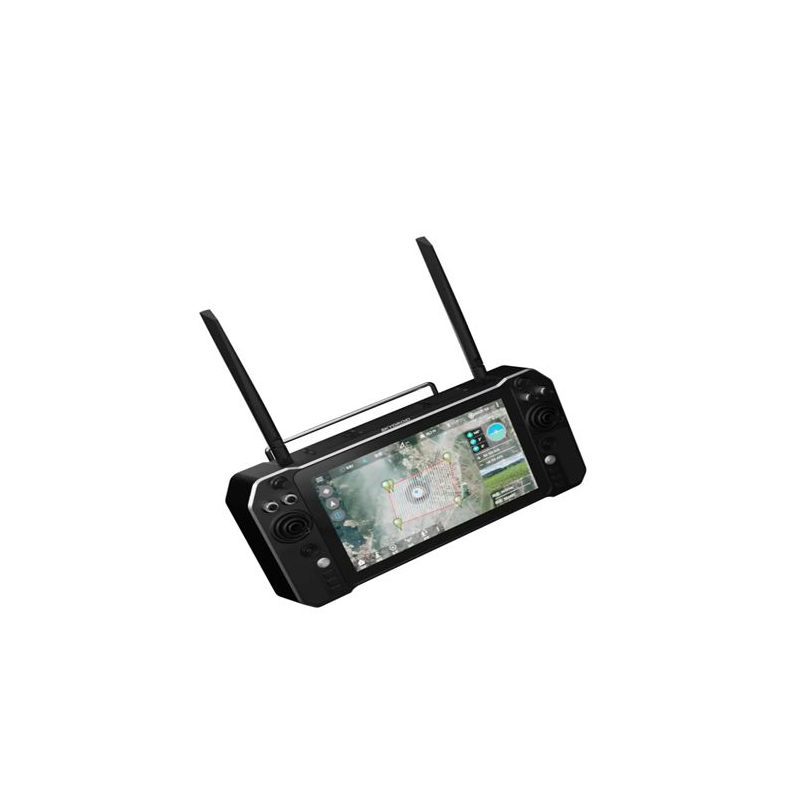

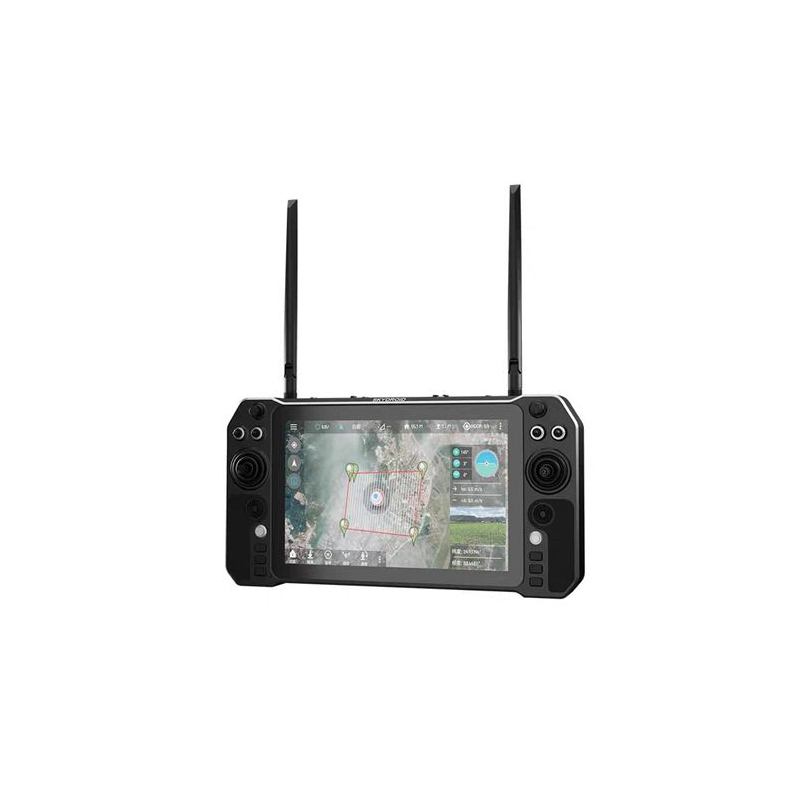

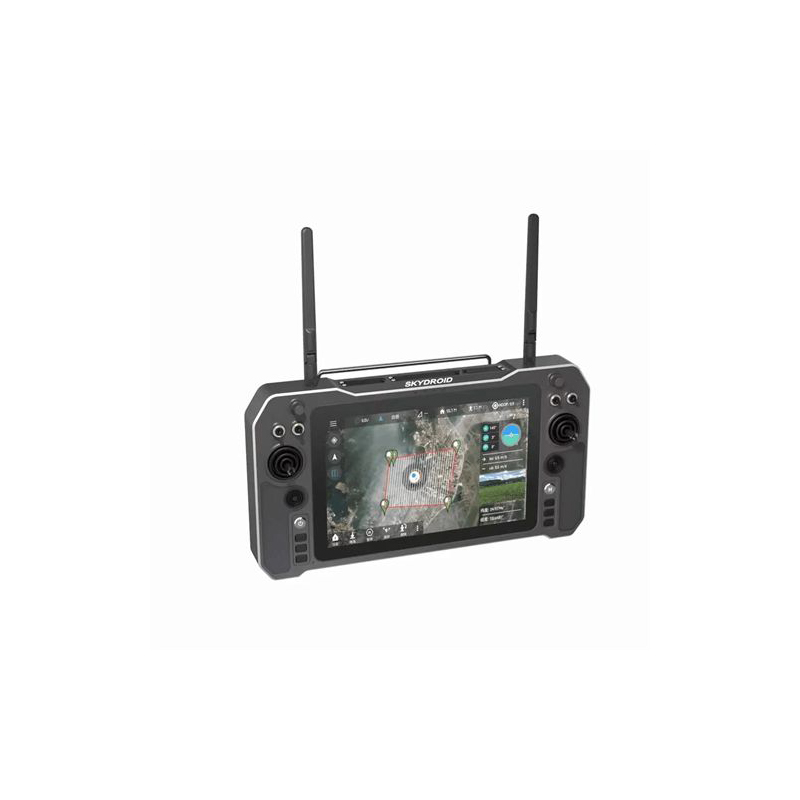

H30 Remote Controller Specifications
Display：10.1 inch industrial touch screen + sunlight visual screen
Resolution：1920*1200
Memory：4G
Storage：64G
TP：capacitive 10 touch points
Network：RJ45

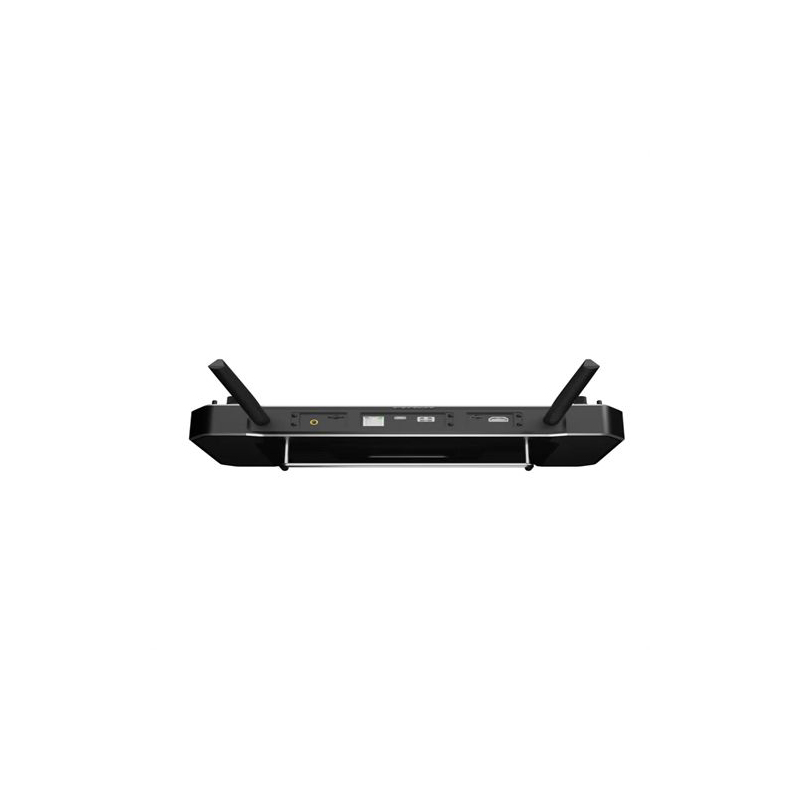

External interface：USB*1 4G card slot*1 LAN port*1, Audio*1HDMI1 TF*1 TYPE-C*1
Serial interface：TCP socket
Charging port：Type-C
Industrial protection gradet：ip67
Working temperature：-10°C~55°C
N.W：2KG
Battery life：5 hours
Battery capacity：20000maH
Antenna：Dual antenna/14GHz/2.4GHz/800MHz
Working frequency：1.4GHz/2.4GHz/800MHz
RF power：25dBM
Remote control range：>10km
Channel：16
Auxiliary channel and quantity：Main joystick*2；Secondary joystick*2；3-lever switch*4； Knob switch*2；Key switch*8
Processor：Qualcomm 660
O/S：Android 9.1
Overall size：361mm(L)*393.2mm(W)*102.4mm(H)

R30 Receiver Specifications
Working frequency：1.4GHz/2.4GHz/800MHz
Working voltage：7.2-72V
Working currency：12V/300mA
Serial output：2 channels
Network output：2 channels
Remote control output：SBUS
Power：4W
Antenna：Dual antenna/1.4GHz/2.4GHz/800MHz
Serial portbaud rate：115200
Air interface speed rate：Single node supports one-way maximum 30Mbps,two-way maximum 45Mbps
Size：76.4mm(L)*59mm(W)*15mm(H)
N.W：65g
Working temperature：-10°C~55°
