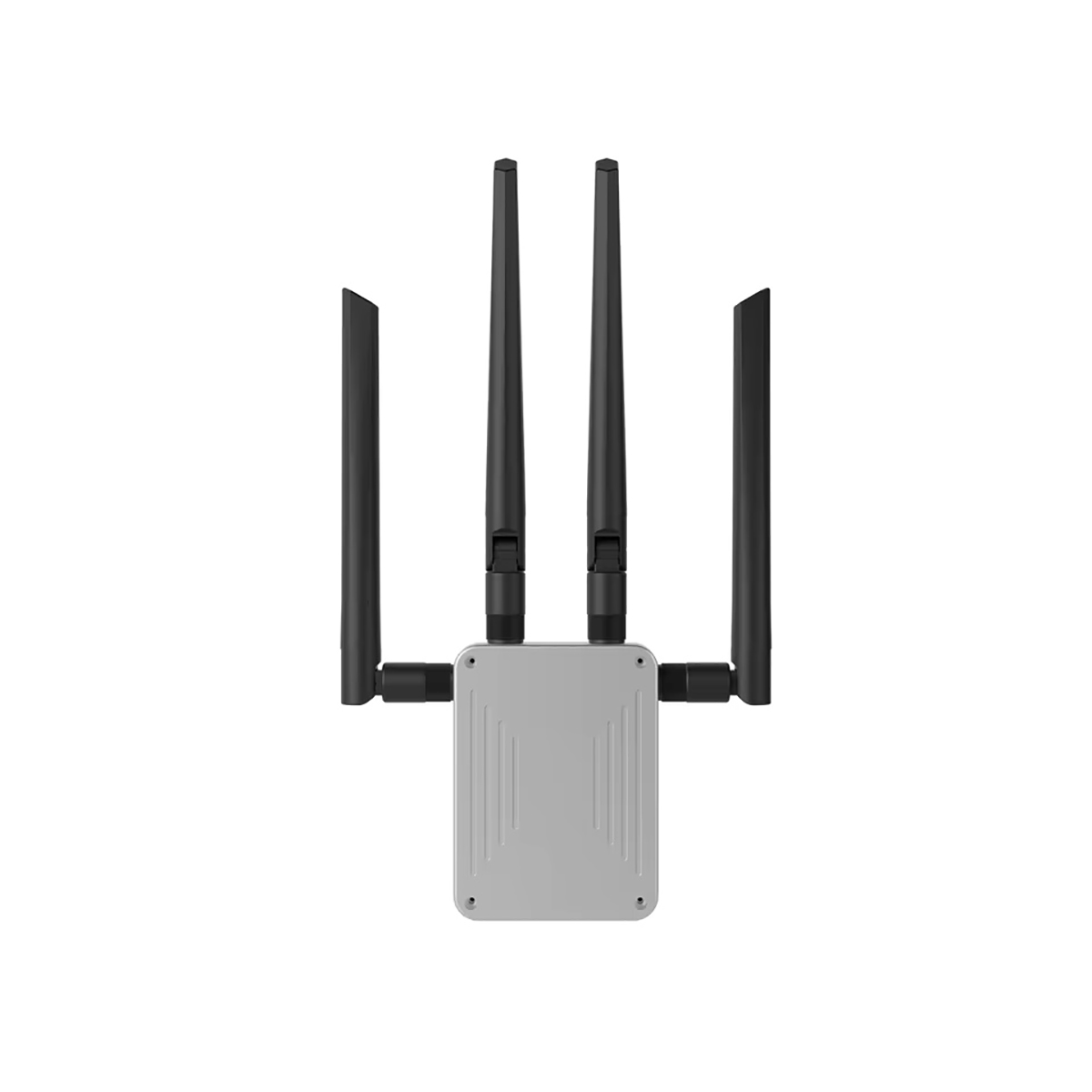

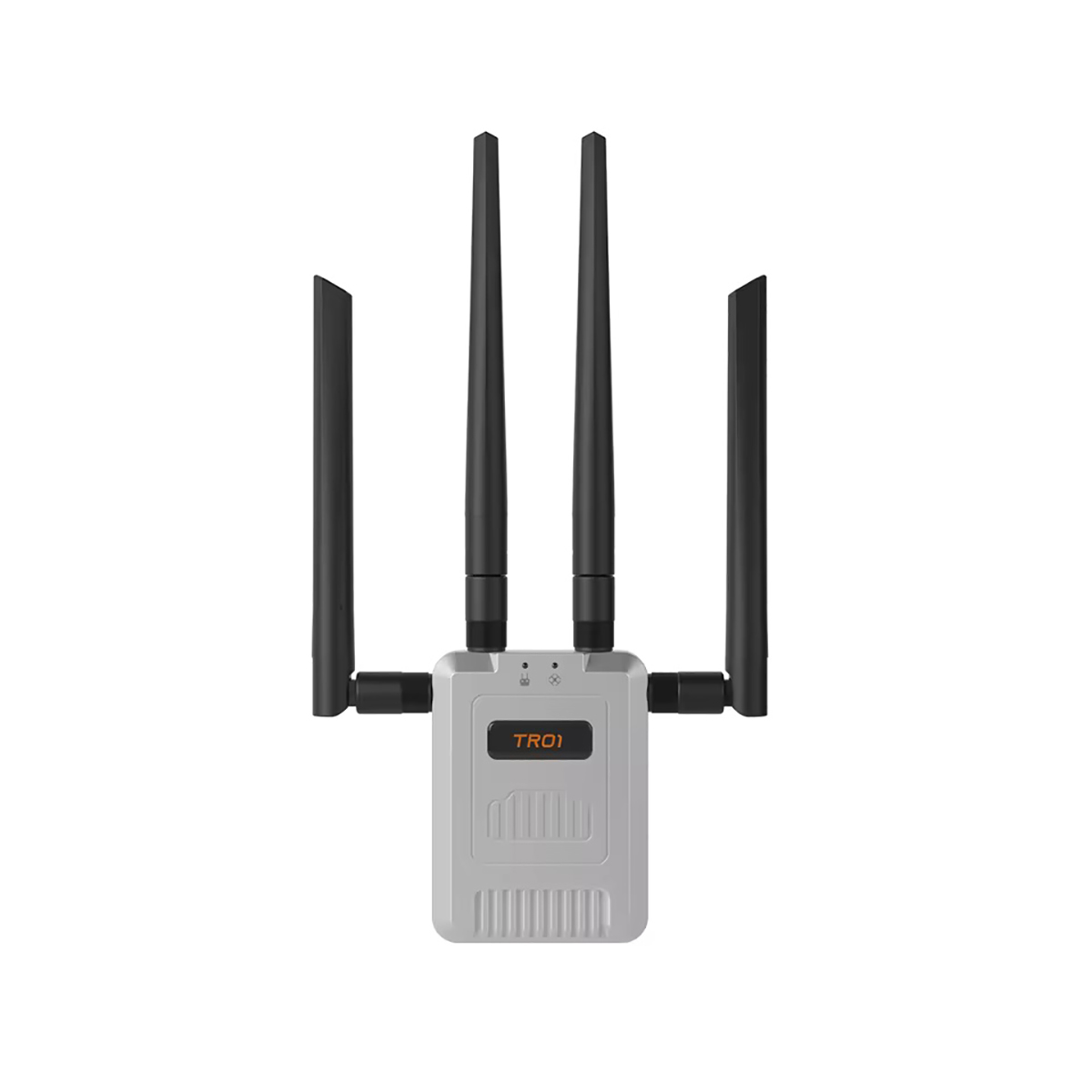

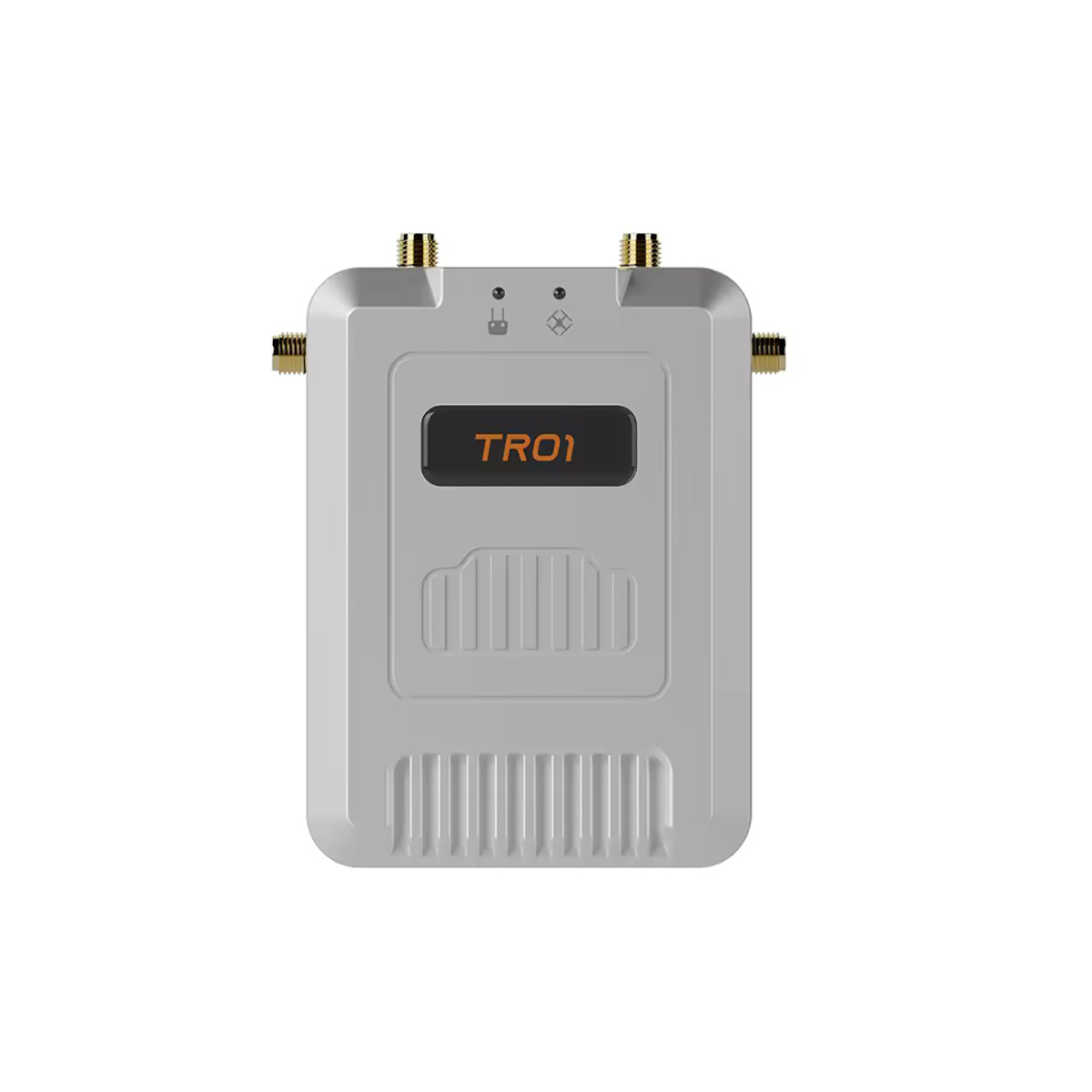

Skydroid TR01 Multi-Function Repeater 2.4G 5.8G Dual Band Signal Long Range Portable Receiver for FPV Drone












Skydroid TR01 Multi-Function Repeater 2.4G 5.8G Dual Band Signal Long Range Portable Receiver for FPV Drone
Easy Assembly:Designed for quick assembly, the TR01 is a breeze to set up, making it ideal for hobbyists and professionals alike.
Extended Range:With a 20KM range, the TR01 repeater keeps you connected to your drone or RC, even from afar.

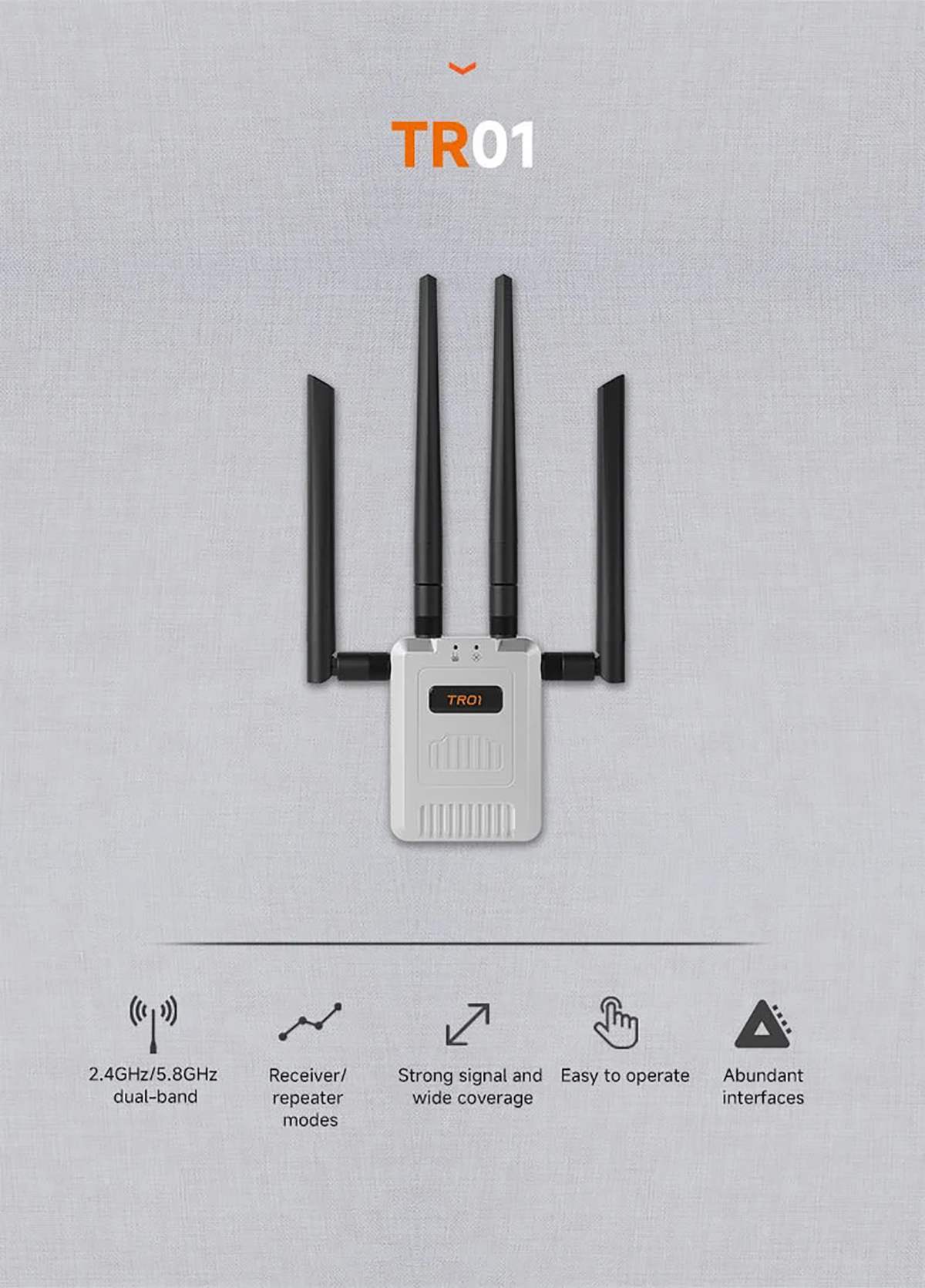

Skydroid Tr01 Dual Band|Dual Band Connectivity:SKYDROID TR01 boasts dual-band 2.4G/5.8G capabilities, ensuring stable and reliable control over long distances.
Strong Anti-Interference:Equipped with robust anti-interference features, the TR01 maintains a strong signal amidst competing signals.

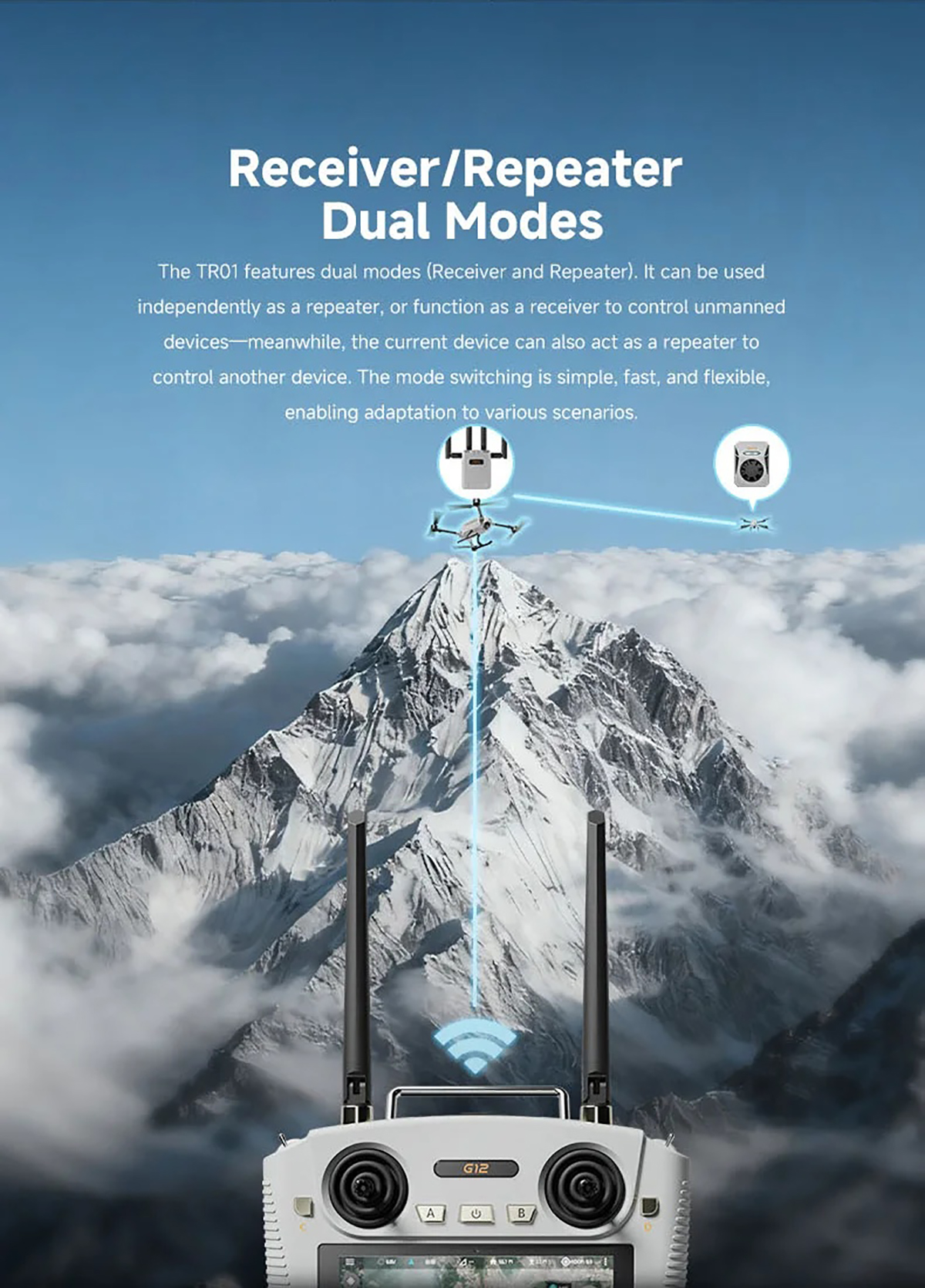

Versatile Use:The SKYDROID TR01 is a versatile receiver, suitable for a variety of RC vehicles, including airplanes and cars.

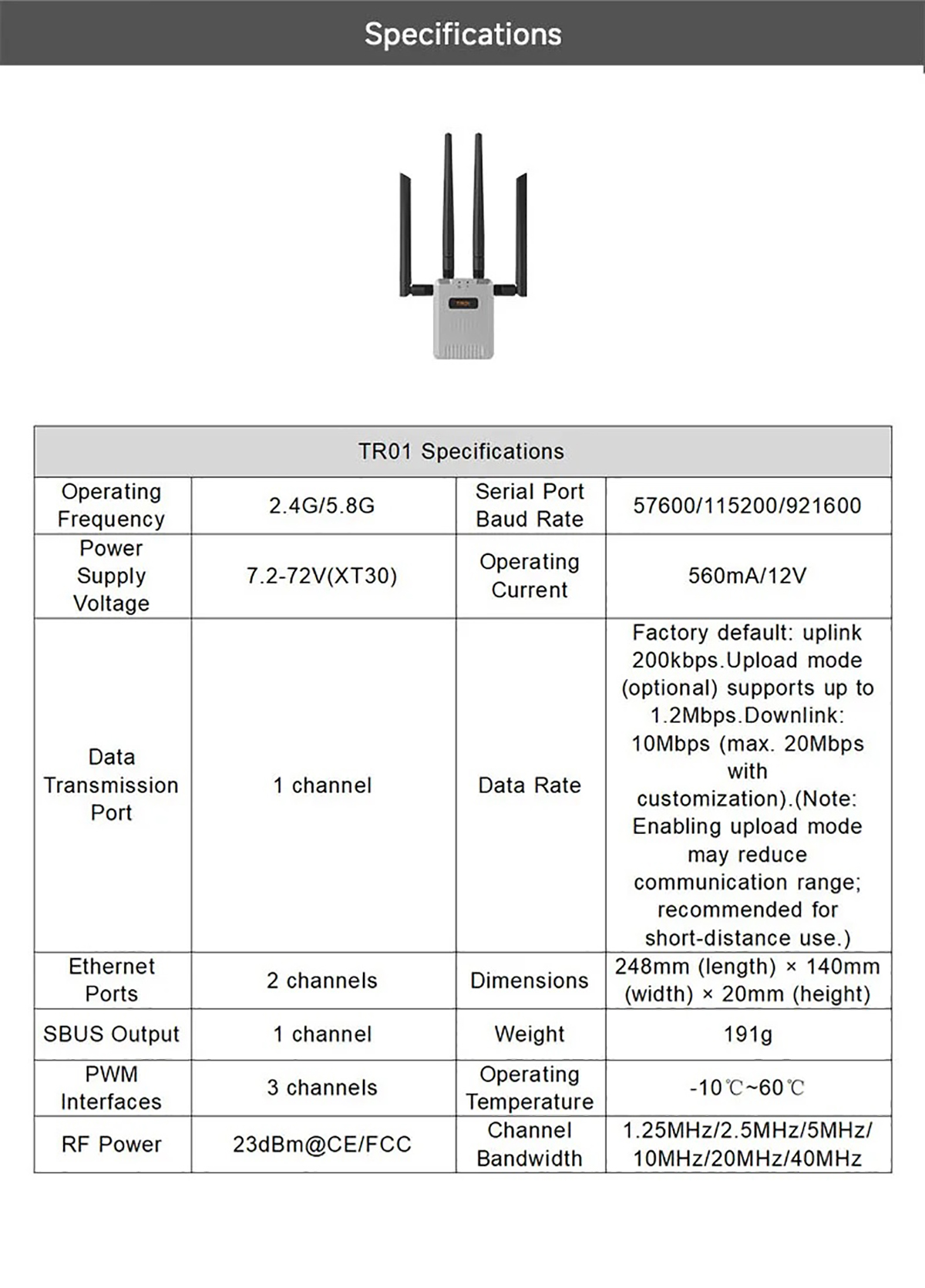

Model: TR01 Repeater
Operating Frequency: 2.4G/5.8G
Serial Port Baud Rate: 57600/115200/921600
Power Supply Voltage: 7.2-72V(XT30)
Operating Current: 560mA/12V

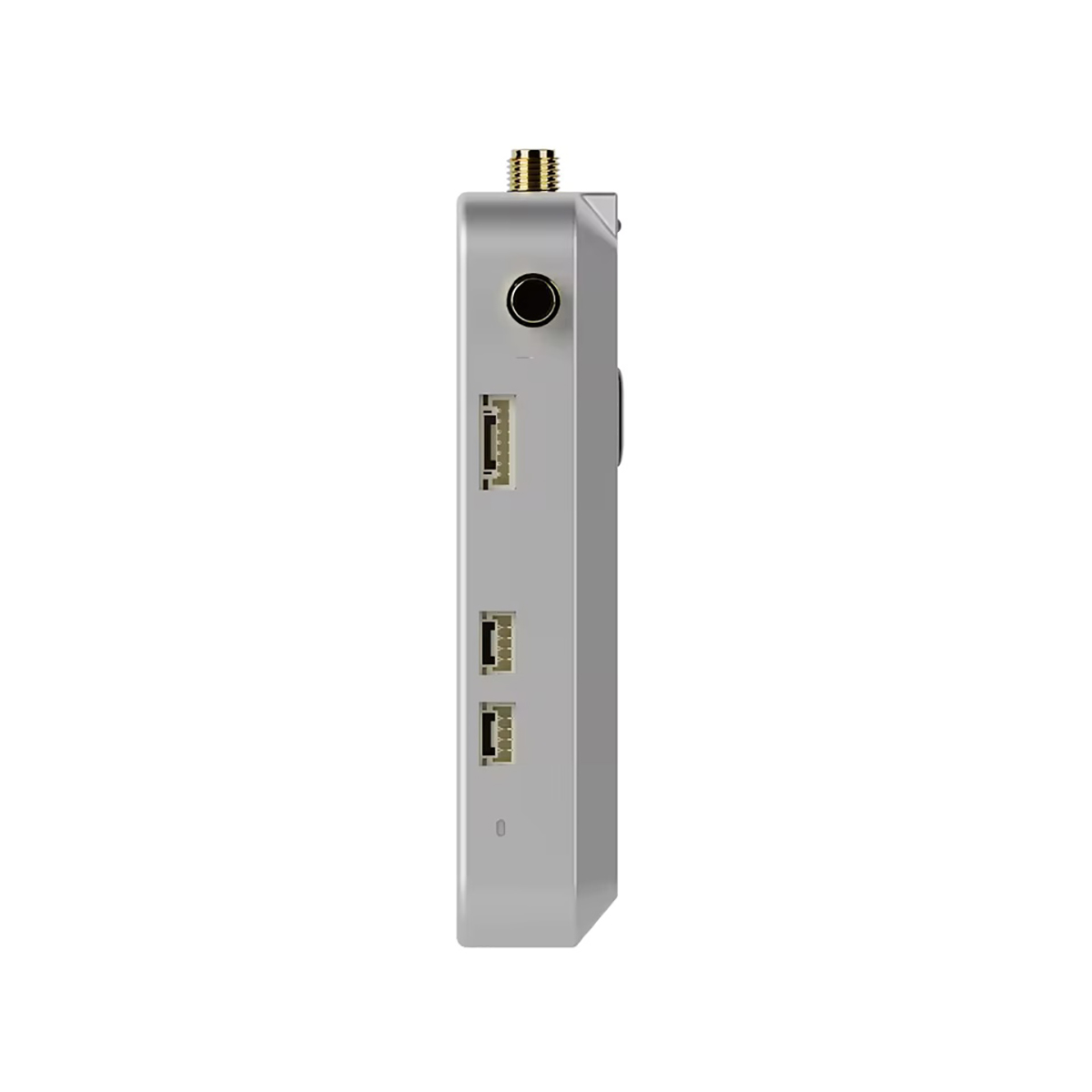

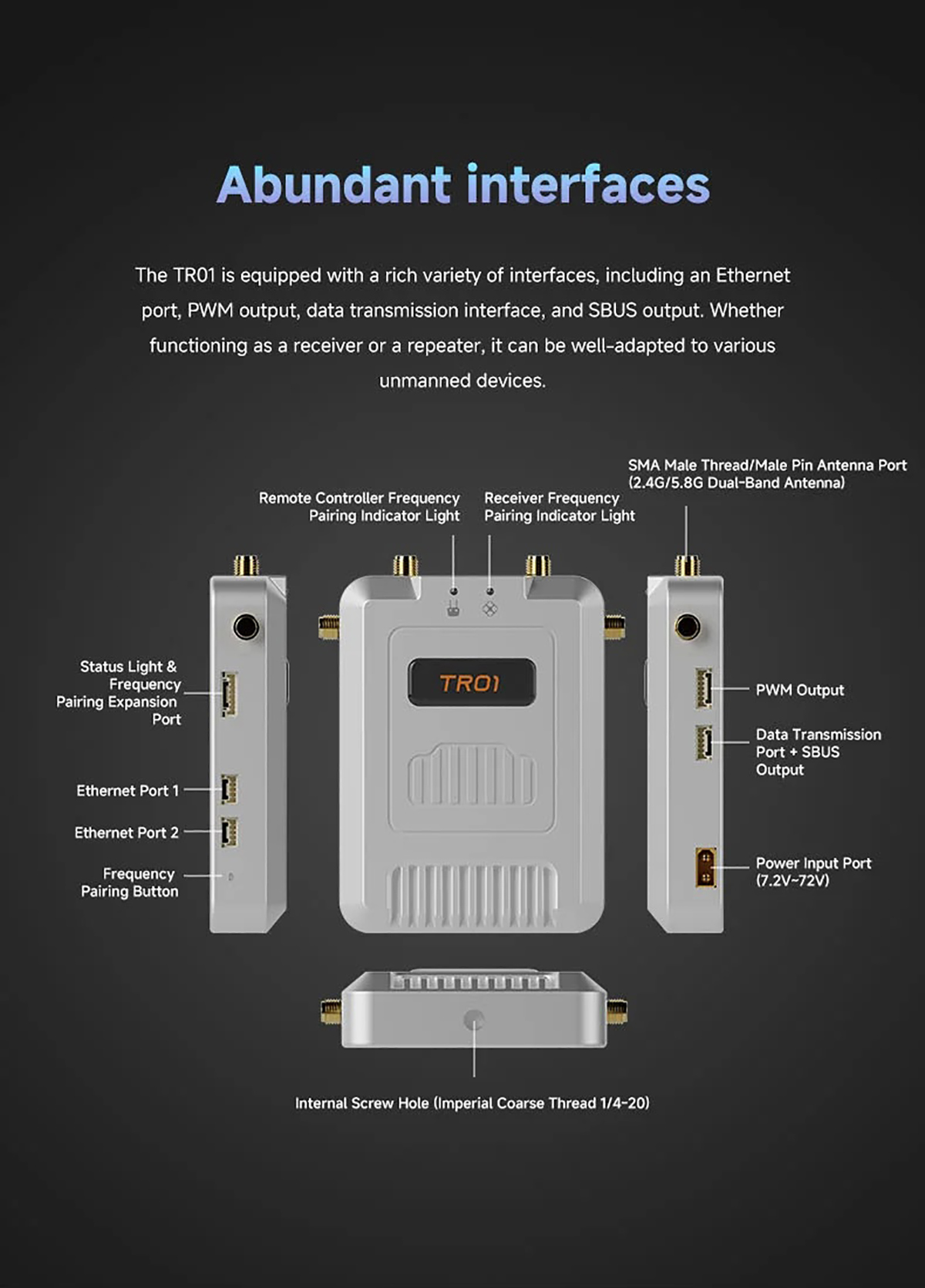

Data Transmission Port: 1 channel
Ethernet Ports: 2 channels
Dimensions: 248mm×140mm×20mm
SBUS Output: 1 channel
Weight: 191g
PWM Interfaces: 3 channels
Operating Temperature: -10℃~60℃
RF Power: 23dBm@CE/FCC
Channel Bandwidth: 1.25MHz/2.5MHz/5MHz/10MHz/20MHz/40MHz

TR01 Repeater x1
