SKYRC PC3000H Charger High Power 3000W 12S 14S 60A 4-Way Smart Battery Charger For LiPo LiHV Quattro Battery Agriculture Drone
SKYRC PC3000H Charger High Power 3000W 12S 14S 60A 4-Way Smart Battery Charger For LiPo LiHV Quattro Battery Agriculture Drone

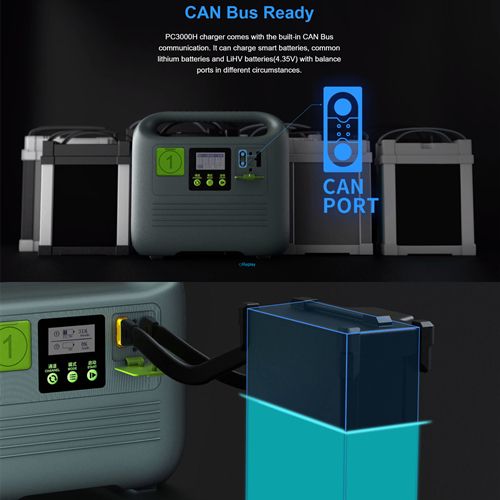

With CAN communication integrated, PC3000H is a smart charger for smart batteries, legacy lithium batteries and LiHV batteries(4.35V).
It can connect with up to four batteries at the same time. The maximum output power is up to 3000W, and users can choose between four modes of Fast Charge/Standard Charge/Charge/Storage.
The charger can recognize the batteries instantly and charge automatically with customized CAN communication. Charging should be a more convenient and straightforward experience.
Size and Weight
– Housing Material: Plastic (Flame Retardant PC+ABS)
– Size: 294mmx139mmx282mm
– Weight: 6Kg
Battery
– Type：Lithium Battery
– LiPo Battery Cells：12S/14S (4.2V)
– LiHV Battery Cells：12S/14S (4.35V)
Charge/Discharge
– AC 220V
Fast Charge Current: max. 60A single channel
Standard Charge Current: max. 30A single channel,max. 60A Dual channels in total
Slow Charge Current: max. 20A single channel; max. 60A multi channels in total
– AC 120V
Fast Charge Current: max. 1200W single channel
Slow Charge Current: max. 20A single channel; max. 1200W multi channels in total
– Storage Discharge Power
Main Port: 50W Max.
Balance Port: 80W Max. (The current will be adjusted based on the balance port’s temp)
– Max Charge Output Power
AC220V Output Power: 3000W
AC120V Output Power: 1200W
– Discharge Power：60W
– Charging Mode：Fast charge /Standard Charge/ Charge / Storage
Working and Storage
– Working Temperature: 0℃-40℃
– Working Humidity: 0%-75%
– Storage Temperature: -10℃-70℃
– Storage Humidity: 0%-75%
SKYRC PC3000H Charger x 1
