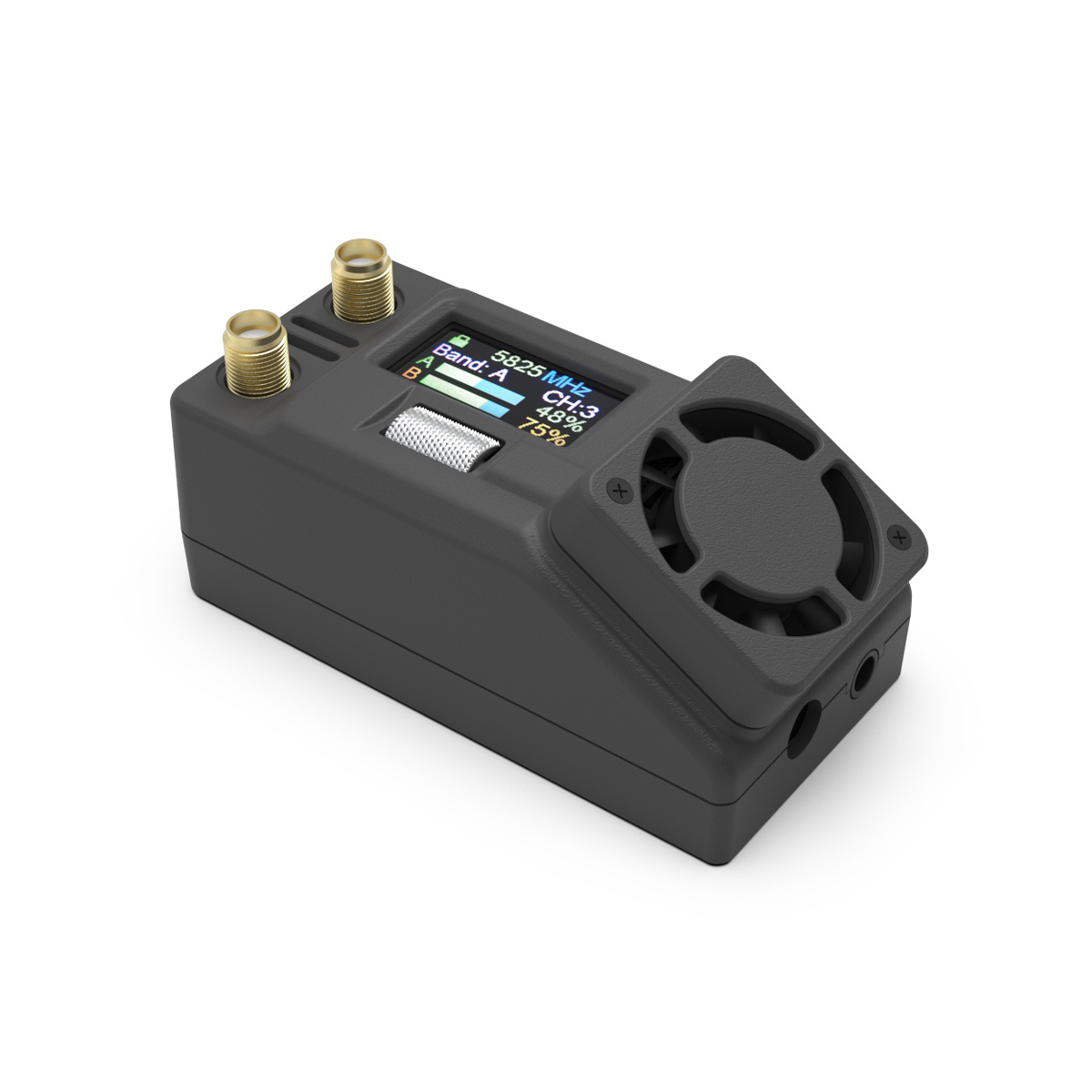

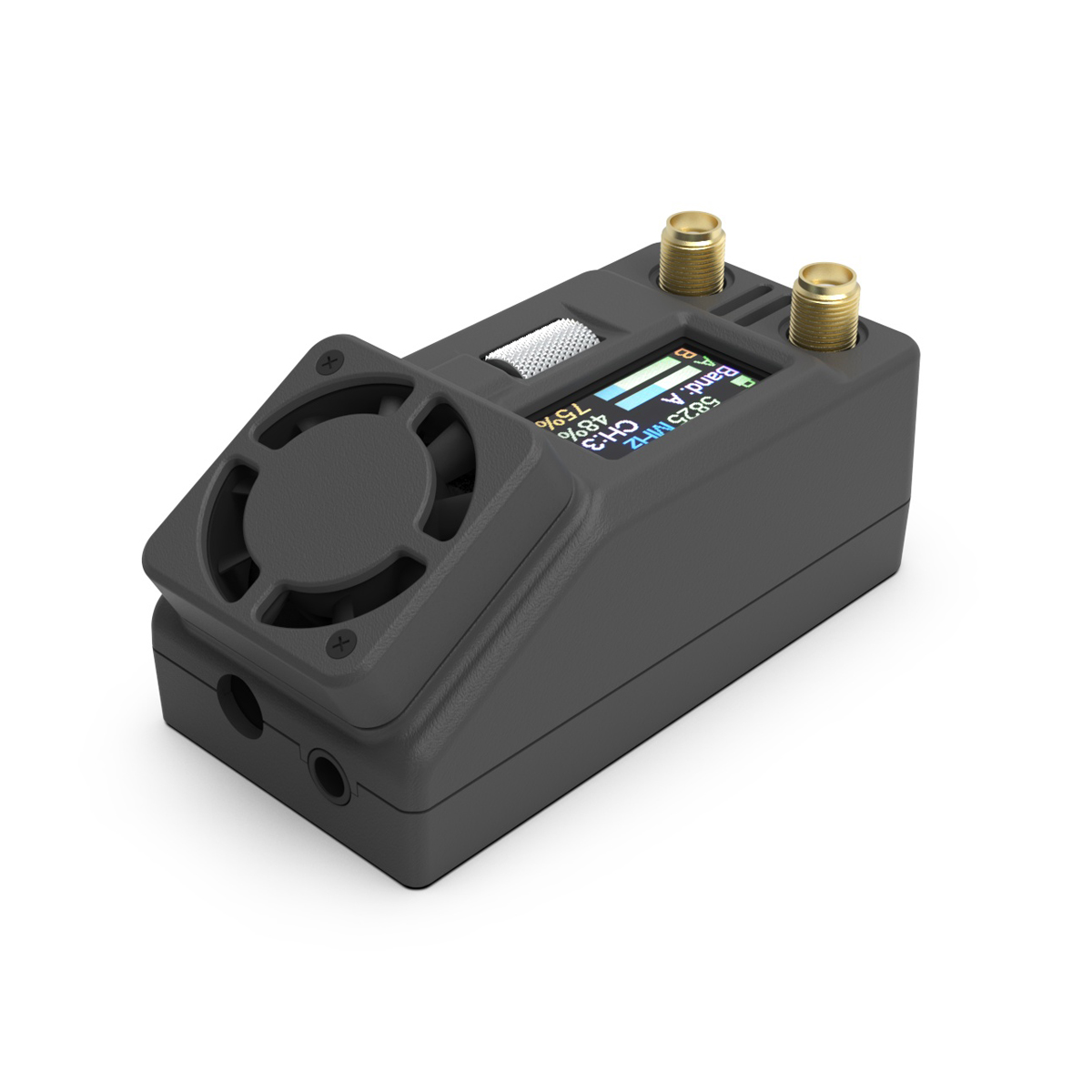

SKYZONE Steadyview X 6.5-8.5GHz Receiver 0.96″ IPS LCD High Sensitivity -90dBm for FPV Racing Drone














SKYZONE Steadyview X 6.5-8.5GHz Receiver 0.96″ IPS LCD High Sensitivity -90dBm for FPV Racing Drone
Steadyview X receiver is high performance receiver, unlike traditional diversity receiver, the Steadyview X have unique fusion technology and low band Filter hardware, also unique image reconstruction algorithm, the receiver merge two signals to one, avoid image tearing and rolling, make image more stable and clear in challenging condition.
The receiver come with ground station kit and 3 module bay cover, use can use the receiver on SKYZONE 04 series or fatshark goggles, also on SKYZONE Cobra goggles, user can use the receiver on any goggles or monitors which have AV INPUT port.

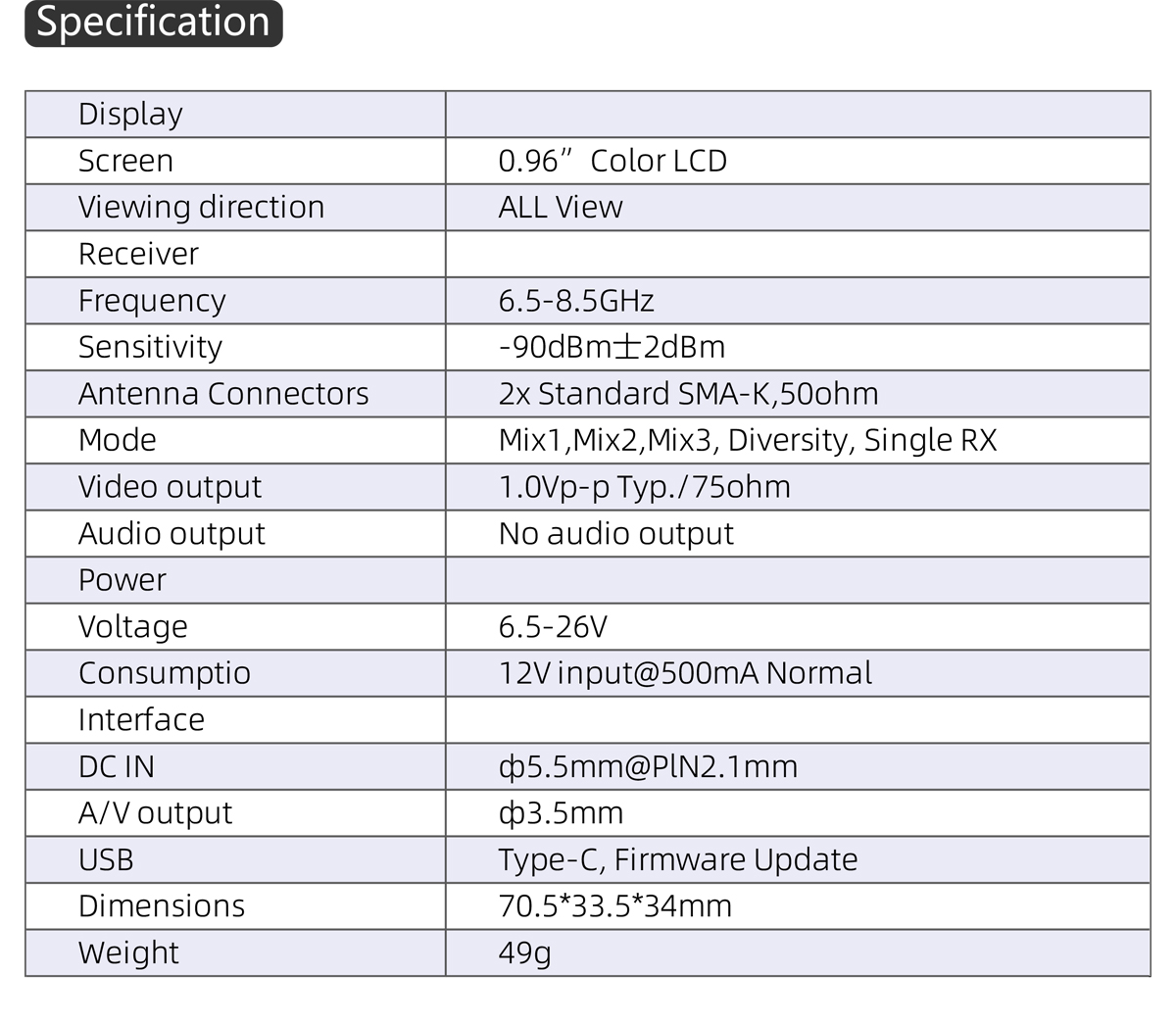

Model: SteadyView X

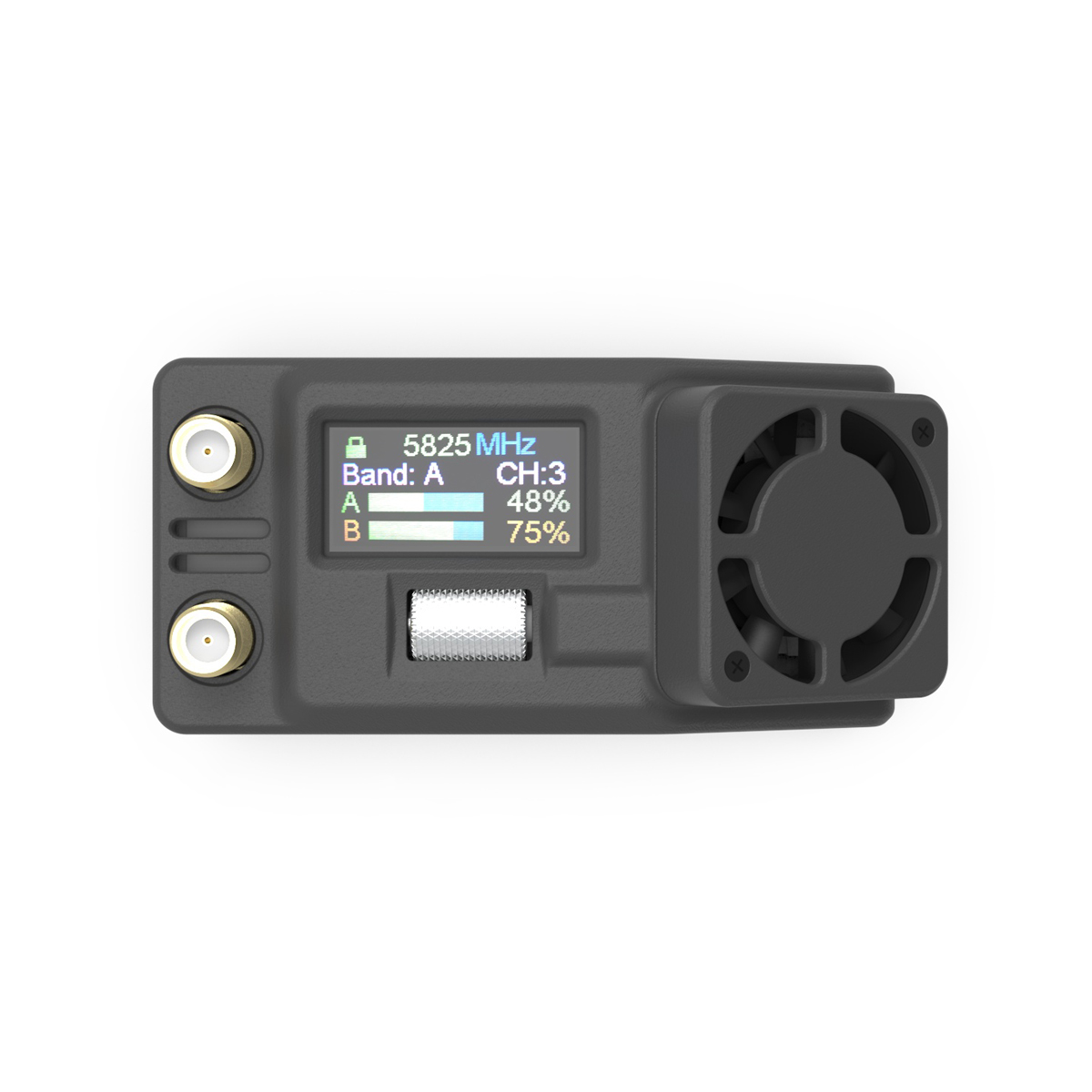

Screen: 0.96” Color LCD
Viewing direction: ALL View
Frequency: 6.5-8.5GHz
Sensitivity: -90dBm±2dBm
Antenna Connectors: 2x Standard SMA-K,50ohm
Mode: Mix1,Mix2,Mix3, Diversity, Single RX
Video output: 1.0Vp-p Typ./75ohm
Audio output: No audio output
Voltage: 6.5-26V
Consumptio: 12V input@500mA Normal

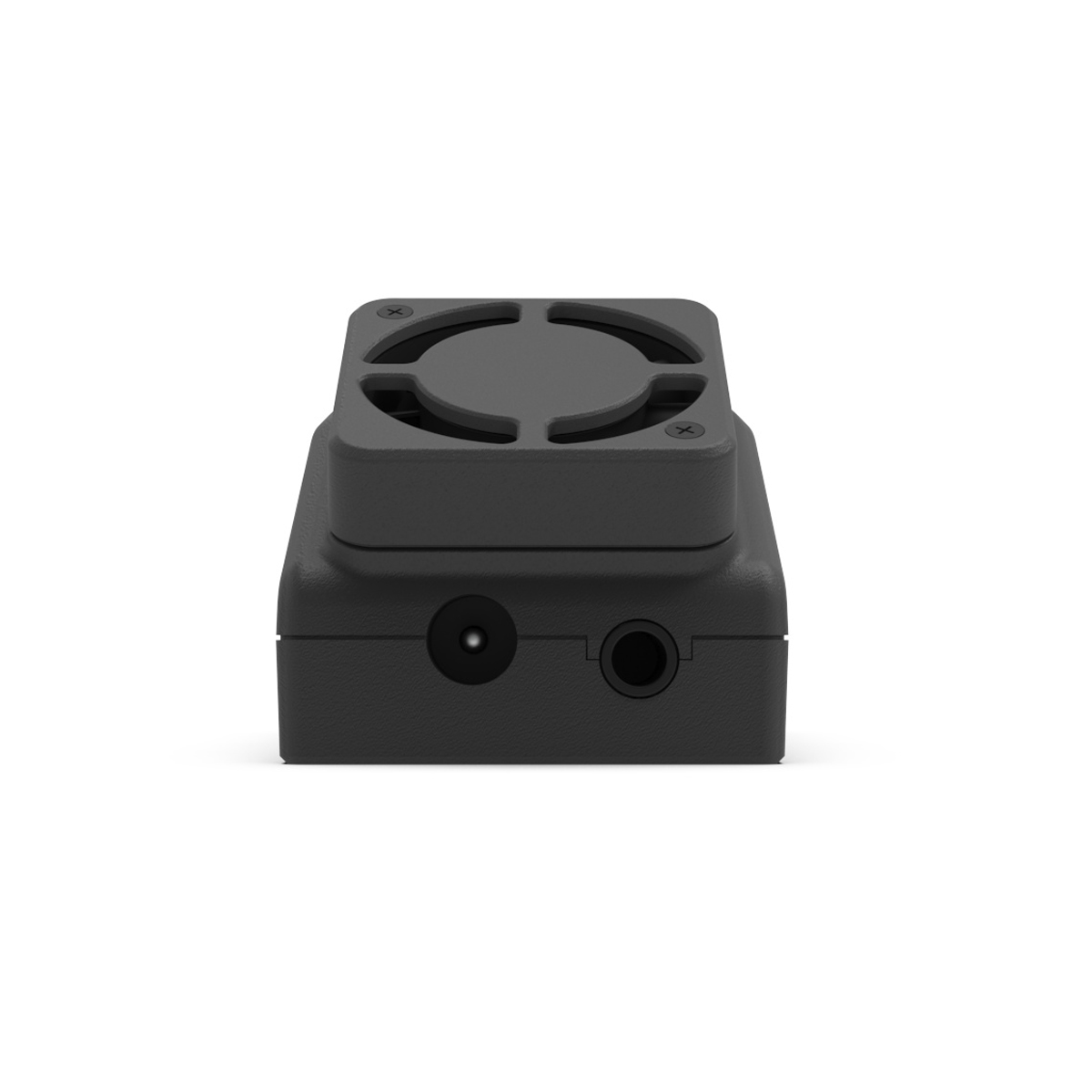

DC IN: ф5.5mm@PlN2.1mm

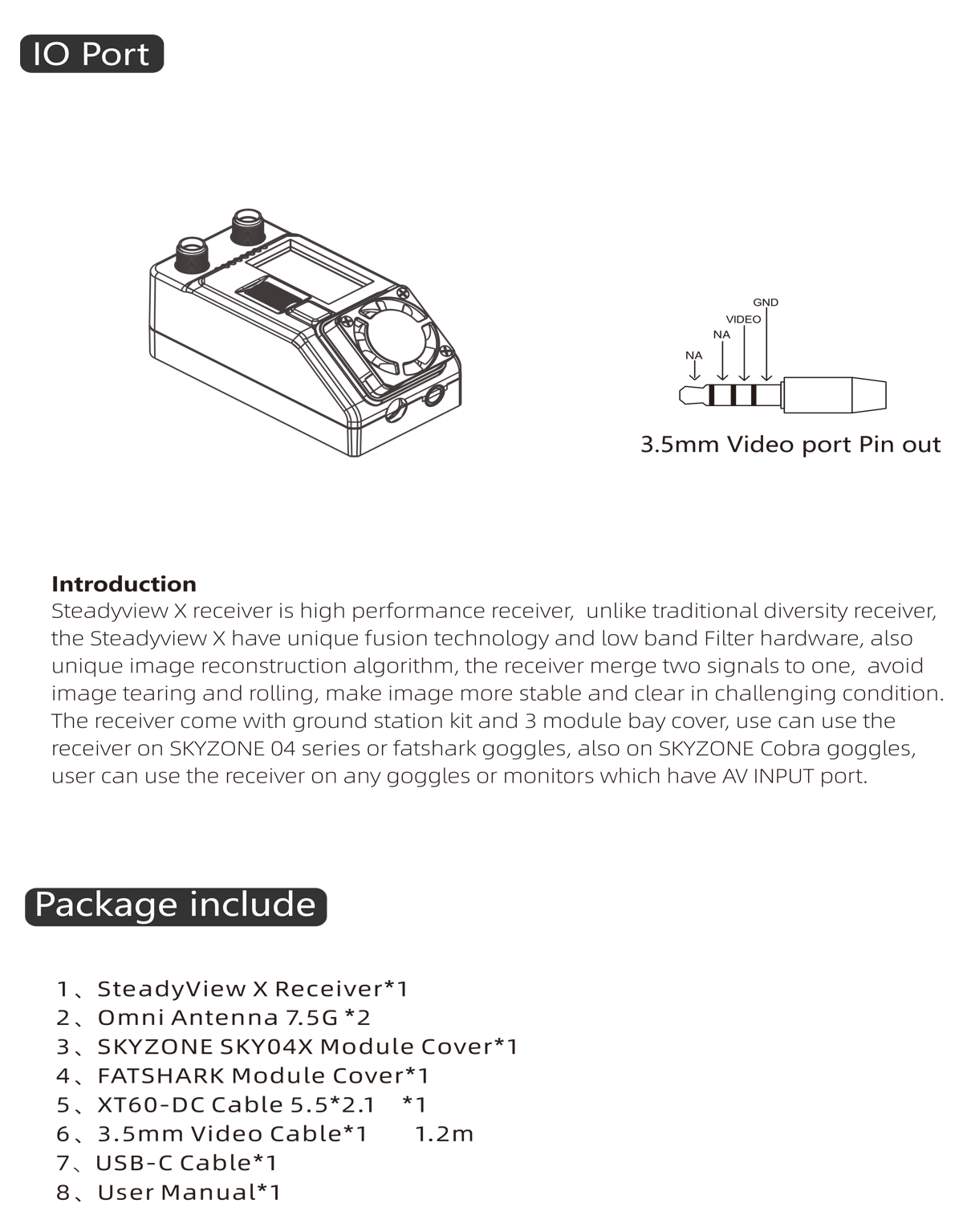

A/V output: ф3.5mm

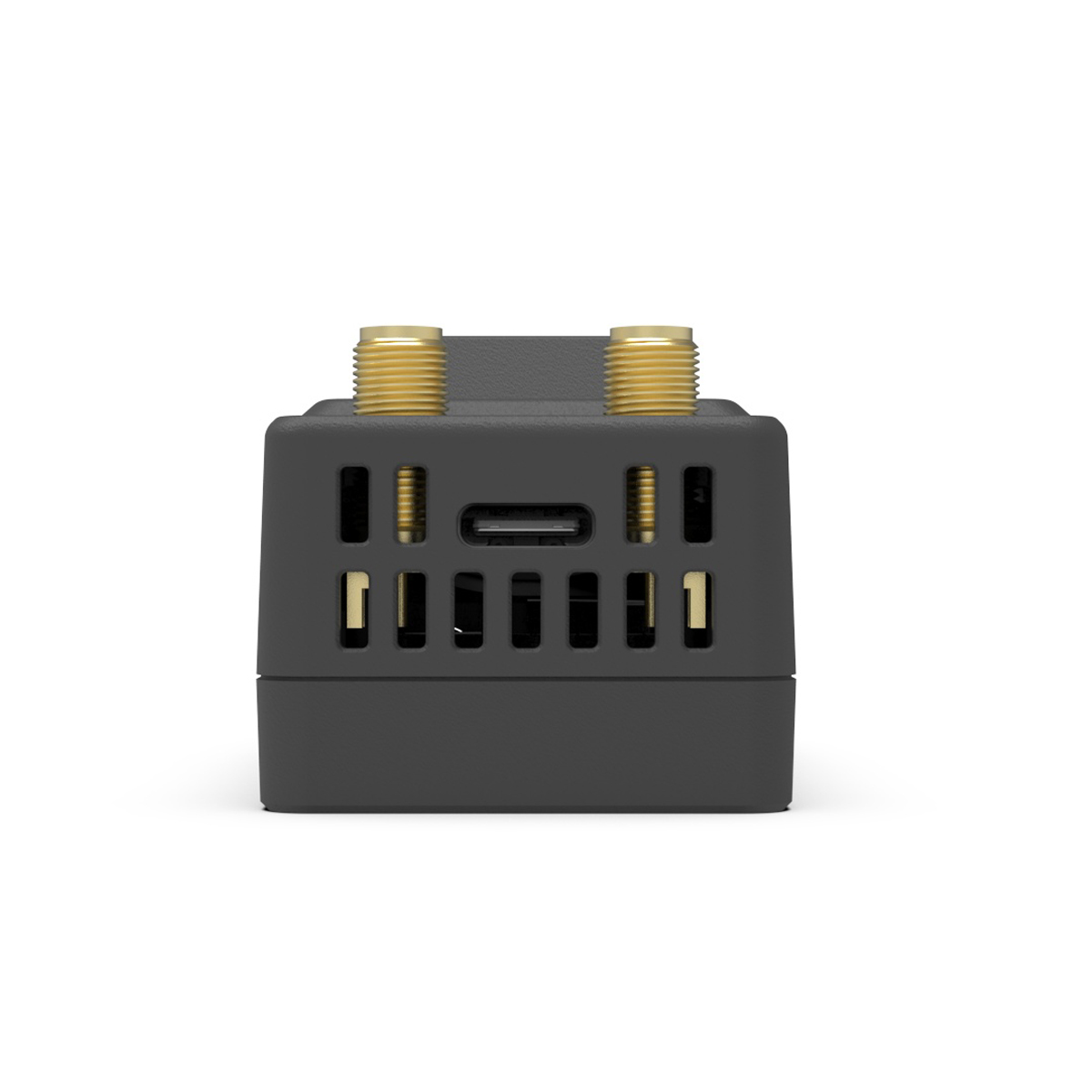

USB: Type-C, Firmware Update
Dimensions: 70.5*33.5*34mm
Weight: 49g
SteadyView X Receiver x1
Omni Antenna 7.5G x2
SKYZONE SKY04X Module Cover x1
FATSHARK Module Cover x1
XT60-DC Cable 5.5*2.1 x1
3.5mm Video Cable x1
USB-C Cable x1
User Manual x1
