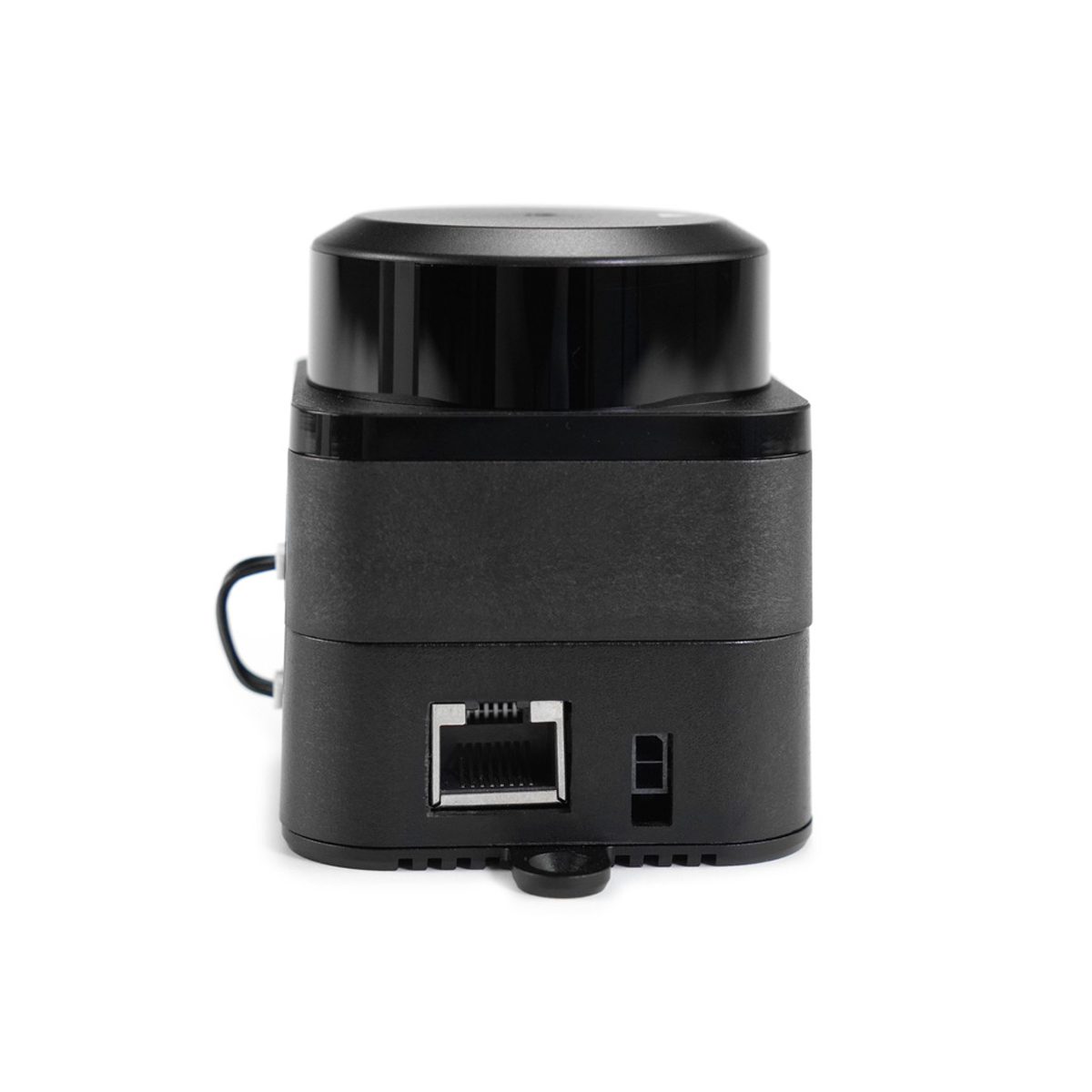

SLAMTEC Mapper M2M3 Laser Mapping Sensor 40m Range 32K High Quality for Robot Navigation Localization Mapping
SLAMTEC Mapper M2M3 Laser Mapping Sensor 40m Range 32K High Quality for Robot Navigation Localization Mapping

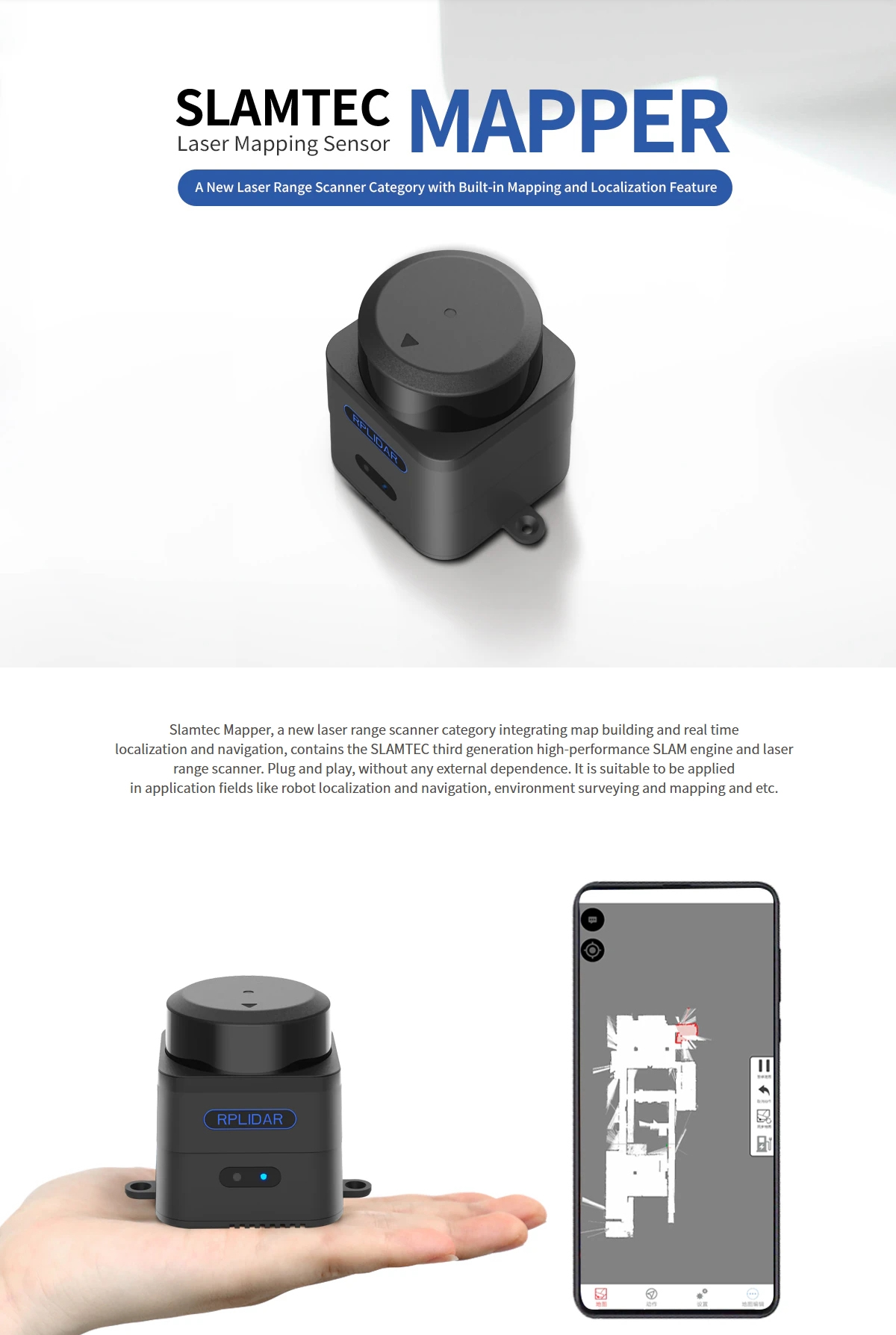

High-precision large-scene mapping with automatic map correction
Plug-and-play, USB-powered, stable for handheld operation
Sunlight-resistant, works stably indoors and outdoors
ROS-compatible, cross-platform adaptation, multiple communication methods
Integrates mapping and laser ranging, easy to connect to existing systems

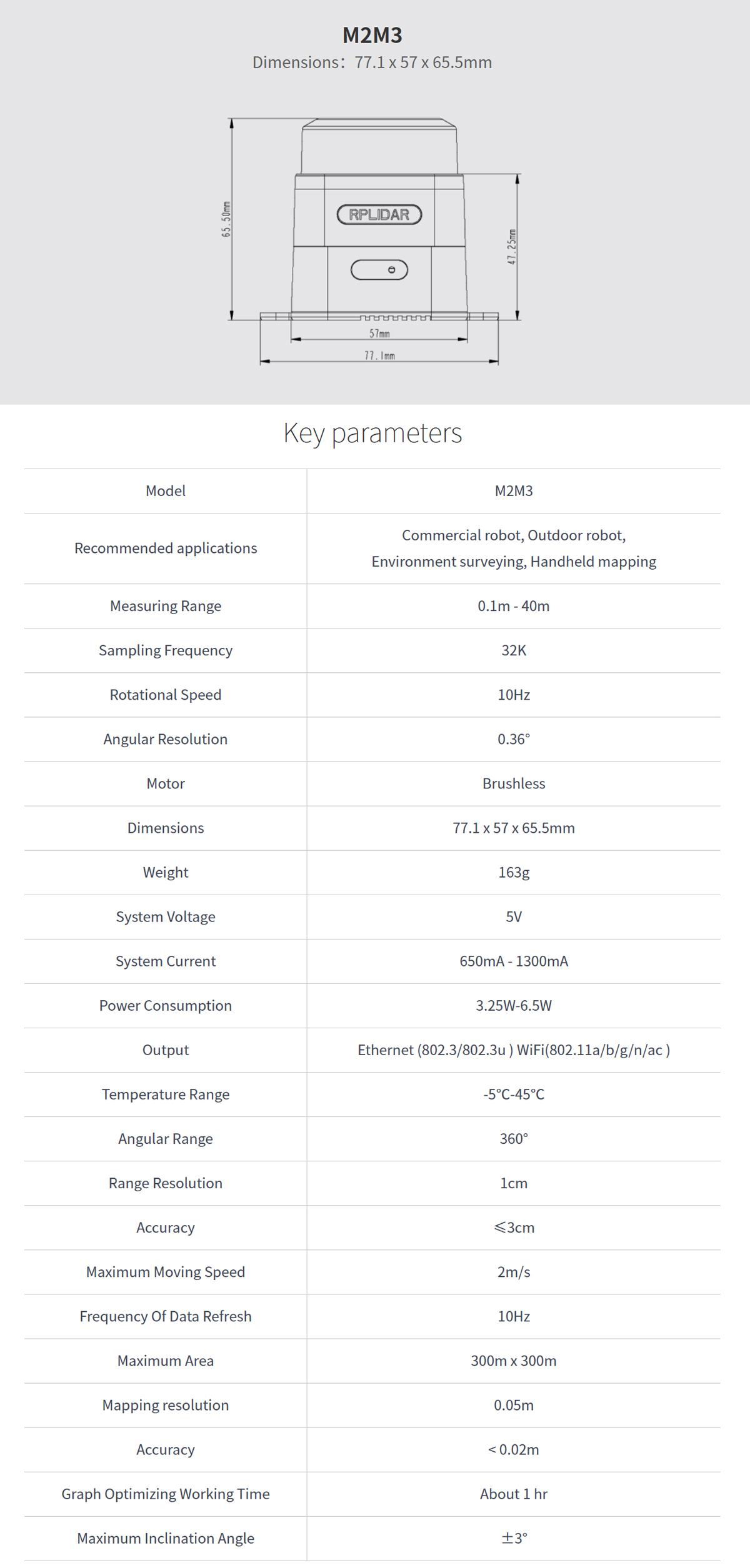

Model: M2M3
Recommended applications: Commercial robot, Outdoor robot,
Environment surveying, Handheld mapping
Measuring Range: 0.1m – 40m
Sampling Frequency: 32K
Rotational Speed: 10Hz
Angular Resolution: 0.36°
Motor: Brushless
Dimensions: 77.1 x 57 x 65.5mm
Weight: 163g
System Voltage: 5V
System Current: 650mA – 1300mA
Power Consumption: 3.25W-6.5W
Output: Ethernet (802.3/802.3u ) WiFi(802.11a/b/g/n/ac )
Temperature Range: -5℃-45℃
Angular Range: 360°
Range Resolution: 1cm
Accuracy: ≤3cm
Maximum Moving Speed: 2m/s
Frequency Of Data Refresh: 10Hz
Maximum Area: 300m x 300m
Mapping resolution: 0.05m
Accuracy: ＜0.02m
Graph Optimizing Working Time: About 1 hr
Maximum Inclination Angle: ±3°
Mapper M2M3 x1
