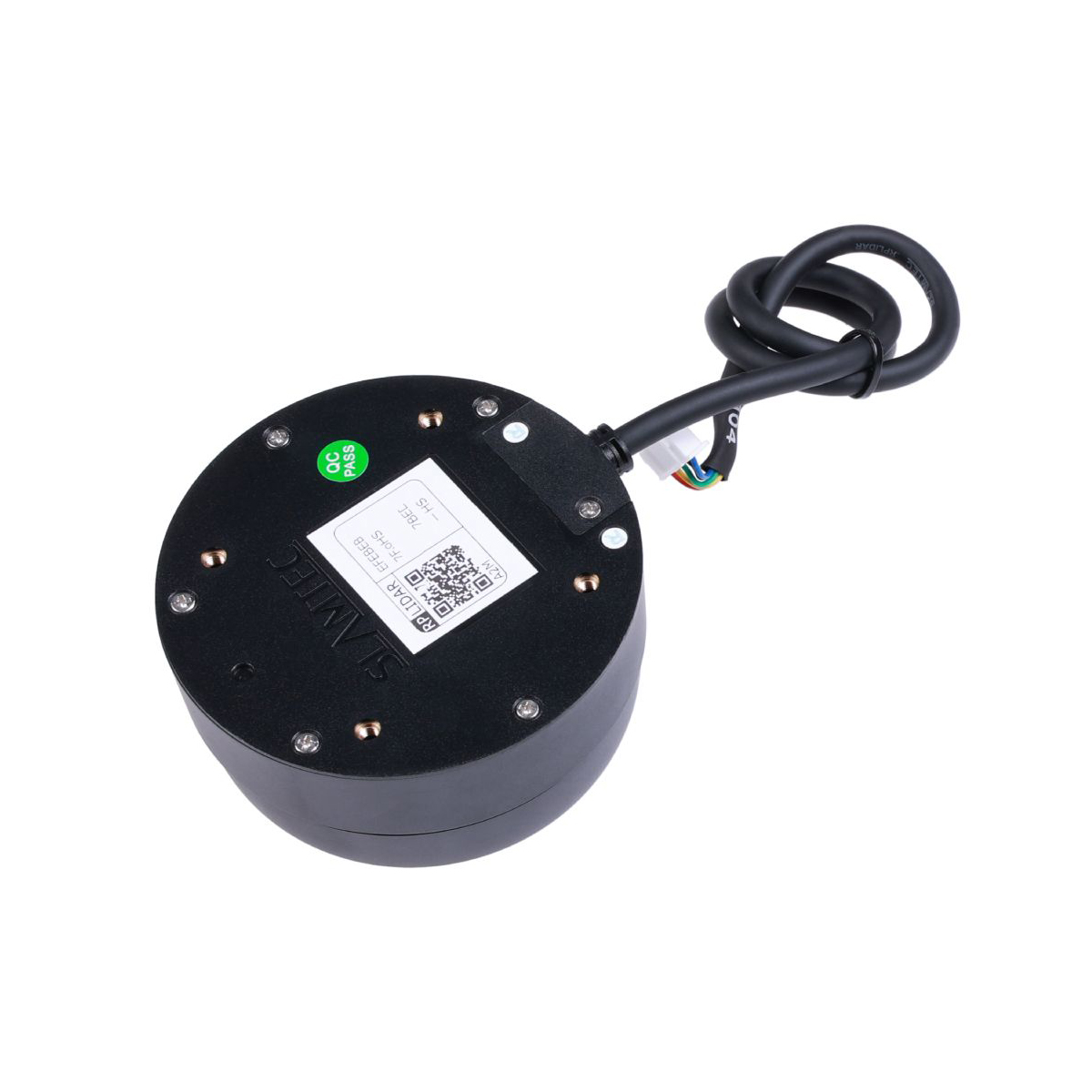

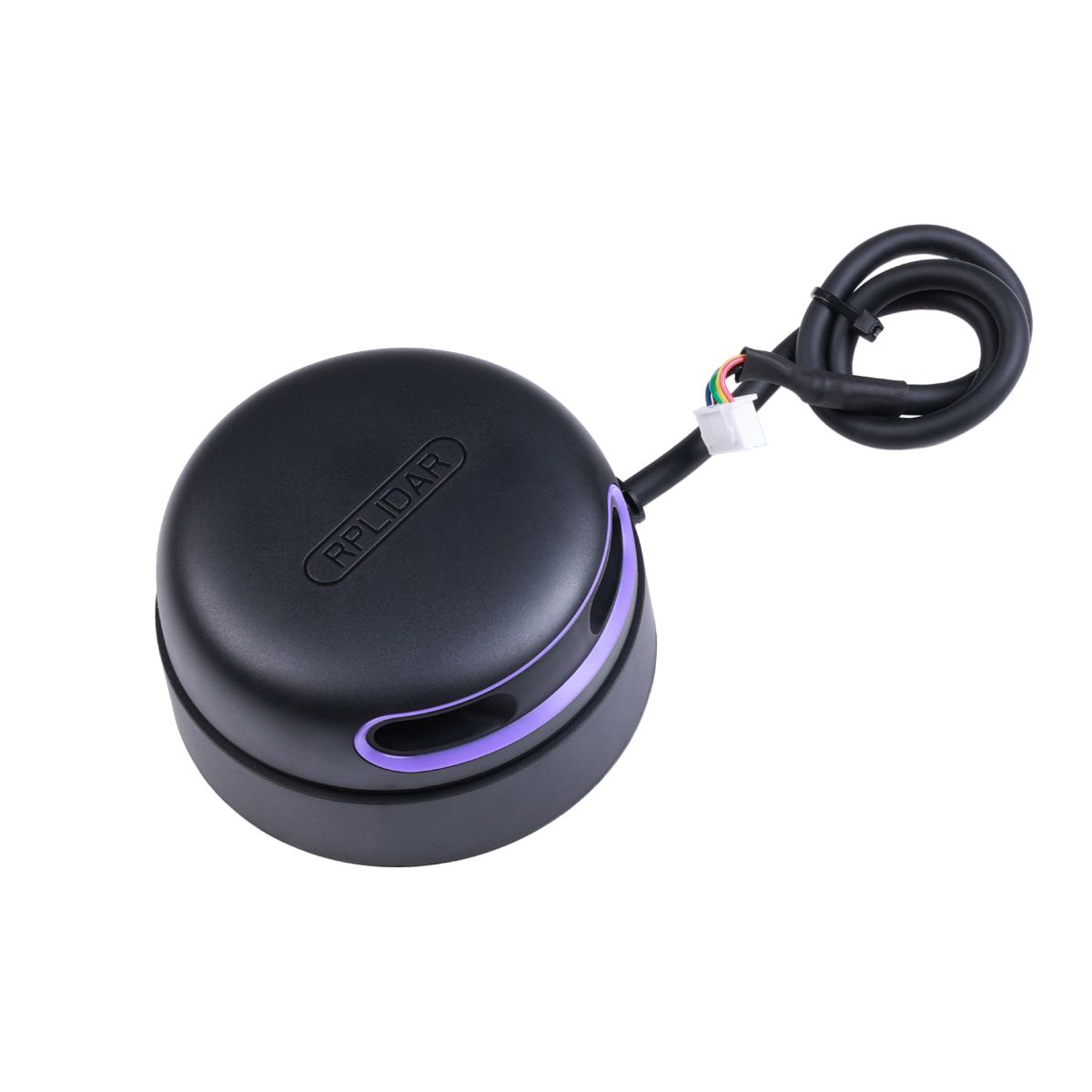

SLAMTEC RPLIDAR A2M12 360 Degree LiDAR Laser Range Scanner 12m Ultra-thin 16K Sample Rate UART Serial
SLAMTEC RPLIDAR A2M12 360 Degree LiDAR Laser Range Scanner 12m Ultra-thin 16K Sample Rate UART Serial
RPLIDAR A2M12 is a 360-degree triangulation laser sensing scanner that samples at up to 16 kHz, capable of generating 2D point cloud map information for a 12m radius, within low precision, and running for up to 5 years. This next-generation low-cost, high-performance laser scanner will be your great instrument for in-home robots, 3D modelling, etc.
Features
360 Degree Triangulation Laser Sensor Ranging Scanner: Generate 2D point cloud map information for 12m radius, 0.225° angular resolution
Distinguished Sampling Capability: Equip high-speed RPVision3.0 range engine, for up to 16KHz measurement frequency, 5 ~ 15Hz adjustable rotational speed
Prolong Operation Life: Apply OPTMAG light magnetic fusion technology for support up to five years of reliable running
Certified Output Laser Power: Safe as IEC-60825 Class One eye safety rating

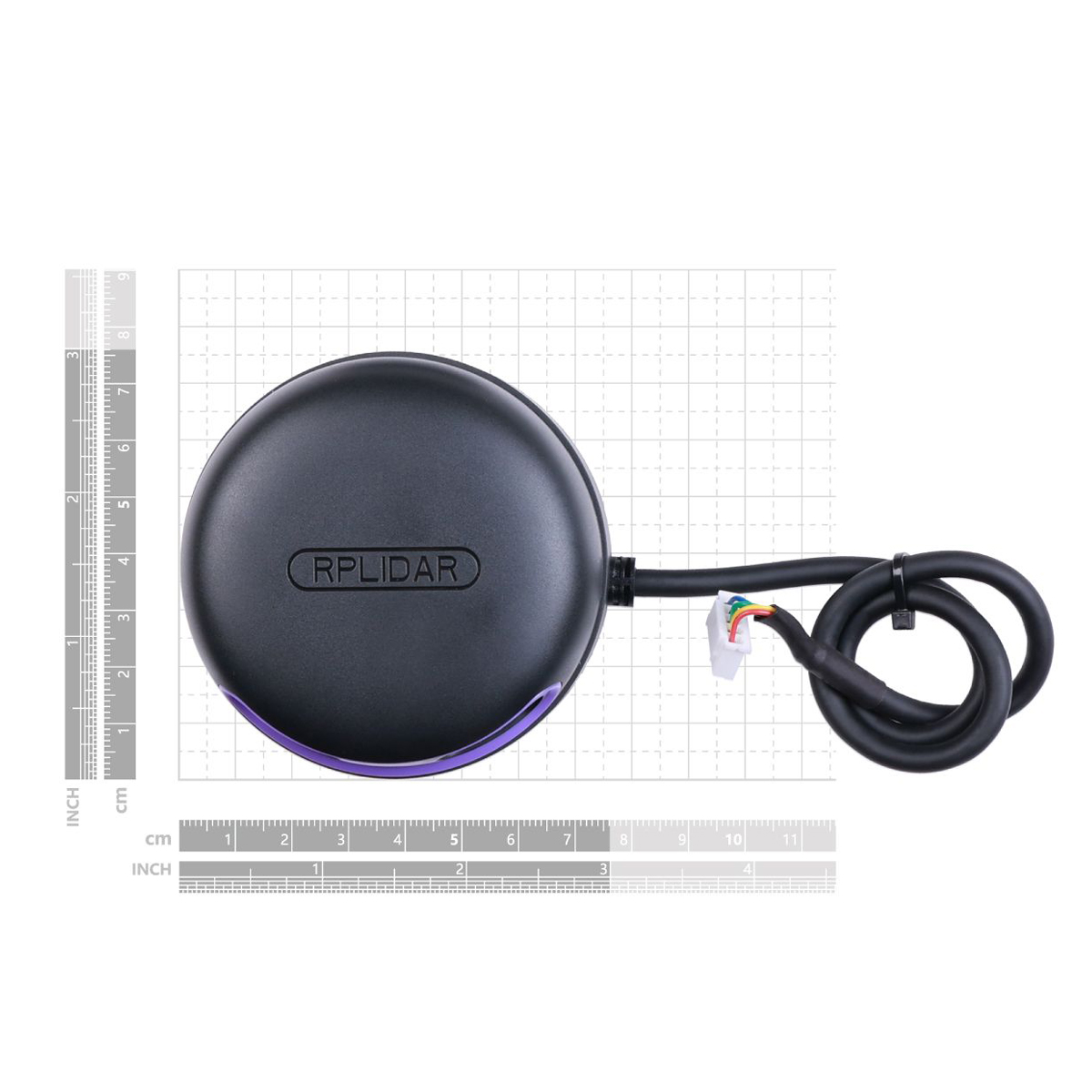

Cup-size Design: Light & portable, 4cm ultra-thin shell, even can be placed on floor mopping robot

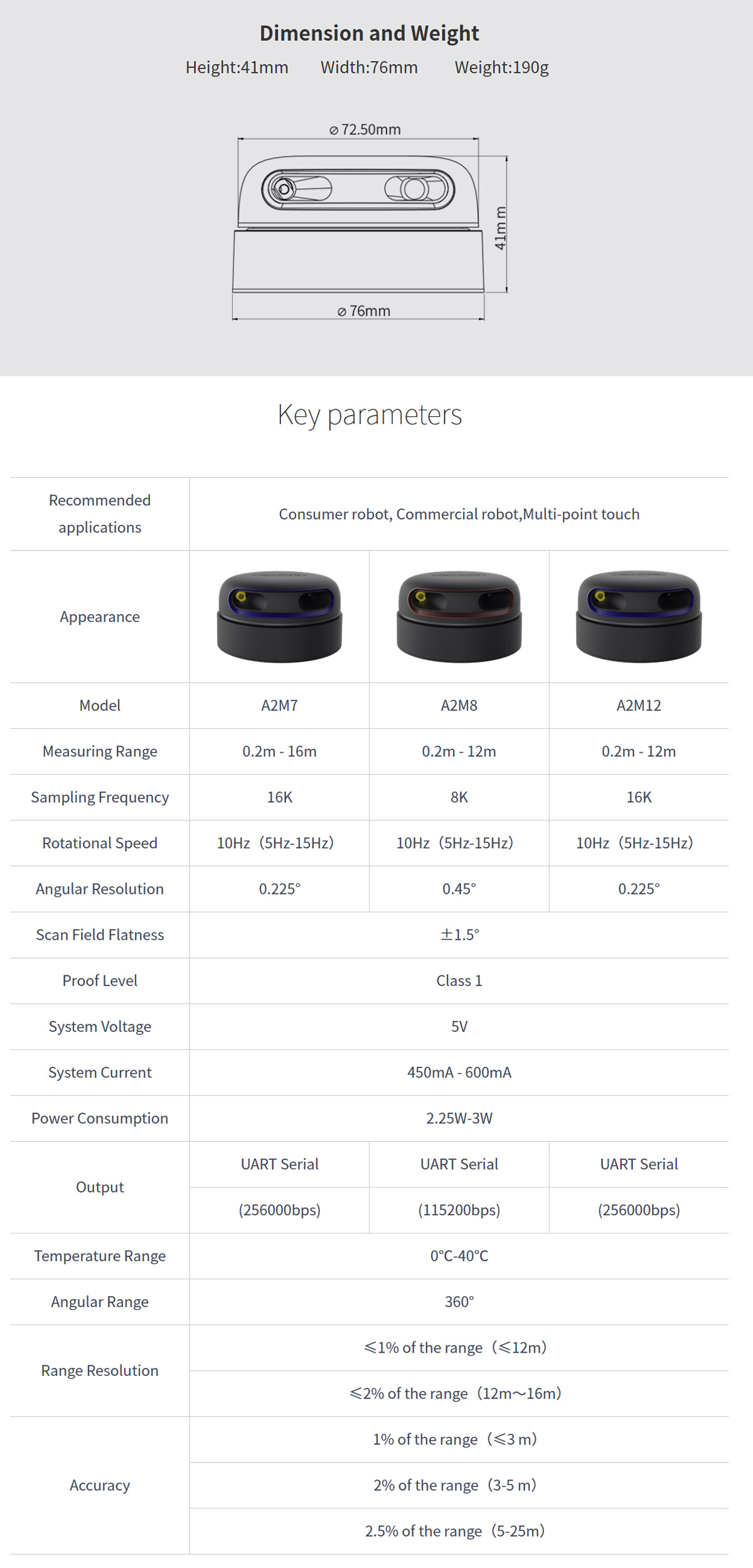

Model: RPLIDAR A2M12
Recommended Applications: Consumer robot, Commercial robot, Multi-point touch
Appearance: A2M12 Appearance
Measuring Range: 0.2m – 12m
Sampling Frequency: 16K
Rotational Speed: 10Hz（5Hz-15Hz）
Angular Resolution: 0.225°
Scan Field Flatness: ±1.5°
Proof Level: Class 1
System Voltage: 5V
System Current: 450mA – 600mA
Power Consumption: 2.25W-3W
Output: UART Serial (256000bps)
Temperature Range: 0℃-40℃
Angular Range: 360°
Range Resolution: ≤1% of the range（≤12m）;≤2% of the range（12m～16m）
Accuracy: 1% of the range（≤3m）; 2% of the range（3-5m）; 2.5% of the range（5-25m）

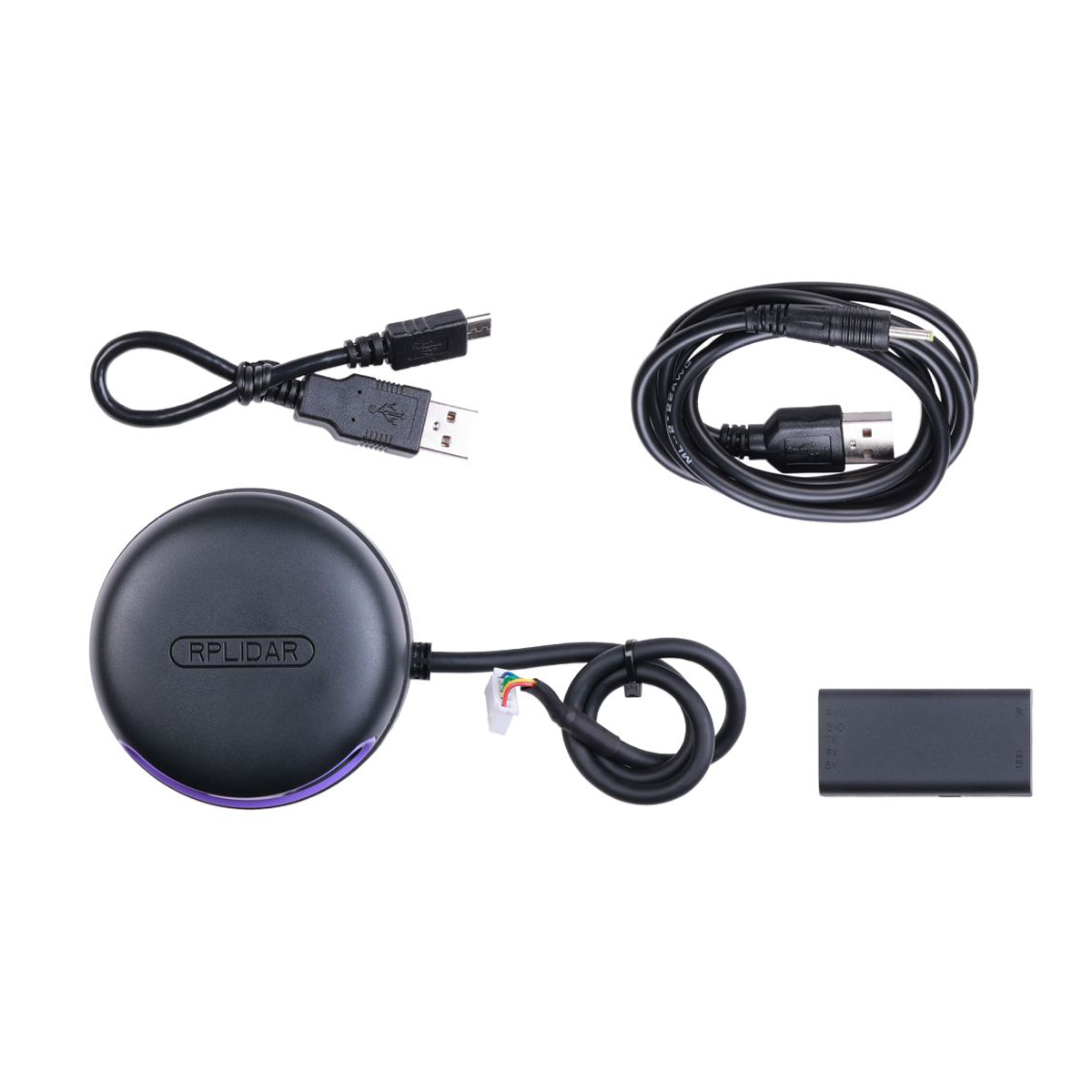

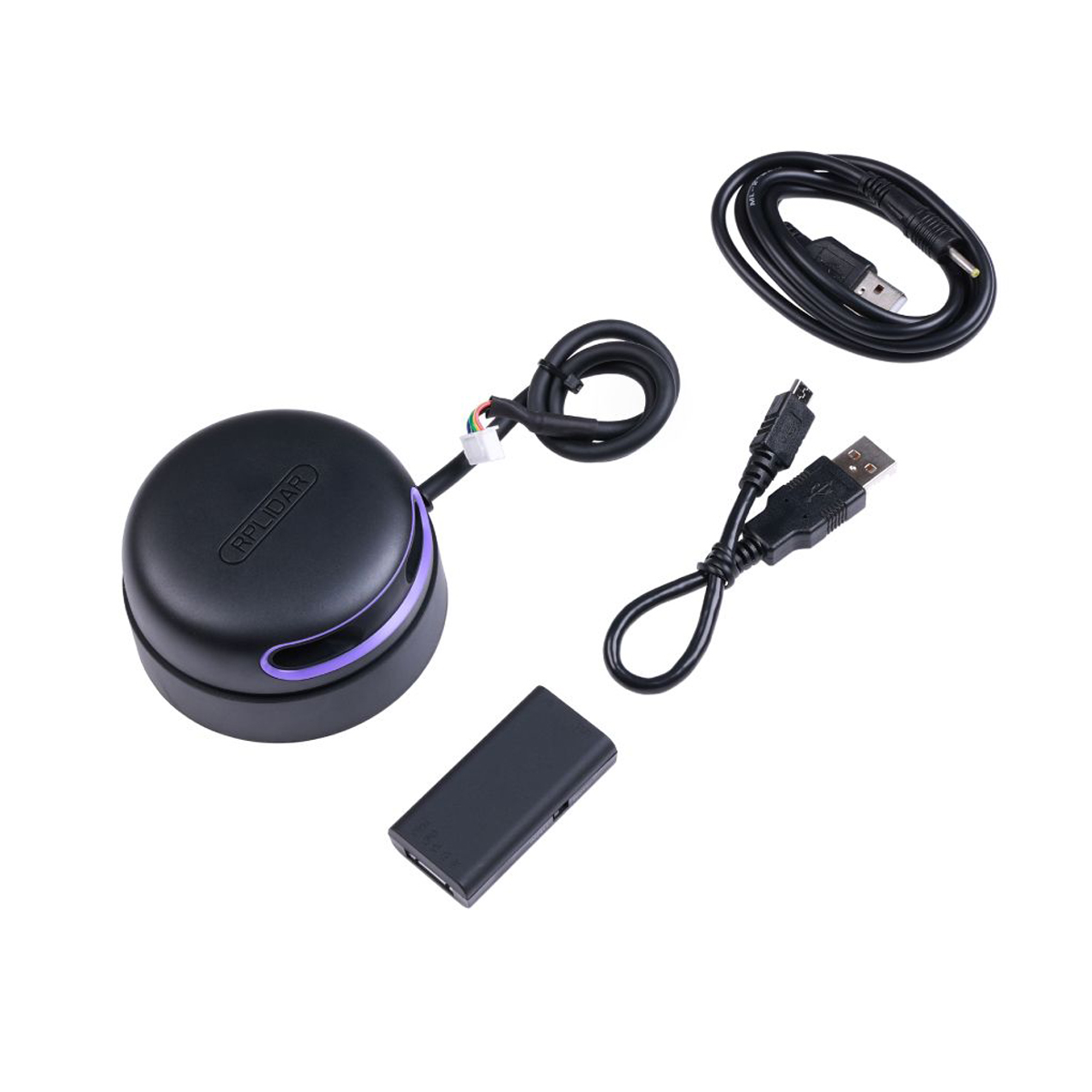

RPLIDAR A2M12 x1
USB Cable x1
DC Cable x1
Adapter Driver Board x1
