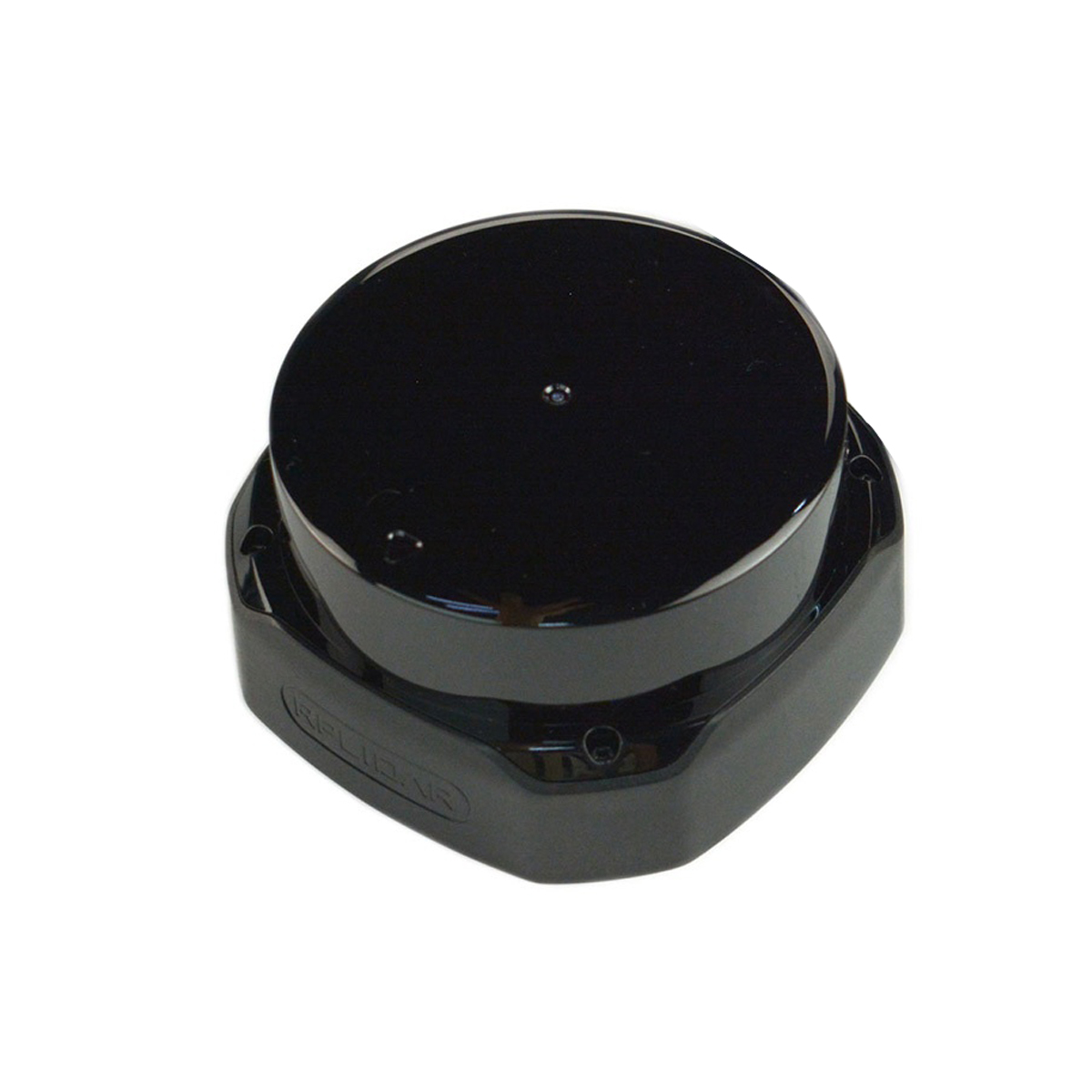

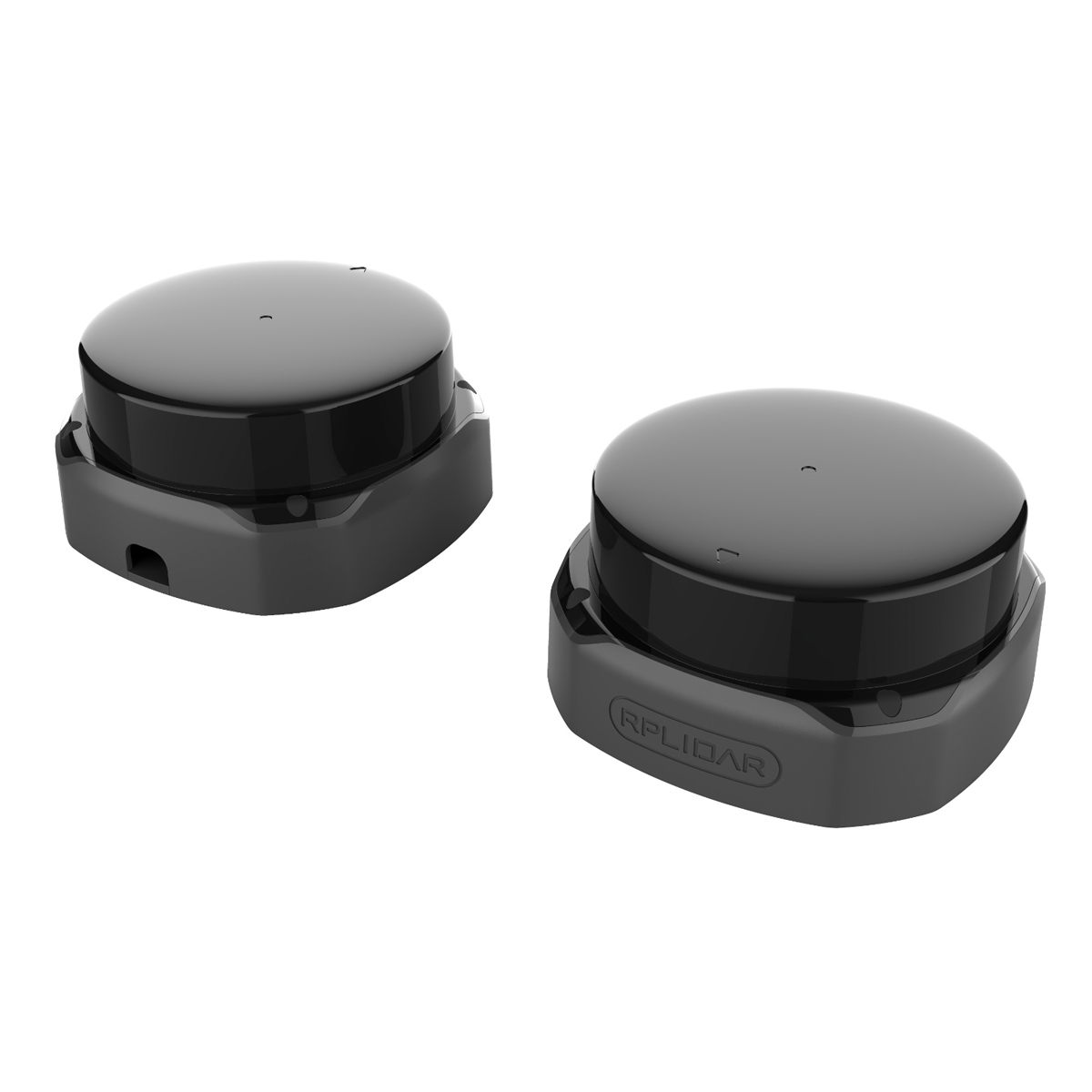

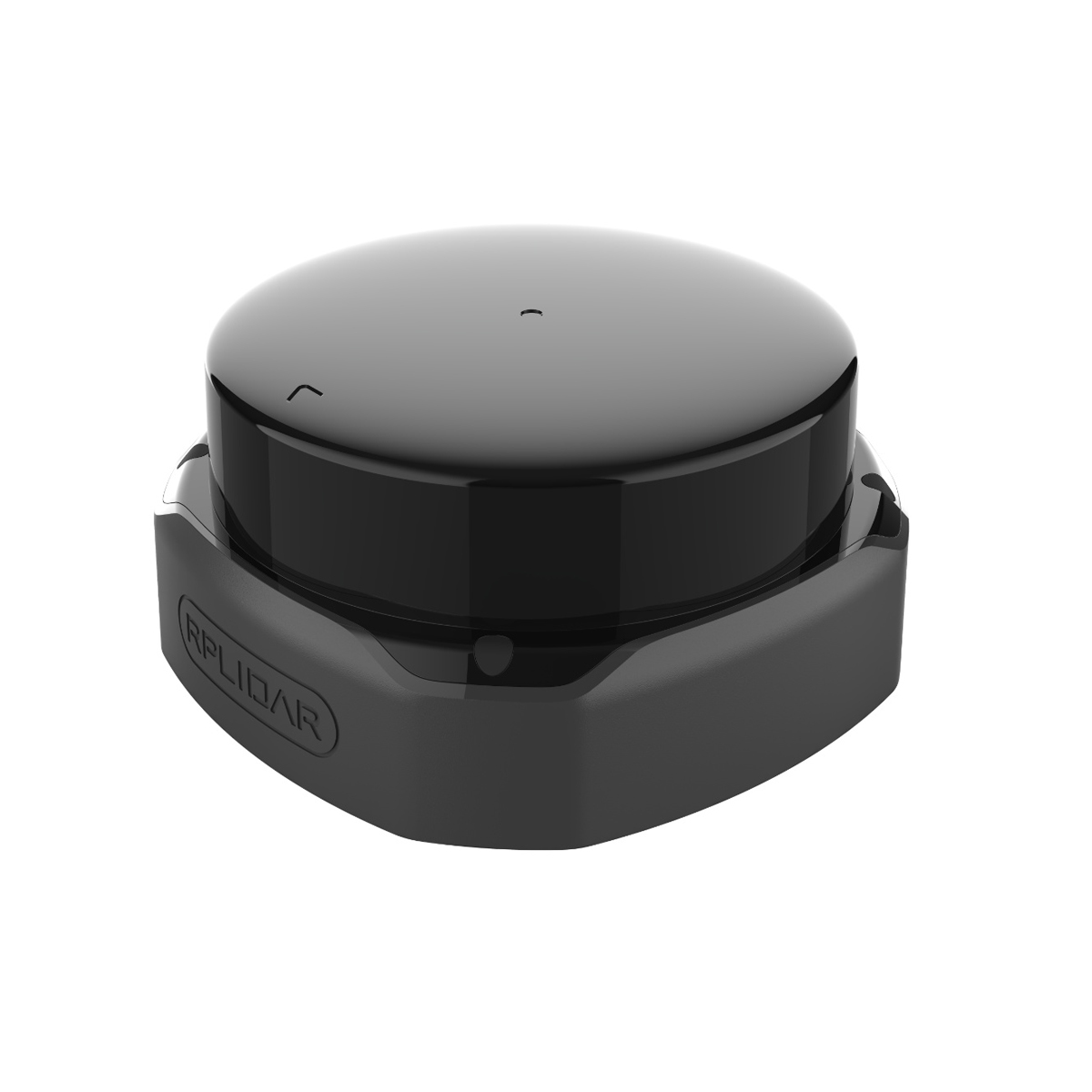

SLAMTEC RPLIDAR S2E ToF LiDAR 360 Degree Laser Range Scanner 30M 12V Ethernet UDP IP65 for Robot
SLAMTEC RPLIDAR S2E ToF LiDAR 360 Degree Laser Range Scanner 30M 12V Ethernet UDP IP65 for Robot

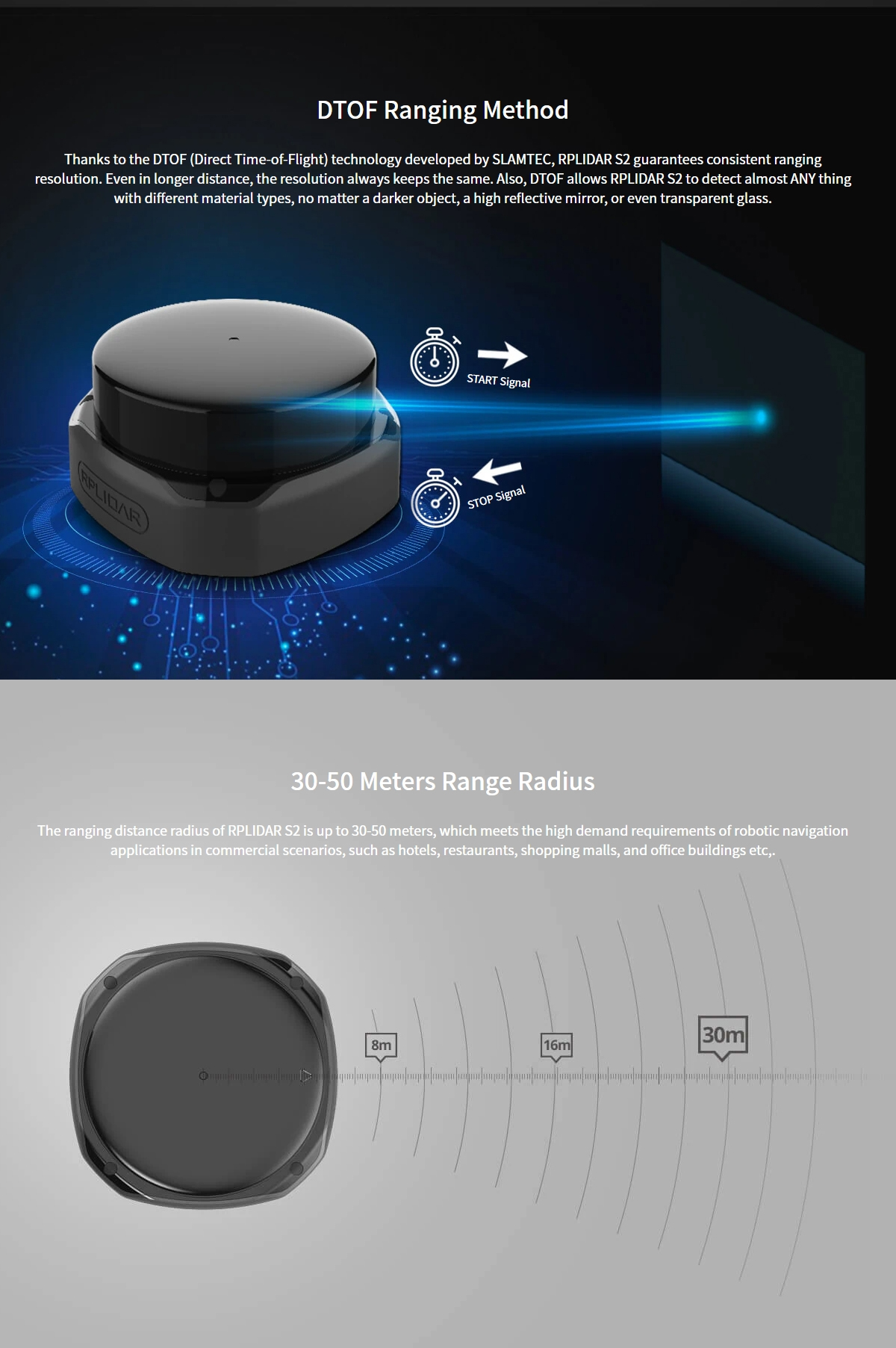

RPLIDAR S2E comes with upgraded products, increasing the operating performance of hardware and optimizing the internal algorithms, also supporting Ethernet UDP connection. It applies the Direct Time of Flight(DToF) theory that emits and receives the laser pulse to measure the distance by calculating the flight time. Compared to Triangulation Laser Sensor, it performs much higher precision, higher sampling frequency, and longer measuring distance.
Feature
360 Degree DToF Laser Ranging Scanner: Generate 2D point cloud map information up to 30m radius, within 30mm precision
Stunning Sampling Capability: Up to 32KHz measurement frequency, 10Hz rotational speed, resist up to 80000 lux light
Prolong Operation Life: Apply OPTMAG light magnetic fusion technology for support up to five years of reliable running

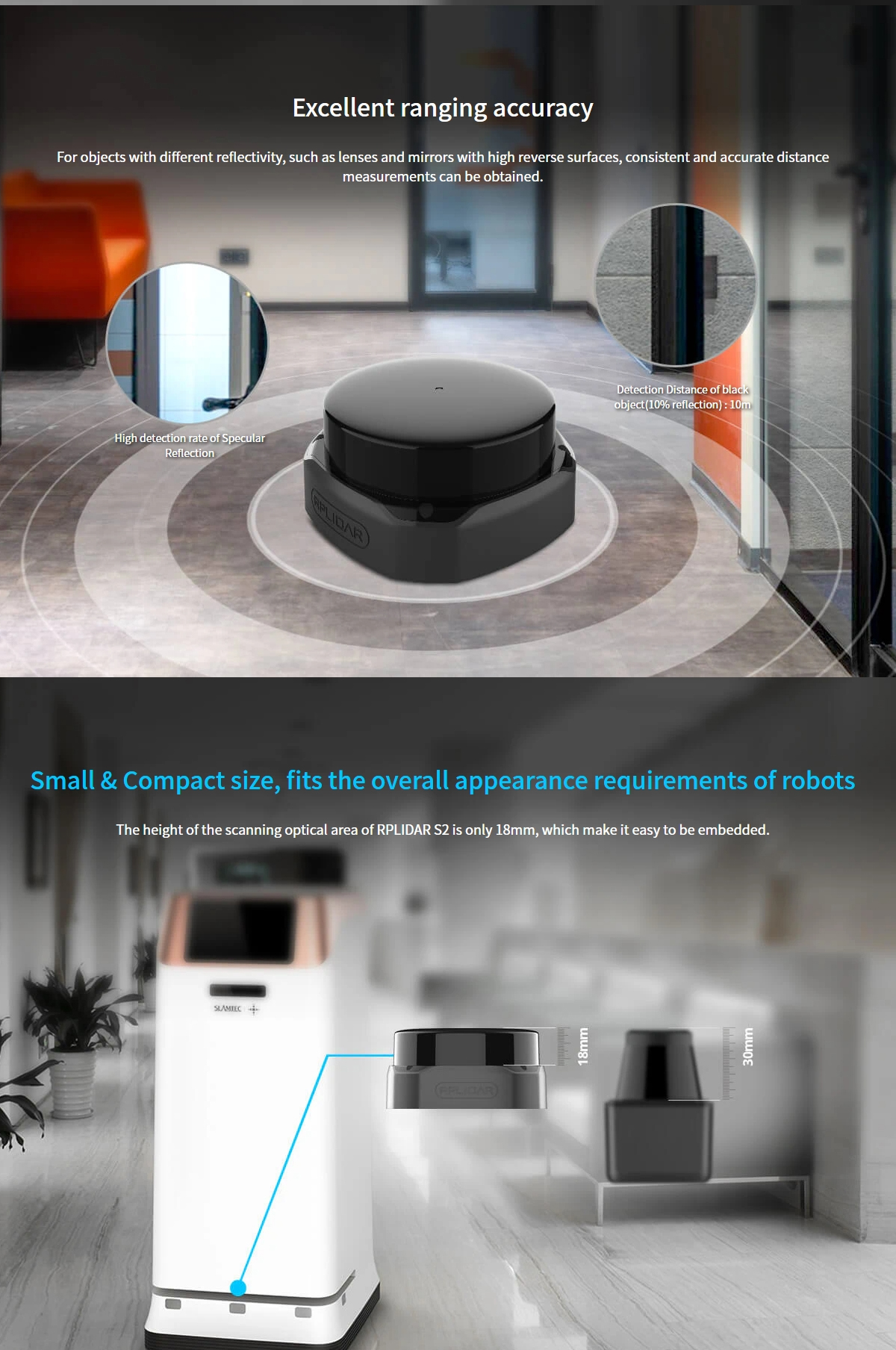

Suitable for Anywhere: IP65 high ingress protection, small and compact, capable of every indoor and outdoor deployment

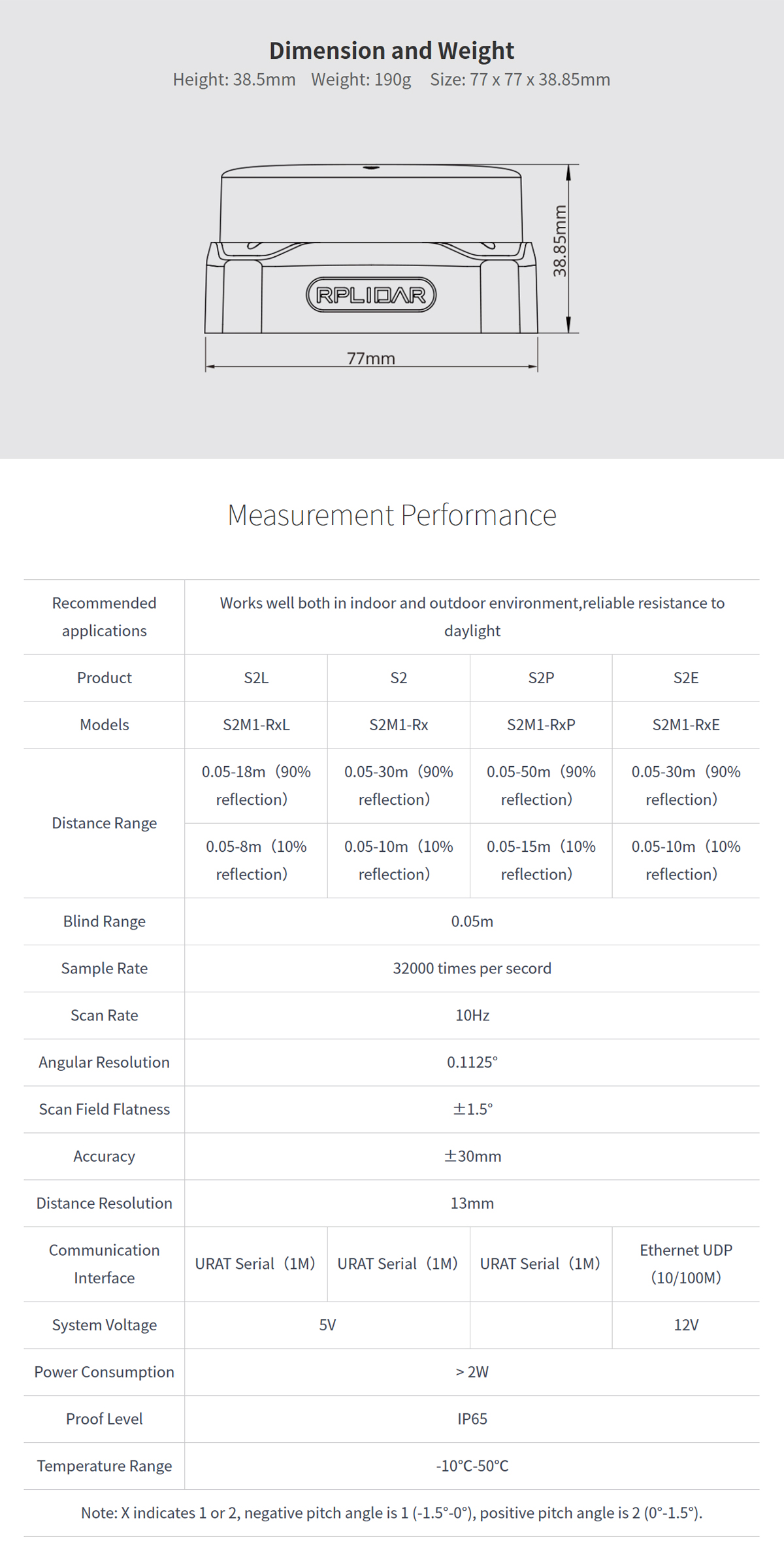

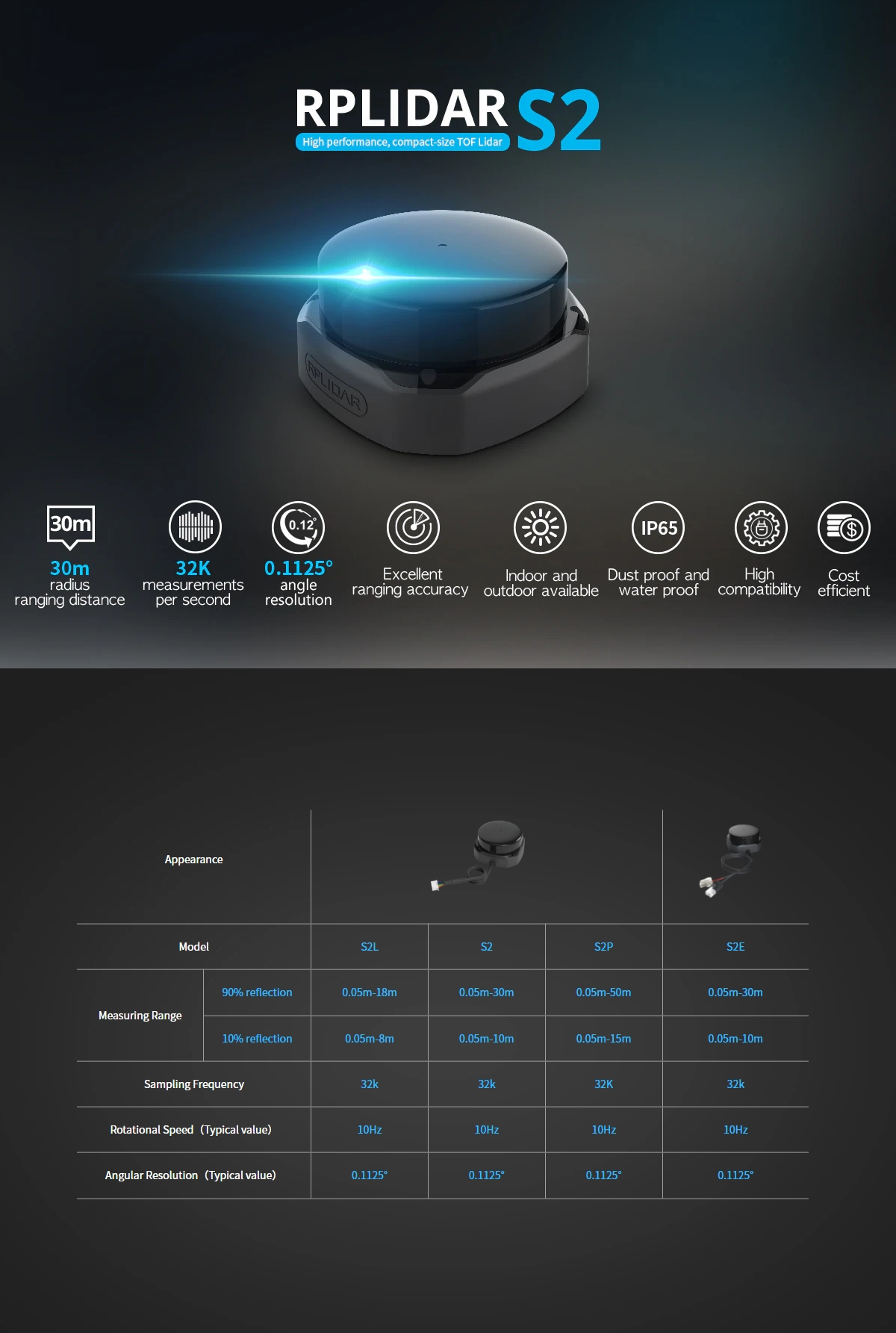

Model: RPLIDAR S2E
Recommended Applications: Works well both in indoor and outdoor environment, reliable resistance to daylight
Distance Range: 0.05-30m (90% reflection); 0.05-10m (10% reflection)
Blind Range: 0.05m
Sample Rate: 32000 times per second
Scan Rate: 10Hz
Angular Resolution: 0.1125°
Scan Field Flatness: ±1.5°
Accuracy: ±30mm
Distance Resolution: 13mm

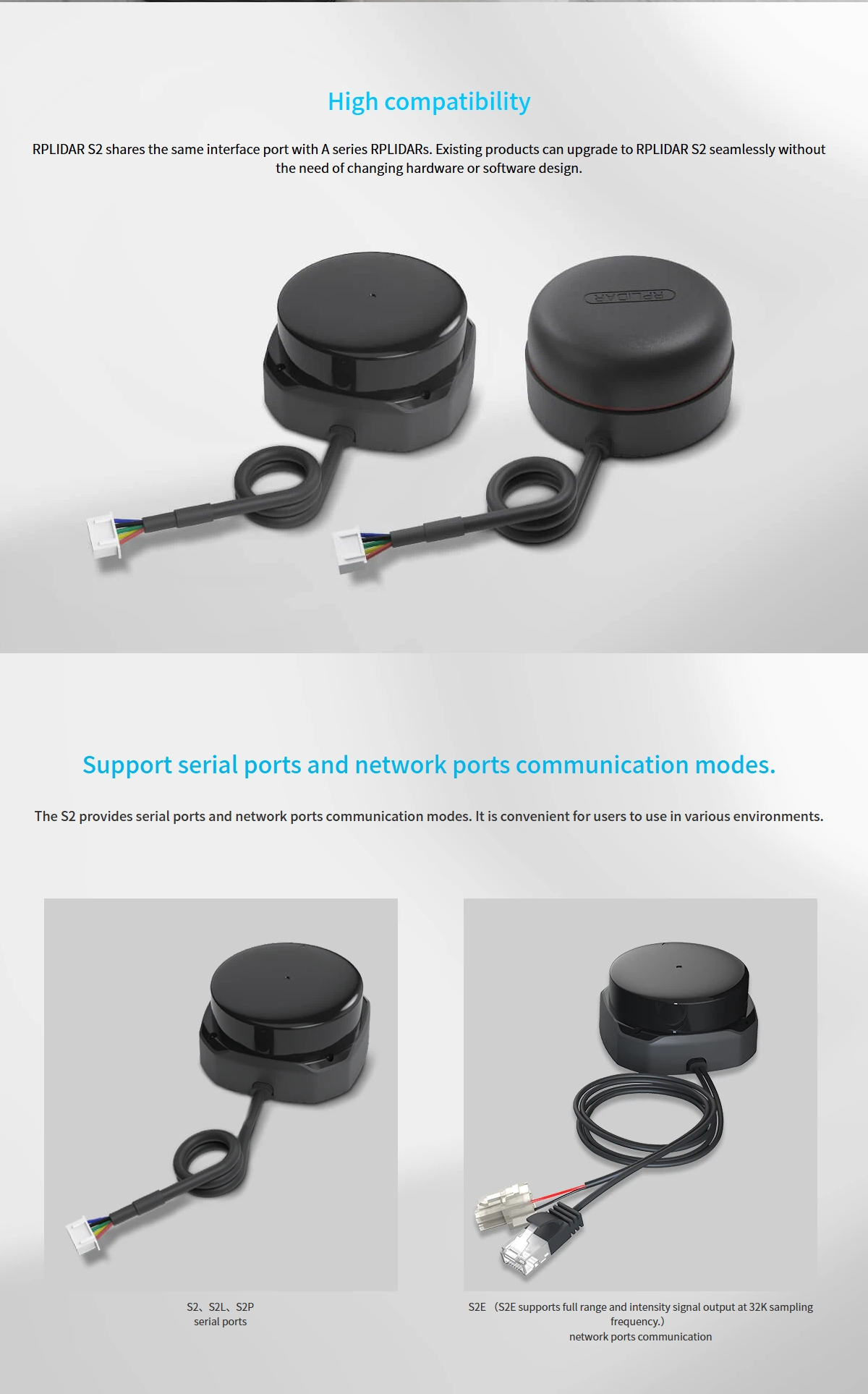

Communication Interface: Ethernet UDP (10/100M)
System Voltage: 12V
Power Consumption: >2W
Proof Level: IP65
Temperature Range: -10℃-50℃
Note: X indicates 1 or 2, negative pitch angle is 1 (-1.5°-0°), positive pitch angle is 2 (0°-1.5°)
RPLIDAR S2E x1
Adapter Cable x1
Instruction Card x1
