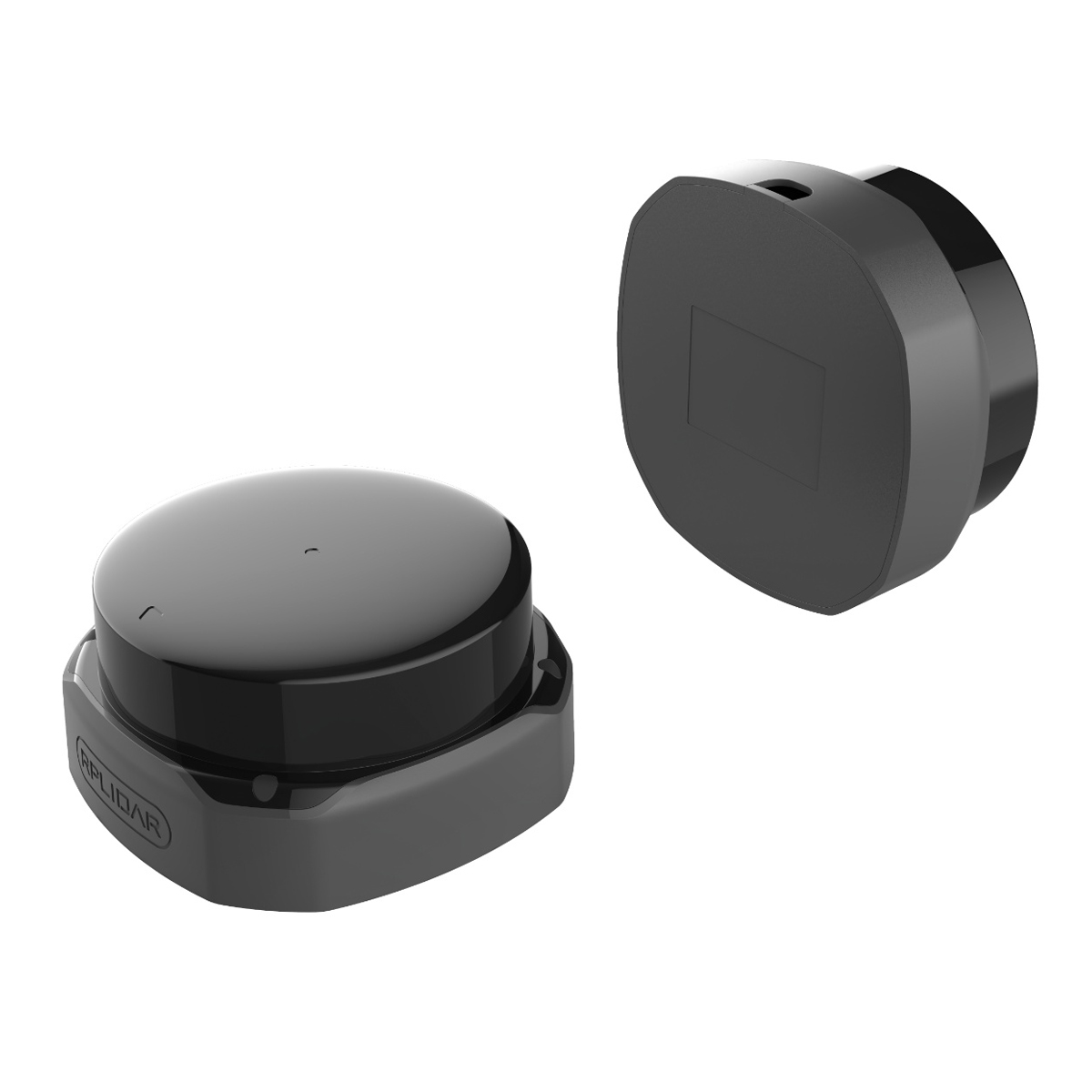

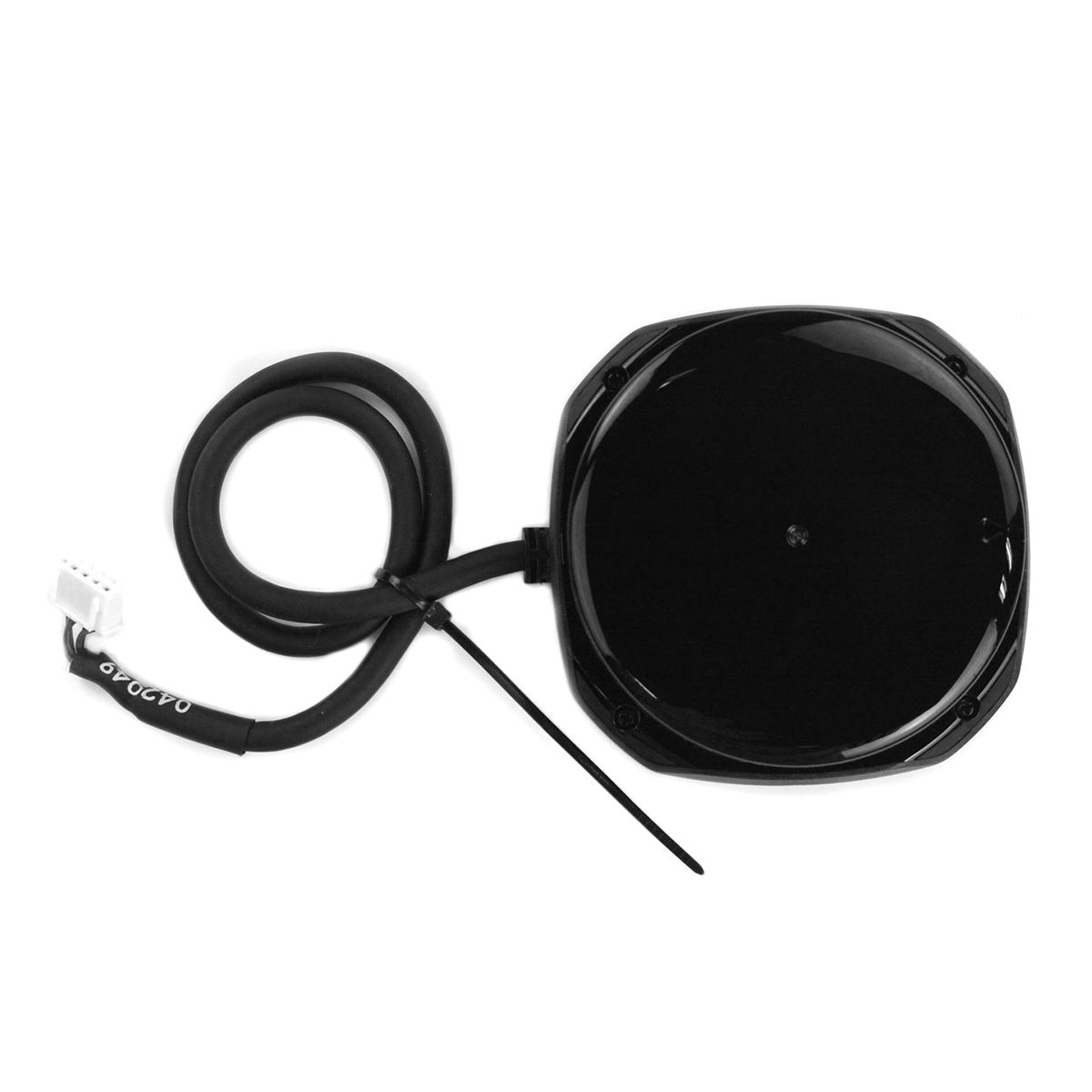

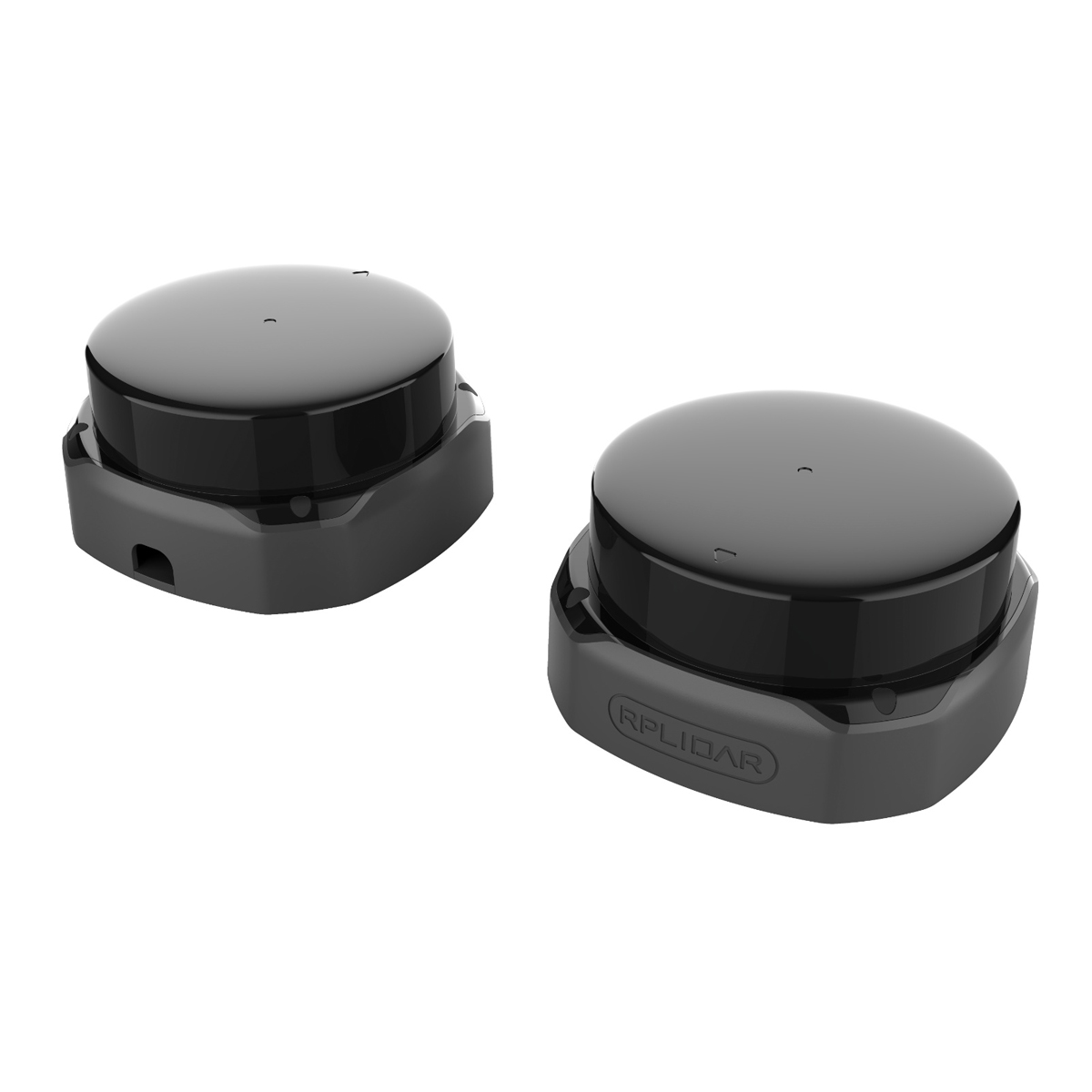

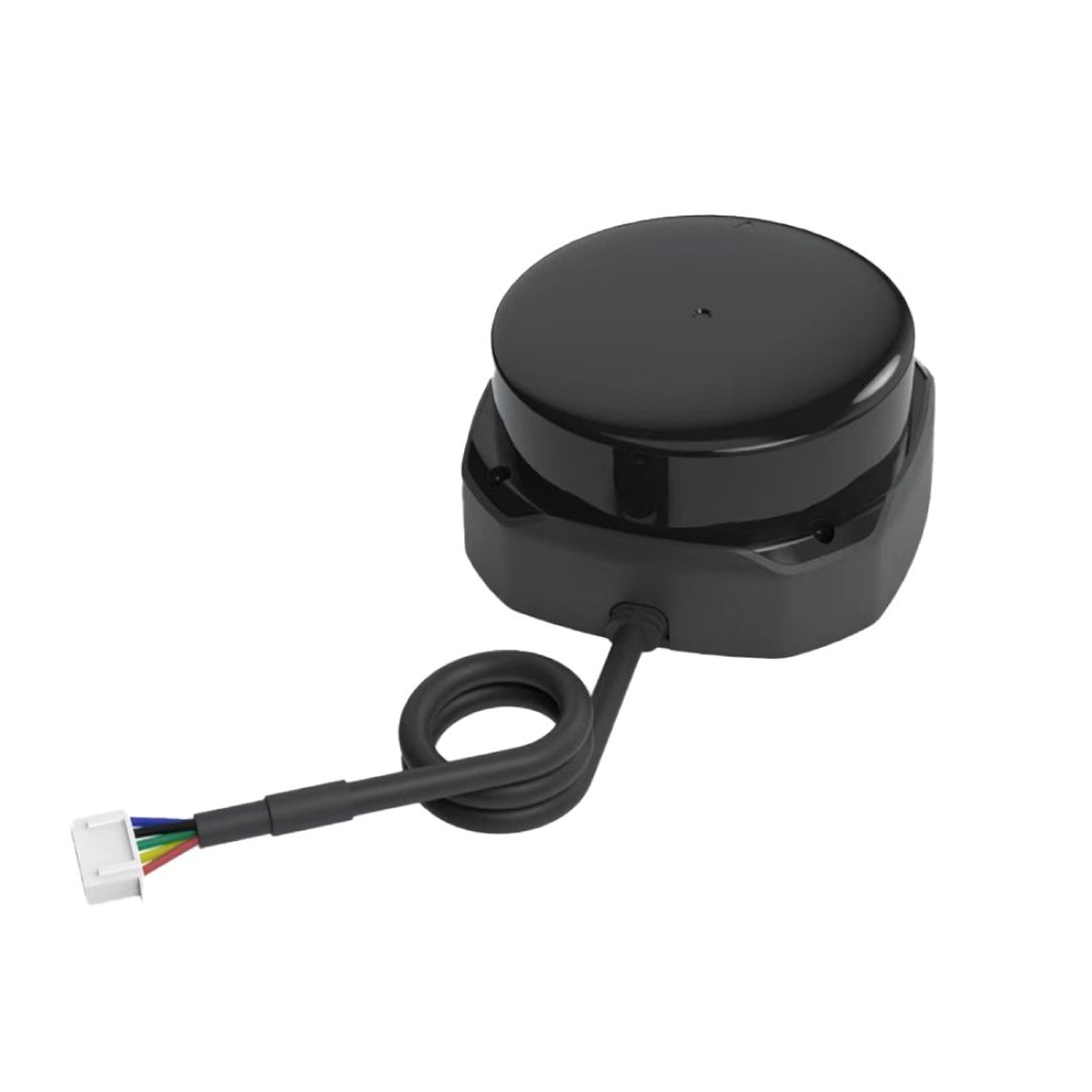

SLAMTEC RPLIDAR S2L DTOF LiDAR 360 Degree 18m Range 5V IP65 High Compatibility for Robot AGV Obstacle Avoidance
SLAMTEC RPLIDAR S2L DTOF LiDAR 360 Degree 18m Range 5V IP65 High Compatibility for Robot AGV Obstacle Avoidance
RPLIDAR S2L comes with an upgraded product, by increasing the operating performance of hardware and optimizing the internal algorithms. It applies the Direct Time of Flight(DToF) theory that emits and receives the laser pulse to measure the distance by calculating the flight time. Compared to Triangulation Laser Sensor, it performs much higher precision, higher sampling frequency, and longer measuring distance.
Feature
360 Degree DToF Laser Ranging Scanner: Generate 2D point cloud map information up to 18m radius, within 30mm precision
Stunning Sampling Capability: Up to 32KHz measurement frequency, 10Hz rotational speed, resist up to 80000 lux light
Prolong Operation Life: Apply OPTMAG light magnetic fusion technology for support up to five years of reliable running
Suitable for Anywhere: IP65 high ingress protection, small and compact, capable of every indoor and outdoor deployment
Model: RPLIDAR S2L
Recommended Applications: Works well both in indoor and outdoor environment, reliable resistance to daylight
Distance Range: 0.05-18m (90% reflection); 0.05-8m (10% reflection)
Blind Range: 0.05m
Sample Rate: 32000 times per second
Scan Rate: 10Hz
Angular Resolution: 0.1125°
Scan Field Flatness: ±1.5°
Accuracy: ±30mm
Distance Resolution: 13mm
Communication Interface: UART Serial (1M)
System Voltage: 5V
Power Consumption: >2W
Proof Level: IP65
Temperature Range: -10℃-50℃

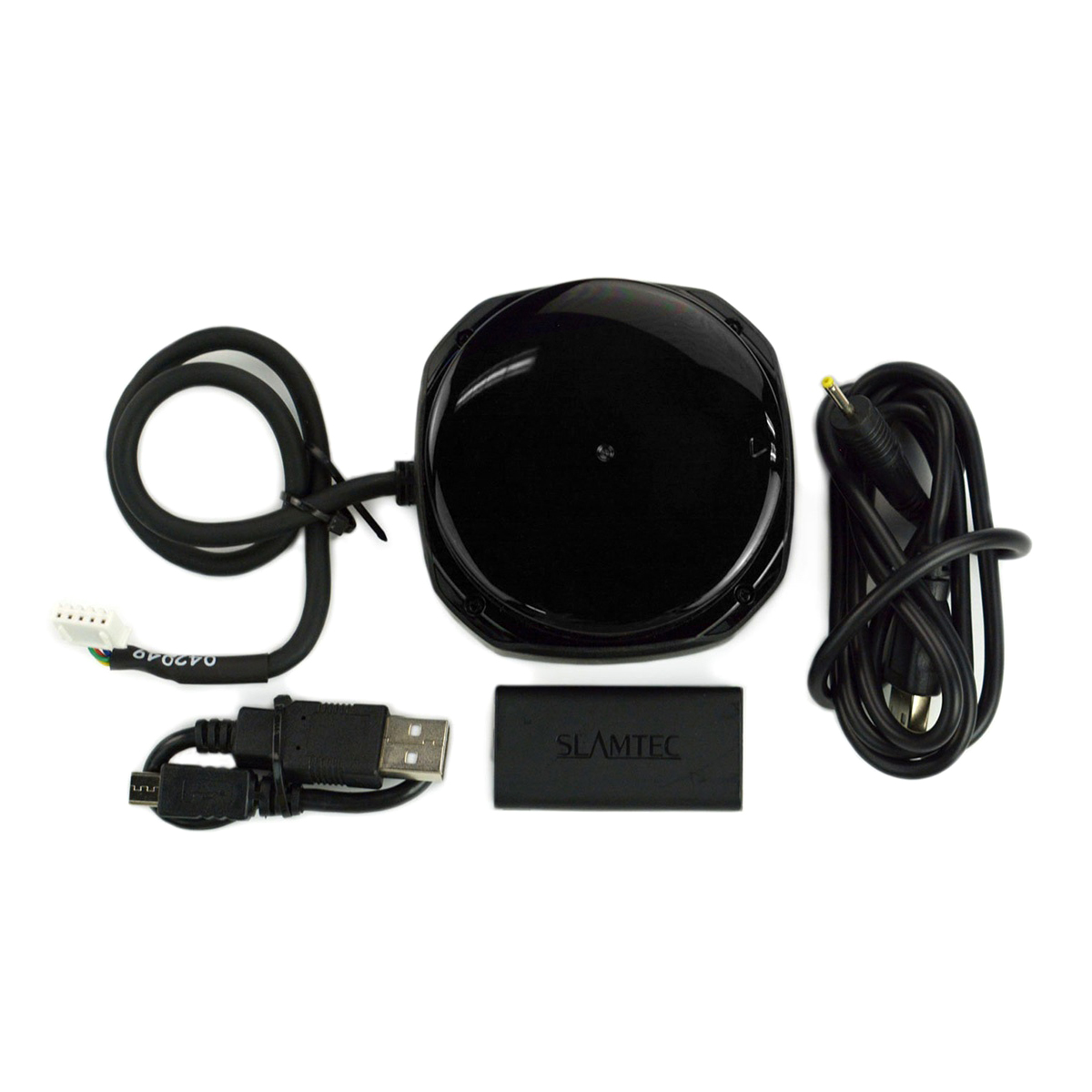

RPLIDAR S2L x1
USB Adapter x1
Mirco-USB Cable x1
Power Cable x1
Instruction Card x1
