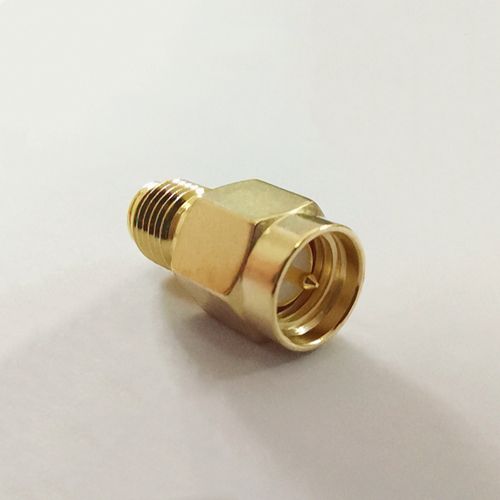

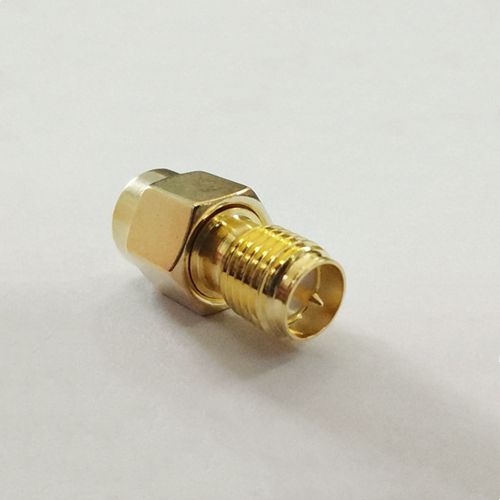

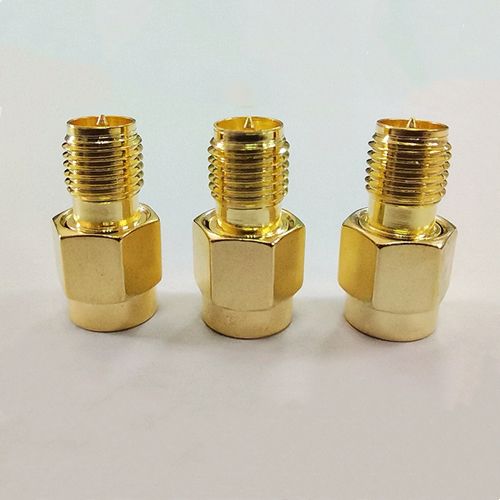

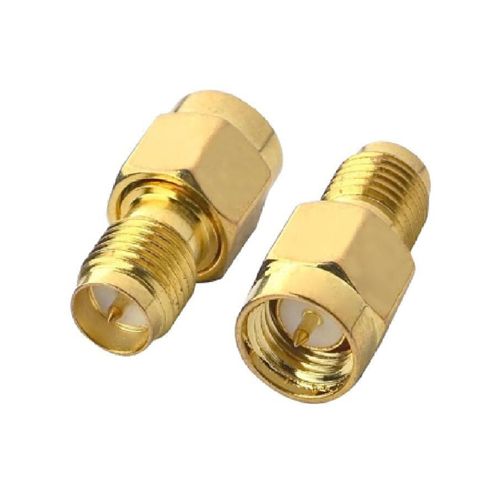

SMA Male to RP-SMA Female Adapter For Raido Antenna Coaxial Adapter Connector Converter
Temp.range ：-65～+165°C (PE Cable -40～+85°C)
Vibration：MIL-STD-202,Method 213
Impedance：50Ω
Frequency Range：DC～12.4GHz( 0～18GHz)
Working Voltage：335V max
Withstand Voltage：1000V rms
Contact resistance
Center Contact：≤ 3 mΩ
Outer Contact ：≤ 2 mΩ
Insulation resistance：≥ 5000 MΩ
Insertion loss：≤0.15 dB/6GHz
Durability(mating) ：≥500（cycles）
Series of SMA products one application extensive small-scale coaxial person who join that whorl join, it has a reliable characteristic with long life-span that the width, performance are excellent, high frequently.
SMA Male to RP-SMA Female Adapter x 1
