Practical – Easy to access connectors and solder pads.
Configurable – Choose to use connectors, solder pads or pins.
Stackable – Mount to your PDB or OSD.
Compact – Only 36x36mm.
Professional – Symmetrical, Neat and Tidy.
8 Dedicated PWM outputs
8 PWM Inputs
36 I/O Connections
72Mhz Clock Speed
3 Hardware Serial Ports
64Mb Flash Storage

The hardware was designed by the lead developer of Cleanflight to be more capable than the previous-generation STM32F1-based boards after hearing feedback from the Cleanflight users, contributors and top-pilots.

36x36mm board with 30.5mm mounting holes
Weight ~6 grams
STM32F303 CPU, 72Mhz inc FPU
High-Capacity Flash (Acro and Deluxe)
MPU6050 accelerometer/gyro
MS5611 barometer (Deluxe only)
HMC5883 compass (Deluxe only)
MicroUSB socket

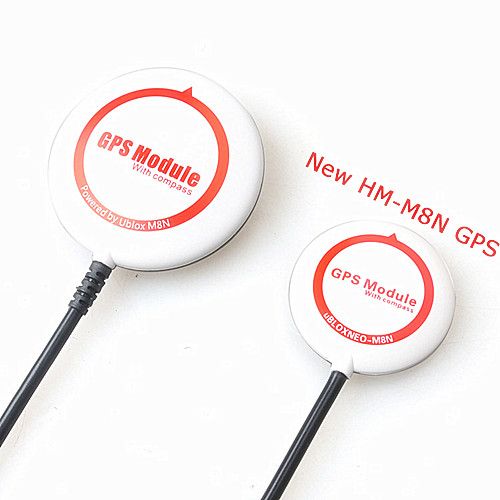

GPS Chip parameters:
 Receiver type 72-channel u-blox M8 engine
 GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
 SBAS L1 C/A: WAAS, EGNOS, MSAS
 Galileo-ready E1B/C (NEO-M8N)
 Nav. update rate1 Single GNSS: up to 18 HZ
 Concurrent GNSS: up to 10 Hz
 Position accuracy2 2.0 m CEP
 Acquisition2 Cold starts: 26 s
 Aided starts: 2 s
 Reacquisition: 1.5 s
 Sensitivity2 Tracking & Nav: –167 dBm
 Cold starts: –148 dBm
 Hot starts: –156 dBm
 Assistance AssistNow GNSS Online
 AssistNow GNSS Offline (up to 35 days)3
 AssistNow Autonomous (up to 6 days)
 OMA SUPL & 3GPP compliant
 Oscillator TCXO (NEO-M8N/Q),
 Crystal (NEO-M8M)
 RTC crystal Built-In
 Noise figure On-chip LNA (NEO-M8M). Extra LNA for
 lowest noise figure (NEO-M8N/Q)
 Anti jamming Active CW detection and removal. Extra
 onboard SAW band pass filter (NEO-M8N/Q)
 Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
 Supported antennas Active and passive
 Odometer Travelled distance
 Data-logger For position, velocity, and time (NEO-M8N)

Operating temp. –40° C to 85° C
 Storage temp. –40° C to 85° C (NEO-M8N/Q)
 –40° C to 105° C (NEO-M8M)
 RoHS compliant (lead-free)
 Qualification according to ISO 16750
 Manufactured and fully tested in ISO/TS 16949 certified production sites
 Uses u-blox M8 chips qualified according to AEC-Q100

Supply voltage 1.65 V to 3.6 V (NEO-M8M)
 2.7 V to 3.6 V (NEO-M8N/Q)
 Power consumption4 23 mA @ 3.0 V (continuous)
 5 mA @ 3.0 V Power Save Mode
 (1 Hz, GPS mode only)
 Backup Supply 1.4 to 3.6 V
