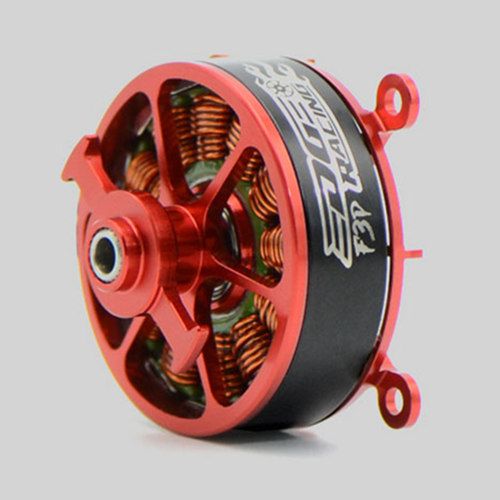

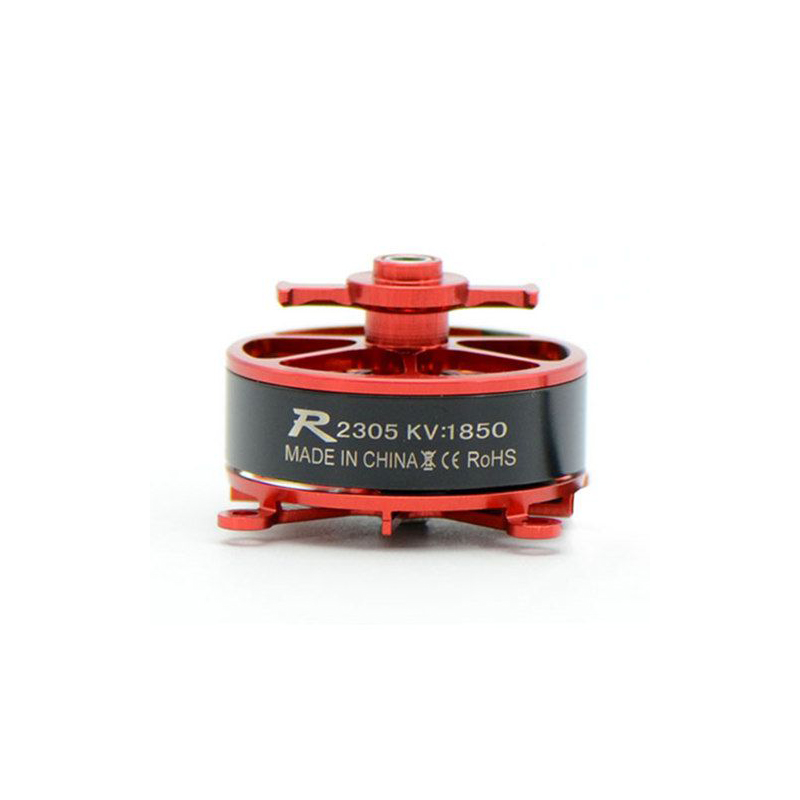

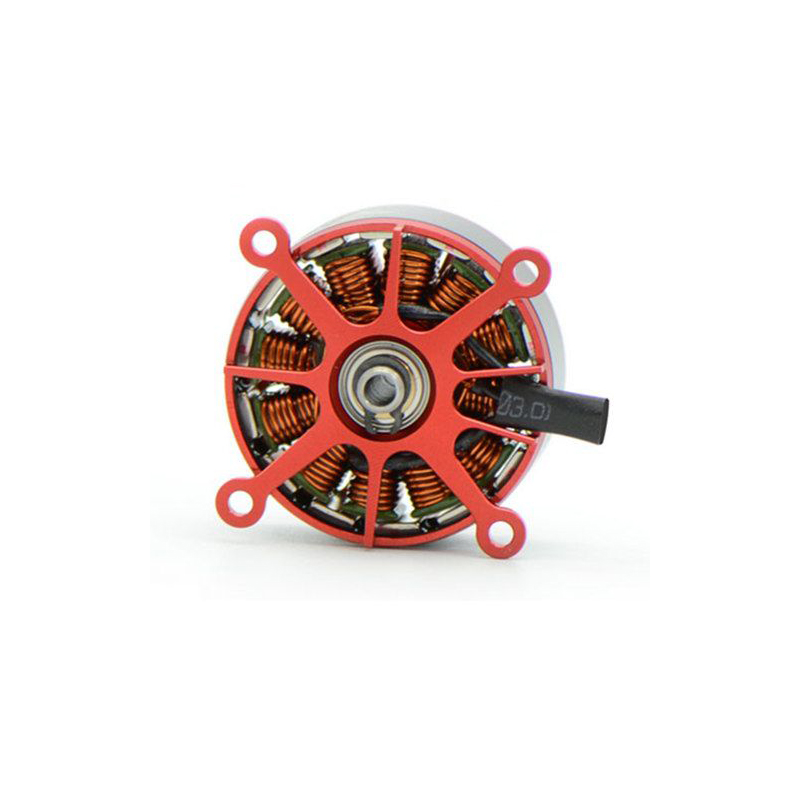

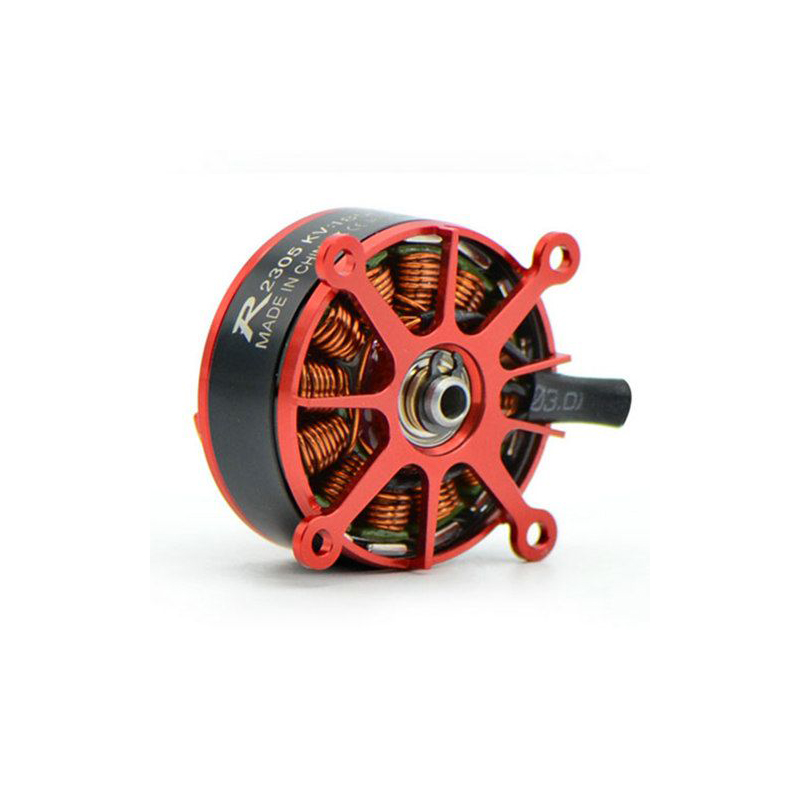

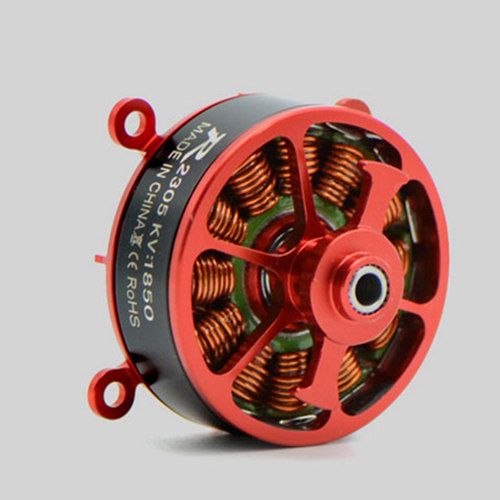

SUNNYSKY R2305 1480KV 1850KV F3P Racing Motor










SUNNYSKY R2305 1480KV 1850KV F3P Racing Motor
SUNNYSKY R2305 1480KV 1850KV F3P Racing Motor
R2305 KV1850
Stator Diameter: 23mm
Stator Thickness: 5mm
No. of Stator Arms: 12
No. of Rotor Poles: 14
Motor KV: 1850
No-Load Current (A/10V): 0.6A
Motor Resistance: 60mΩ
Max Continous Current: 22A/15S
Max Continous Power: 240W
Weight: 23g
Rotor Diameter: 28mm
Shaft Diameter: 4mm
Body Length: 19.4mm
Overall Shaft Length: 20.7mm
Max Lipo Cell: 2-3S
ESC: 15-25A
Recommended Prop (inch): GWS8040, GWS8043, GWS9047, GWS9050

SUNNYSKY R2305 Motor x 1
Be the first to review “SUNNYSKY R2305 1480KV 1850KV F3P Racing Motor” Cancel reply
Related products
-
Brushless Motor
Gemfan 08028 12000KV 2S Brushless Motor for RC FPV Racing Freestyle Tinywhoop Micro Drones DIY Parts
Rated 0 out of 5 -
Brushless Motor

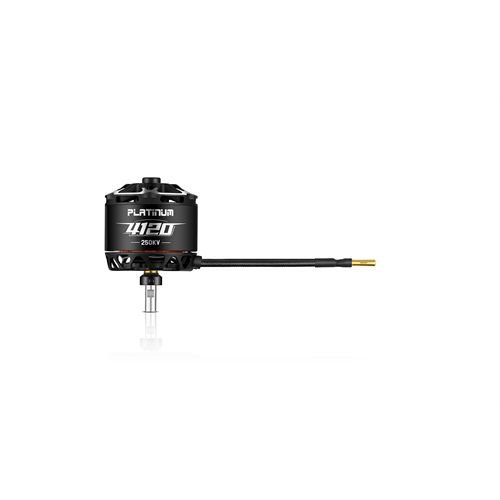

NEW Hobbywing Platinum 4120SL fixed – wing brushless motor with JNEH1200 iron core for model airplanes and drone accessories
Rated 0 out of 5 -
Brushless Motor

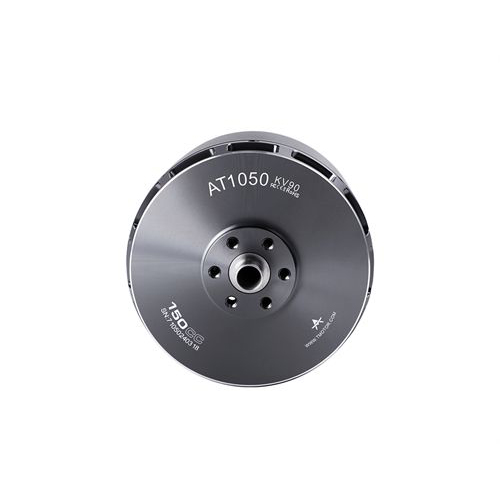

T-MOTOR AT1050 KV190 Brushless Motor for Fixed Wing Drone, Replace 150CC Engine
