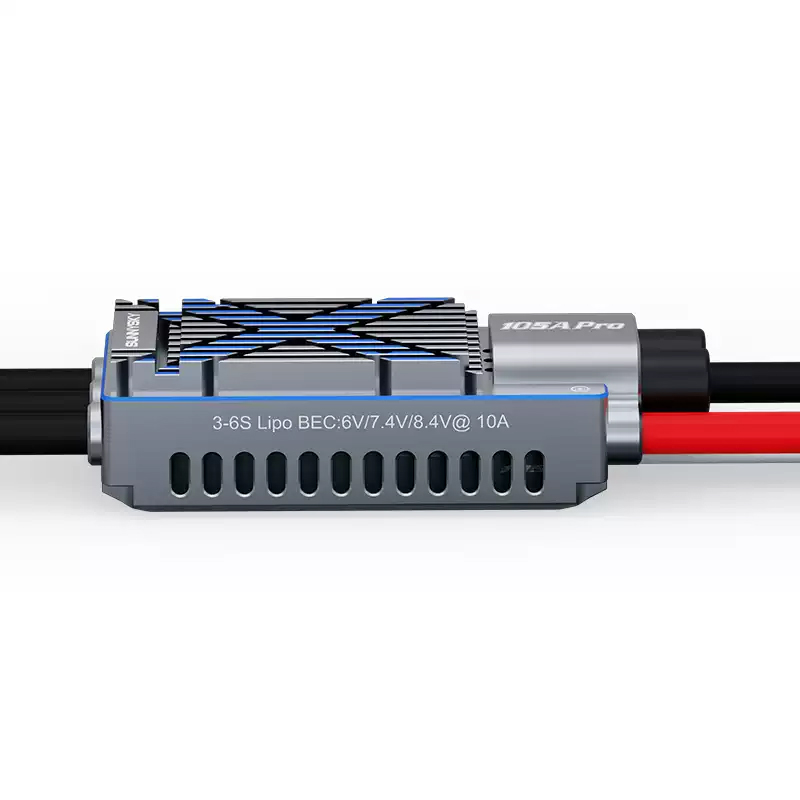

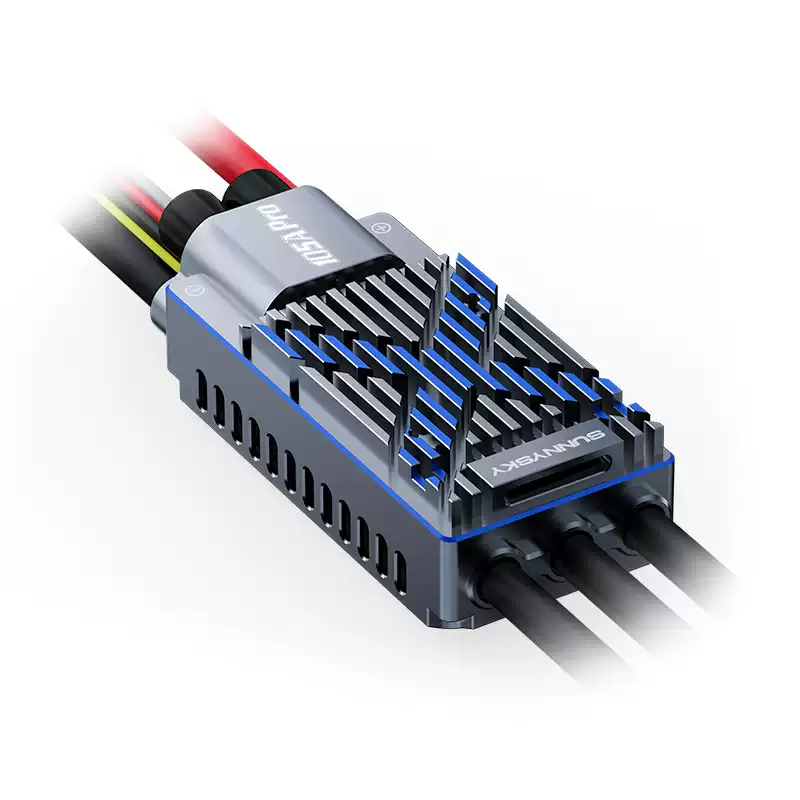

Sunnysky X105A PRO 3-6S NEW X-Series ESC 32-bit processor for UAV FPV






Sunnysky X105A PRO 3-6S NEW X-Series ESC 32-bit processor for UAV FPV
Model:Sunnysky 105A PRO SBEC
Power Wire Specifications:12#150mm(red x1/black x1)
Motor Wire Specifications:12#150mm(black x3)
Connector:/
Ground Wire:/
Continuous Output Current:105A
Peak Output Current (Momentary):120A
Number of Cells:3-6S LiPo
CPU Frequency:170MHz
Telemetry Function:support
Speed Regulation Function:support
Software Upgrade Capability:support
Anti-spark Function:nothing
ESC Weight:Including fan:157g Excluding fan:148g
ESC Dimensions:Including fan:81x37x35.3mm Excluding fan:81x37x22.8mm
BEC Output:6V、7.4V、8.4V adjustable/10A Peak Current/25A
Parameter Programming Function:LCD programming card G2/Android&Apple APP
Signal Wire Specifications:60C 490mm black, red, yellow 3pin two JR Connector;60C 490mm Black Red White 3pin Regular JR Connector
Data Wire (Telemetry) Specifications:30C 400mm yellow 1pin both ends JR Connector;30C 400mm yellow 1pin, one end 1.5-3pin plug, one end JR Connector
