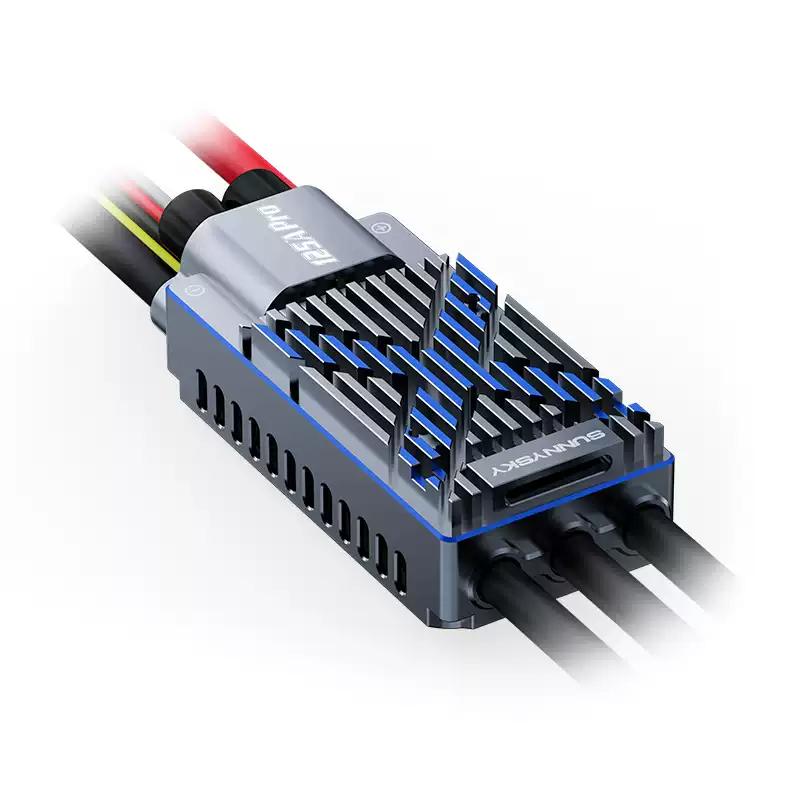

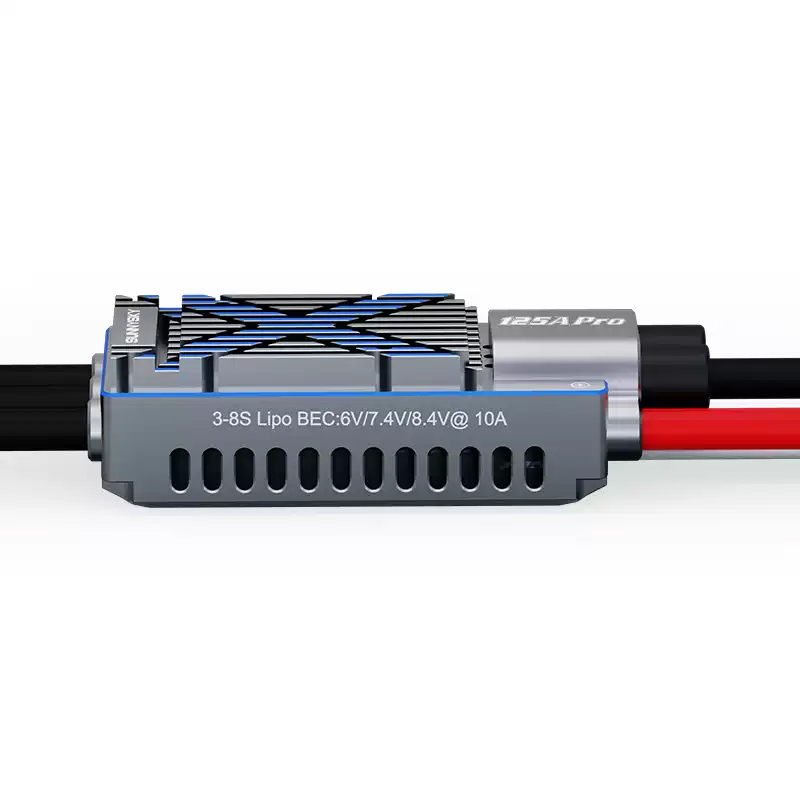

Sunnysky X125A PRO 3-8S Brushless Electric Speed Controller for FPV Drones

SKU X125A-PRO-ESC Category Tag Brand:

Sunnysky X125A PRO 3-8S Brushless Electric Speed Controller for FPV Drones

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

Model:Sunnysky 125A PRO SBEC
Power Wire Specifications:10#150mm(red x1/black x1)
Motor Wire Specifications:10#150mm(black x3)
Connector:/
Ground Wire:/
Continuous Output Current:125A
Peak Output Current (Momentary):150A
Number of Cells:3-8S LiPo
CPU Frequency:170MHz
Telemetry Function:support
Speed Regulation Function:support
Software Upgrade Capability:support
Anti-spark Function:nothing
ESC Weight:Including fan:180g Excluding fan:170g
ESC Dimensions:Including fan:81x37x36.3mm Excluding fan:81x37x23.8mm
BEC Output:6V、7.4V、8.4V adjustable/10A Peak Current/25A
Parameter Programming Function:LCD programming card G2/Android&Apple APP
Signal Wire Specifications:60C 490mm black, red, yellow 3pin two JR Connector;60C 490mm Black Red White 3pin Regular JR Connector
Data Wire (Telemetry) Specifications:30C 500mm yellow 1pin both ends JR Connector;30C 500mm yellow 1pin, one end 1.5-3pin plug, one end JR Connector
