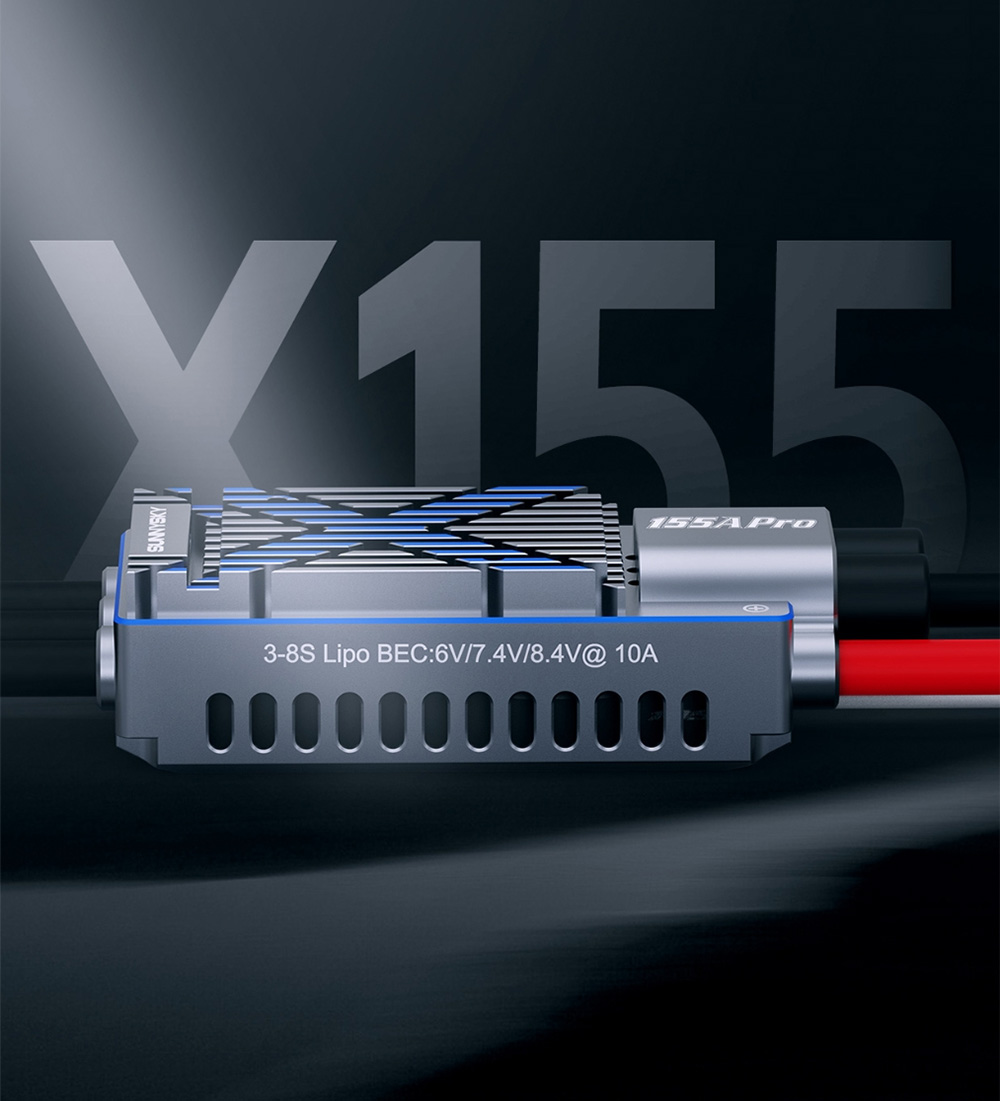

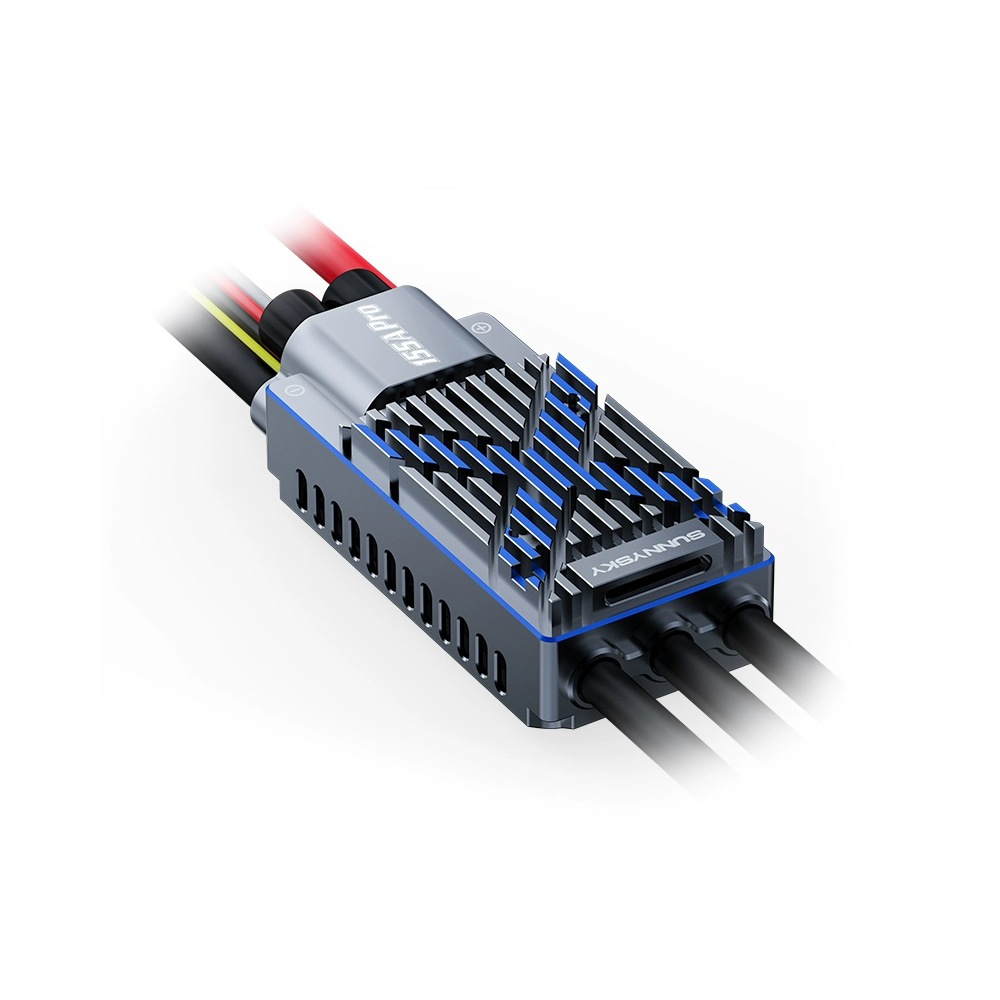

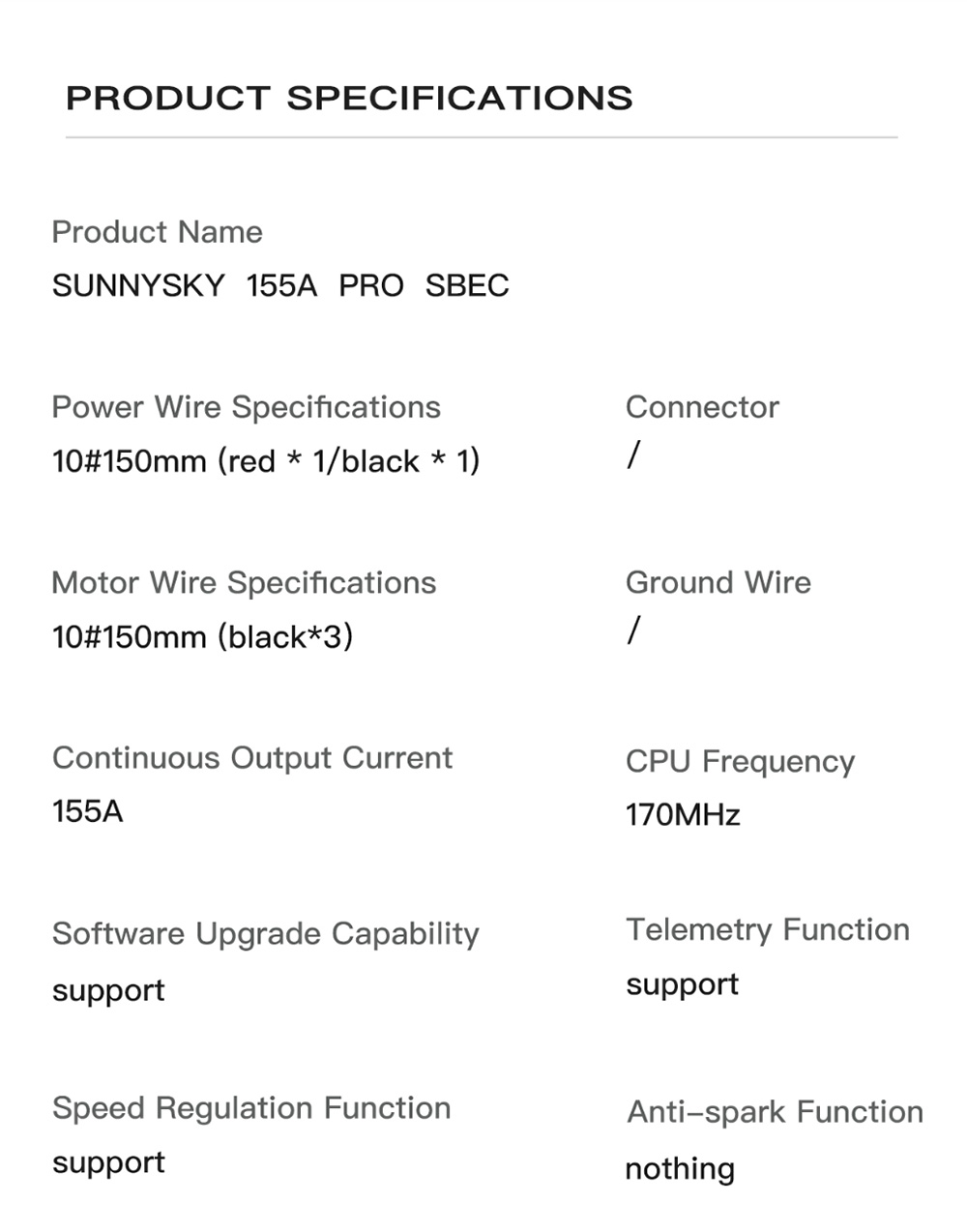

Model: SUNNYSKY 155A PRO SBEC
Power Wire Specifications: 10#150mm (red*1/black*1)
Connector: /
Motor Wire Specifications: 10#150mm (black*3)
Ground Wire: /
Continuous Output Current: 155A
CPU Frequency: 170MHz
Software Upgrade Capability: support
Telemetry Function: support
Speed Regulation Function: support
Anti-spark Function: nothing
Peak Output Current (Momentary): 180A
Number of Cells: 3-8S LiPo
ESC Weight: Including fan: 184g; Excluding fan: 173g

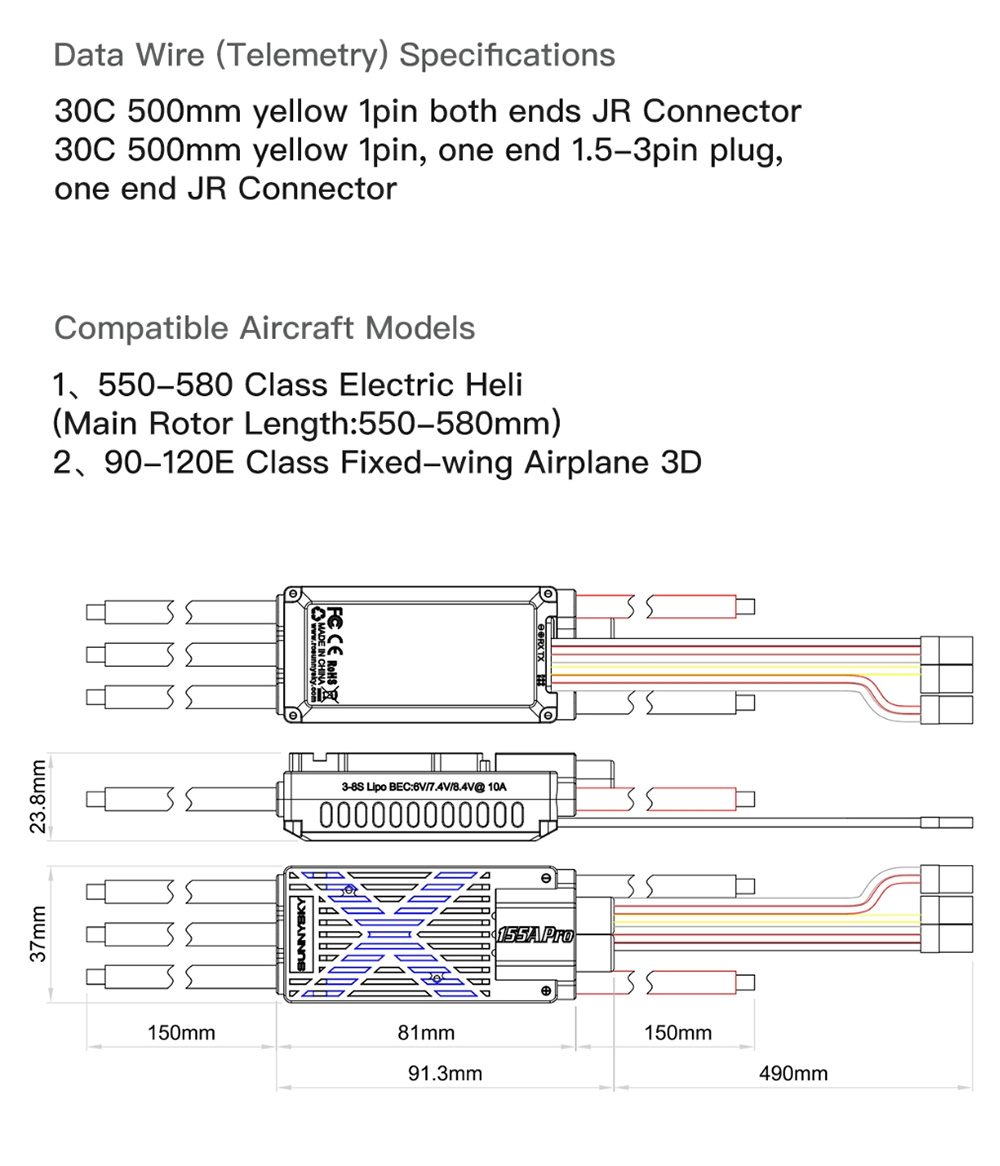

ESC Dimensions: Including fan: 81*37*36.3mm; Excluding fan: 81*37*23.8mm
BEC Output: 6V、7.4V、8.4V adjustable/10A Peak Current/25A

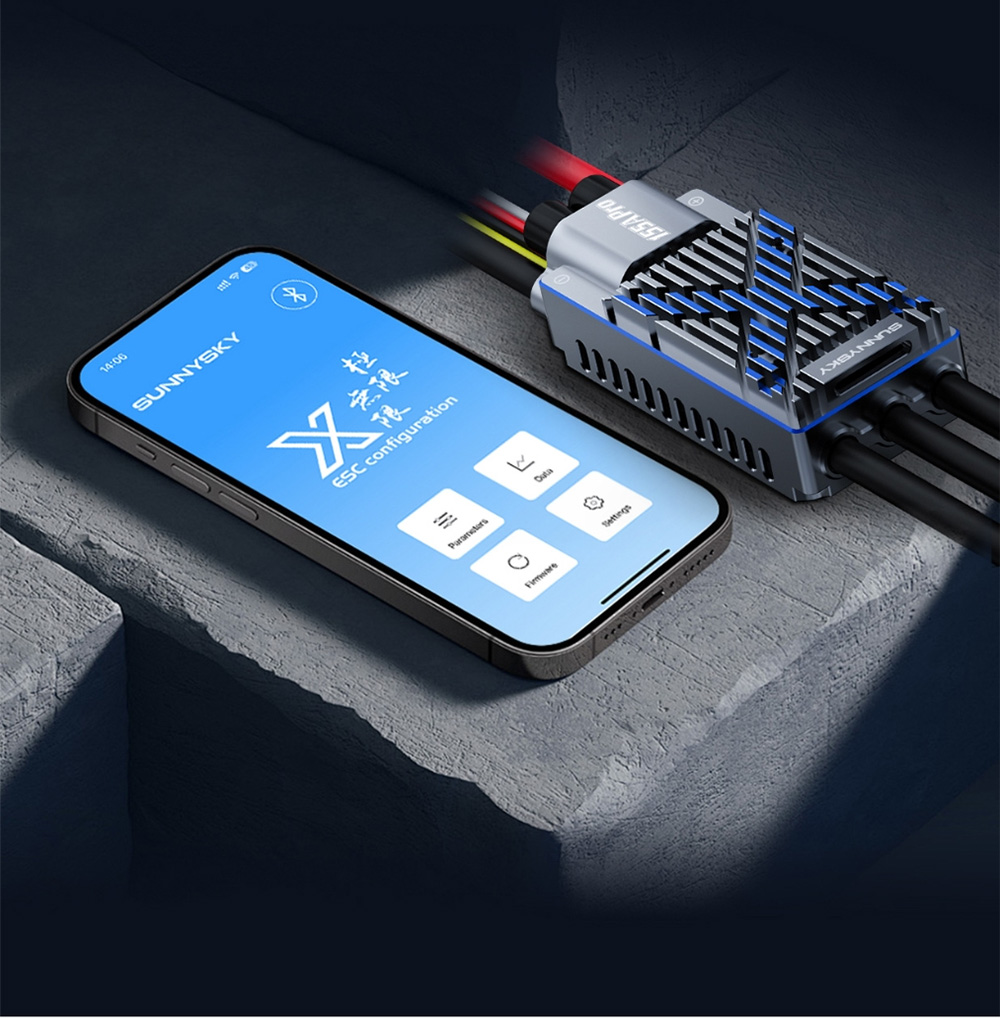

Parameter Programming Function: LCD programming card G2/Android&Apple APP
Signal Wire Specifications: 60C 490mm black, red, yellow 3pin two JR Connector; 60C 490mm Black Red White 3pin Regular JR Connector
Data Wire (Telemetry) Specifications: 30C 500mm yellow 1pin both ends JR Connector; 30C 500mm yellow 1pin, one end 1.5-3pin plug, one end JR Connector
Compatible Aircraft Models: 1. 550-580 Class Electric Heli (Main Rotor Length:550-580mm); 2. 90-120E Class Fixed-wing Airplane 3D
