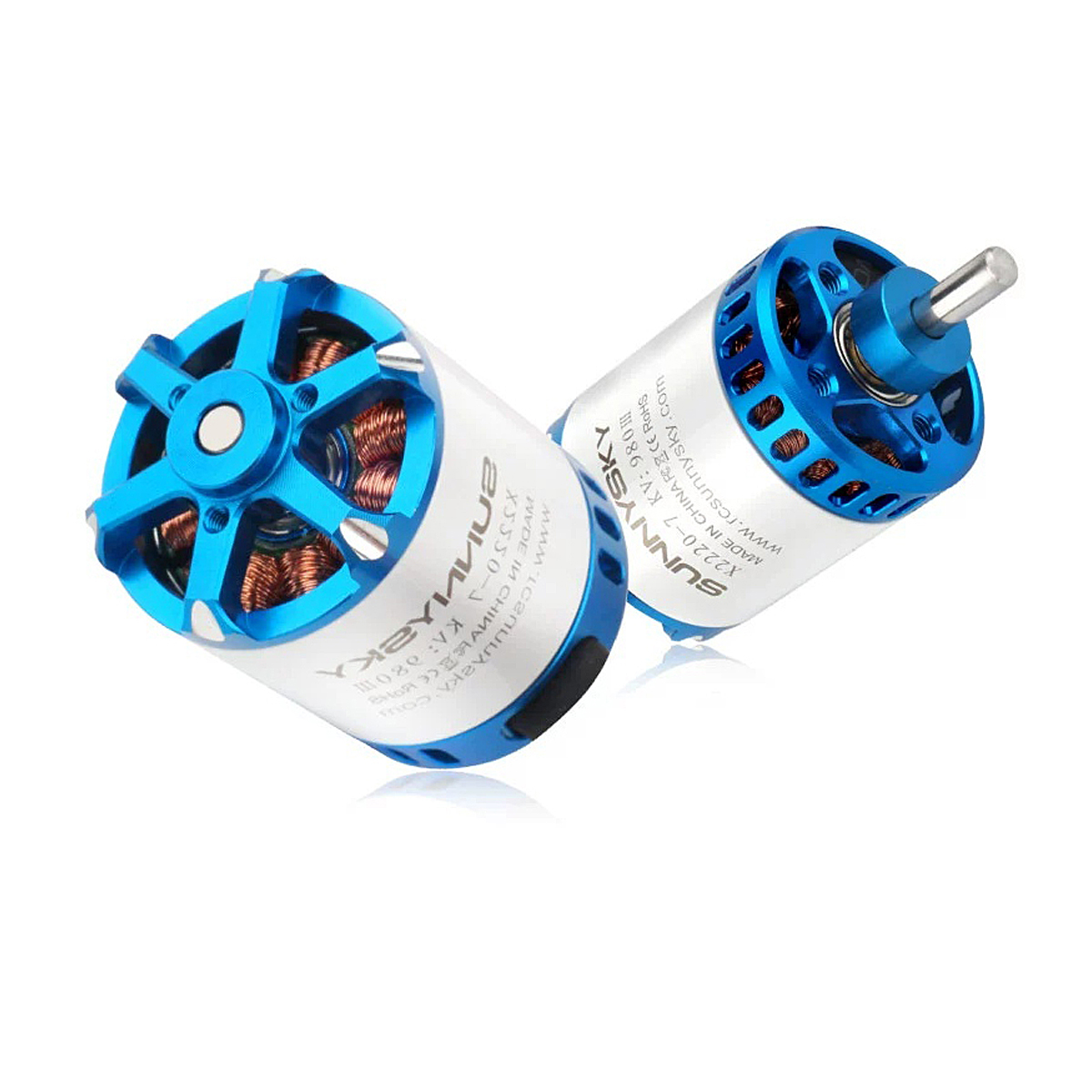

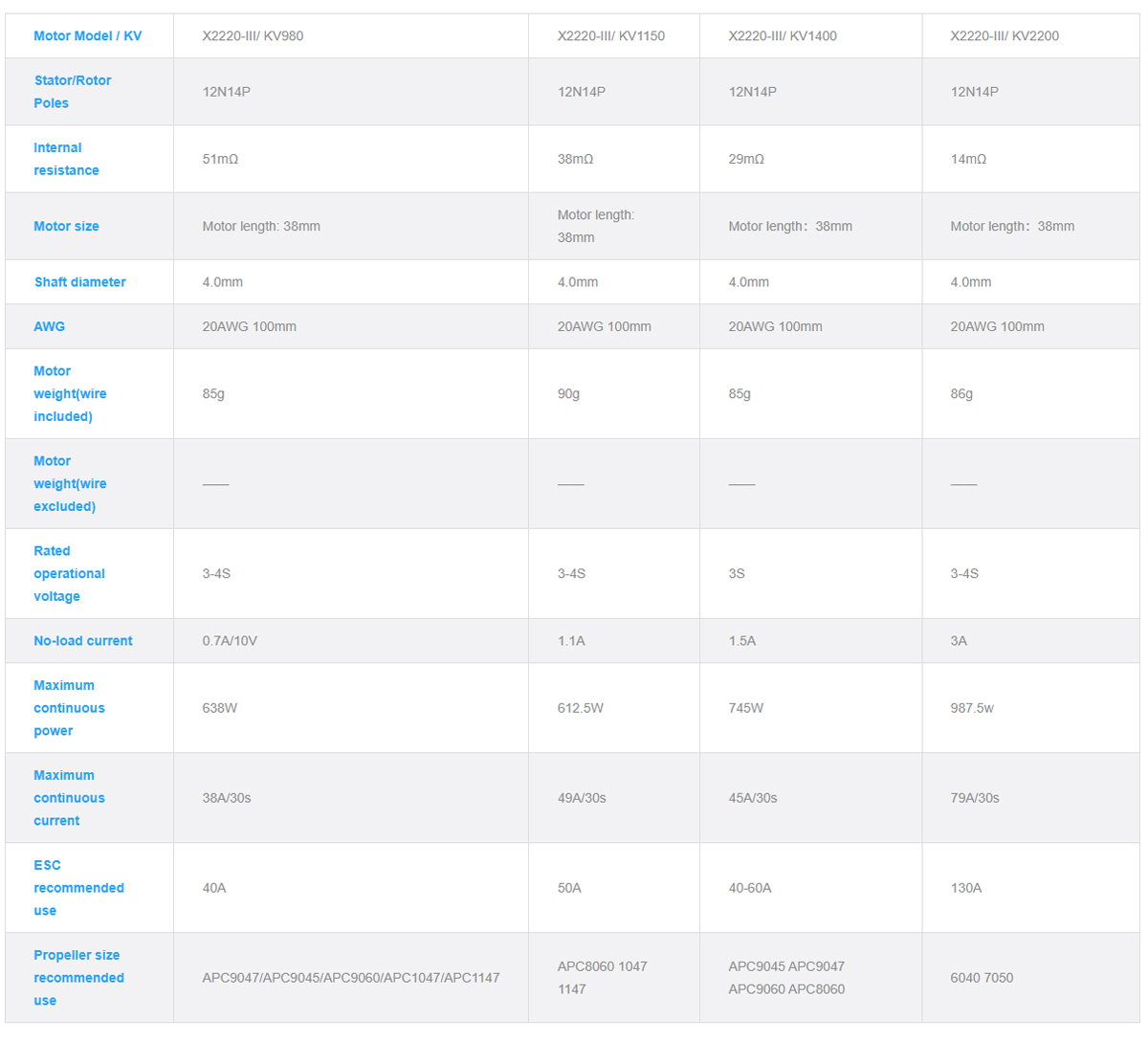

Model: X2220-III

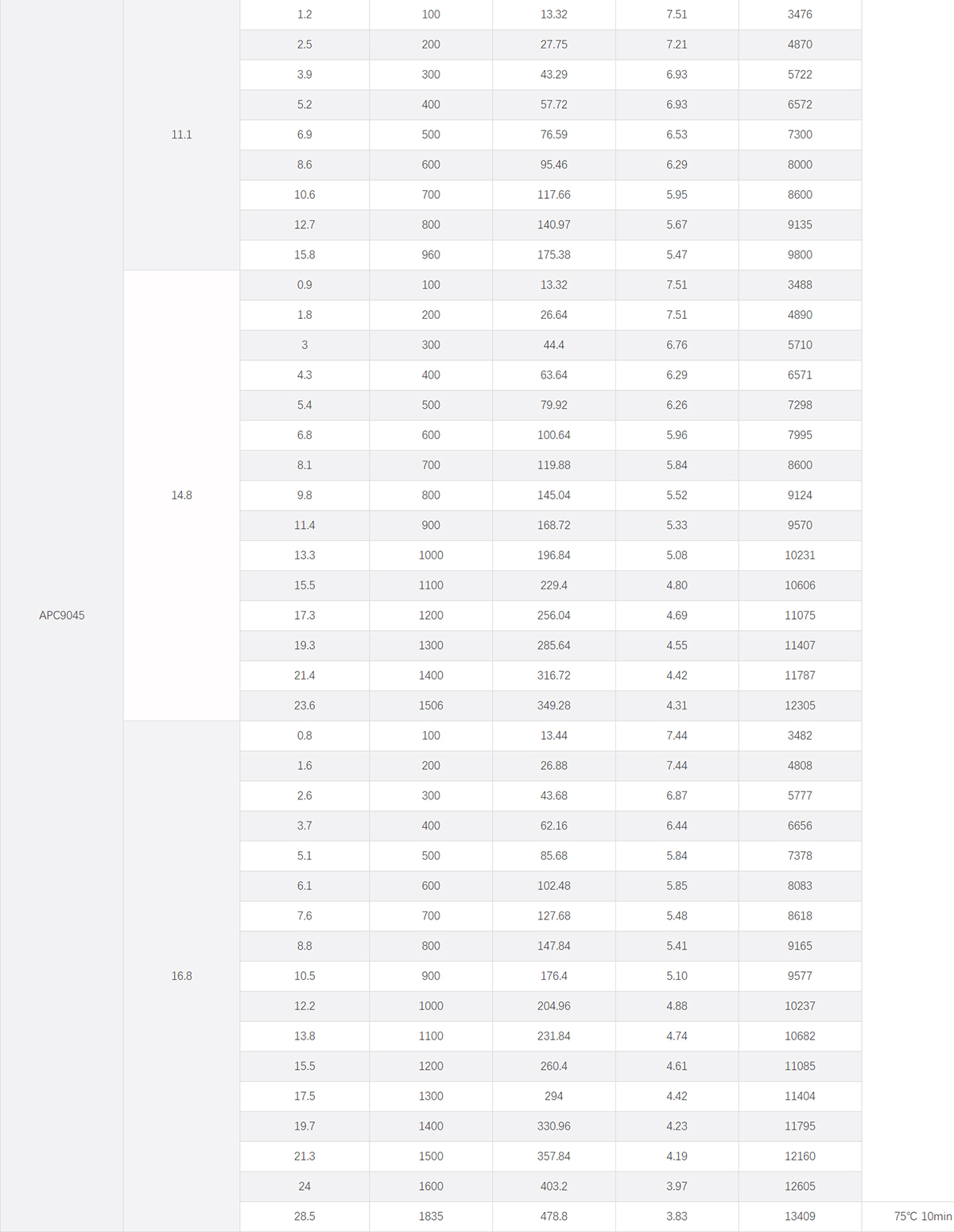

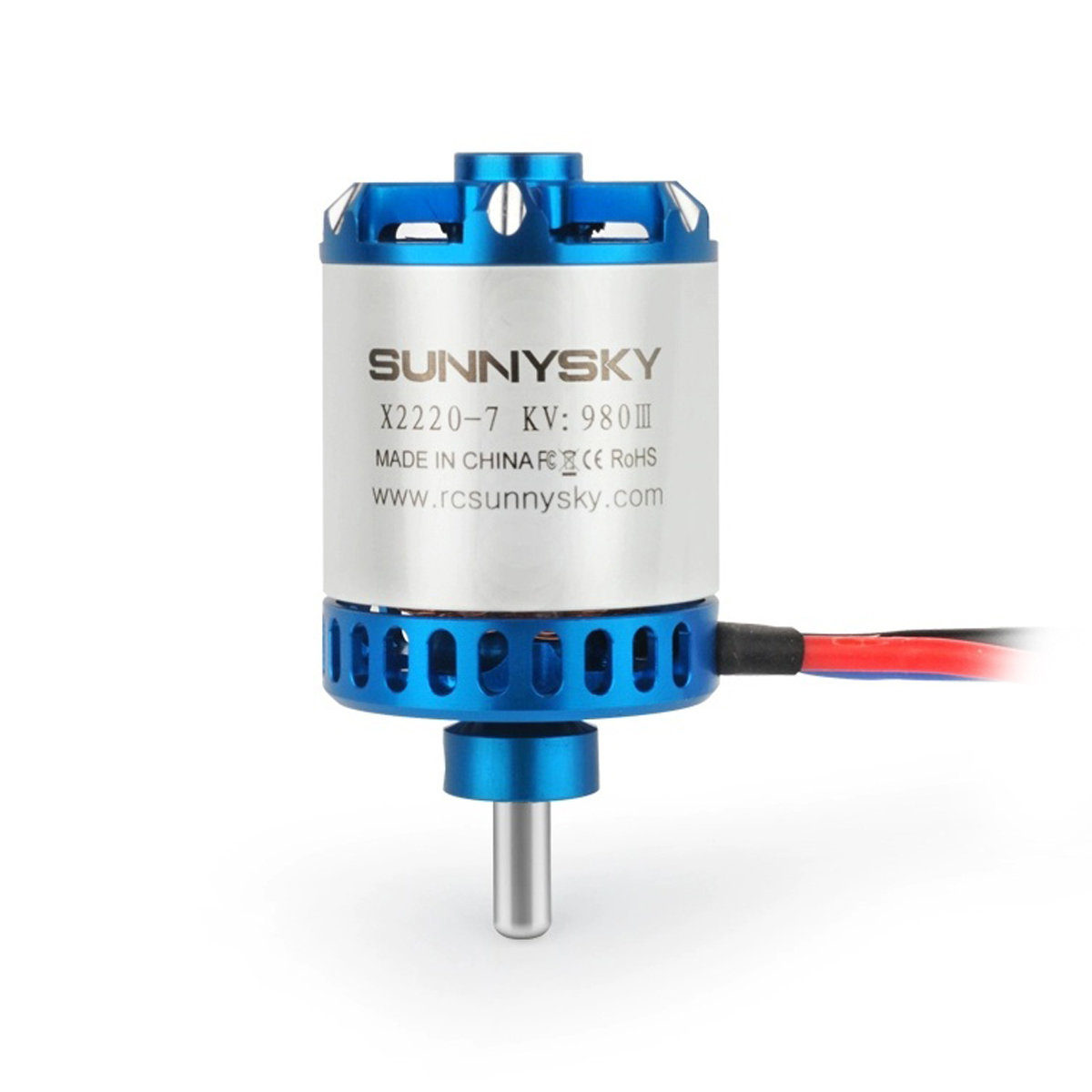

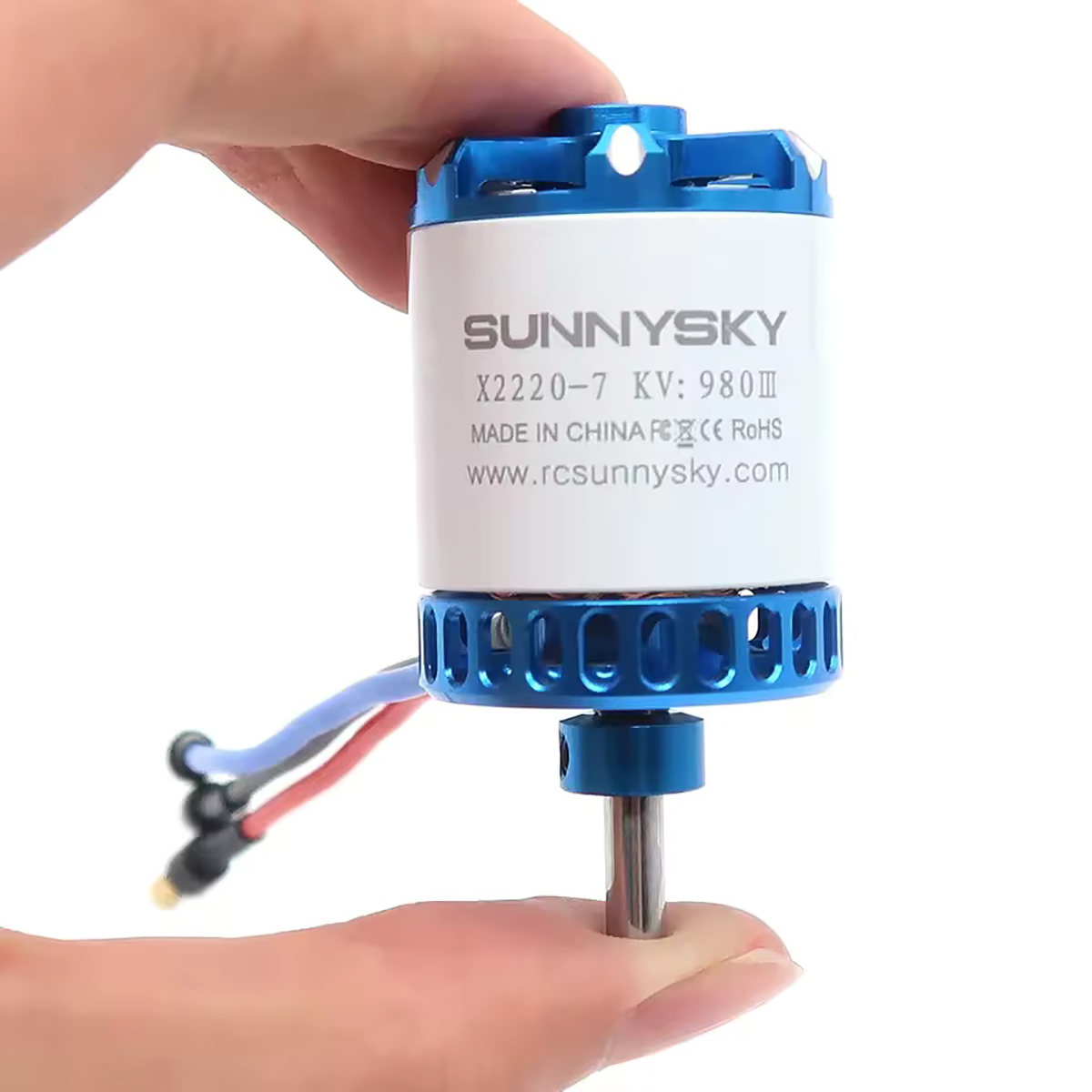

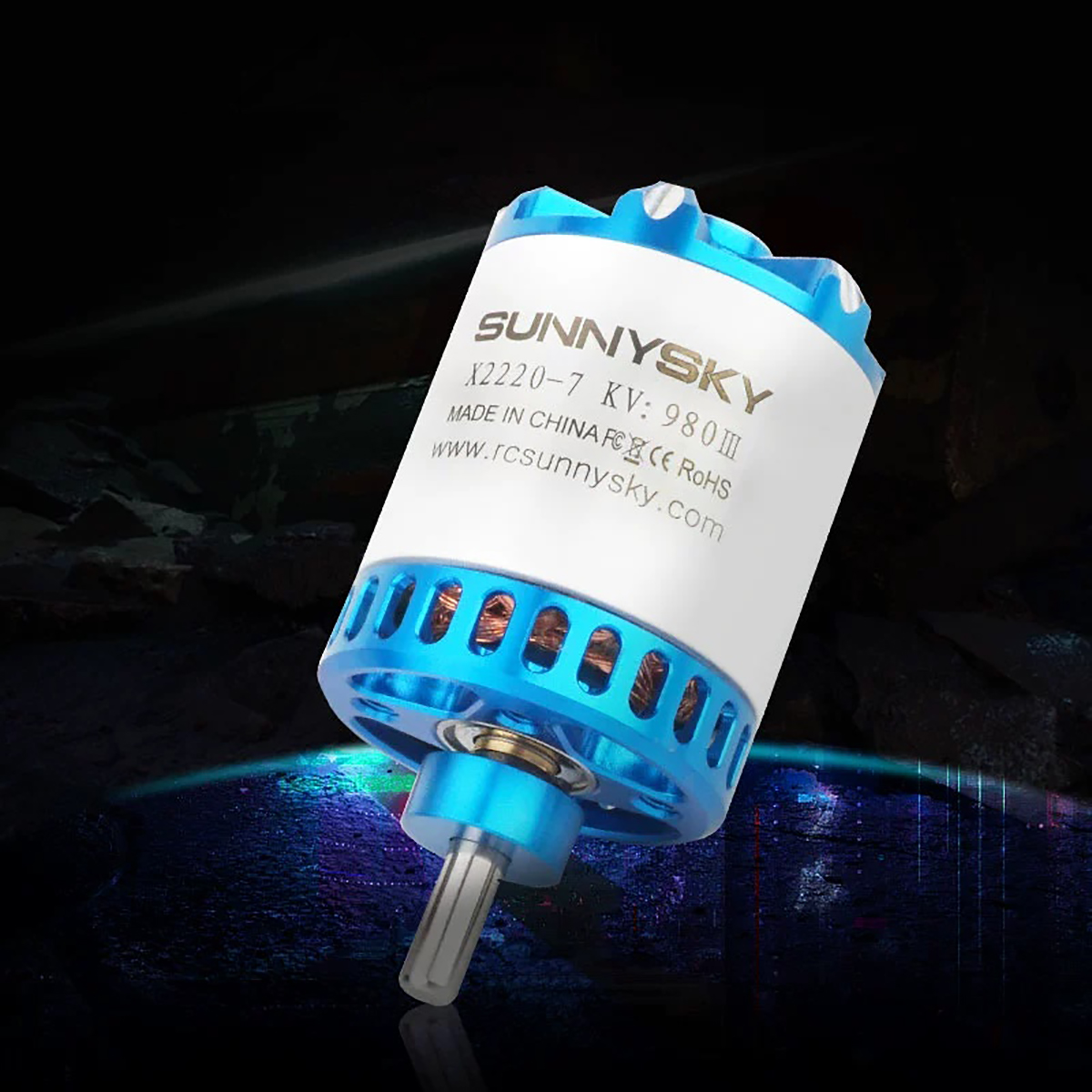

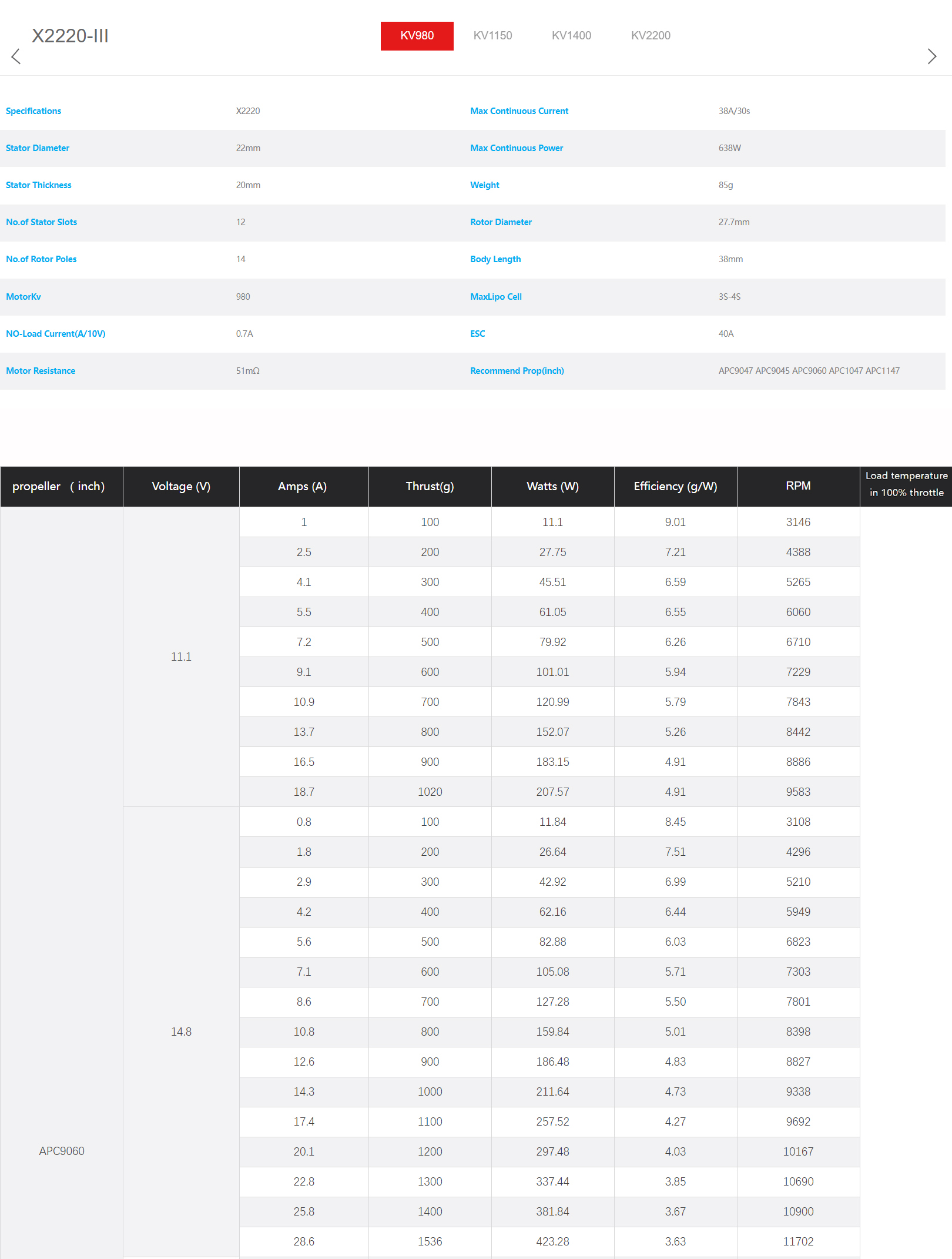

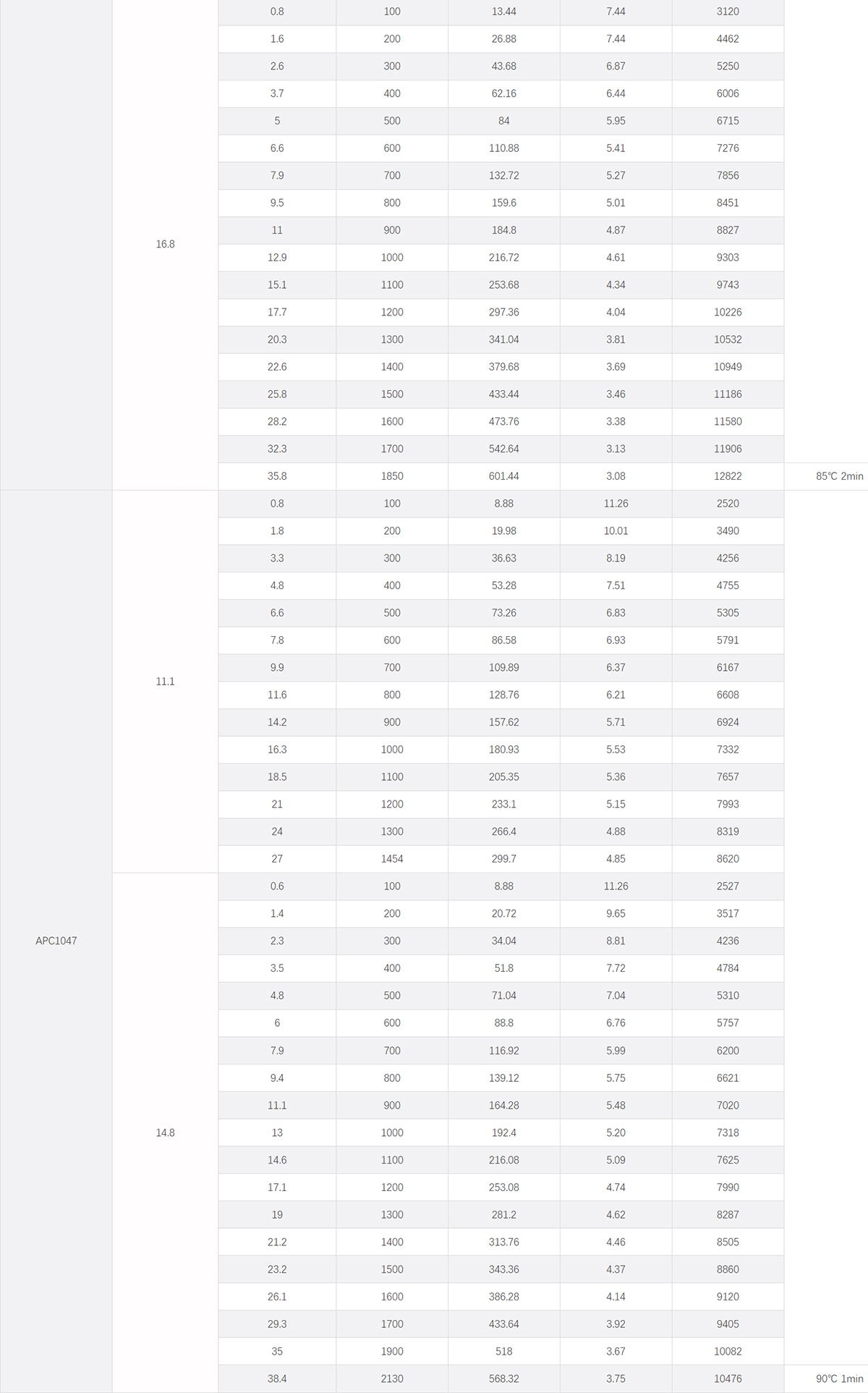

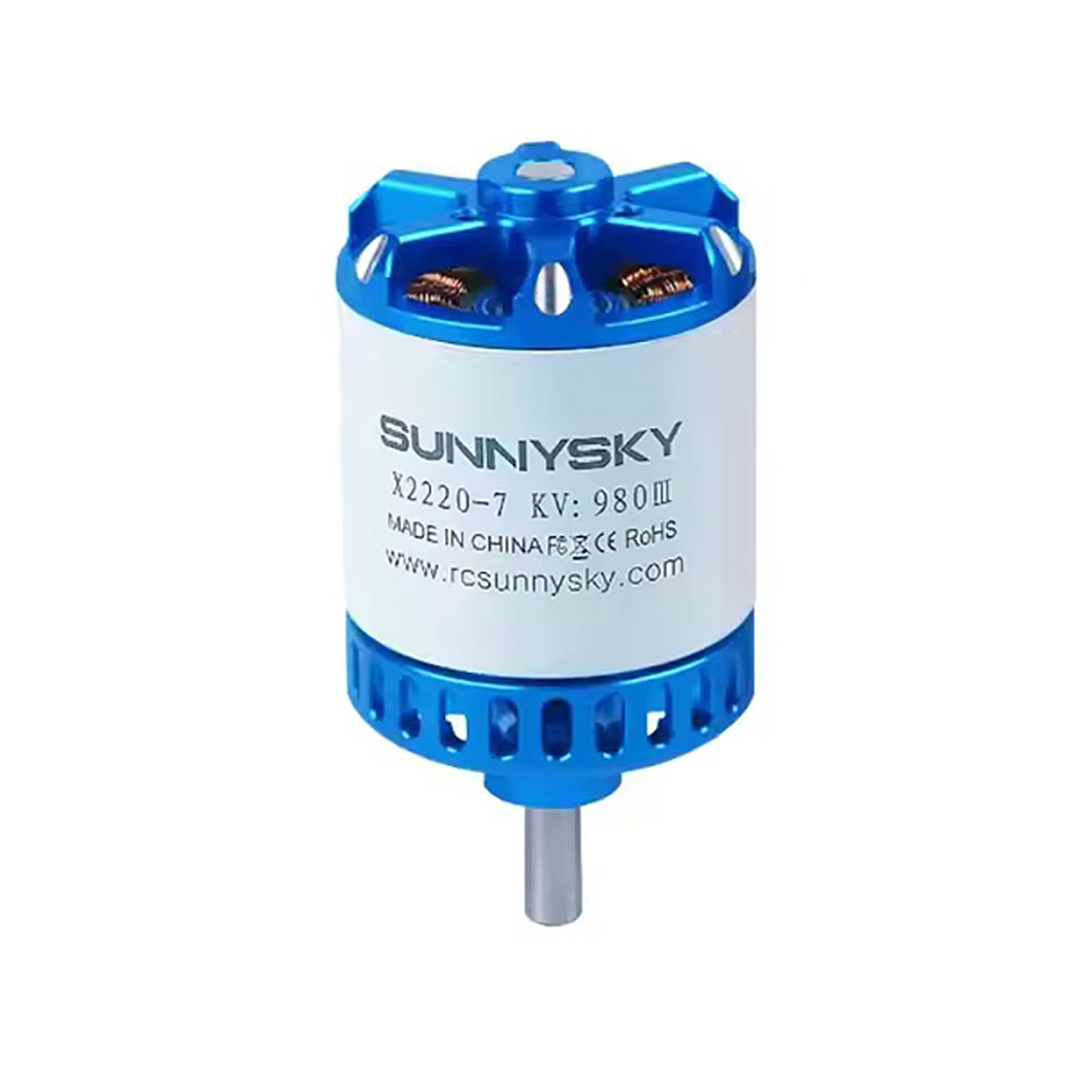

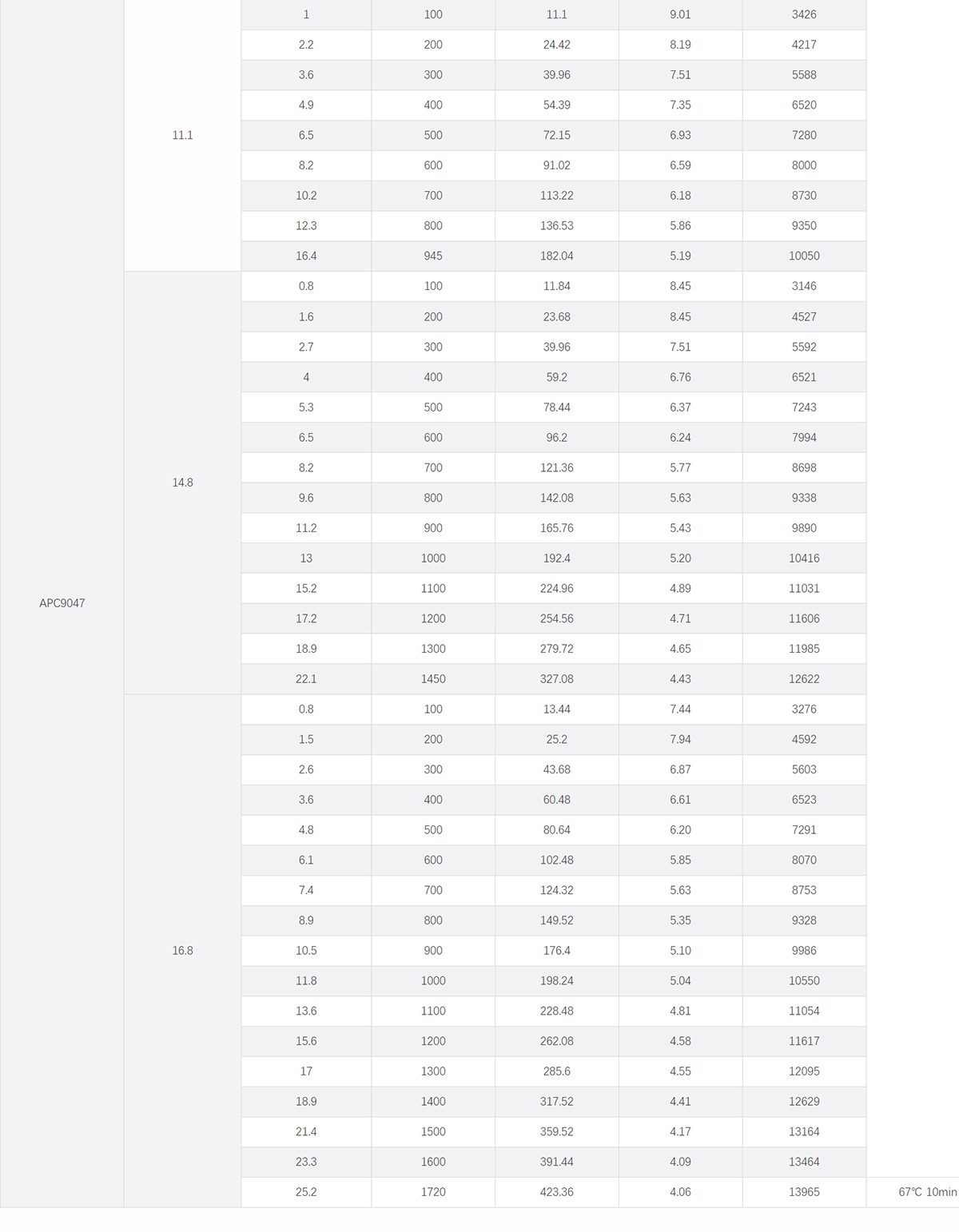

KV: 980KV
Stator/Rotor Poles: 12N14P
Internal Resistance: 51mΩ

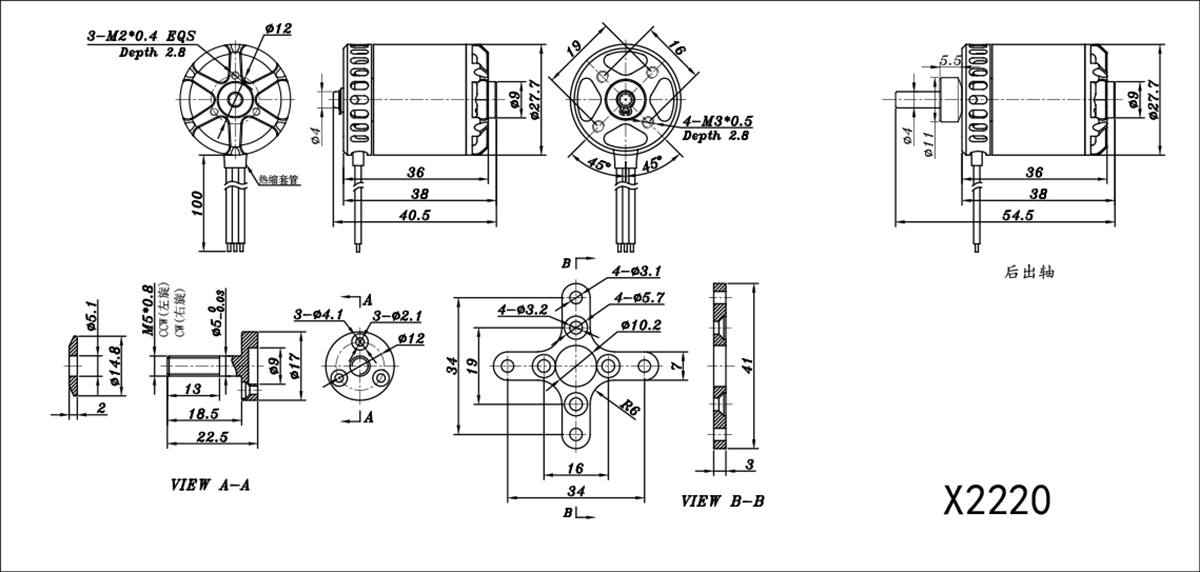

Motor Size: Motor length: 38mm
Shaft Diameter: 4.0mm
AWG: 20AWG 100mm
Motor Weight (Wire Included): 85g
Motor Weight (Wire Excluded): No data
Rated Operational Voltage: 3-4S
No-Load Current: 0.7A/10V
Maximum Continuous Power: 638W
Maximum Continuous Current: 38A/30s
ESC Recommended Use: 40A
Propeller Size Recommended Use: APC9047/APC9045/APC9060/APC1047/APC1147

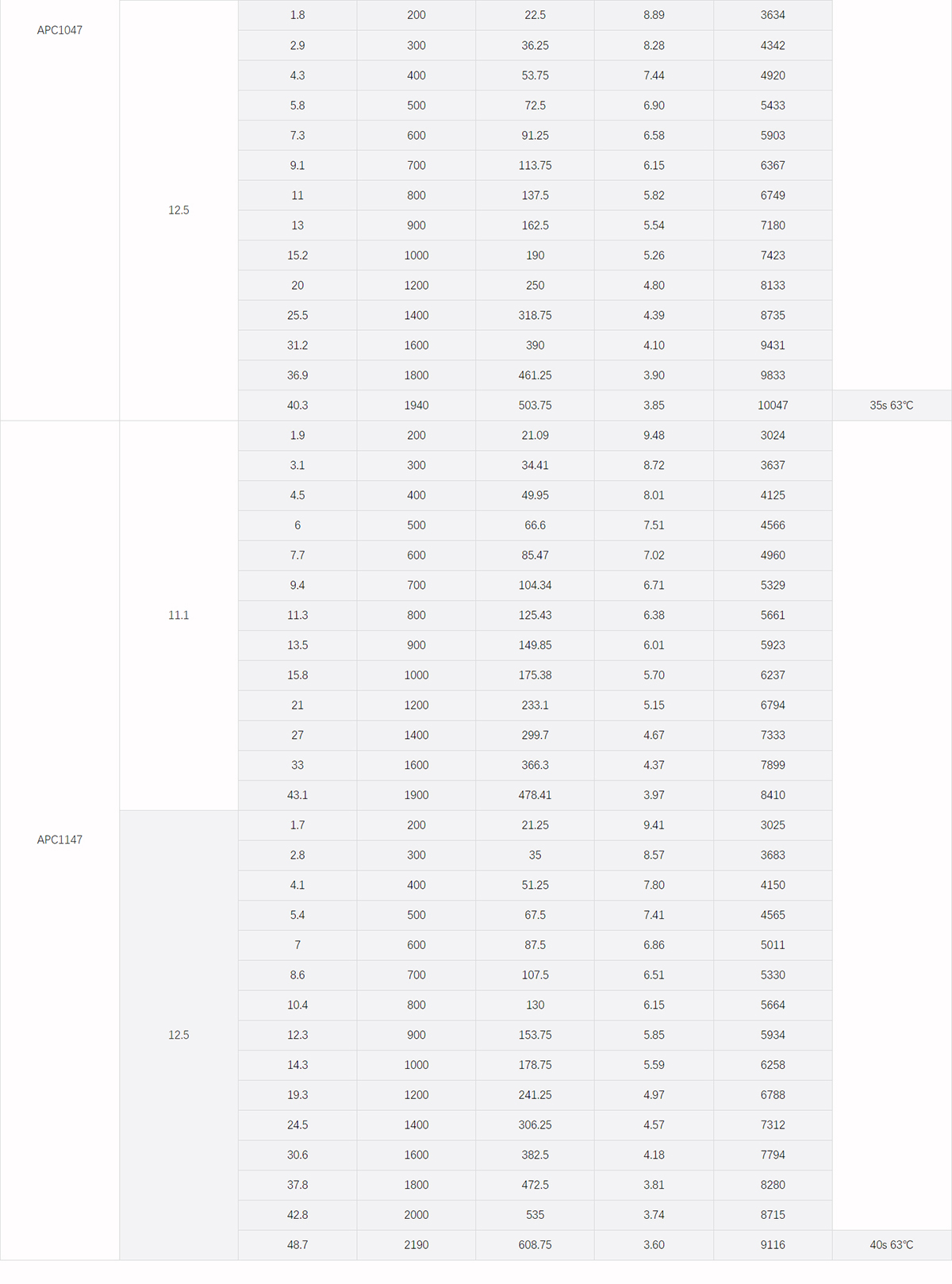

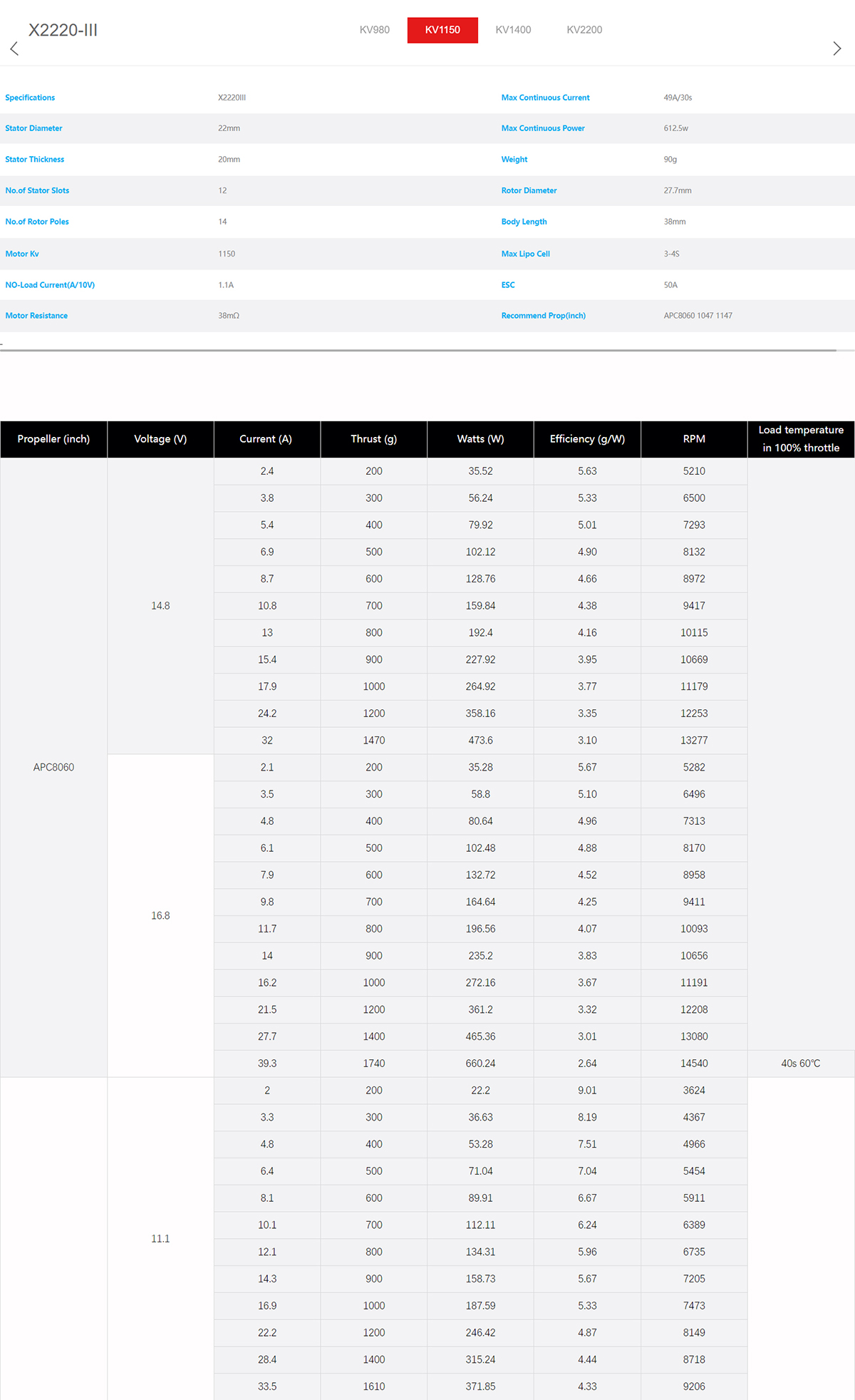

KV: 1150KV
Stator/Rotor Poles: 12N14P
Internal Resistance: 38mΩ
Motor Size: Motor length: 38mm
Shaft Diameter: 4.0mm
AWG: No data
Motor Weight (Wire Included): 90g
Motor Weight (Wire Excluded): No data
Rated Operational Voltage: 3-4S
No-Load Current: 1.1A
Maximum Continuous Power: 612.5W
Maximum Continuous Current: 49A/30s
ESC Recommended Use: 50A
Propeller Size Recommended Use: APC8060/1047/1147

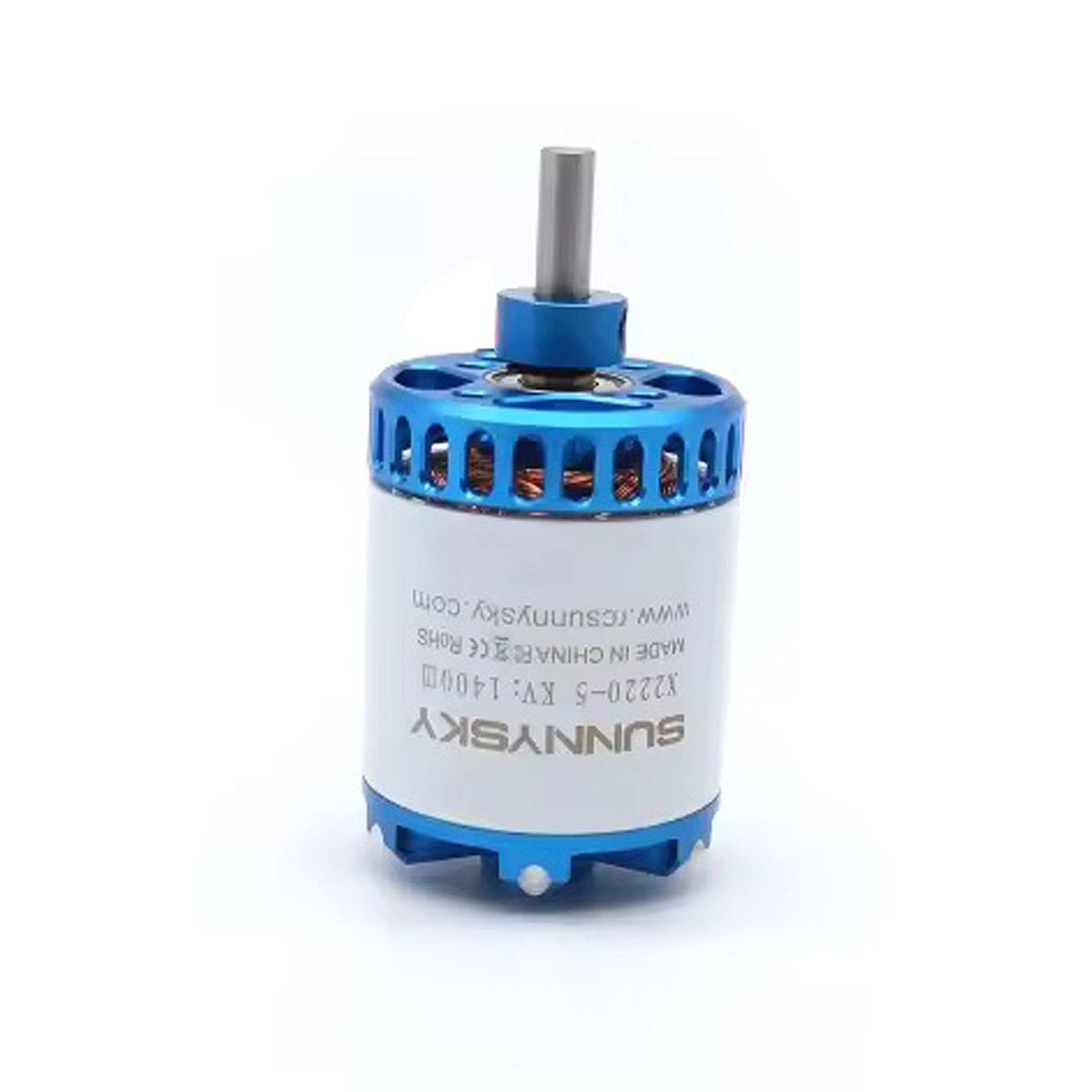

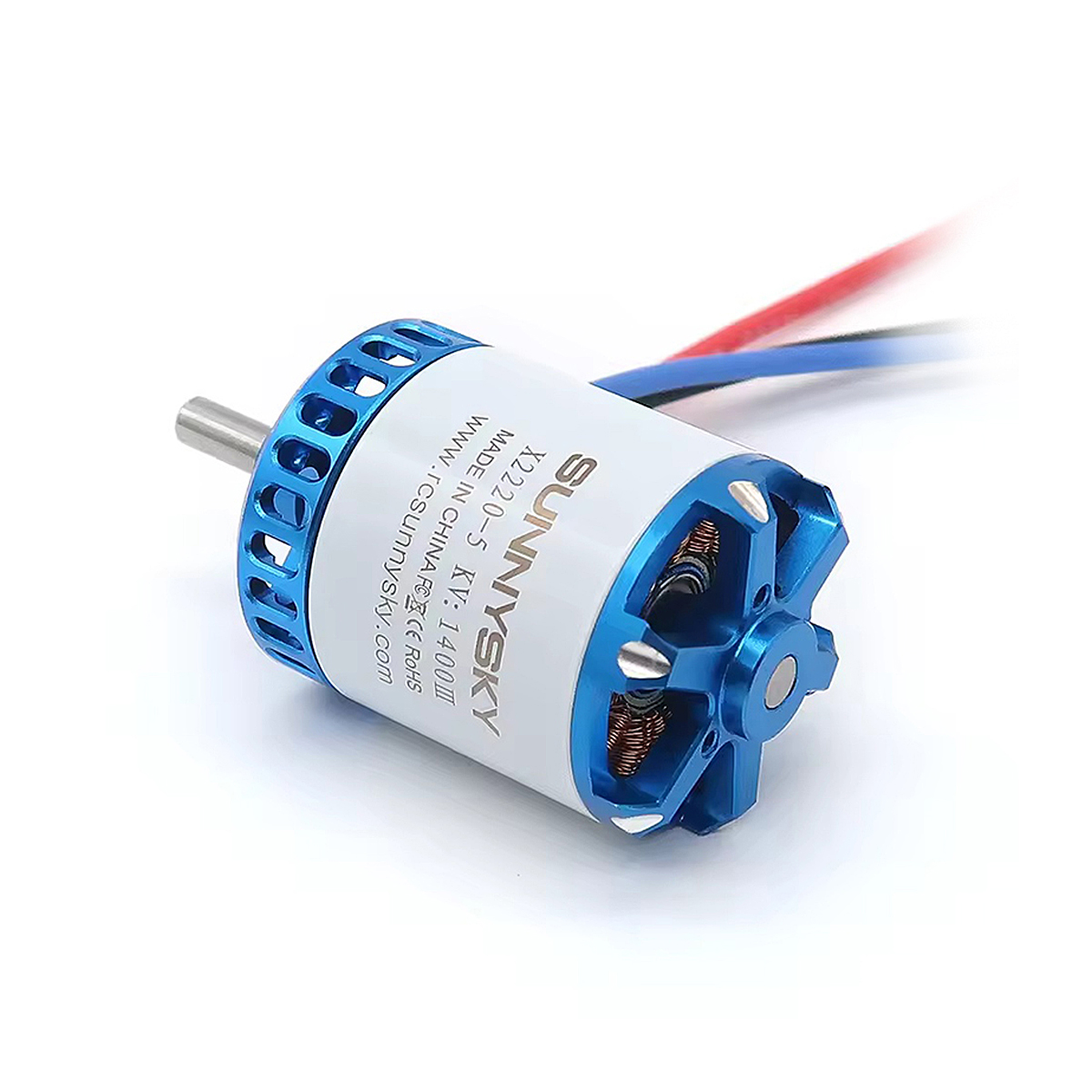

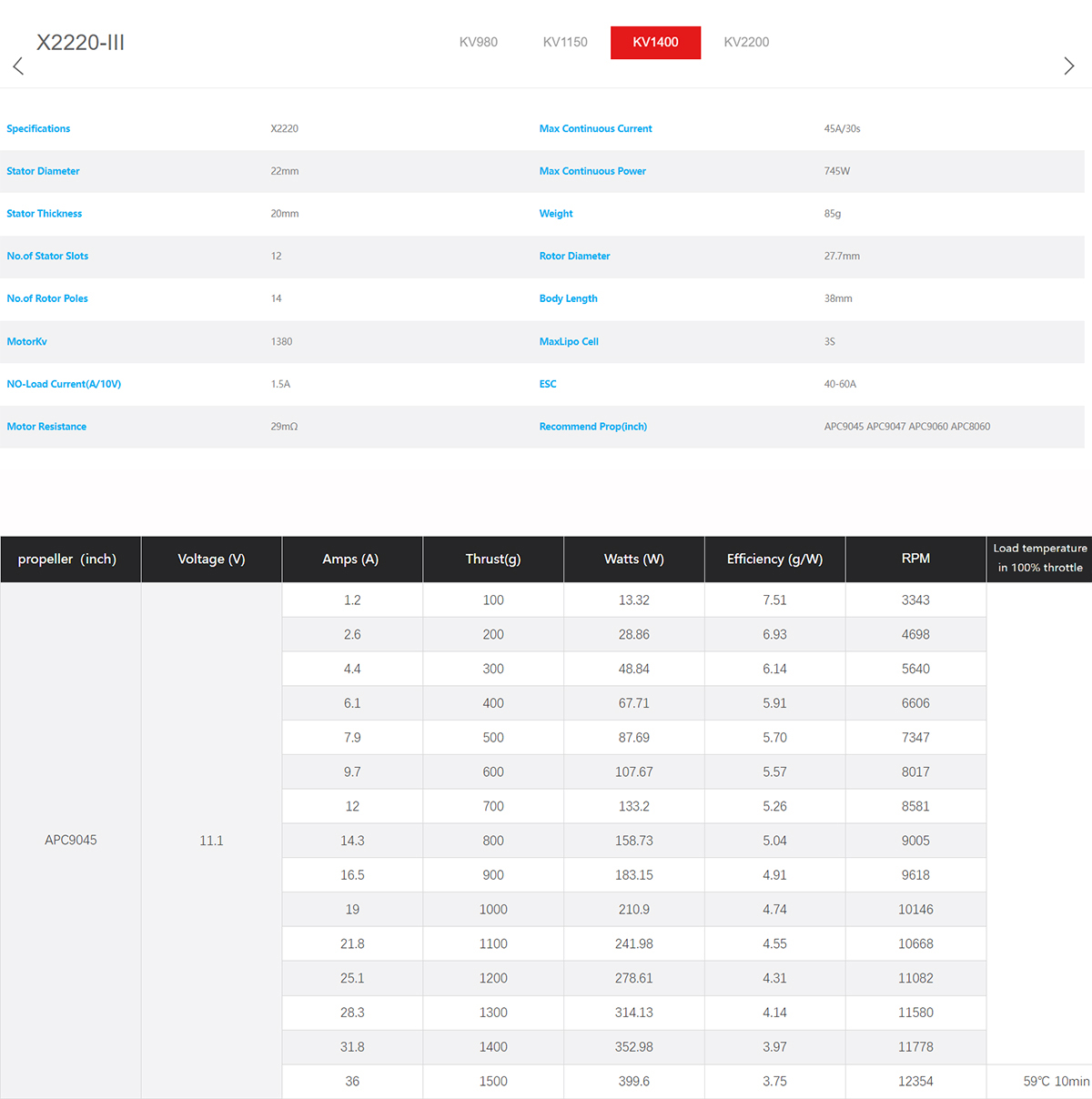

KV: 1400KV
Stator/Rotor Poles: 12N14P
Internal Resistance: 29mΩ
Motor Size: Motor length：38mm
Shaft Diameter: 4.0mm
AWG: 20AWG 100mm
Motor Weight (Wire Included): 85g
Motor Weight (Wire Excluded): No data
Rated Operational Voltage: 3S
No-Load Current: 1.5A
Maximum Continuous Power: 745W
Maximum Continuous Current: 45A/30s
ESC Recommended Use: 40-60A
Propeller Size Recommended Use: APC9045/APC9047/APC9060/APC8060

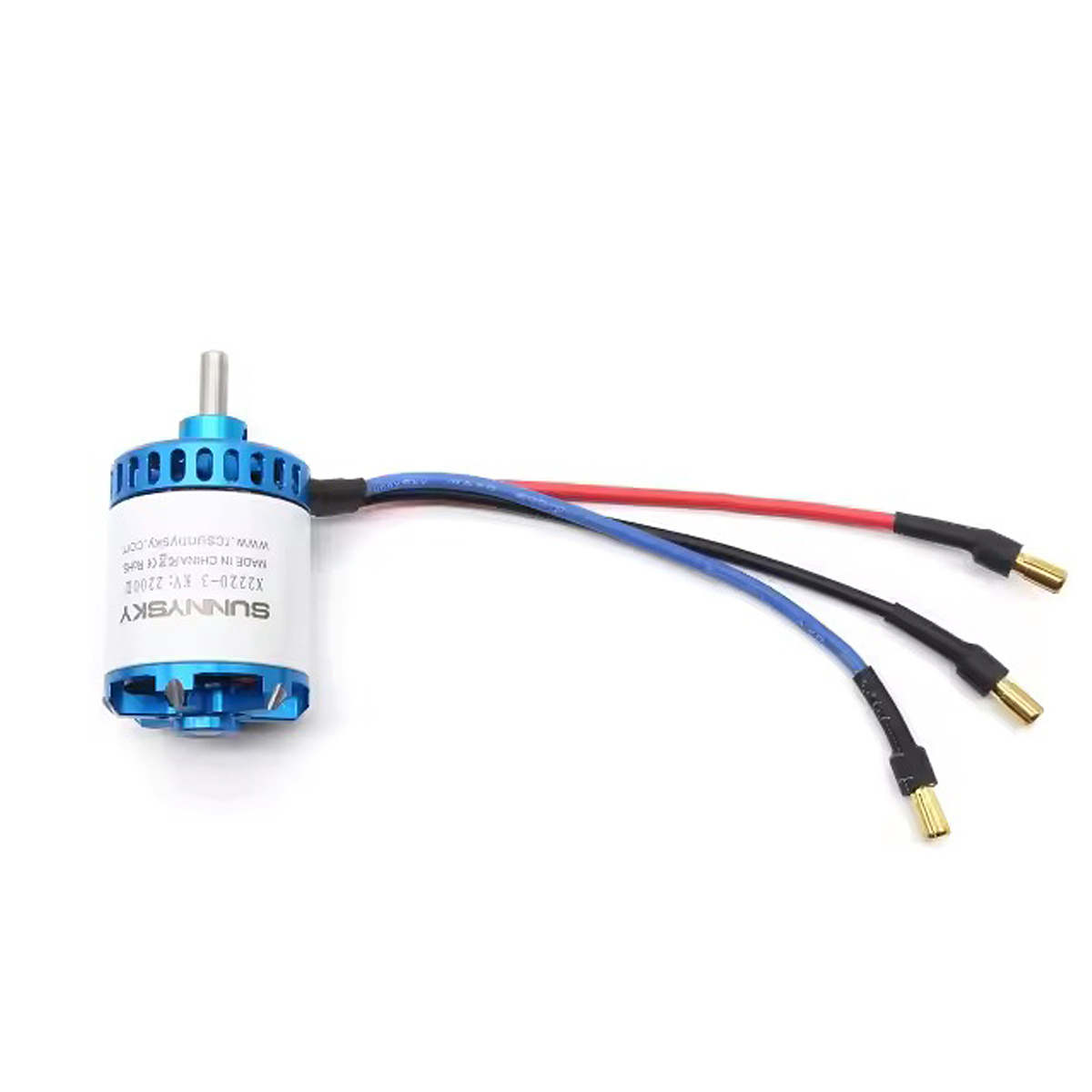

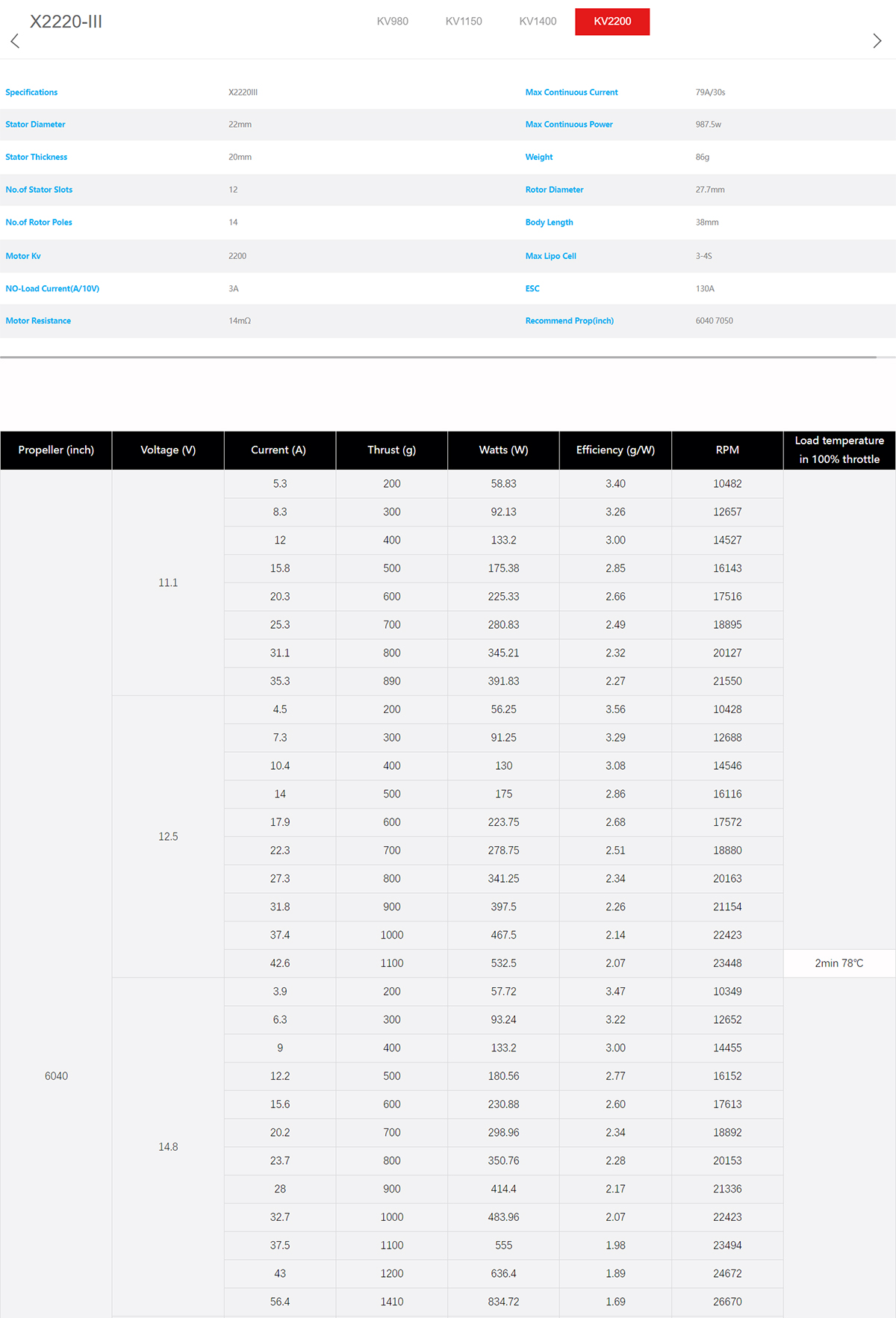

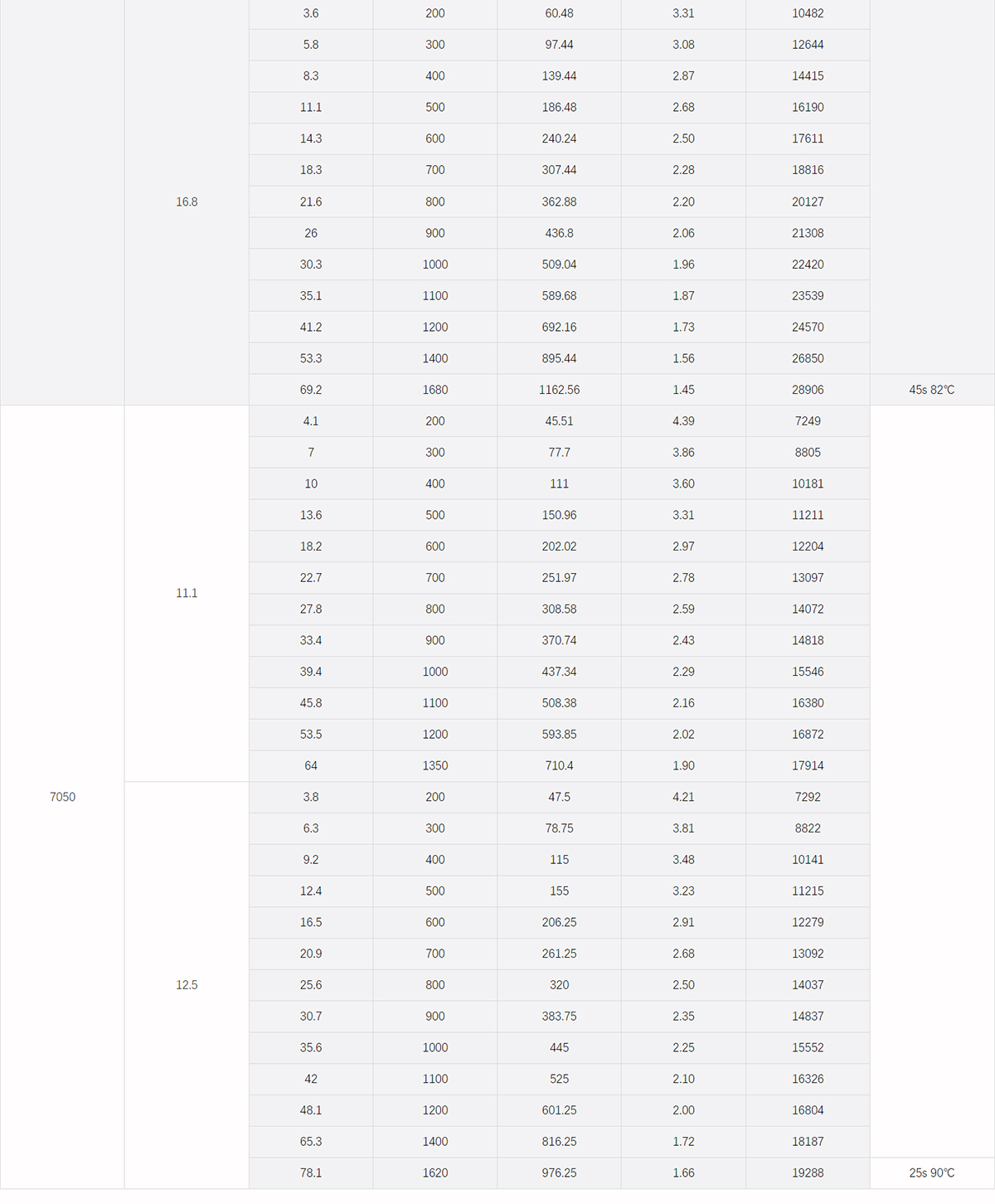

KV: 2200KV
Stator/Rotor Poles: 12N14P
Internal Resistance: 14mΩ
Motor Size: Motor length：38mm
Shaft Diameter: 4.0mm
AWG: No data
Motor Weight (Wire Included): 86g
Motor Weight (Wire Excluded): No data
Rated Operational Voltage: 3-4S
No-Load Current: 3A
Maximum Continuous Power: 987.5W
Maximum Continuous Current: 79A/30s
ESC Recommended Use: 130A
Propeller Size Recommended Use: 6040/7050
