Model: X3126-III
KV: 570KV
Stator Diameter: 28mm
Stator Thickness: 20mm
No.of Stator Slots: 12
No.of Rotor Poles: 14
NO-Load Current(A/10V): 0.83A
Motor Resistance: 53mΩ
Max Continuous Current: 53A/30s
Max Continuous Power: 1325W
Weight: 145g
Rotor Diameter: 35mm
Body Length: 42mm
Max Lipo Cell: 6S
ESC: 50-60A
Recommend Prop(inch): EOLO12*6/EOLO13*7

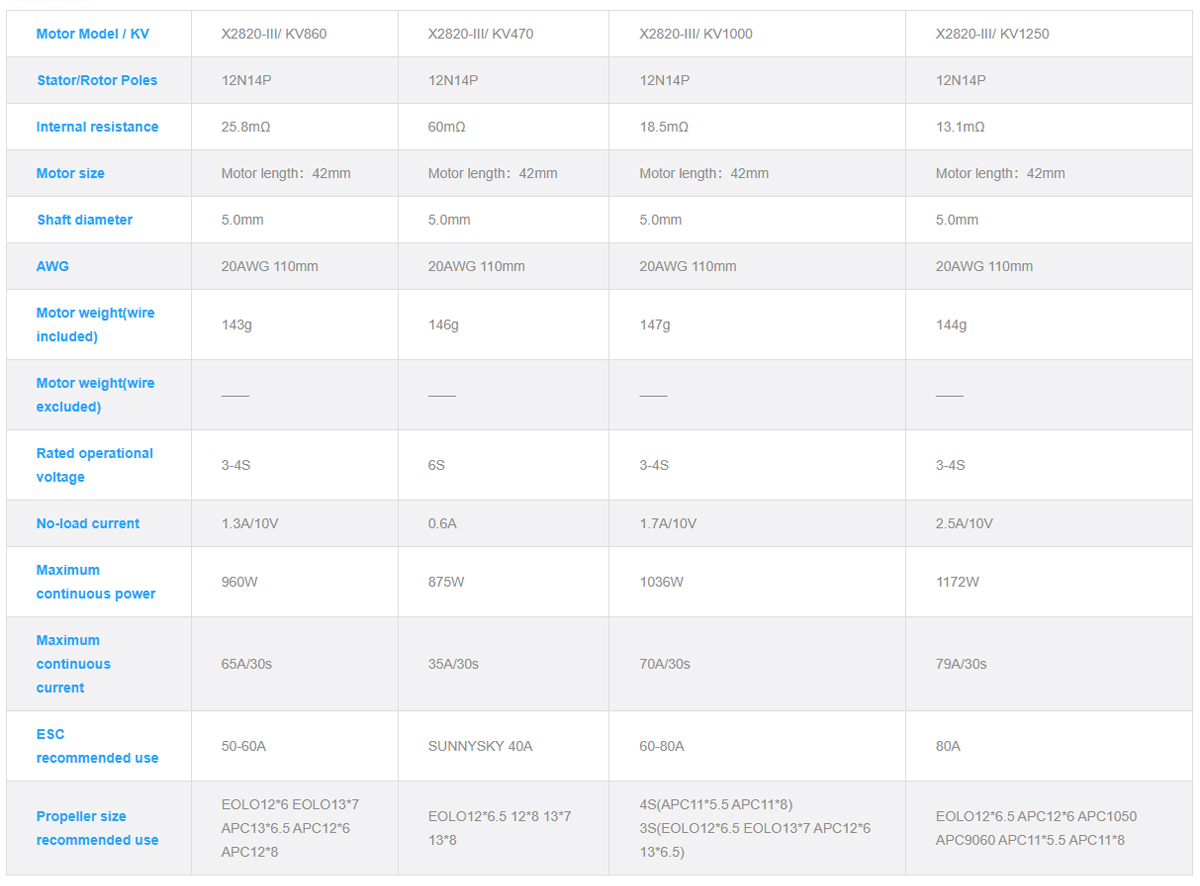

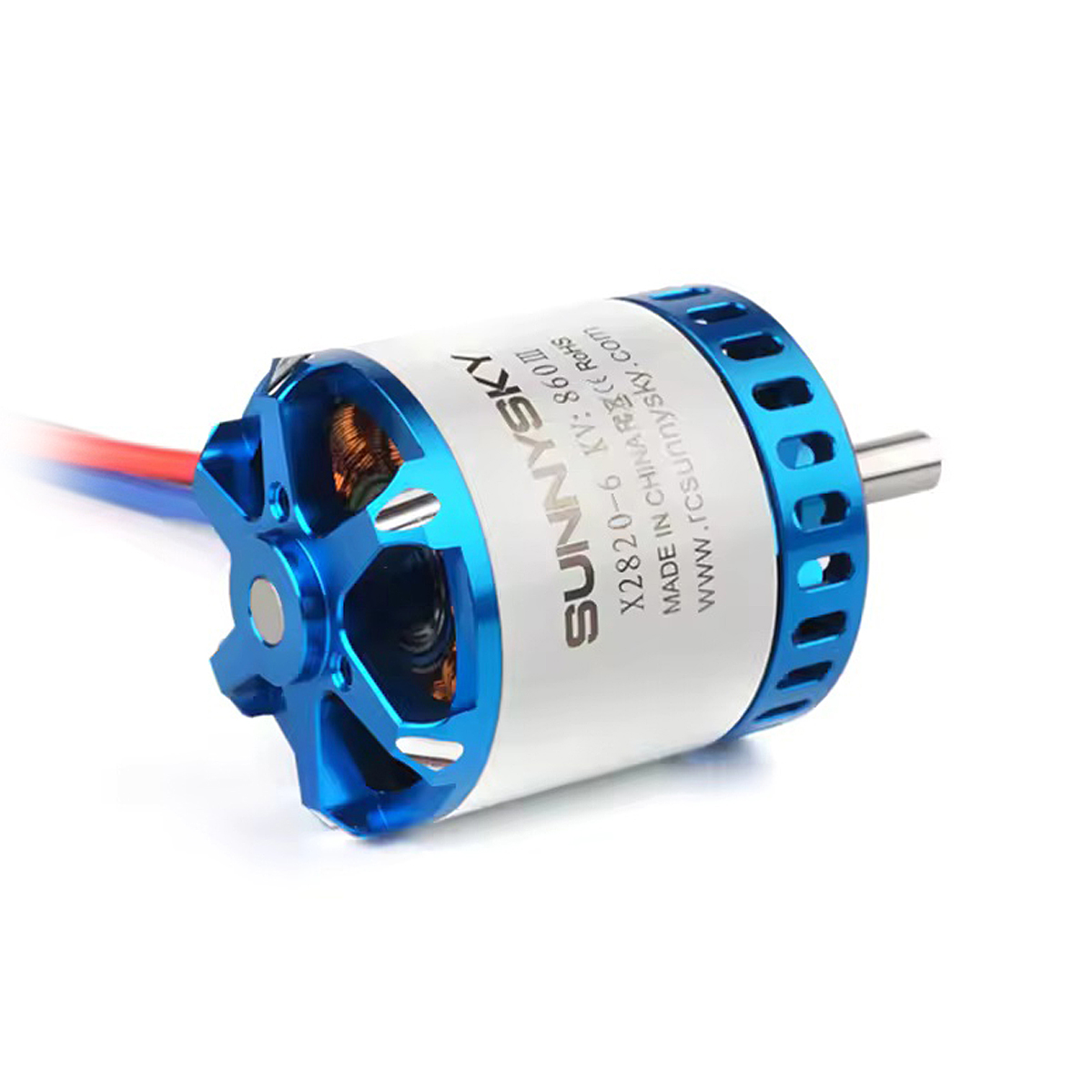

KV: 860KV
Stator/Rotor Poles: 12N14P
Internal Resistance: 25.8mΩ
Motor Size: Motor length：42mm
Shaft Diameter: 5.0mm
AWG: 20AWG 110mm
Motor Weight (Wire Included): 143g
Motor Weight (Wire Excluded): No data
Rated Operational Voltage: 3-4S
No-Load Current: 1.3A/10V
Maximum Continuous Power: 960W
Maximum Continuous Current: 65A/30s
ESC Recommended Use: 50-60A
Propeller Size Recommended Use: EOLO12*6/EOLO13*7/APC13*6.5/APC12*6/APC12*8

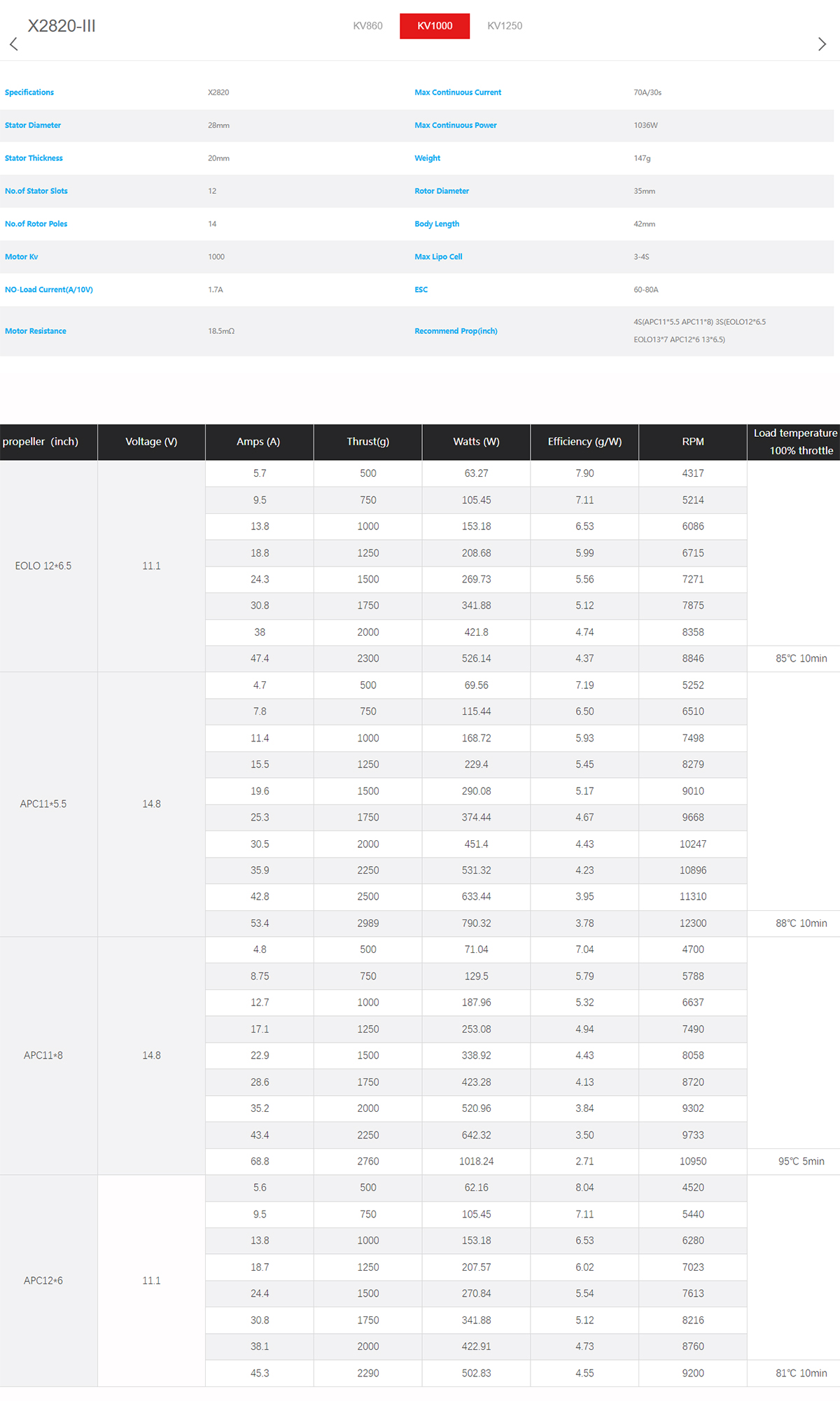

KV: 1000KV
Stator/Rotor Poles: 12N14P
Internal Resistance: 18.5mΩ
Motor Size: Motor length：42mm
Shaft Diameter: 5.0mm
AWG: 20AWG 110mm
Motor Weight (Wire Included): 147g
Motor Weight (Wire Excluded): No data
Rated Operational Voltage: 3-4S
No-Load Current: 1.7A/10V
Maximum Continuous Power: 1036W
Maximum Continuous Current: 70A/30s
ESC Recommended Use: 60-80A
Propeller Size Recommended Use: 4S(APC11*5.5 APC11*8)/3S(EOLO12*6.5/EOLO13*7/APC12*6/13*6.5)

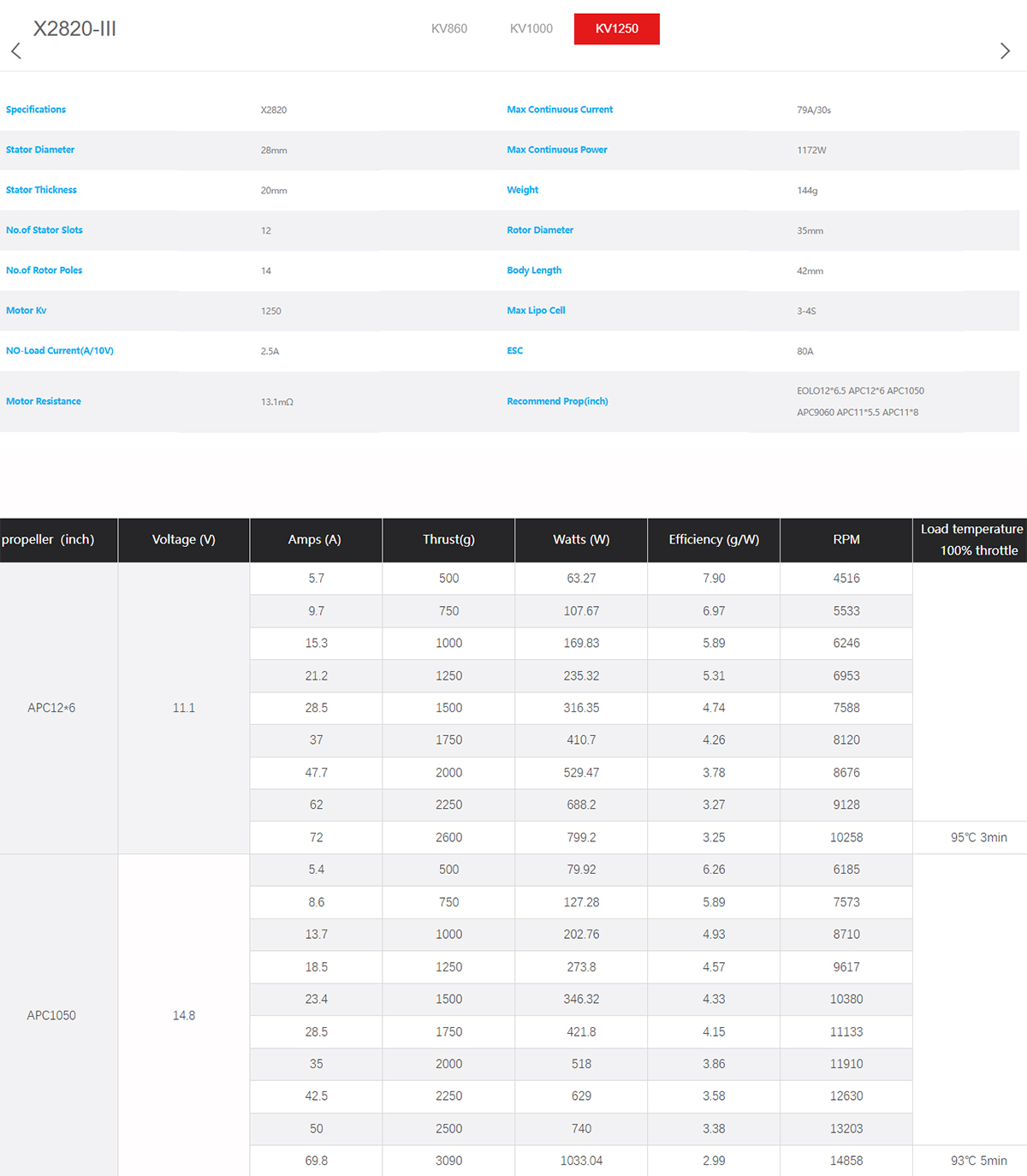

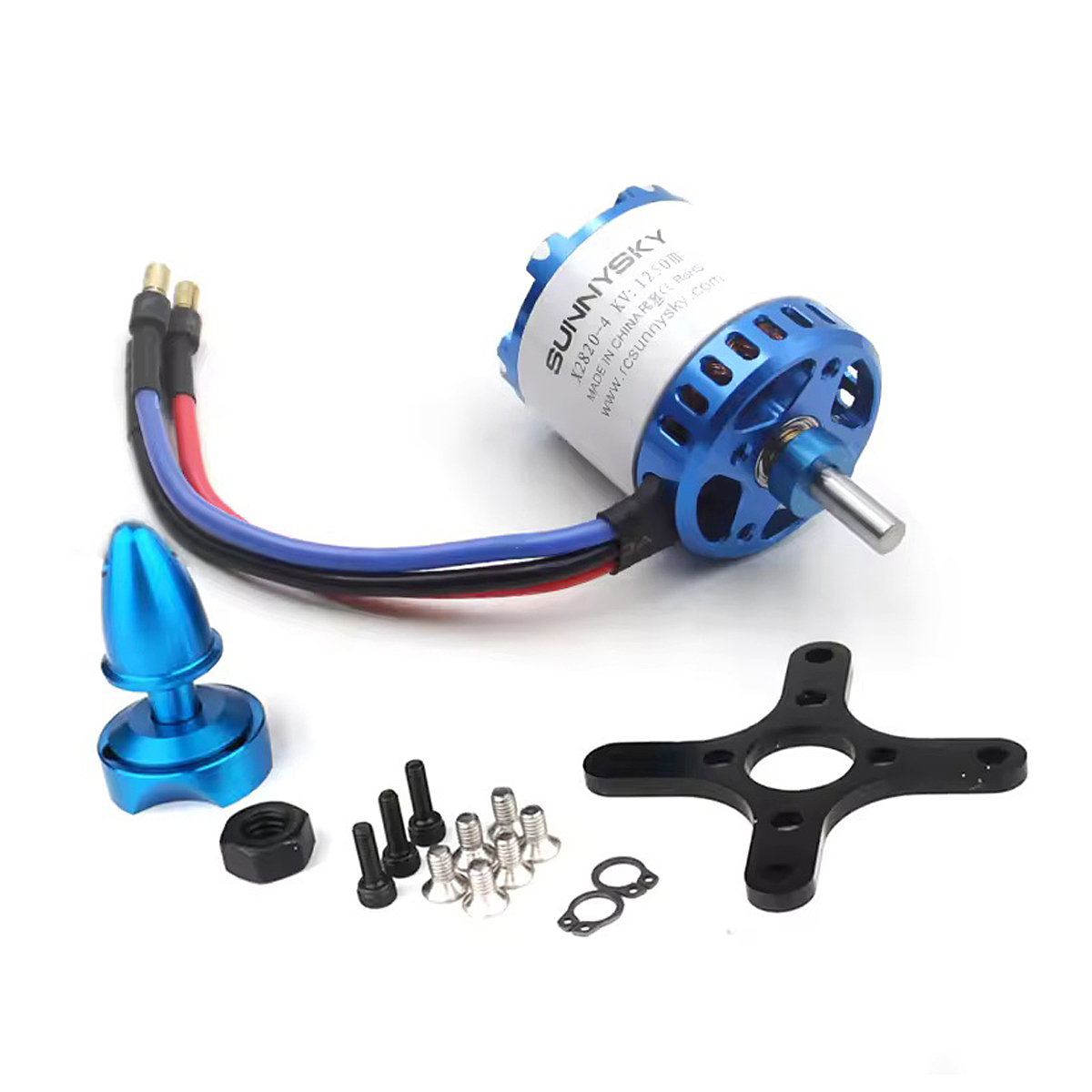

KV: 1250KV
Stator/Rotor Poles: 12N14P
Internal Resistance: 13.1mΩ
Motor Size: Motor length：42mm
Shaft Diameter: 5.0mm
AWG: 20AWG 110mm
Motor Weight (Wire Included): 144g
Motor Weight (Wire Excluded): No data
Rated Operational Voltage: 3-4S
No-Load Current: 2.5A/10V
Maximum Continuous Power: 1172W
Maximum Continuous Current: 79A/30s
ESC Recommended Use: 80A
Propeller Size Recommended Use: EOLO12*6.5/APC12*6/APC1050/APC9060/APC11*5.5/APC11*8
