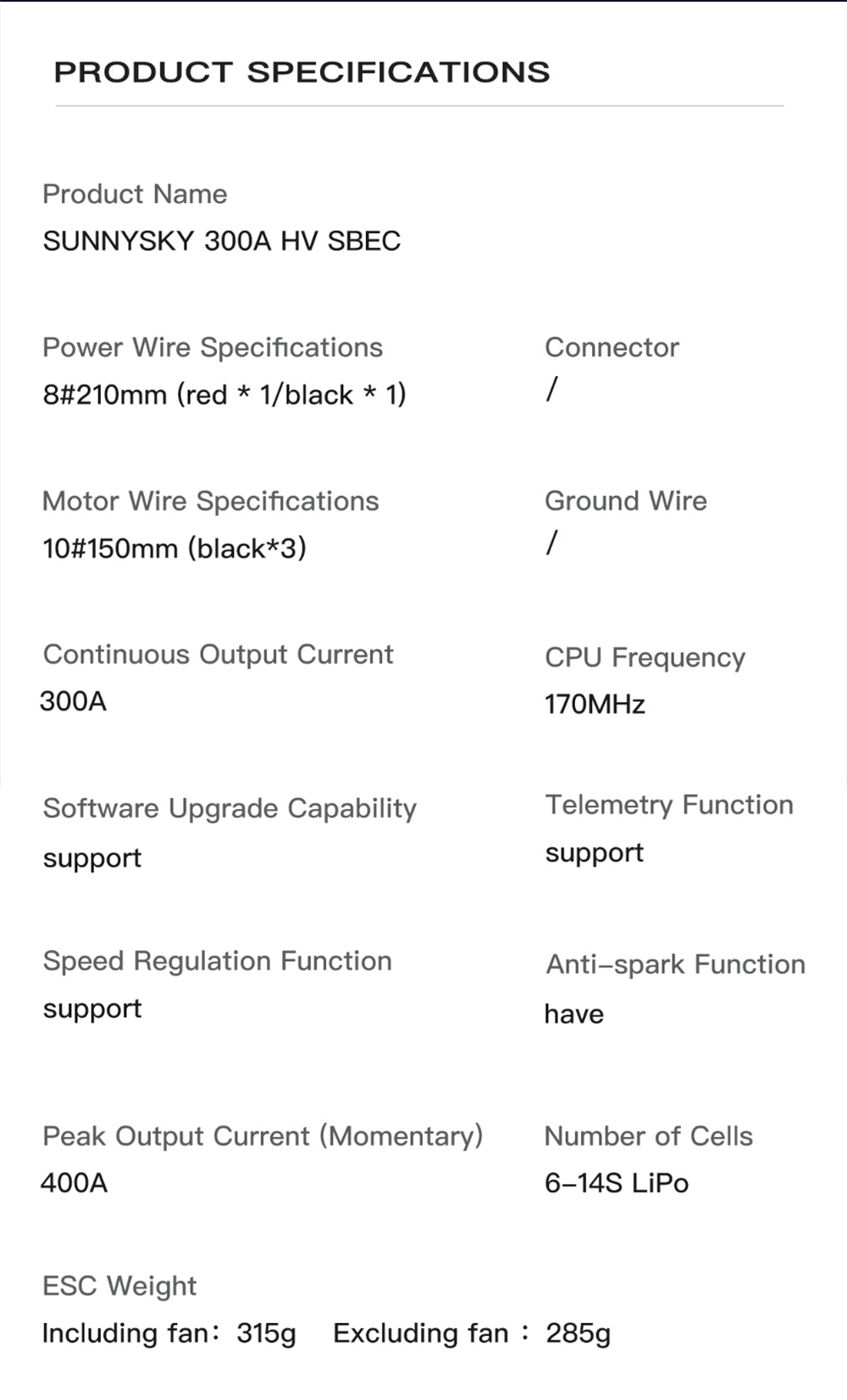

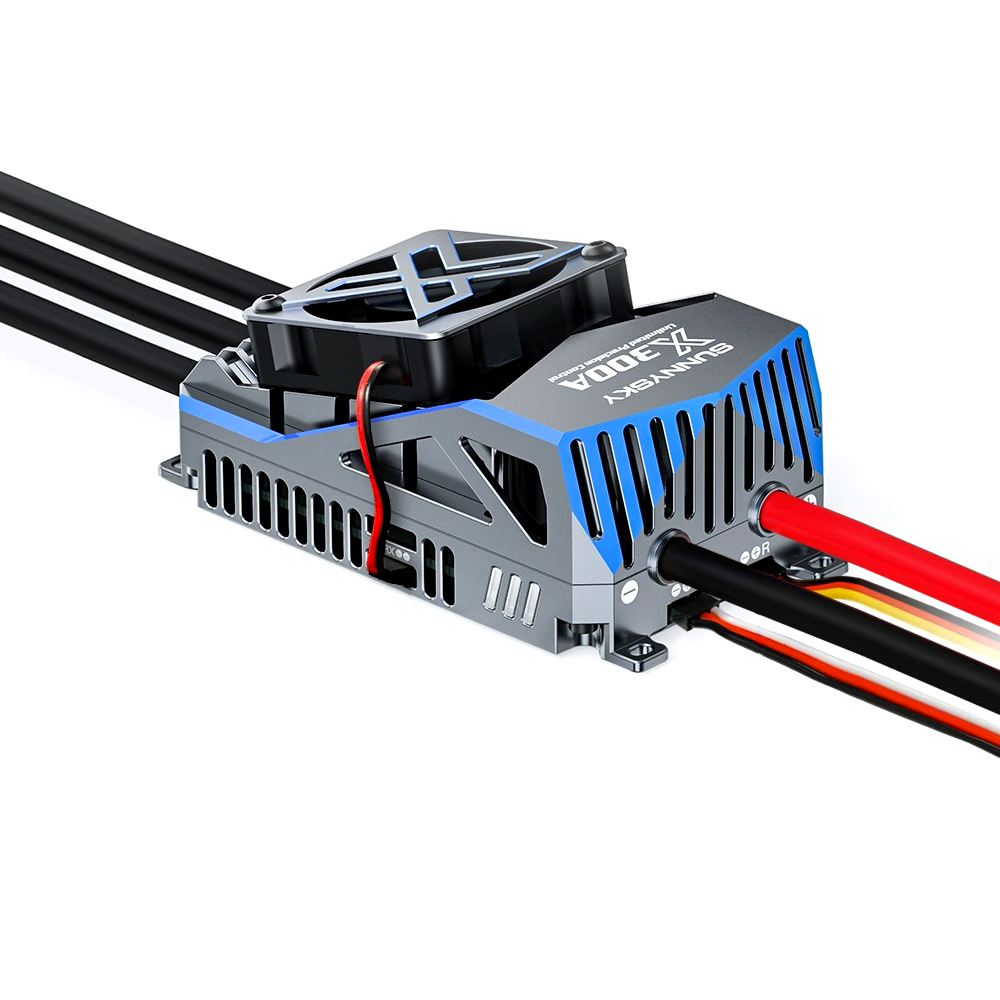

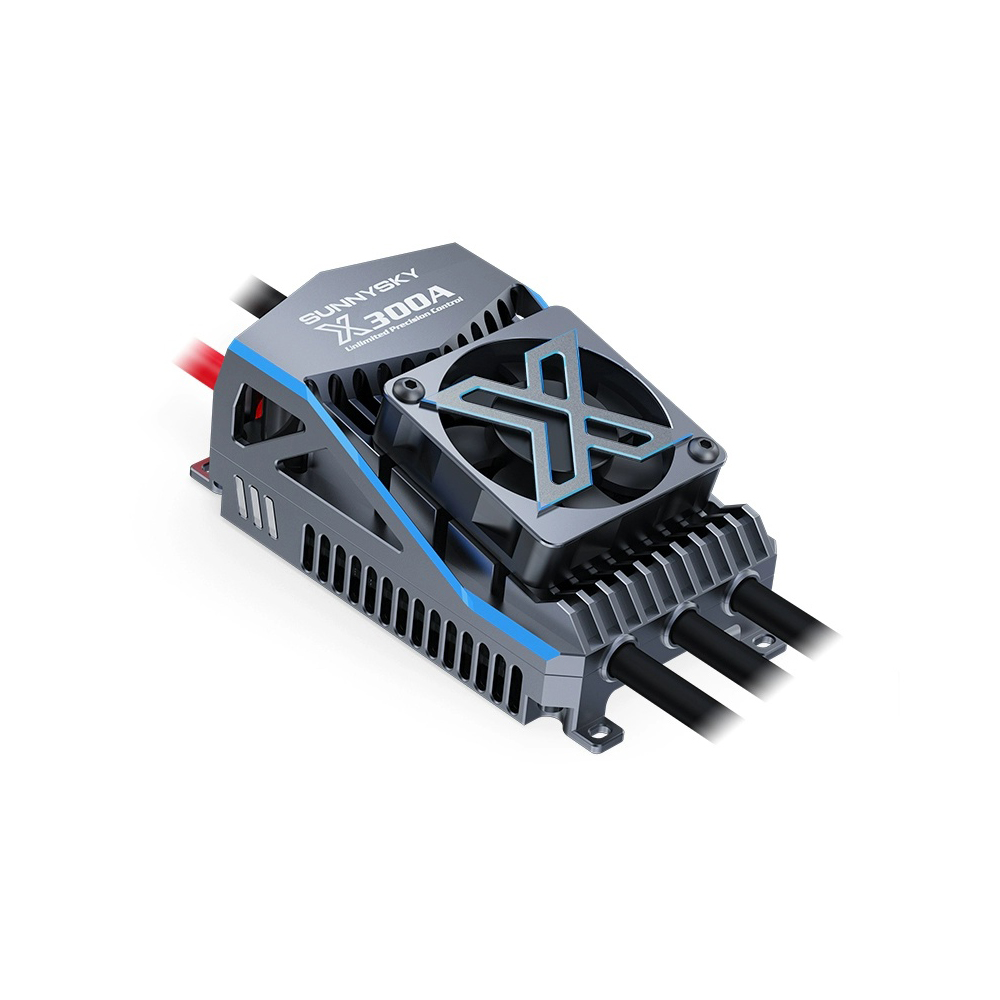

Model: SUNNYSKY 300A HV SBEC
Power Wire Specifications: 8#210mm (red * 1/black * 1)
Motor Wire Specifications: 10# 50mm (black3)
Connector: /
Ground Wire: /
Continuous Output Current: 300A
Peak Output Current (Momentary): 400A
Number of Cells: 6-14S LiPo
CPU Frequency: 170MHz
Telemetry Function: support
Speed Regulation Function: support
Software Upgrade Capability: support
Anti-spark Function: have
ESC Weight: Including fan: 315g; Excluding fan: 285g

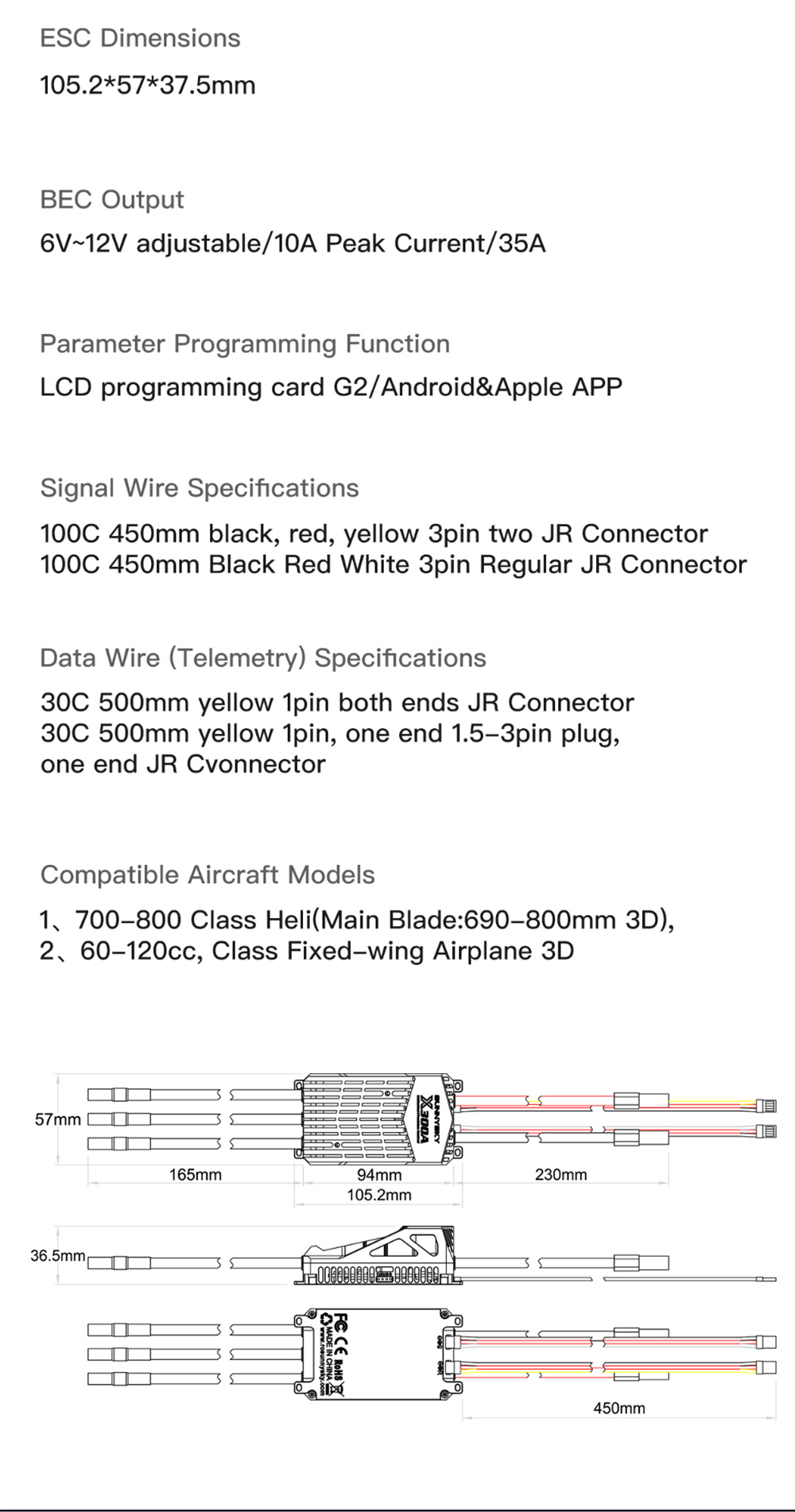

ESC Dimensions: 105.2*57*37.5mm
BEC Output: 6V~12V adjustable/10A Peak Current/35A
Parameter Programming Function: LCD programming card G2/Android&Apple APP

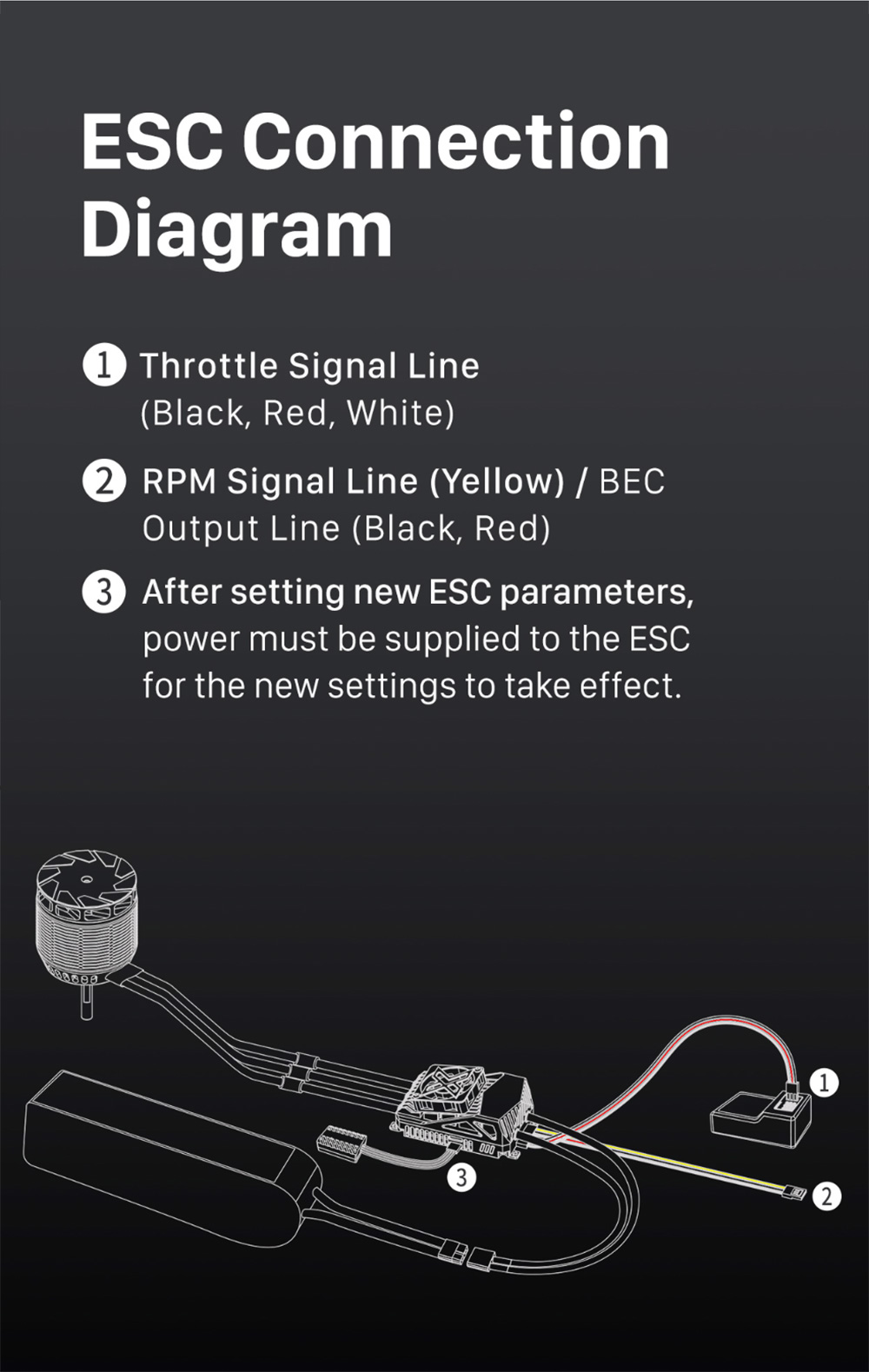

Signal Wire Specifications: 100C 450mm black, red, yellow 3pin two JR Connector; 100C 450mm Black Red White 3pin Regular JR Connector
Data Wire (Telemetry) Specifications: 30C 500mm yellow 1pin both ends JR Connector; 30C 500mm yellow 1pin, one end 1.5-3pin plug, one end JR Connector

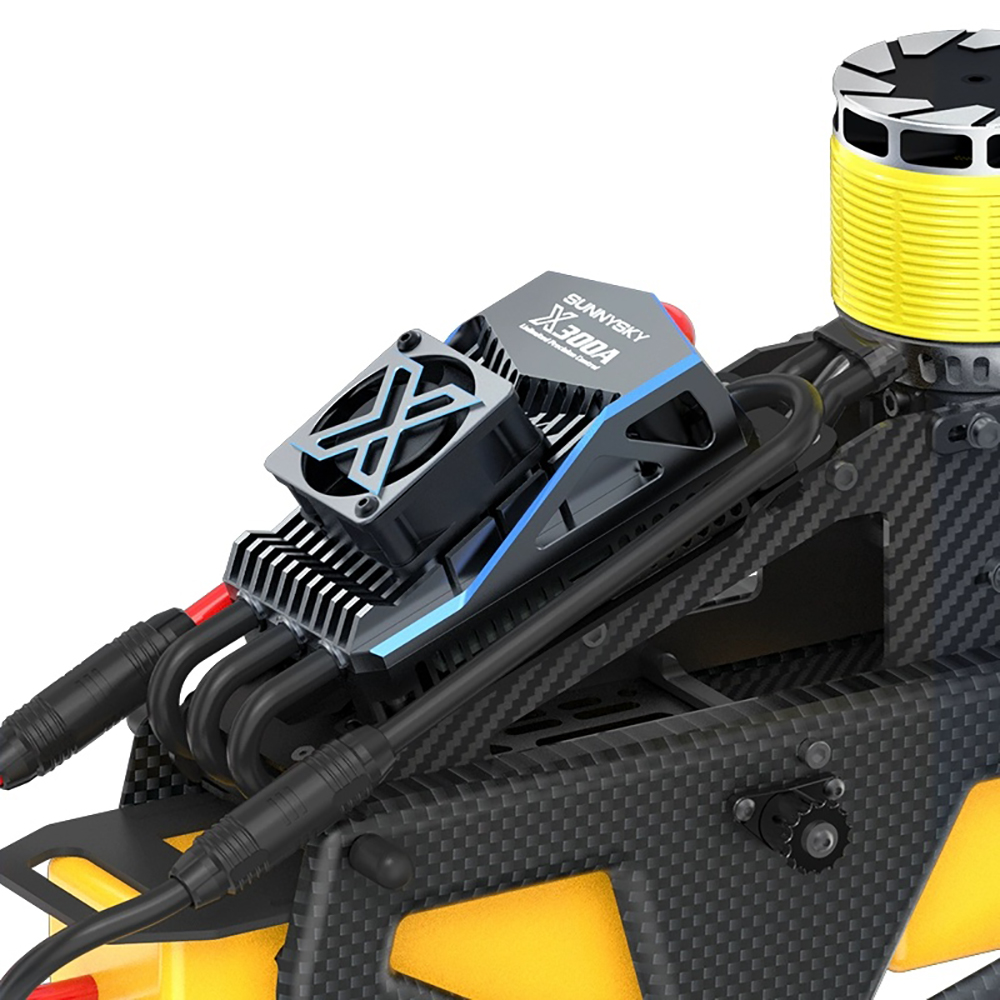

Compatible Aircraft Models: 1. 700-800 Class Heli (Main Blade:690-800mm 3D); 2. 60-120cc, Class Fixed-wing Airplane 3D
