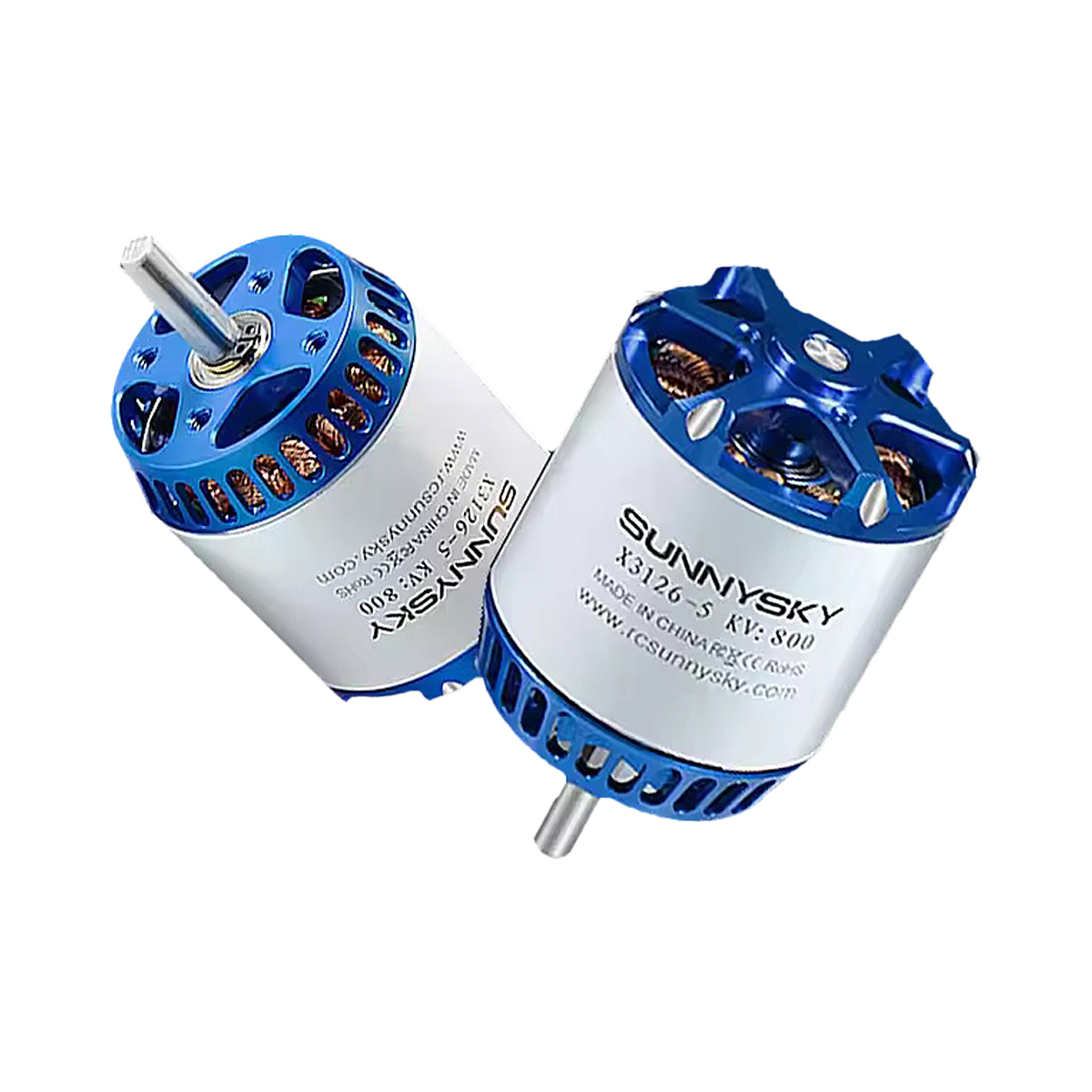

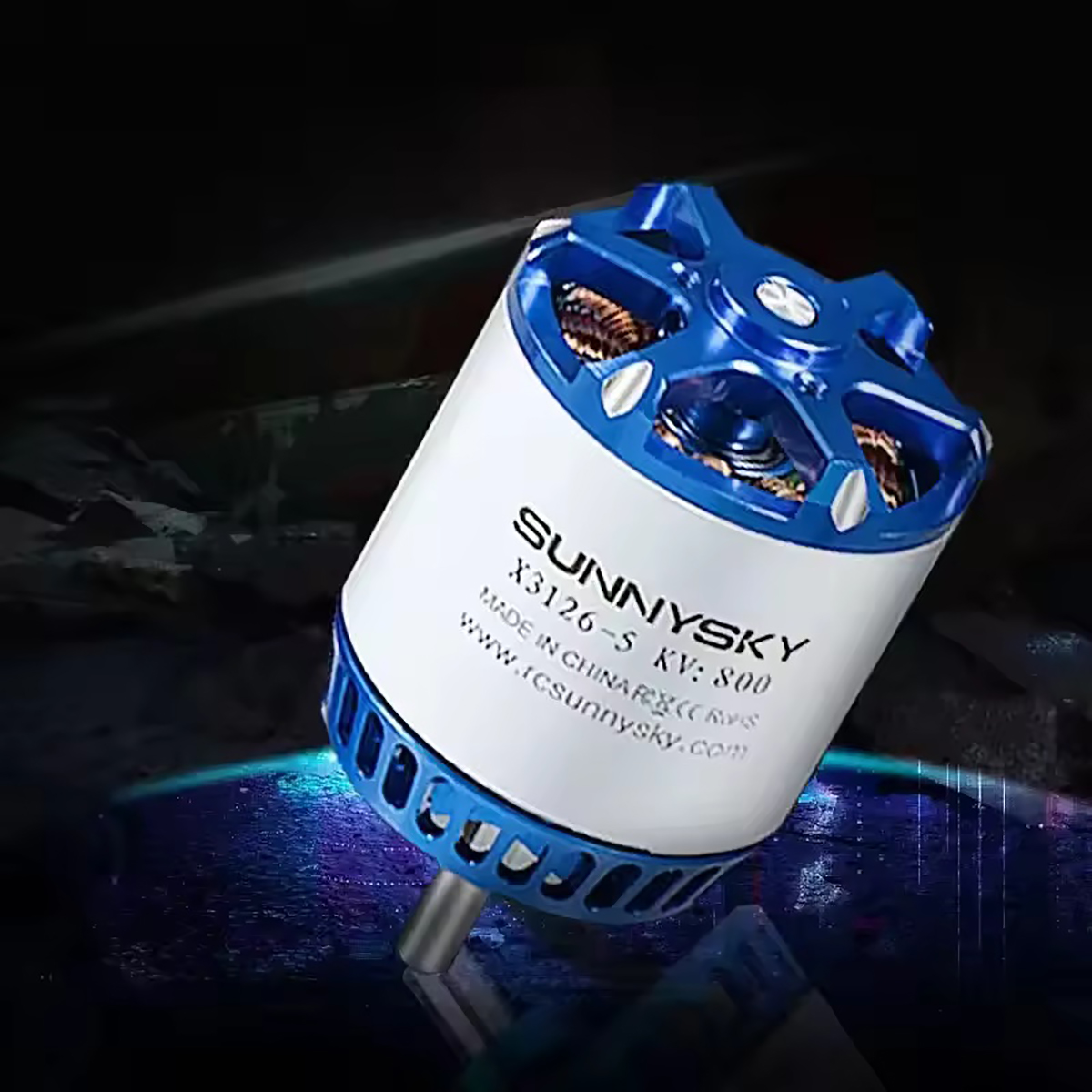

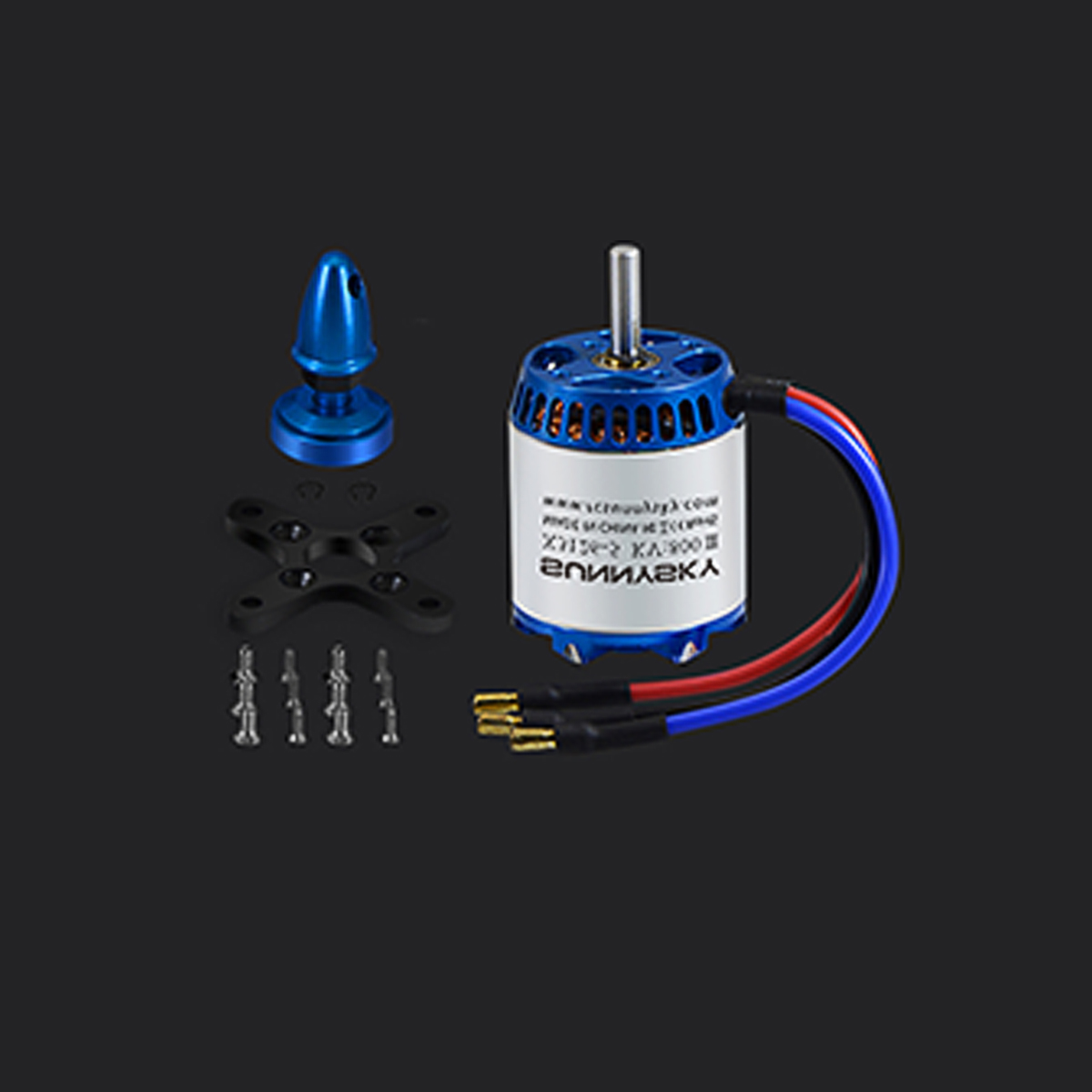

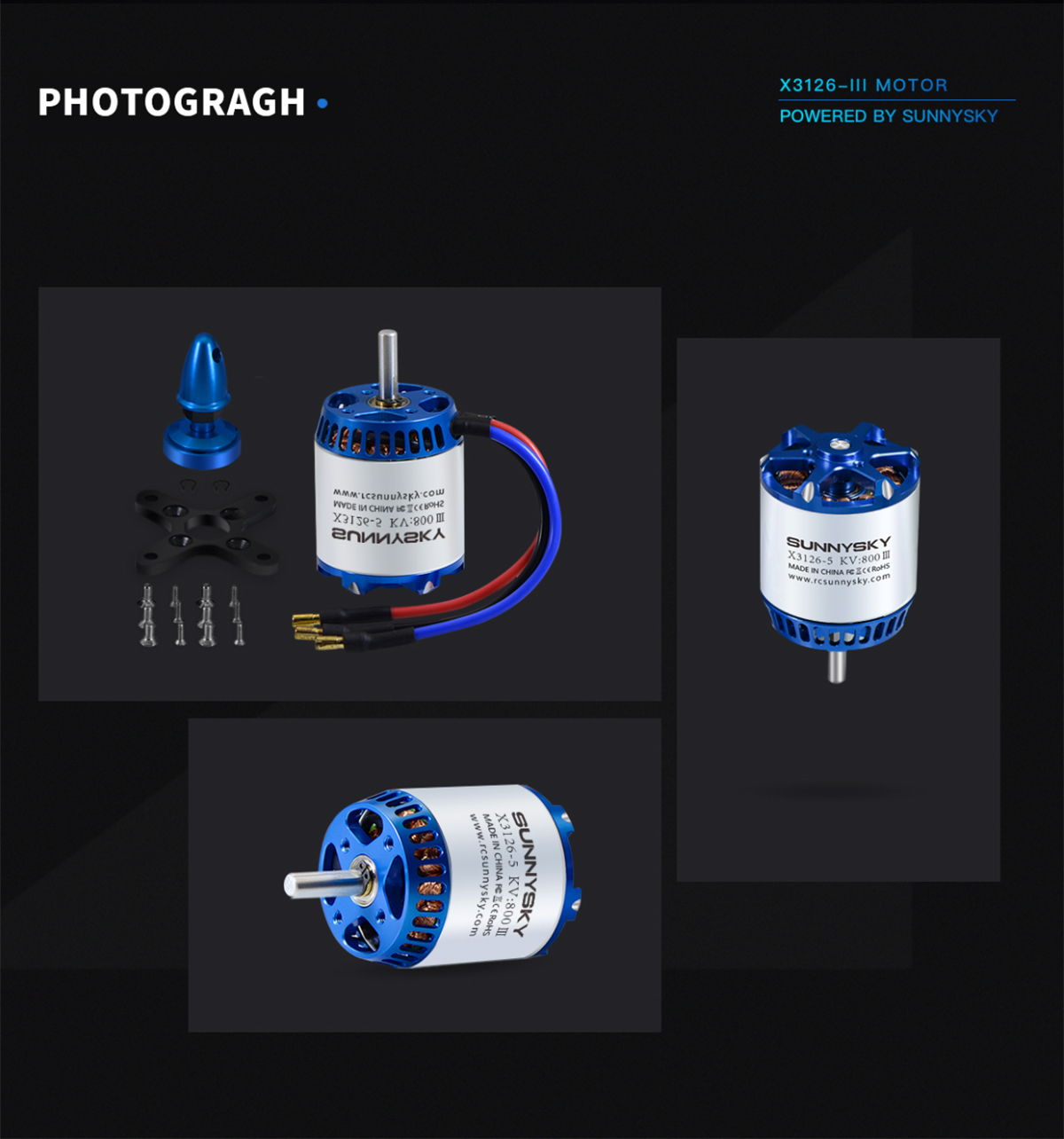

Sunnysky X3126-III 550KV 800KV 12N14P Brushless Motor for 30E Fixed Wing 3D 3A Ultimate Power Motor Frame

SKU X3126-III Category Brushless Motor Tag Brushless Motor Brand: SUNNYSKY

Sunnysky X3126-III 550KV 800KV 12N14P Brushless Motor for 30E Fixed Wing 3D 3A Ultimate Power Motor Frame

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Sunnysky X3126-III 550KV 800KV 12N14P Brushless Motor for 30E Fixed Wing 3D 3A Ultimate Power Motor Frame

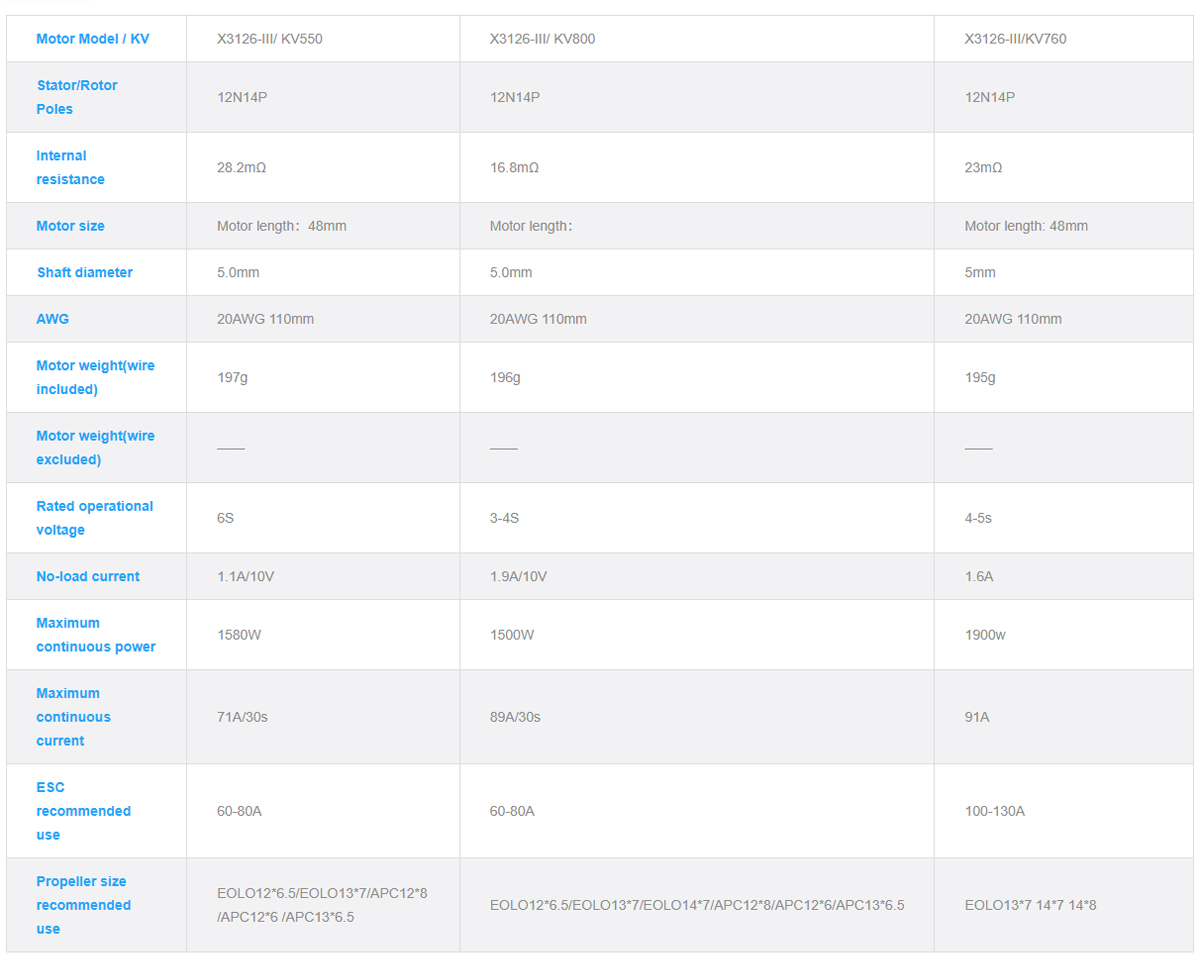

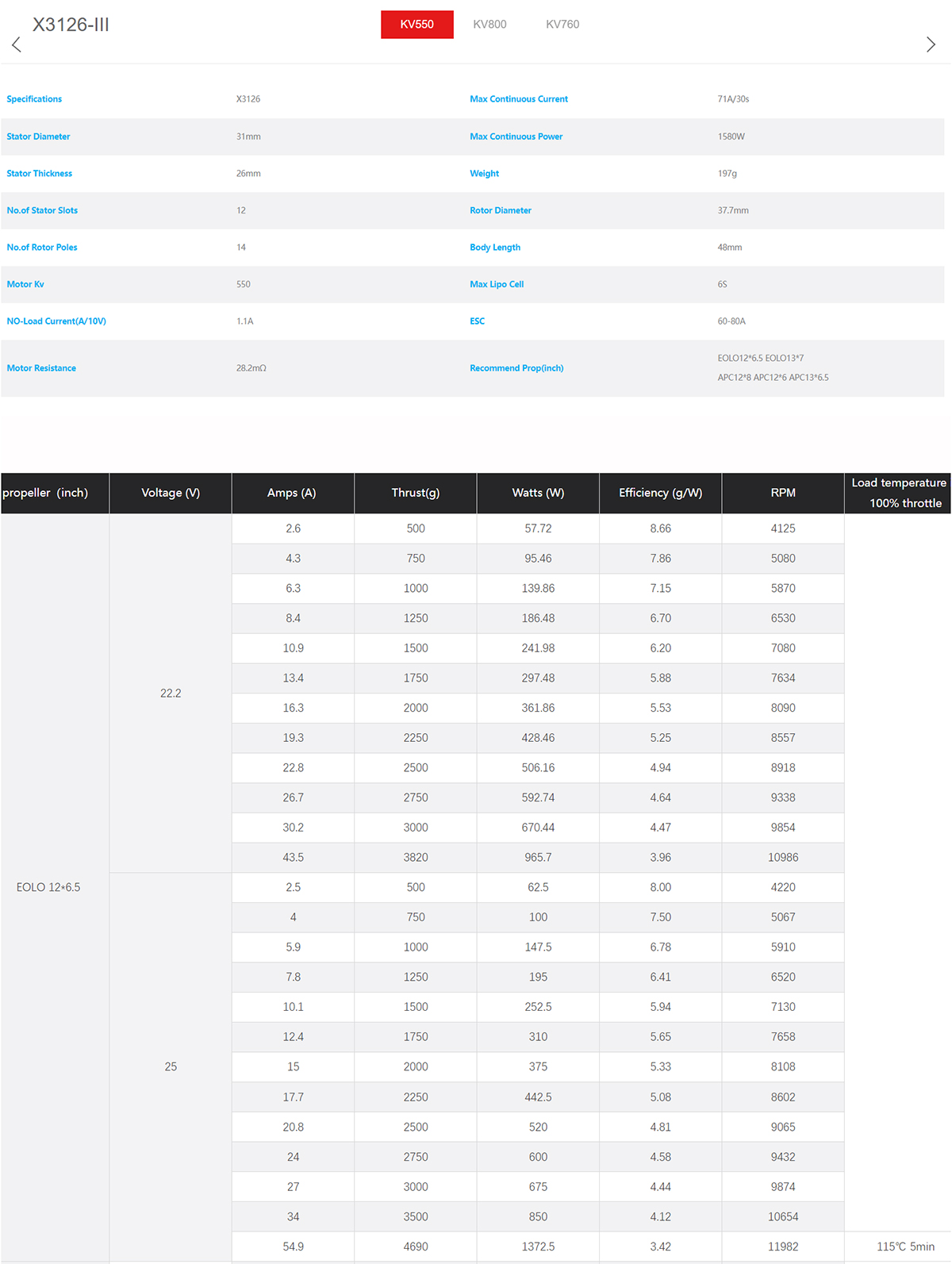

Model: X3126-III

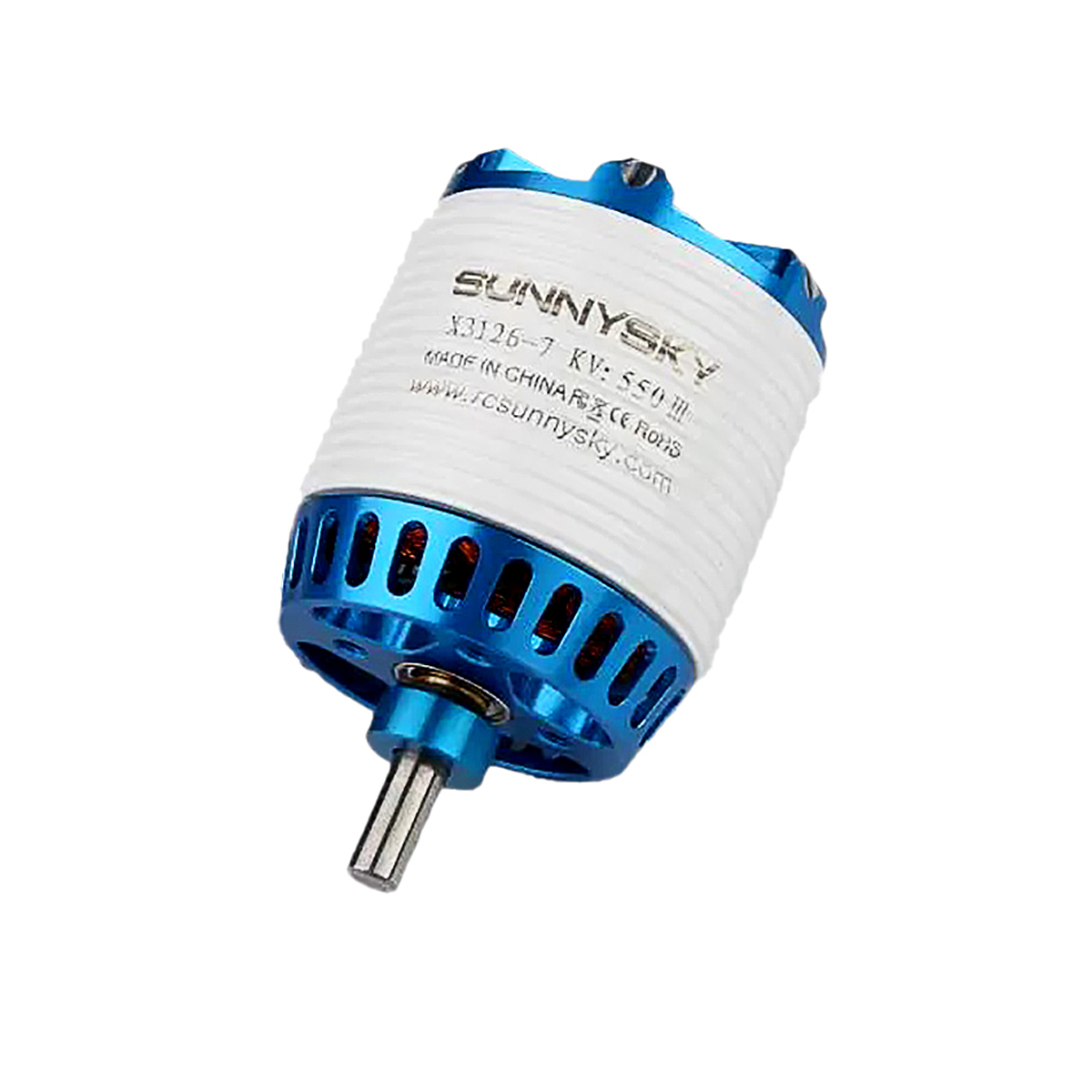

KV: 550KV
Stator/Rotor Poles: 12N14P
Internal Resistance: 28.2mΩ

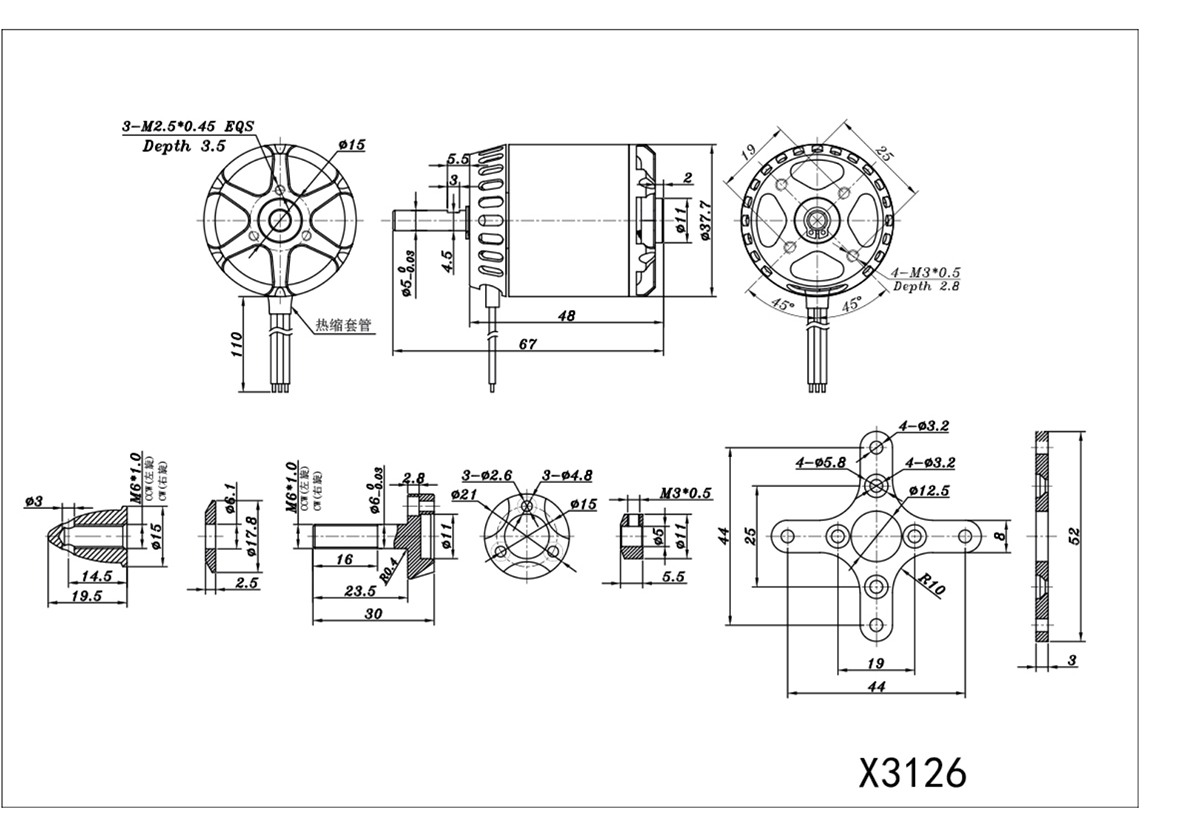

Motor Size: Motor length：48mm
Shaft Diameter: 5.0mm
AWG: 20AWG 110mm
Motor Weight (Wire Included): 197g
Motor Weight (Wire Excluded): No data
Rated Operational Voltage: 6S
No-Load Current: 1.1A/10V
Maximum Continuous Power: 1580W
Maximum Continuous Current: 71A/30s
ESC Recommended Use: 60-80A
Propeller Size Recommended Use: EOLO12*6.5/EOLO13*7/APC12*8 /APC12*6 /APC13*6.5

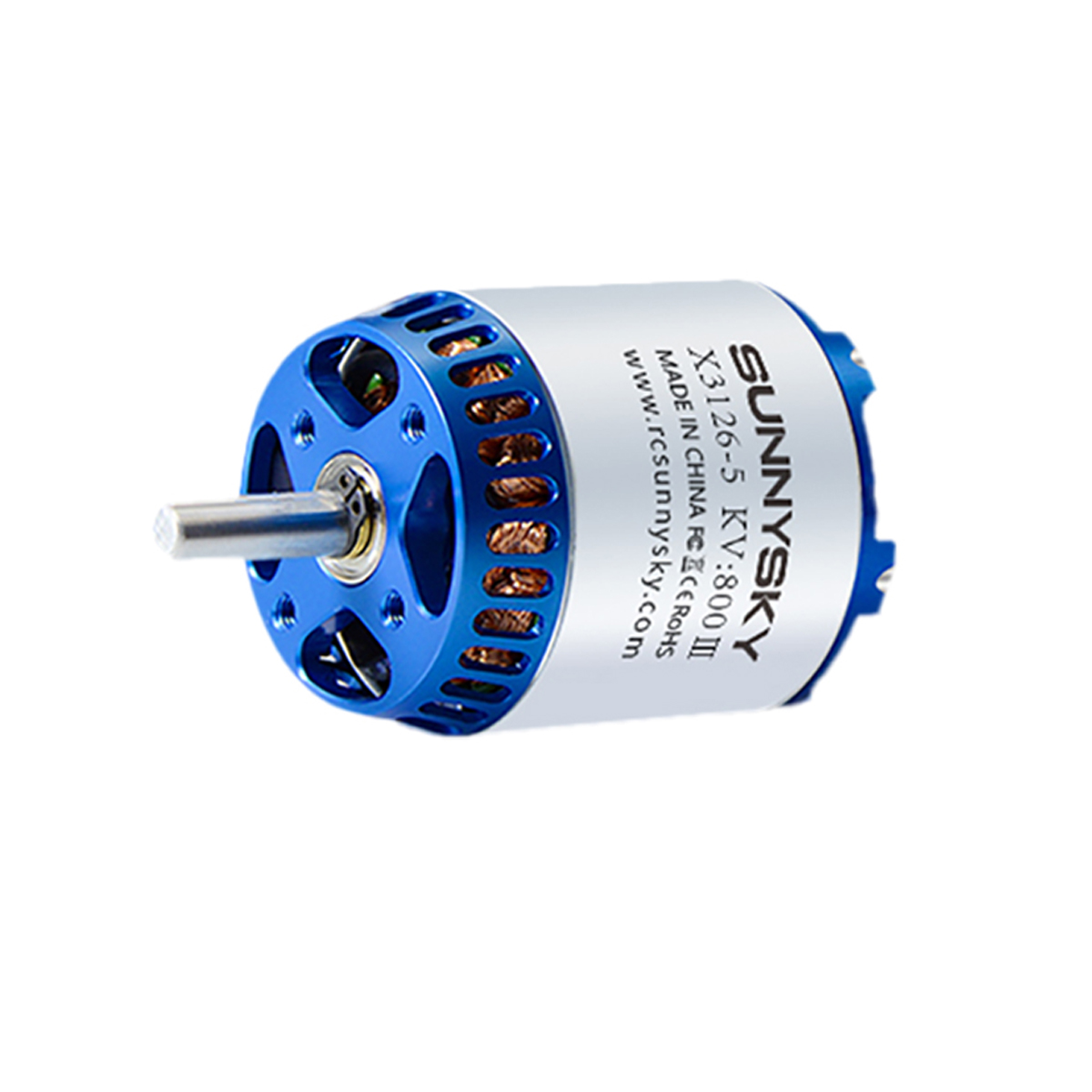

KV: 800KV
Stator/Rotor Poles: 12N14P
Internal Resistance: 16.8mΩ
Motor Size: Motor length：48mm
Shaft Diameter: 5.0mm
AWG: 20AWG 110mm
Motor Weight (Wire Included): 196g
Motor Weight (Wire Excluded): No data
Rated Operational Voltage: 3-4S
No-Load Current: 1.9A/10V
Maximum Continuous Power: 1500W
Maximum Continuous Current: 89A/30s
ESC Recommended Use: 60-80A
Propeller Size Recommended Use: EOLO12*6.5/EOLO13*7/EOLO14*7/APC12*8/APC12*6/APC13*6.5
