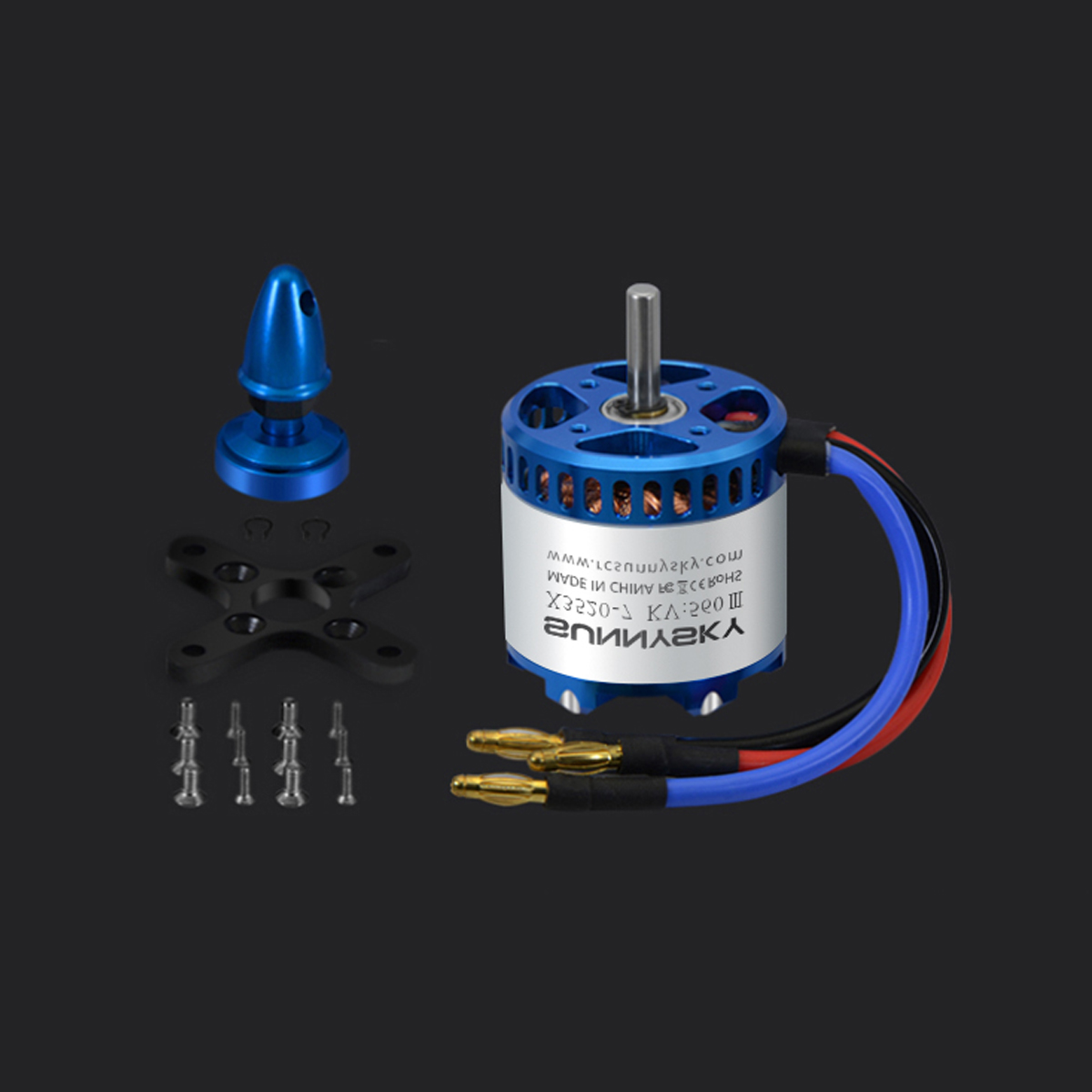

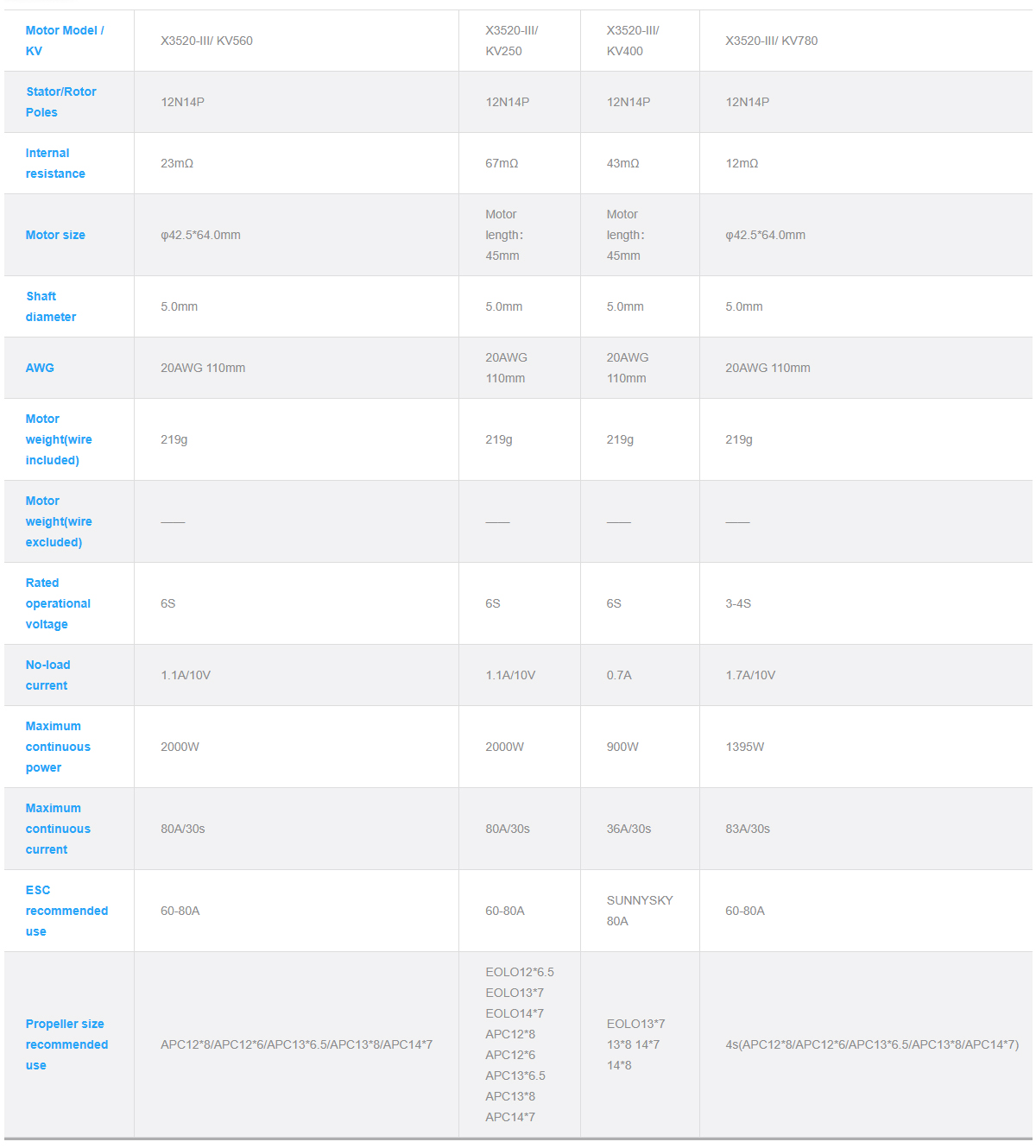

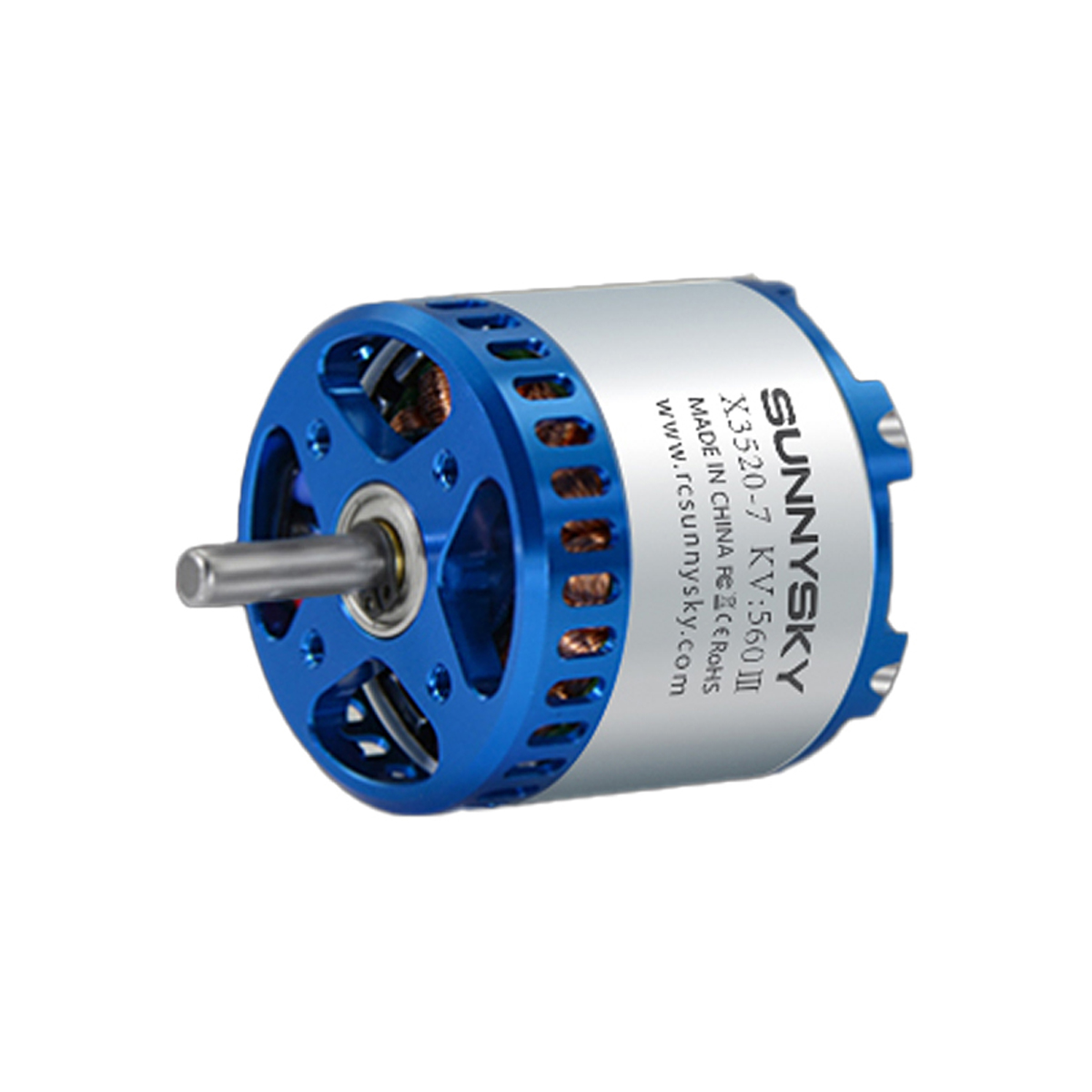

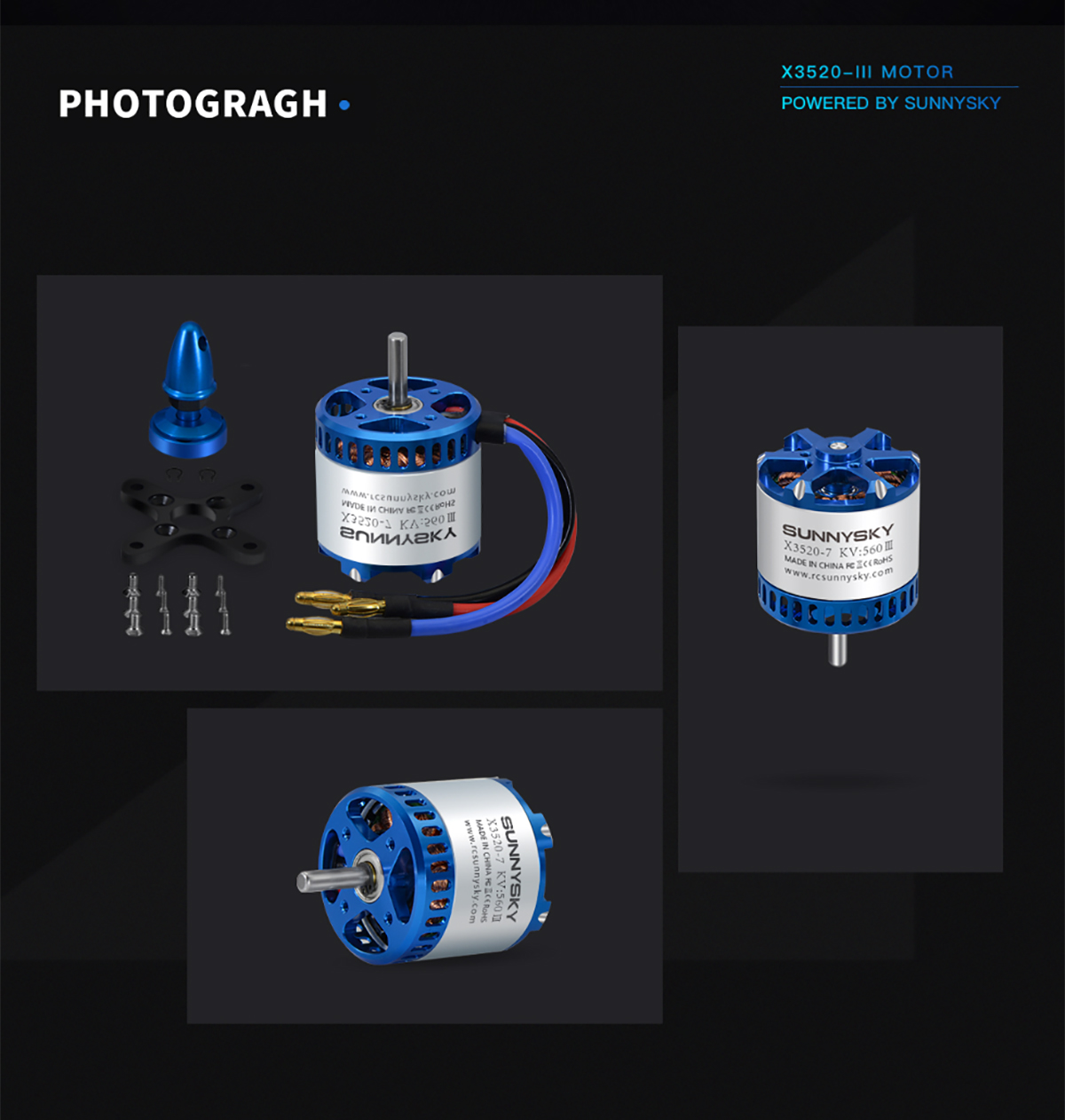

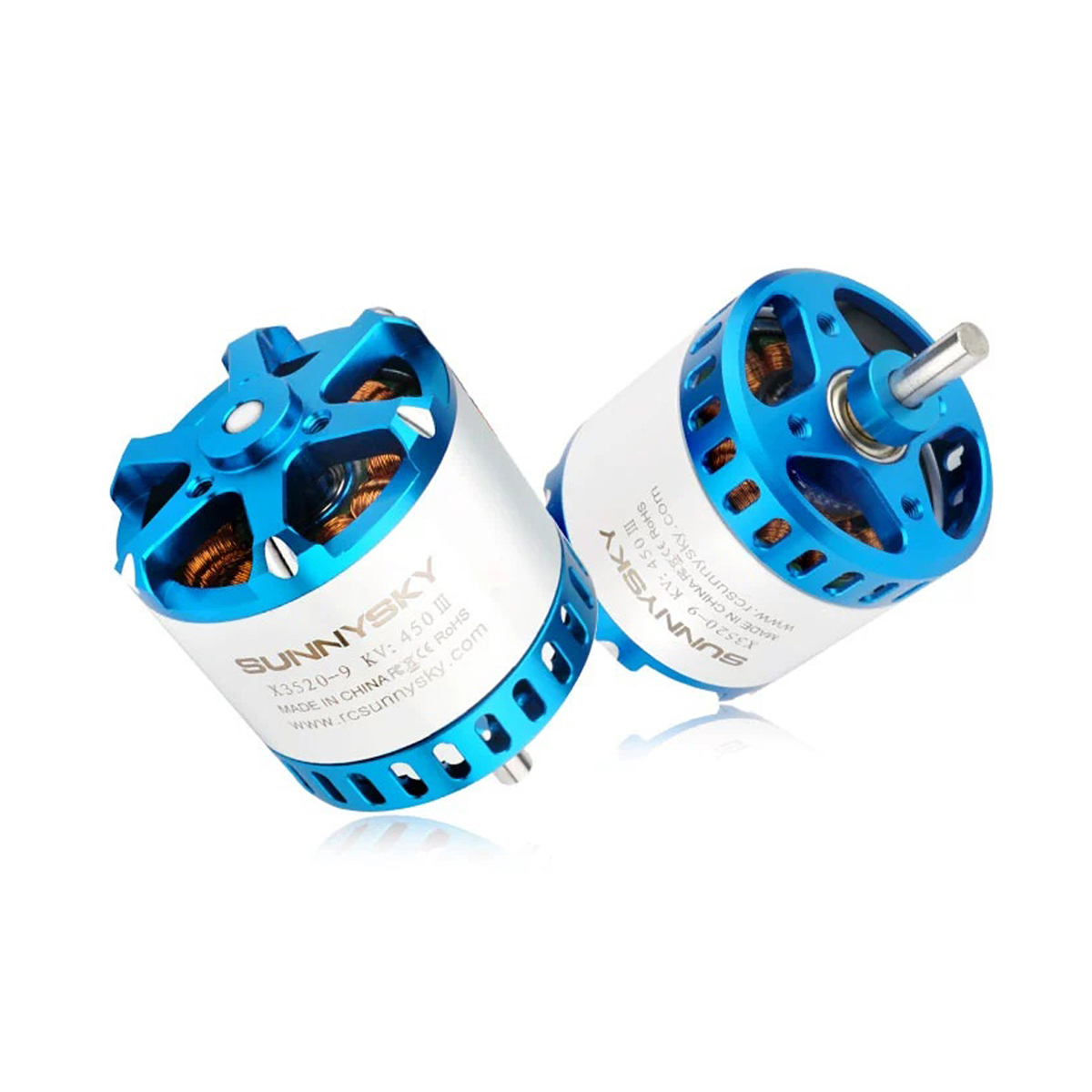

Model: X3520-III

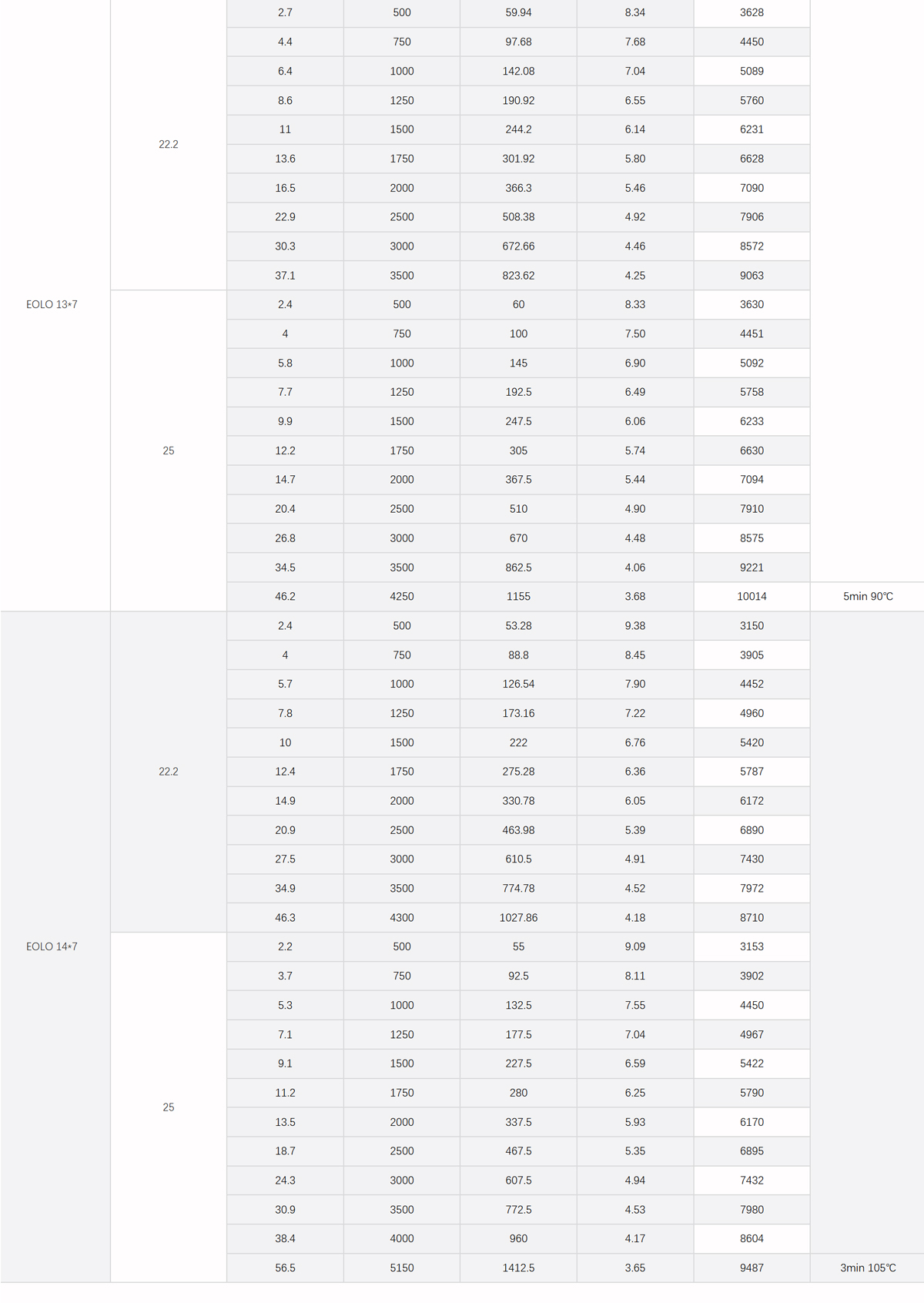

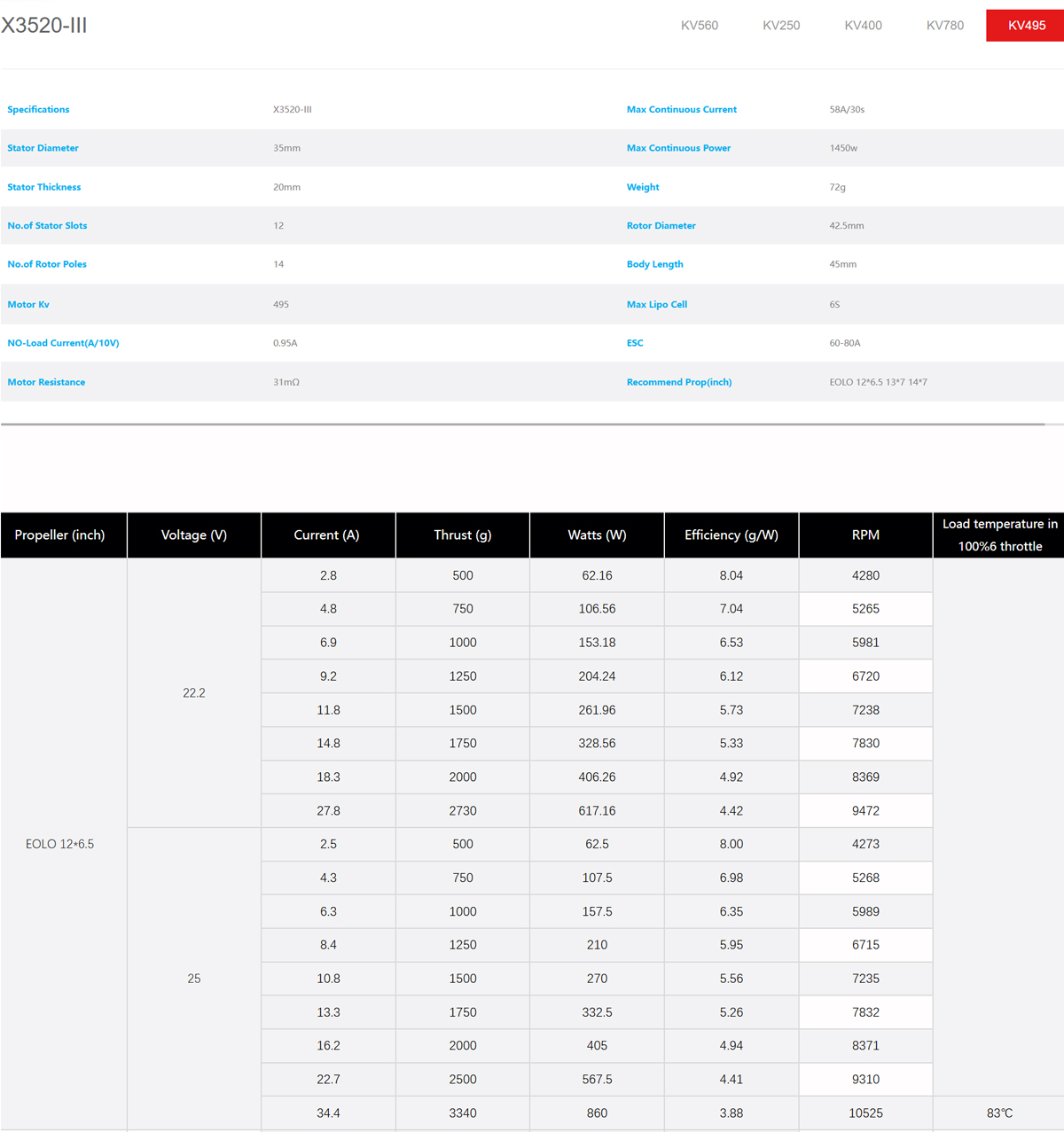

KV: 495KV
Stator/Rotor Poles: 12N14P
Internal Resistance: 31mΩ

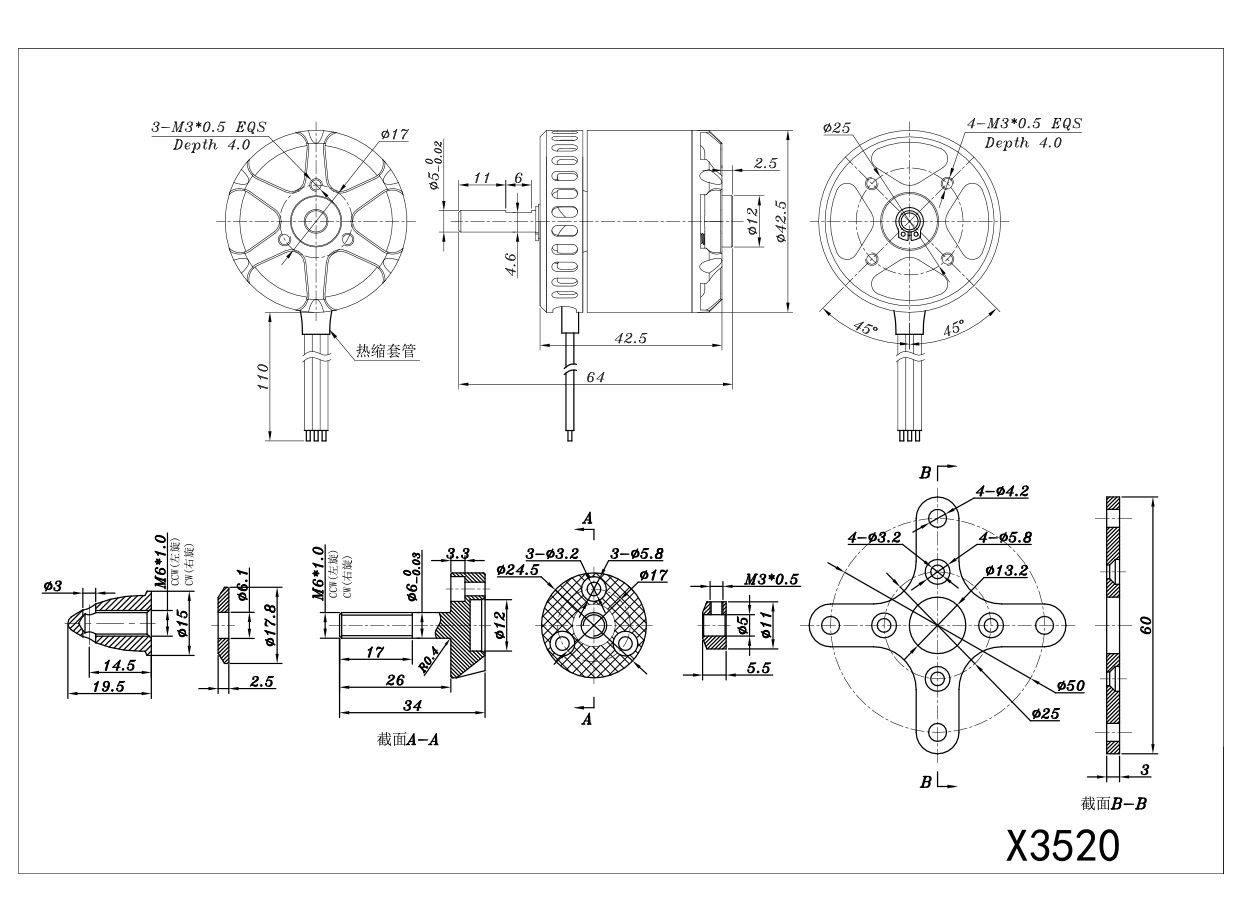

Motor Size: φ42.5*48.0mm
Shaft Diameter: 5.0mm
AWG: 20AWG 110mm
Motor Weight (Wire Included): 72g
Motor Weight (Wire Excluded): No data
Rated Operational Voltage: 6S
No-Load Current: 0.95A
Maximum Continuous Power: 1450w
Maximum Continuous Current: 58A/30s
ESC Recommended Use: 60-80A
Propeller Size Recommended Use: EOLO 12*6.5/13*7/14*7

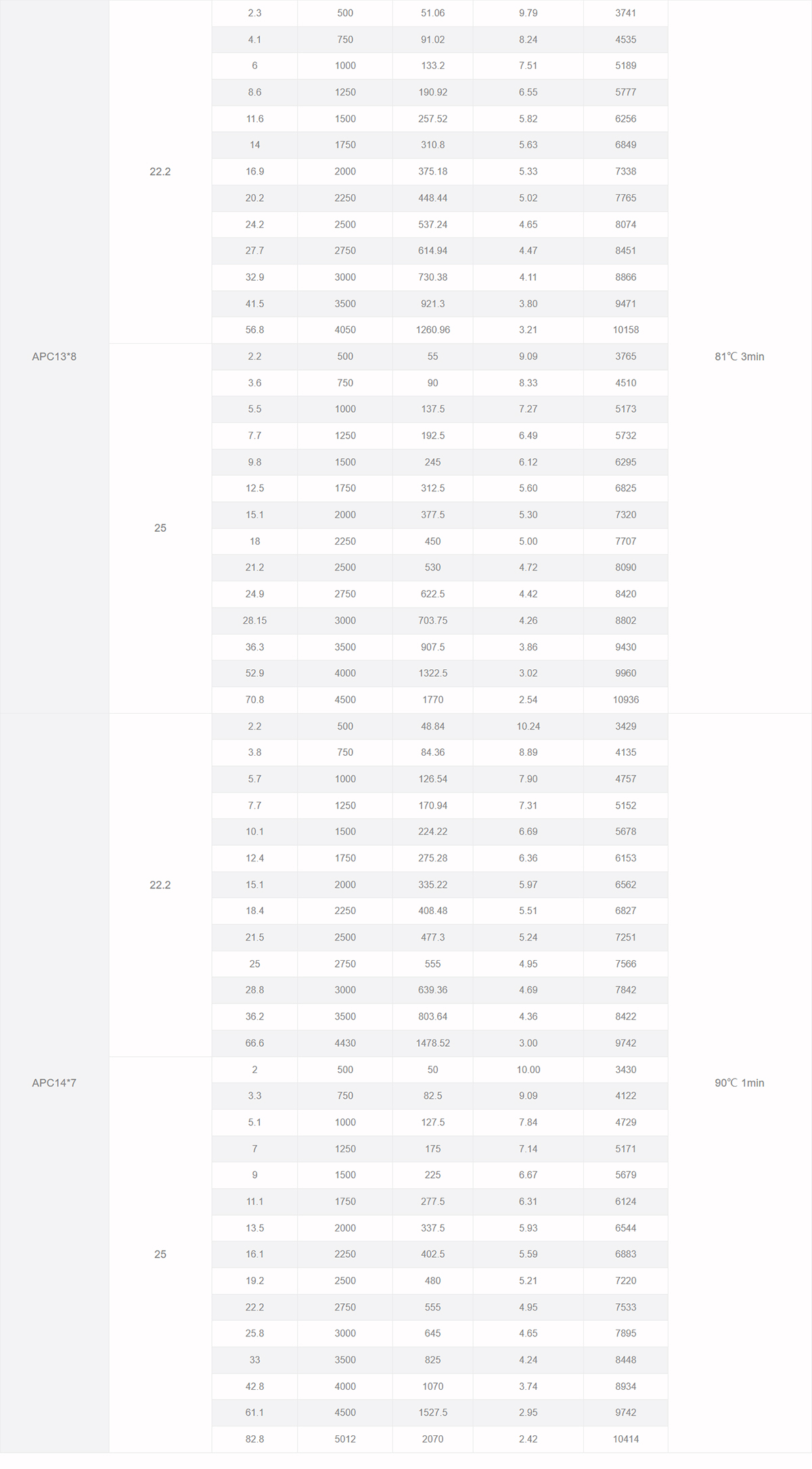

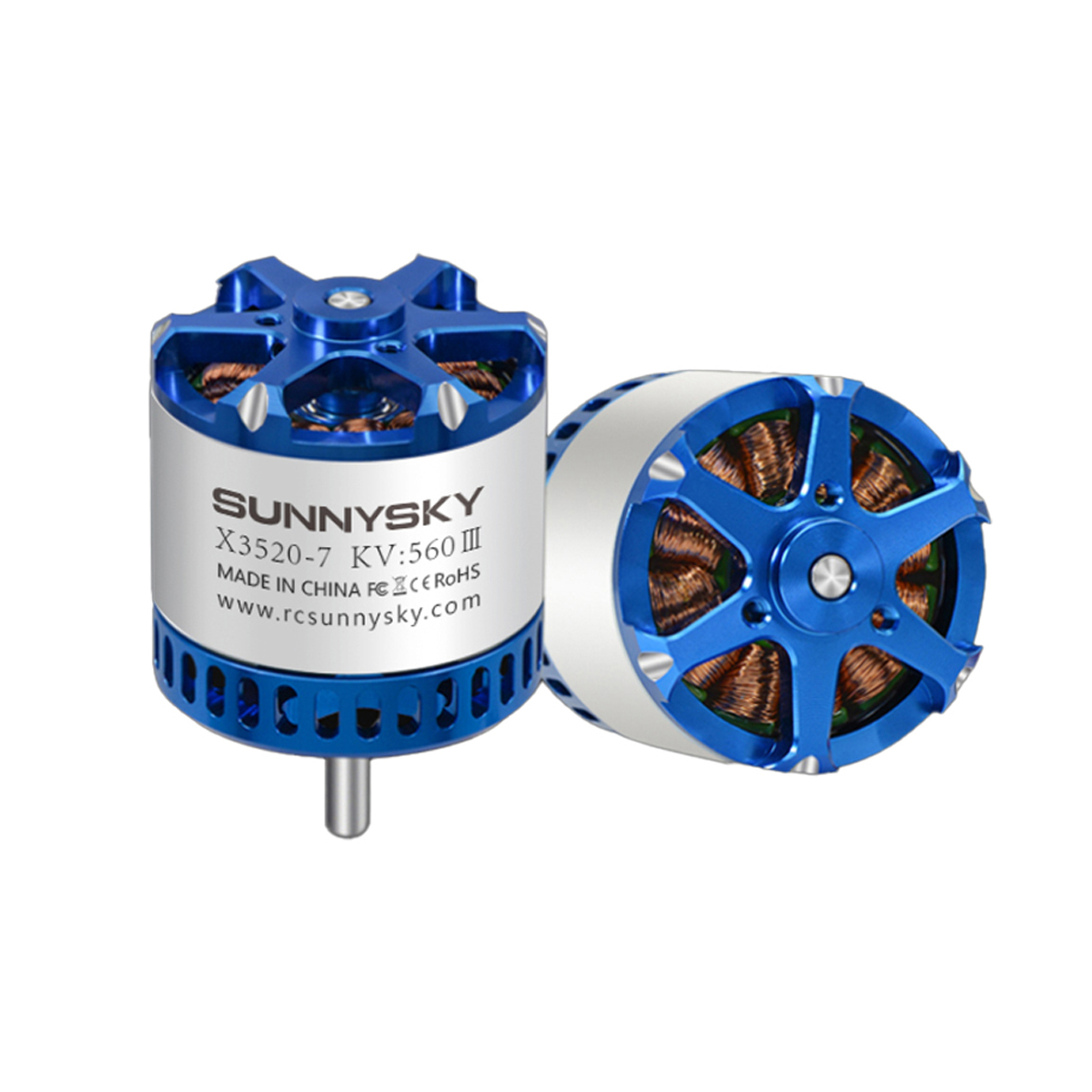

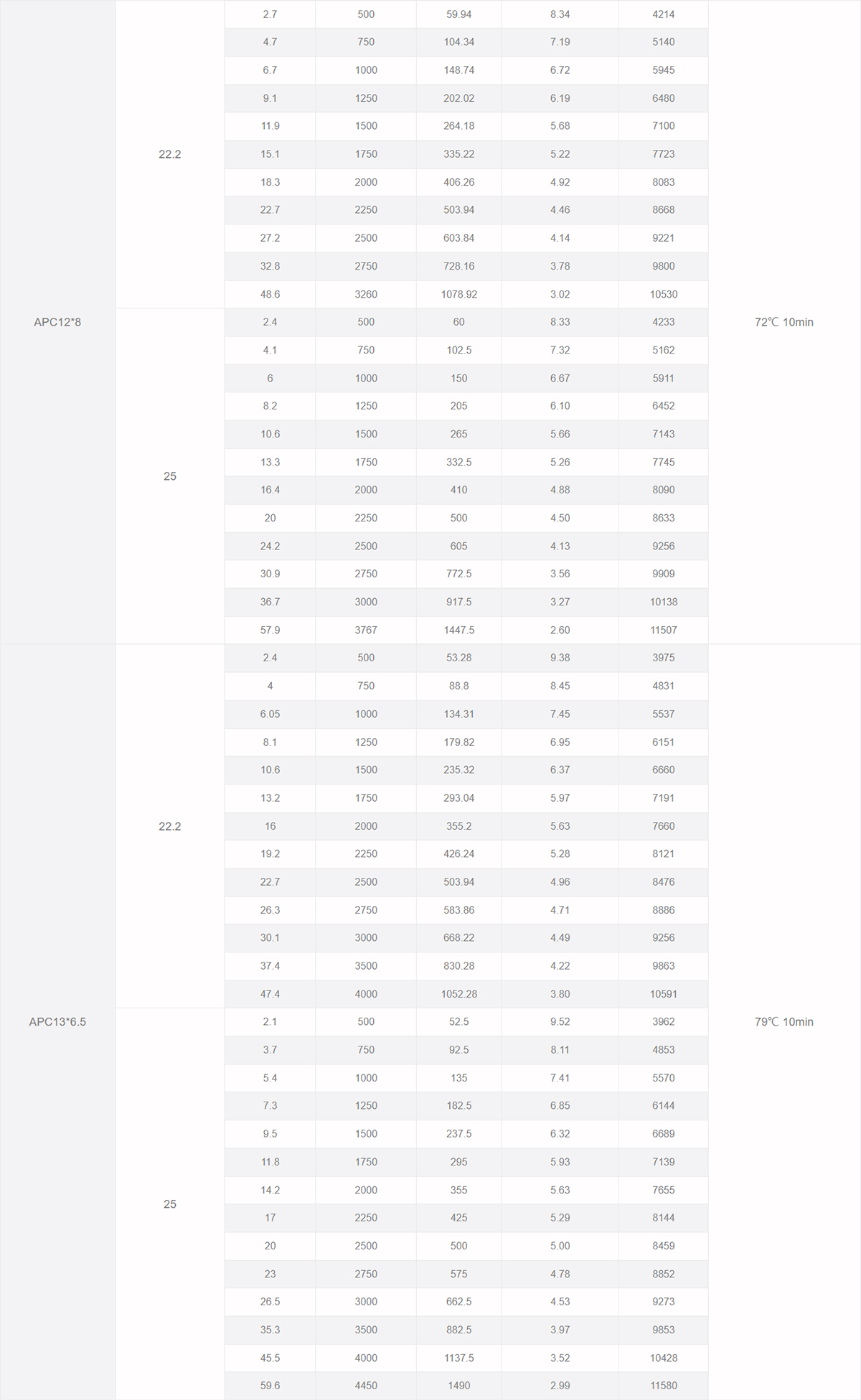

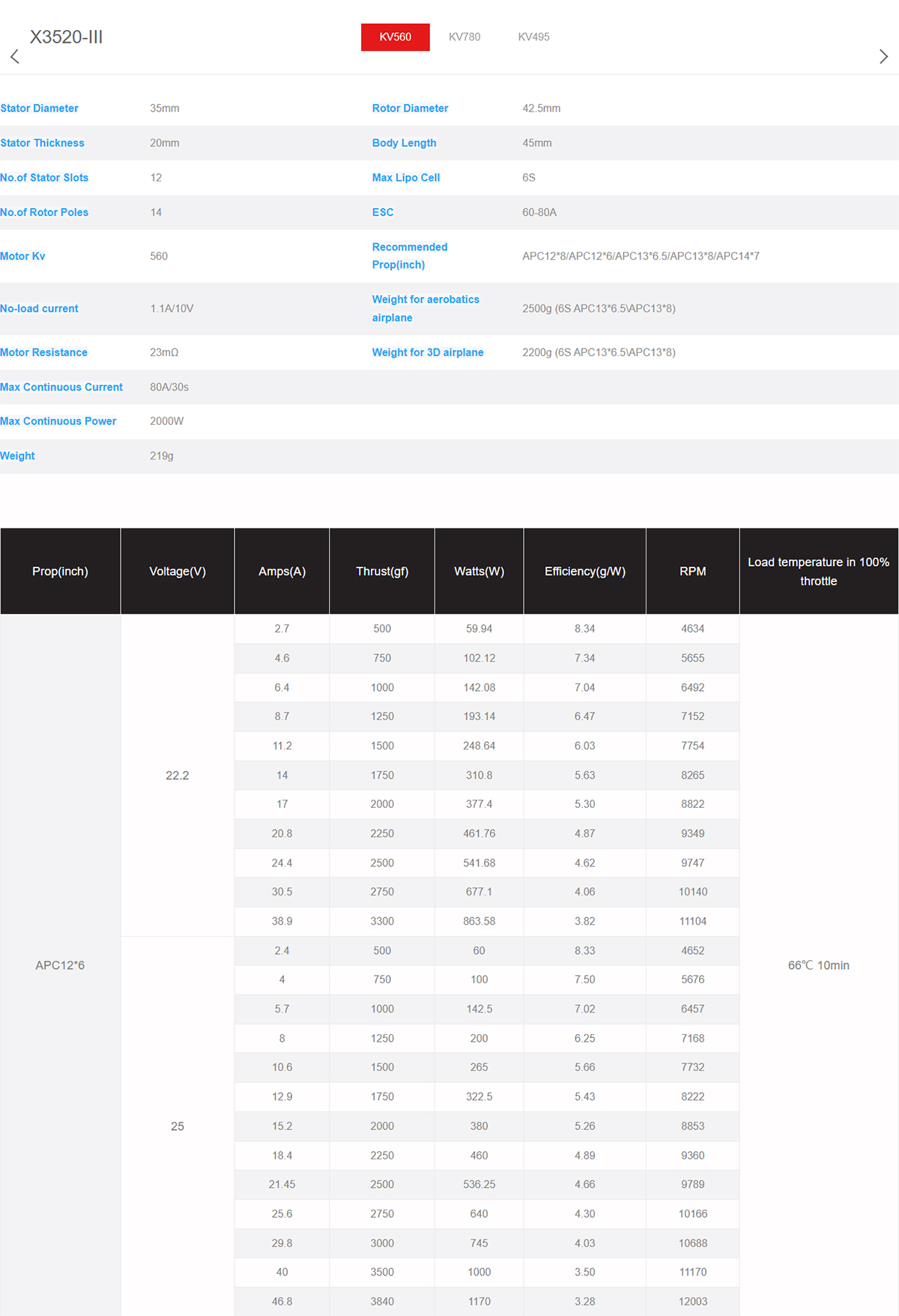

KV: 560KV
Stator/Rotor Poles: 12N14P
Internal Resistance: 23mΩ
Motor Size: φ42.5*64.0mm
Shaft Diameter: 5.0mm
AWG: 20AWG 110mm
Motor Weight (Wire Included): 219g
Motor Weight (Wire Excluded): No data
Rated Operational Voltage: 6S
No-Load Current: 1.1A/10V
Maximum Continuous Power: 2000W
Maximum Continuous Current: 80A/30s
ESC Recommended Use: 60-80A
Propeller Size Recommended Use: APC12*8/APC12*6/APC13*6.5/APC13*8/APC14*7

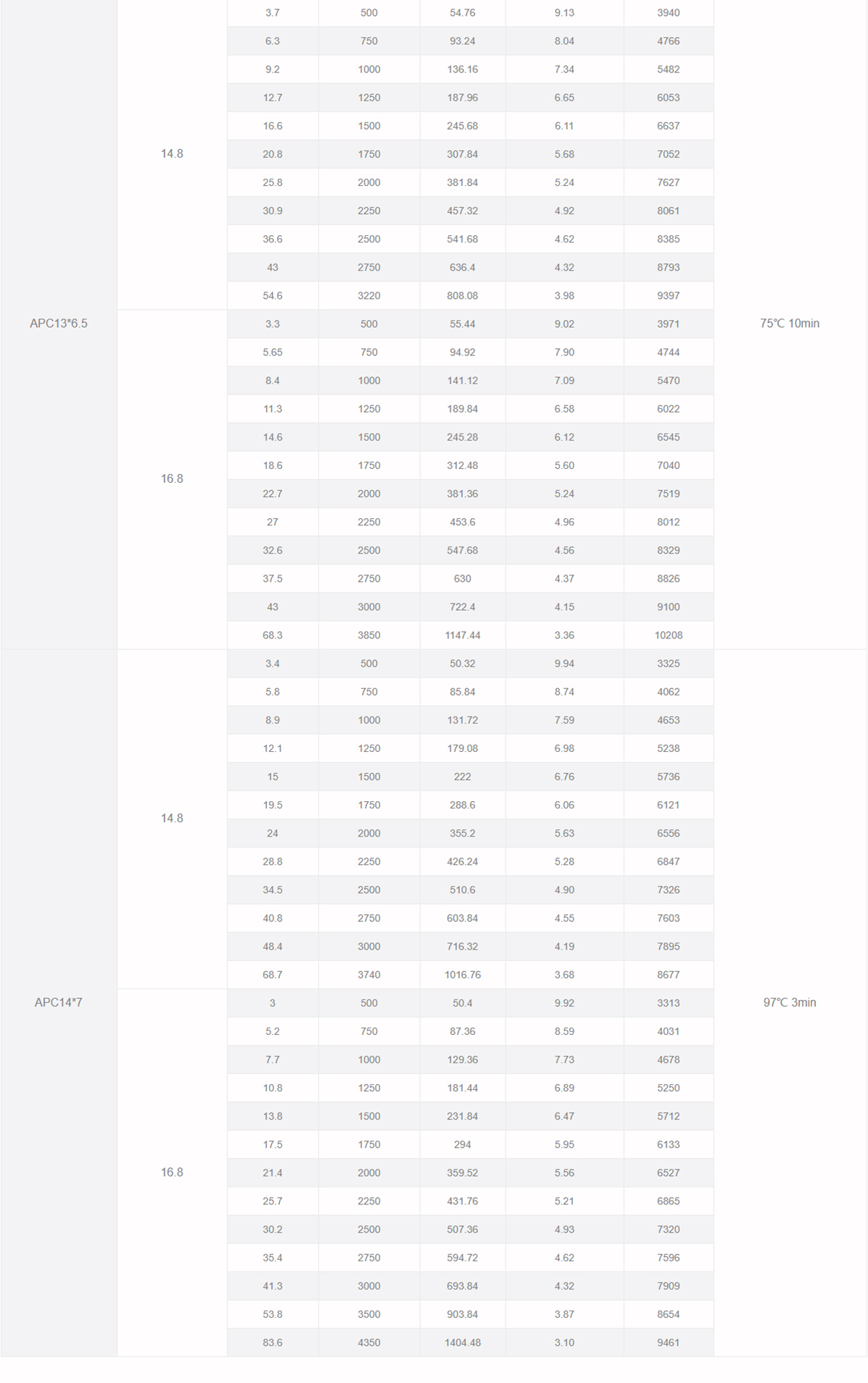

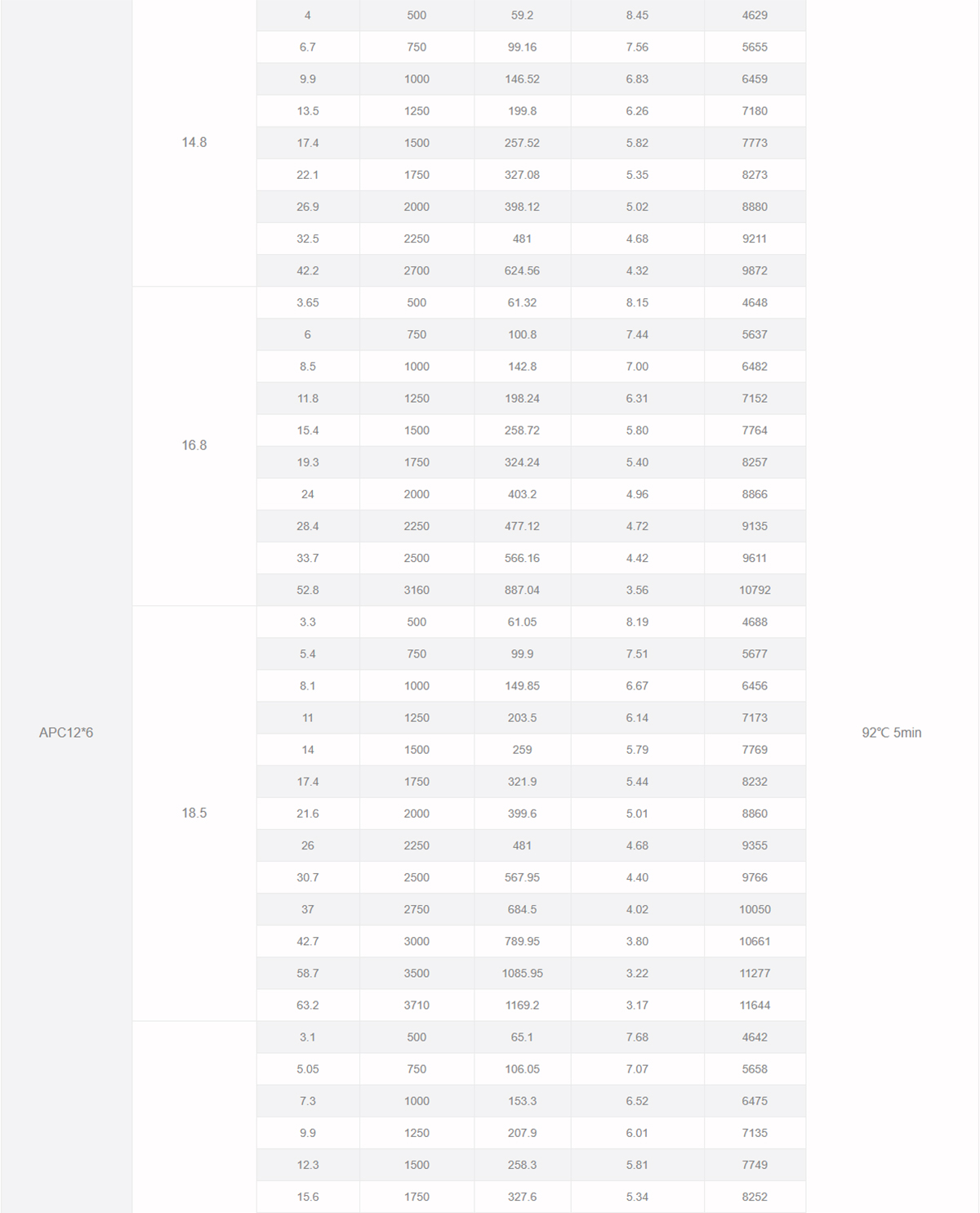

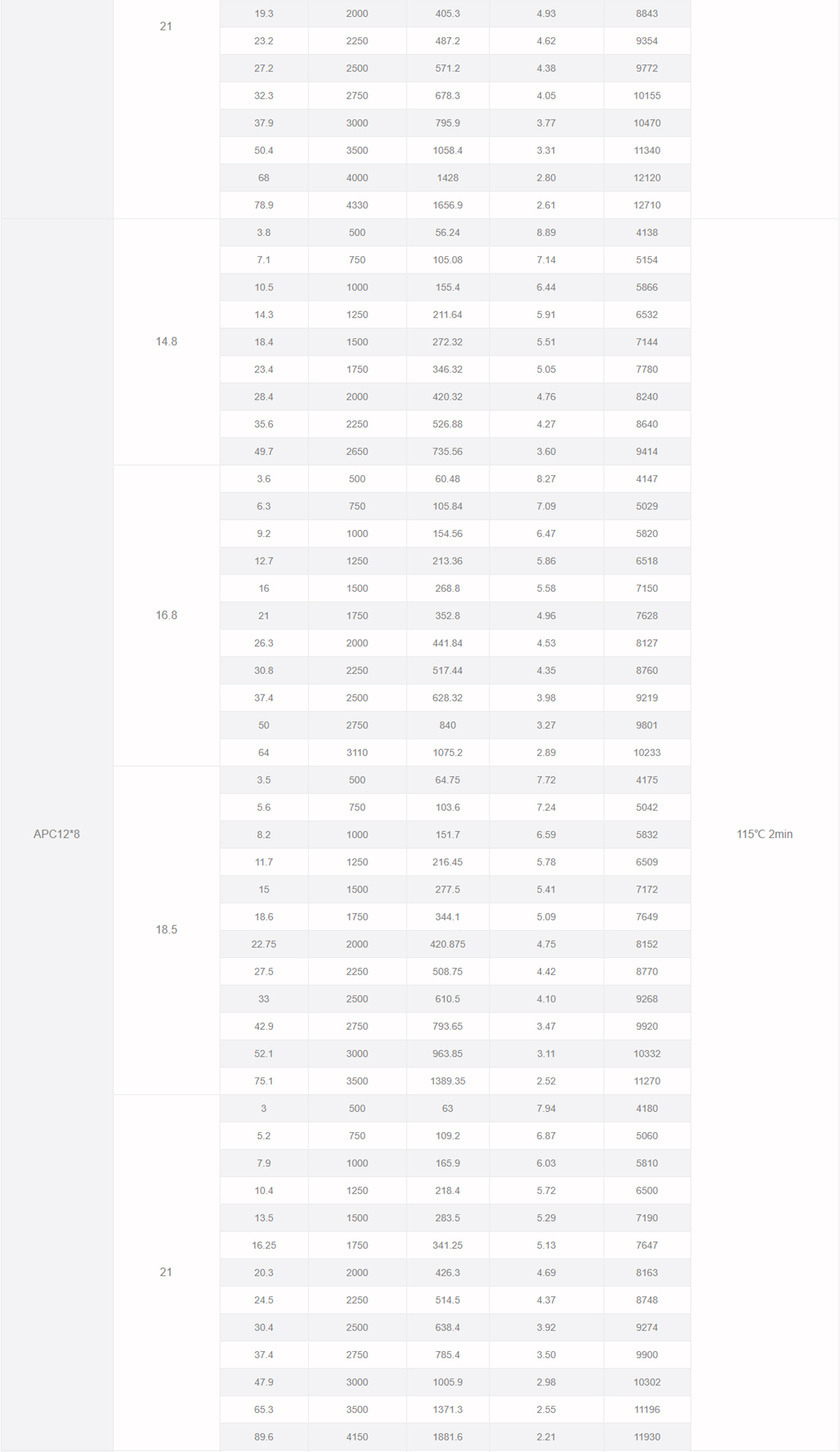

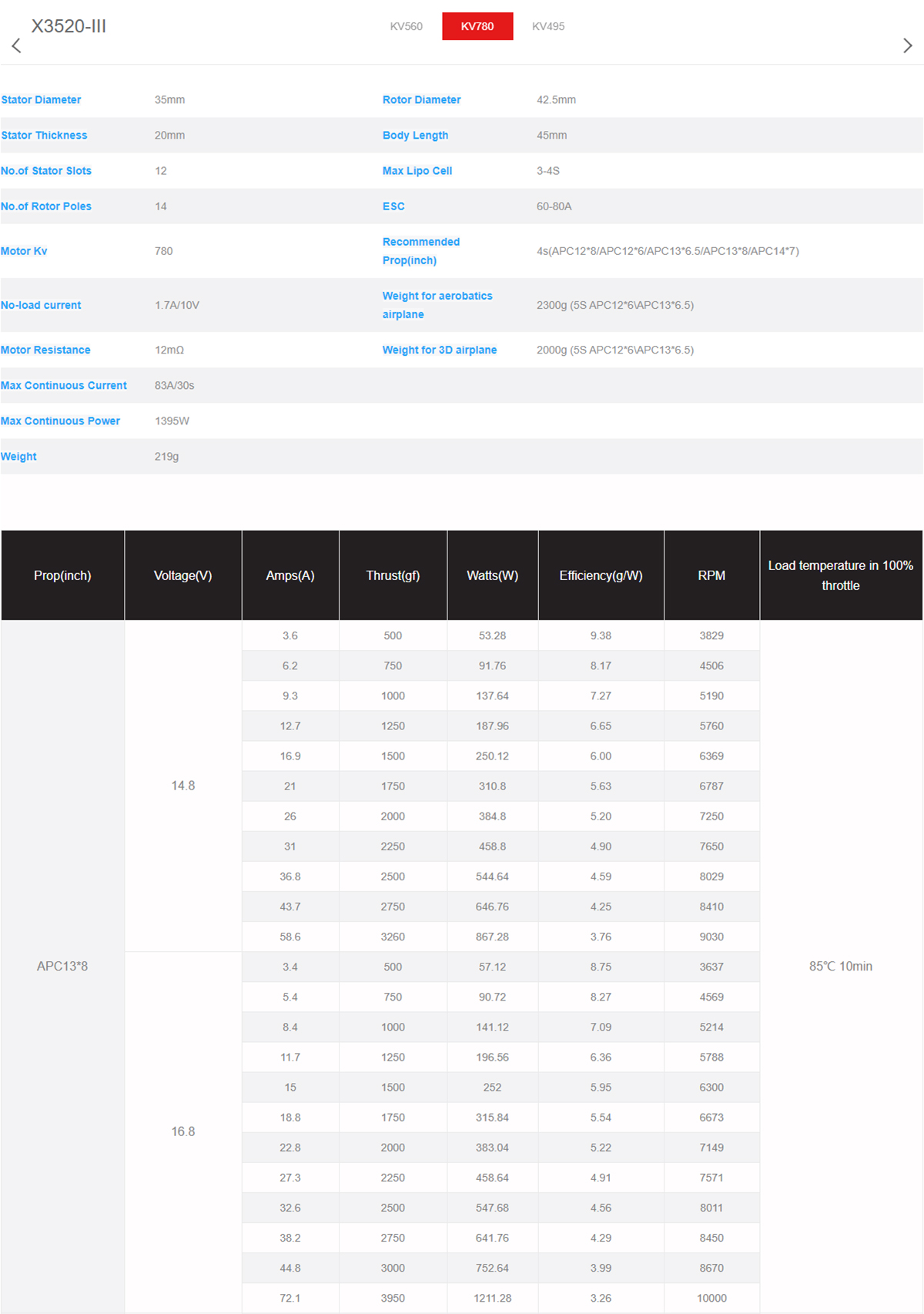

KV: 780KV
Stator/Rotor Poles: 12N14P
Internal Resistance: 12mΩ
Motor Size: φ42.5*64.0mm
Shaft Diameter: 5.0mm
AWG: 20AWG 110mm
Motor Weight (Wire Included): 219g
Motor Weight (Wire Excluded): No data
Rated Operational Voltage: 3-4S
No-Load Current: 1.7A/10V
Maximum Continuous Power: 1395W
Maximum Continuous Current: 83A/30s
ESC Recommended Use: 60-80A
Propeller Size Recommended Use: 4s(APC12*8/APC12*6/APC13*6.5/APC13*8/APC14*7)
