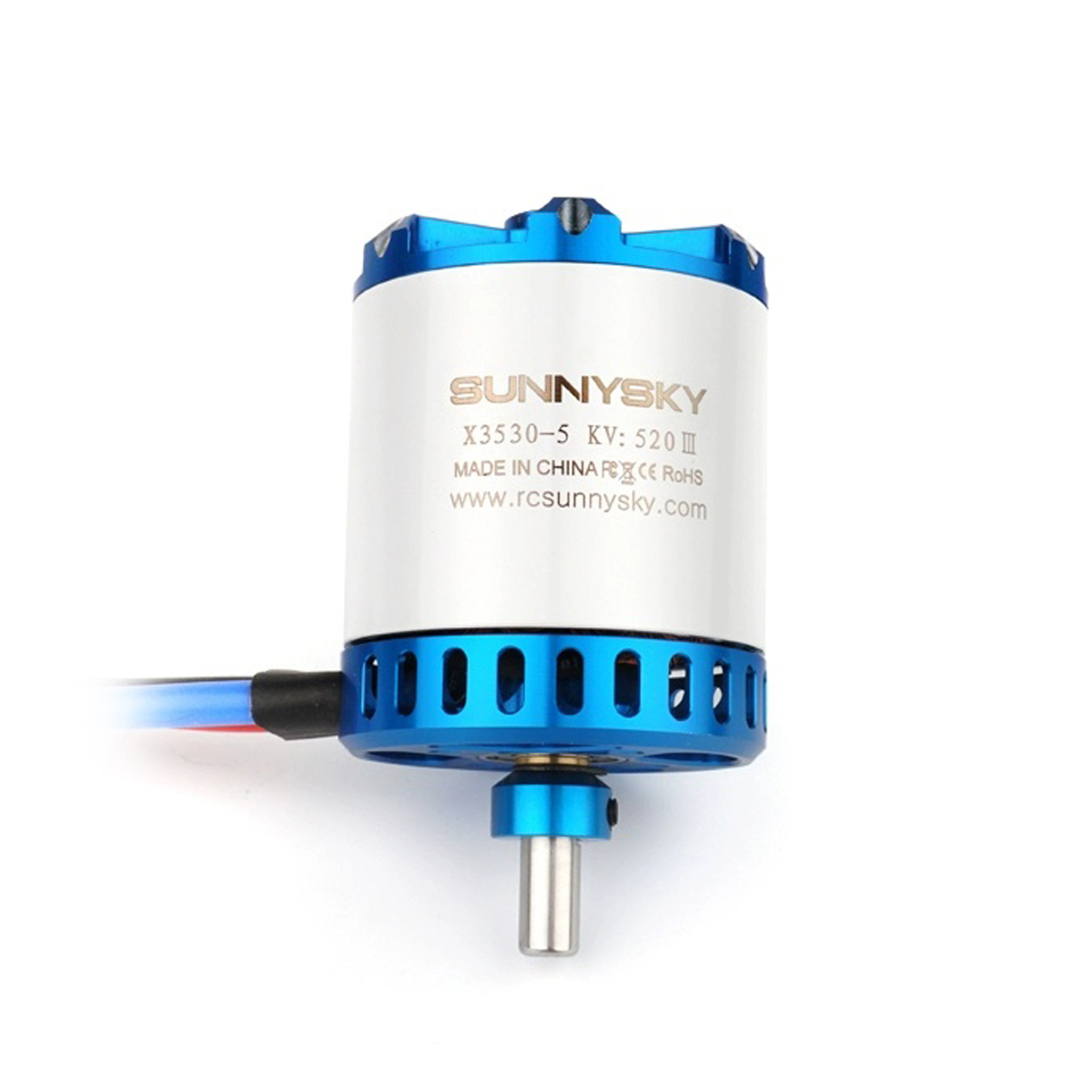

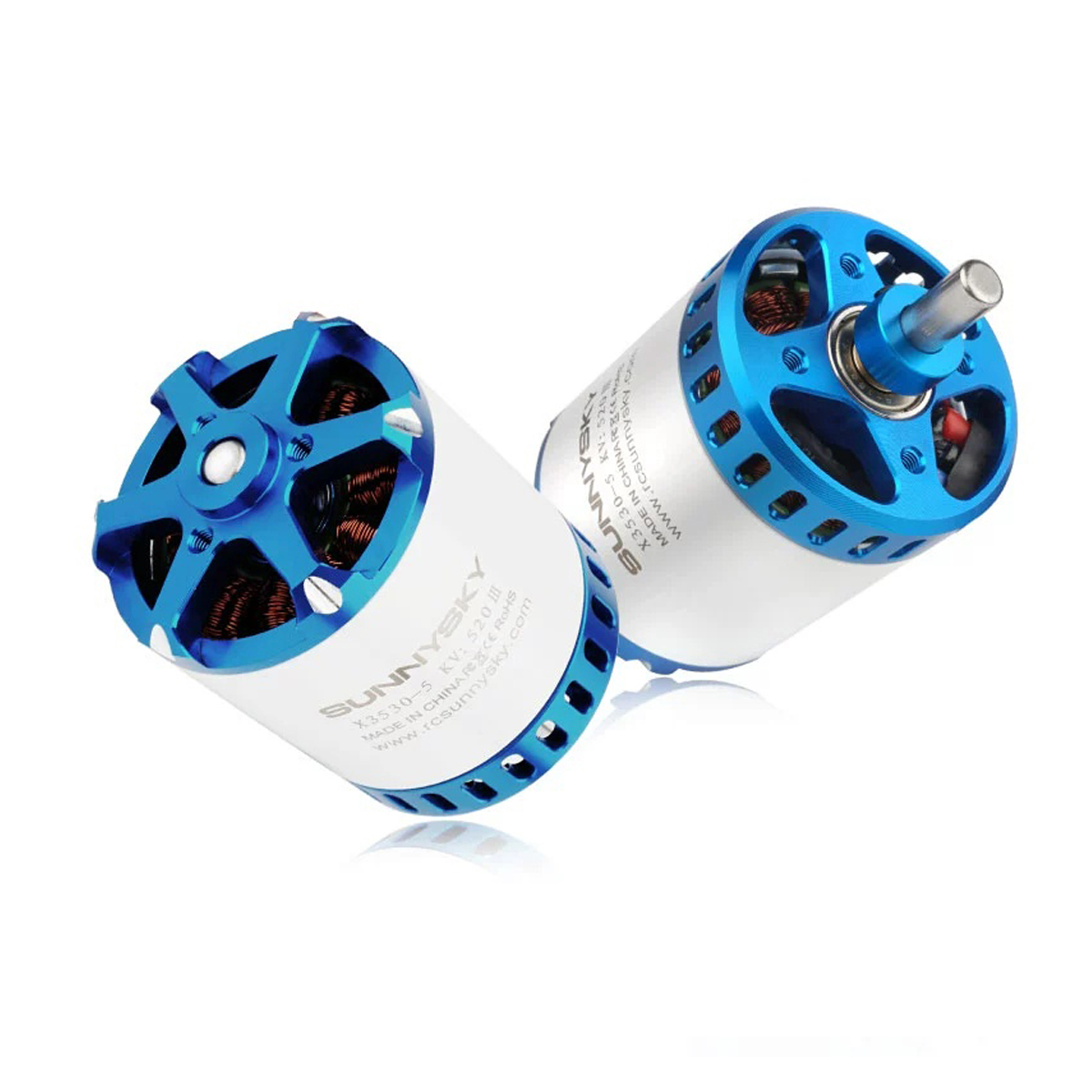

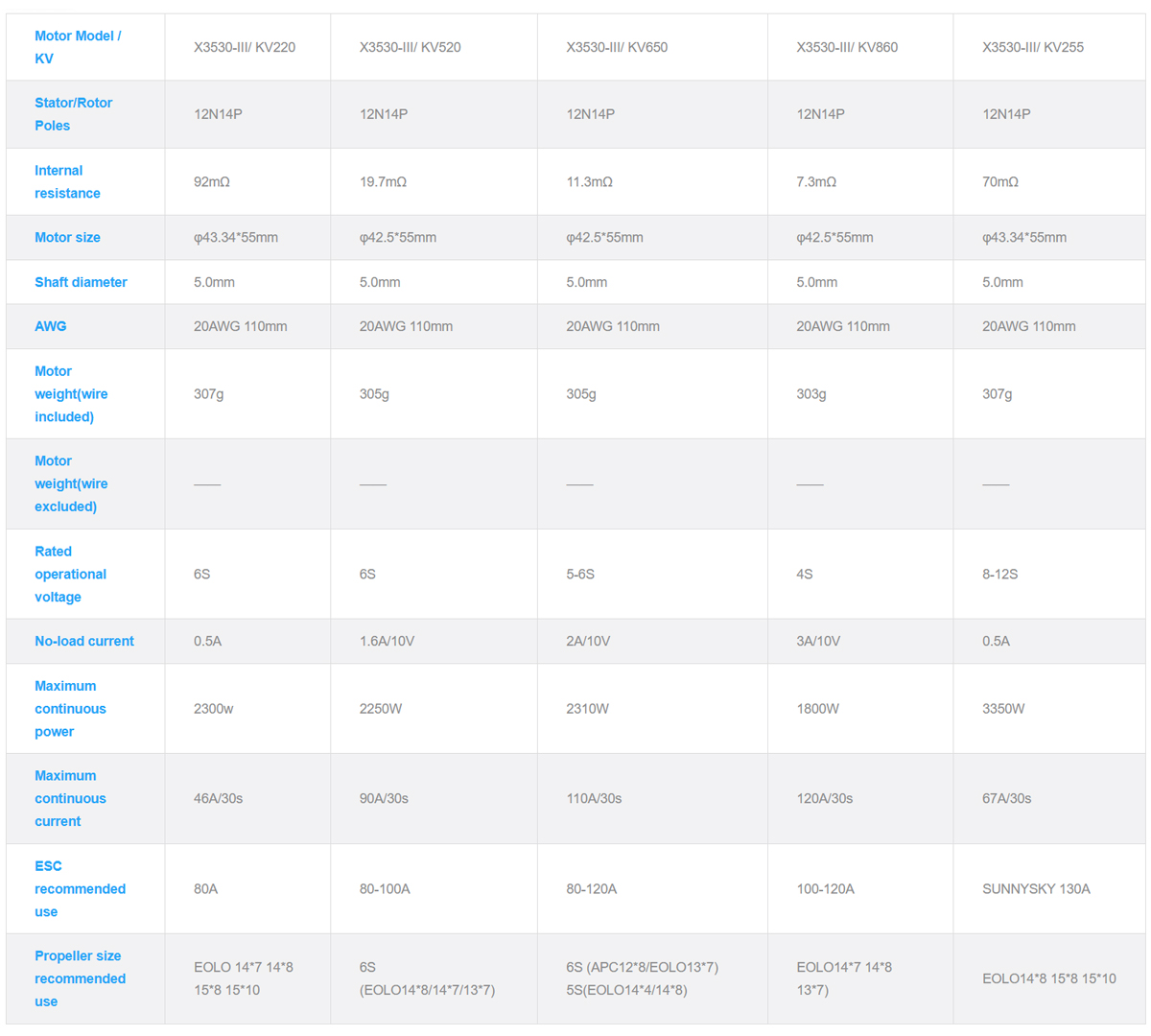

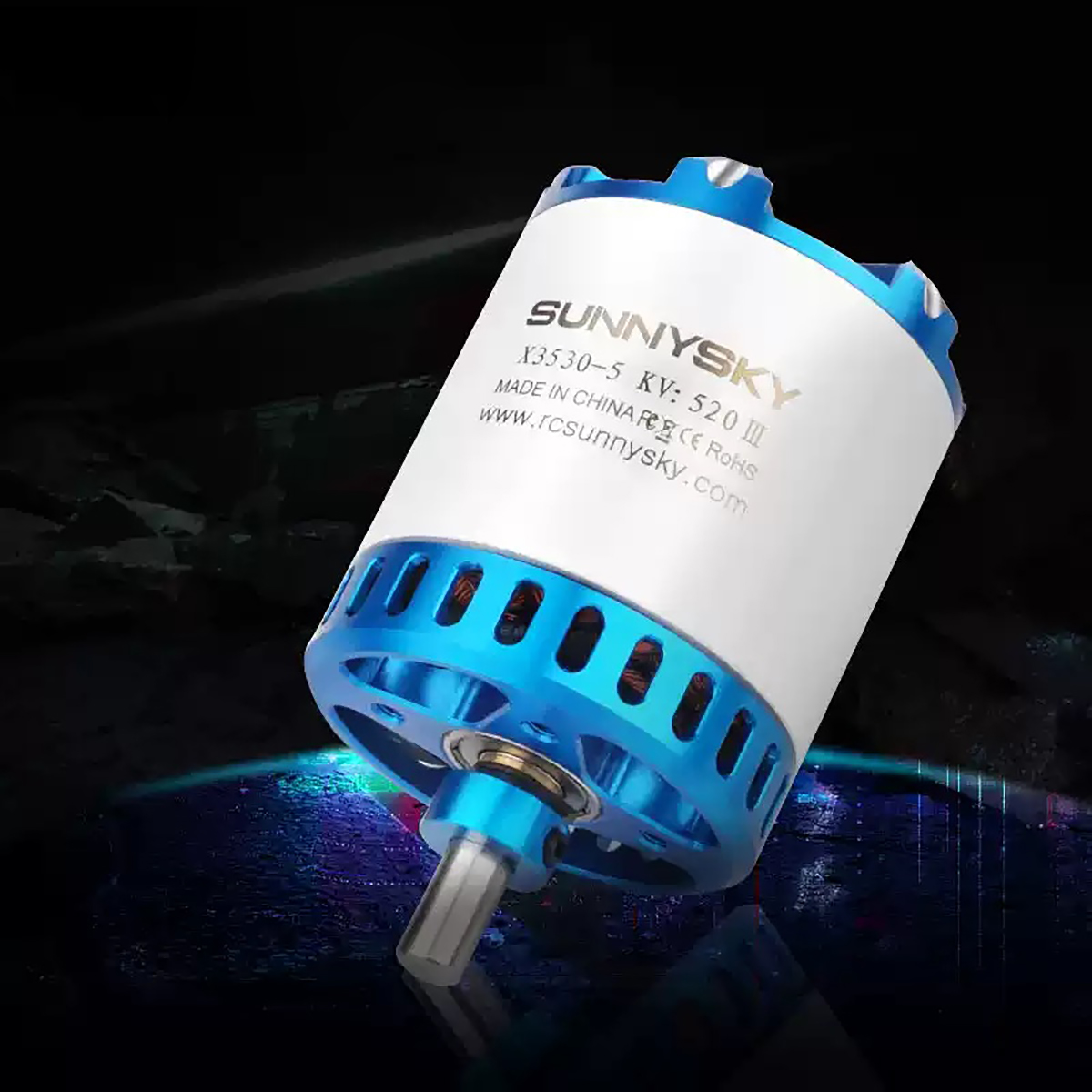

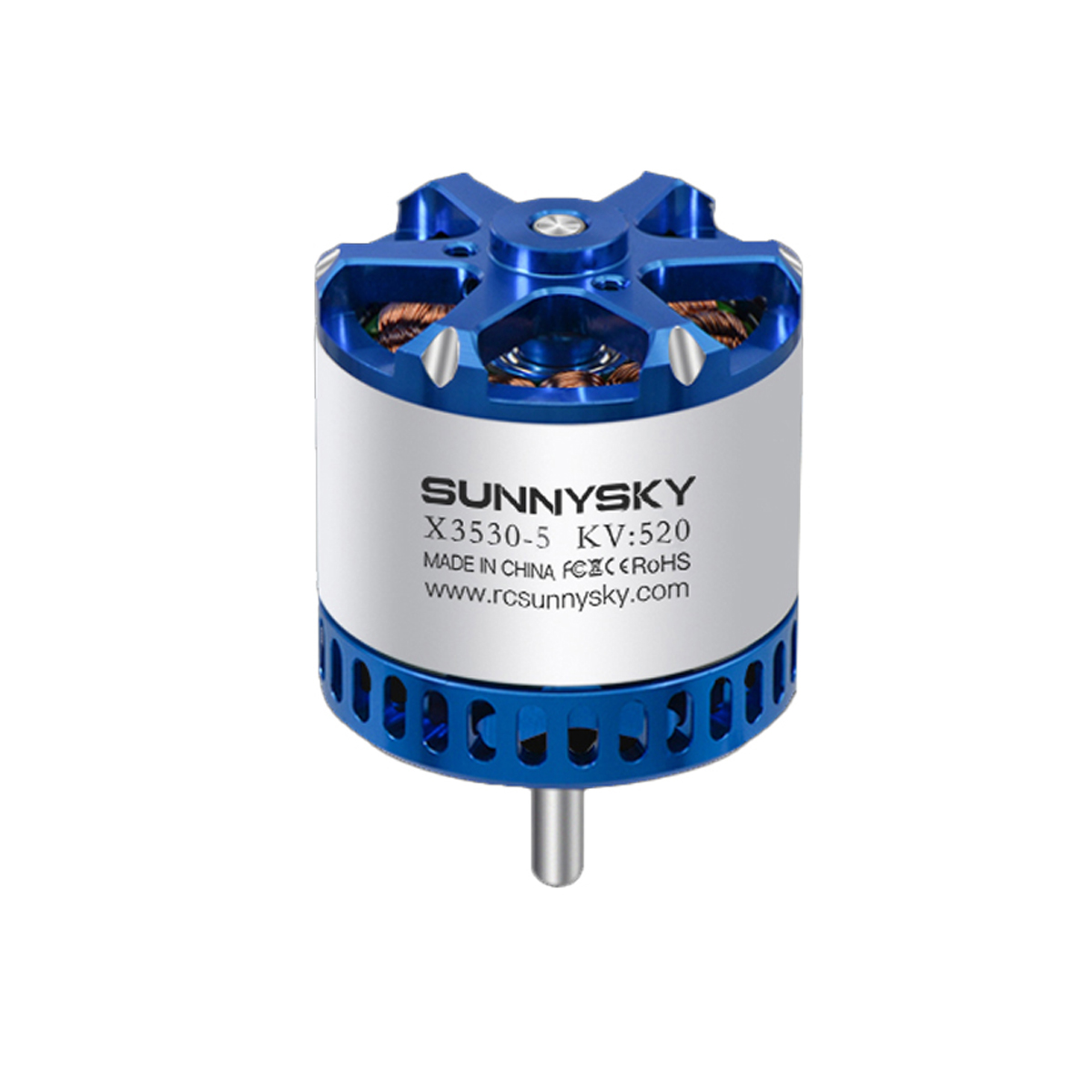

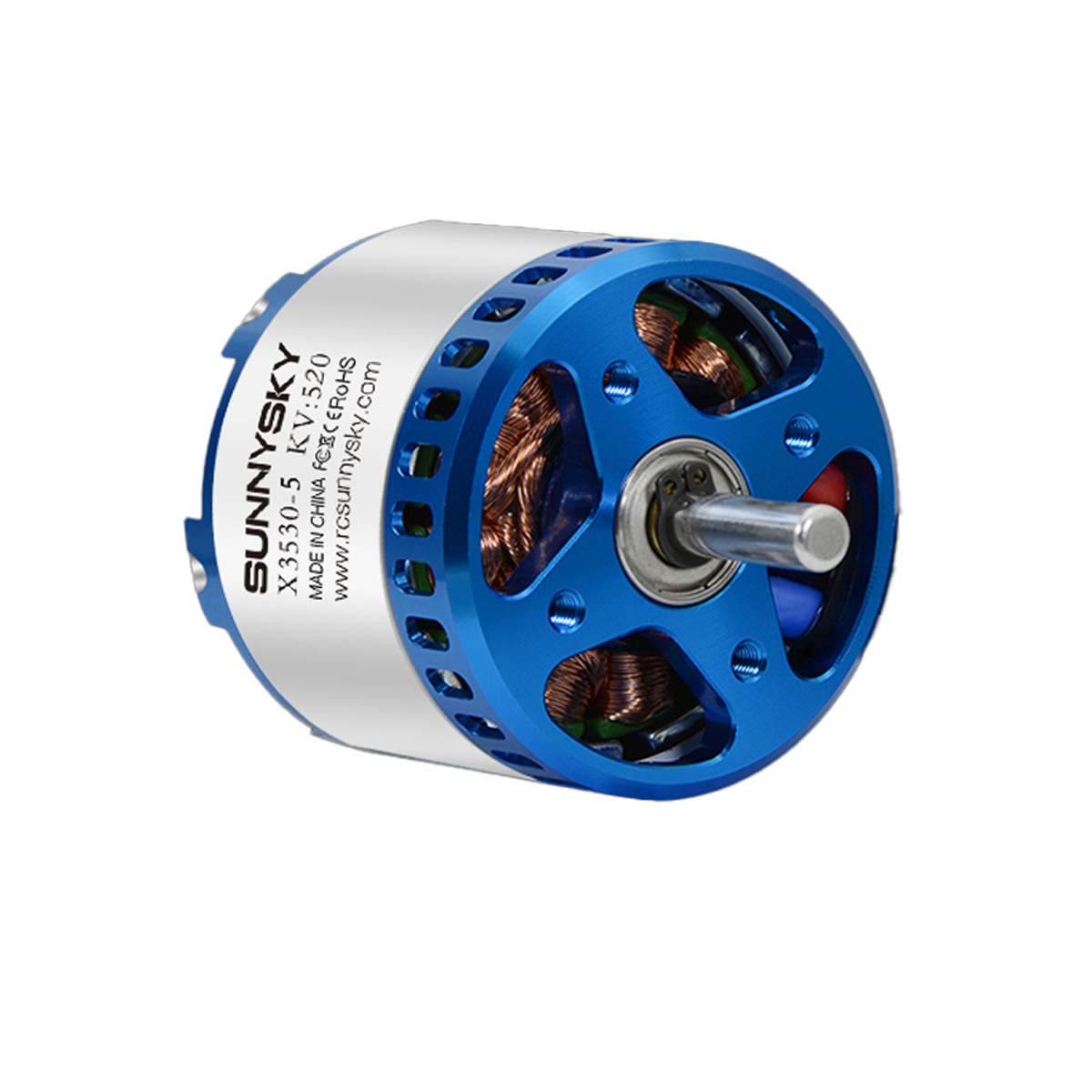

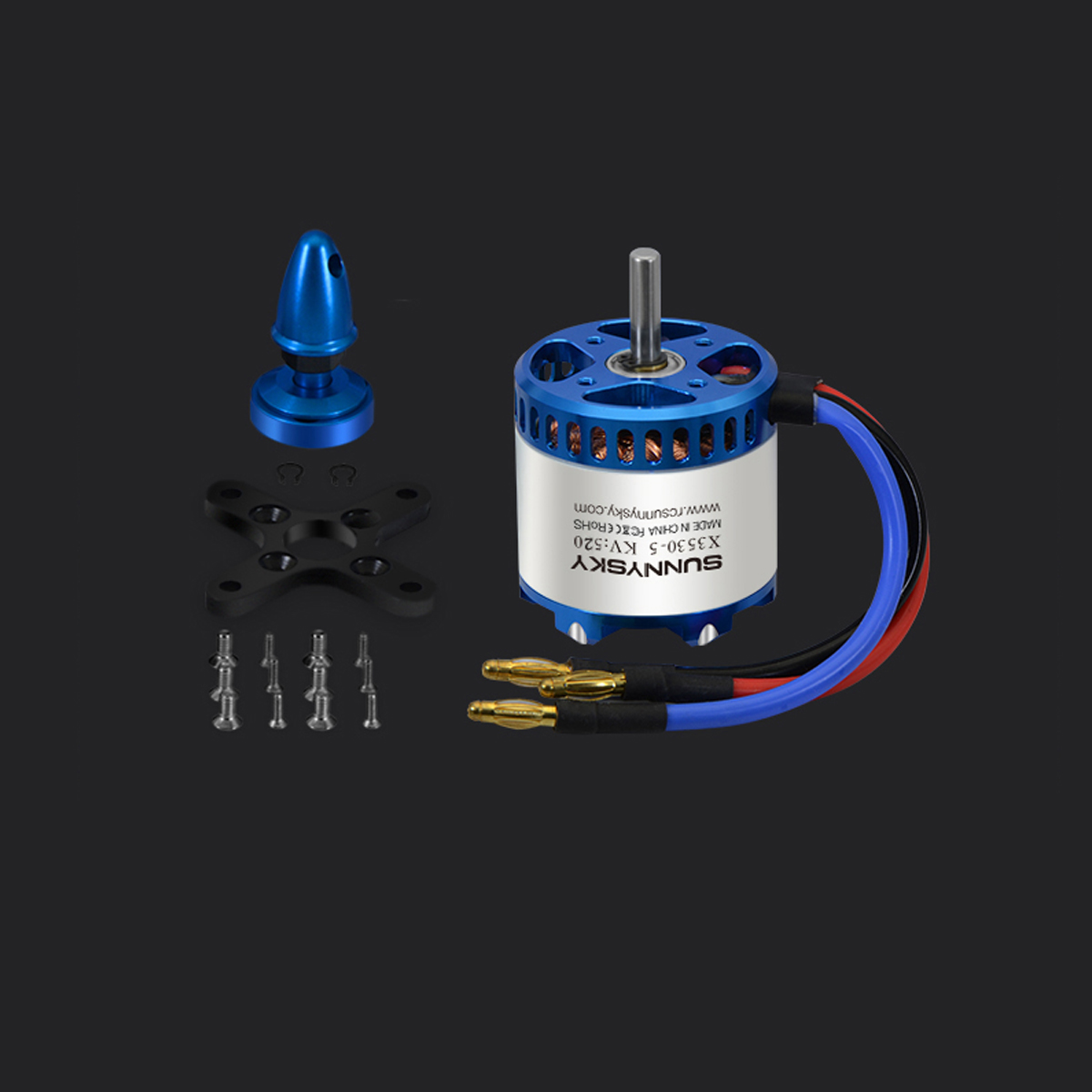

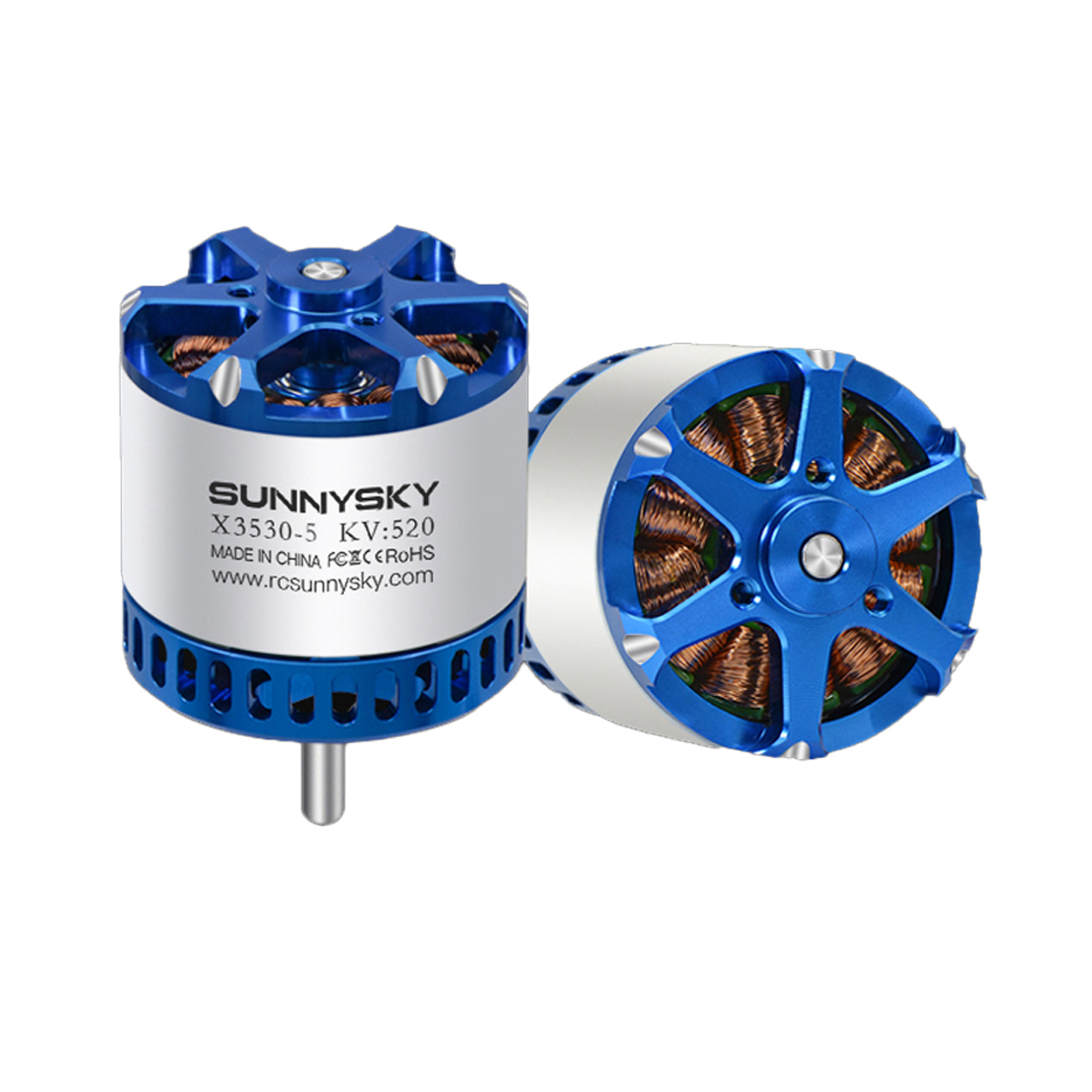

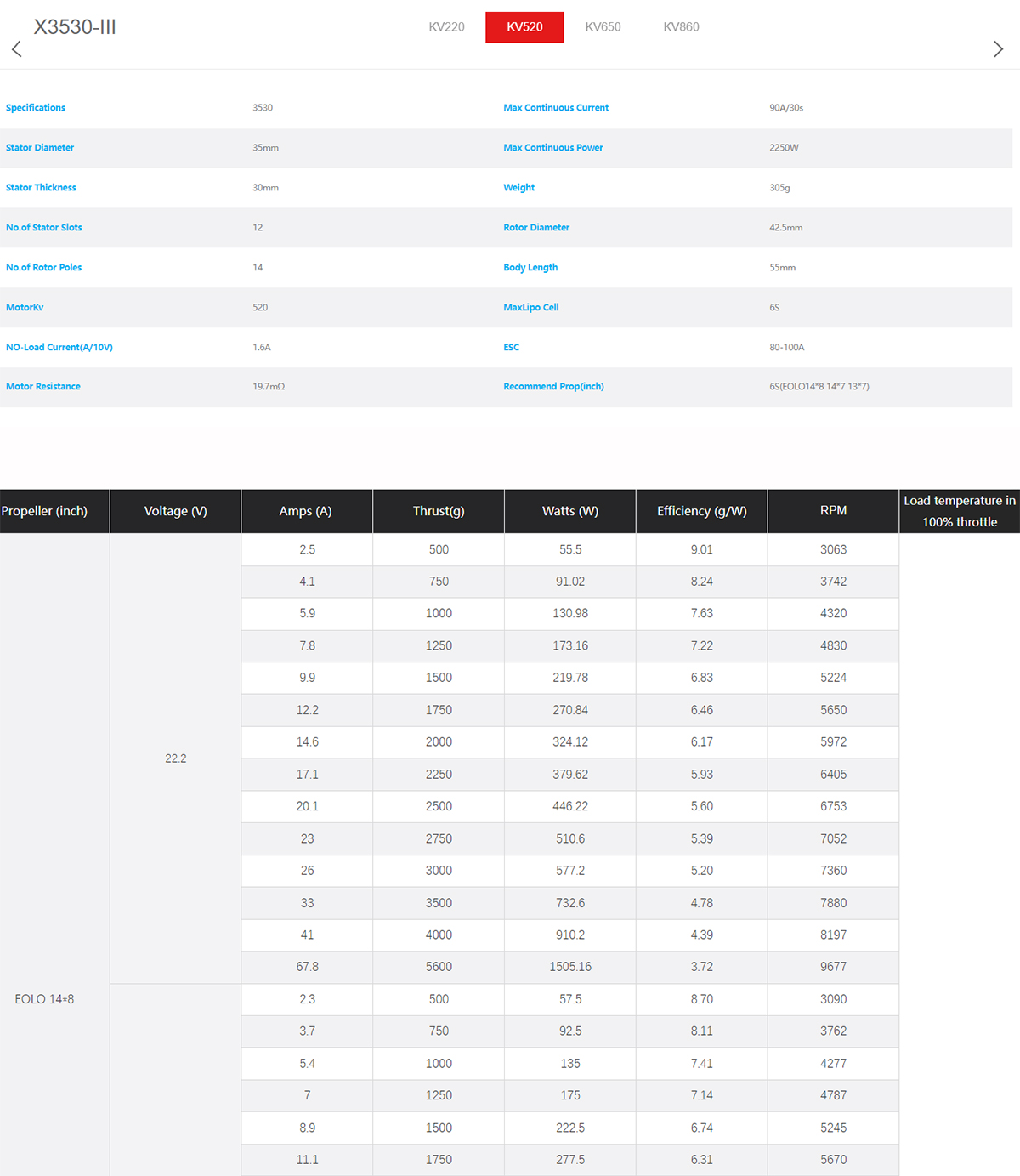

Model: X3530-III
KV: 520KV
Stator/Rotor Poles: 12N14P
Internal Resistance: 19.7mΩ

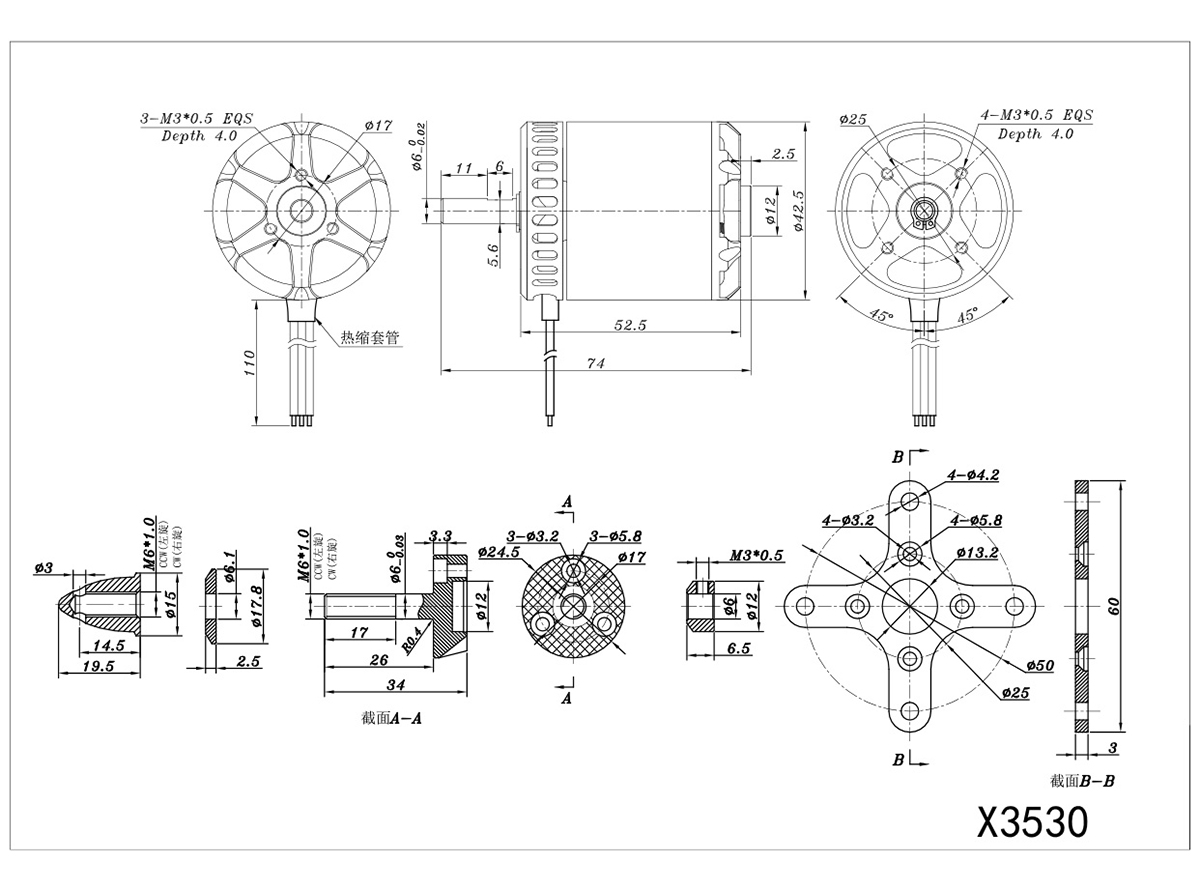

Motor Size: φ42.5*55mm
Shaft Diameter: 5.0mm
AWG: 20AWG 110mm
Motor Weight (Wire Included): 305g
Motor Weight (Wire Excluded): No data
Rated Operational Voltage: 6S
No-Load Current: 1.6A/10V
Maximum Continuous Power: 2250W
Maximum Continuous Current: 90A/30s
ESC Recommended Use: 80-100A
Propeller Size Recommended Use: 6S (EOLO14*8/14*7/13*7)

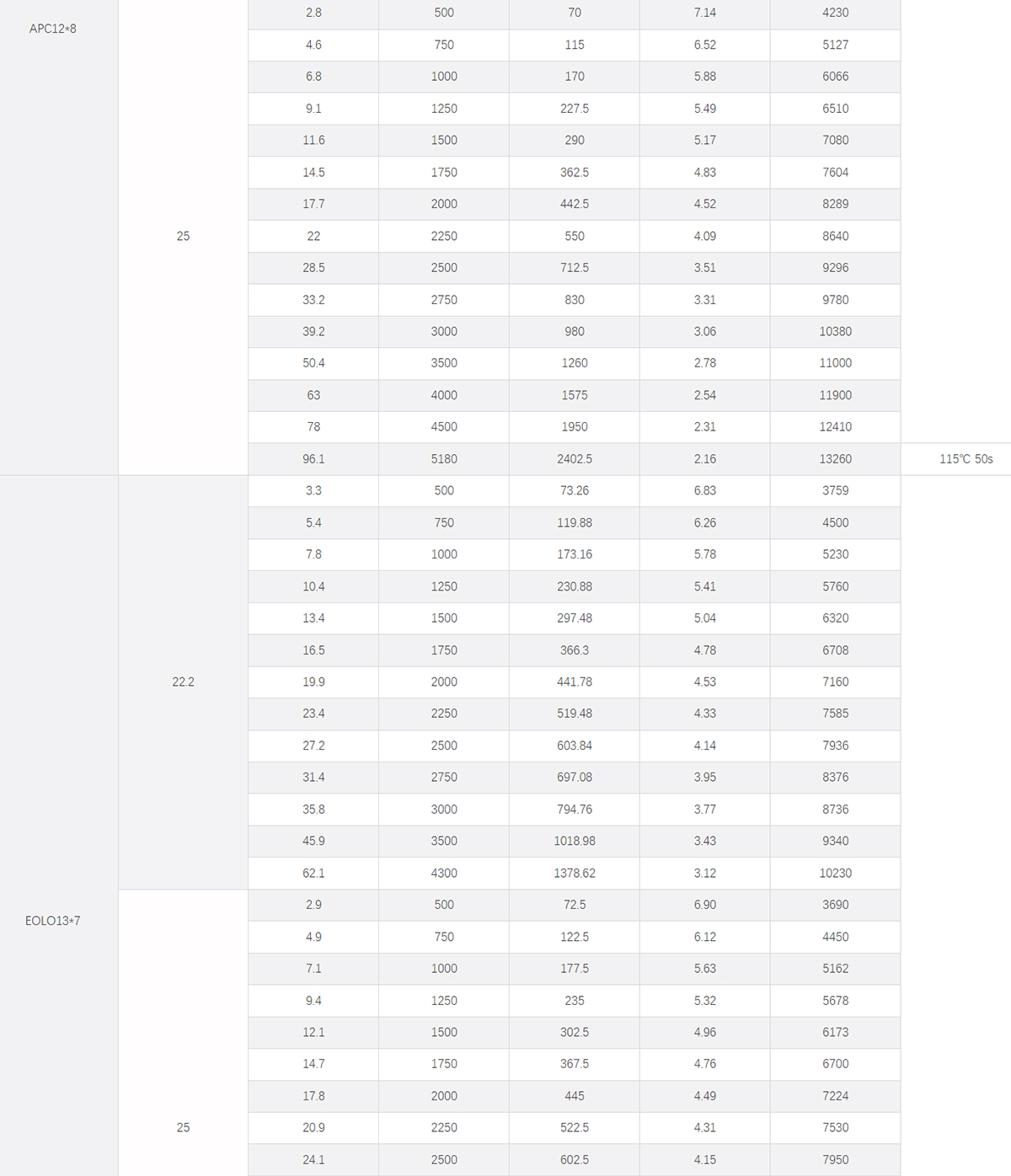

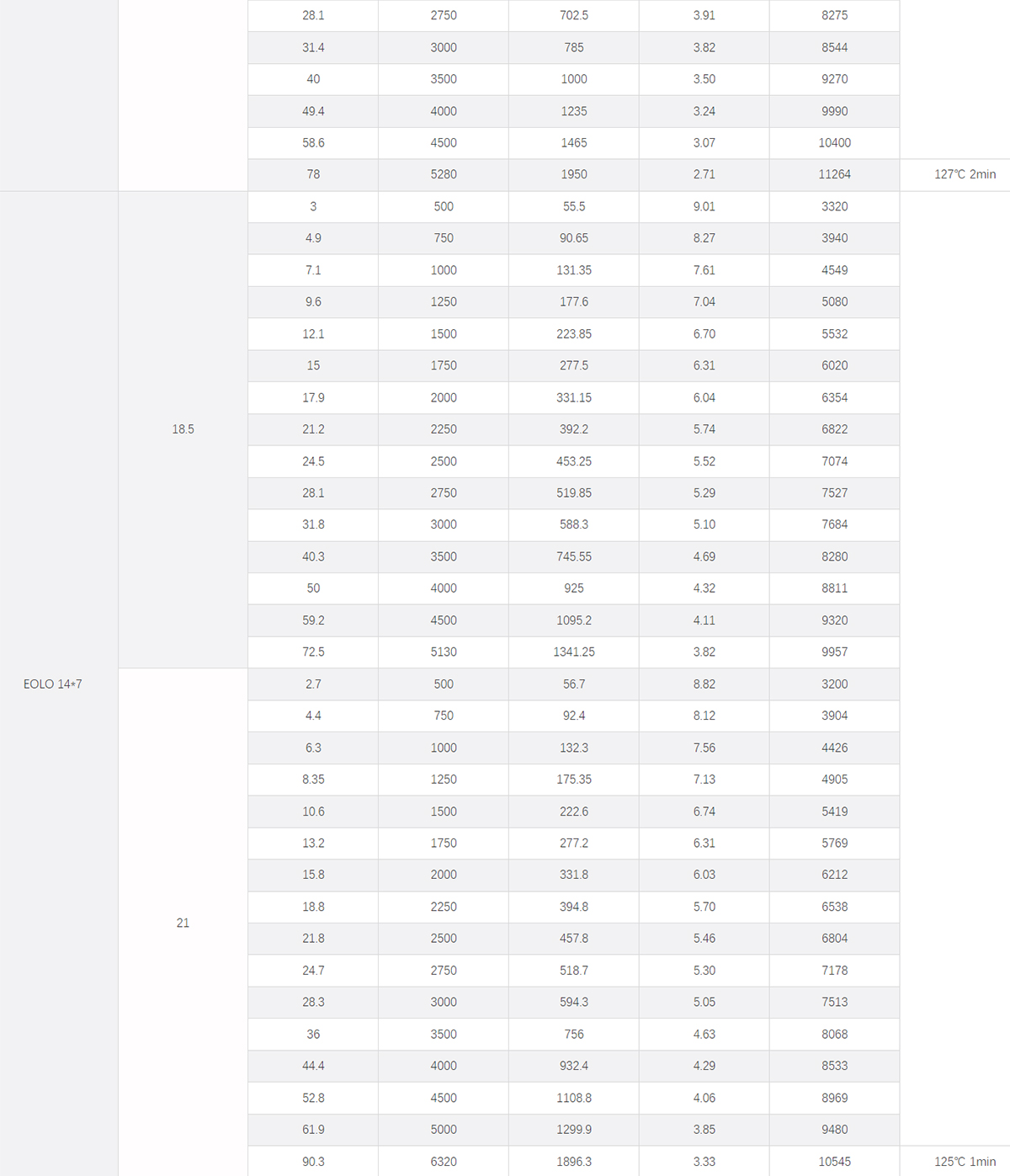

KV: 650KV
Stator/Rotor Poles: 12N14P
Internal Resistance: 11.3mΩ
Motor Size: φ42.5*55mm
Shaft Diameter: 5.0mm
AWG: 20AWG 110mm
Motor Weight (Wire Included): 305g
Motor Weight (Wire Excluded): No data
Rated Operational Voltage: 5-6S
No-Load Current: 2A/10V
Maximum Continuous Power: 2310W
Maximum Continuous Current: 110A/30s
ESC Recommended Use: 80-120A
Propeller Size Recommended Use: 6S (APC12*8/EOLO13*7) 5S(EOLO14*4/14*8)

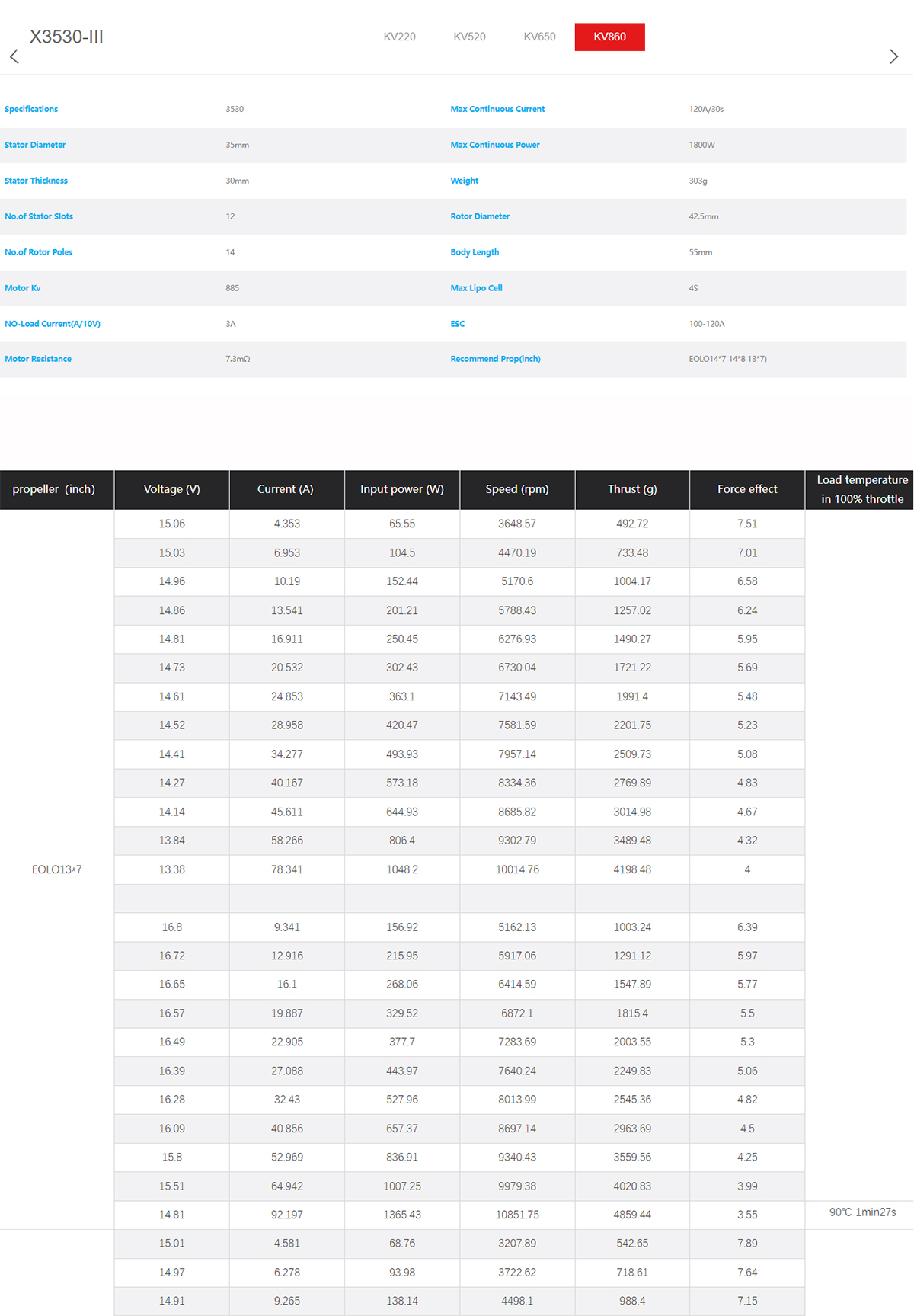

KV: 860KV
Stator/Rotor Poles: 12N14P
Internal Resistance: 7.3mΩ
Motor Size: φ42.5*55mm
Shaft Diameter: 5.0mm
AWG: 20AWG 110mm
Motor Weight (Wire Included): 303g
Motor Weight (Wire Excluded): No data
Rated Operational Voltage: 4S
No-Load Current: 3A/10V
Maximum Continuous Power: 1800W
Maximum Continuous Current: 120A/30s
ESC Recommended Use: 100-120A
Propeller Size Recommended Use: EOLO14*7 14*8 13*7)
