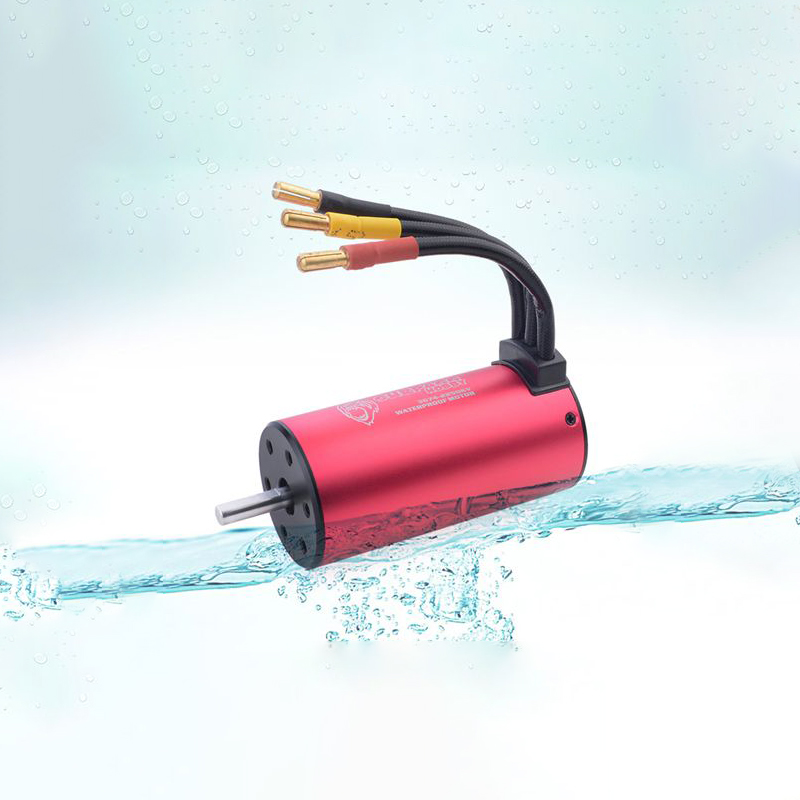

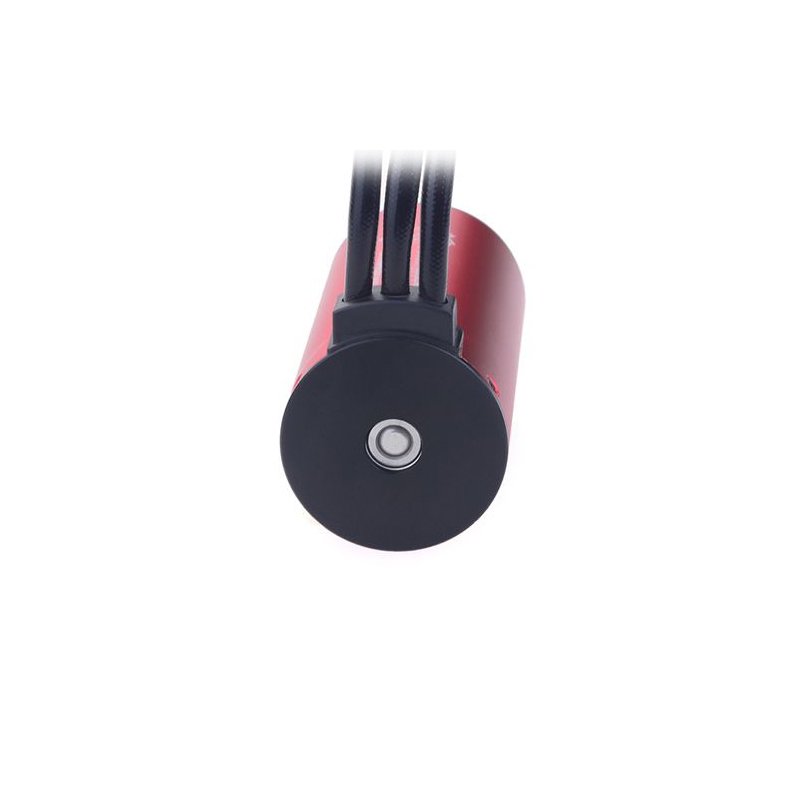

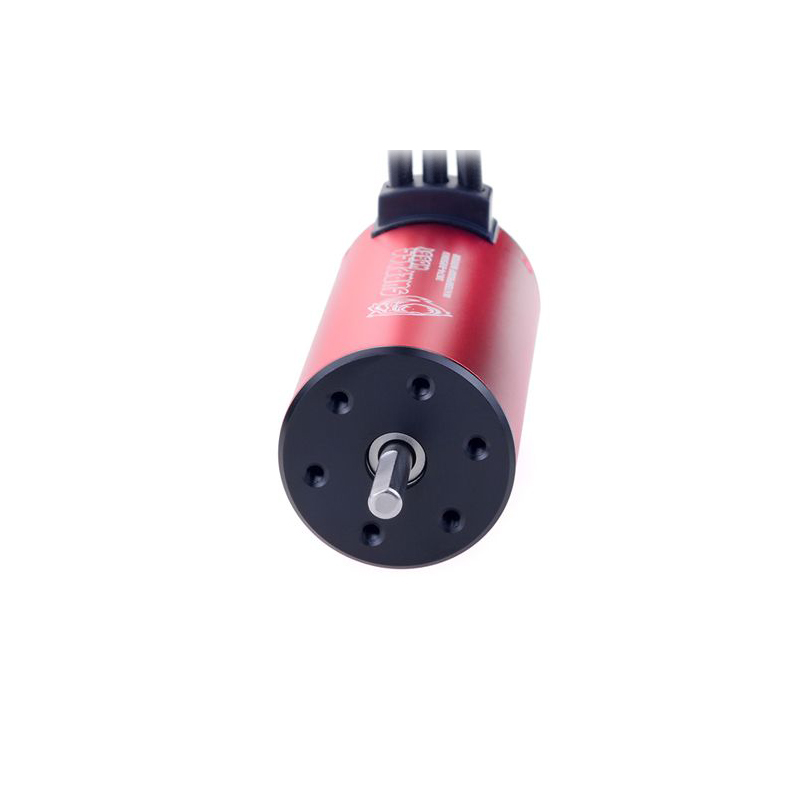

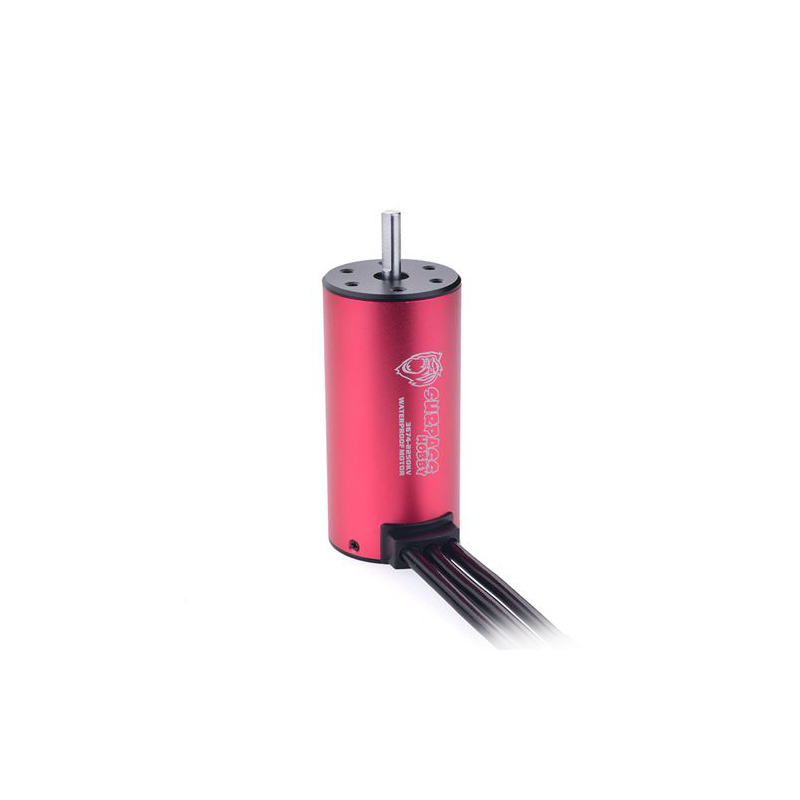

Surpass Hobby Waterproof Brushless Motor 3674 1900KV RC Car Motor for 1/8 2S 3S RC Car Drift Racing Off-Road
Surpass Hobby Waterproof Brushless Motor 3674 1900KV RC Car Motor for 1/8 2S 3S RC Car Drift Racing Off-Road
— 4 Pole 12 Slot Hi-torque Motor Design
— CNC Machined 6061 T6 Billet Aluminum Heatsink Can
— High Purity Copper Windings Maximizes Efficiency
— High RPM ABEC5 Oversized Bearings
— Universal Fit, Fits All 1/10 1/8 Brushless Cars-Multi-Mounting System For M3 Screws
— Precision Balanced Rotor,Smoothness For Best Reliability and maximum RPM
— Stator – Super Thin (0.35mm) Laminations
— Removable/replaceable Rotor
— Precision Enginceered For Maximum Energy Conversion
KV(RPM/Volt): 1900KV
Max RPM: 50000
Max voltage: <26V
Max amps: 70A
Rotor poles: 4
Diameter: 35.5mm
Length: 73mm
Shaft: 5.0mm
Shaft length: 17mm
Connector: 4.0mm gold
Weight:298g
Packing size(mm):140x85x52
Max RPM: 50000
Max voltage: <26V
Max amps: 70A
Rotor poles: 4
Diameter: 35.5mm
Length: 73mm
Shaft: 5.0mm
Shaft length: 17mm
Connector: 4.0mm gold
Weight:298g
Packing size(mm):140x85x52
KV(RPM/Volt): 2250KV
Max RPM: 50000
Max voltage: <22.2V
Max amps: 80A
Rotor poles: 4
Diameter: 35.5mm
Length: 73mm
Shaft: 5.0mm
Shaft length: 17mm
Connector: 4.0mm gold
Weight:298g
Packing size(mm):140x85x52
Max RPM: 50000
Max voltage: <22.2V
Max amps: 80A
Rotor poles: 4
Diameter: 35.5mm
Length: 73mm
Shaft: 5.0mm
Shaft length: 17mm
Connector: 4.0mm gold
Weight:298g
Packing size(mm):140x85x52
KV(RPM/Volt): 2500KV
Max RPM: 50000
Max voltage: <22.2V
Max amps: 80A
Rotor poles: 4
Diameter: 35.5mm
Length: 73mm
Shaft: 5.0mm
Shaft length: 17mm
Connector: 4.0mm gold
Weight:298g
Packing size(mm):140x85x52
1 x SURPASS HOBBY Brushless Motor
1 x English Manual
