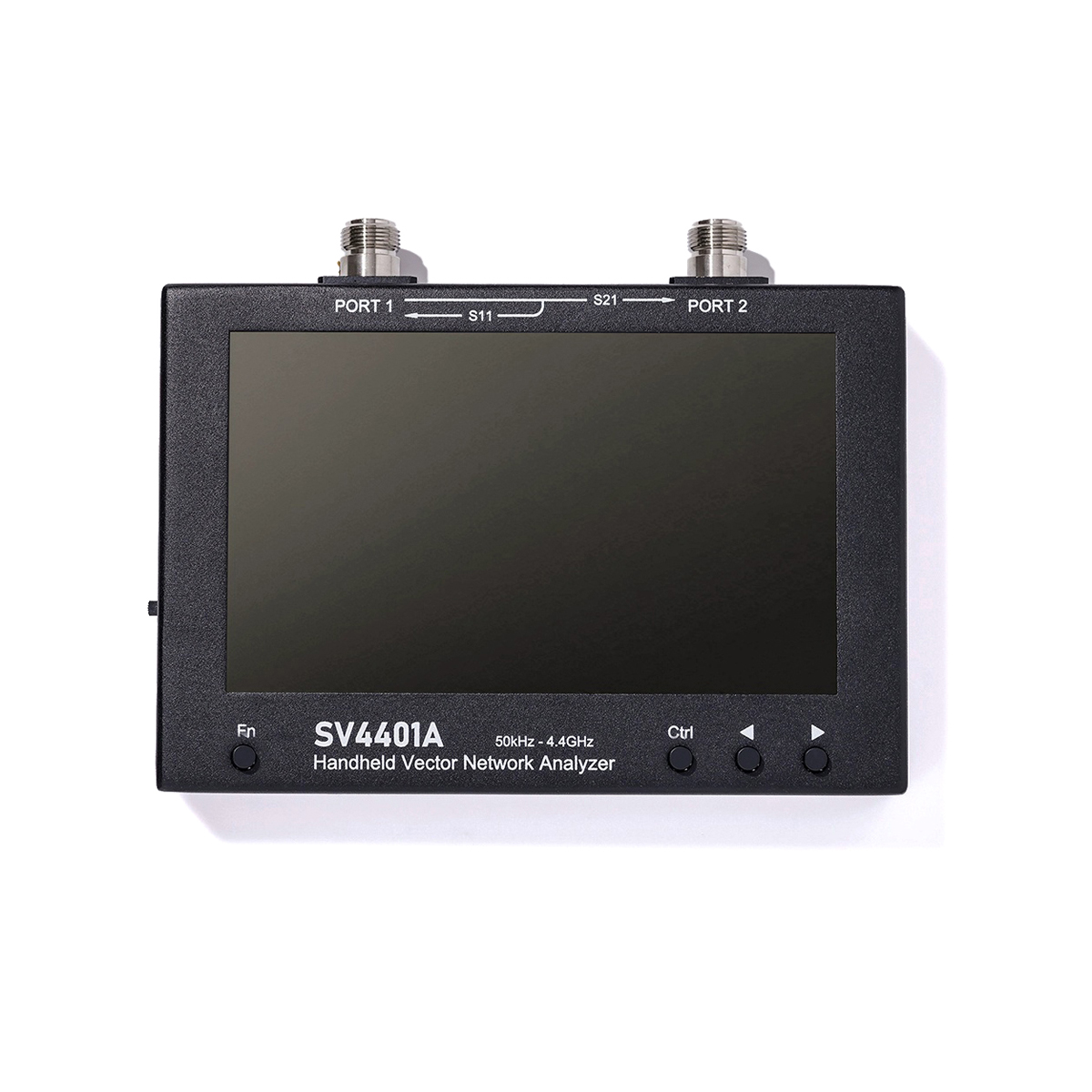

SV4401A 7 Inch Touch LCD Handheld Vector Network Analyzers 50KHz-4.4GHz 100dB Dynamic NanoVNA Tester
SV4401A 7 Inch Touch LCD Handheld Vector Network Analyzers 50KHz-4.4GHz 100dB Dynamic NanoVNA Tester
50KHz-4.4GHz handheld vector network analyzer
Compact size makes it portable; fast to work in an accurate way

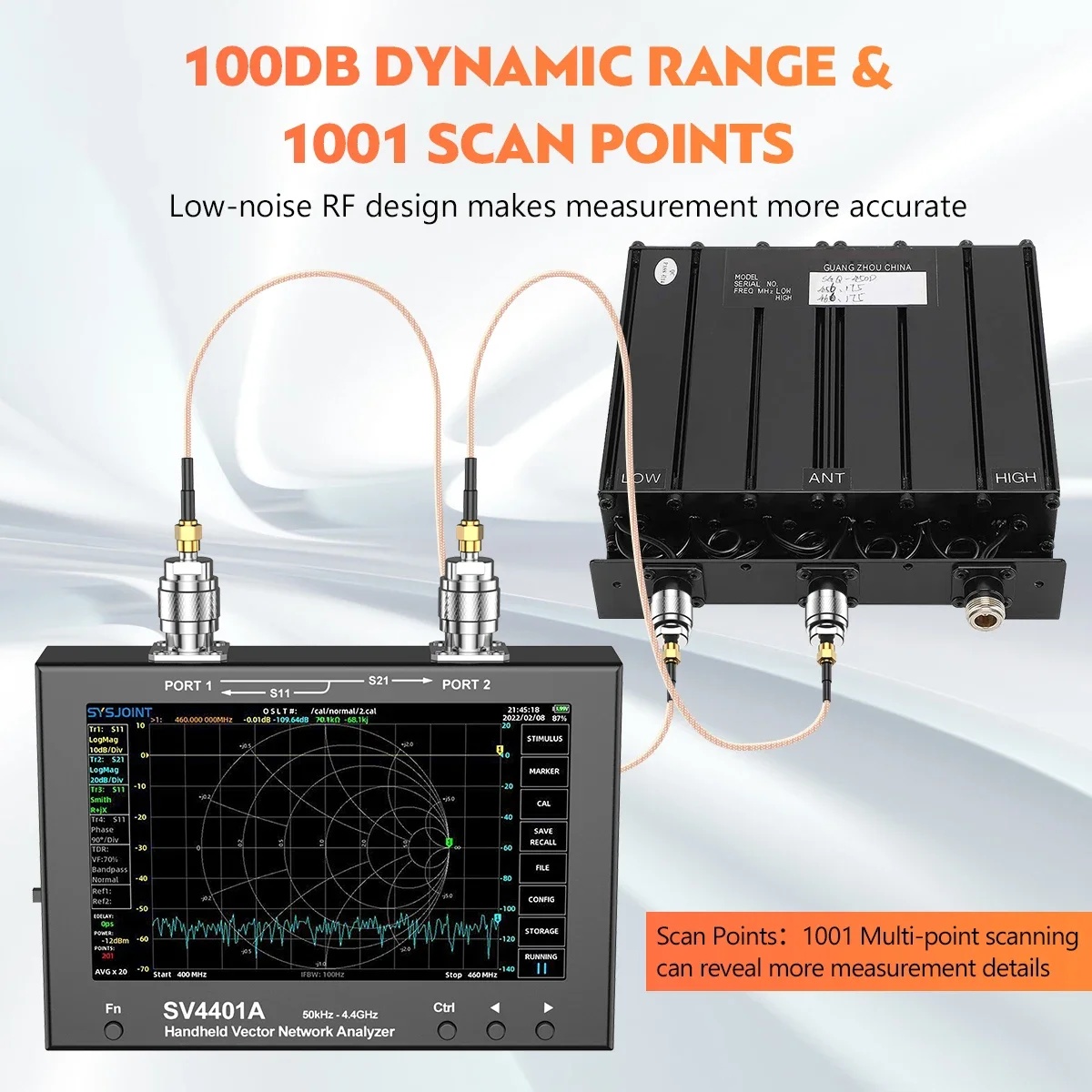

1001 scan points: present more measurement details and avoid missing key information

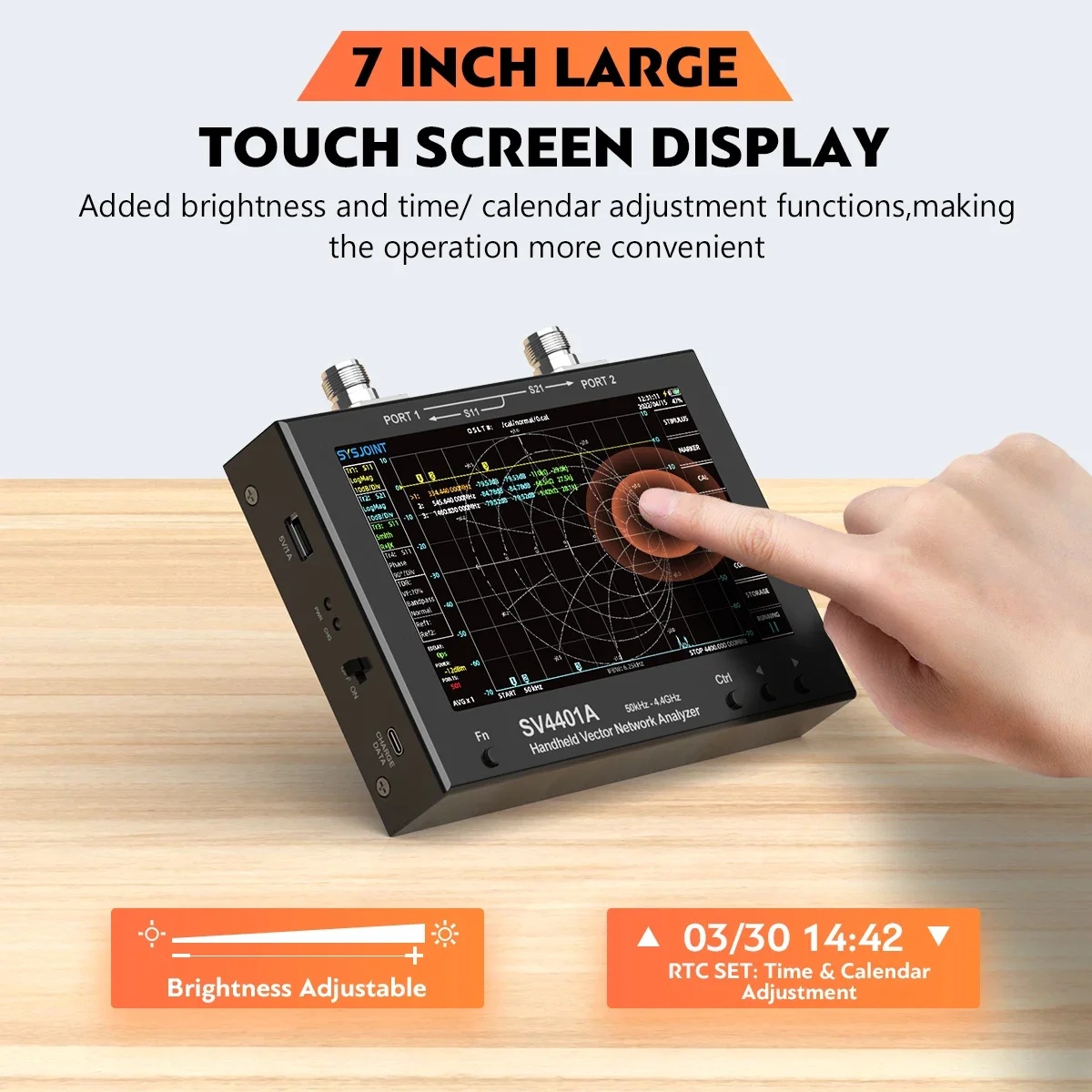

7″ IPS highlight LCD screen, capacitive touch to control
100dB dynamic range: The well-designed RF front-end circuit has an optimized noise floor to ensure accurate and reliable measurements

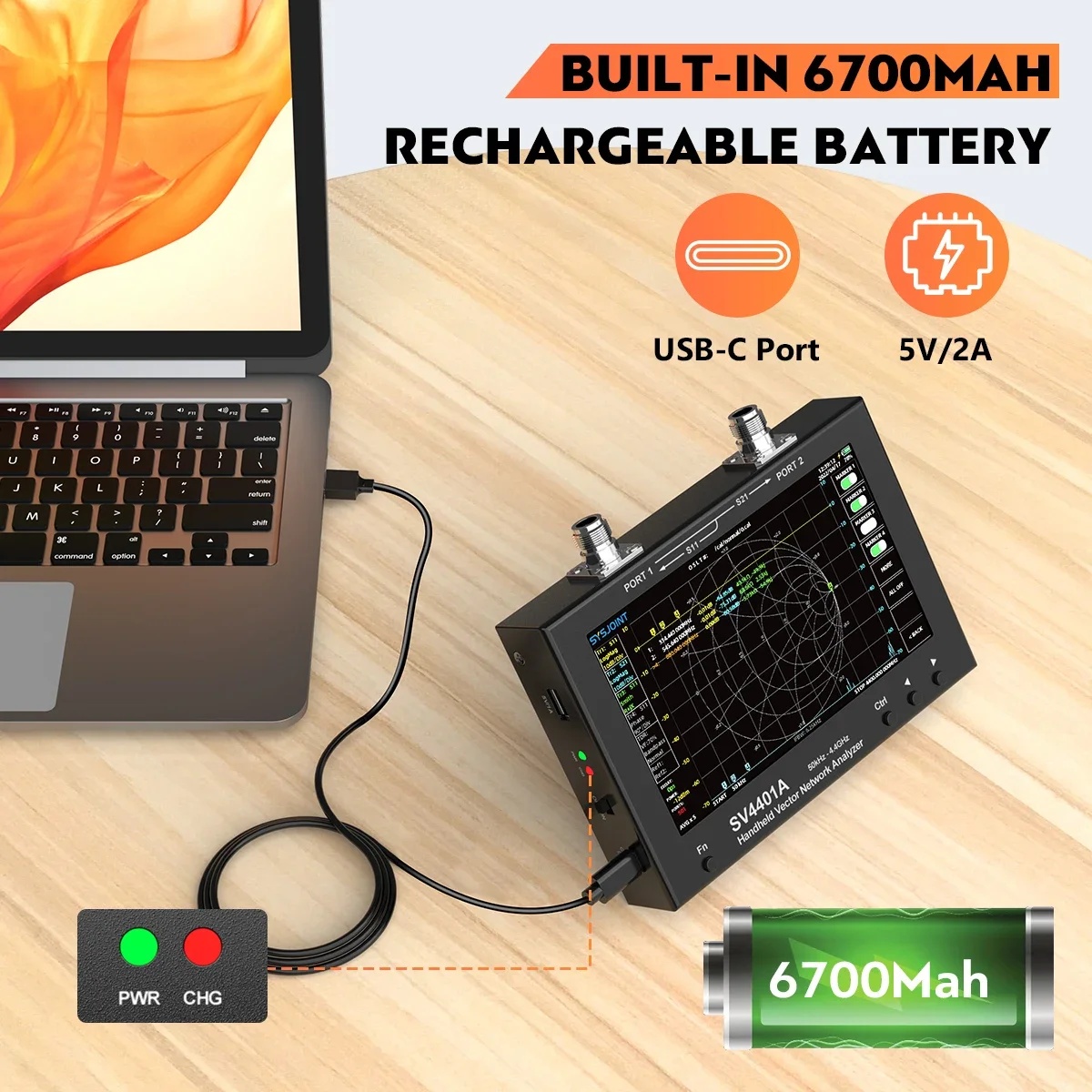

Built-in 18650 lithium battery’s endurance time reach 4 hours
Powered through USB type-c interface. 5V/2A charger is recommended
Built-in 8GB memory card to store calibration status, screenshots and snp files

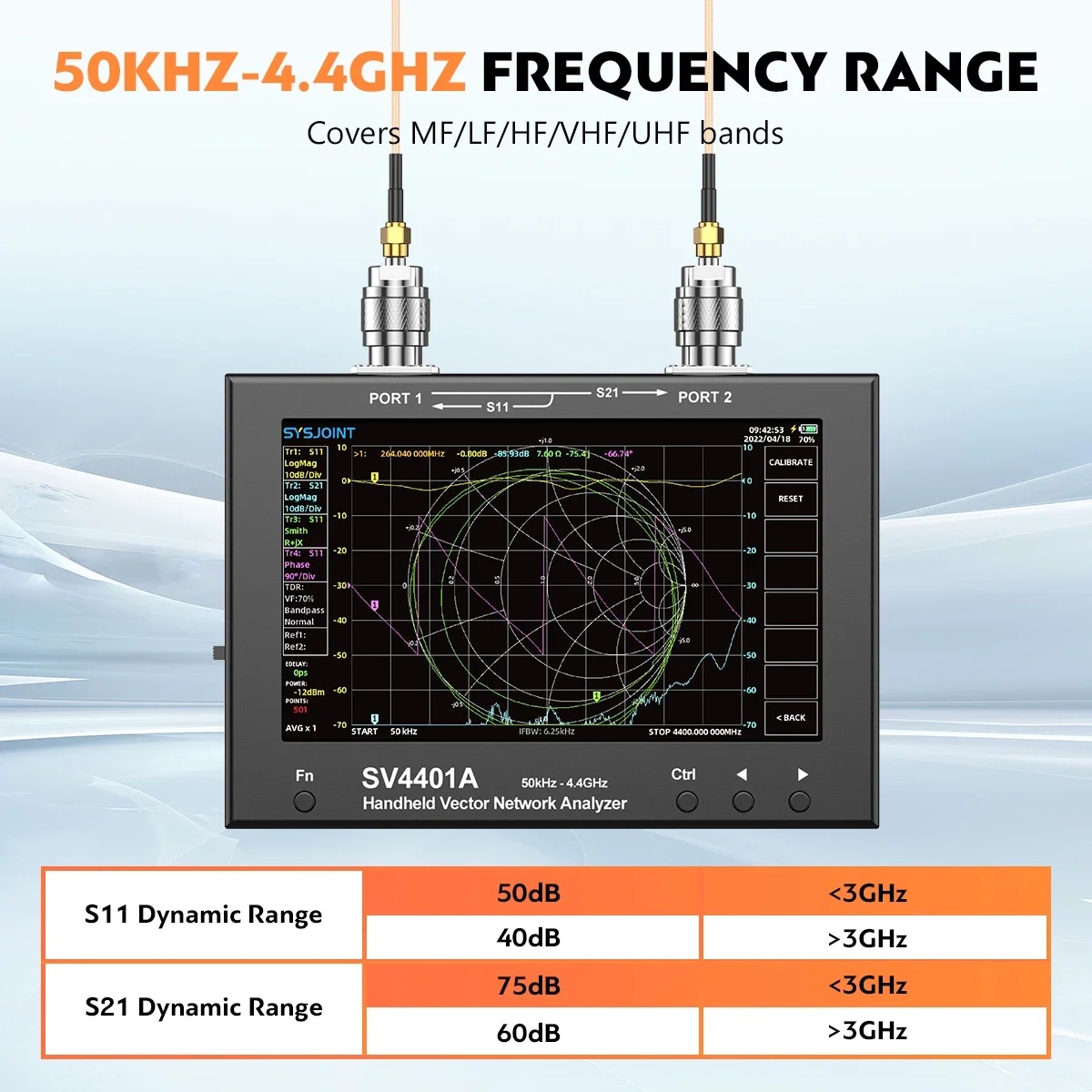

Frequency range 50K-4.4GHz: Covered frequency bands include MF/LF/HF/VHF/UHF; can measure all kinds of antennas and filters, amplifiers, attenuators, cables, duplexers, couplers, etc.

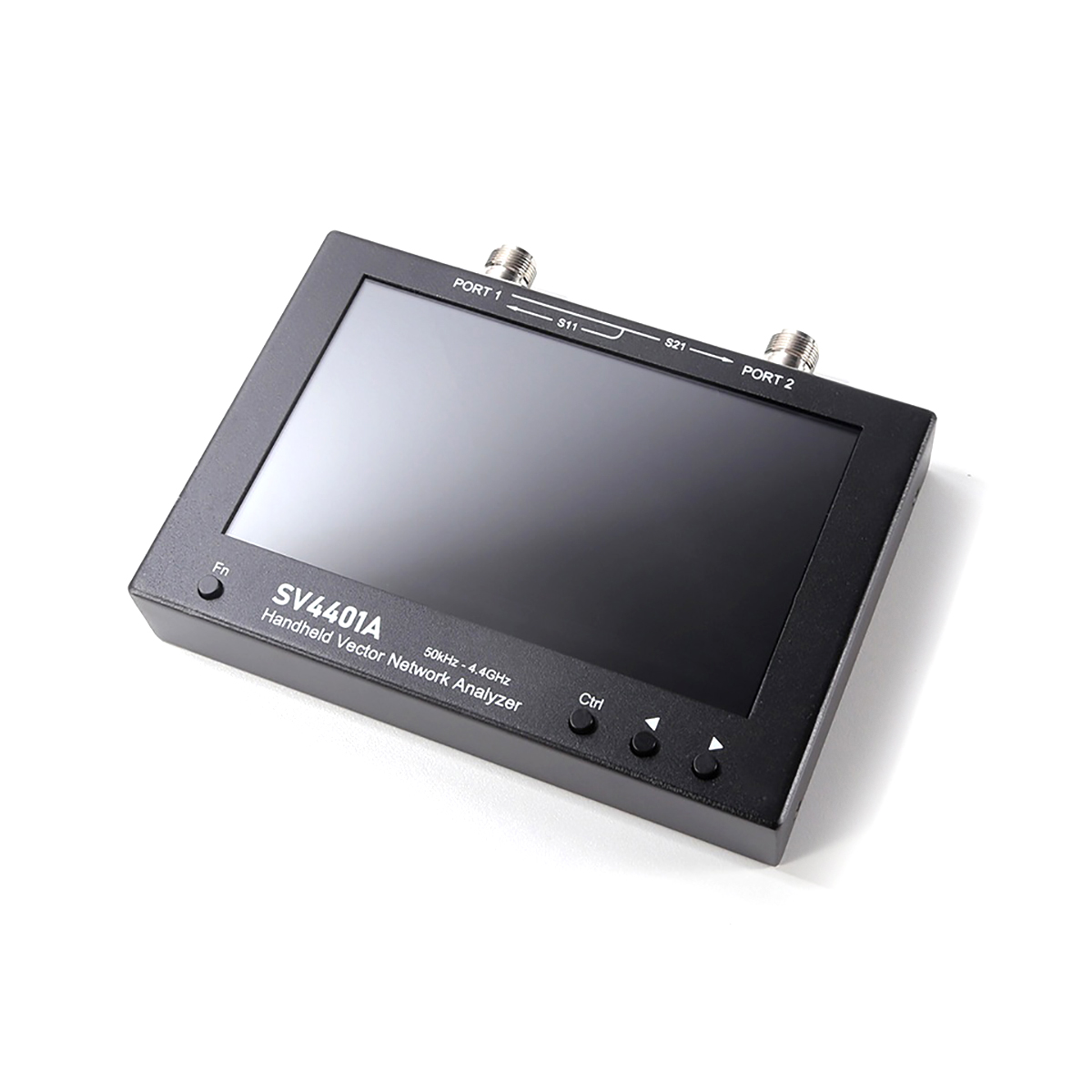

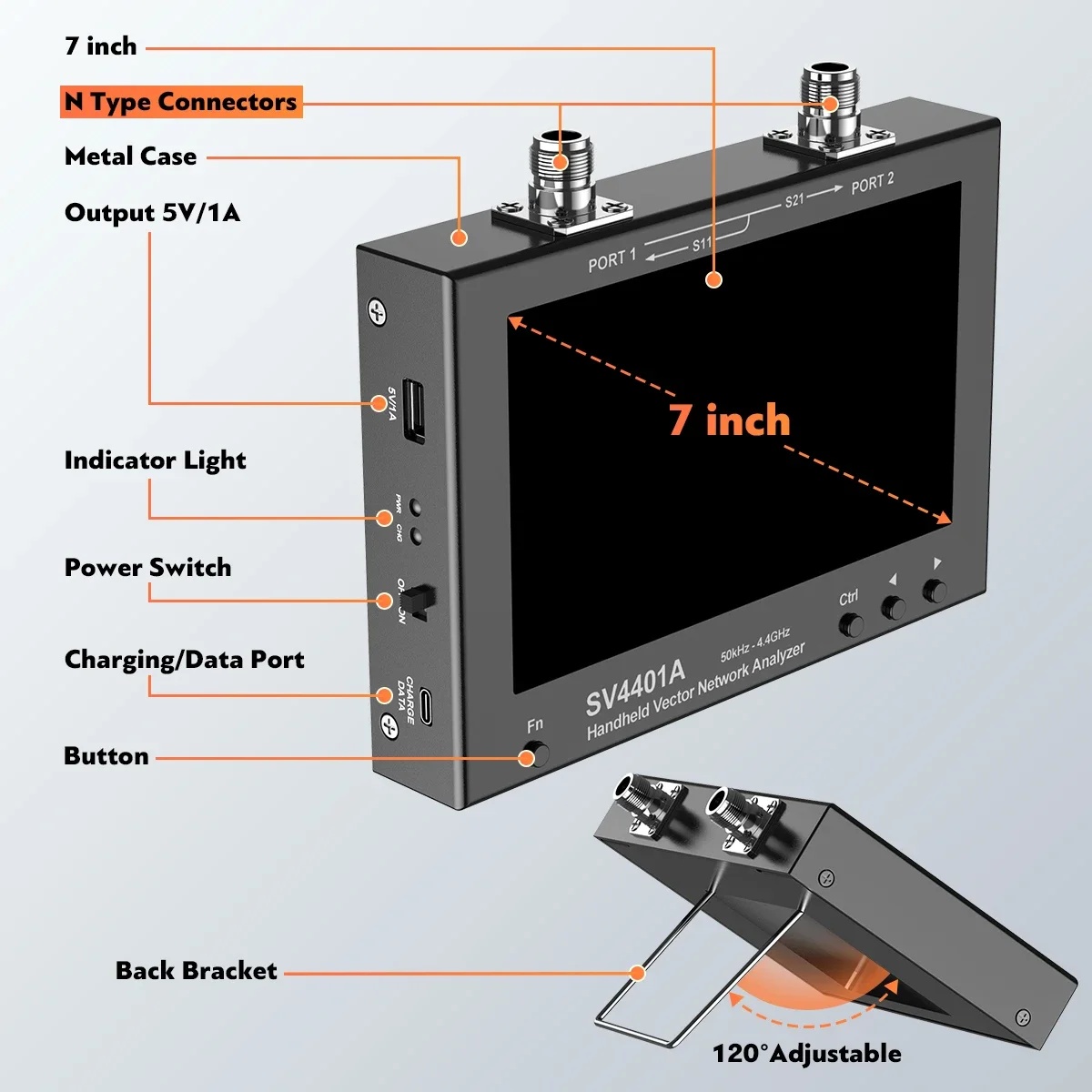

4 buttons + capacitive touch to complete all operation. All-metal casing can effectively shield electromagnetic interference
One-hand operation mode is enabled
Ergonomically designed with back support
The excitation power is adjustable from -42dBm to -12dBm. Suitable for measuring the input impedance of amplifiers

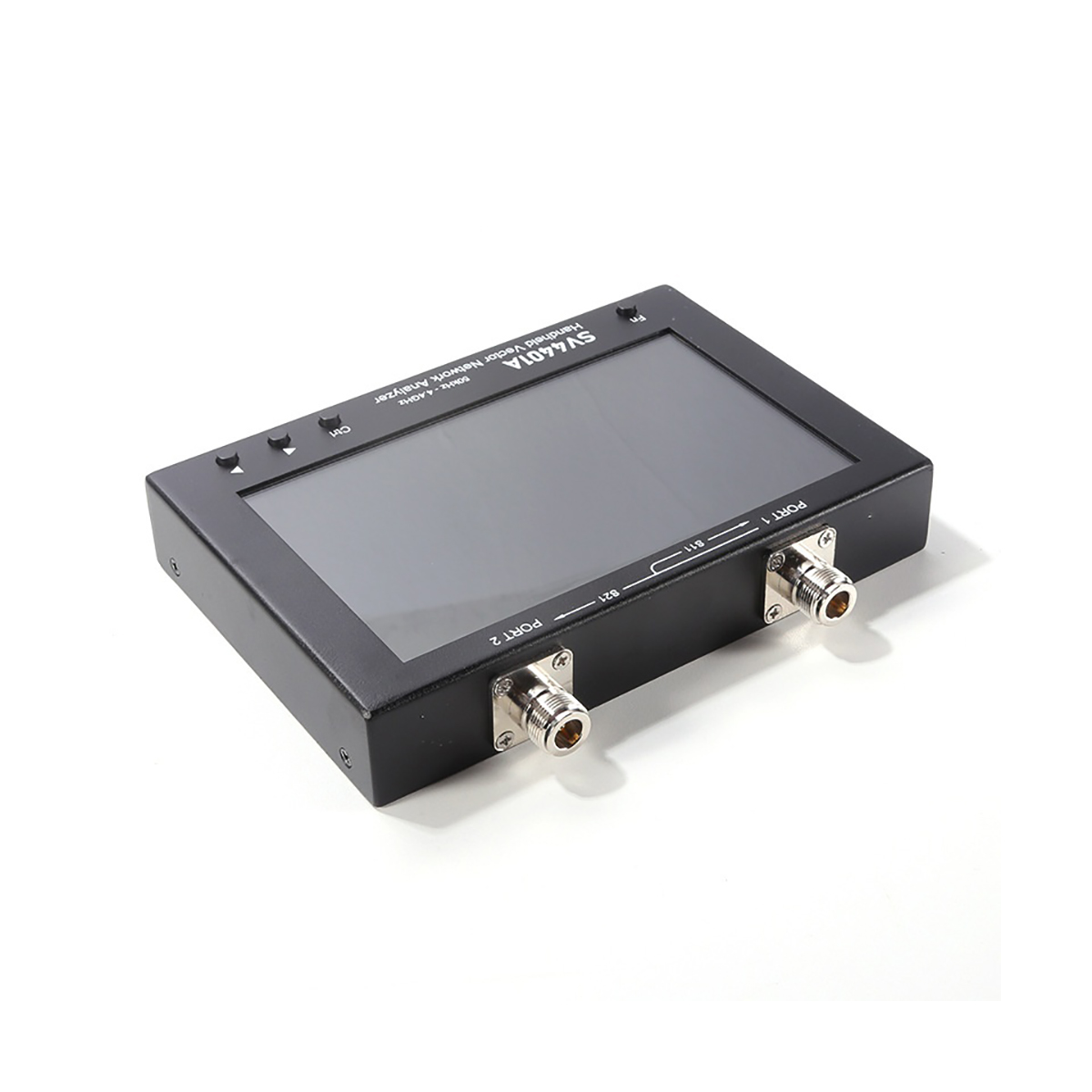

N-type interface makes the product stable and durable

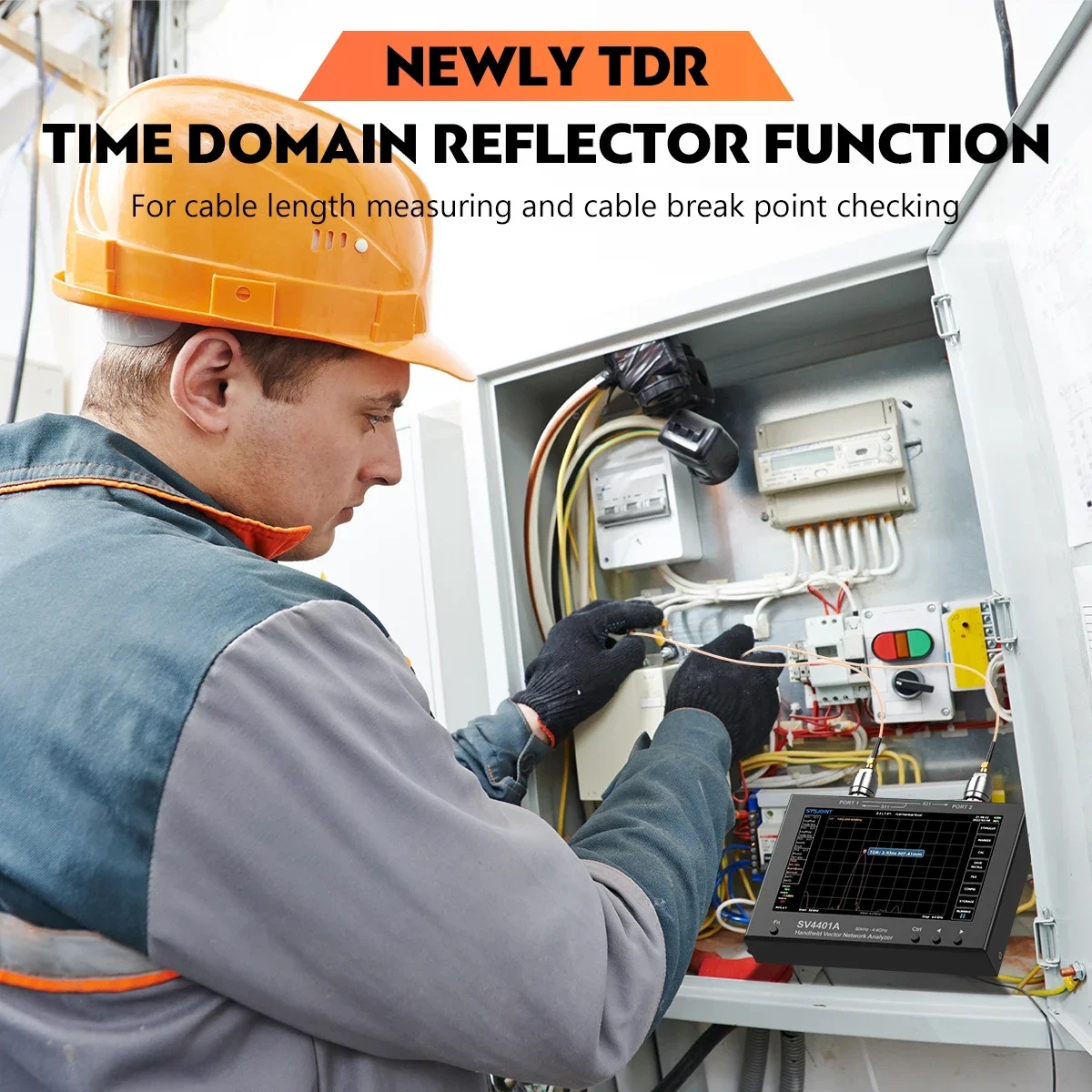

With TDR function, this device can be used to measure cable lengths and check cable breaks
Variable IF bandwidth: 7 kinds of IF bandwidth are available, of which large bandwidth is suitable for fast scanning, and small bandwidth can significantly reduce measurement noise
Large-capacity storage: Equipped with 12 save/recall slots, which can quickly save/recall the calibration state. It also supports to save the calibration status as a file. The amount of storage is limited only by the capacity of memory card
Convenient human interface
Support logarithmic amplitude, phase-frequency diagram, group delay, Smith, polar coordinate, linear amplitude, VSWR, real part/imaginary part, resistance/reactance, quality factor and other display formats
Quickly set start and stop frequencies, electrical delay, excitation power, sweep points and average coefficients

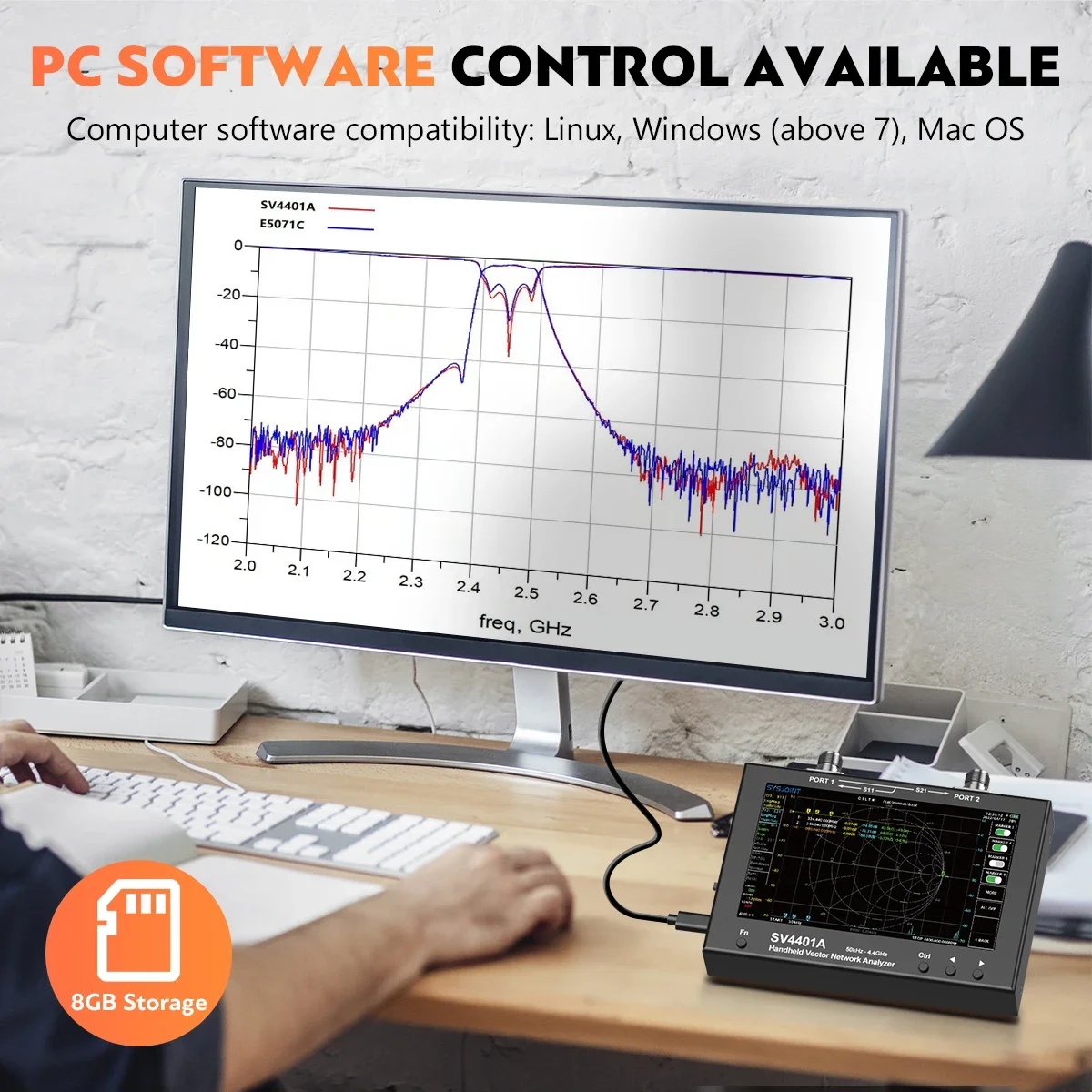

Virtual U disk function: use a USB Type-C data cable to connect to your computer to access the files in the memory card (cannot take screenshots in this mode). This method can also be used for firmware upgrade
Model: SV4401A
Frequency range: 50kHz~4.4GHz
RF output power: -42dBm to -12dBm (1dB step)
RF interface form: N-type female connector (with N to SMA adapter)
RF input power: 0dBm Max (DC<5V)
Frequency accuracy: <±1ppm (<140MHz); <±5kHz (>140MHz)
S21 dynamic range: 75dB (<3GHz); 60dB (>3GHz)
S11 dynamic range: 50dB (<3GHz); 40dB (>3GHz)
Scan points: 1001 (can be set to 101-1001)
Scanning speed: 400 points/second (f>140MHz)
IF bandwidth: 12.5kHz by default (optional 6.25k/3.12k/1k/300Hz/100Hz/30Hz)
Smoothing: arithmetic mean (average coefficient: 1~25 times)
Number of traces: 7 (4 measurement traces, 2 reference traces, 1 TDR trace)
Number of markers: 8
Calibration state storage number: 12 groups (supports file storage to internal memory card)
Storage capacity: Built-in 8GB memory card
Display: 7″ high-brightness IPS LCD screen (resolution: 1024×600)
Operation mode: capacitive touch + physical button
Local screenshot: support
Power consumption: 5W
Battery life: 4 hours (50% screen brightness)
Battery: two built-in 18650 lithium batteries (3.6V/3350mAh x 2)
Charging/Data Interface: USB Type-C
Charging voltage: 4.7V~5.5V (5V/2A charging recommended)
Power supply output: USB 5V/1A
Shell material: iron
Working temperature: 0℃~45℃
Dimensions: 190 x 130 x 30mm/7.5 x 5.1 x 1.2″ (without size of RF interface)
Weight of main unit: 1.15KG/2.5LB

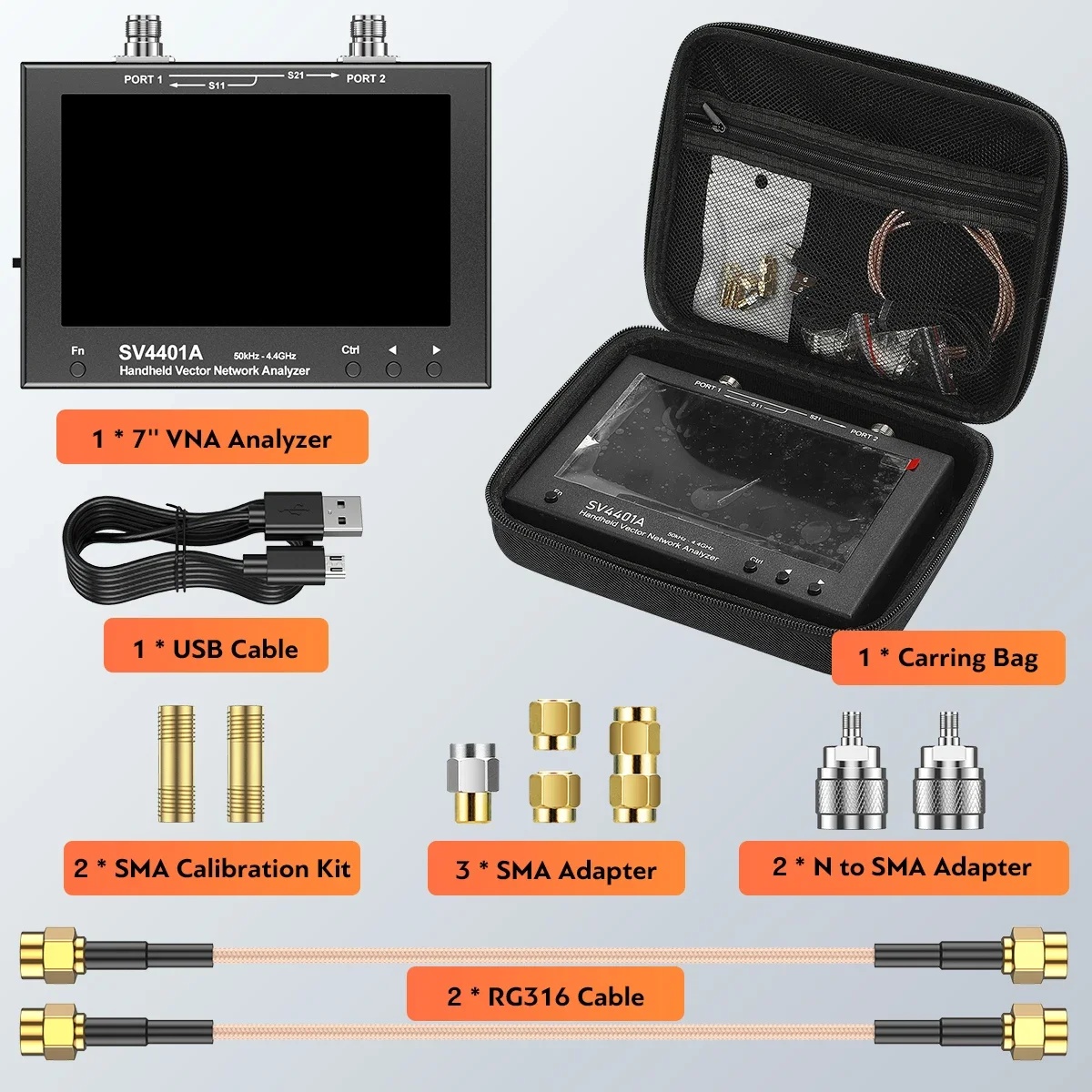

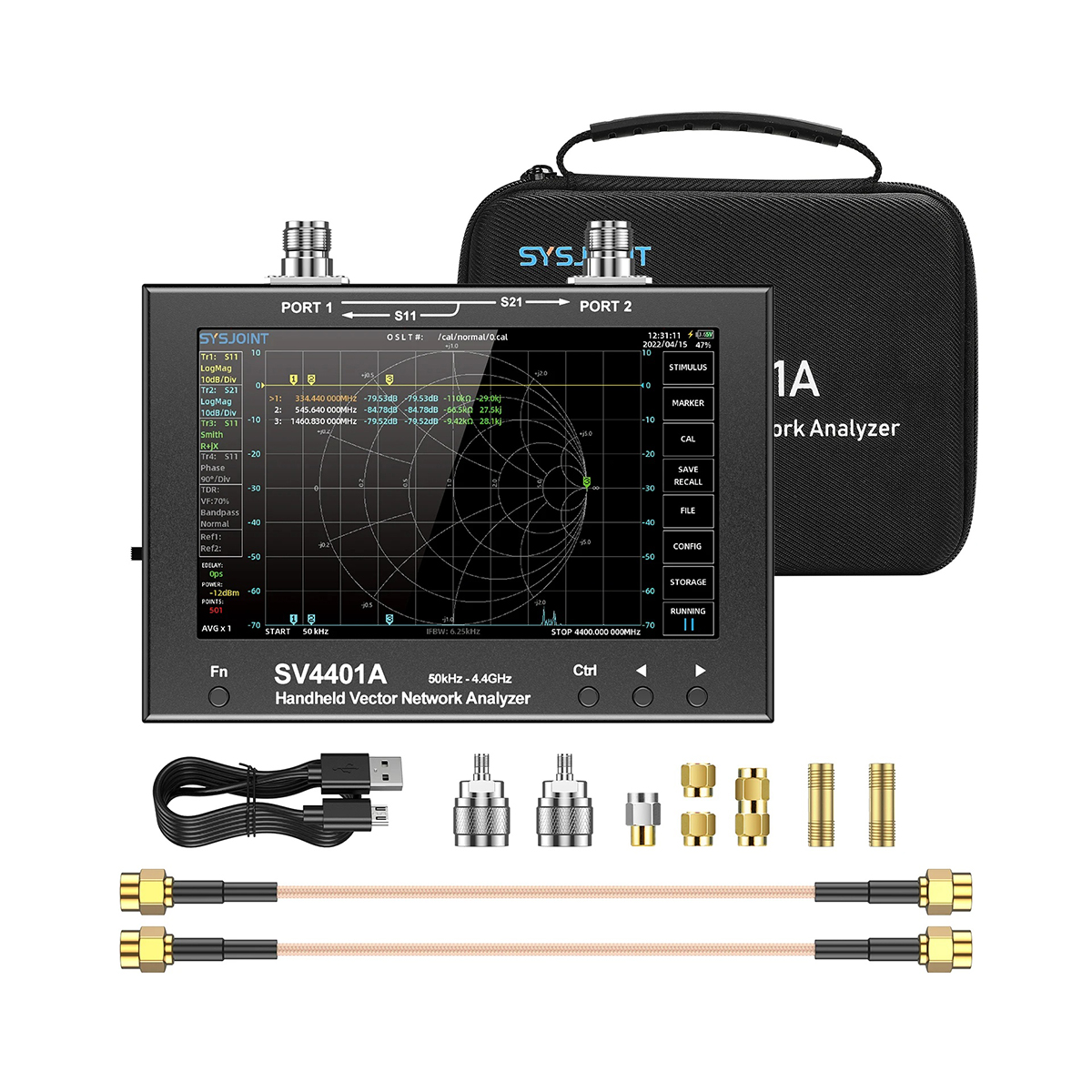

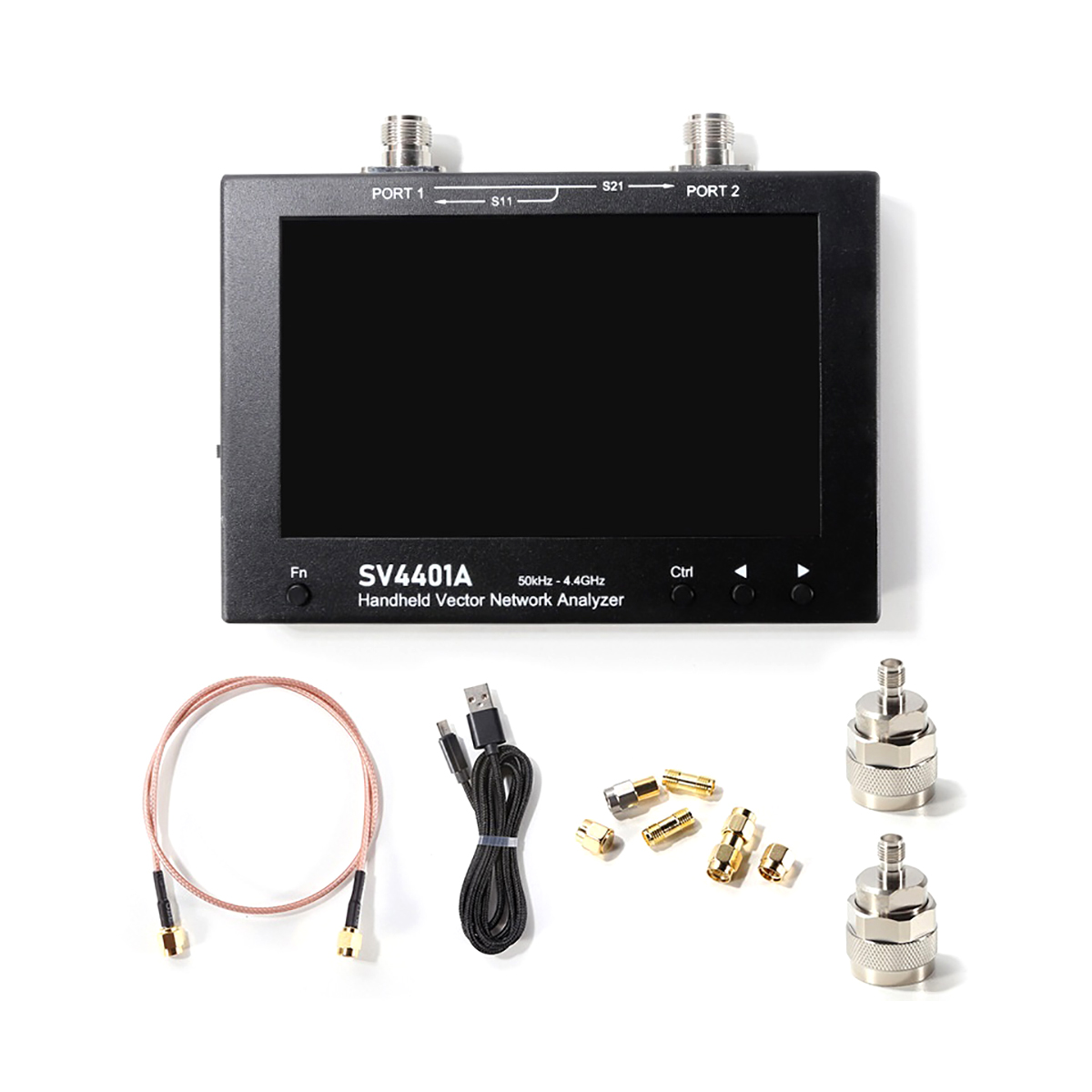

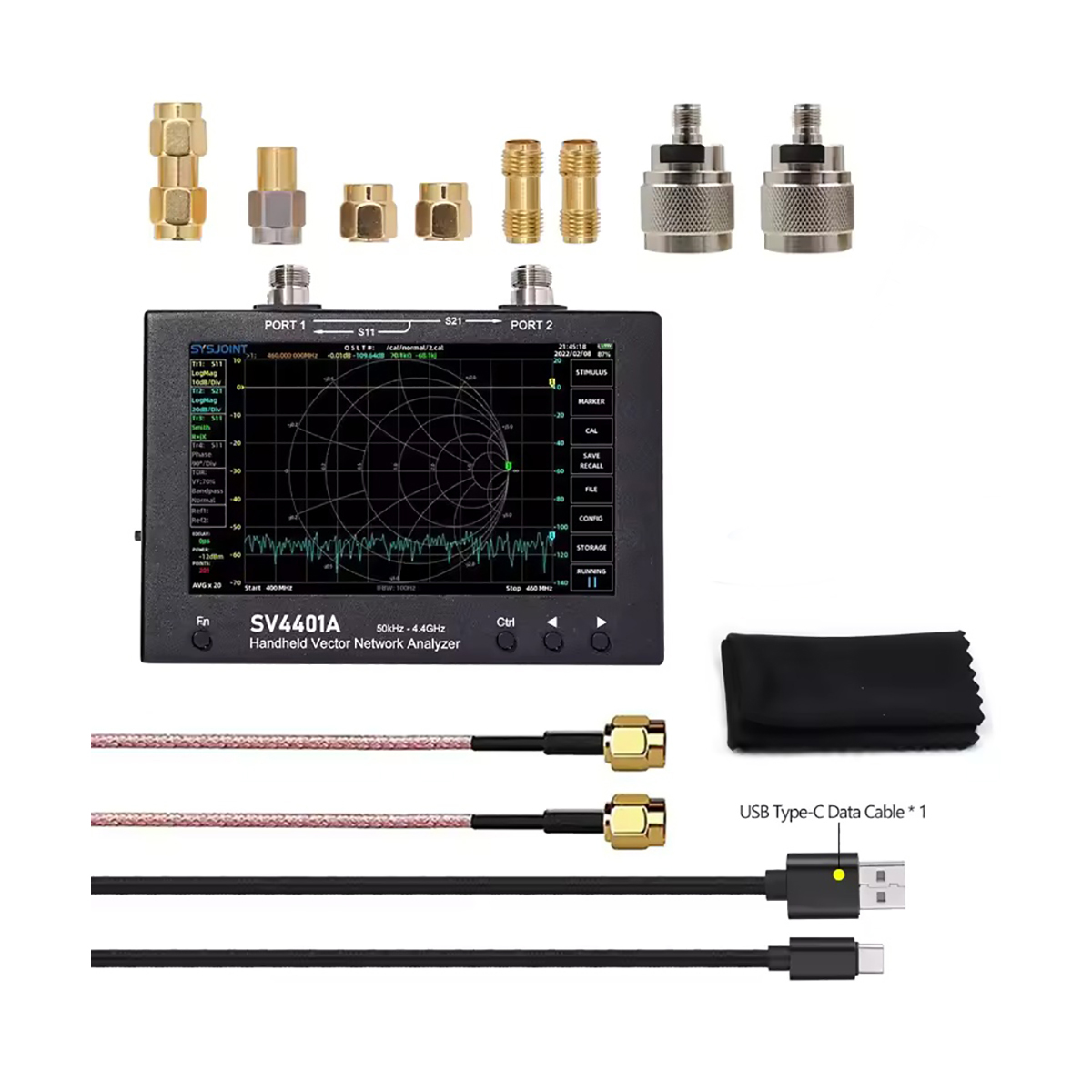

SV4401A Machine x1
N Male to SMA Female Adapter x2
3 pieces Gold plated SMA LOAD / OPEN / SHORTCalibration Kit x1
SMA Female to SMA Female Connector x2
SMA Male to SMA Male Connector x1
50cm RG316 Cable x2
Usb-type-c Cable x1

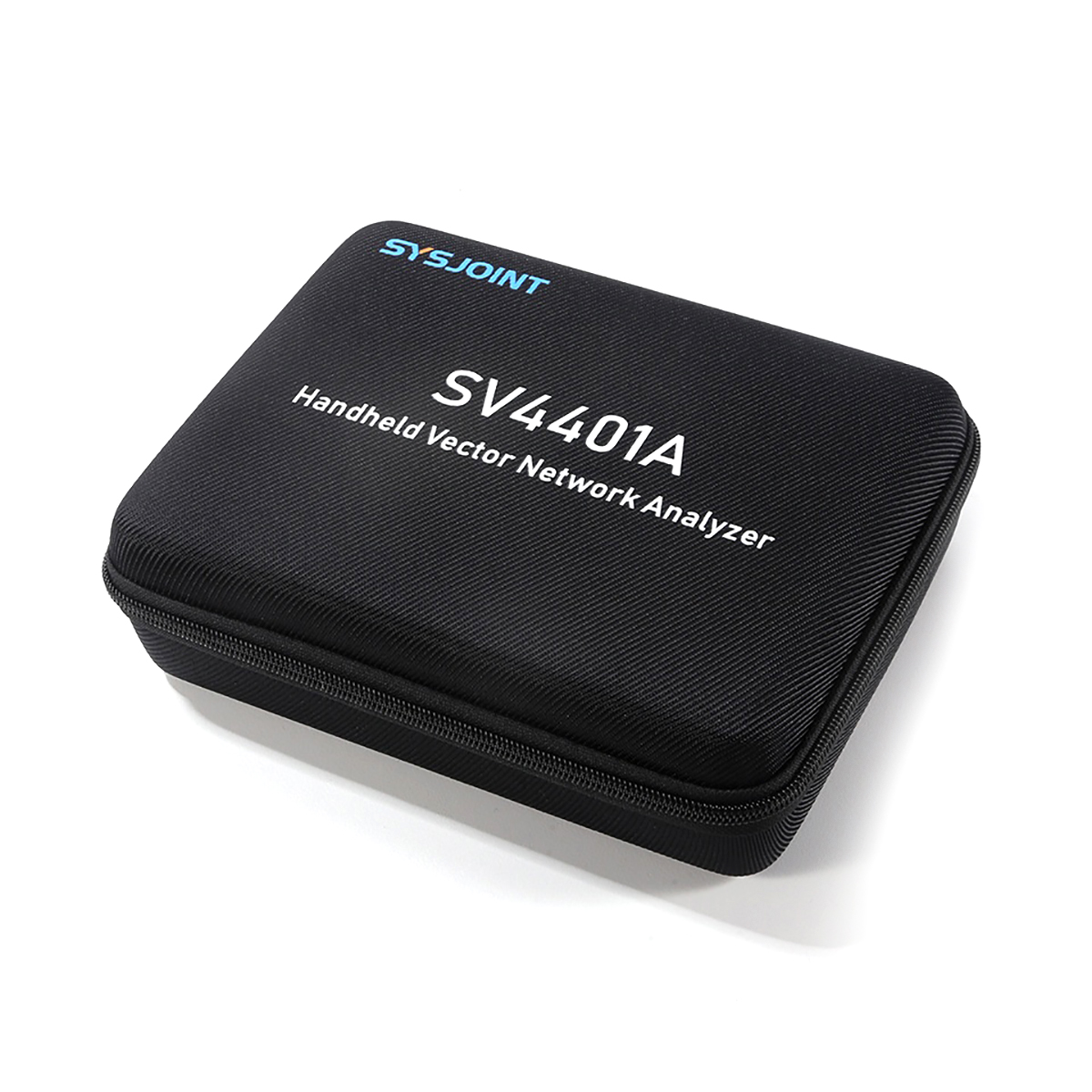

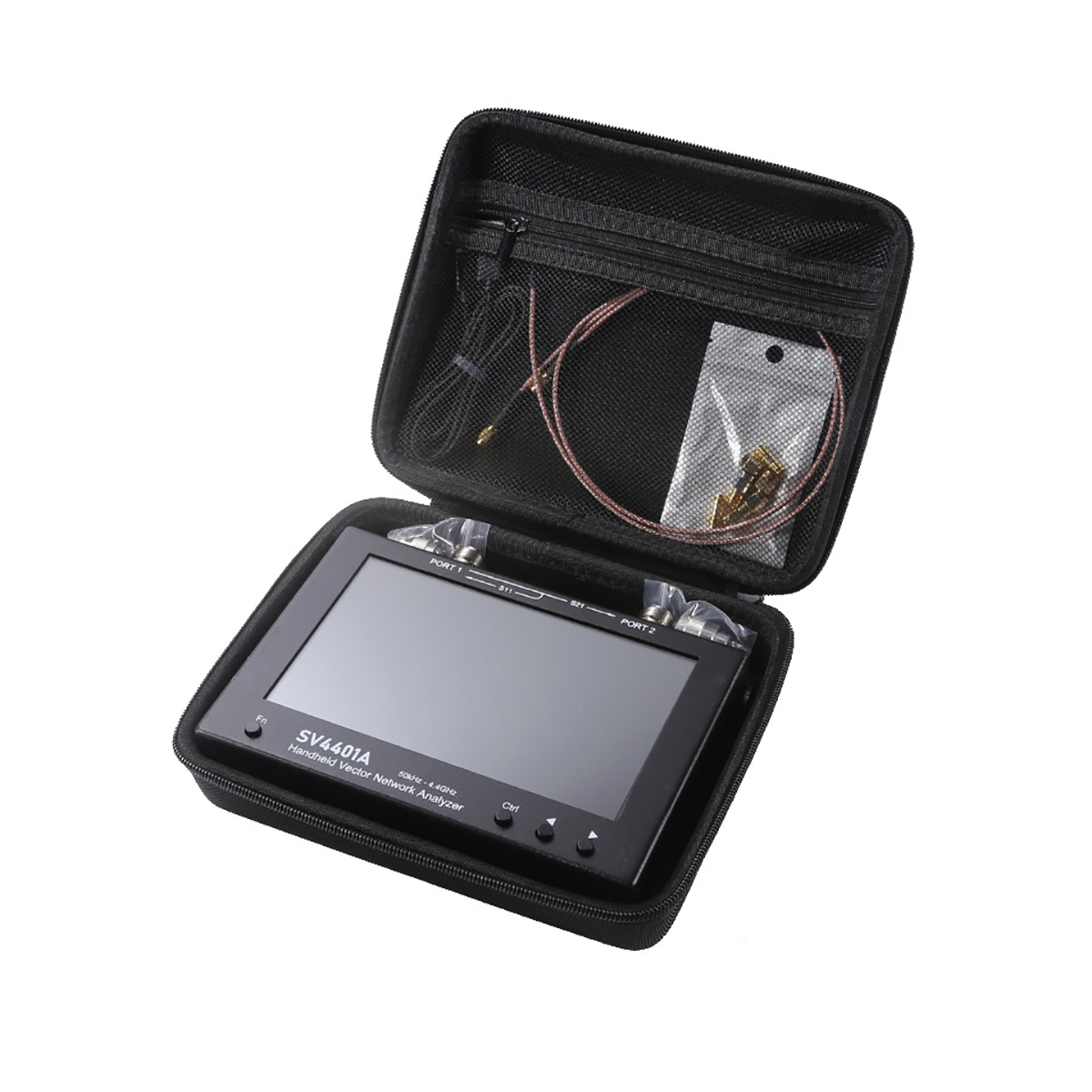

Bag x1
