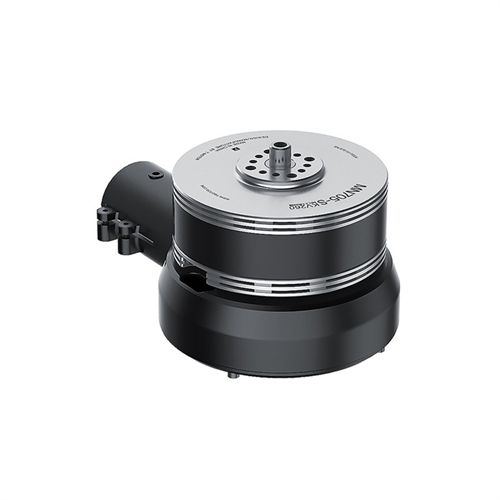

MN705-S KV125 Motor
Steering: CW / CCW optional
Motor Size: Φ79.2 * 42.4mm
Stator: Imported silicon steel sheet; Anti-rust treatment; 180°Chigh temperature-resisting coatings
Shaft Diameter: N:8mm, OUL:8mm
Bearing: Imported 608ZZ
Magnet Level: 150°C high temperature resistance
Lead Cable: 14AWG * 150mm
Copper Wire: 220°C high temperature resistance: Level C
Coil Insulation Test: 500V
Centrifugal Cooling Design: Yes
Rotor Dynamic Balance Standard: ≤5Mg
Motor Dynamic Balance Standard: ≤10Mg
IP: IP45
KV: 125
Idle Current (22V): 1.4A
Peak Current (180s): 45A
Max. Power (180s): 2200W
Internal Resistance: 63mΩ
Rated Voltage (Lipo): 12S

Alpha 80A HV ESC
Support Voltage (12S): 18-52.2V
Con.Current: 80A
Peak Current (10s): 100A
Standby Consumption: ≤50mA
BEC: NO
Throttle Pos. Ranae: 1100-1940us
Throttle Refresh Frequency: 500Hz
Throttle Response Speed: 300ms

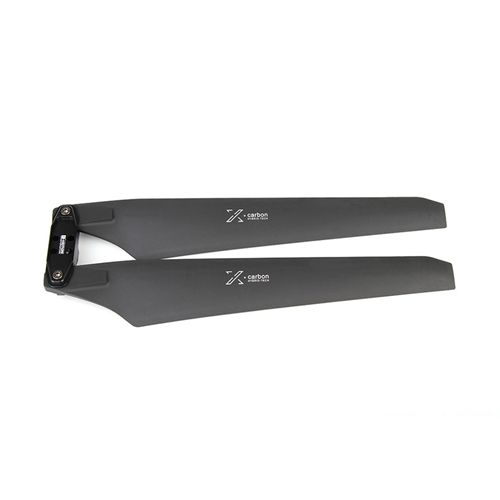

MF2614 Propeller
Diameter: 26.4inch (671.8mm)
Pitch: 9.4inch (239.5mm)
Recommended Thrust / RPM: 2.8-5kg/ 2700~3800RPM
Ambient Temp: -40C~65°C
Materia: Polymer + CF
Recommended Max Thrust / RPM: 12kg / 5500RPM
Storage Temp / Humidity: -10°C~50°C/< 85%
