*The TTOY keeps monitoring motor speed in real time. It is compatible with the magnetic encoder system to ensure flight safety.

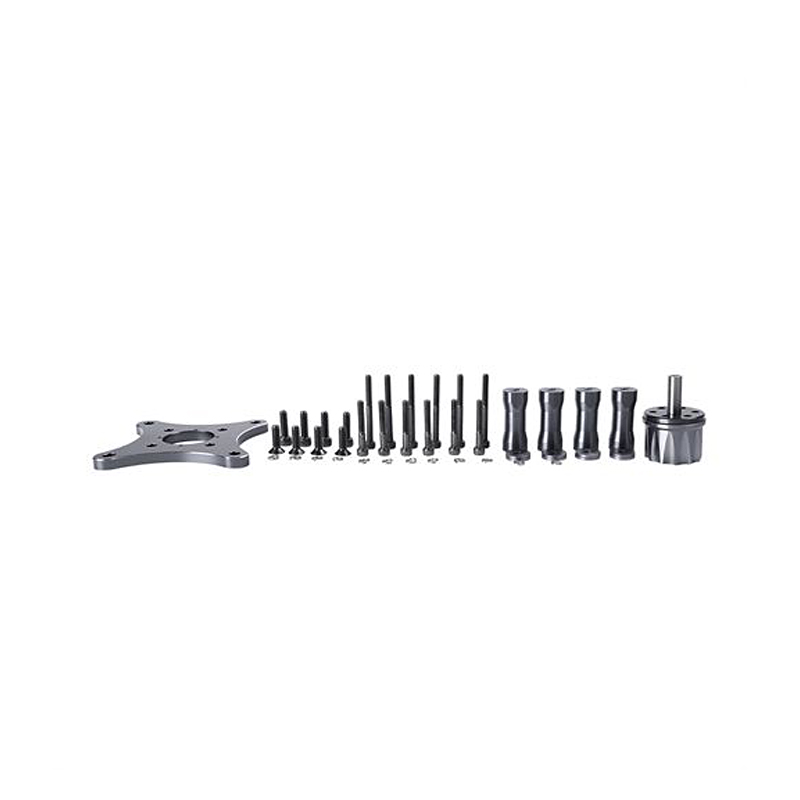

*Removable propeller hub for multiple applications. TTY adapts to the installation of fixed-wing one-piece propellers, folding propellers and other propellers. It provides a convenient and safe way of locking the propeller.

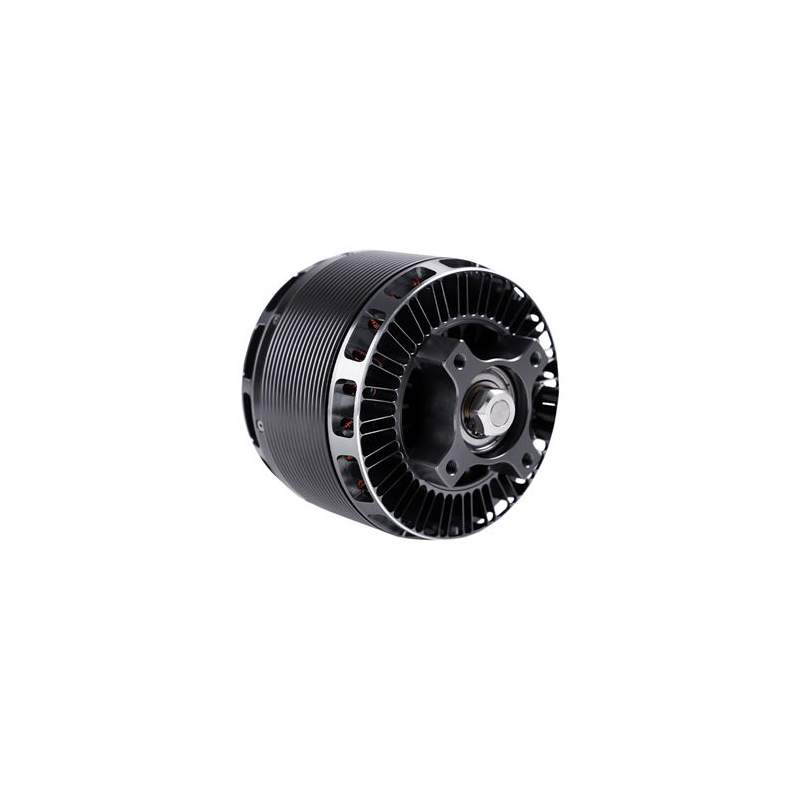

*High efficiency and heat dissipation for longer service life. TTOY with bottom-mounted heat sink.

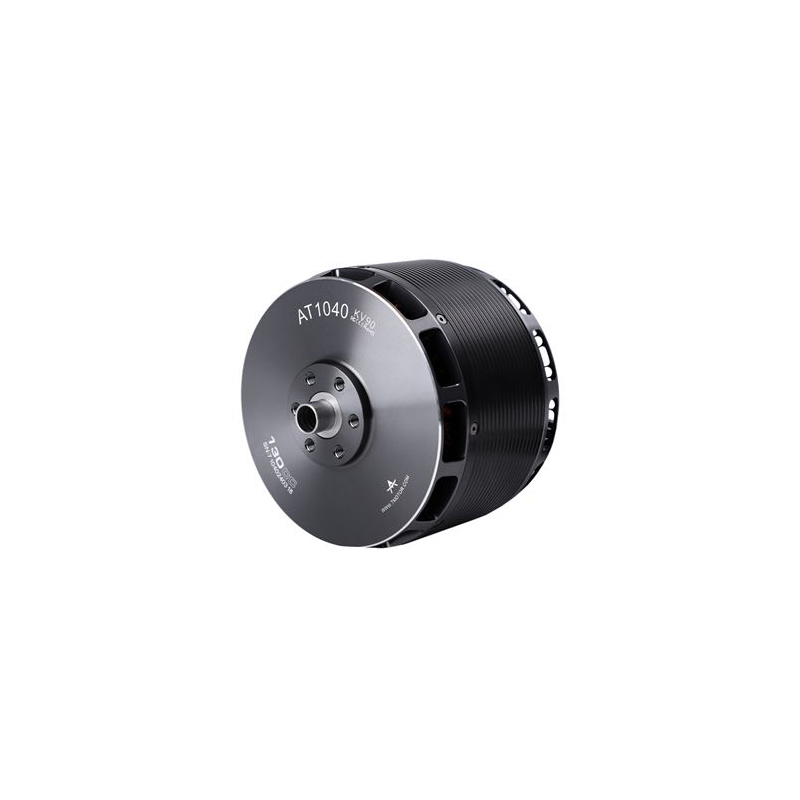

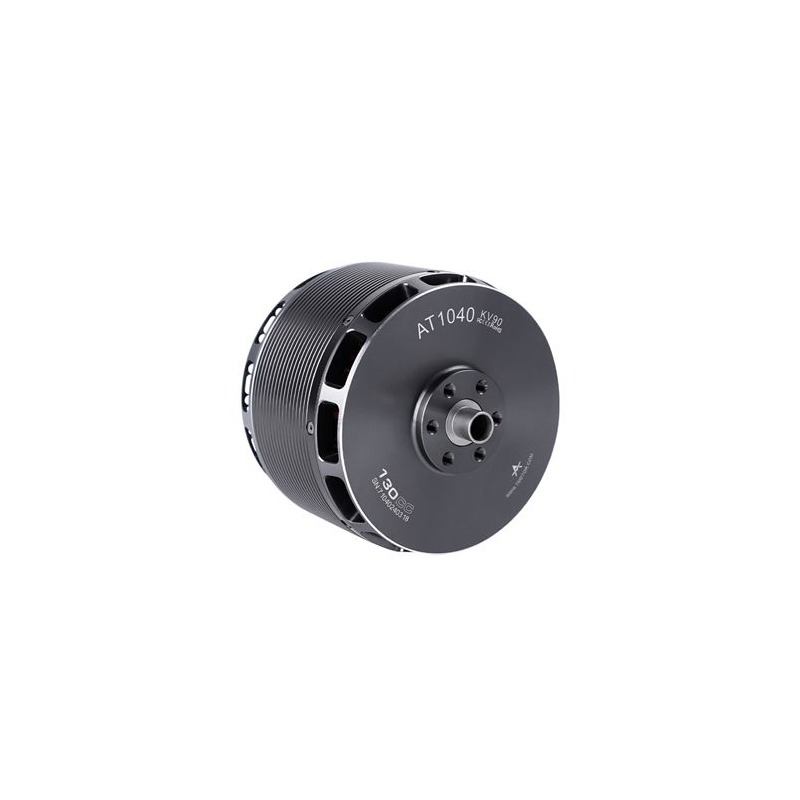

Type: AT1040.
Magnet temperature resistance grade: 180°C.
Motor dimension: 110.6 * 109.8mm.
Lead x Length: Enameled wire 100mm.
Stator technology: 150°C high temperature-resisting coatings. Temperature resistance of enameled wires: 220°C.
Configuration: 24N28P.
Coil pressure-resistant: 1000V/5s.
Shaft diameter: IN: 15mm, OUT: 12mm.
Dynamic balance requirements standards: ≤30mg.
KV: 90.
Idle Current (15V): 4.9A.
Max. Continuous Power: 6000W.
Peak Current: 105A.
Rated Voltage (LiPo): 24S.
Internal Resistance: 8.8mΩ.
Max Thrust: 32kg.
Weight (Incl.cable): 2200g.
T-MOTOR AT1040 KV190 x1
