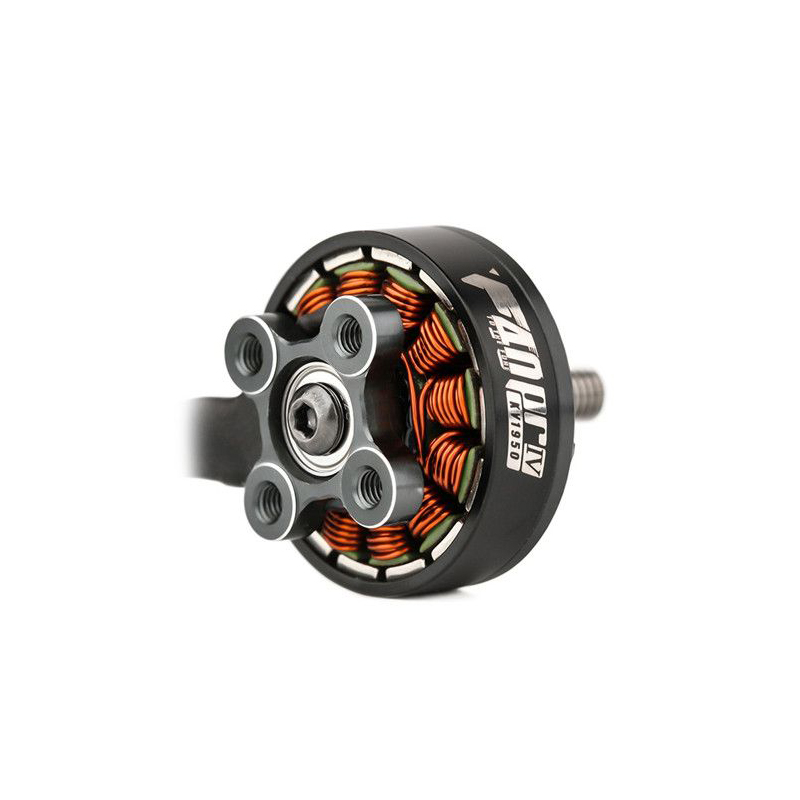

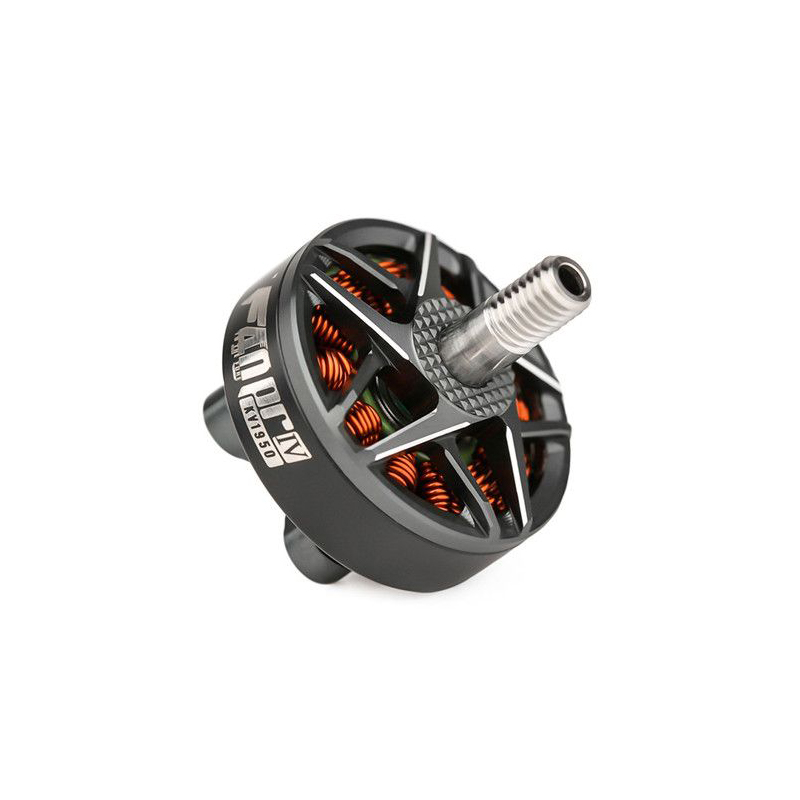

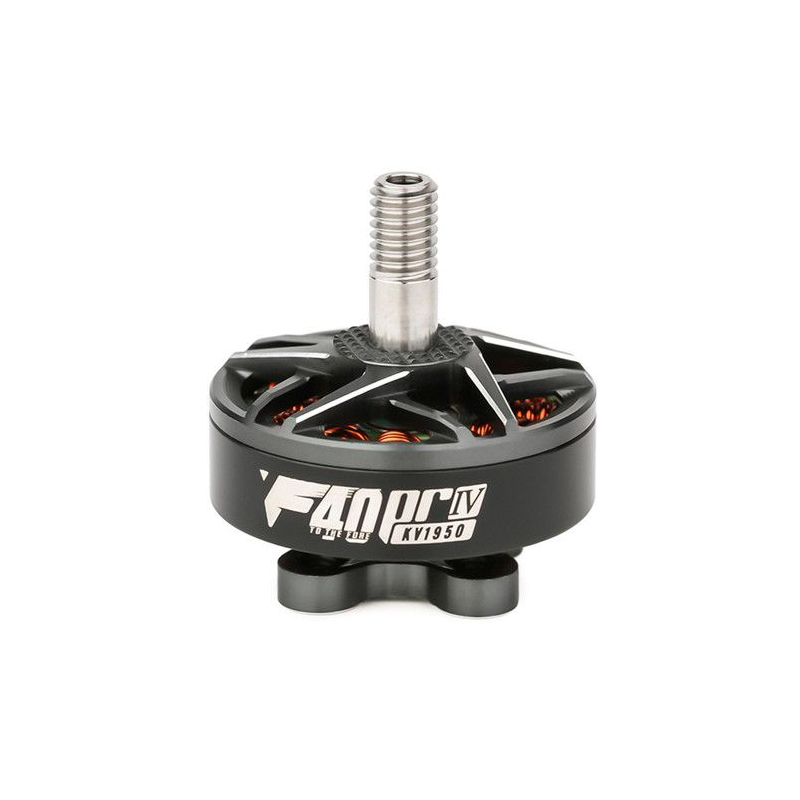

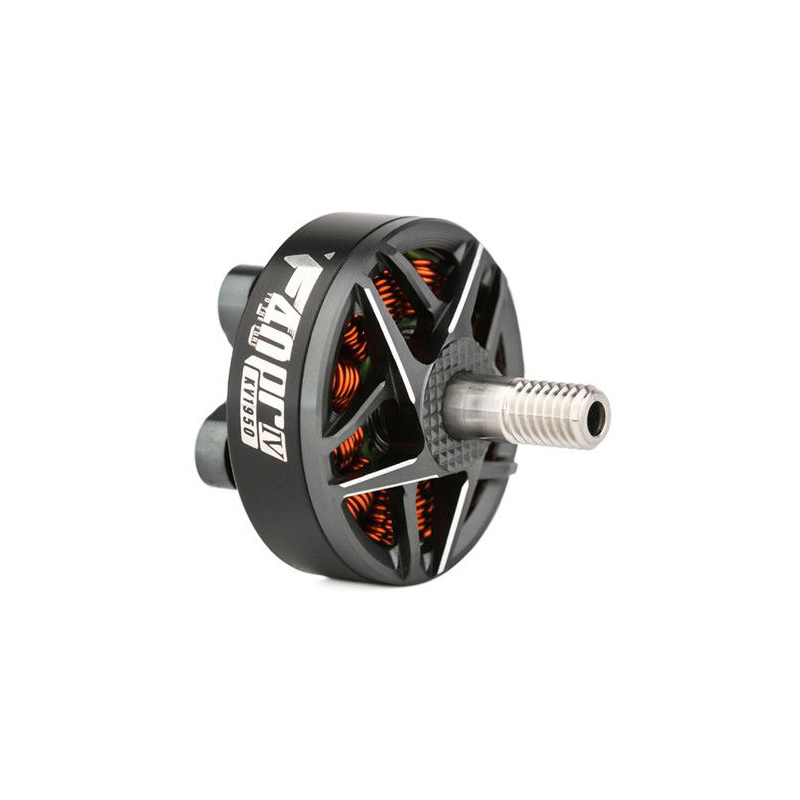

T-Motor F40 Pro IV 2306 1950KV 2400KV Brushless Motor for RC Drone FPV Racing
Diffirence from Pro III Version:
1. Lighter & Quicker response
– Crafted product, reducing weight at every detail. 9% less weight compared with F40PROIII-
– Internal motor pinhole (0.05g less)
– 12MM steel shaft (0.4g less)
– Customized silicone wire(0.4g less)
– Silicon steel sheet ( redesign to less 0.5g)
– Other (0.2g less)
2. Durability Enhanced greatly
– Interlaced rib design
– Shaft height is reduced to 12MM
– Special base design
3.Improve user experience at every detail
– Customized prop nut to protect the shaft thread effectively
– Optimized mounting holes perfectly match the frames/arms
Test Item: KV1950
Lead: 20AWG 150mm
Shaft Diameter: 4mm
Idle Curren(10V): 1.3A
Max. Power(60s):1012W
Motor Dimensions: 27.9*29.8mm
Weight: 30.8g
Configuration: 12N14P
Rated Voltage: 4-6S
Peak Current(60s): 42A
Test Item: KV2400
Lead: 20AWG 150mm
Shaft Diameter: 4mm
Idle Curren(10V): 1.6A
Max. Power(60s): 666W
Motor Dimensions: 27.9*29.8mm
Weight: 30.8g
Configuration: 12N14P
Rated Voltage: 4S
Peak Current(60s): 42.9A
F40 Pro IV Brushless Motor x 1
Parts Bag x 1
