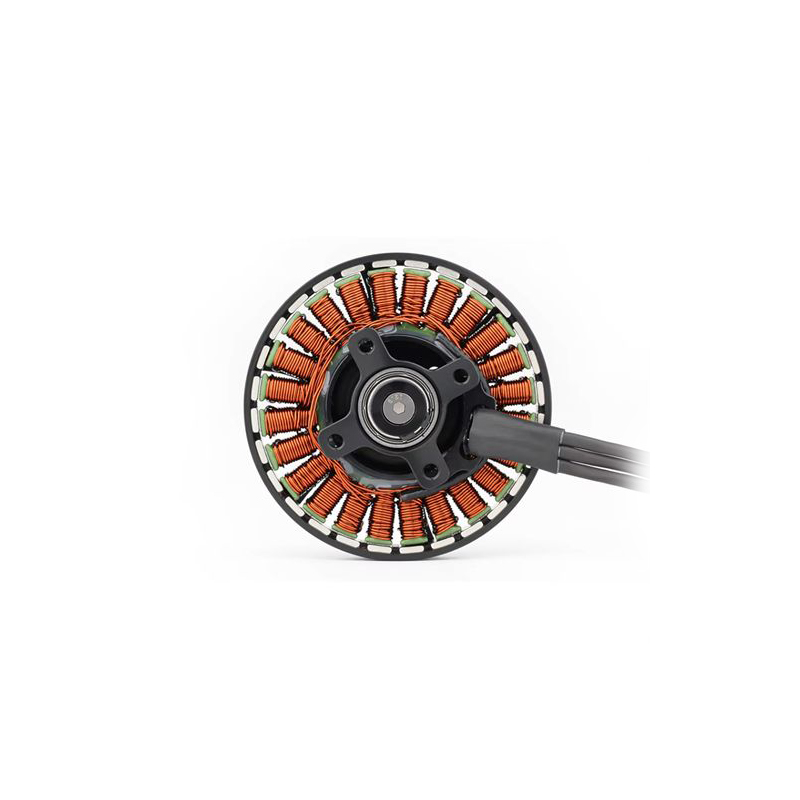

T-MOTOR MN5008 Antigravity light & efficient 6-12S Drone Motor multirotor Motor






T-MOTOR MN5008 Antigravity light & efficient 6-12S Drone Motor multirotor Motor
*Flight time up to 60 mins. Reliable performance for multiple surveying applications in various environments.
*Max. thrust up to 4.2 kg: agile maneuverability from abundant power backup to handle fast speed and sudden brake to target the classical moments.
*Ideal assist in emergency rescue. Your safeguard in front of danger and disaster. Motor temperature after working with 754W load for 10 mins is only 89°C. Easy task accomplishment in high temperature condition.
*Incomparable core: Imported silicone steel sheets of high magnetic permeability and upgraded laminated technology in combination with optimized arc magnets design contributes to the combination of efficiency and thrust. Logical multislot structure brings down the motor cogging torque for smooth operation and low noise.
Motor Specifications
Motor Size: 55.6*32mm
Stator: Imported silicon steel sheet with anti-rust treatment and 180°C high temperature-resisting coatings
Configuration: 24N28P
Shaft Diameter: 6mm (IN)
Bearing: Imported 696ZZ
Magnet Level: 150°C high temperature resistance, Level E.
Lead Cable: 80mm
Copper Wire: 180°C high temperature resistance, Level H.
Coil Insulation Test: 500V
Centrifugal Cooling Design: YES
Rotor Dynamic Balance Standard: s15mg
Motor Dynamic Balance Standard: ≤10mg
Packing Size: 106*81*35mm
Recommended thrust per motor: 1 – 1.2kg
Thrust at full throttle: 42kg
Weight: 135g
1× T-MOTOR MN5008 Motor
Related products
-
Brushless Motor
4PCS Brotherhobby Avenger 3320 400KV Brushless BLDC CW Motor RC Drone Racing Motor Accessory FPV Drones Drone Accessories
Rated 0 out of 5 -
Brushless Motor
4PCS BrotherHobby Special Edition V4 32.5-12 580KV Motor Brushless Motor For 9-13Inch FPV Long Rang Racing Drone X9 X13
Rated 0 out of 5 -
Brushless Motor

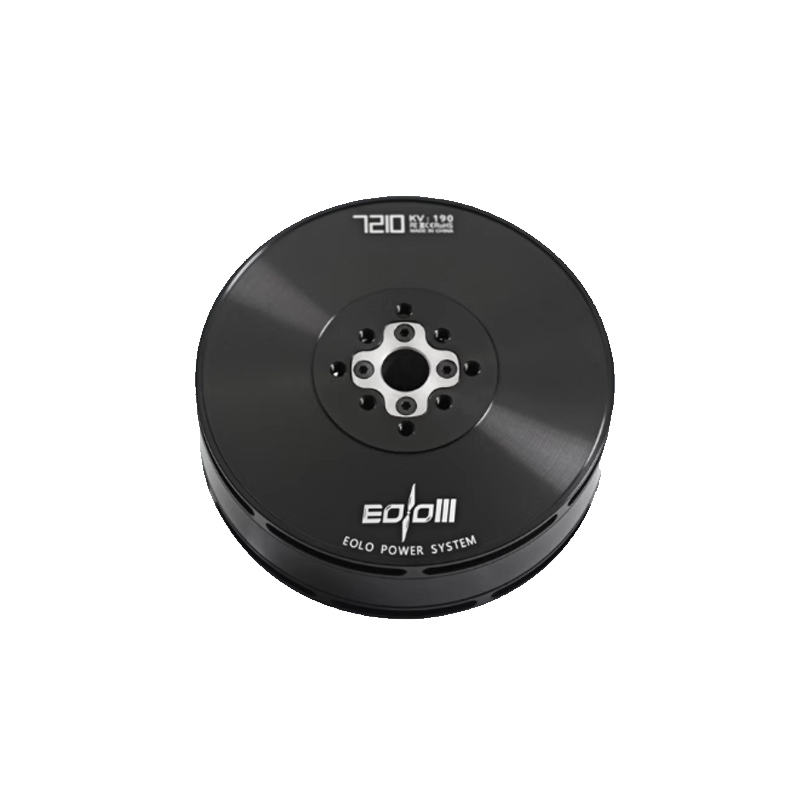

Sunnysky EOLO 7210 Brushless Motor for RC model and Multicopter drone
