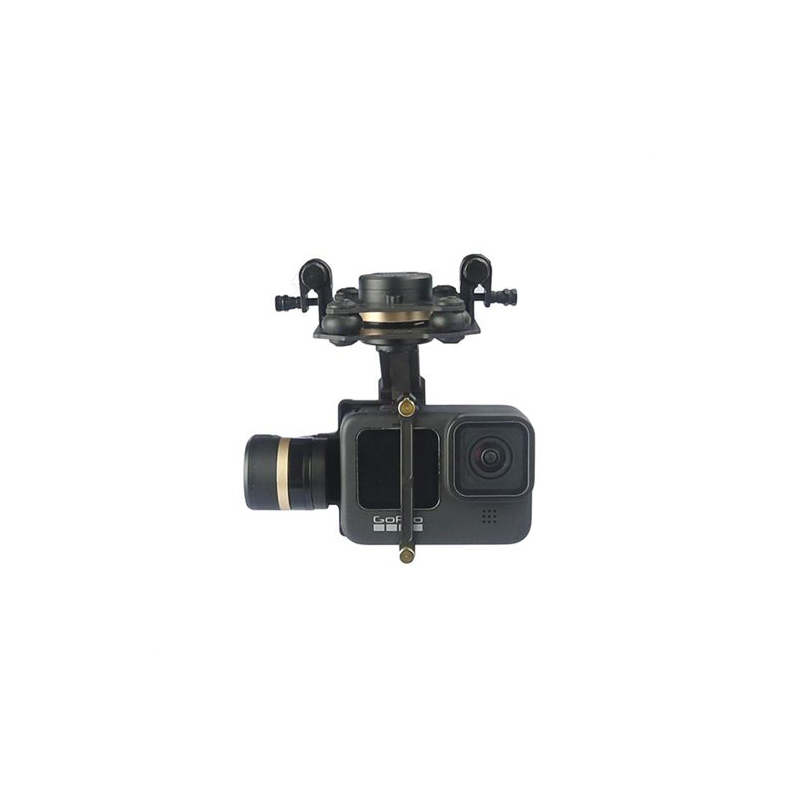

Tarot Gopro T-3D VI Metal 3 axis PTZ Gimbal TL3T06 for Gopro Hero 9 Camera FPV Drone System Action Sport Camera
Tarot Gopro T-3D VI Metal 3 axis PTZ Gimbal TL3T06 for Gopro Hero 9 Camera FPV Drone System Action Sport Camera
Tarot GOPRO T-3D series metal three-axis pan/tilt head is specially customized for GOPRO HERO series cameras; it adopts full CNC integrated ribbed wall panel structure industrial design, bringing light weight and the strongest stability; even in harsh and extreme environments, It can also accurately lock the camera to maintain a high degree of stability; Tarot GOPRO T-3D metal three-axis gimbal has excellent calculation and control capabilities, built-in independent IMU to accurately control the gimbal attitude, integrated gimbal servo drive module, and supports pointing follow and FPV working modes.
Applicable camera type: GOPRO HERO 9
Input Power: 3S-6S Li (11V-26V)
Operating current: 30mA (@25V) / 50mA (@12V)
Stall current: 350mA (@25V) / 700mA (@12V)
Attitude control accuracy: ±0.02 degrees
Maximum controllable speed
Rotation direction (PAN): ±200°/s
Tilt direction (TILT): ±200°/s
Roll direction (ROLL): ±200°/s
Controllable rotation range
Rotation direction (PAN): ±330°
Tilt direction (TILT): -135° to +45°
Roll direction (ROLL): ±48°
S-Bus/PWM receiver support
Working environment temperature: -20℃~+50℃
Maximum external dimensions (length, width and height): 107mm *91mm *109mm
Windows XP; Windows VISTA; Windows 7; Windows 8 (32 or 64 bit); Win10
GoPro9 metal three-axis gimbal (165g)×1
PTZ main control module (36×25×11mm)×1
8P PTZ main control and PTZ main body cable × 1
5V output, receiver integrated line × 1
USB module (27×21×7mm)×1
ZYX-M flight control cable × 1
