Tarot Martin 4012 Brushless Motor 6S 320KV Efficient Long Endurance Motor TL40P12 for RC Multi-Rotor UAV Drone
Tarot Martin 4012 Brushless Motor 6S 320KV Efficient Long Endurance Motor TL40P12 for RC Multi-Rotor UAV Drone
– Martin series brushless motors developed for long-endurance multi-rotor UAVs
– Tested and tuned over a long period of time to obtain low power consumption and high lift
– The motor’s extremely low center of gravity increases the stability of the drone
– Built-in high-efficiency active heat sink brings ultra-low temperature and effectively improves energy conversion efficiency

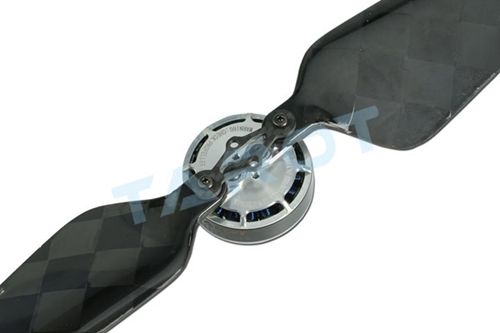

– Use with Martin folding paddles for more efficient performance and longer endurance
– This series of newly designed folding rotor mounts are widely adaptable
– Universal conventional propeller and installation of the new Martin folding propeller
– The base of the motor adopts a high overhang design to protect the coil

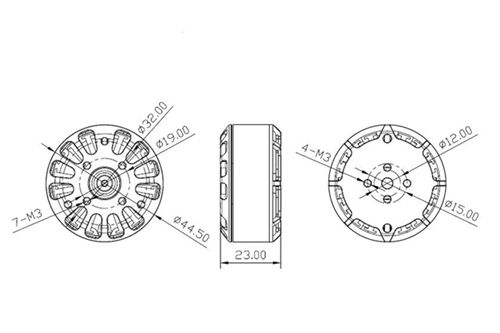

– Mounting hole 19MM / triangle mounting hole 27.7MM
– Compatible with the mainstream of the current market frame mounting
– It inherits the superior characteristics of TAROT brushless motor with long life, high efficiency, low power consumption, low noise and stable control.

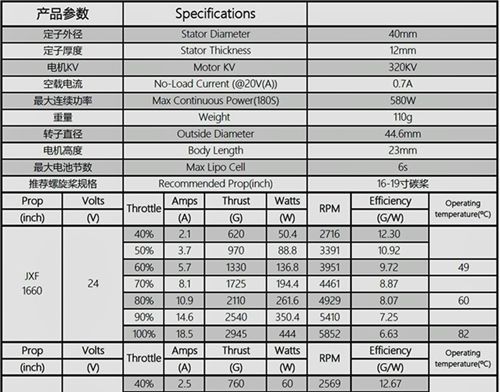

Support lithium section number: 6S
Recommended Propeller: 16-19 inch
Stator diameter: 40MM
No load current(@20V(A)): 0.7A
Stator end thickness: 12MM
Motor KV: 320KV
Motor external diameter: 44.6MM
Motor height: 23MM
Maximum continuous power: 580W
Motor weight: 110g

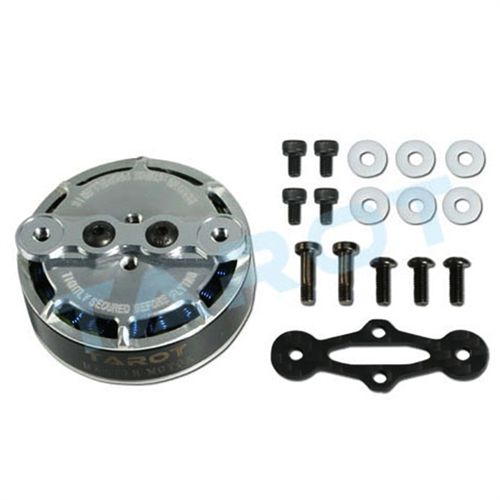

4012 Martin long-endurance brushless motor × 1
Metal folding paddle base (44×10×2.5MM) 2.0G×1
Carbon fiber folding paddle base clip (44×15×2.0MM) 0.85G×1
Metal folding paddle base mounting screws: M3×4MM semi-round head screws 0.4g×2
Rotor mounting screws: M3×11.3MM bushing screws 0.6g×2
Motor mounting screws: M3×8MM semi-round head screws 0.4g×3
Spare motor mounting screws: M3×5MM cup head screws 0.4g×4
Teflon gasket×6(8×3×0.5MM)0.05g
