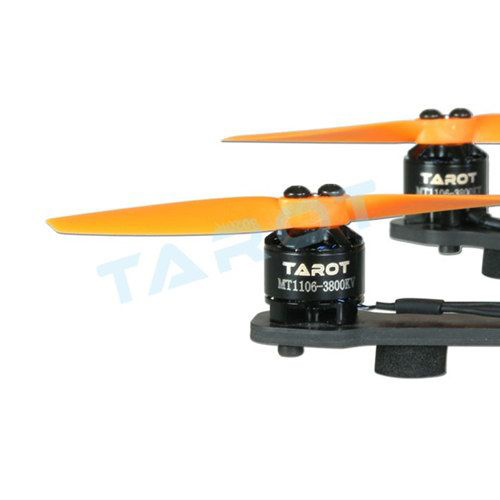

Tarot MT1106-3800KV motor/P TL150M2






Tarot MT1106-3800KV brushless motor can work with 120/130/140/150 and other high-end multi-axis to upgrade the configuration, Suggest to control the drone body’s weight under 200g (single pull power up to 130 grams). MT1106 brushless motor extremely low center of gravity, using 0.20mm ultra-thin high-efficiency silicon steel (primary propeller shaft folder structure) so that it can get the best concentricity guaranteed.
Support lithium section number: 3S
Propeller shaft mounting diameter: 5MM
Propeller: 3 inch propeller TL150S1/TL150S2
Stator diameter: 11MM
Stator end thickness: 6.0
Stator end number: 9
Motor Pole : 12
Speed: 3800KV ± 5%
Motor external diameter: 14MM
Axis diameter: 1.5MM
Motor height: 18.5MM
Motor weight: 6.2G
MT1106 motor(Φ14×18.5mm)x 1
M2* 6MM screws * 2
M2* 4MM screws*2
3 inch blade / pair
