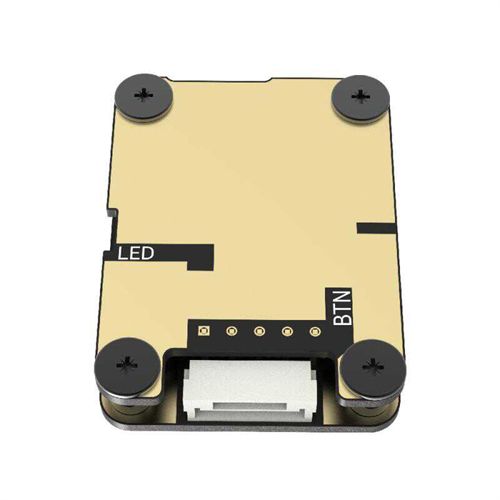

TBS New UNIFY PRO32 DP 3W 5.8G VTX (MMCX) a 3W wide band 5.8GHz video transmitter for long range FPV pilots
TBS New UNIFY PRO32 DP 3W 5.8G VTX (MMCX) a 3W wide band 5.8GHz video transmitter for long range FPV pilots
*Optimize heat dissipation
*Double noise filtering (>63dB SNR)
*Frequency range: 4990 MHz -6030 MHz
*2-6S input
*Optional circularly polarized antenna
*Using TBS Smart Audio 2.1 for OSD configuration
*(via Betaflight, TBS Crossfire/Tracer, or Ardupilot)
*One click frequency and power settings
*Provide LUA support for CRSF users
*MMCX connector
Output power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW), 33dBm+(2000mW+)
Working voltage: 6V-25V (2-6S)
Video input impedance: 75 ohms
Size: 37 x 28 x 10 millimeters
Antenna connector: MMCX
Video format: NTSC/PAL
Signal to noise ratio: >63 dBm
Weight: 8.7g
1x TBS UNIFY PRO32 DP 5G8 HV video transmitter
1x silicone wire (pre tinned end)
1x MMCX to SMA tail fiber
1x heat transfer tape for easy installation of FPV drones
