ToolkitRC ADP750 Power Supply Adapter 750W 100-240V AC Input 62.5A Output for ToolkitRC Battery Charger
ToolkitRC ADP750 Power Supply Adapter 750W 100-240V AC Input 62.5A Output for ToolkitRC Battery Charger
Converts standard household power 100-240V AC to 12V DC power and supply up to 62.5A of continuous power.
Perfectly compatible with M8D to get full power charging.
Specially designed for racing charging stations, Support simultaneous connections on all its 7 output ports.
IC Cooling Fan with Auto Fan Speed.

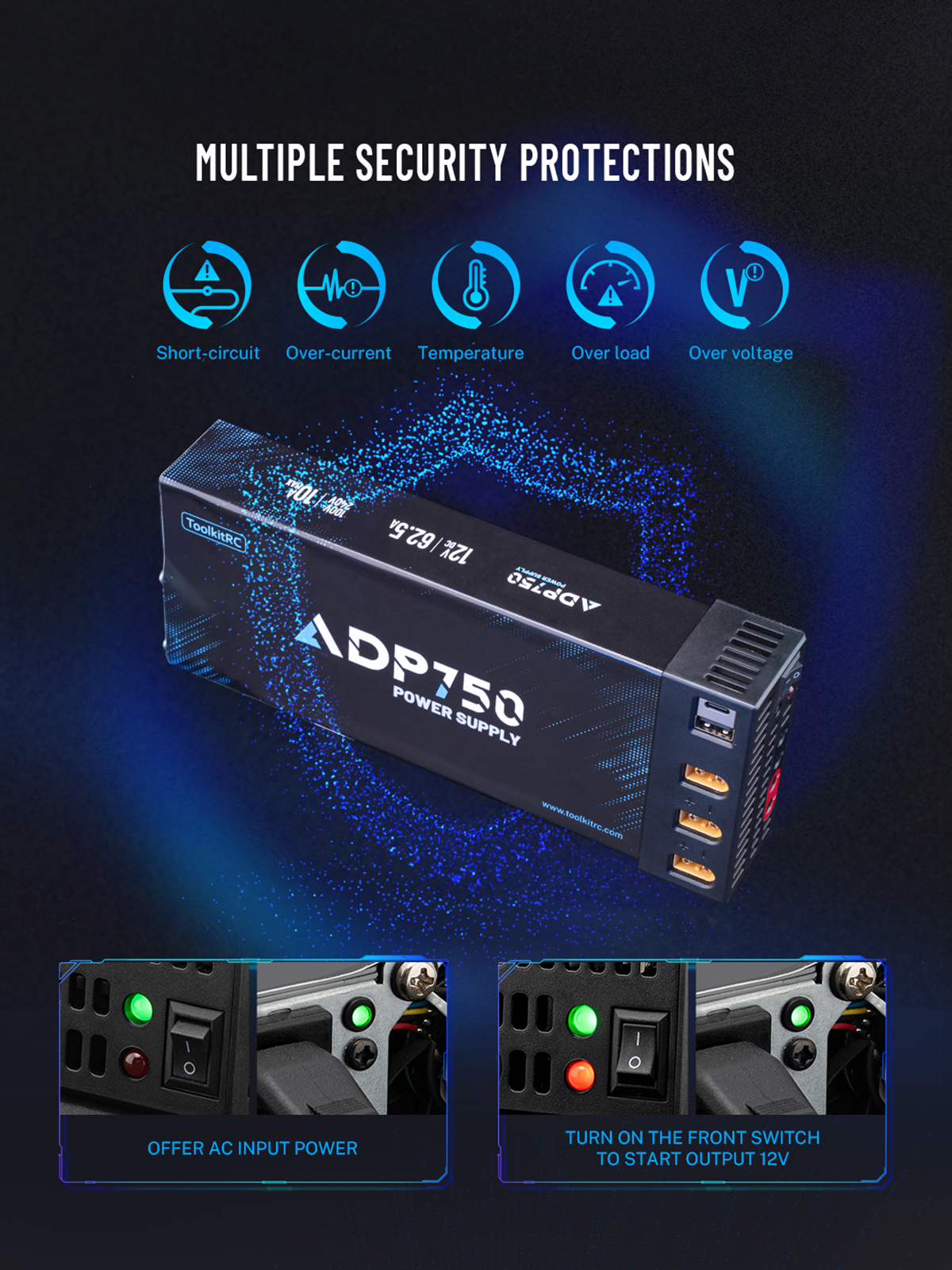

Multiple security protections: Short-circuit protection/Over current protection/Over temperature protection/Over load protection/Over voltage Protection.
Universal Operation 100-240V AC Power input.
Model: ADP750 Power Supply
Product size：227×90.2×42.4mm
Product weight：1050g
Pack size：272×188.2×72mm
Pack weight：1400g
Work temp：-10 – 40℃
Main Plug: EU or US(Optional)
Connector: 1×TypeC; 1×USBA; 3×XT60 male ports; 2×4mm bullet port sets
Charger
Input voltage：AC 100-240V 50/60Hz
Input current：MAX AC 10.0A
Output voltage：MAX 12.0V
Output current：MAX 62.5A
Output 4mm bullet ports：12V@MAX 30A
Output XT60 male ports：12V@MAX 30A
Output TypeC(PD3.0)：5V/9V@3A,12V@2.5A,MAX30W
Output USBA(QC2.0)：5V/9V@3,12V@2.5A,MAX30W

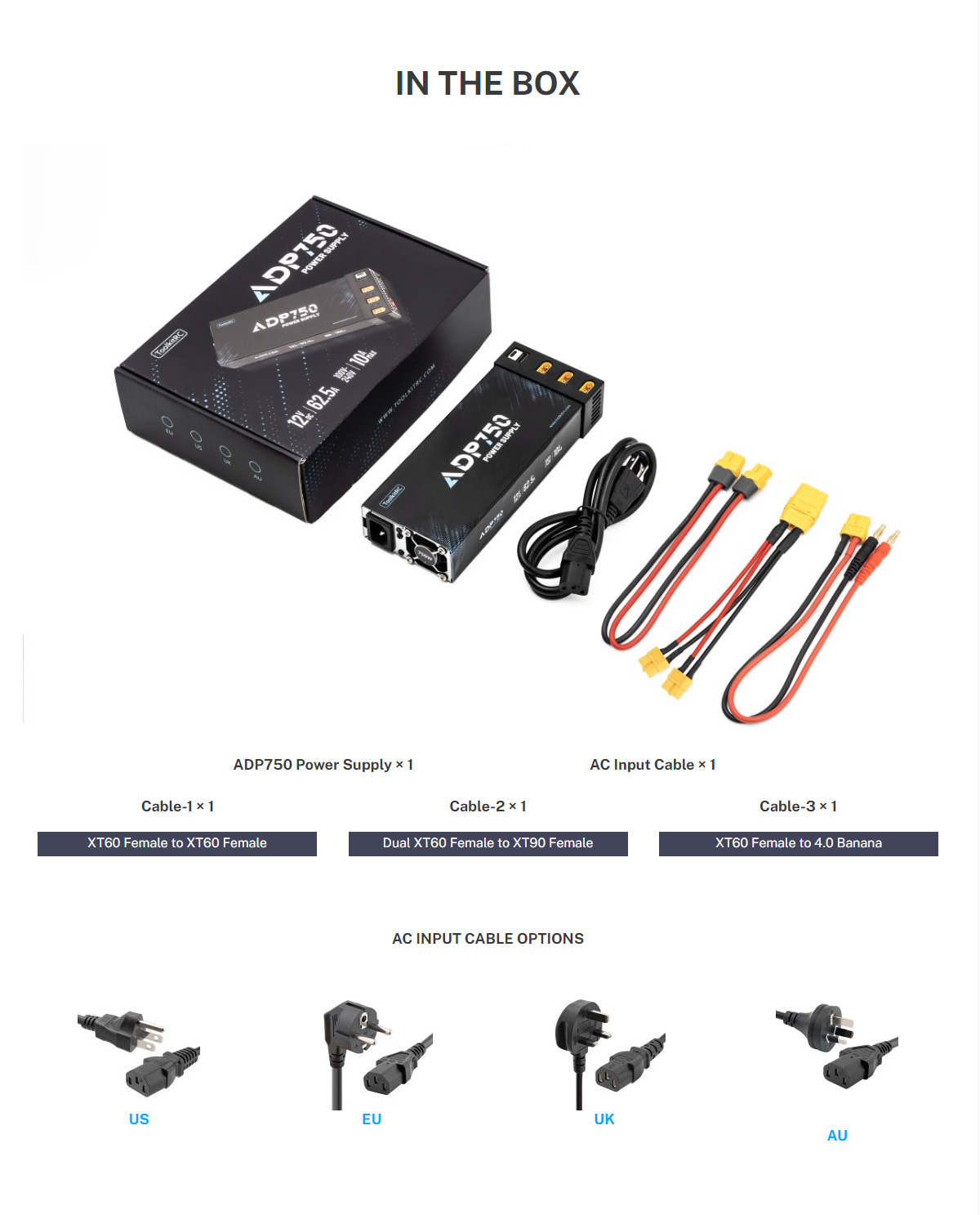

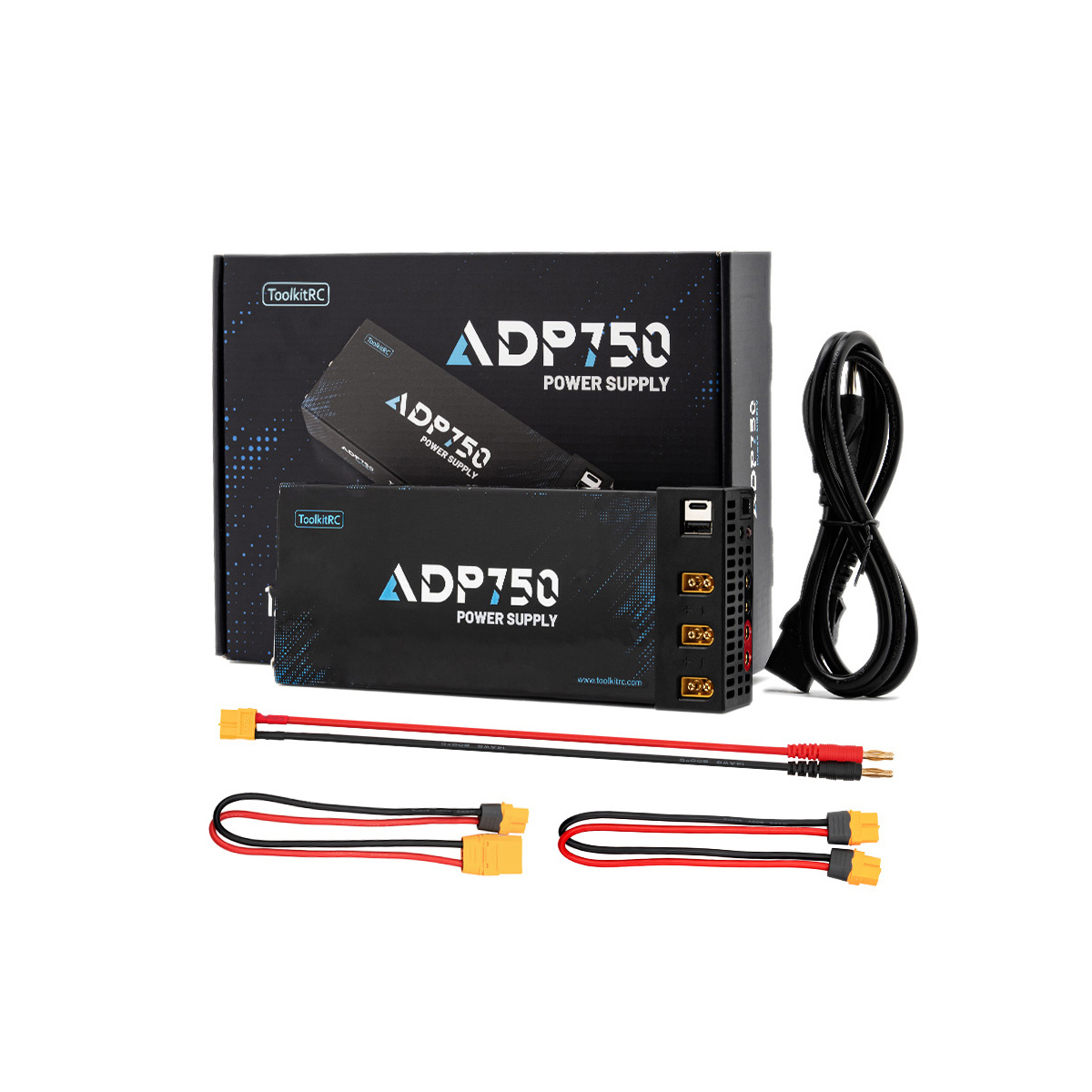

ADP750 Power Supply x1
AC Input Cable x1
XT60 Female to XT60 Female Cable x1
Dual XT60 Female to XT90 Female Cable x1
XT60 Female to 4.0 Banana Cable-3 x1
