TS80P Main Electric Soldering Iron PD2.0 QC3.0 Power Supply Mini Smart Soldering Iron 100-400℃ Station Welding Tools
TS80P Main Electric Soldering Iron PD2.0 QC3.0 Power Supply Mini Smart Soldering Iron 100-400℃ Station Welding Tools

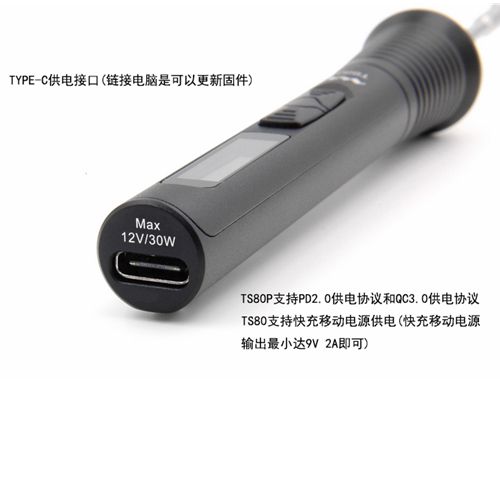

1)TS80 upgraded model named TS80P portable digital soldering iron supporting 9V/2A QC3.0 standard and DC12V 2.5A PD2.0 standard ensure high power output up to 30W and equipped with with USB type C power port which can be powered by the power bank or smart phone quick power charger directly

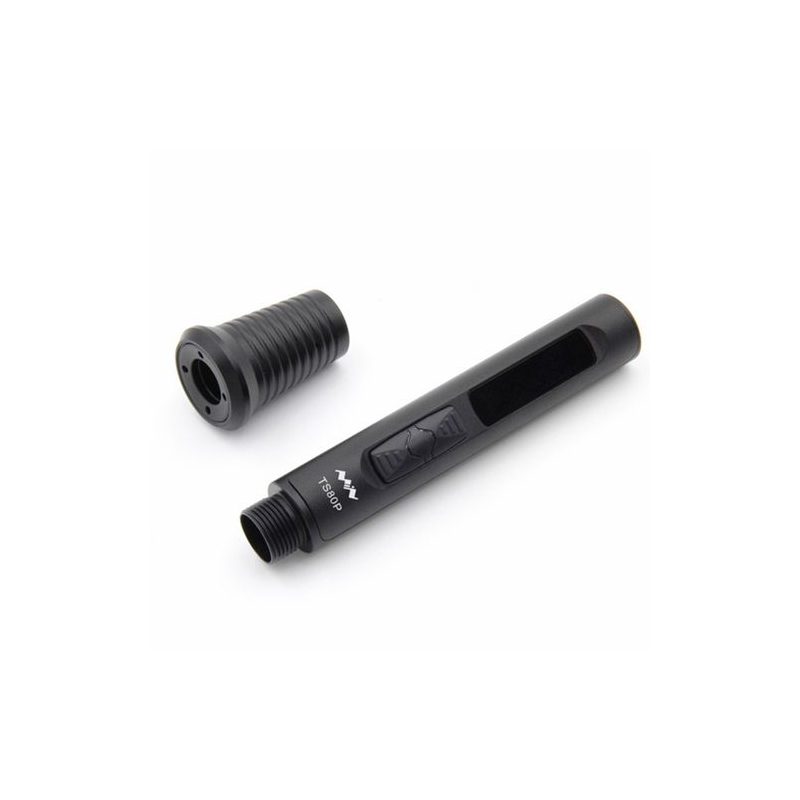

2) Upgraded soldering iron handle with trumpet shape fastener and self-locking design enable you to install the soldering tip easily no mounting screws needed.
3) Embedded STM32 processor chip enable you to update the firmware or parameter setting via computer and support sleep mode, auto shut down and port protection functions.
4) Internal Heating design with accurate temperature control and fast heating speed,reach the set temperature only takes 8 seconds
5) OLED screen display the parameter clearly and two button to regulate the out temperature (100-400 celsius degree range) and change parameters easy to operation.

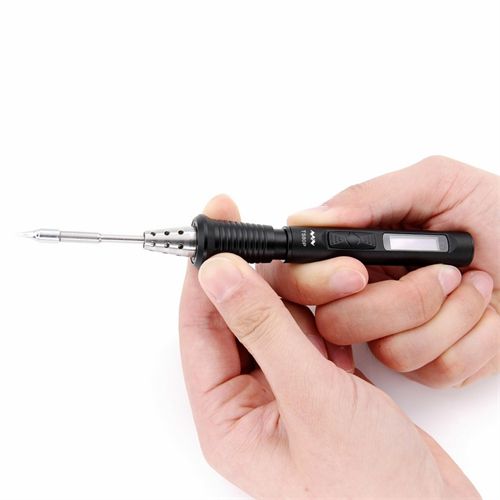

6) Compact pen shape with CNC machined aluminum alloy shell and ergonomic design, comfortable to grip and carry ideal for field repairs or daily soldering projectsElectric Soldering IronSoldering Iron
Model:TS80P (TS80 Upgraded)
Material: Aluminum alloy
Color: Black
Input Voltage:DC 9V 2A(QC3.0),DC12V 2.5A(PD2.0)
Power: 30W
The fastest heating time (room temperature to 300℃) : 8 seconds
Power Supply Port: USB type-C
Temperature Adjustable Range:100-400 celsius degree
Temperature Stability Range:±3%
Display:OLED Screen
Soldering Iron Handle Size: L 96mm，φ13-18mm
Soldering Iron Tip Size: L 100mm，φ5.5mm
Weight: 38g + Soldering iron head: 14g (B02)

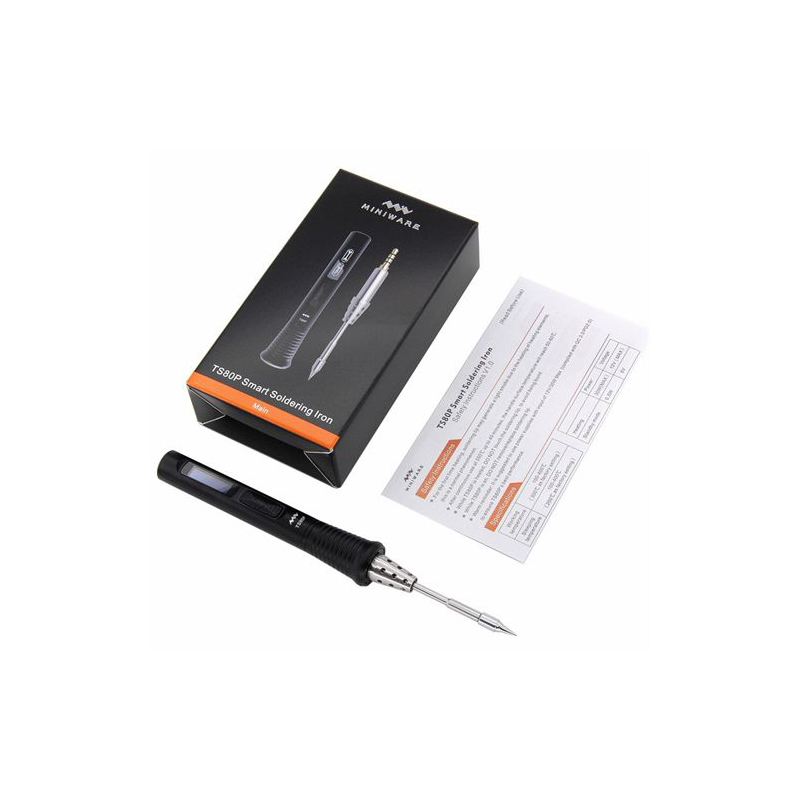

1 x Electric Soldering Iron
1 x User manual
