Walksnail Moonlight Kit 4k/60FPS FOV 160° Startlight Camera Built-in EIS Dual Antennas 2-6S for RC FPV Drone




Walksnail Moonlight Kit 4k/60FPS FOV 160° Startlight Camera Built-in EIS Dual Antennas 2-6S for RC FPV Drone
*4k/60FPS
*Startlight Camera
*Built-in Electronic Image Stabilization (EIS)
*Support Gyroflow
*Support SD Card
*Field of View (FOV) 160°
*Dual Antennas
*Voltage Range: 7.4V – 25.2V
Model: Moonlight kit
Firmware name: AvatarMoonlight_Sky_X.X.X
Communication-related
Communication Frequency: 5.725 – 5.850 GHz
Transmitter Power (EIRP):
FCC: <30 dBm
CE: <14 dBm
SRRC: <20 dBm
MIC: <25 dBm
Interface Situation
I/O Interface:
JST1.0 * 4 (Power input)
JST0.8 * 6 (USB)
Micro SD card slot
IPEX – 1
Sensor-related
Sensor: Starlight sensor
Field of View (FOV): Max 160°
Aperture: F2.1
Shutter: Rolling shutter
ISO: 100 – 25600
Recording-related
Recording resolution:
4K@30/60fps
2.7K@30/60fps
1080p@100/60fps
720p@60fps
Max Mbps: 150 Mbps
Video format: MP4 (H.264)
Functional Features
3D DNR: Supported
Gyroflow: Supported
Built-in Electronic Image Stabilization (EIS): Supported
Wide Power Input: 7.4V – 25.2V
Power consumption:
12V@1.4A
8V@2.2A
Storage-related
Memory card type: U3 MicroSD, Max 256G
Size and Weight
Camera size: 19.6mm * 19mm * 24mm
Video Transmitter (VTX) size: 15.3mm * 34.5mm * 34.5mm
Video Transmitter Installation hole distance: 20 * 20mm / 25 * 25mm (M2)
Weight: 38.5g (Antenna not included)
OSD-related
OSD: Canvas mode
Latency: Average delay 22ms
Antenna-related
Antenna: 2 (IPEX)
Details of Video Transmitter Antenna (VTX Antenna)
Model: avatar V2 antenna
Polarization: LHCP
Frequency range: 5600MHz – 6000MHz
Average Gain: 1.9dBi
Voltage Standing Wave Ratio (VSWR): <1.5
Input Impedance: 50Ω
Interface: IPEX – 1
Dimension: R15 × 45mm (without cable)
Weight: 2g

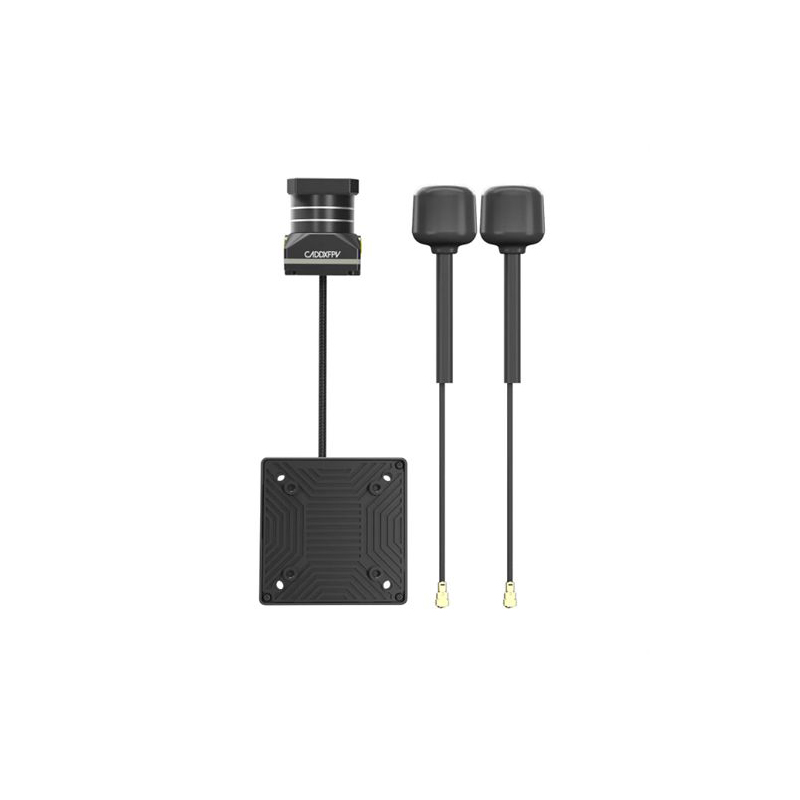

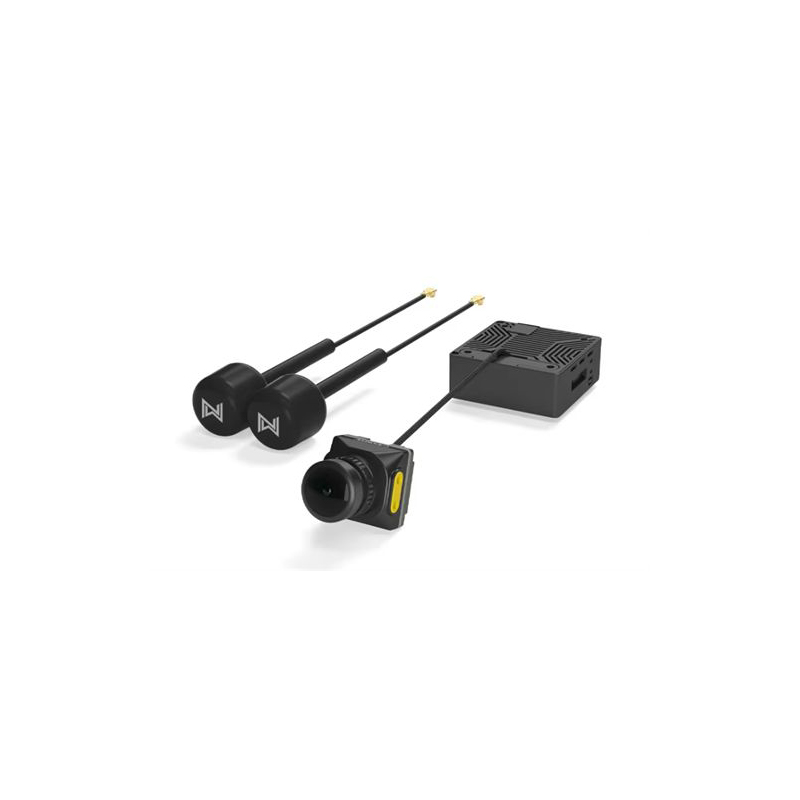

1×Walksnail Moonlight Kit 4k/60FPS FOV 160° Startlight Camera
