Apply Environmental Condition:
Storage Temperature Range: -30°C – 80°C
Operating Temperature Range: -25°C – 70°C

Mechanical Specifications:

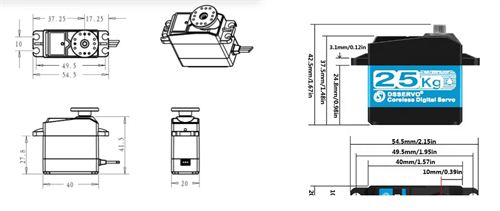

Size: 40.0 × 20.5 × 40.5 mm
Weight: 58g ± 2g
Limit Angle: 360°
Bearing: 2BB
Horn Gear Spline: 25T, Diameter: 5.9mm

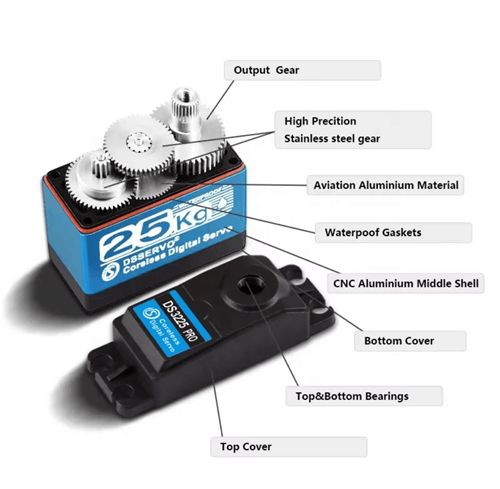

Case: Engineering plastics + Aluminum alloy
Connector Wire: 320mm ± 5mm
Motor: Coreless brush motor

Electrical Specifications:
Working Voltage Range: 5 – 8.4V
Command Signal: Pulse width modulation
Amplifier Type: Digital controller
Pulse Width Range: 500 – 2500 μs
Neutral Position: 1500 μs
Running Degree: 180 ± 3° (PWM 500 – 2500 μs) or 270 ± 3° (PWM 500 – 2500 μs)
Dead Band Width: 3 μs
Rotating Direction Counterclockwise: (when 1000 – 2000 μs)
