Waveshare 2-DOF Pan-Tilt HAT Onboard PCA9685 PWM Chip and TSL25911FN Ambient Light Senso for Raspberry Pi

SKU PAN-TILT-HAT Category Tag Brand:

Waveshare 2-DOF Pan-Tilt HAT Onboard PCA9685 PWM Chip and TSL25911FN Ambient Light Senso for Raspberry Pi

Dear customer:

Welcome to our FeiXiang website. We sincerely invite you to join our exclusive membership and become our member. You will be able to enjoy our membership price and more services!

Register login

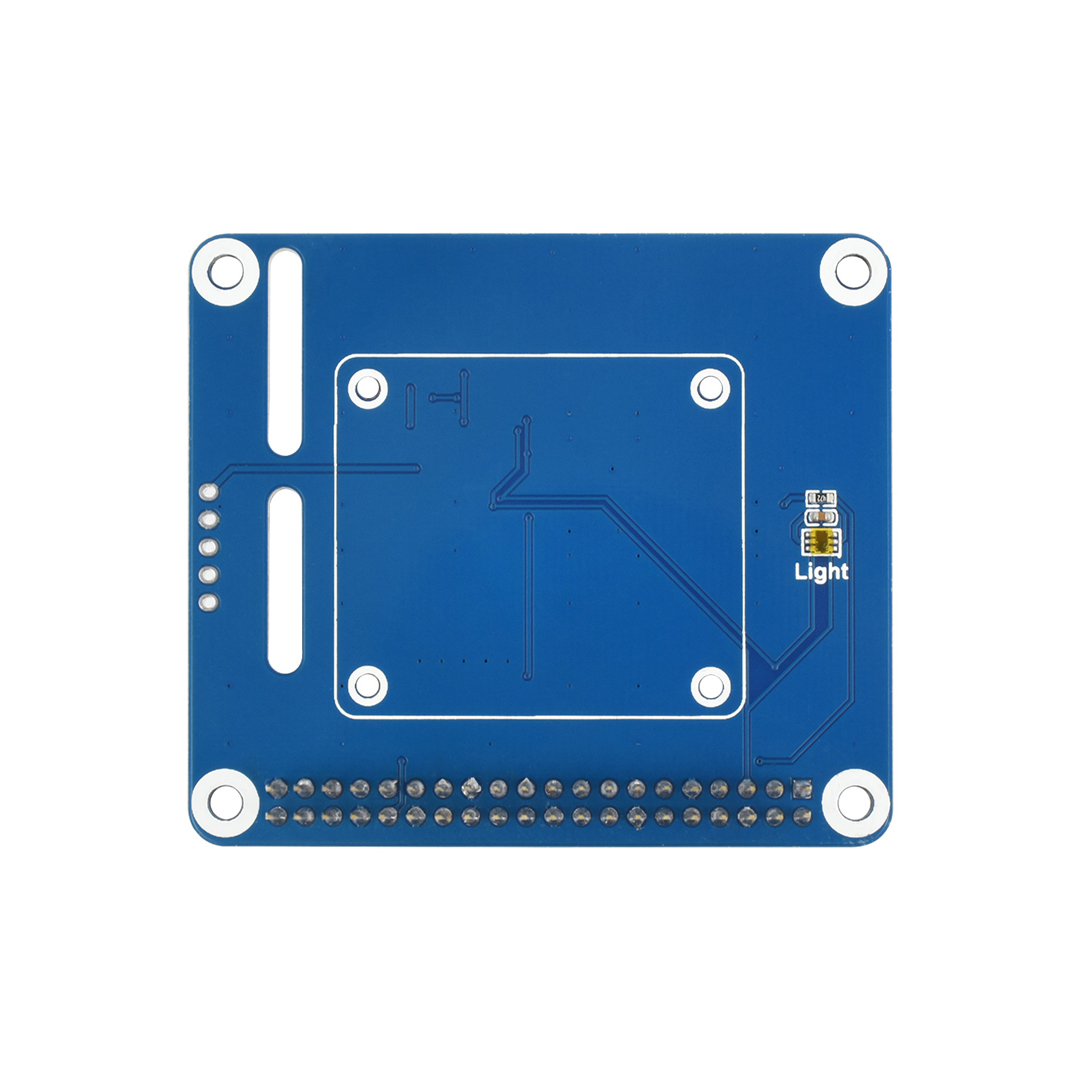

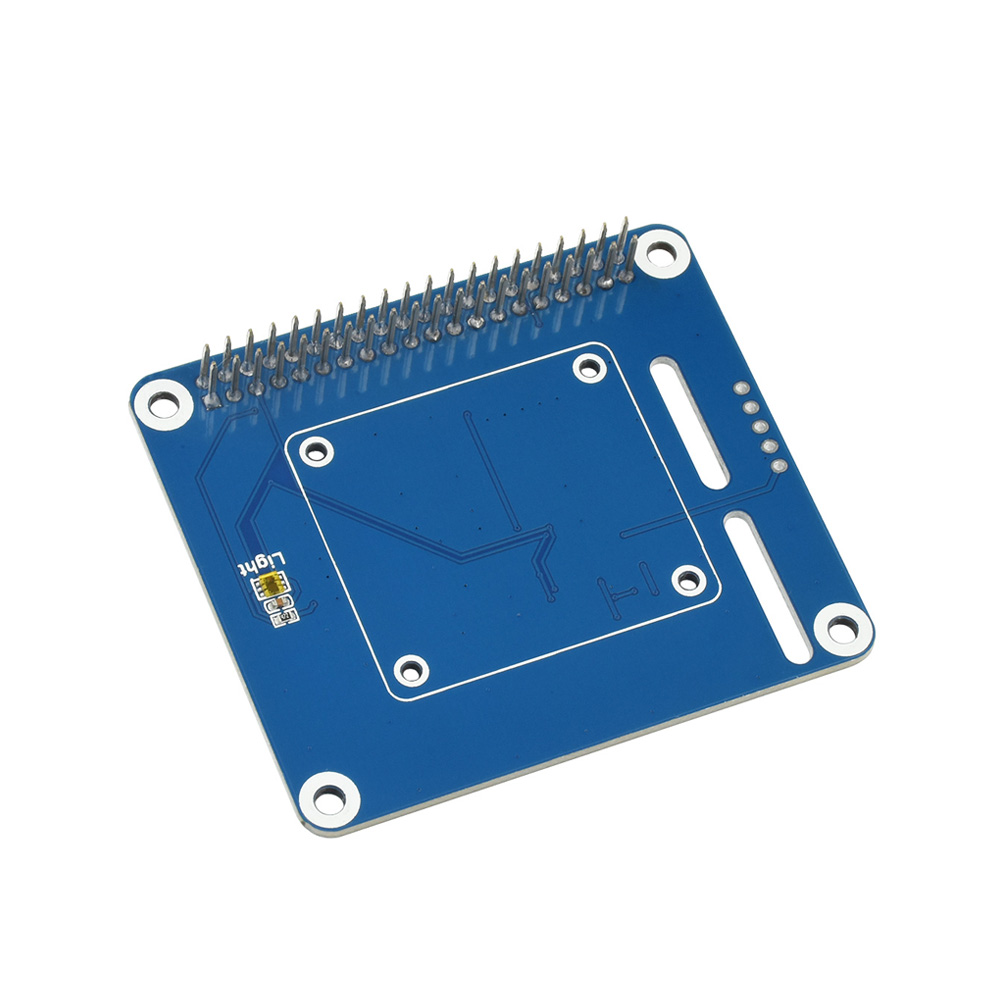

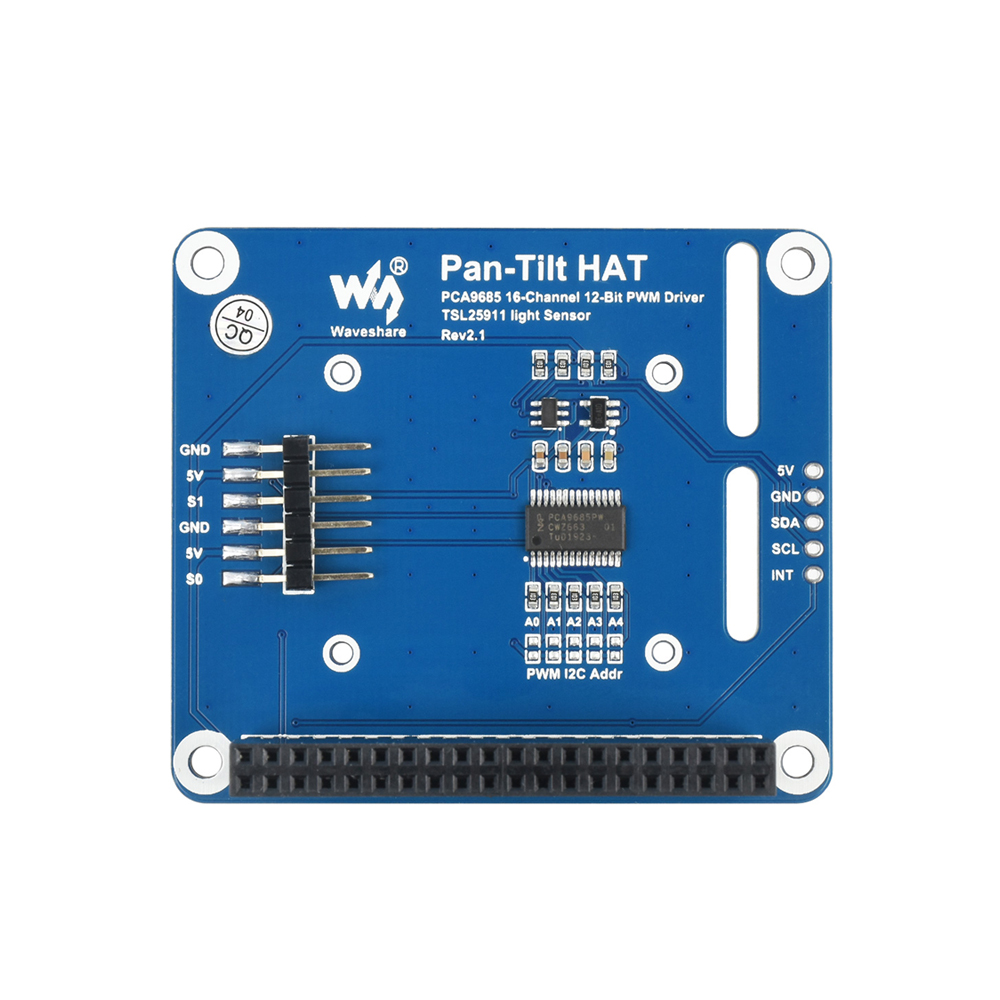

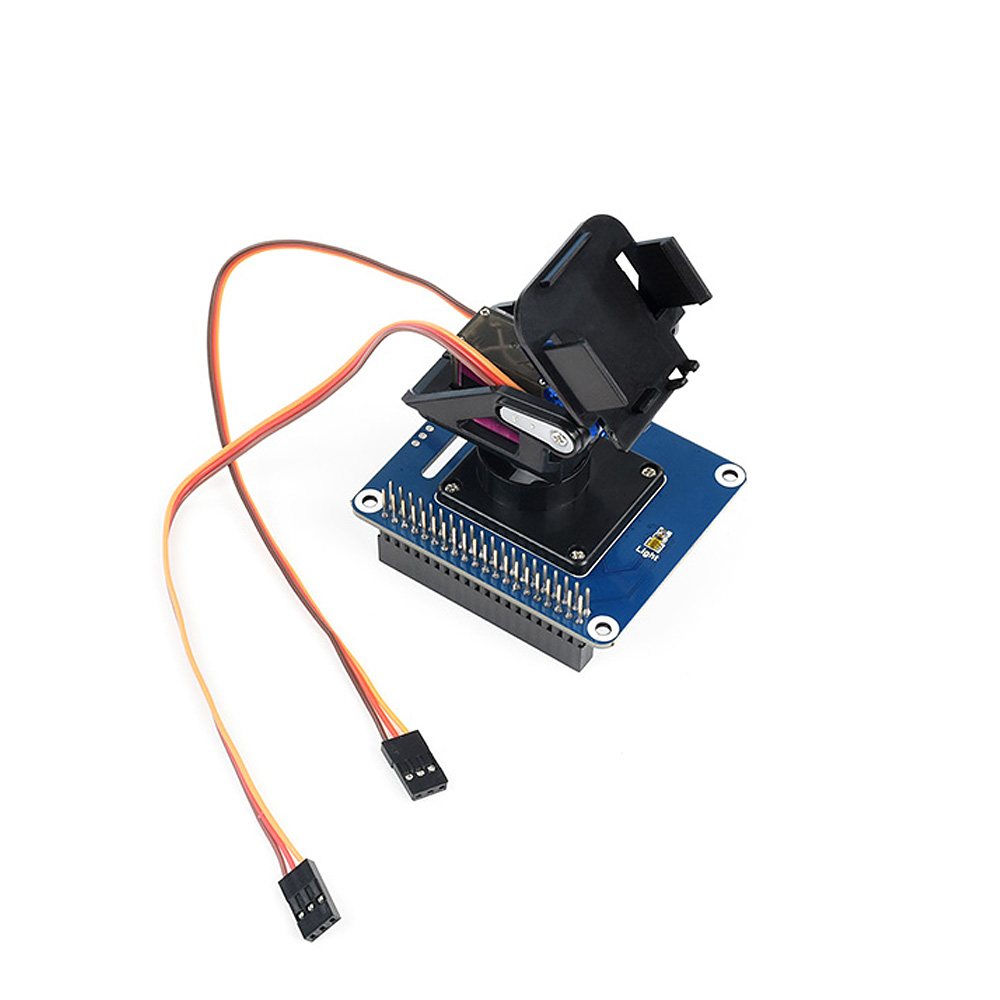

2-DOF Pan-Tilt HAT For Raspberry Pi, Light Intensity Sensing, I2C Interface

Model: Pan-Tilt HAT
SKU: 16138
Weight: 82g
PWM driver: PCA9685
PWM resolution: 12-bit
Ambient light sensor: TSL25911FN
Ambient light resolution: 16-bit
Communication interface: I2C
Operating voltage: 3.3V/5V
Dimension: 56.6mm x 65mm

Pan-Tilt HAT x1

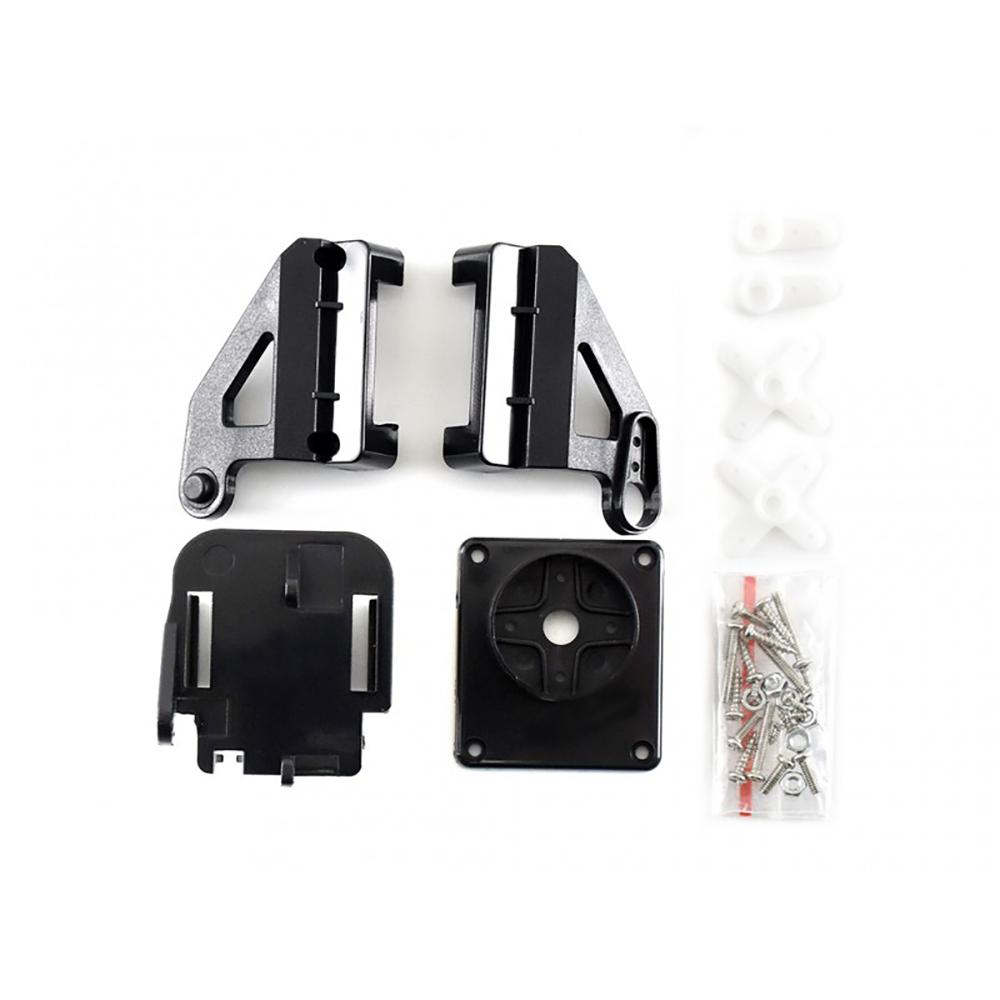

2-DOF pan-tilt kit x1
SG servo x1
MG servo x1
Acrylic board x1
M2 screws pack x1
RPi screws pack (2pcs) x1
