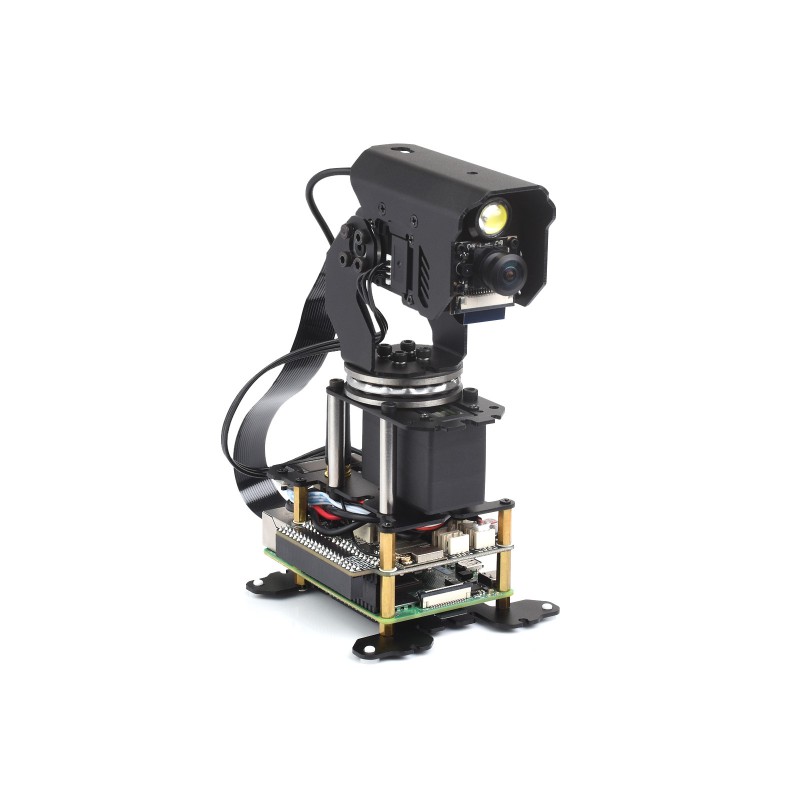

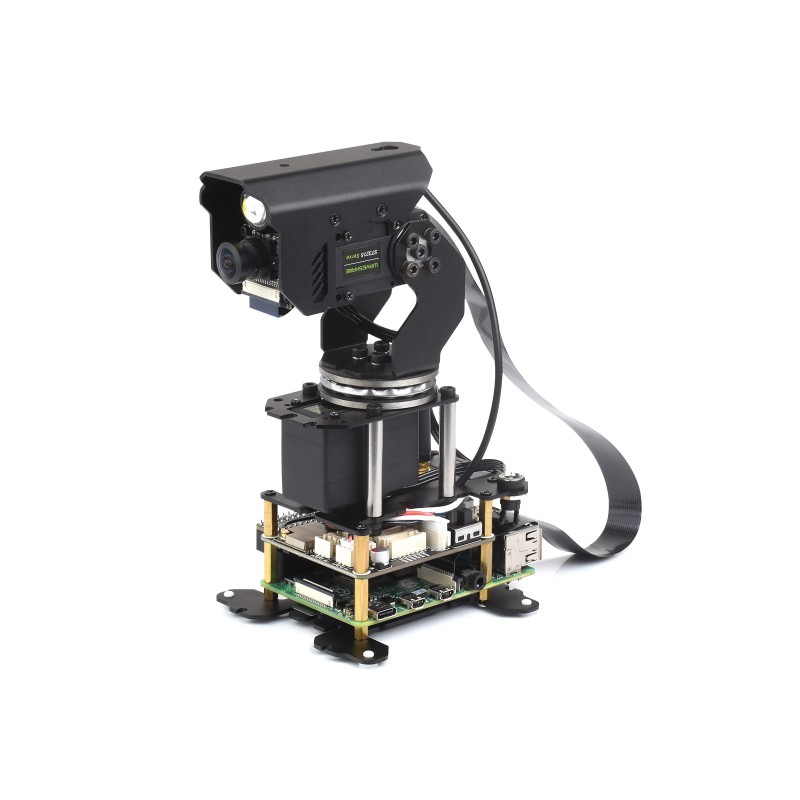

Waveshare 360° Omnidirectional High-Torque 2-Axis Expandable Pan-Tilt Camera Module Serial Bus Servos for Raspberry Pi 4B/5
Waveshare 360° Omnidirectional High-Torque 2-Axis Expandable Pan-Tilt Camera Module Serial Bus Servos for Raspberry Pi 4B/5

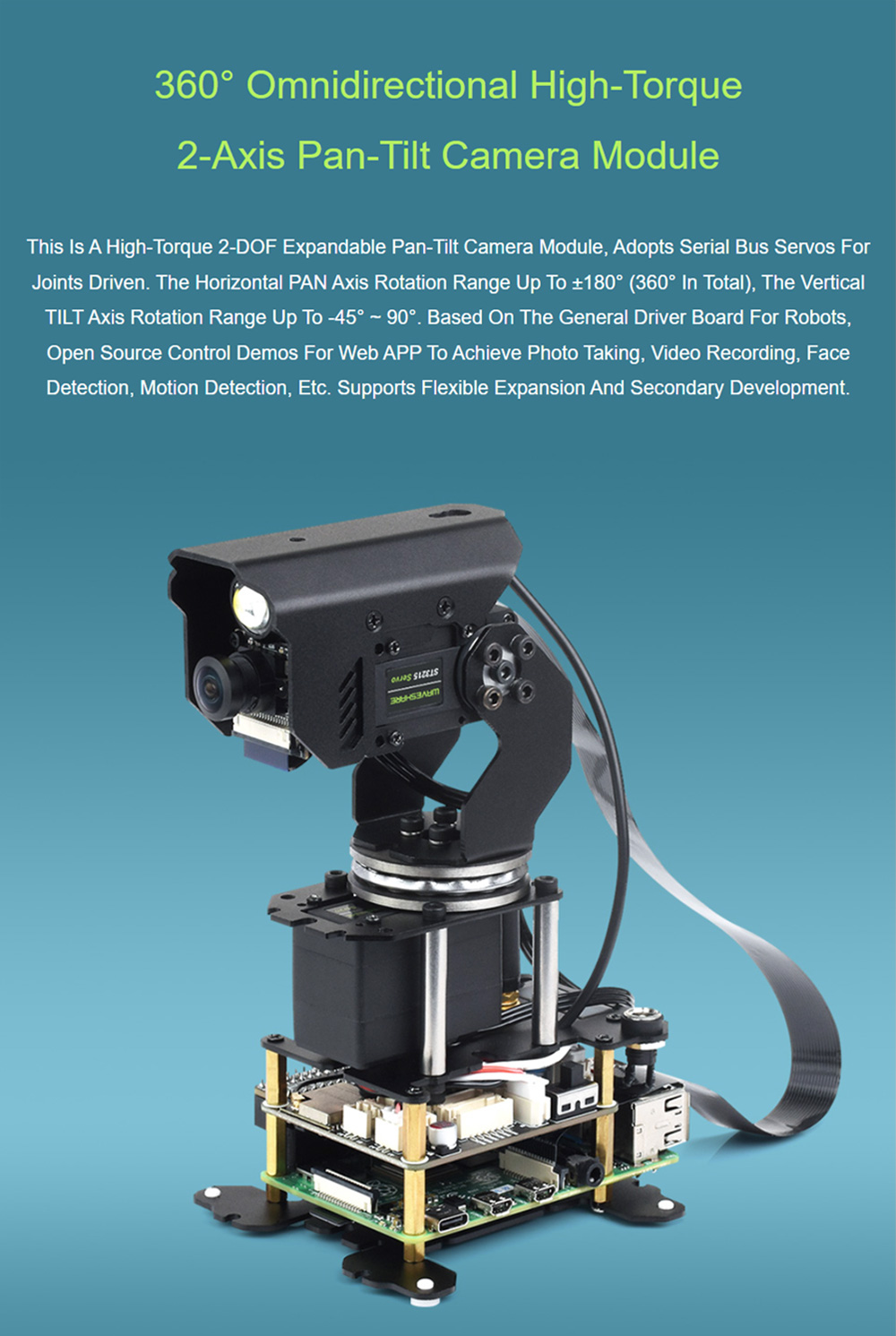

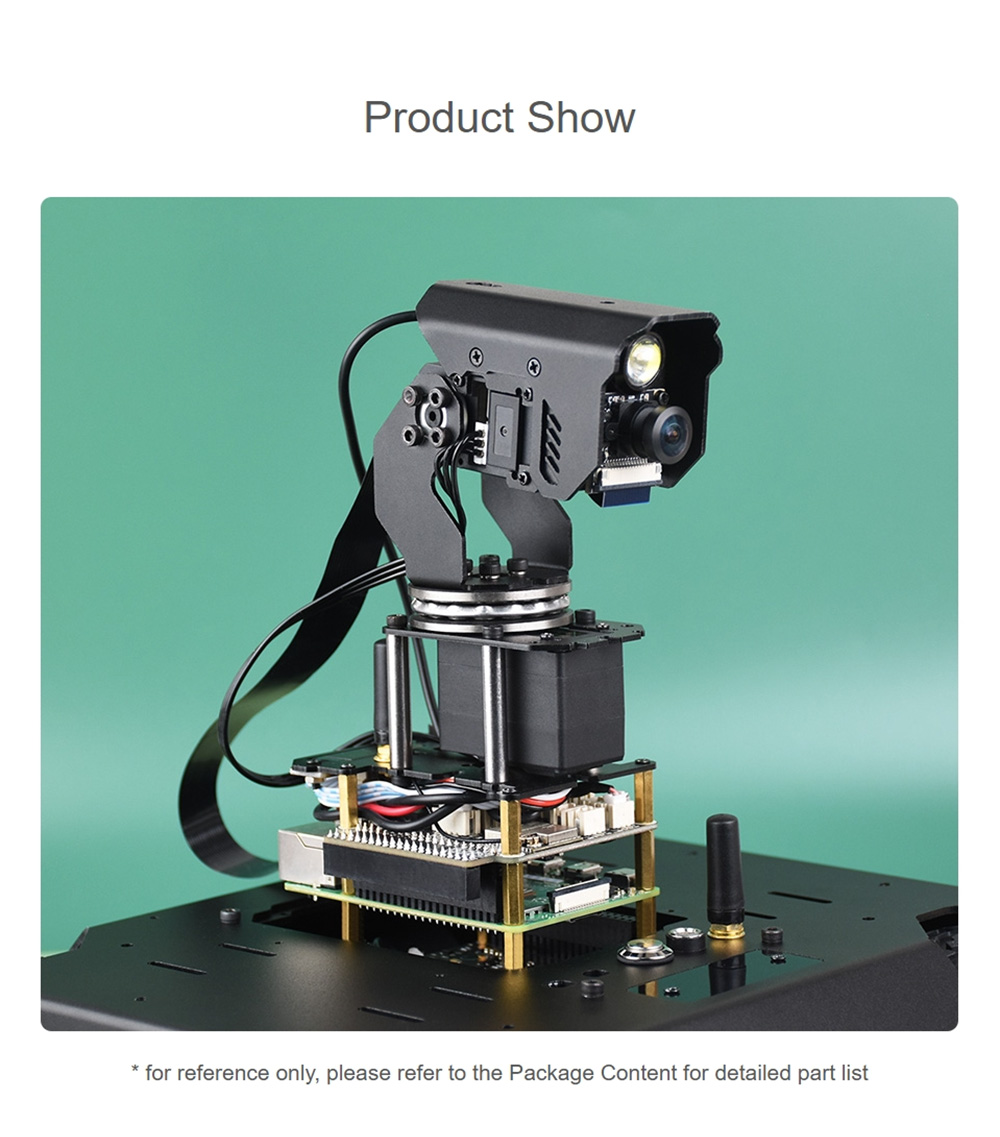

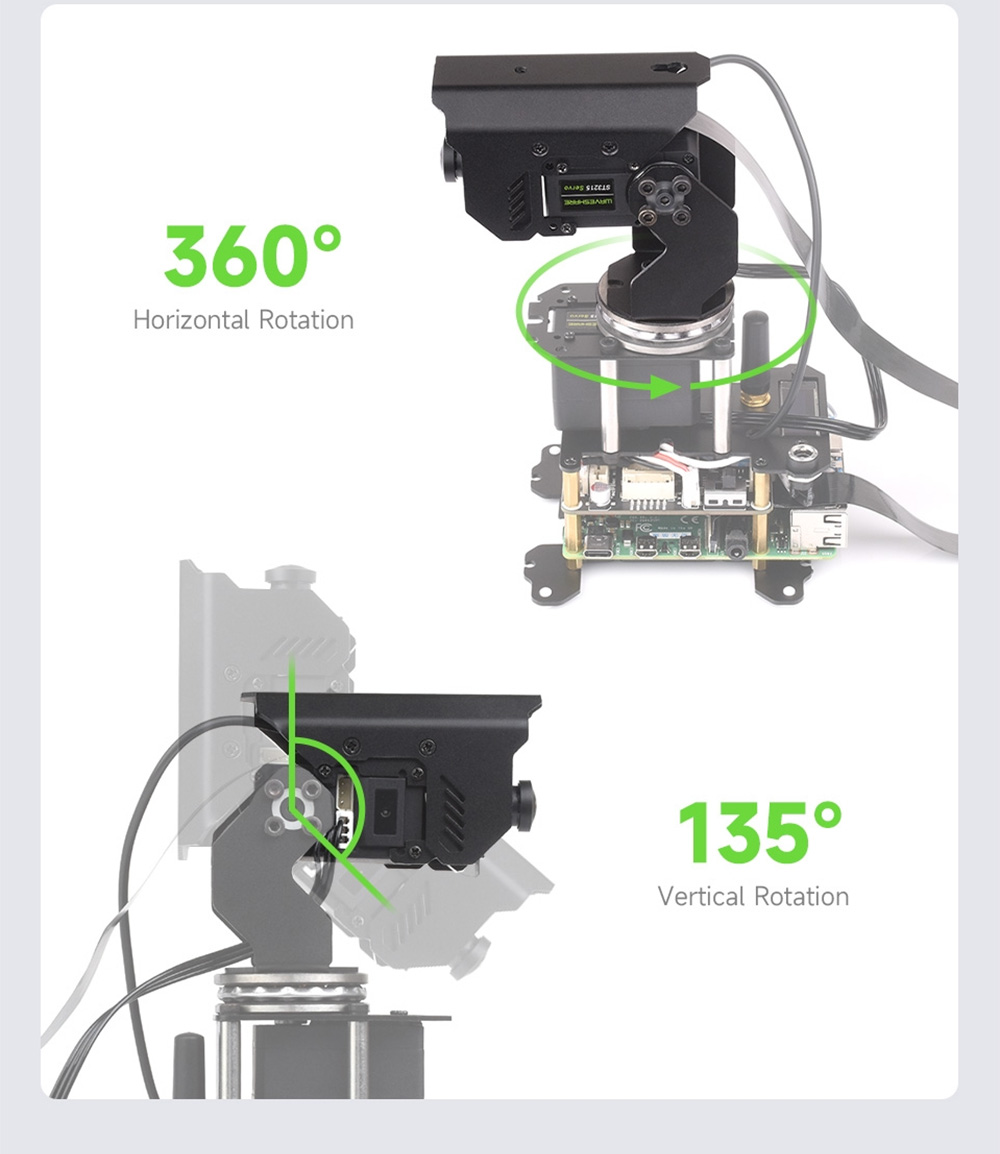

360°Omnidirectional High-Torque 2-Axis Expandable Pan-Tilt Camera Module, Driven By Serial Bus Servos, Based On General Driver Board For Robots, Multiple Expansion Methods, Suitable For Raspberry Pi 4B / 5
Model: 2-Axis Pan-Tilt Camera Module
SKU: 24984

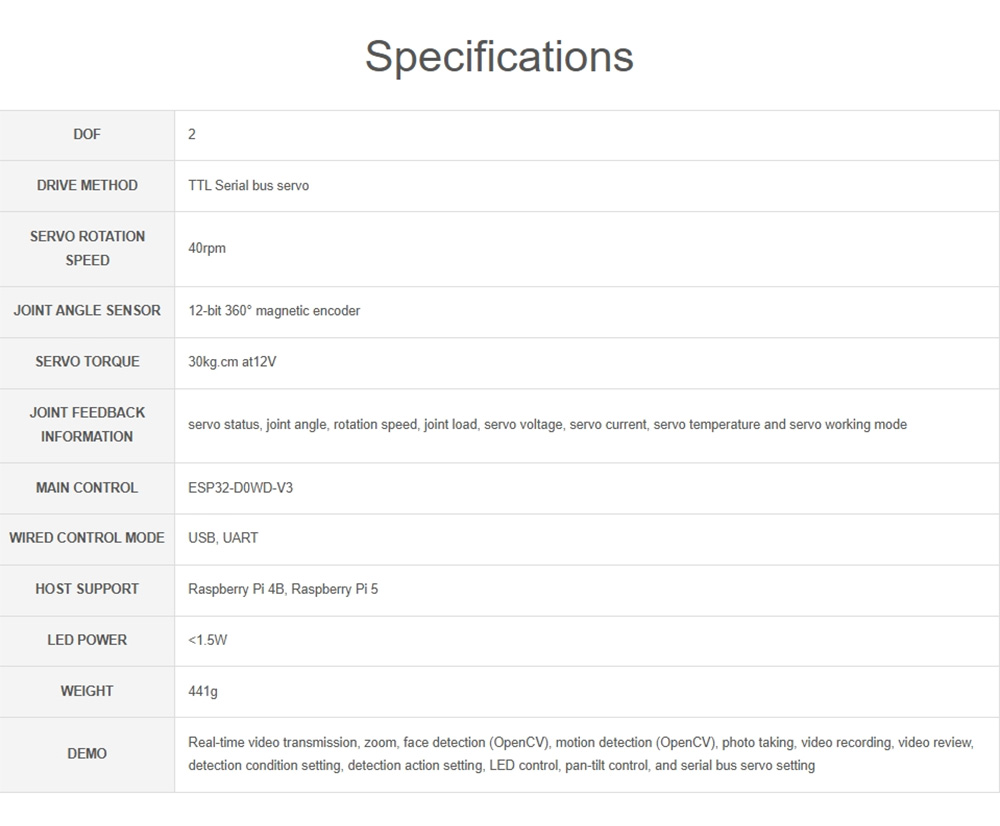

DOF: 2
Drive Method: TTL Serial bus servo
Servo Rotation Speed: 40rpm

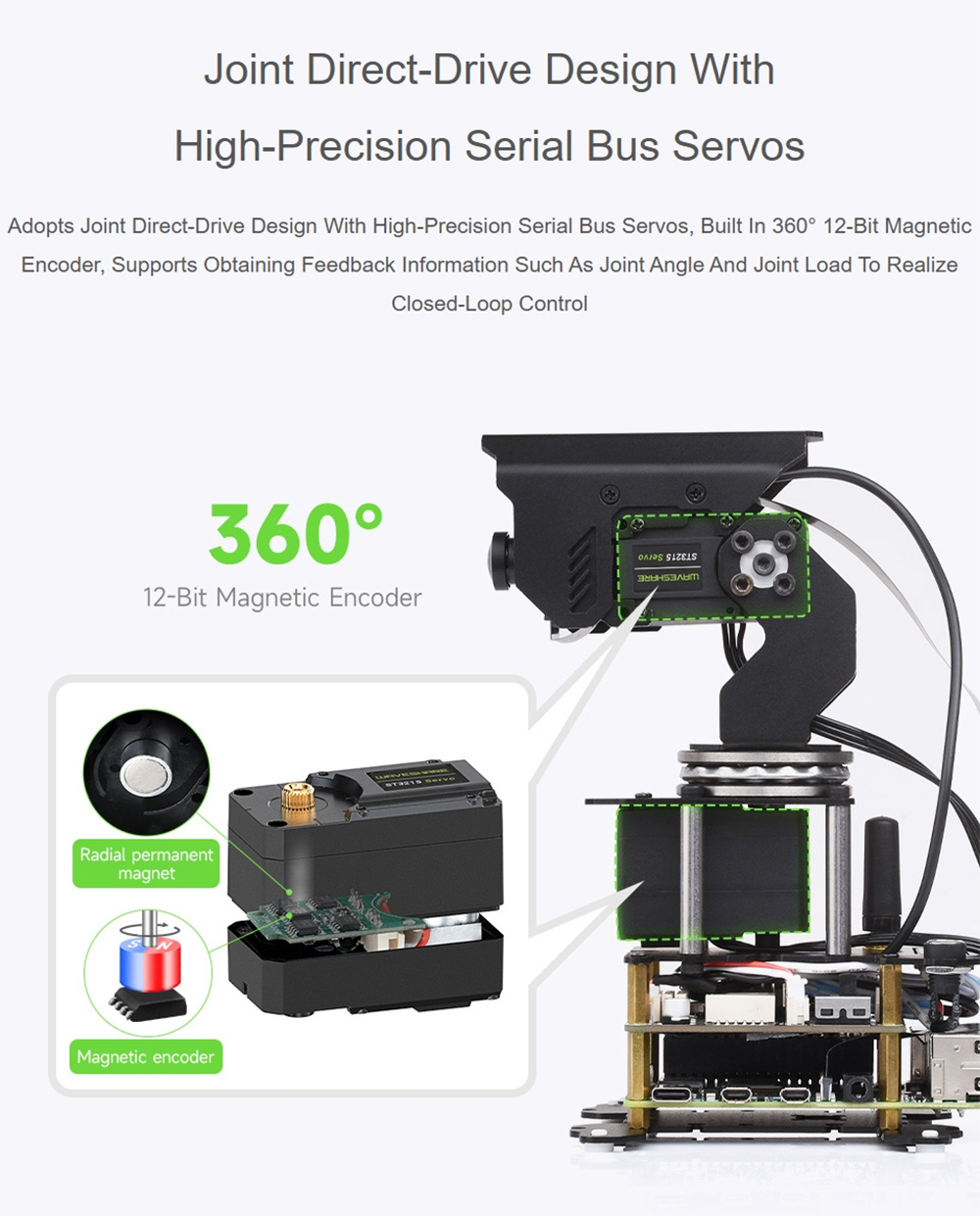

Joint Angle Sensor: 12-bit 360° magnetic encoder

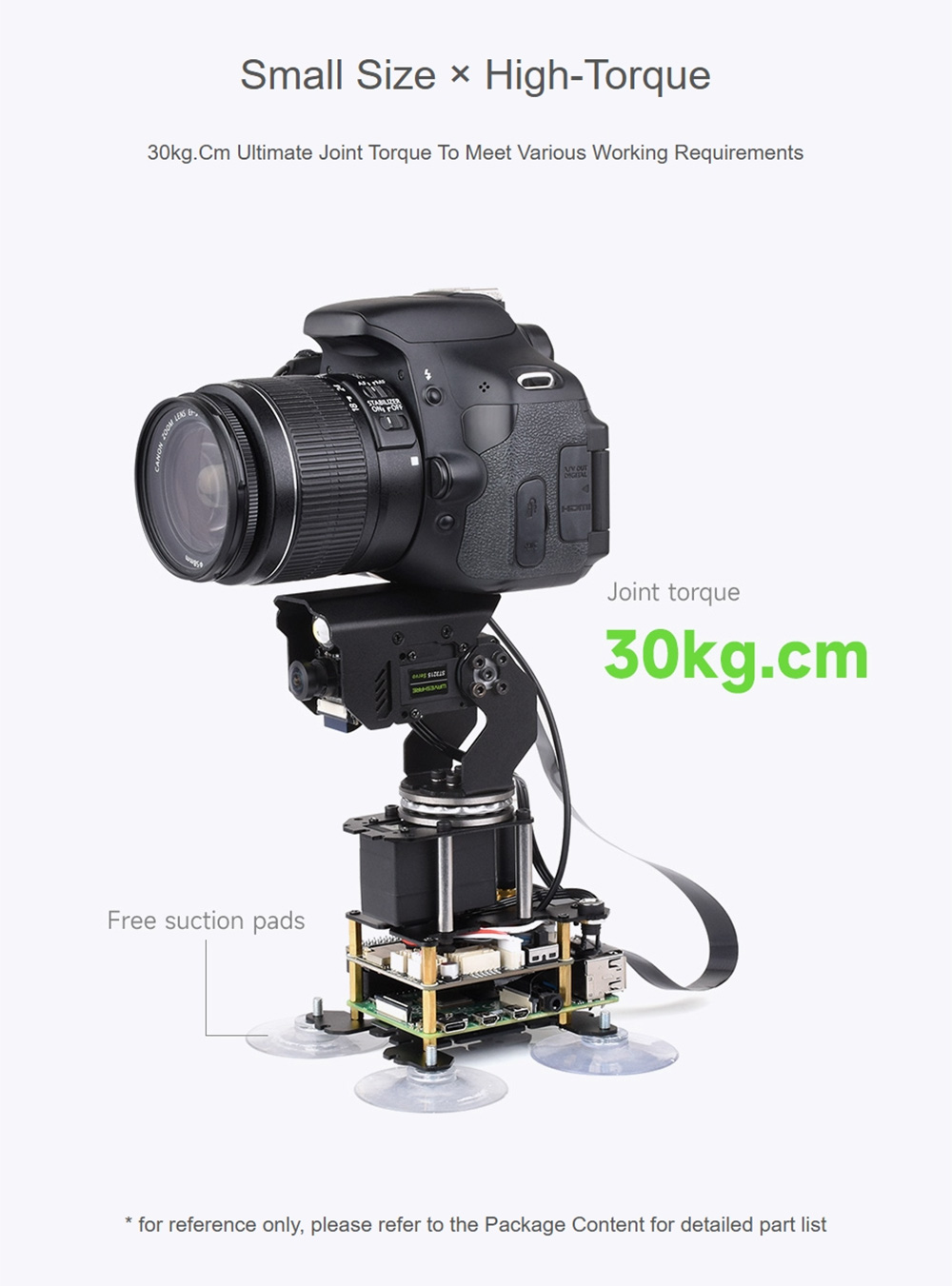

Servo Torque: 30kg.cm at 12V
Joint Feedback Information: servo status, joint angle, rotation speed, joint load, servo voltage, servo current, servo temperature and servo working mode
Main Control: ESP32-D0WD-V3
Wired Control Mode: USB, UART

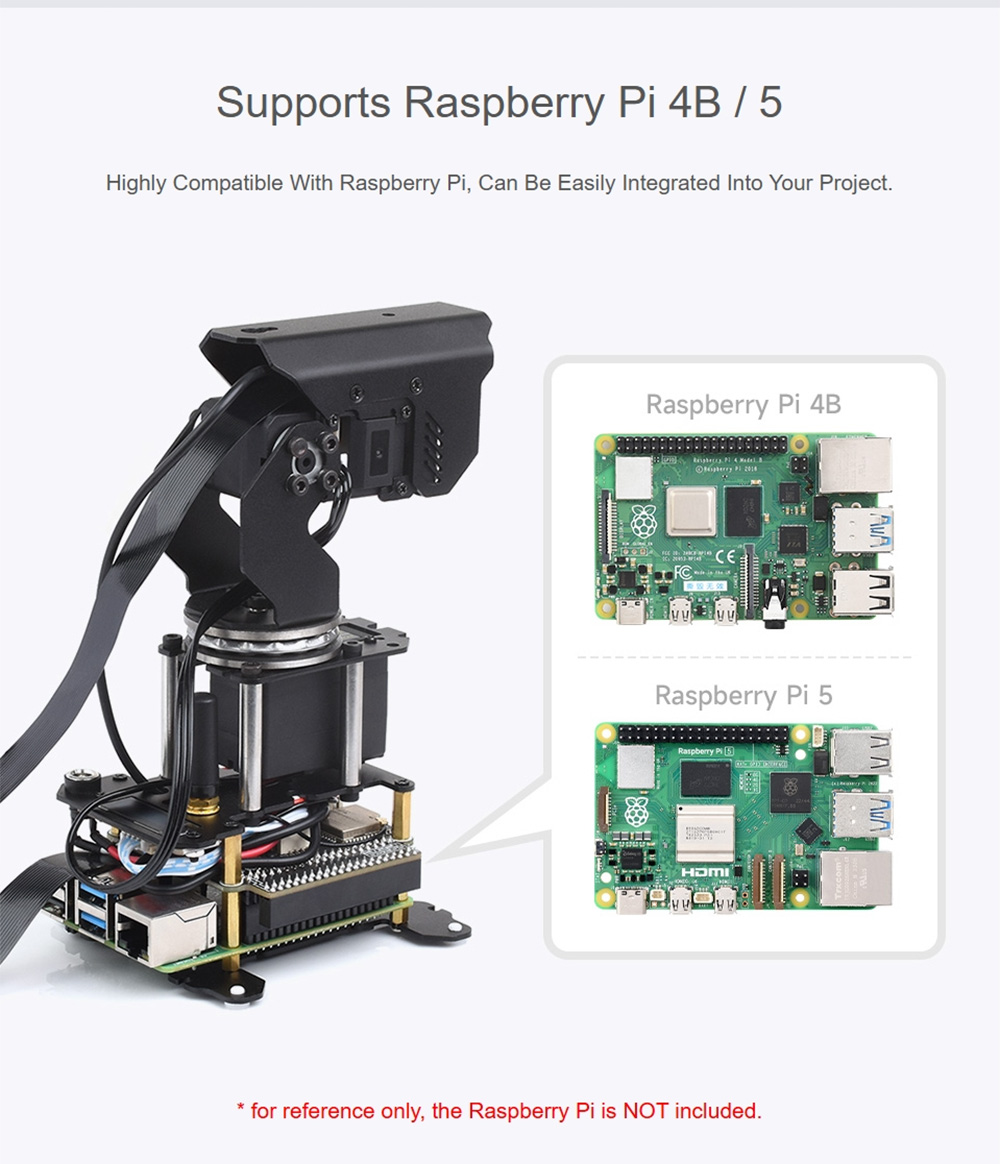

Host Support: Raspberry Pi 4B, Raspberry Pi 5

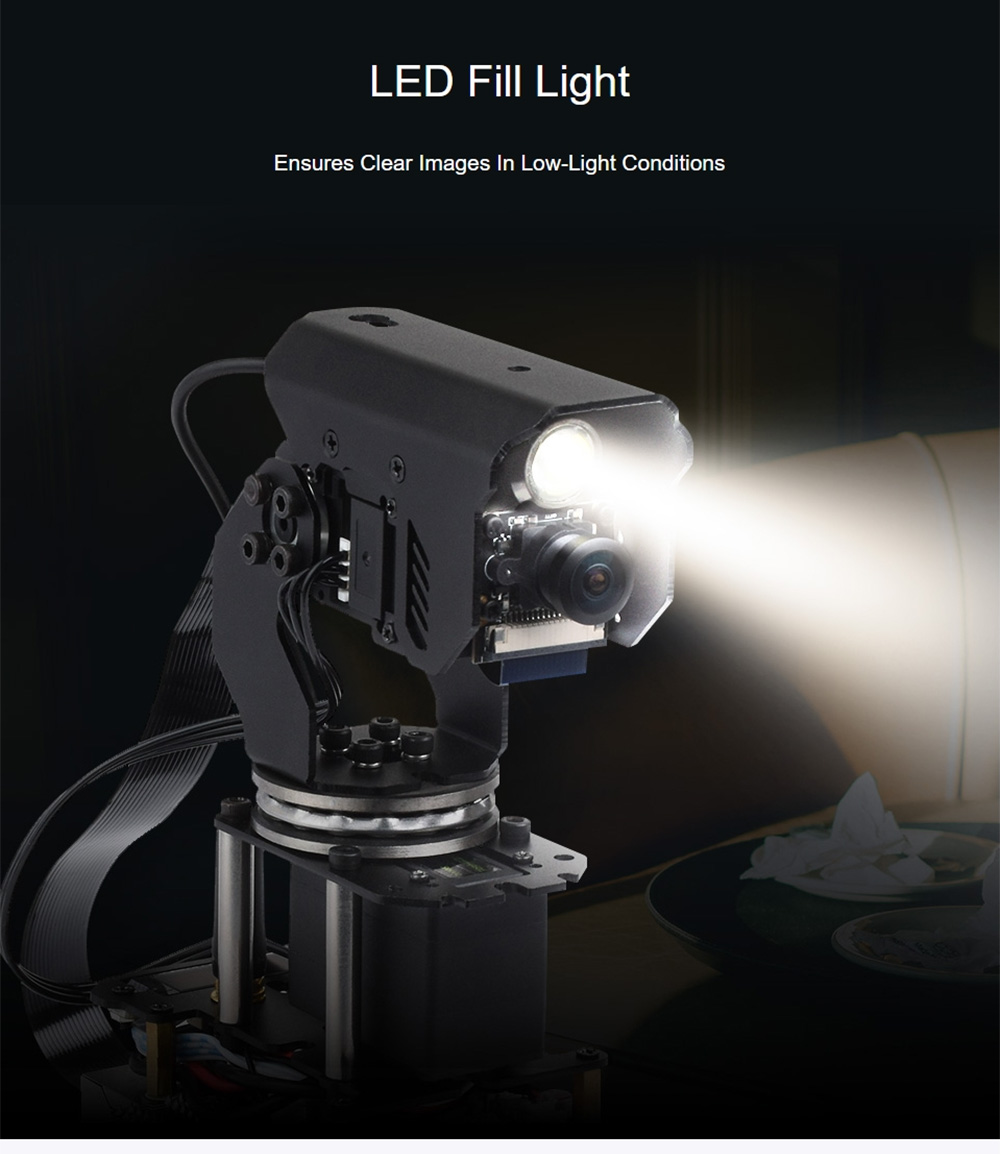

LED Power: <1.5W
Weight: 441g

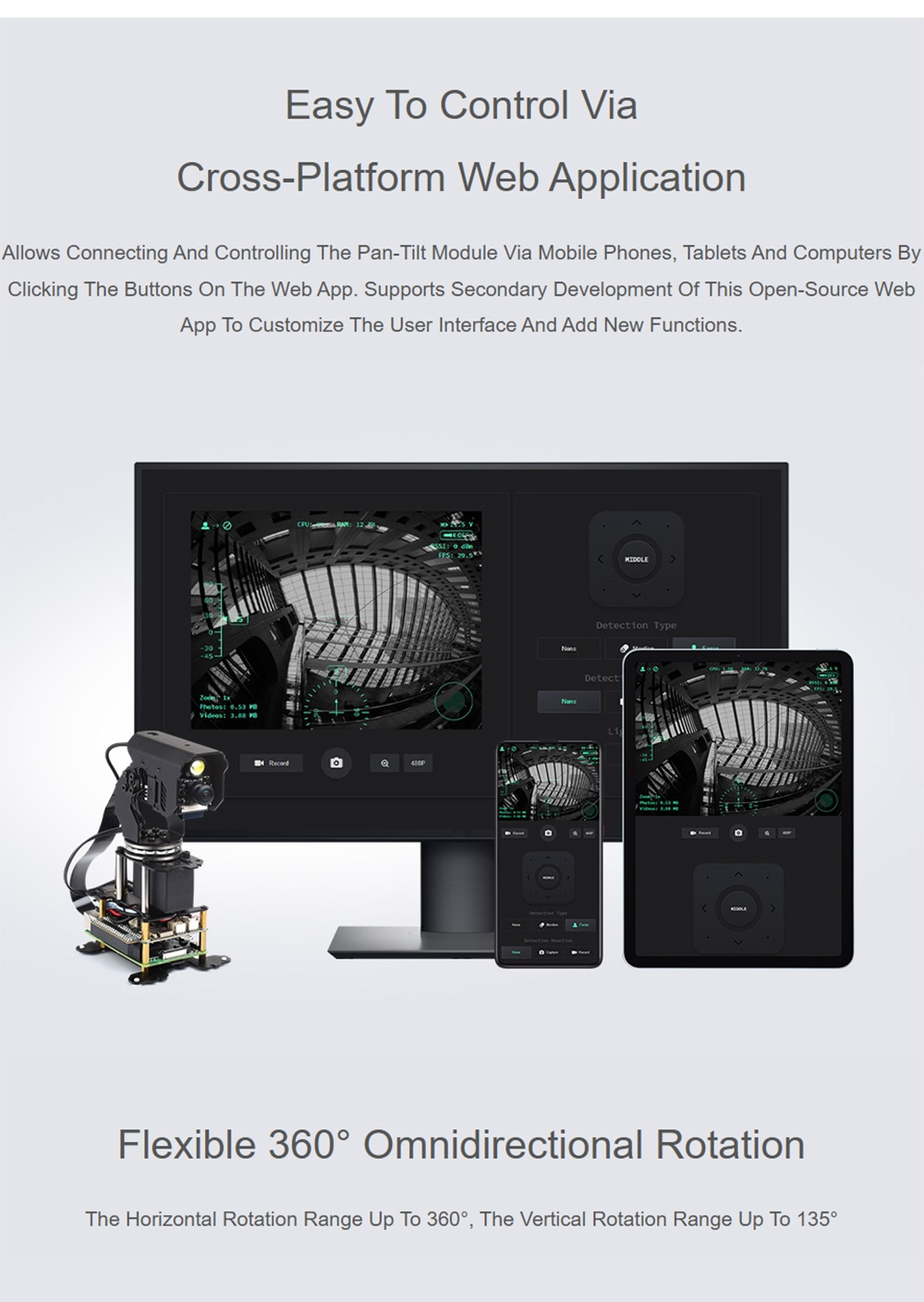

Demo: Real-time video transmission, zoom, face detection (OpenCV), motion detection (OpenCV), photo taking, video recording, video review, detection condition setting, detection action setting, LED control, pan-tilt control, and serial bus servo setting

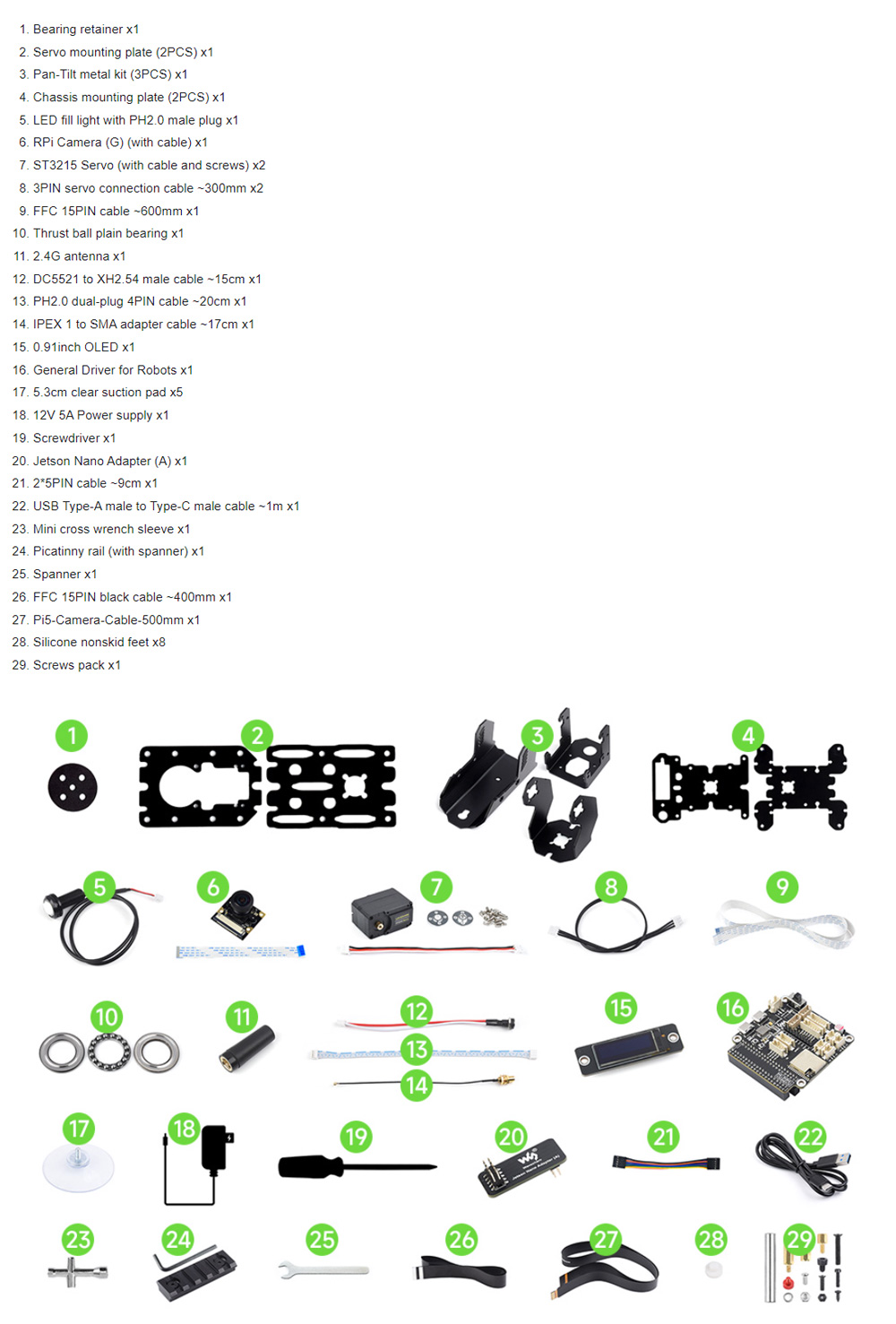

Bearing retainer x1
Servo mounting plate (2PCS) x1
Pan-Tilt metal kit (3PCS) x1
Chassis mounting plate (2PCS) x1
LED fill light with PH2.0 male plug x1
RPi Camera (G) (with cable) x1
ST3215 Servo (with cable and screws) x2
3PIN servo connection cable ~300mm x2
FFC 15PIN cable ~600mm x1
Thrust ball plain bearing x1
2.4G antenna x1
DC5521 to XH2.54 male cable ~15cm x1
PH2.0 dual-plug 4PIN cable ~20cm x1
IPEX 1 to SMA adapter cable ~17cm x1
0.91inch OLED x1
General Driver for Robots x1
5.3cm clear suction pad x5
12V 5A Power supply x1
Screwdriver x1
Jetson Nano Adapter (A) x1
2*5PIN cable ~9cm x1
USB Type-A male to Type-C male cable ~1m x1
Mini cross wrench sleeve x1

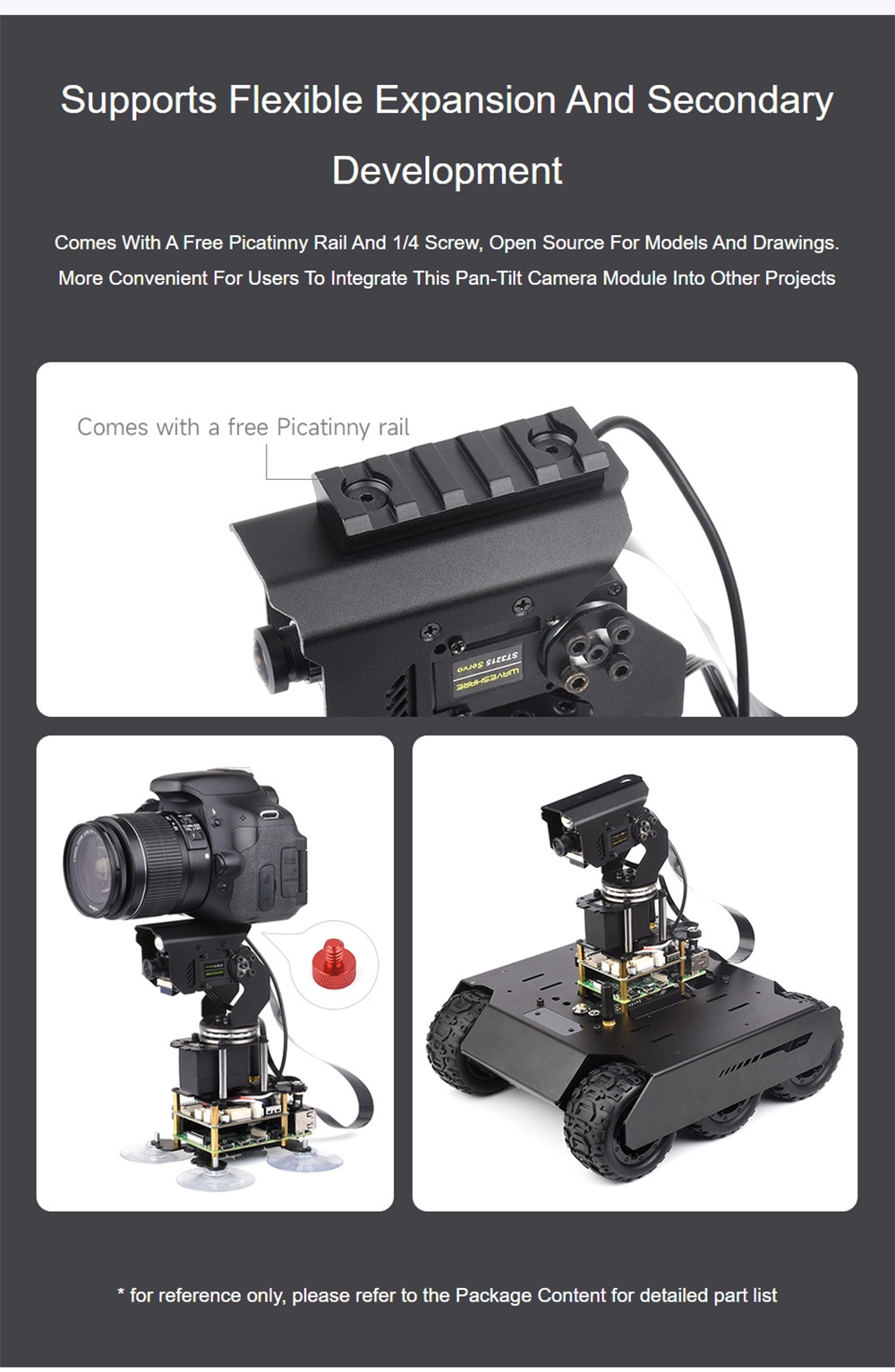

Picatinny rail (with spanner) x1
Spanner x1
FFC 15PIN black cable ~400mm x1
Pi5-Camera-Cable-500mm x1
Silicone nonskid feet x8
Screws pack x1
